Design patterns and computer architecture

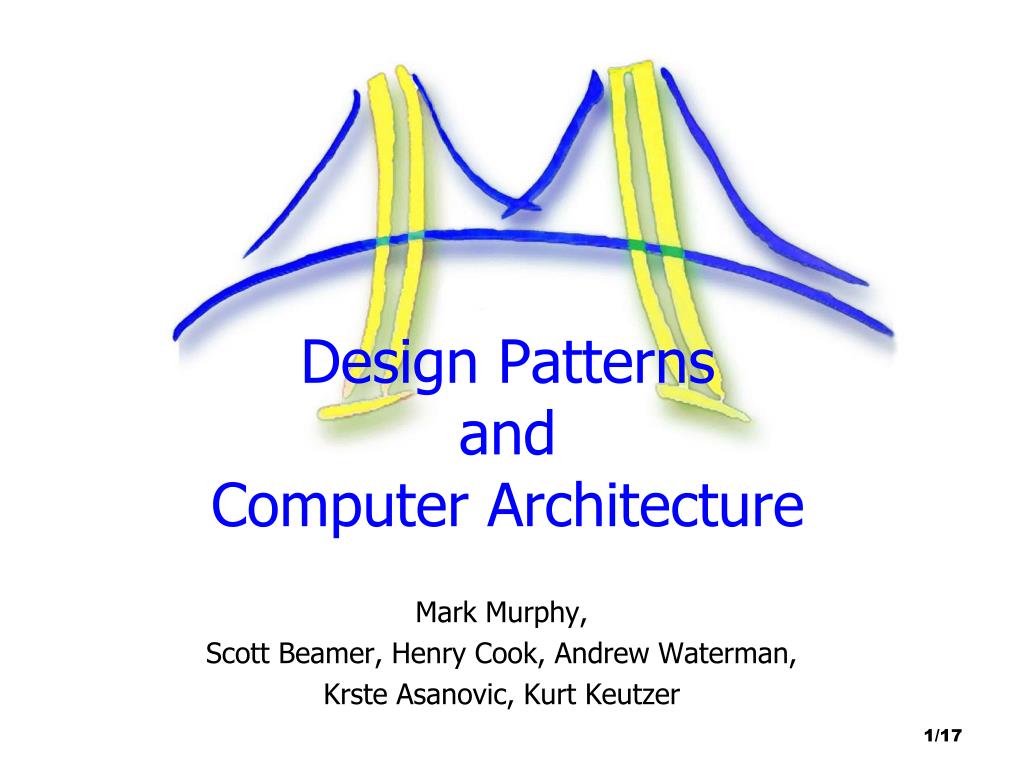

Design PatternsandComputer Architecture

Mark Murphy,

Scott Beamer, Henry Cook, Andrew Waterman,

Krste Asanovic, Kurt Keutzer


Design patterns and architecture

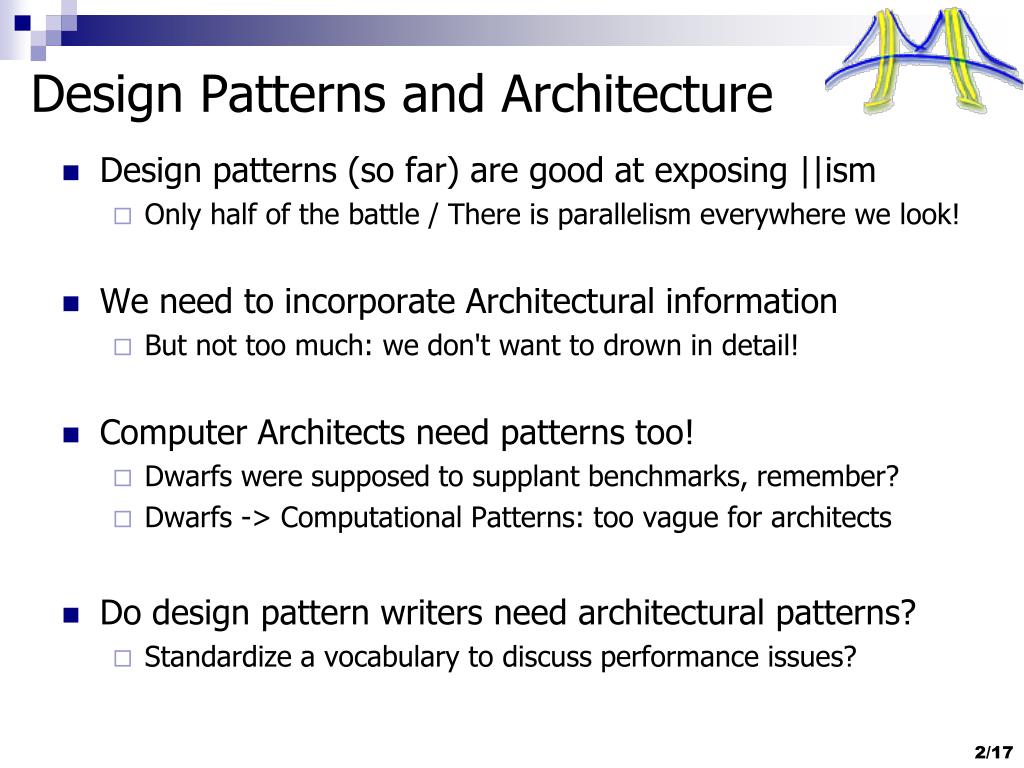

Design Patterns and Architecture

  • Design patterns (so far) are good at exposing ||ism

    • Only half of the battle / There is parallelism everywhere we look!

  • We need to incorporate Architectural information

    • But not too much: we don't want to drown in detail!

  • Computer Architects need patterns too!

    • Dwarfs were supposed to supplant benchmarks, remember?

    • Dwarfs -> Computational Patterns: too vague for architects

  • Do design pattern writers need architectural patterns?

    • Standardize a vocabulary to discuss performance issues?


Work in progress
Work In Progress

The point of this talk is not to present any results

I want your input on result of brainstorming sessions between myself and the Architecture research group

There are 40 minutes for this -- ~20 of me presenting slides and the rest for discussion


Pattern language exposes ism

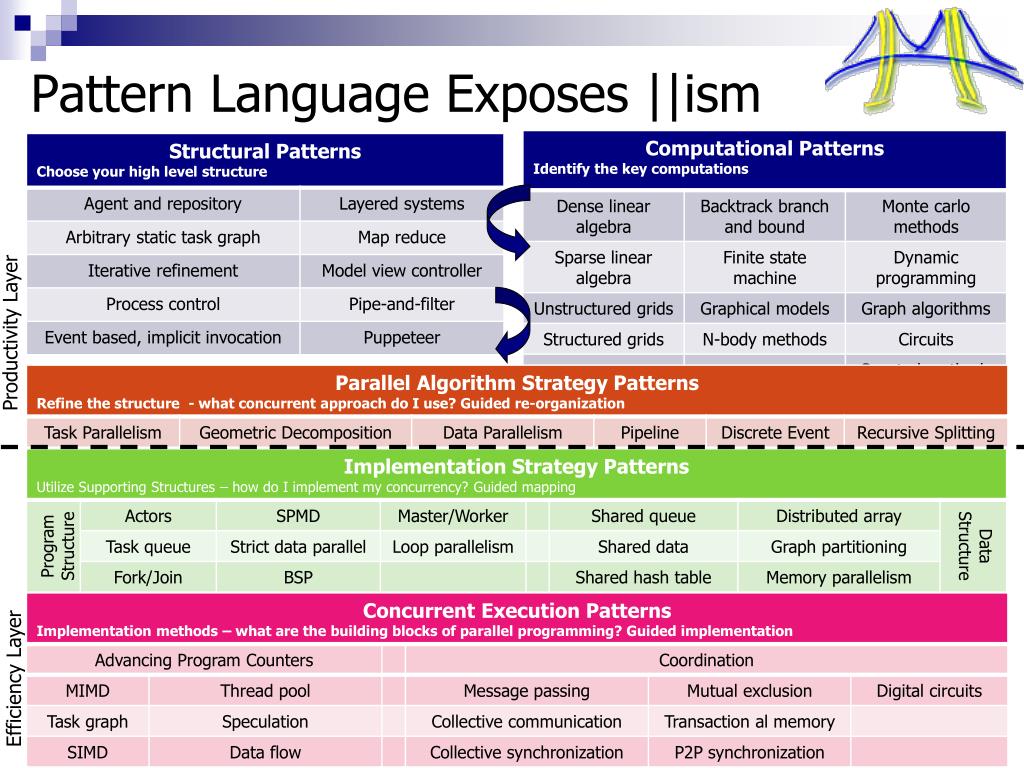

Pattern Language Exposes ||ism

Applications

Productivity Layer

Efficiency Layer


Pattern language exposes ism1
Pattern Language Exposes ||ism

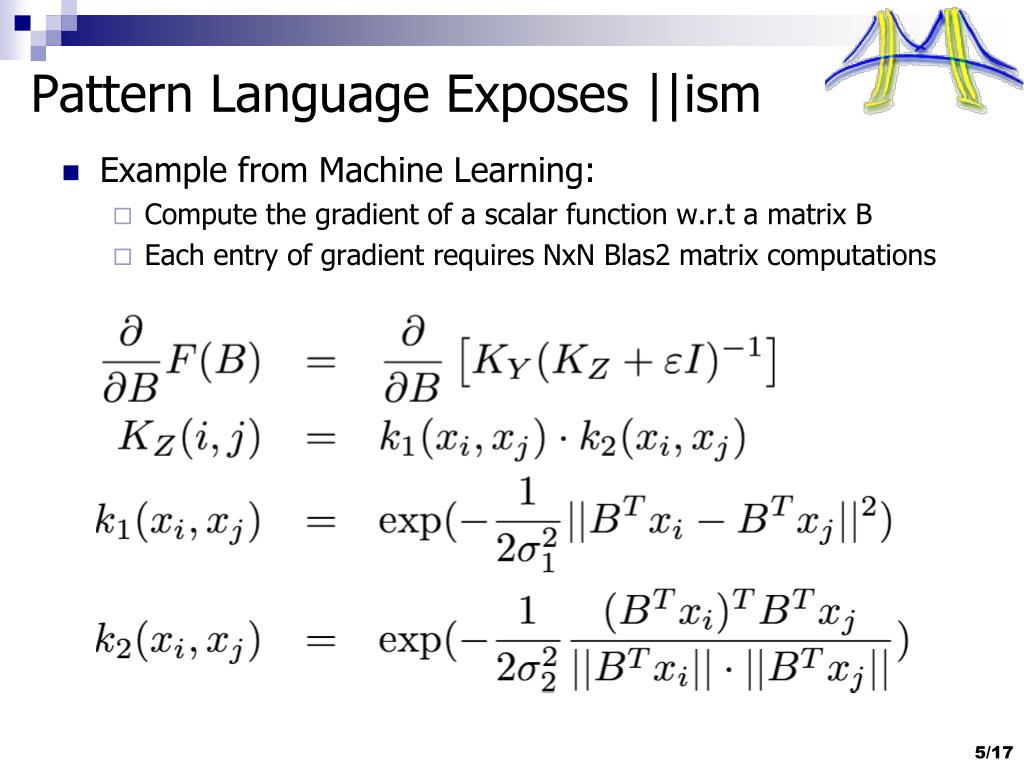

  • Example from Machine Learning:

    • Compute the gradient of a scalar function w.r.t a matrix B

    • Each entry of gradient requires NxN Blas2 matrix computations


Pattern language exposes ism2
Pattern Language Exposes ||ism

  • Example from Quantum Chemistry:

    • Need to compute a matrix <# basis functions> x <# electrons>

    • Each entry of matrix requires evaluating a number of functions, and summing the results


Pattern language exposes ism3
Pattern Language Exposes ||ism

  • In both examples, we have (at least) two levels of ||ism

    • Many entries in matrix (Task Parallel)

    • Much work in computing each entry (Map/Reduce Data Parallel)

  • The pattern language can pretty much tell us this

  • However, the right parallel program for a GPU-like manycore processor looks different in the two cases

    • for the Machine Learning problem, only parallelize the computation of each matrix element

    • for the Chemistry problem, parallelize at both levels

  • Knowing this requires understanding that GPU-like processors implement fine-grained data parallelism best


Sw writers understand hw arch
SW writers understand HW arch?

  • There has been a sentiment that the pattern language should be architecture-agnostic

  • Architectural savvy required for decisions like these.

  • Otherwise, the options are all unattractive:

    • Implement every possible parallelization, choose best?

    • ...

    • Choose one parallelization, hope it works?

    • ...

    • Ask Bryan to parallelize your code?

  • But clearly we can't write a pattern language around GTX200, just as we can't write it around LRB or Nehalem


Performance models
Performance Models?

l-latency network

  • Abstract, simplistic models to capture the essence of low-level performance issues.

  • Extant example: logP for distributed memory machines

    • l -- Network Latency for message

    • o -- CPU overhead of sending a message

    • g -- gap = inverse of NIC bandwidth

    • P -- number of processors


Performance models1
Performance Models?

I = 4

P = 8

  • Could imagine a similar model for current manycores.

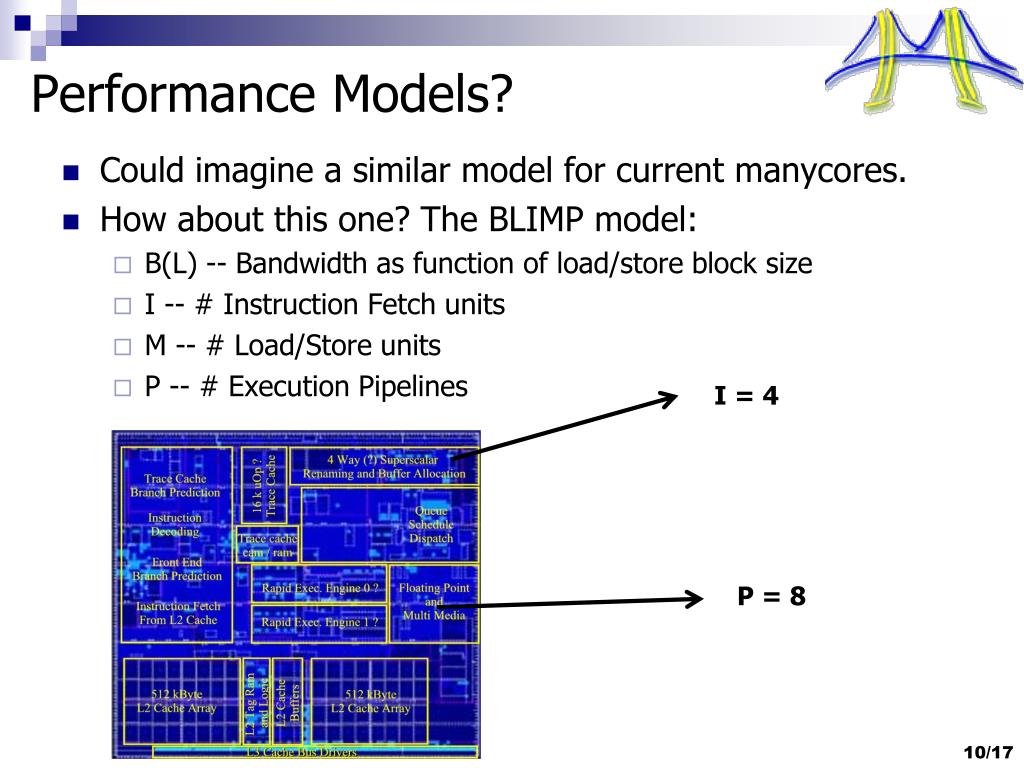

  • How about this one? The BLIMP model:

    • B(L) -- Bandwidth as function of load/store block size

    • I -- # Instruction Fetch units

    • M -- # Load/Store units

    • P -- # Execution Pipelines


Performance models2
Performance Models?

  • Problems are obvious

    • Sure -- you can analyze the FFT algorithm and Matrix Mulitply

    • But what about my code?

  • Can't handle data dependence in computational intensity

  • Example: SIFT Feature Extraction

    • Compute a "scale space"

    • For each maximum in scale space:

      • Do a whole bunch of work

    • How many maxima are there?

  • "Interesting" architectural features cannot be described

  • Still .... better than nothing?


Design patterns and architecture1

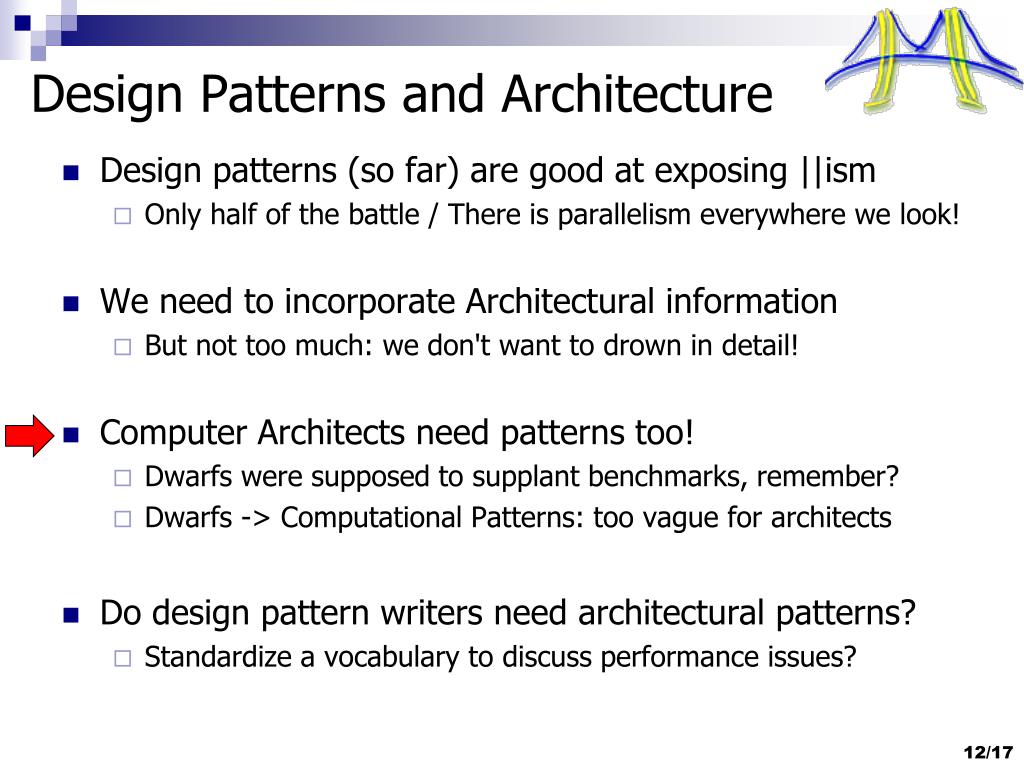

Design Patterns and Architecture

  • Design patterns (so far) are good at exposing ||ism

    • Only half of the battle / There is parallelism everywhere we look!

  • We need to incorporate Architectural information

    • But not too much: we don't want to drown in detail!

  • Computer Architects need patterns too!

    • Dwarfs were supposed to supplant benchmarks, remember?

    • Dwarfs -> Computational Patterns: too vague for architects

  • Do design pattern writers need architectural patterns?

    • Standardize a vocabulary to discuss performance issues?

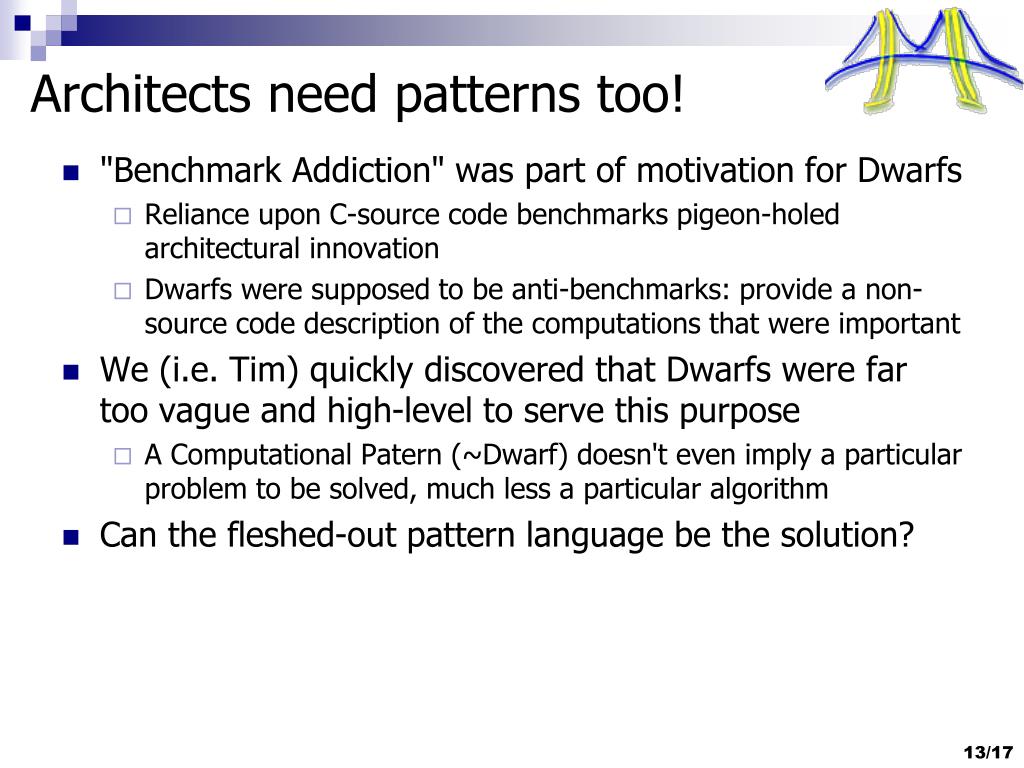

Architects need patterns too
Architects need patterns too!

  • "Benchmark Addiction" was part of motivation for Dwarfs

    • Reliance upon C-source code benchmarks pigeon-holed architectural innovation

    • Dwarfs were supposed to be anti-benchmarks: provide a non-source code description of the computations that were important

  • We (i.e. Tim) quickly discovered that Dwarfs were far too vague and high-level to serve this purpose

    • A Computational Patern (~Dwarf) doesn't even imply a particular problem to be solved, much less a particular algorithm

  • Can the fleshed-out pattern language be the solution?


Anti benchmarks

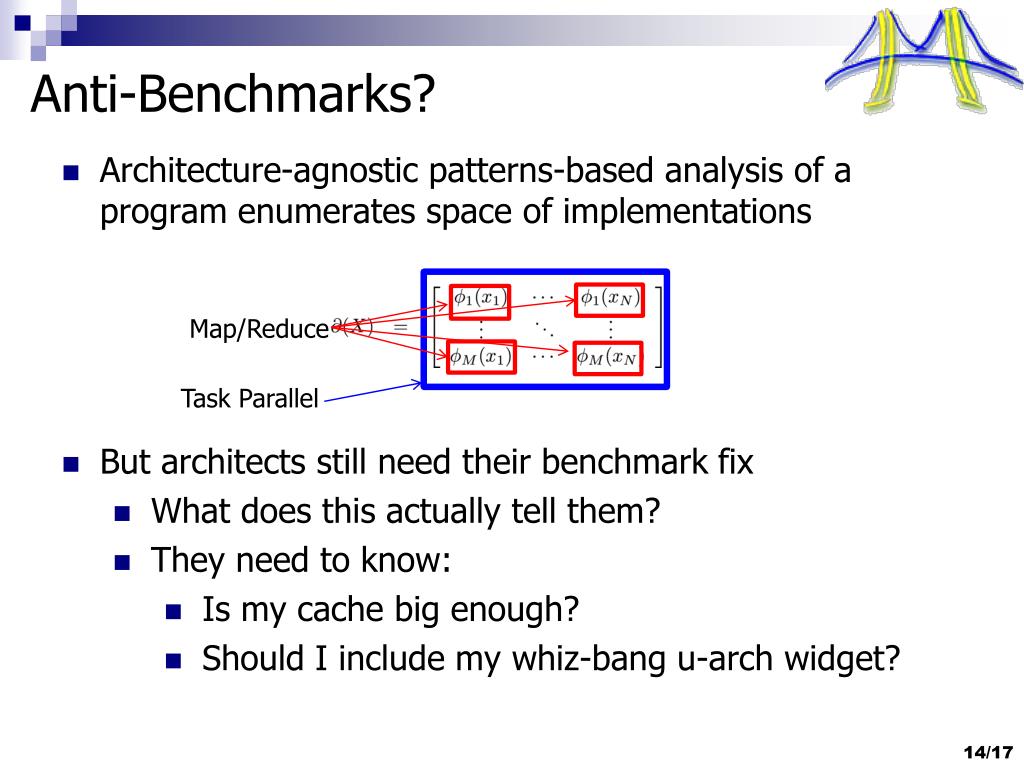

Anti-Benchmarks?

Map/Reduce

Task Parallel

  • But architects still need their benchmark fix

    • What does this actually tell them?

    • They need to know:

      • Is my cache big enough?

      • Should I include my whiz-bang u-arch widget?

Architecture-agnostic patterns-based analysis of a program enumerates space of implementations


Anti benchmarks1
Anti-Benchmarks

Suppose that the pattern language included somehow the architectural savvy needed to make every possible implementation decision

What happens when the architect changes the rules?


Multiple levels of description
Multiple Levels of Description

Level 0: A patterns-based description

Level 1: An "Abstract Machine" model?

Level 2: A performance model?

Level 3: A cycle-accurate simulation?

Level 4: A joule-accurate simulation?


Abstract machines
Abstract Machines

  • Alternate proposal for performance model (K. Asanovic)

    • Given a microarchitectural widget, how does its presence/absence affect the performance of a program?

  • Map the program to two different machines (one with, one without the widget). How are the programs different?

    • Mapping process TBD. SEJITS?

  • Examples:

    • An "Infinite ILP" machine. The superscalar analogue of PRAM

    • An Infinite Vector-width machine.

    • An infinite thread machine


Design patterns and architecture2

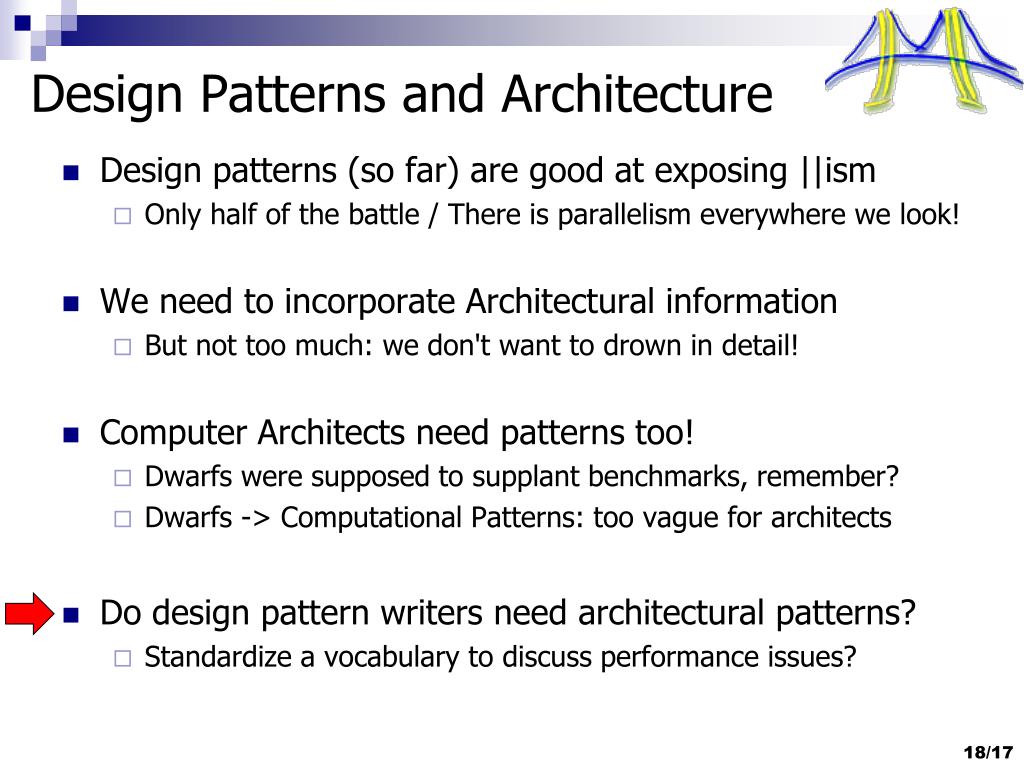

Design Patterns and Architecture

  • Design patterns (so far) are good at exposing ||ism

    • Only half of the battle / There is parallelism everywhere we look!

  • We need to incorporate Architectural information

    • But not too much: we don't want to drown in detail!

  • Computer Architects need patterns too!

    • Dwarfs were supposed to supplant benchmarks, remember?

    • Dwarfs -> Computational Patterns: too vague for architects

  • Do design pattern writers need architectural patterns?

    • Standardize a vocabulary to discuss performance issues?


Architectural meta patterns
Architectural Meta-Patterns

Hopefully by now I've conveyed my concern about the lack of architectural / performance information in design patterns

Also, hopefully it is clear that I don't know the answer

Maybe someone can write me a pattern?

How should I tell you what I know about architecture?
