Stars

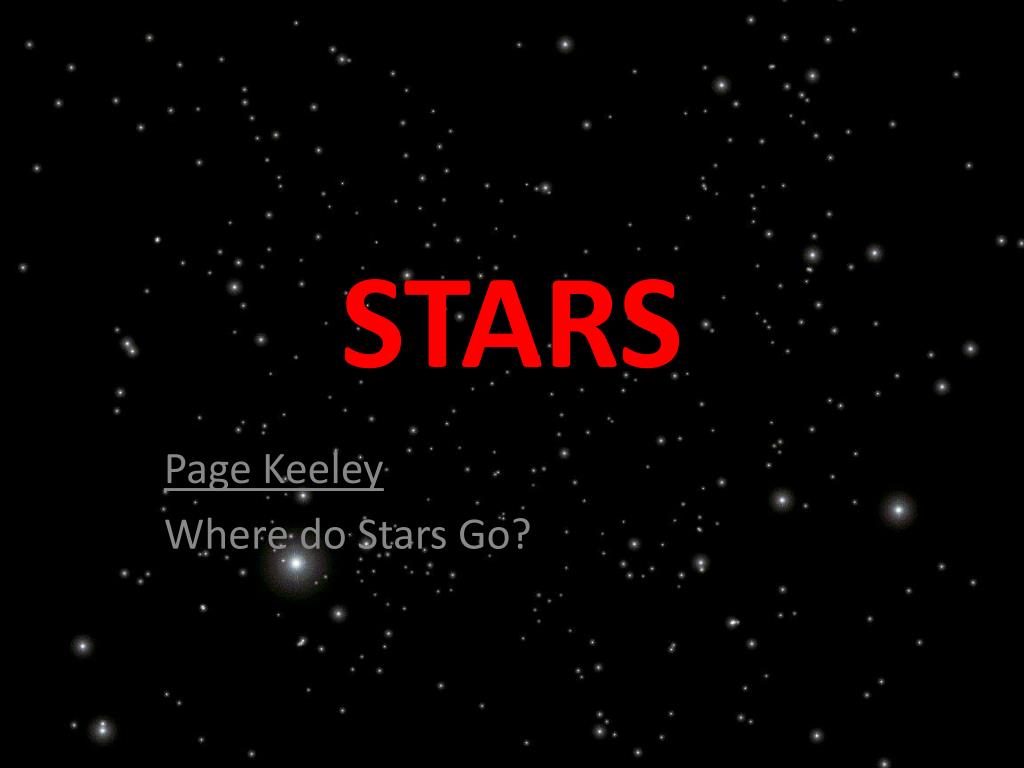

STARS

Page Keeley

Where do Stars Go?


Stars

Learning goal:

Explain the physical properties of stars.


Think about it

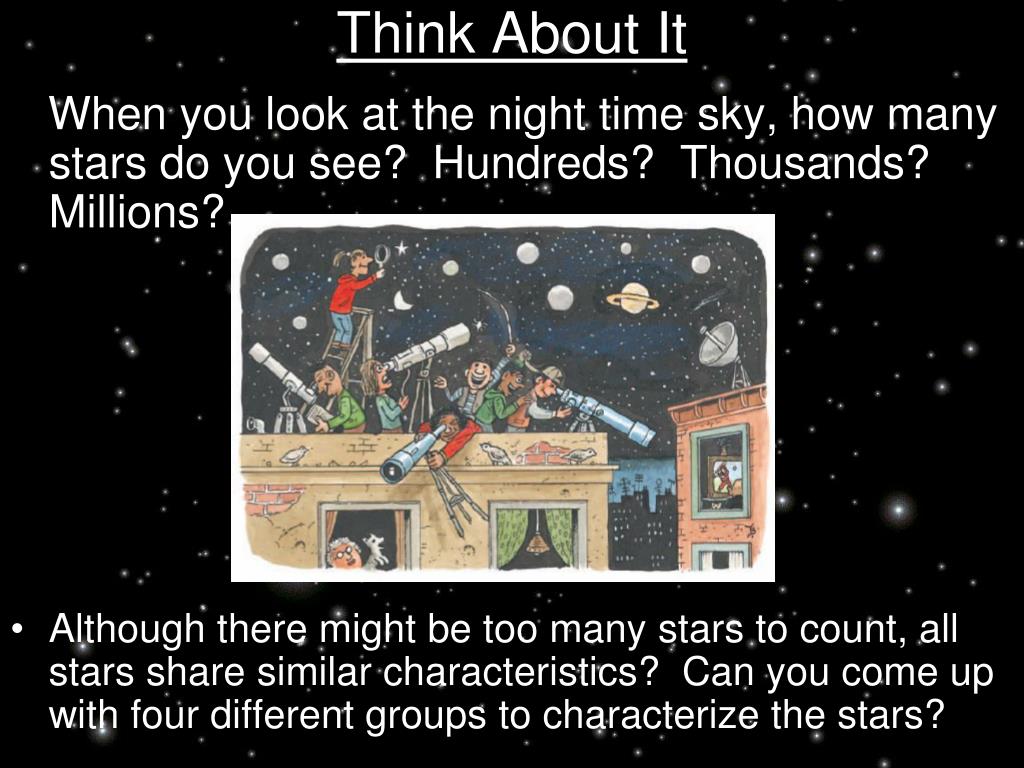

Think About It

When you look at the night time sky, how many stars do you see? Hundreds? Thousands? Millions?

  • Although there might be too many stars to count, all stars share similar characteristics? Can you come up with four different groups to characterize the stars?


How are stars classified

How are stars classified?

  • Stars are classified according to their physical properties.

  • Color(Temperature)

  • Size

  • Distance from the Earth

  • Brightness – Apparent magnitude

    - Absolute magnitude


Color and temperature

Color and Temperature

  • Color reveals a star’s temperature

  • Hot stars appear blue (short wavelength)

  • Cool stars appear red (long wavelength)

  • Other colors in between like orange, yellow and white


Size of stars mass

Size of Stars (Mass)

  • Many stars come in pairs called “Binary Stars”

  • Binary stars rotate around each other

  • Scientists use this property to calculate mass of stars


Brightness of a star

Brightness of a star

Apparent magnitude: How bright a star looks/appears from Earth depends on

  • Its size

  • Its temperature

  • Its distance from Earth

    Absolute magnitude: how bright a star actually is.


Distances of stars from earth

Distances of Stars from Earth

  • Measured in:

  • Light years

  • Use Parallax angles (apparent change in position of an object when you look at it from opposite sides of Earth’s orbit).

  • The nearest stars have a larger parallax angle


Apparent and absolute star s magnitude lab

Apparent and Absolute Star’s Magnitude Lab


Star light star bright lab

Star light, Star bright Lab


How is a star born

How is a star born?

  • A star is born when the contracting gas and dust from a nebula become so dense and hot that nuclear fusion starts

  • Nuclear fusion takes place when hydrogen atoms fuse forming helium.

  • What is a nebula?


What determines how long a star will live

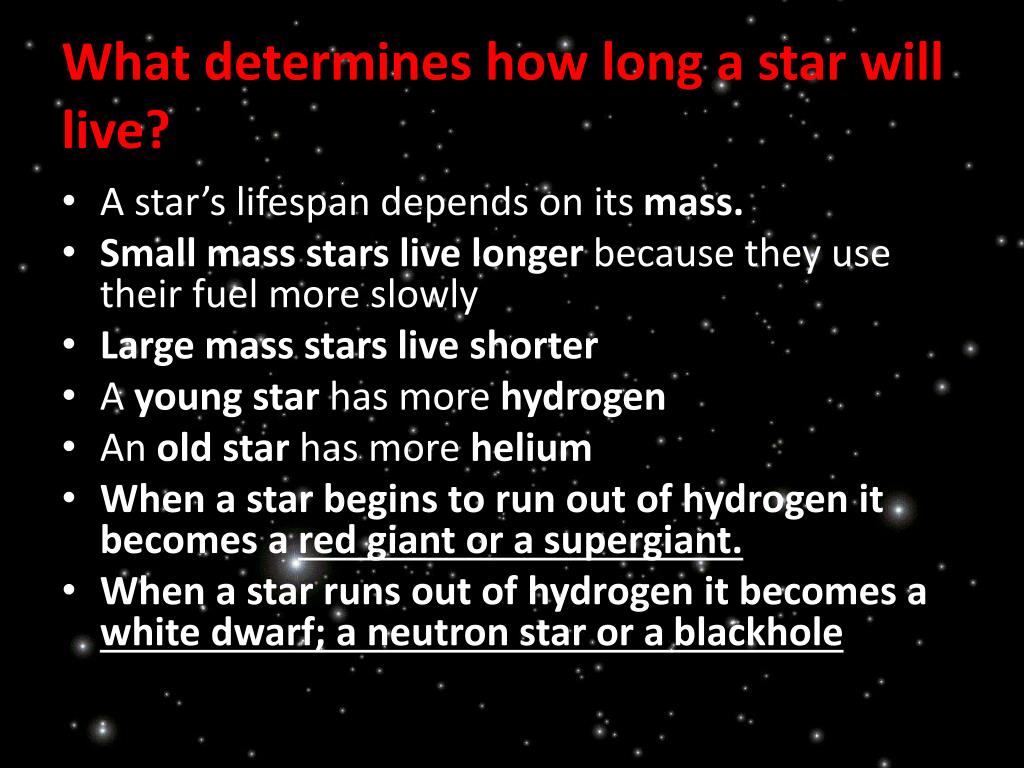

What determines how long a star will live?

  • A star’s lifespan depends on its mass.

  • Small mass stars live longer because they use their fuel more slowly

  • Large mass stars live shorter

  • A young star has more hydrogen

  • An old star has more helium

  • When a star begins to run out of hydrogen it becomes a red giant or a supergiant.

  • When a star runs out of hydrogen it becomes a white dwarf; a neutron star or a blackhole


Stars

Life Cycle of a Star


Life cycle of a star

Life Cycle of a Star

Prentice Hall page 710


H r diagram

H-R Diagram

  • A graph that shows relationship between absolute magnitude and temperature of stars.

  • About 90% of the stars are in the mainsequence stage

  • Hottest main sequence stars are the brightest and the coolest stars are the dimmest

  • Red Giants and Super Giants brightness is because of massive size, not temperature.

  • The Sun is in the main sequence stage


Stars

H-R diagram


Galaxies

Galaxies

  • A huge group of stars, dust and gas bound together by gravity.

    What are the main types of galaxies?

  • Spiral galaxies (Solar System is in a spiral galaxy called The Milky Way)

  • Elliptical galaxies

  • Irregular galaxies


Constellations

Constellations

  • A group of stars that form a picture


How can scientists determine whether a star is moving toward or away from the earth

How can scientists determine whether a star is moving toward or away from the Earth?

  • They use Doppler shifts

  • The light from a star that is moving away from Earth appears red (its waves become longer)

  • The light from a star that is moving towards Earth appears blue (its waves become shorter)


The expanding universe

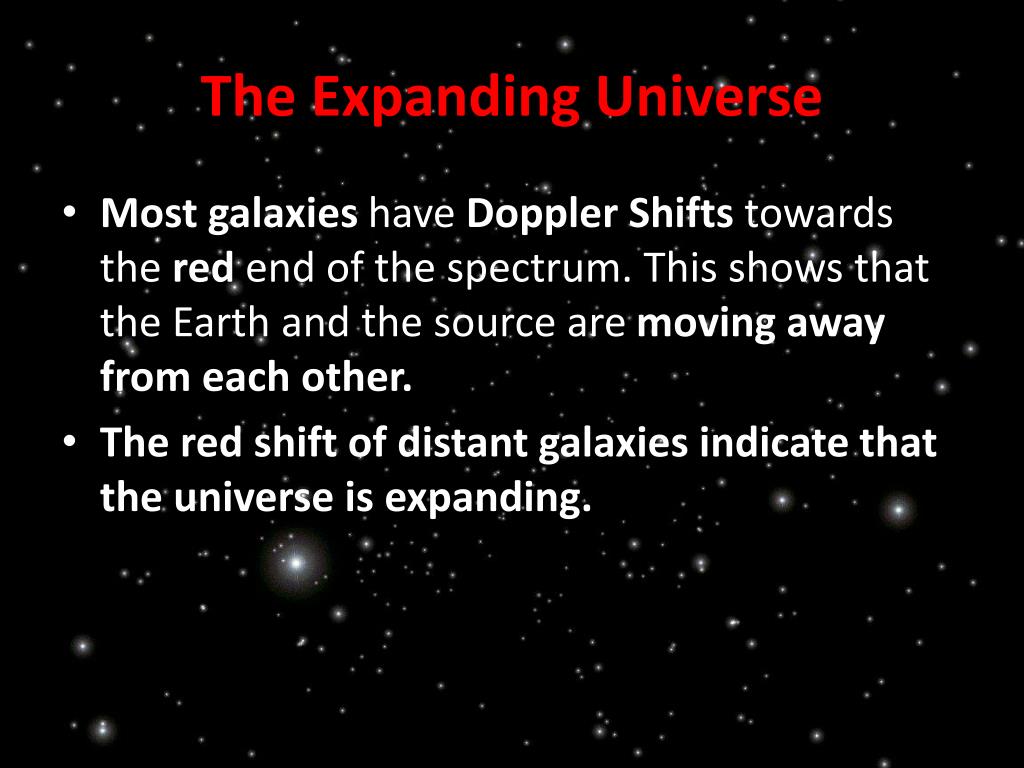

The Expanding Universe

  • Most galaxies have Doppler Shifts towards the red end of the spectrum. This shows that the Earth and the source are moving away from each other.

  • The red shift of distant galaxies indicate that the universe is expanding.


The big bang theory

The Big Bang Theory

  • States that :-

  • At one time the entire universe was confined to a dense, hot, super massive ball.

  • Then, about 13.7 billion years ago, a violent explosion occurred, hurling this material in all directions
