  1. 1.4 The Extreme Point Theorem: Geometry of a linear programming problem • The set of feasible solutions to a general linear programming problem is a convex polyhedron. ref. Convex Polytopes, by Branko Grünbaum, 1967 & 2003

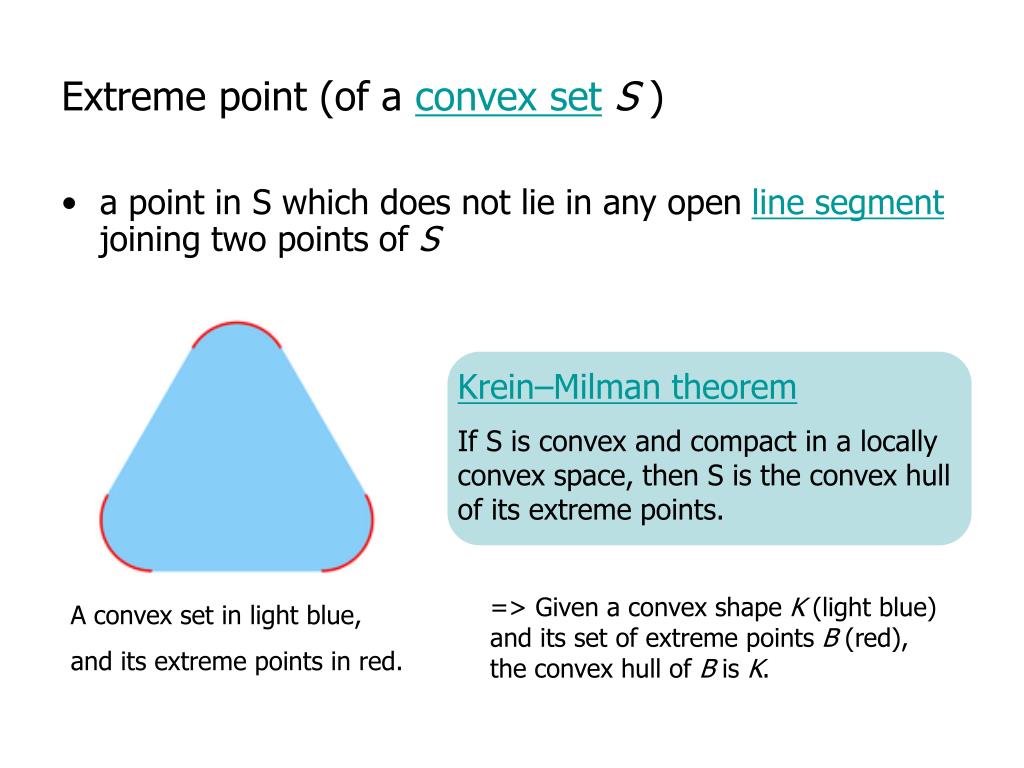

  2. Extreme point (of a convex setS ) • a point in S which does not lie in any open line segment joining two points of S Krein–Milman theorem If S is convex and compact in a locally convex space, then S is the convex hull of its extreme points. => Given a convex shape K (light blue) and its set of extreme points B (red), the convex hull of B is K. A convex set in light blue, and its extreme points in red.

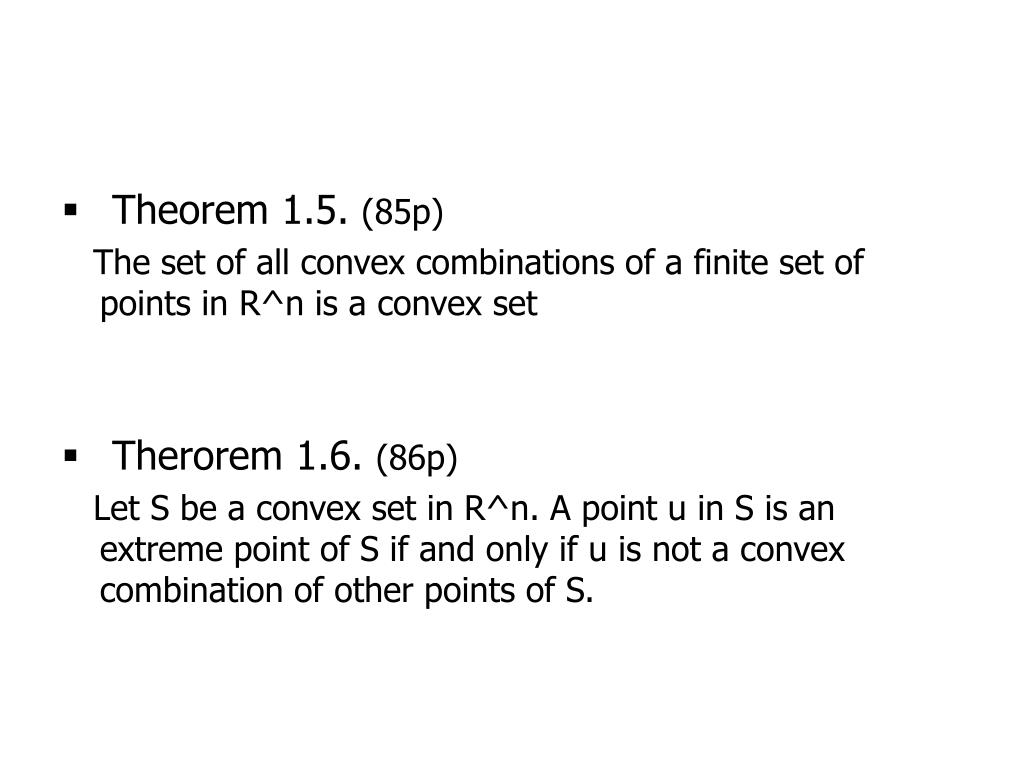

  3. Theorem 1.5. (85p) The set of all convex combinations of a finite set of points in R^n is a convex set • Therorem 1.6. (86p) Let S be a convex set in R^n. A point u in S is an extreme point of S if and only if u is not a convex combination of other points of S.

  4. If a linear programming problem has an optimal solution, then this solution must occur at an extreme point. • The set pf all feasible solutions to a general linear programming problem contains an infinite number of points. • But there are only a finite number of extreme points, but this number may be very large.

  5. THEOREM 1.7 (EXTREME POINT). Let S be the set of feasible solutions to a general linear programming problem.1. If S is nonempty and bounded, then an optimal solution to the problem exists and occurs at an extreme point.2. If S is nonempty and not bounded and if an optimal solution to the problem exists, then an optimal solution occurs at an extreme point.3. If an optimal solution to the problem does not exist, then either S is empty or S is unbounded.

  6. The convex set of all feasible solutions consists of the points that lie in all half-spaces defined by the constraints. • Constraints are conflicting • => The model must be changed to yield a nonempty set of feasible solutions.

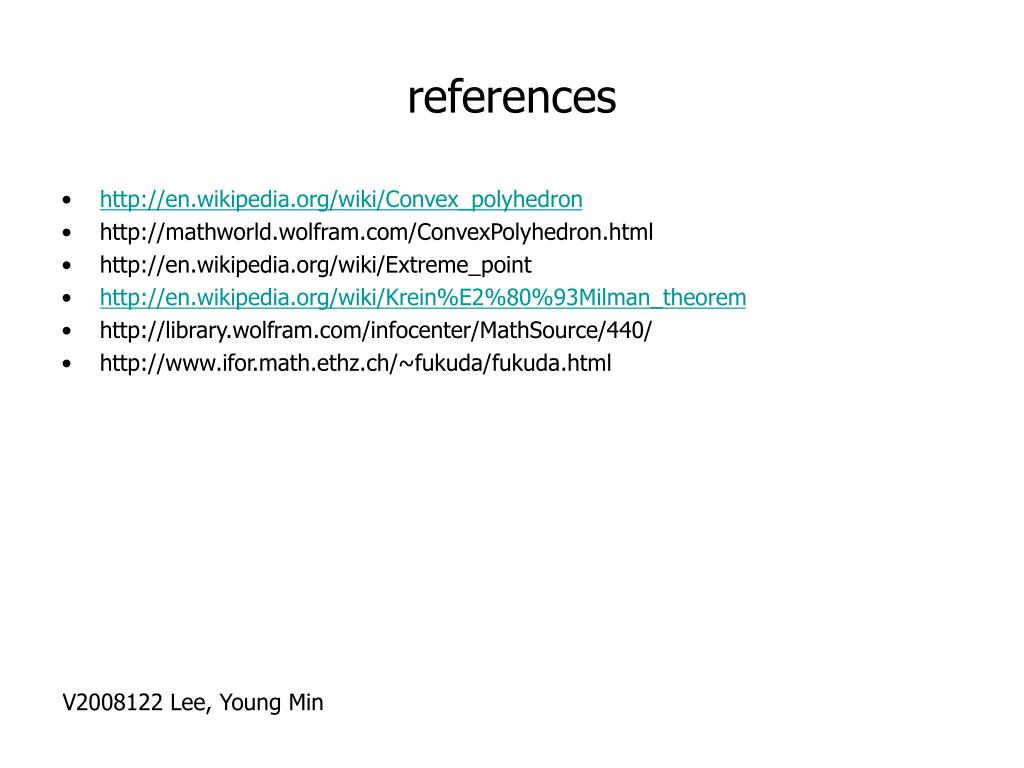

  7. references • http://en.wikipedia.org/wiki/Convex_polyhedron • http://mathworld.wolfram.com/ConvexPolyhedron.html • http://en.wikipedia.org/wiki/Extreme_point • http://en.wikipedia.org/wiki/Krein%E2%80%93Milman_theorem • http://library.wolfram.com/infocenter/MathSource/440/ • http://www.ifor.math.ethz.ch/~fukuda/fukuda.html V2008122 Lee, Young Min
