Elements of Design

1. Elements of Design • Agrarian Heritage • Cultural Influences • Mexican/Guatemalan • South American • South Central Florida • Caribbean • Bold Colors • Zigzag Patterns • Geometric Patterns

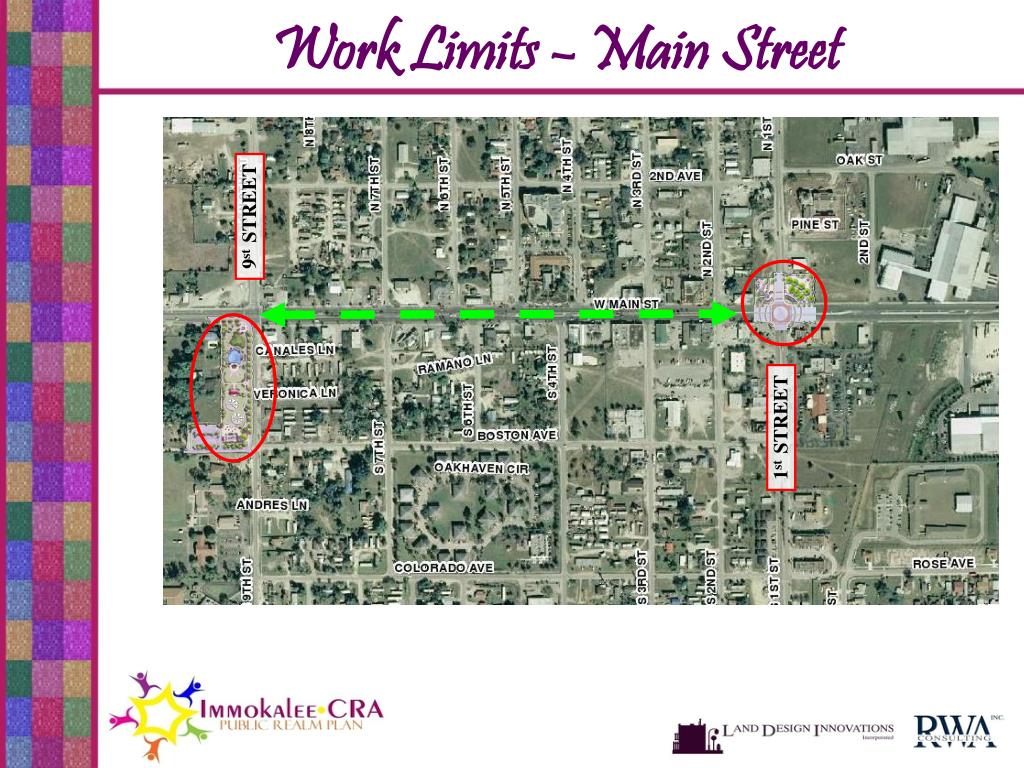

2. Work Limits – Main Street 9st STREET 1st STREET

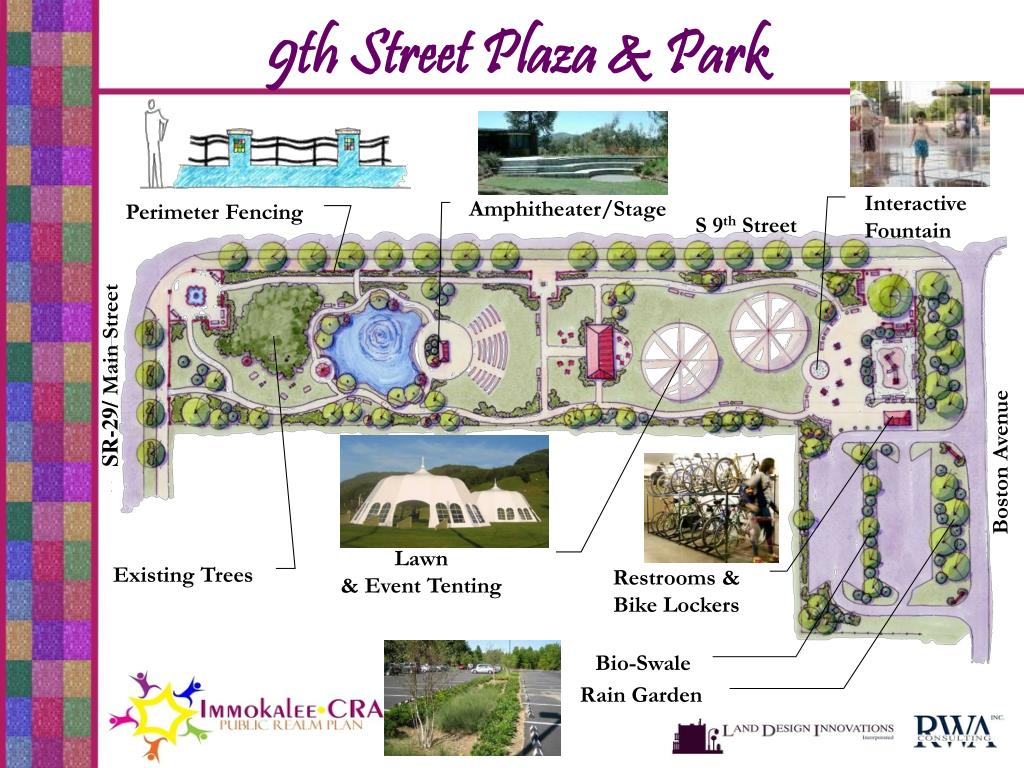

3. 9th Street Plaza & Park Interactive Fountain Amphitheater/Stage Perimeter Fencing S 9th Street SR-29/ Main Street Boston Avenue Lawn & Event Tenting Existing Trees Restrooms & Bike Lockers Bio-Swale Rain Garden

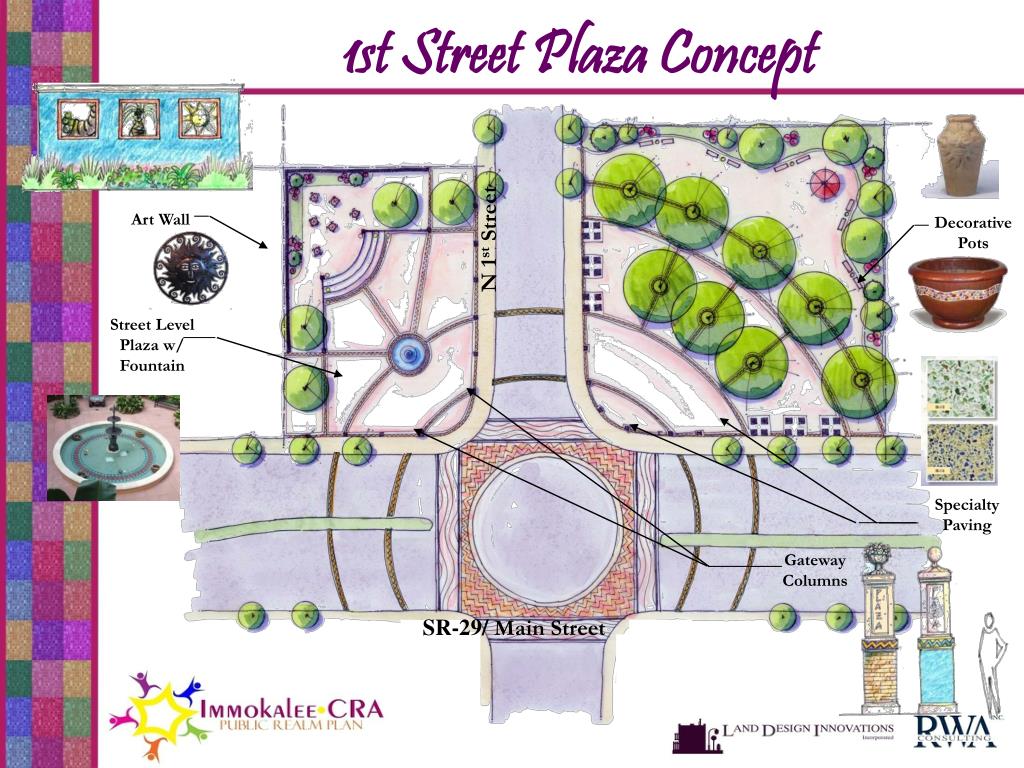

4. Art Wall Decorative Pots Street Level Plaza w/ Fountain Specialty Paving Gateway Columns 1st Street Plaza Concept N 1st Street SR-29/Main Street

5. Streetscape Plan – 1st St Intersection

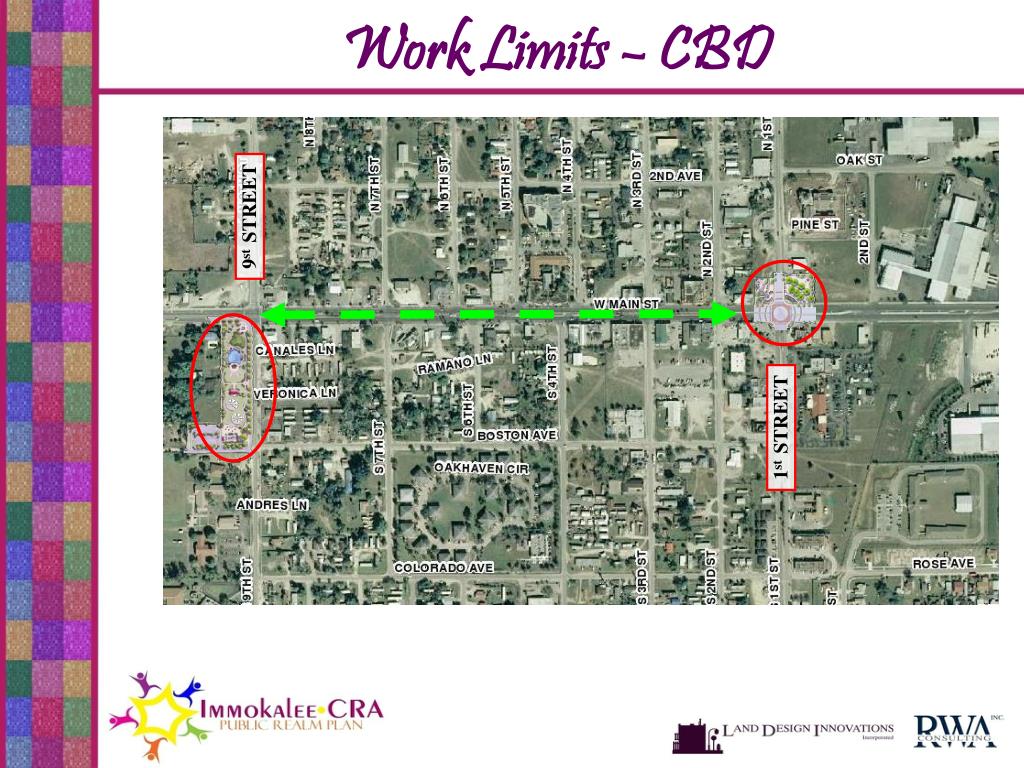

6. Work Limits – CBD 9st STREET 1st STREET

7. Existing Danger • 3 PEDESTRIAN /BIKE FATALITIES • 16 INJURIES 9st STREET 1st STREET

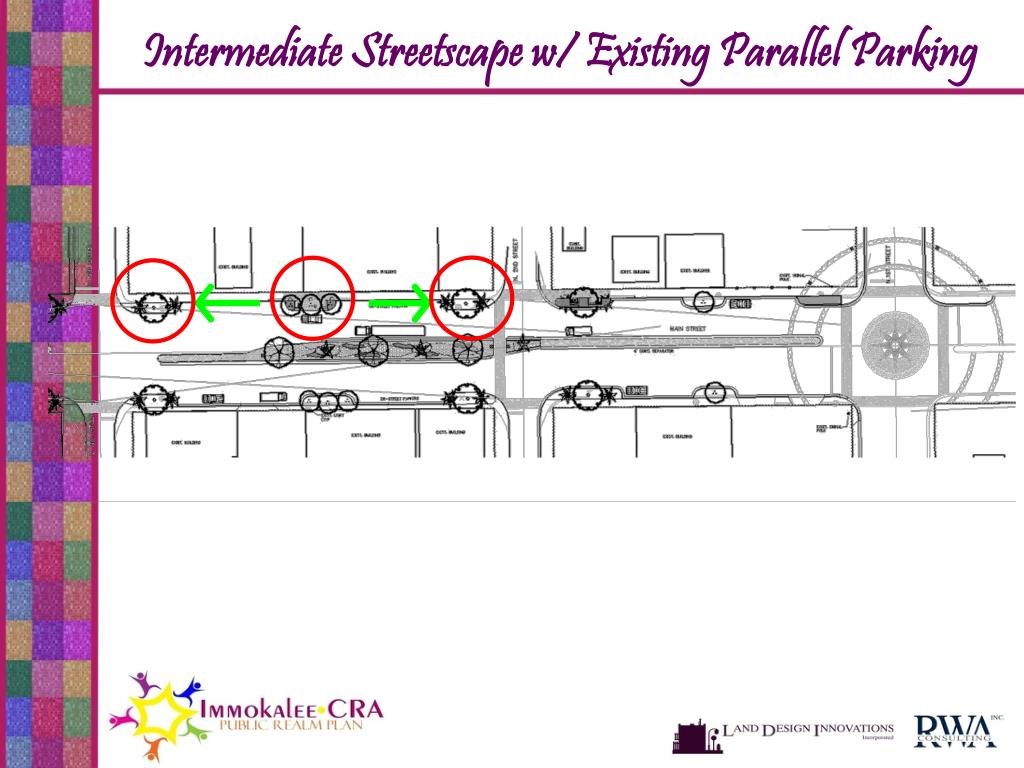

8. Intermediate Streetscape w/ Existing Parallel Parking

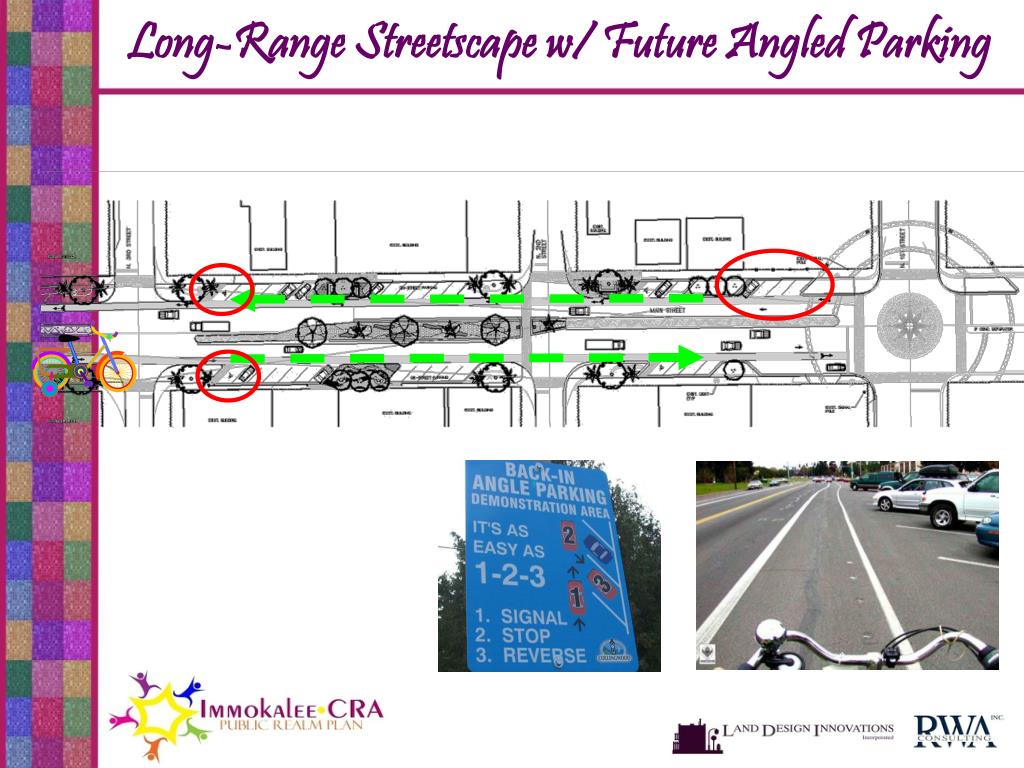

9. Long-Range Streetscape w/ Future Angled Parking

10. Intermediate Streetscape w/ Existing Parallel Parking Long-Range Streetscape w/ Future Angled Parking Corner Bump-out, Typical

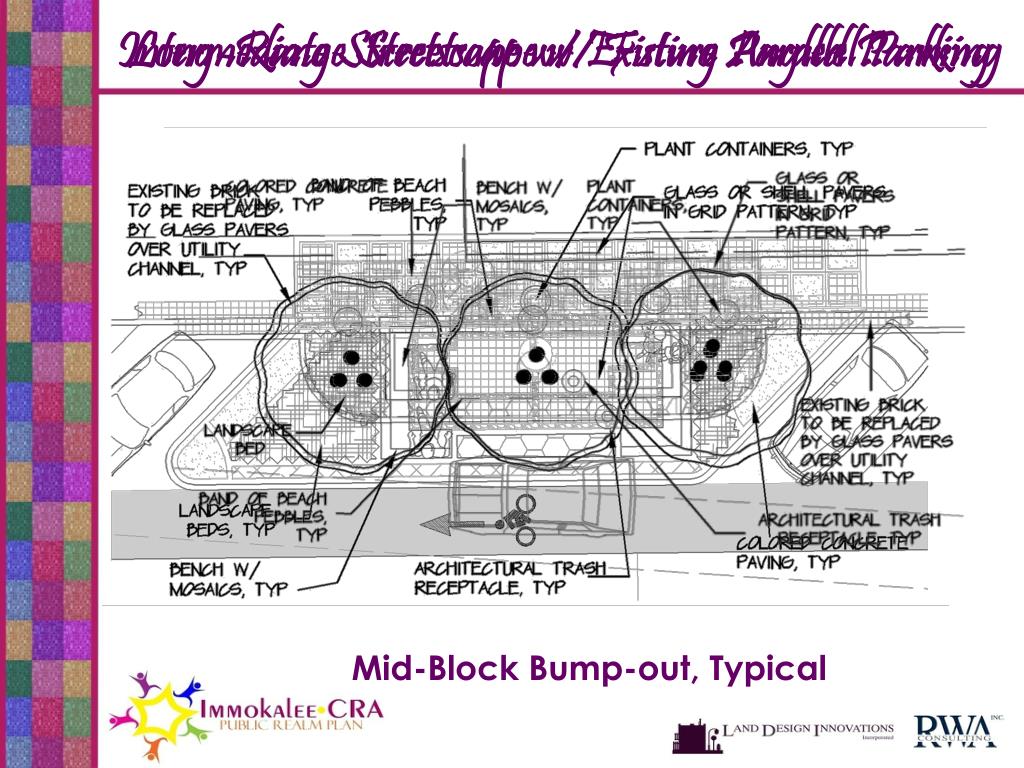

11. Intermediate Streetscape w/ Existing Parallel Parking Long-Range Streetscape w/ Future Angled Parking Mid-Block Bump-out, Typical

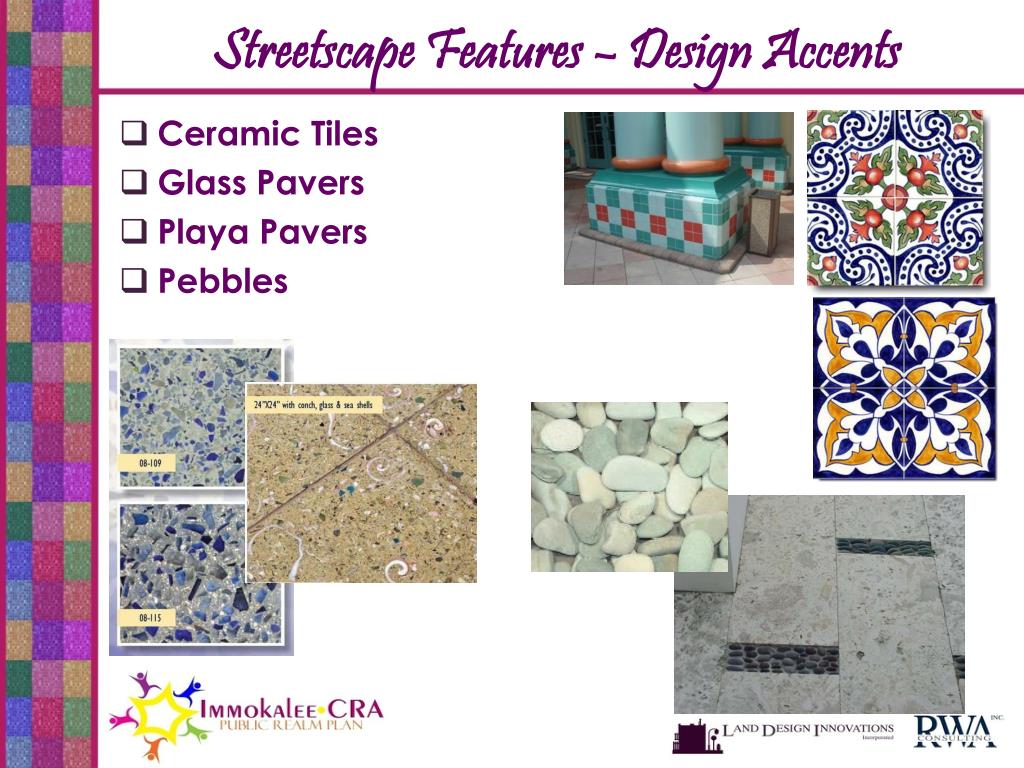

12. Streetscape Features – Design Accents • Ceramic Tiles • Glass Pavers • Playa Pavers • Pebbles

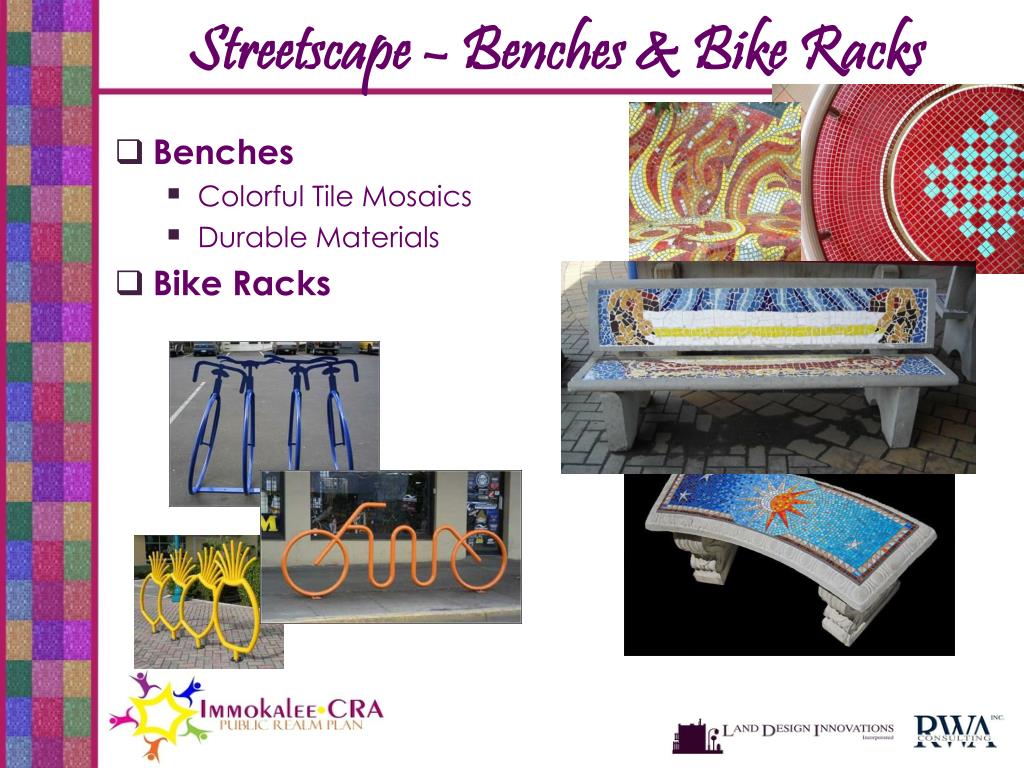

13. Streetscape – Benches & Bike Racks • Benches • Colorful Tile Mosaics • Durable Materials • Bike Racks

14. Streetscape –Site Furnishings, Pottery • Ash & Trash Receptacles • Mexican Clay Planters • Mexican Talavera • West Indies Pots & Planters

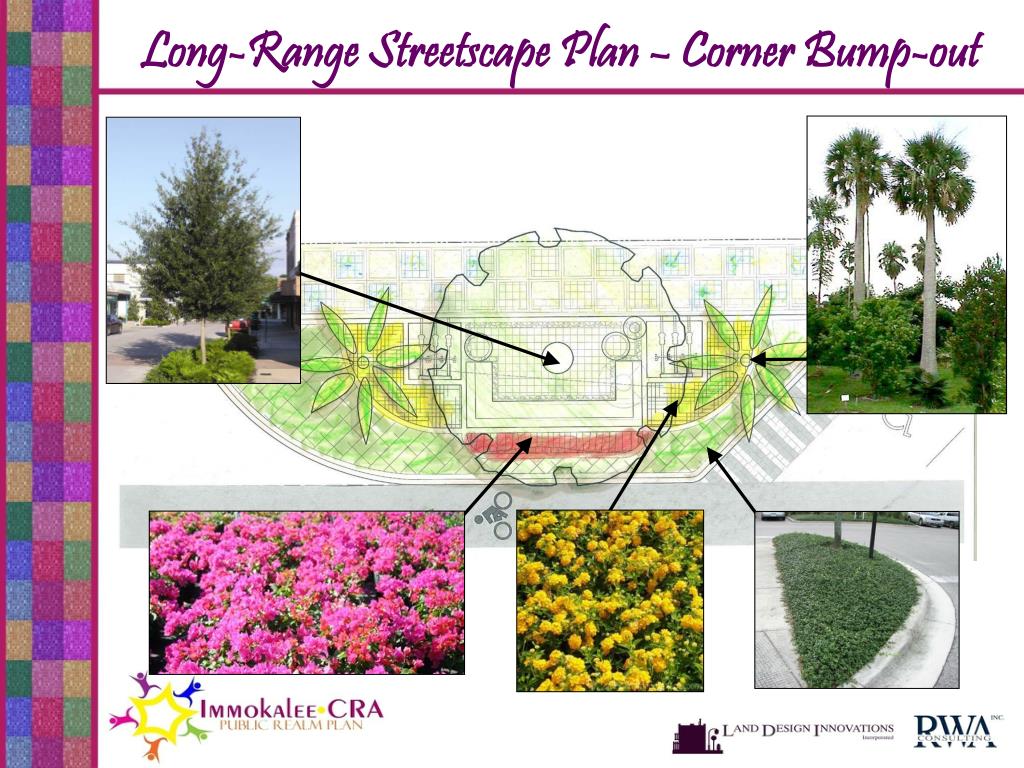

15. Long-Range Streetscape Plan – Corner Bump-out

16. Long-Range Streetscape Plan – Mid-Block Bump-out Option

17. Streetscape Plan – Median

18. Streetscape – Optional Plant Pallet • Native and/or Drought Tolerant • Blue or Purple Flowers • Green, Silver or Variegated Foliage

19. Streetscape – Optional Plant Pallet • Native and/or Drought Tolerant • Blue or Purple Flowers • Green, Silver or Variegated Foliage

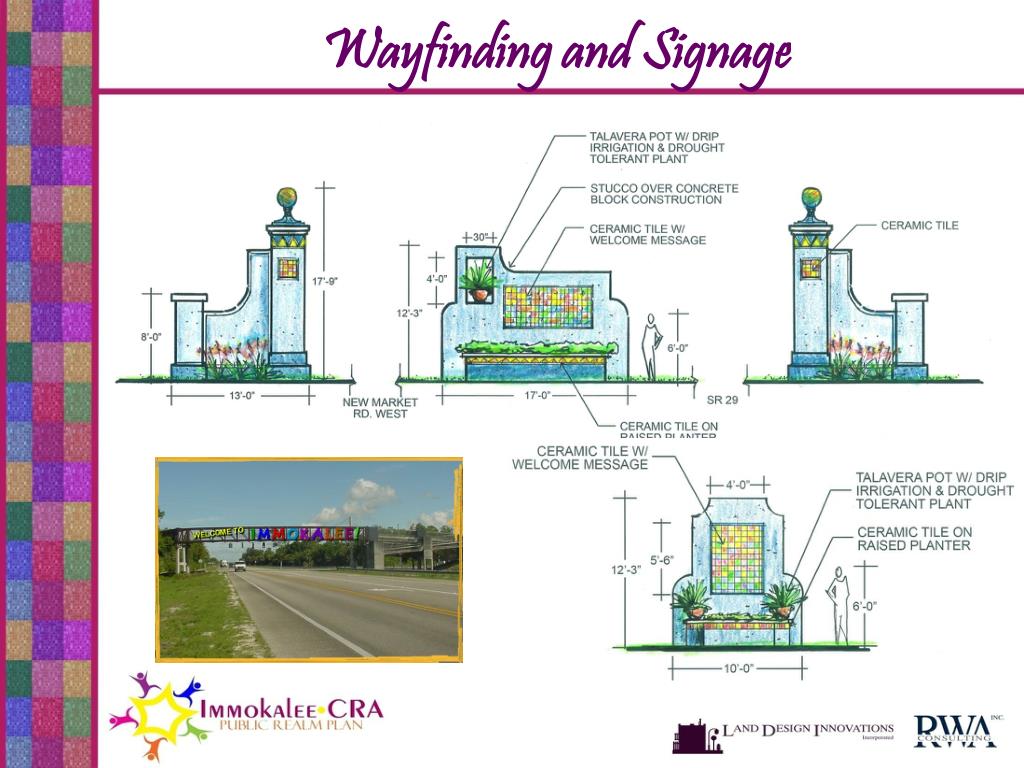

20. Wayfinding and Signage

21. Wayfinding and Signage

22. Central Business District Form-Based Guidelines • Intent • Why use form-based guidelines/codes in redevelopment areas • Integration of buildings on private land with public realm improvements

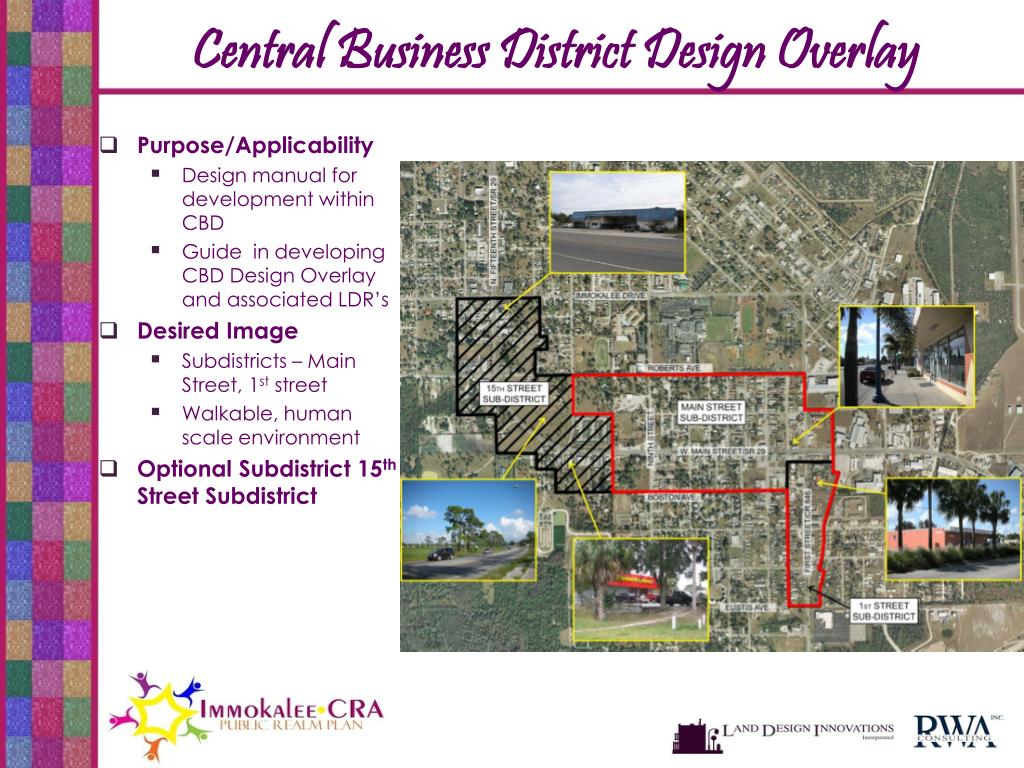

23. Central Business District Design Overlay • Purpose/Applicability • Design manual for development within CBD • Guide in developing CBD Design Overlay and associated LDR’s • Desired Image • Subdistricts – Main Street, 1st street • Walkable, human scale environment • Optional Subdistrict 15th Street Subdistrict

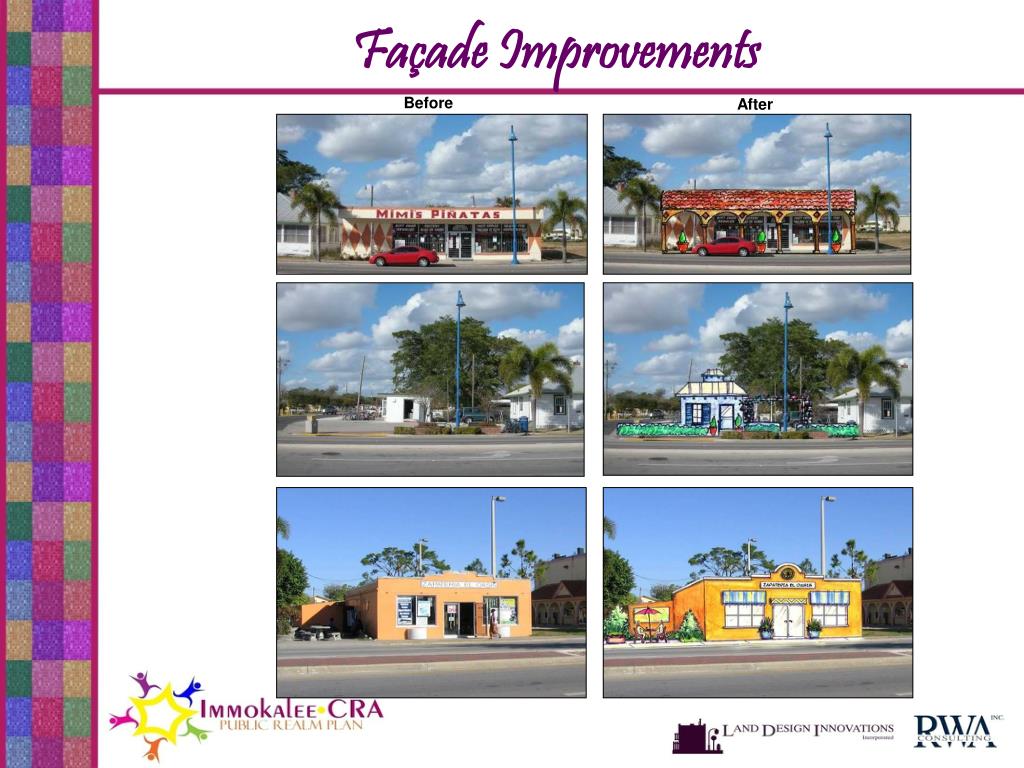

24. Façade Improvements Before After

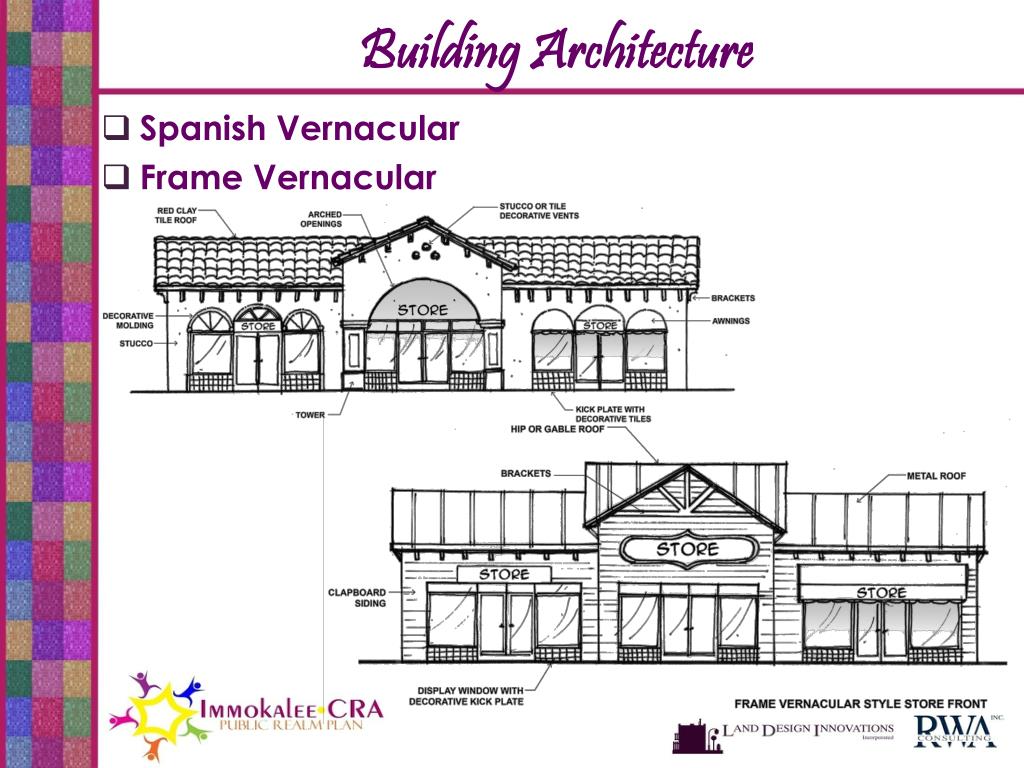

25. Building Architecture • Spanish Vernacular • Frame Vernacular

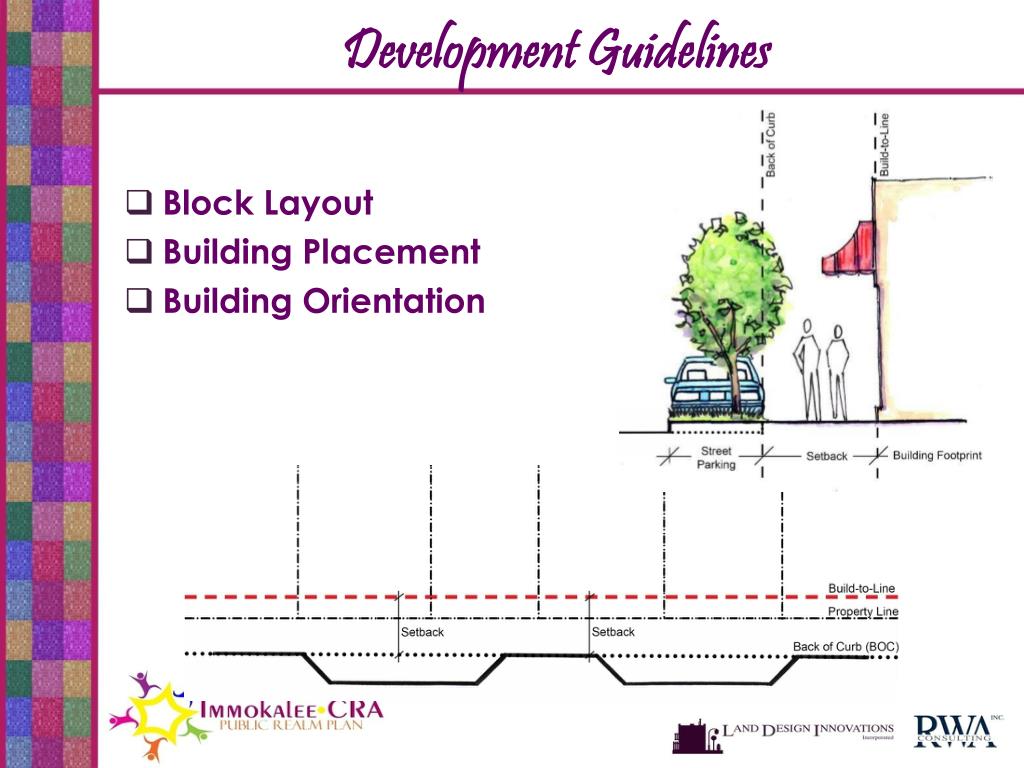

26. Development Guidelines • Block Layout • Building Placement • Building Orientation

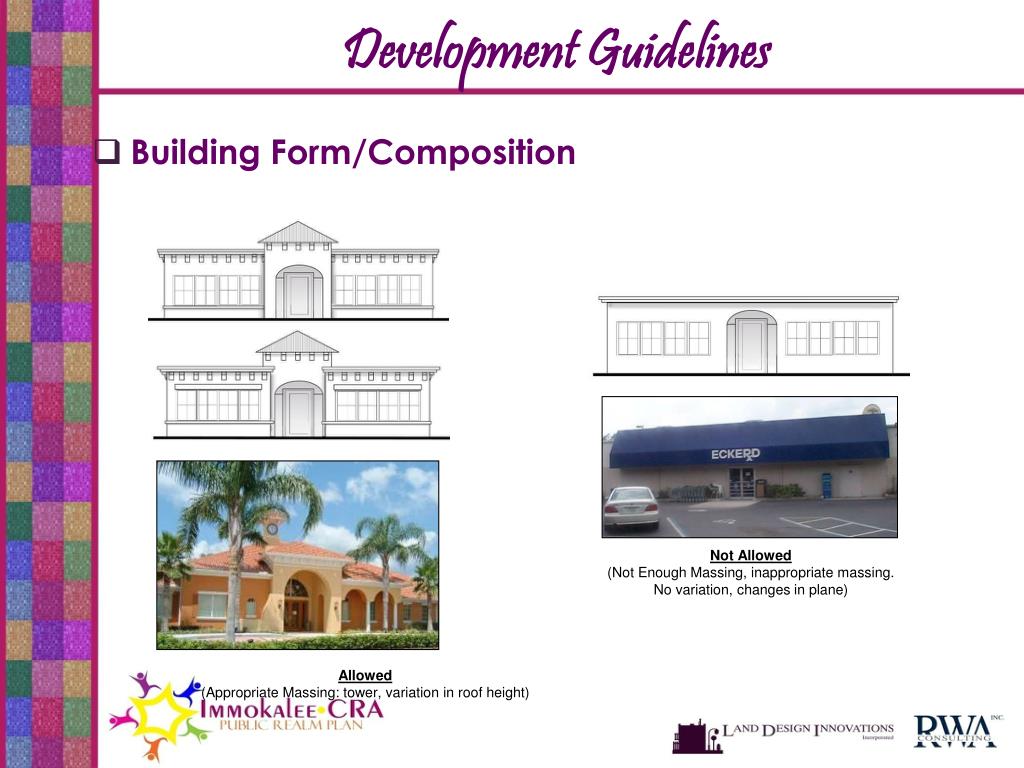

27. Development Guidelines • Building Form/Composition Not Allowed (Not Enough Massing, inappropriate massing. No variation, changes in plane) Allowed (Appropriate Massing: tower, variation in roof height)

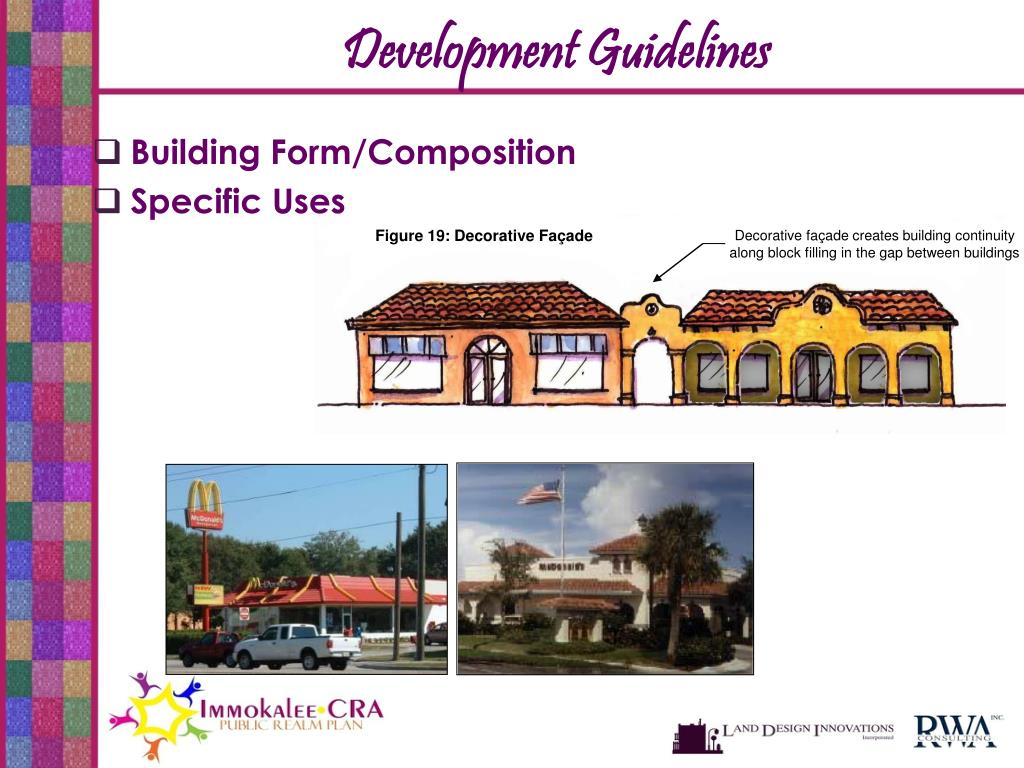

28. Development Guidelines Columns Columns Columns Change in material/ texture Change in material/ texture Change in material/ texture Balconies Balconies Balconies Arcade/Colonnade Arcade/Colonnade Arcade/Colonnade Decorative façade creates building continuity along block filling in the gap between buildings Raised Bands/ Cornices Raised Bands/ Cornices Raised Bands/ Cornices Awnings Awnings Awnings Decorative Tiles/ Medallions Decorative Tiles/ Medallions Decorative Tiles/ Medallions Decorative Arches Decorative Arches Decorative Arches • Building Form/Composition • Specific Uses Figure 19: Decorative Façade

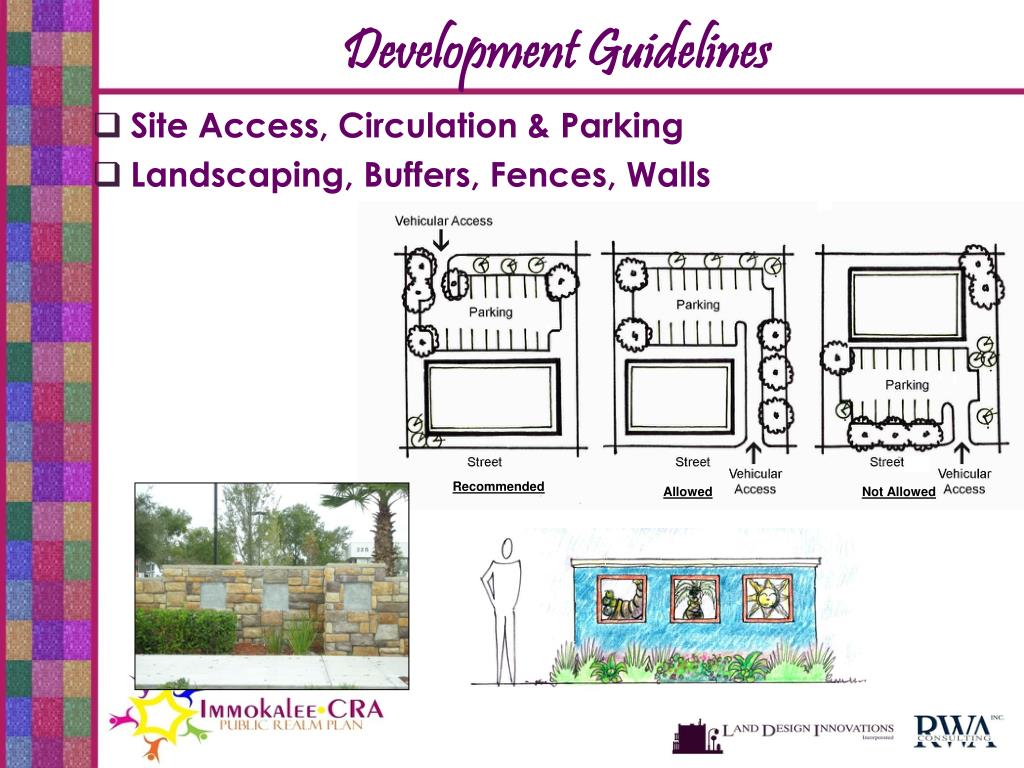

29. Development Guidelines • Site Access, Circulation & Parking • Landscaping, Buffers, Fences, Walls Recommended Allowed Not Allowed

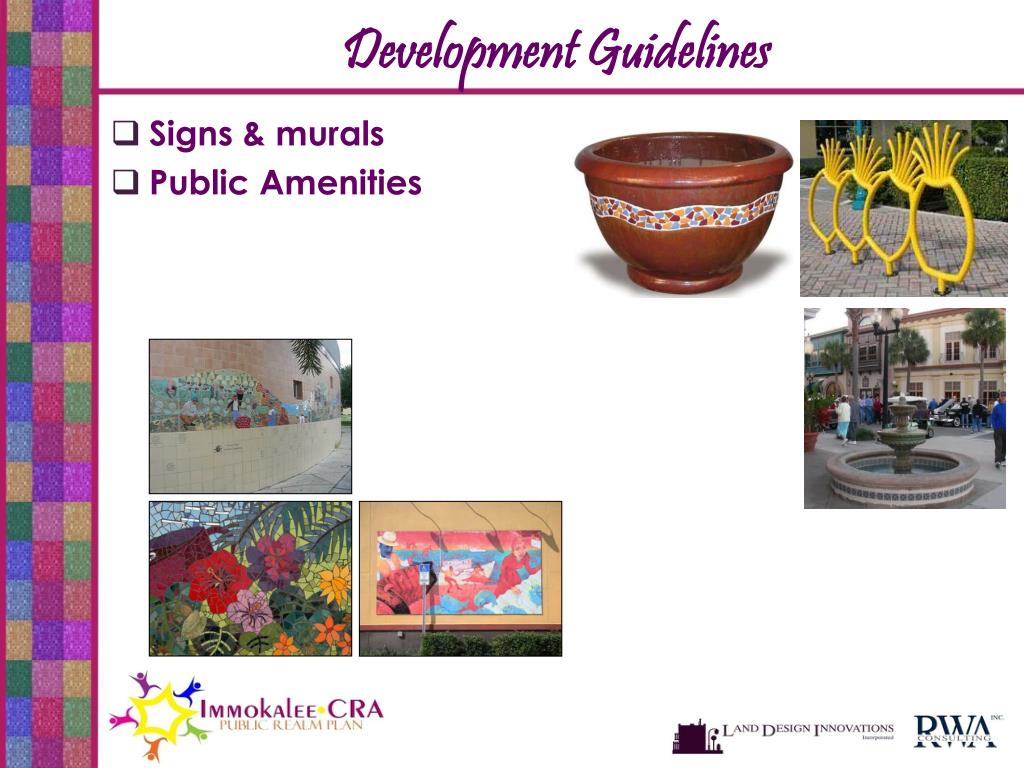

30. Development Guidelines • Signs & murals • Public Amenities

31. Immokalee Design & Visioning Main Street / SR 29 Streetscape Concept
