Interstellar extinction at high galactic latitude from photometric surveys

1. Interstellar extinction at high galactic latitude from photometric surveys Oleg Malkov Institute of Astronomy Rus. Acad. Sci. (INASAN) Faculty of Physics, Moscow State University malkov@inasan.ru MSA 2017

2. The task • Fundamental scientific problem: investigation of galactic structure and interstellar medium distribution in the Galaxy • Current goal: determination of stellar parameters and interstellar extinction value from photometric observations; construction of a 3D Galactic extinction map • Data: multicolor photometry (2MASS, SDSS, GALEX, UKIDSS). • Method: cross-matching objects in large surveys, simulation of observational photometry, parameterization of stars. MSA 2017

3. Light absorption Molecular cloudBarnard 68 MSA 2017

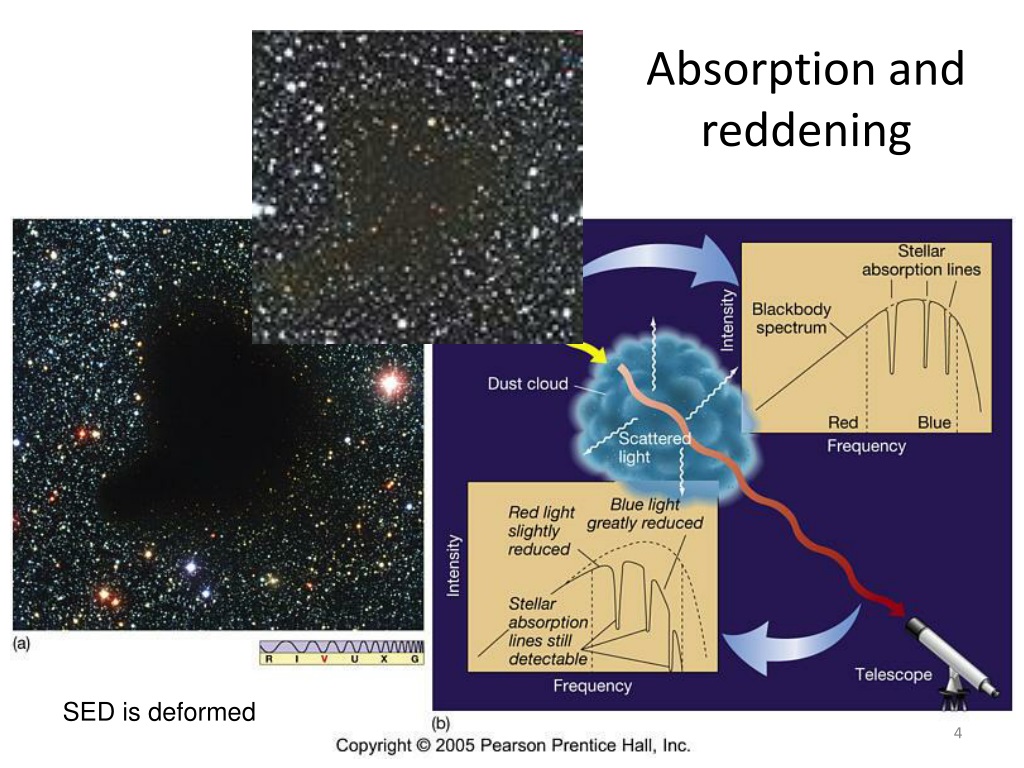

4. Absorption and reddening SED is deformed MSA 2017

5. Previous 3D models demonstrate contradictory results MSA 2017

6. MSA 2017

7. Today: large surveys are on hand • While previous 3D models, using spectral and photometric data, were based on 104 – 105 stars..... • ..... modern surveys (2MASS, DENIS, SDSS, GALEX, UKIDSS, ...) contain photometric (3 to 5 bands) data for 107 – 109 stars. • However, one needs to cross-match objects in surveys MSA 2017

8. Cross-matching: a general problem • The aim is to reliably link the same object data in different surveys, having • different sky coverage • different detection limits • different object densities Which one is correct?.. MSA 2017

9. Cross-matching:finding reliable matches • Positional match • all objects from one catalogue within given radius from each object of second catalogue • Parametric filtering • nearby bands = nearby magnitudes • similar objects = similar colors • Postfactum filtering • rejection of outliers after final spectral fitting MSA 2017

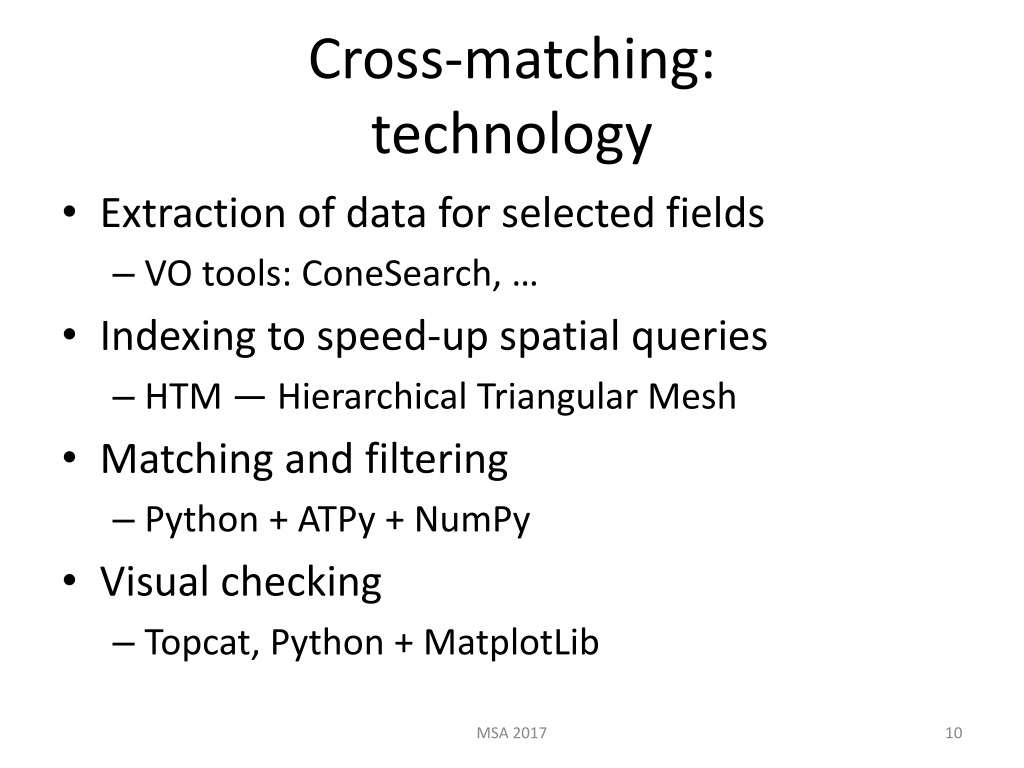

10. Cross-matching:technology • Extraction of data for selected fields • VO tools: ConeSearch, … • Indexing to speed-up spatial queries • HTM — Hierarchical Triangular Mesh • Matching and filtering • Python + ATPy + NumPy • Visual checking • Topcat, Python + MatplotLib MSA 2017

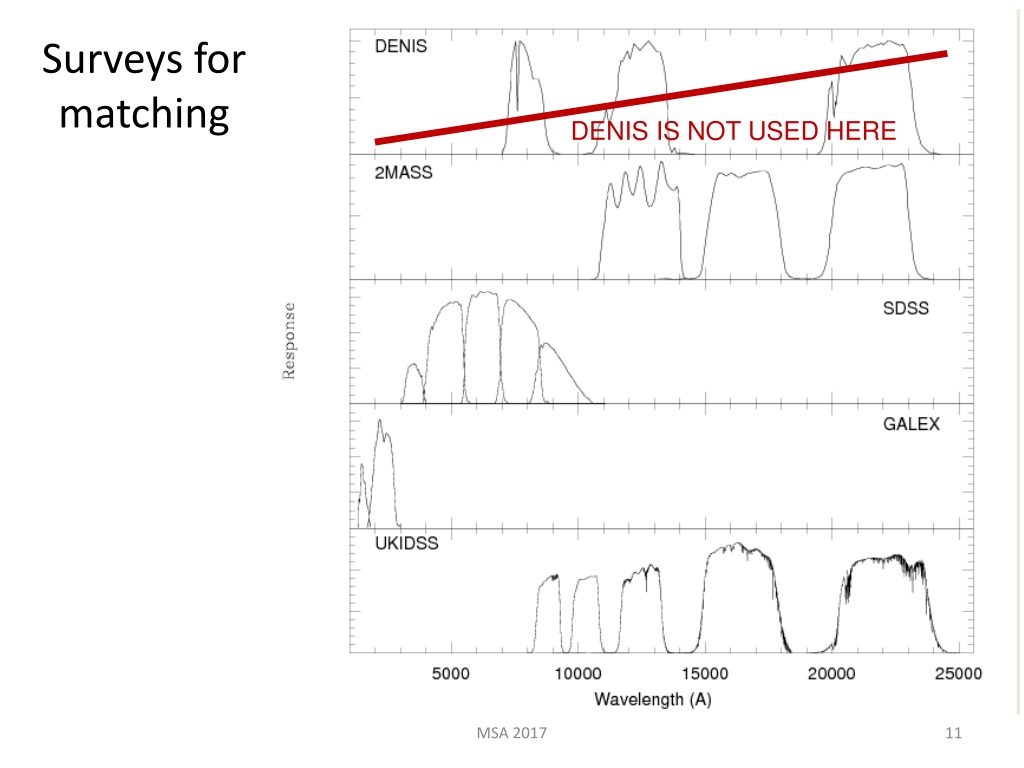

11. Surveys for matching DENIS IS NOT USED HERE MSA 2017

12. Step 1. Parameterization process N • σ2 = ∑ {[mobs,i – mcalc,i(d, Mi[SpT], Ai[Av])]/Δmobs,i}2 • Summation goes over all photometric bands (N=13 at most) • Here • mobs,iis apparent magnitude from a survey • Δmobs,iis its observational error • Ai[Av] : Ai=kiAv, interstellar extinction law • Mi is absolute magnitude, taken from calibration tables Mi[SpT] • mcalc,i= Mi[SpT] + 5log(d) – 5 + Ai[Av] • Distance d, spectral type SpT and interstellar extinction Av vary, to minimize σ i=1 MSA 2017

13. Parameters limits • We deal with area located at relatively high galactic latitudes (|b|>45o), consequently: • Av is assumed to be within 0.5 mag • distance d is assumed to be within 8000 pc • Spectral type range (B8-L0) is taken from available calibration tables MSA 2017

14. Calibration tables • Mi[SpT] are taken from Krauss and Hillenbrand 2007, Findeisen et al. 2011. Data available for MS-stars only • GALEX (FUN,NUV) photometry is not available for K7 and later spectral types • UKIDSS photometry is calculated from 2MASS photometry with relations given by Hodgkin et al. 2009, Eqs (4-8) • Interstellar extinction law is taken from (Schlafly and Finkbeiner 2011) and (Yuan et al. 2013) • R ≡ Av/EB-V = 3.1 MSA 2017

15. Excursus: on the limiting distance Z • Hakkila et al. 1997: the maximum distance to which the absorbing material extends: dmax (kpc) = {cos(l)cos(b) + [cos2(l)cos2(b) + 2.114]-2} * 8.5, assuming R = 15 kpc • Rastorguev 2016: Z = 3 kpc, R = 20 kpc • However, the most distant stars, belonging to our Galaxy (ULAS J0744+25, ULAS J0015+01), are found to be at d > 270 kpc (five times the MW-LMC distance) R MSA 2017

16. An example of σ(d, Av) plot:(l=333,b=+61)-area, object #41, SpT=G0 Matching solution: Av = 0.26 mag, d = 6900 pc MSA 2017

17. Error budget • σAv2 = ∑ (Δmobs,i)2 • σlog(d) = 0.2 σAv • To calculate errors more correctly, one should take into account also calibration tables errors and relations errors MSA 2017

18. Step 2. Approximation of Av(d) in a given area by cosecant law (Parenago formula) • Cosecant law seems to be a good approximation for such high galactic latitudes: • A (d,b) = (a0β/sin|b|) * (1 - e-d*sin|b|/β) • d – distance, b – galactic latitude, a0, –magnitude of the absorption per kpc, β – vertical scale of absorbing matter distribution • When d → infinity: A (b) → a0β/sin|b| MSA 2017

19. Area (l=333,b=+61): Av – d All objects/solutions MSA 2017

20. Area (l=333,b=+61): Av – d All objects/solutions. MS-stars are indicated MSA 2017

21. Area (l=333,b=+61): Av – d MS-stars only MSA 2017

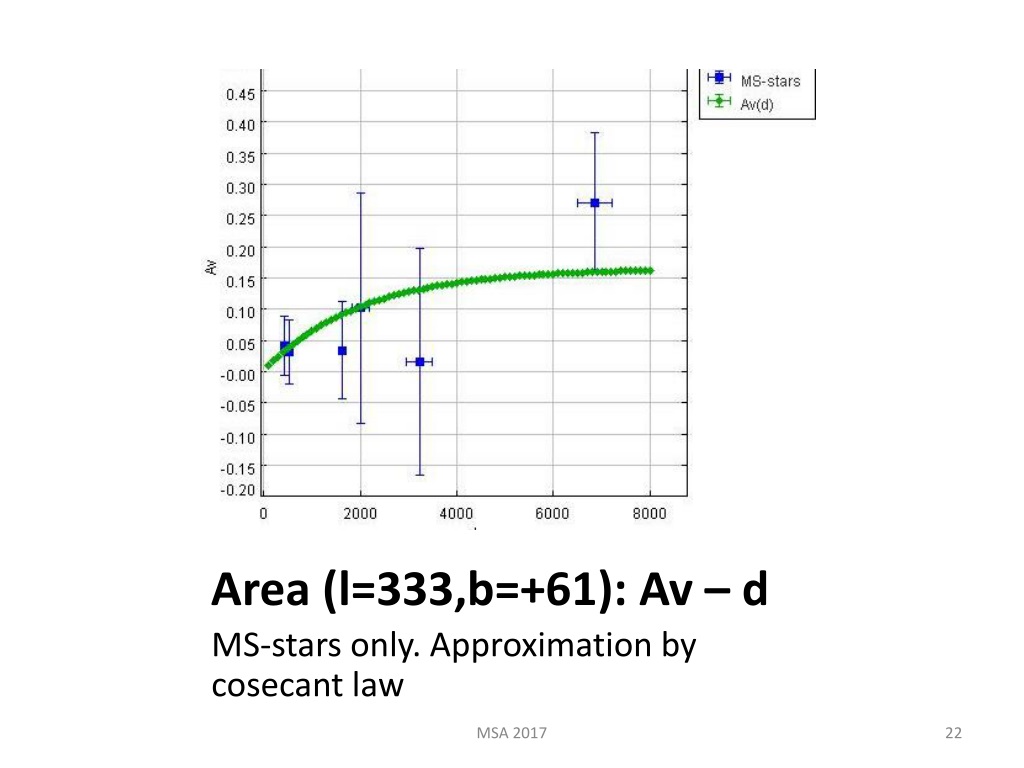

22. Area (l=333,b=+61): Av – d MS-stars only. Approximation by cosecant law MSA 2017

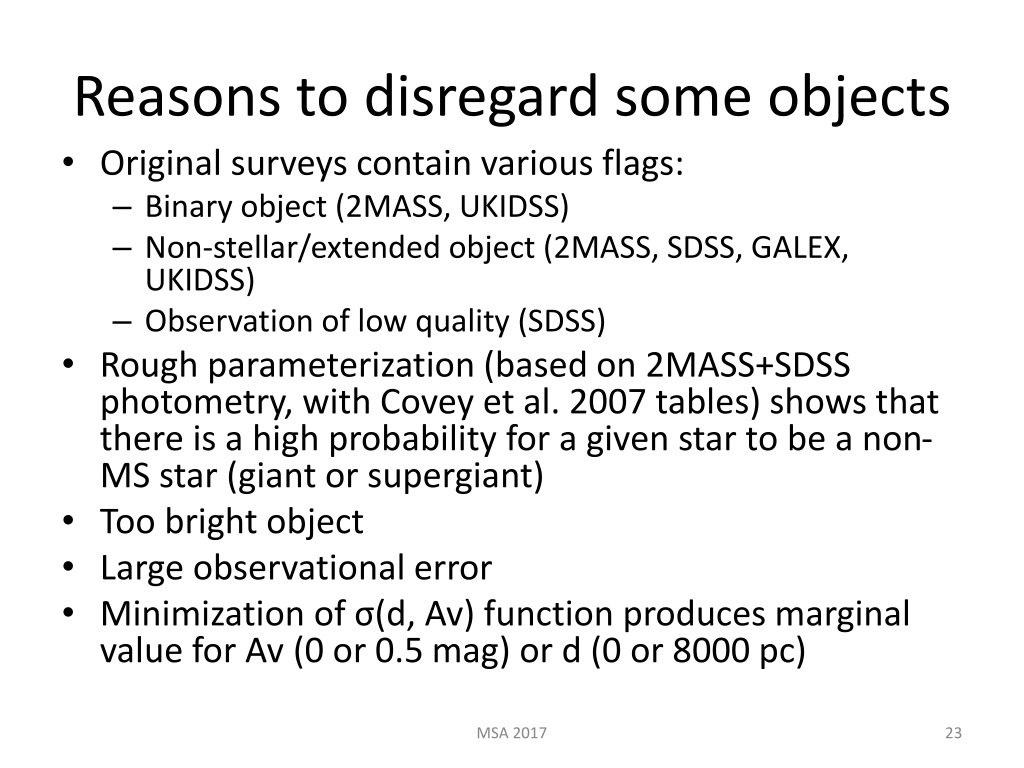

23. Reasons to disregard some objects • Original surveys contain various flags: • Binary object (2MASS, UKIDSS) • Non-stellar/extended object (2MASS, SDSS, GALEX, UKIDSS) • Observation of low quality (SDSS) • Rough parameterization (based on 2MASS+SDSS photometry, with Covey et al. 2007 tables) shows that there is a high probability for a given star to be a non-MS star (giant or supergiant) • Too bright object • Large observational error • Minimization of σ(d, Av) function produces marginal value for Av (0 or 0.5 mag) or d (0 or 8000 pc) MSA 2017

24. Results for four areas 333, +61 256, +48 129, -58 301, +62 MSA 2017

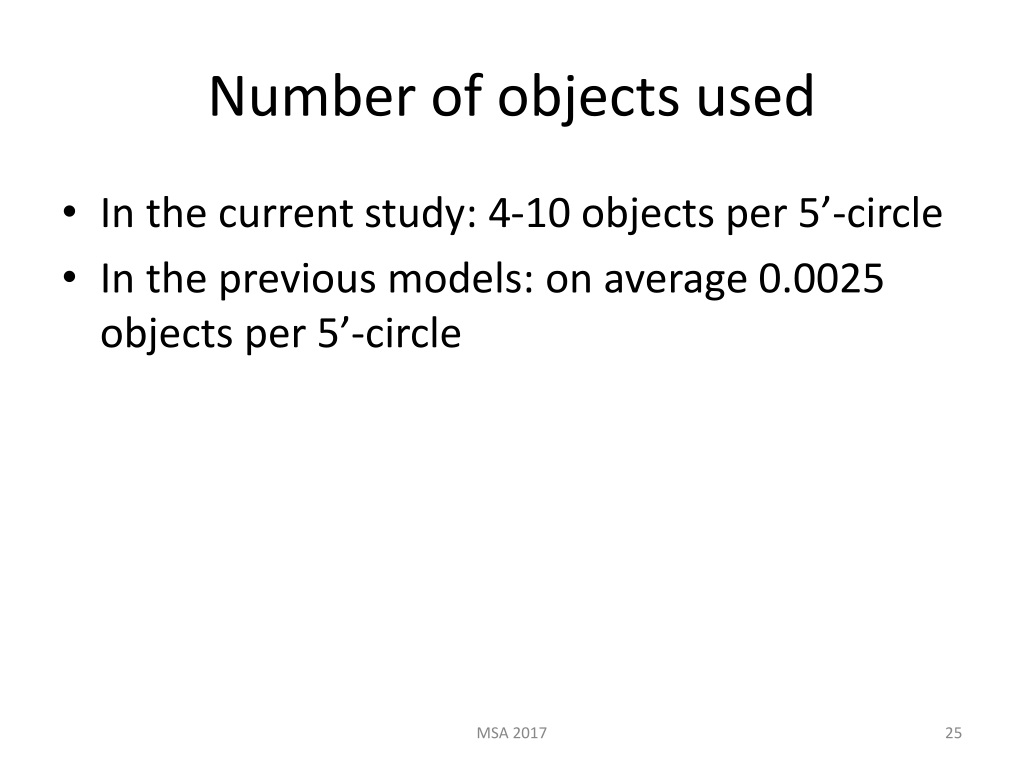

25. Number of objects used • In the current study: 4-10 objects per 5’-circle • In the previous models: on average 0.0025 objects per 5’-circle MSA 2017

26. Why we have selected these four areas (actually there were six)? MSA 2017

27. MSA 2017

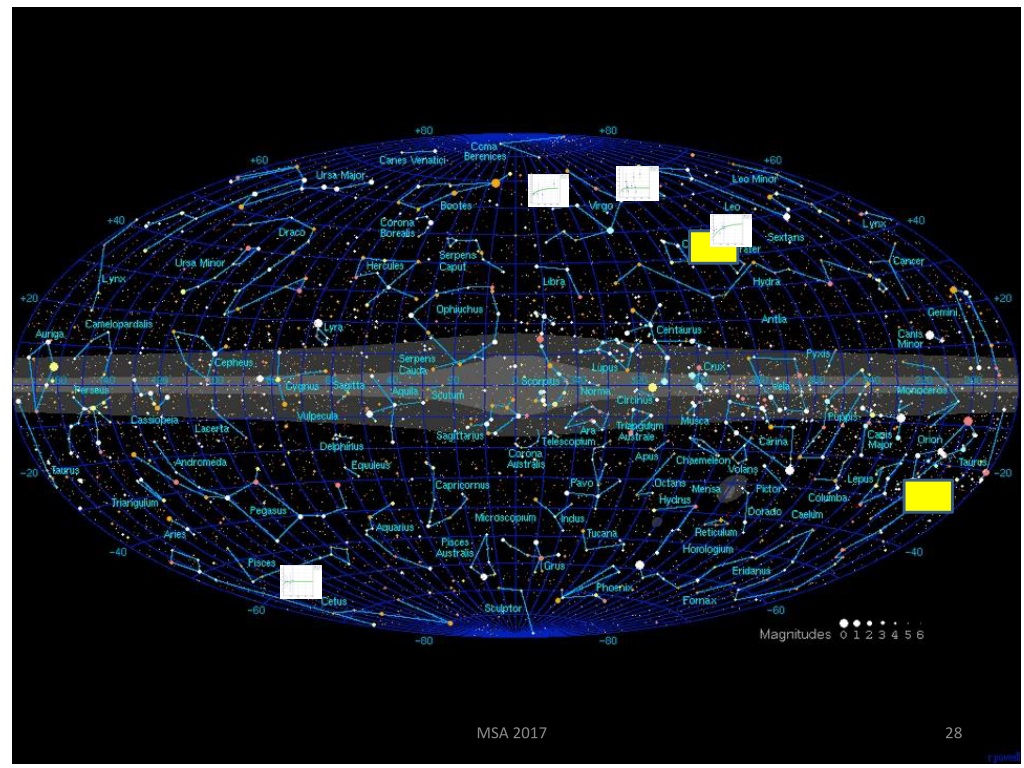

28. MSA 2017

29. Six most distant SNs were taken from Perlmutter et al. 1999 • Two of the six areas are not covered by UKIDSS, one of those two is not also covered by SDSS • The four remaining are: SN 1997ap (Vir), SN 1996cl (Leo), SN 1996ck (Vir), SN 1995at (Psc) • We check the correctness of Av values, used by Perlmutter et al. 1999 MSA 2017

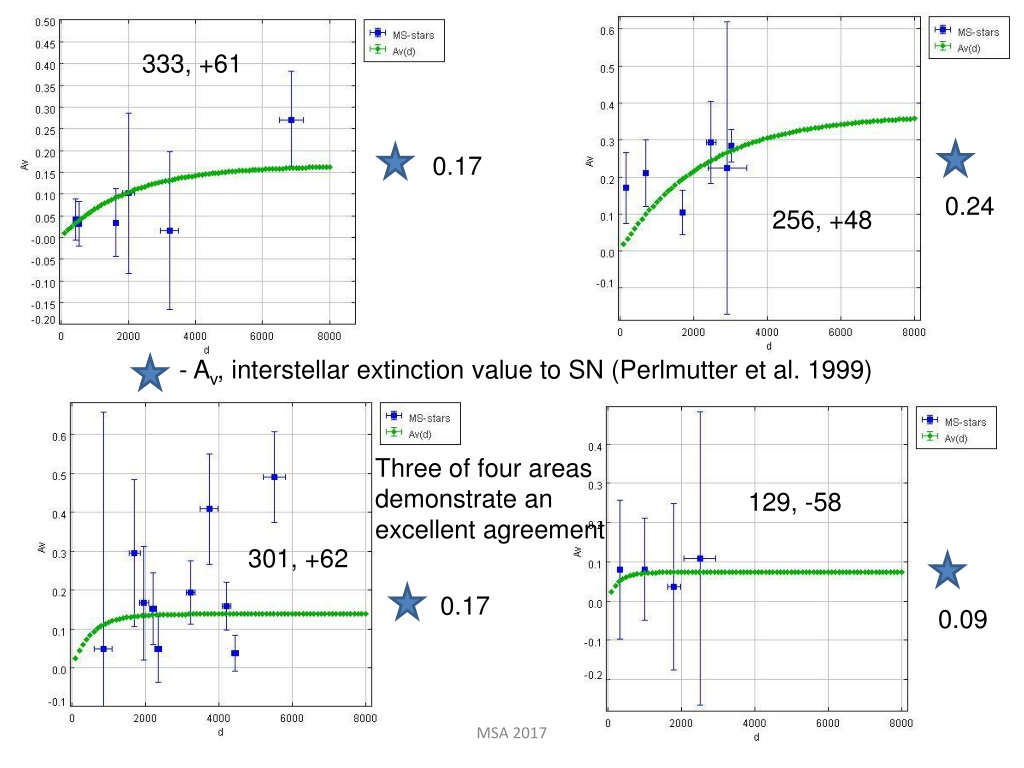

30. 333, +61 0.17 0.24 256, +48 - Av, interstellar extinction value to SN (Perlmutter et al. 1999) Three of four areas demonstrate an excellent agreement 129, -58 301, +62 0.17 0.09 MSA 2017

31. Comparison with other maps MSA 2017

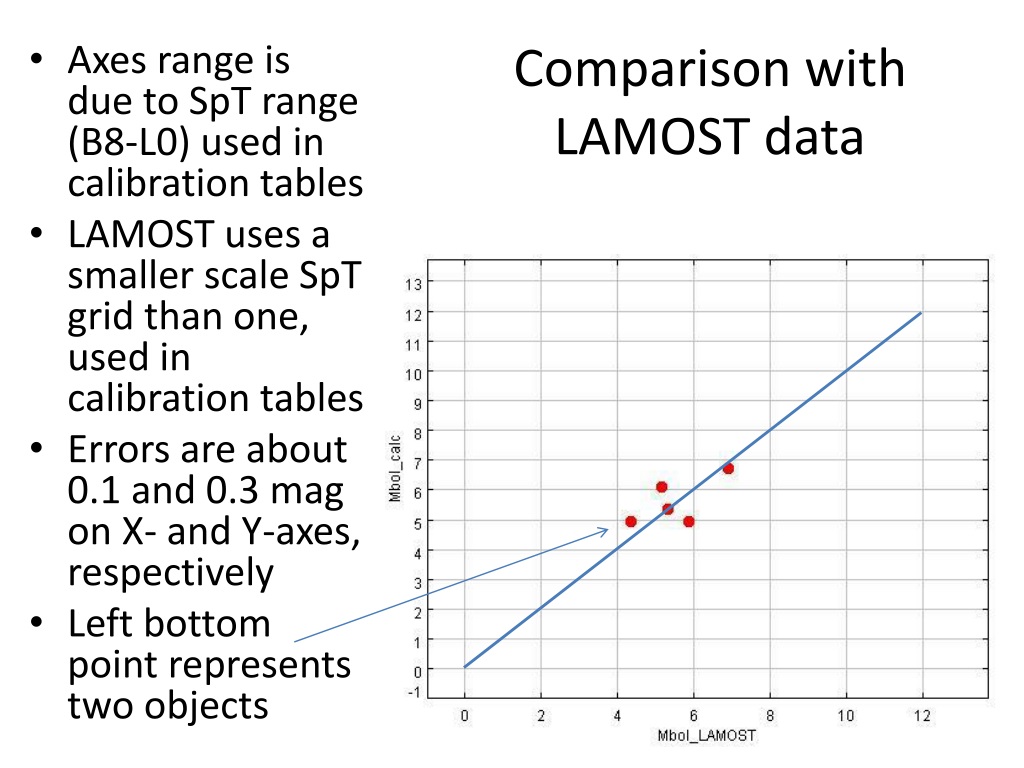

32. Comparison with LAMOST data • Axes range is due to SpT range (B8-L0) used in calibration tables • LAMOST uses a smaller scale SpT grid than one, used in calibration tables • Errors are about 0.1 and 0.3 mag on X- and Y-axes, respectively • Left bottom point represents two objects MSA 2017

33. Possible reasons for disagreement • Star is unresolved binary/multiple system • Star is variable • Star belongs to a marginal luminosity class (sub-giant, white dwarf, sub-dwarf, …) • Non-stellar object • Non-standard interstellar extinction law in the area (R ≠ 3.1) • Non-uniform extinction behavior within the area (a part of the area comprises a cloud) • Observational error, misprint in catalogue or cross-matching error MSA 2017

34. Conclusions • The presented method allows us to construct Av(d) relations at least for high galactic latitudes, to approximate them by the cosecant law and estimate (a0, β) parameters. • Our results are confirmed by LAMOST data and by interstellar extinction values for SNs, used for the Universe accelerating expansion study (Perlmutter et al. 1999) • Results of previous studies (Sharov, 1963; Arenou et al. 1991) contradict our results • 2MASS data can be ignored if other three surveys cover the area MSA 2017

35. Future plans • Add modern UV data (UVIT) • Verify our results with GAIA DR1/DR2 data • Extend calibration tables (M – SpT): • to hotter and cooler spectral (temperature) classes • to other luminosity classes (III, I, …) • to YJHK UKIRT photometry (currently it is re-calculated from 2MASS photometry) • Interpolate calibration tables • Add other surveys: WISE, DENIS, … • Vary R (check R ≠ 3.1) MSA 2017

36. Acknowledgements • Co-authors • LAMOST survey staff • RFFR 17-52-45076 • Audience for your attention MSA 2017
