1 / 65

Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

Thu-Mai Christian < tlchristian @ unc.edu > [Slides] Micah Altman < micah_altman@alumni.brown.edu > Jonathan Crabtree < jonathan_crabtree@unc.edu > [Project Directors]. Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS. Acknowledgements.

gomer
Download Presentation

Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Thu-Mai Christian <tlchristian@unc.edu> [Slides] Micah Altman <micah_altman@alumni.brown.edu> Jonathan Crabtree <jonathan_crabtree@unc.edu>[Project Directors] Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

  2. Acknowledgements Thanks to the Institute for Museum and Library Services (LG-05-09-0041-09) for funding development of the system; and to the Library of Congress for funding initial prototypes. Thanks to the staff at the Odum Institute and Dataverse Team at the Institute of Quantitative Science for development efforts, and to ICPSR and the Roper Center for Public Opinion Research for testing. Thanks to the LOCKSS team for consultation and assistance. Thanks to Amazon for supporting delivery of the course at IASSIST through their AWS Research in Education grants.

  3. References • Micah Altman, Jonathan Crabtree (2011) Using the SafeArchive System : TRAC-Based Auditing of LOCKSS, 165-170. In Archiving 2011. http://www.box.net/shared/8py6vl9kxivo6u21rkn8 • Altman, M., Beecher, B., and Crabtree, J.; with L. Andreev, E. Bachman, A. Buchbinder, S. Burling, P. King, M. Maynard. 2009. "A Prototype Platform for Policy-Based Archival Replication." Against the Grain. 21(2): 44-47. • Victoria Reich, "Distributed Digital Preservation," Proceedings of the Indo-US Workshop on International Trends in Digital Preservation, National Digital Preservation Program, Pune, India, March 2009 http://www.lockss.org/locksswiki/files/ReichIndiaFinal.pdf

  4. Introductions Overview of the SafeArchive System Hands On: Running the SafeArchive System using Amazon Web Services Break Hands On: Setting up the SafeArchive System Hands On: Using the Safe Archive System Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

  5. Introductions Overview of the SafeArchive System Hands On: Running the SafeArchive System using Amazon Web Services Break Hands On: Setting up the SafeArchive System Hands On: Using the Safe Archive System Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

  6. Why was Created? Verified geographically-distributed replication of content is an essential component of any comprehensive digital preservation plan. The requirement has emerged as a necessity for recognition and certification as a trusted repository.

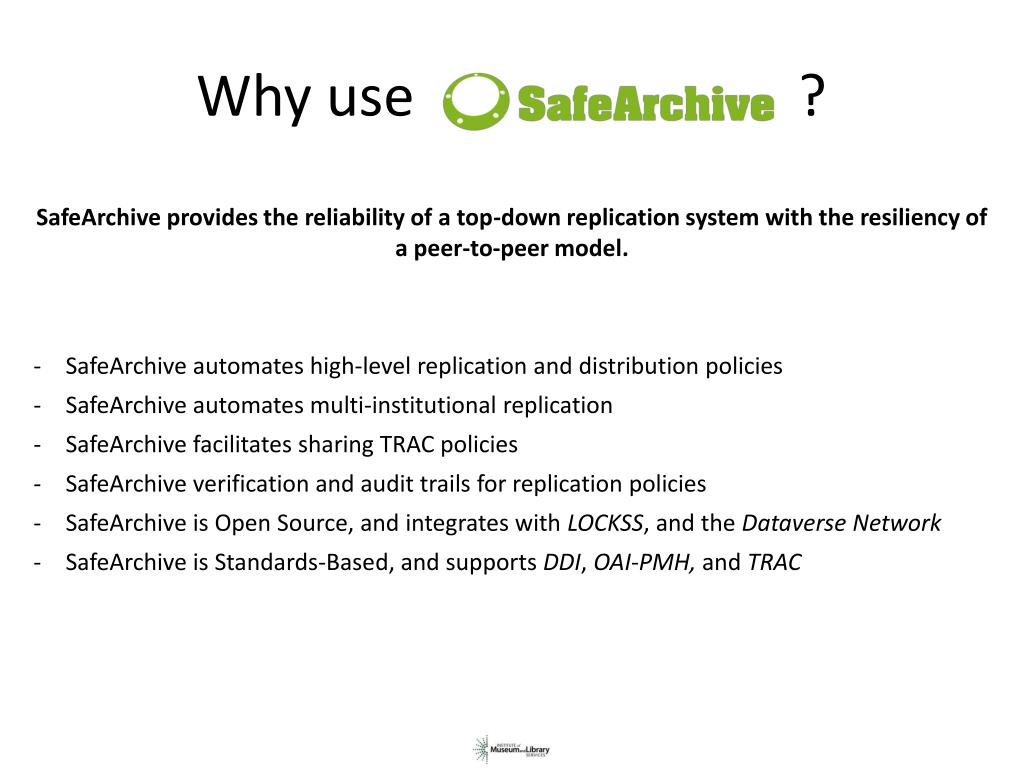

  7. Why use ? • SafeArchive provides the reliability of a top-down replication system with the resiliency of a peer-to-peer model. • SafeArchive automates high-level replication and distribution policies • SafeArchive automates multi-institutional replication • SafeArchive facilitates sharing TRAC policies • SafeArchive verification and audit trails for replication policies • SafeArchive is Open Source, and integrates with LOCKSS, and the Dataverse Network • SafeArchive is Standards-Based, and supports DDI, OAI-PMH, and TRAC

  8. SafeArchive Overview • SafeArchive automates high-level replication policies and helps institutions to collaborate in preserving digital content. GUI-based tools are designed for librarians and archivists—not systems administrators. • Operationally, system users can: • Analyze any LOCKSS network • Check that collections are replicated, valid, and up-to-date • Create formal replication policies • Replicate content from web sites or digital repository systems • Audit the network for current and historical ISO compliance • Automatically manage and repair a LOCKSS network based on a specific replication policy • SafeArchive provides the reliability of a top-down replication system with the resiliency of a peer-to-peer model.

  9. What can you do with ? • Analyze any existing set of public LOCKSS systems or Private LOCKSS Network • which collections are replicated? • when were they last verified, and updated? • identify potential problems with the storage network • Create formal TRAC policies • create operational policies for replication and distribution • create advisory policies for all TRAC criteria • Audit your storage network against your policies • verify that collections are currently replicated, verified, updated • create historical audit trails and evidence of long-term compliance • Replicate content from web sites or digital repository systems • use SafeArchive/DVN plugins to replicate content in the Dataverse Network • use SafeArchive/LOCKSS plugins to replicate content through OAI or HTTP • [This Fall] Automatically deploy and repair LOCKSS replication based on policy

  10. Review • Install SafeArchive: • Using the prepackaged Amazon Web Services image • OREby installing the source on Linux • Tell SafeArchive what hosts to monitor • Use the Audit Schema Manager web interface • OR Supply a LOCKSS PLN configuration file • Tell SafeArchive your policies • Use the Audit Schema Manager web interface • Fill in the blanks • Verify your content • Use the Audit Report Web interface to see things immediately • OR configure the system to send you e-mail • OR visit historical records later • Sleep better – your content is SAFE

  11. Introductions • Overview and Tour of the SafeArchive System • Hands On: Running the SafeArchive System using Amazon Web Services • Launching the SafeArchive AMI • Configuring and Installing the SafeArchive AMI • Break • Hands On: Setting up the SafeArchive System • Hands On: Using the Safe Archive System Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

  12. Running the SafeArchive System using Amazon Web Services http://aws.amazon.com

  13. Running the SafeArchive System using Amazon Web Services Enter your e-mail address and Amazon password

  14. Running the SafeArchive System using Amazon Web Services https://console.aws.amazon.com/ec2/home?region=us-east-1#launchAmi=ami-e67ddc8f

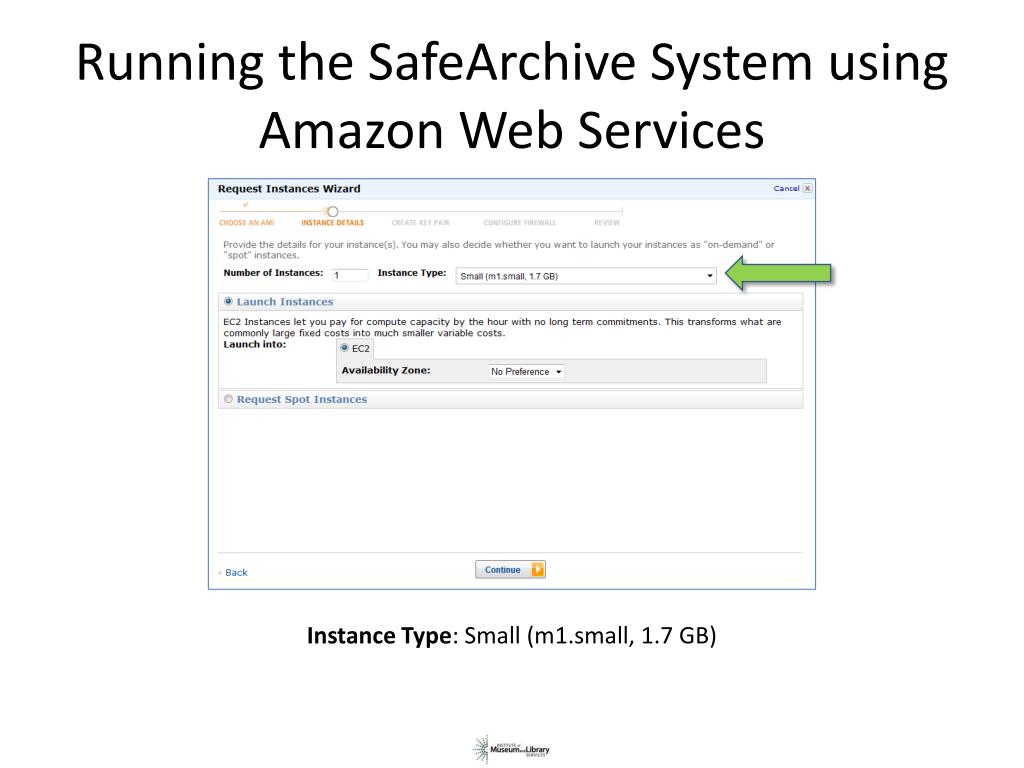

  15. Running the SafeArchive System using Amazon Web Services Instance Type: Small (m1.small, 1.7 GB)

  16. Running the SafeArchive System using Amazon Web Services Default Settings

  17. Running the SafeArchive System using Amazon Web Services Enter a Name Value

  18. Running the SafeArchive System using Amazon Web Services Proceed without a Key Pair

  19. Running the SafeArchive System using Amazon Web Services Select the default Security Group

  20. Running the SafeArchive System using Amazon Web Services Launch

  21. Running the SafeArchive System using Amazon Web Services Close the Launch Instance Wizard

  22. Introductions • Overview and Tour of the SafeArchive System • Hands On: Running the SafeArchive System using Amazon Web Services • Launching the SafeArchive AMI • Configuring and Installing the SafeArchive AMI • Break • Hands On: Setting up the SafeArchive System • Hands On: Using the Safe Archive System Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

  23. Running the SafeArchive System using Amazon Web Services Allocate a New Address

  24. Running the SafeArchive System using Amazon Web Services Yes, Allocate

  25. Running the SafeArchive System using Amazon Web Services Associate the IP address with the SafeArchive AMI

  26. Running the SafeArchive System using Amazon Web Services Associate the IP address with the SafeArchive AMI

  27. Running the SafeArchive System using Amazon Web Services Ports: 22 3306 3700 3820 3920 4848 8080 8686 Add Custom TCP rules

  28. Running the SafeArchive System using Amazon Web Services PuTTY.exe

  29. Running the SafeArchive System using Amazon Web Services Login: Odum Password: Odum

  30. Running the SafeArchive System using Amazon Web Services Press Enter to accept the default inputs (as appropriate)

  31. Running the SafeArchive System using Amazon Web Services Copy and paste the URL in the Firefox browser

  32. Introductions • Overview and Tour of the SafeArchive System • Hands On: Running the SafeArchive System using Amazon Web Services • Launching the SafeArchive AMI • Configuring and Installing the SafeArchive AMI • Break • Hands On: Setting up the SafeArchive System • Hands On: Using the Safe Archive System Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

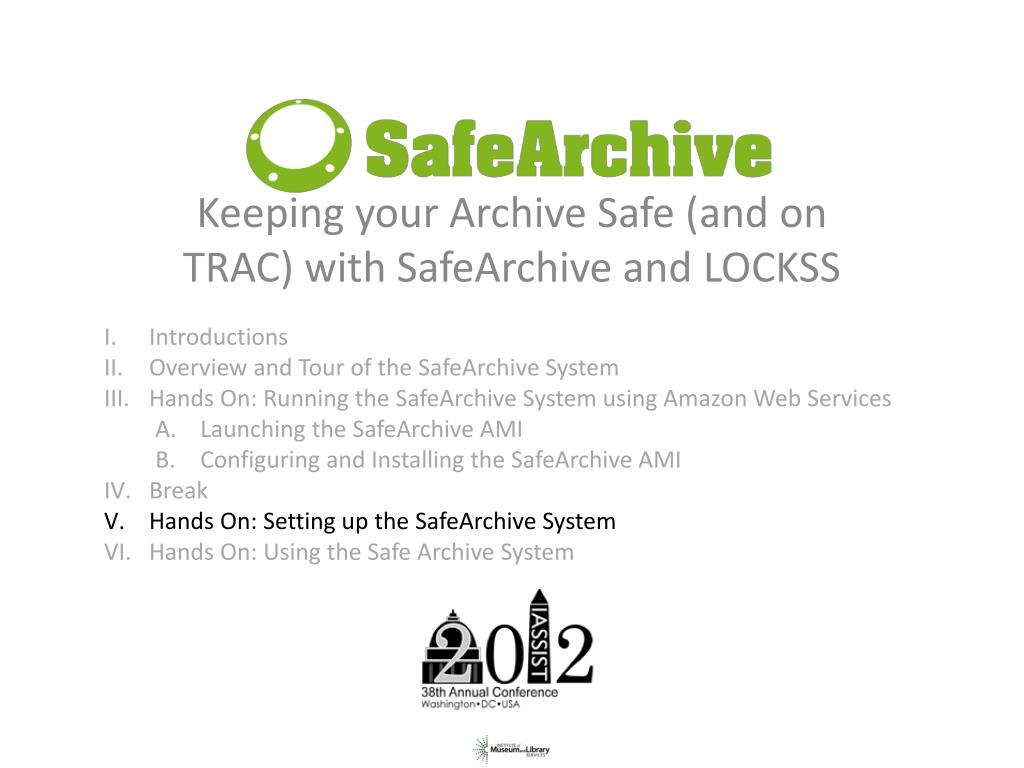

  33. Introductions • Overview and Tour of the SafeArchive System • Hands On: Running the SafeArchive System using Amazon Web Services • Launching the SafeArchive AMI • Configuring and Installing the SafeArchive AMI • Break • Hands On: Setting up the SafeArchive System • Hands On: Using the Safe Archive System Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

  34. Setting up the SafeArchive System User Name: administrator Password: administrator

  35. Setting up the SafeArchive System Audit Schema Instance List

  36. Setting up the SafeArchive System Edit the Owner-Institution Option List now

  37. Setting up the SafeArchive System Enter the owner-institution name

  38. Setting up the SafeArchive System Edit the Subject Option List now

  39. Setting up the SafeArchive System Add a new subject

  40. Setting up the SafeArchive System Refresh the Network-Status Data Tables

  41. Setting up the SafeArchive System Edit Archival-unit attributes now

  42. Setting up the SafeArchive System Edit Archival-unit Attributes

  43. Setting up the SafeArchive System Create a New Audit Schema Instance

  44. Setting up the SafeArchive System Create Audit Schema Instance

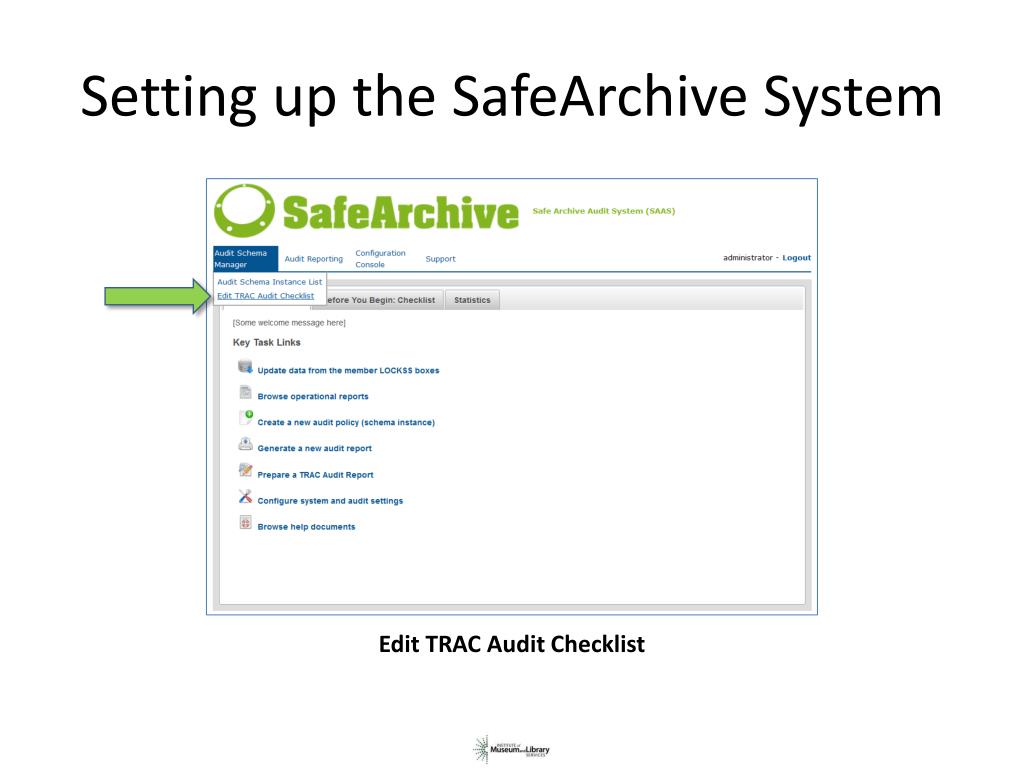

  45. Setting up the SafeArchive System Edit TRAC Audit Checklist

  46. Setting up the SafeArchive System Edit TRAC Audit Checklist

  47. Setting up the SafeArchive System Save the TRAC Audit Checklist

  48. Introductions • Overview and Tour of the SafeArchive System • Hands On: Running the SafeArchive System using Amazon Web Services • Launching the SafeArchive AMI • Configuring and Installing the SafeArchive AMI • Break • Hands On: Setting up the SafeArchive System • Hands On: Using the Safe Archive System Keeping your Archive Safe (and on TRAC) with SafeArchive and LOCKSS

  49. Using the SafeArchive System Detailed Network Status Data

  50. Using the SafeArchive System Show Table
