Ijcnn international joint conference on neural networks san jose 2011

IJCNN, International Joint Conference on Neural Networks, San Jose 2011

Motivated LearninginAutonomous Systems

Pawel Raif

Silesian University of Technology, Poland,

Janusz A. Starzyk

Ohio University, USA,


Outline

Outline

  • Reinforcement Learning (RL)

  • Goal Creation System (GCS)yields self-organizing pain based network

  • Motivated Learning (ML)as a combination of RL + GCS

  • SimulationsResults

  • Possible Applications of ML


Machine learning methods

corrective

learning

supervised

learning

machine

learning

reinforcement

learning

unsupervised

learning

Machine Learning Methods

PROBLEMS IN „REAL WORLD” APPLICATIONS like in AUTONOMOUS SYSTEMS

intrinsicmotivation

„top-down approach”

„curse of dimensionality”

lack of motivation for development

hierarchical RL

„bottom-up approach”

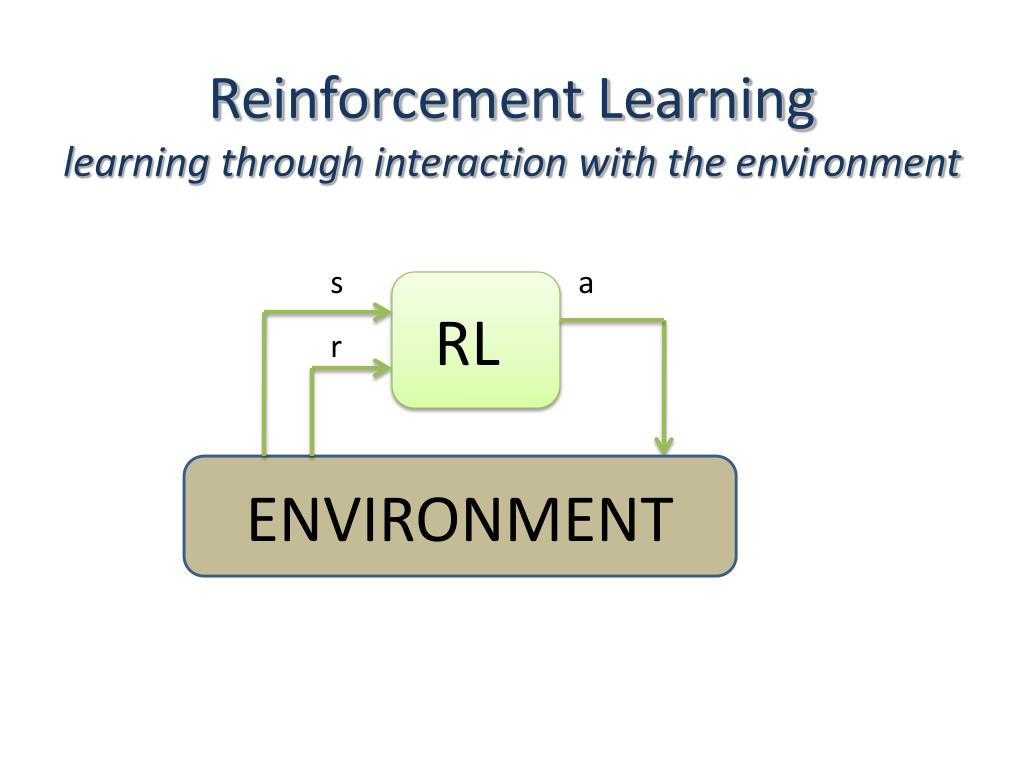

Reinforcement learning learning through interaction with the environment

Reinforcement Learninglearning through interaction with the environment

RL

s

a

r

ENVIRONMENT


Motivated learning

Motivated Learning

  • Motivated learning (ML) is need based motivation, goal creation and learning in an embodied agent.

    • An agent creates hierarchy of goals based on the primitive need signals.

    • It receives internal rewards for satisfying its goals (both primitive and abstract).

    • ML applies to EI working in a hostile environment.

ML can combine internal goal creation system (GCS)

and reinforcement learning (RL).


Motivated learning the main idea intrinsic motivation s created by learning machines

Motivated Learning – the main IDEA…intrinsic motivations created by learning machines.

state

action

RL

GC

reward

ML

GOALS (motivations)


Ijcnn international joint conference on neural networks san jose 2011

How to motivate a machine?

We suggest that the hostility of the environment,

is the most effective motivational factor.

An intelligent agent learnshow

to survive in a hostile environment.


Assumptions

Assumptions

1. ML agent is independent: it can act autonomously in its environment and is able to choose its own way of development.

2. ML agent’sinterface tothe environment is the same as RL agent’s.

3. Environment is hostile to the agent.

4. Hostility may be active or passive (depleted resources).

5. Environment is fully observable.


Goal creation system neural self organizing pain based structures

GoalCreation SystemNeuralself-organizing pain-based structures

UA

WTA

WTA

M2

M

-10

1

1

1

Sk

S2

P2

M1

G

wBP2

P2

G

B2

B2

wPG

wBP2

wP1G

P1

1

wBP1

S1

B1

P1

G

B1

wBP1

wPpG

  • Motivations and selection of a goal

    • Motivations are as desires in BDI agent

    • WTA competition selects motivation

    • another WTA selects goals

  • Goal creation scheme

    • a primitive pain is directly sensed

    • an abstract pain is introduced

      by solving a lower level pain

    • thresholded curiosity based pain

Pp

.


Internal goals simple linear hierarchy between different goals

Internal goalssimple linear hierarchy between different goals

Hierarchy of resources(and possible agent’s goals):

4

Resources are distributed all over the „grid world”.

The most abstract

Office

3

Bank

2

Grocery

1

The least abstract

Food


Modified grid world

Modified „gridworld”

Agent must localize resources and learn how to utilize them

This environment is:

Complex,

Dynamically changing,

Fully observable.


Ijcnn international joint conference on neural networks san jose 2011

Environment

2

1

Resources present in the environment

can be used to satisfy the agent’s needs

3

4

Resources are distributed all over the„grid world”.

4

Perception of resources

3

2

Internal need signals

By discovering useful resources and their dependencies,

learned hierarchy of internal goals expresses the environment complexity.

1

Subjective sense of „lack of resources”


Relationships between i nternal goals

Relationships between internal goals

Relationships between internal goals doesn’t have to be a linear hierarchy.

They may constitute a tree structure or a complex network of resource dependencies.

Top level resources

need3

By discovering subsequent resources and their dependencies, the complexity of internal goal network grows.

BUT each system may have unique experiences

(reflecting personal history of development)

need1

need2

Designer’s specified needs


Experiment that combines ml rl

Experiment that combines ML & RL

Every resource discovered by the agentbecomes a potential goal and is assigned avalue function „level”.

Goal Creation System establishes new goals and switches agent’s activity between them.

RL algorithm learns value functions on different levels.


Experiment results switching between goals

Experiment Resultsswitching between goals

at the beginning …

Initially the agent uses many iterations to reach a goal (red dots).

Sometimes it abandons the goal when another pain dominates.

Final runs are shorter and more successful.

… and at the end.


Experiment results

Experiment Results

Comparing Primitive Pain Levels of RL & ML

Initially RL agent learns better.

Its performance deteriorates as the resources are depleted

Moving average of the primitive pain signal.


Experiment results1

Experiment Results

Effectiveness in terms of cumulative reward:

Cumulative reward

Reward determined by the designer of the experiment.


Reinforcement learning motivated learning

Reinforcement LearningMotivated Learning

Single value function

Various objectives

Measurable rewards

Predictable

Objectives set by designer

Maximizes the reward

Potentially unstable

Learning effort increases with complexity

Always active

Multiple value functions

One for each goal

Internal rewards

Unpredictable

Sets its own objectives

Solves minimax problem

Always stable

Learns better in complex environment than RL

Acts when needed

http://www.bradfordvts.co.uk/images/goal.jpg


Conclusions

Conclusions

Motivated learning method, based on goal creation system, can improve learning of autonomus agents in special class of problems.

ML is especially useful in complex, dynamic environments where it works according to learned hierarchy of goals.

Individual goals use well known reinforcement learning algorithms to learn their corresponding value functions.

ML concerns building internal representations of useful environment percepts, through interaction with the environment.

ML switches machine’s attention and sets intended goals becoming an important mechanism for a cognitive system.


Ijcnn international joint conference on neural networks san jose 2011

„The real danger is not that computers will begin to think like man, but that man will begin to think like computers.”

Sydney J. Harris


References

References:

  • J.A. Starzyk, J.T. Graham, P. Raif, and A-H.Tan, Motivated Learning for the Development of Autonomous Systems, Cognitive Systems Research, Special issue on Computational Modeling and Application of Cognitive Systems, 12 January 2011.

  • Starzyk J.A., Raif P., Ah-Hwee Tan, Motivated Learning as an Extension of Reinforcement Learning, Fourth International Conference on Cognitive Systems, CogSys 2010, ETH Zurich, January 2010.

  • Starzyk J.A., Raif P., Motivated Learning Based on Goal Creation in Cognitive Systems, Thirteenth International Conference on Cognitive and Neural Systems, Boston University, May 2009.

  • J. A. Starzyk, Motivation in Embodied Intelligence,Frontiers in Robotics, Automation and Control, I-Tech Education and Publishing, Oct. 2008, pp. 83-110.
