Status report tracking code

Status report- Tracking code -

T.Gogami

9/30/2010

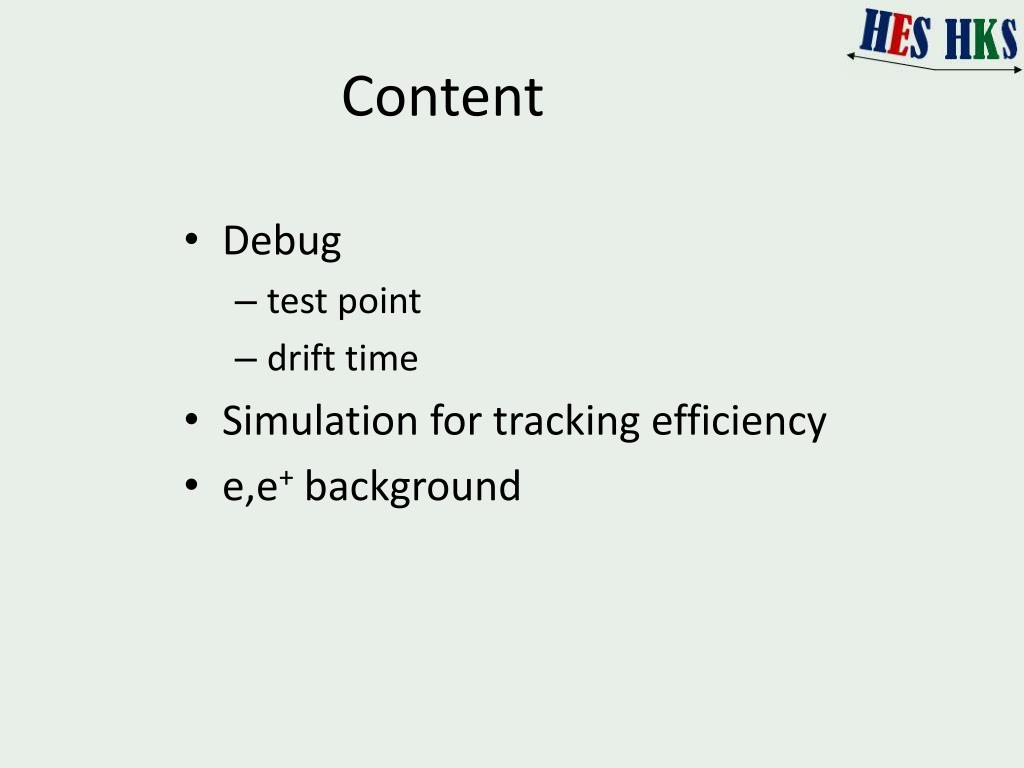

Content
Content

  • Debug

    • test point

    • drift time

  • Simulation for tracking efficiency

  • e,e+ background


T est point calculation in pattern recognition for hks
Test point calculation in pattern recognition for HKS

Test point coordinate ( x , y )

y-coordinate sign is opposite !

http://lambda.phys.tohoku.ac.jp/~gogami/HES-HKS/testpoint/testpoint.pdf

But in current code

  • There is no affection to select space points.

  • But this affect in “h_tof_pre.f”.

  • (this case is so rare)


Clusters in residual vs 2 distribution
Clusters in residual vs. χ2 distribution

Longer drift time events make clusters

x’ [rad]

Track χ2

x [cm]

Single residual (KDC1-3) [cm]

Drift time [ns]


H tof pre f
h_tof_pre.f

  • pre track with space points

    • single hit in KTOF

    • multi hit in KTOF

  • start time calculation for drift time of chambers

  • correction (card)


B ugs in h tof pre f
Bugs in h_tof_pre.f

start time for drift time

KTOF TDC information

  • single hit

  • multi hit (mean)


R esidual vs 2
Residual vs. χ2

CH2 target

Current

CH2 target

Current

Disappear clusters

New

CH2 target

New

16 %

for 52Cr target

40%


D rift distance x vs residual
Drift distancex’ vs. residual

CH2 target

Current

Current

Residual [cm] (KDC1-3)

Stripe

drift distance [cm]

x’ [rad] @ reference plane

New

New

Residual [cm] (KDC1-3)

drift distance [cm]

x’ [rad] @ reference plane


Simulation for hks tracking efficiency by d doi
Simulation for HKS tracking efficiency (by D.Doi)

KTOF1X

  • input tracks in simulation

    ==> output file (hit wire info and so on)

  • input this file to real analyzer

  • see output tracks and compare to input tracks

K+

KDC2

KDC1

one result of this simulation

CH2 target

Current analyzer

cannot handle

with high multiplicity data

52Cr target

Need to improve

tracking code

Now developing


E e b g in hks
e,e+ b.g. in HKS

TOP view

5 × 5 [cm2]

Side view

HKS - D

HKS - Q

X’ [rad]

X [cm]


B g mix rate in hks trigger
B.G mix rate in HKS trigger

a

just after pattern recognition

==>cut bad combination of space point (like h_tof_pre)

==> Saving CPU power , Reduce analysis time

52Cr (77124)

b

12C (76077)

9Be (76607)

7Li (76184) .

10B (76184)

B.G. mix rate = a/(a+b)

×1044

Developing B.G. cut routine


Multiplicity in chambers
Multiplicity in chambers

HES

layer

10

6

after TDC cut

52Cr target

CH2 target

mean ~ 1 hit

mean ~ 1 hit

~2 [MHz]

(8 [μA] on 52Cr)

HKS

after TDC cut

6

6

layer

52Cr target

CH2 target

mean ~ 6 hit

mean ~ 2 hit

~18 [kHz]

(8 [μA] on 52Cr)

Origin of high multiplicity is ee+ B.G. ?


Summary and to do
Summary and to do

  • Summary

    • debug

      • test point calculation in “find space point”

        • opposite sign for y-coordinate of test point

      • ( finalminnum--> finalminnum+1 ) in “h_tof_pre.f”

        • drift time distribution got better

        • entry number is up (CH2:16% up , 52Cr:40% up)

    • Simulation for HKS tracking efficiency by D.Doi

    • e,e+ B.G

      • mix rate is high especially for 52Cr target.

        • need to cut before tracking

      • Origin of high multiplicity ?

  • to do

    • Development

      • reject e,e+ B.G routine

      • choose single hit routine --> see all combination

    • Check

      • HES side tracking code

      • e,e+ B.G origin ?

        • check ADC

        • Simulation


Generated e in simulation
Generated e+ in Simulation

pe+ : 1.2±0.5 [GeV/c]

θ : 0.124±0.124 [rad]

φ : 2.64159±0.5 [rad]

target : 12C 100[mg/cm2]

HKS D magnet

HKS D magnet

Splitter magnet

beam:

spherical uniform generation

no collimator

EM flag on
