Chemistry of Igneous Rocks

  • Characterization of different types (having different chemistries):

    • Ultramafic  Mafic  Intermediate  Felsic

  • Composition commonly presented in weight % of the oxides

    • 40-78% SiO2

    • 12-18% Al2O3


Melts l.jpg

Melts

  • Liquid composed of predominantly silica and oxygen. Like water, other ions impart greater conductivity to the solution

  • Si and O is polymerized in the liquid to differing degrees – how ‘rigid’ this network may be is uncertain…

  • Viscosity of the liquid  increases with increased silica content, i.e. it has less resistance to flow with more SiO2… related to polymerization??

  • There is H2O is magma  2-6% typically – H2O decreases the overall melting T of a magma, what does that mean for mineral crystallization?


Thermodynamic definitions l.jpg

Thermodynamic definitions

  • Gi(solid) = Gi(melt)

  • Ultimately the relationships between these is related to the entropy of fusion (DS0fus), which is the entropy change associated with the change in state from liquid to crystal

  • These entropies are the basis for the order associated with Bowen’s reaction series  greater bonding changes in networks, greater entropy change  lower T equilibrium


Slide5 l.jpg

Liquid hot

MAGMA

Mg2+

Na+

Ca2+

Fe2+

O2-

O2-

O2-

O2-

O2-

O2-

Si4+

O2-

Si4+

O2-

O2-

Si4+

O2-

  • Minerals which form are thus a function of melt composition and how fast it cools (re-equilibration?)  governed by the stability of those minerals and how quickly they may or may not react with the melt during crystallization

rock

Mg2+

Fe2+

cooling

Mg2+


Processes of chemical differentiation l.jpg

Processes of chemical differentiation

  • Partial Melting: Melting of a different solid material into a hotter liquid

  • Fractional Crystallization: Separation of initial precipitates which selectively differentiate certain elements…

  • Equilibrium is KEY --? Hotter temperatures mean kinetics is fast…


Melting l.jpg

Melting

  • First bit to melt from a solid rock is generally more silica-rich

  • At depth in the crust or mantle, melting/precipitation is a P-T process, governed by the Clausius-Clapeyron Equation – Slope is a function of entropy and volume changes!

  • But with water… when minerals precipitate they typicaly do not pull in the water, melt left is ‘diluted’  develop a negative P-T slope


Melt crystal equilibrium 1 l.jpg

Melt-crystal equilibrium 1

  • Magma at composition X (30% Ca, 70% Na) cools  first crystal bytownite (73% Ca, 27% Na)

  • This shifts the composition of the remaining melt such that it is more Na-rich (Y)

  • What would be the next crystal to precipitate?

  • Finally, the last bit would crystallize from Z

X

Y

Z


Melt crystal equilibrium 1b l.jpg

Melt-crystal equilibrium 1b

  • Precipitated crystals react with cooling liquid, eventually will re-equilibrate back, totally cooled magma xstals show same composition

  • UNLESS it cools so quickly the xstal becomes zoned or the early precipitates are segregated and removed from contact with the bulk of the melt


Why aren t all feldspars zoned l.jpg

Why aren’t all feldspars zoned?

  • Kinetics, segregation

  • IF there is sufficient time, the crystals will re-equilibrate with the magma they are in – and reflect the total Na-Ca content of the magma

  • IF not, then different minerals of different composition will be present in zoned plagioclase or segregated from each other physically


Slide11 l.jpg

  • What about minerals that do not coexist well – do not form a solid solution – are immiscible??


Slide12 l.jpg

  • More than 1 crystal can precipitate from a melt – different crystals, different stabilities…

    • 2+ minerals that do not share equilibrium in a melt are immiscible (opposite of a solid solution)

    • Liquidus  Line describing equilibrium between melt and one mineral at equilibrium

    • Solidus  Line describing equilibrium with melt and solid

    • Eutectic  point of composition where melt and solid can coexist at equilibrium

Solidus

Diopside is a pyroxene

Anorthite is a feldspar

Eutectic

Liquidus


Slide13 l.jpg

A

B

S1

C

S2

Z

  • Melt at composition X cools to point Y where anorthite (NOT diopside at all) crystallizes, the melt becomes more diopside rich to point C, precipitating more anorthite with the melt becoming more diopside-rich

  • This continues and the melt continues to cool and shift composition until it reaches the eutectic when diopside can start forming

At eutectic, diopside AND anorhtite crystals precipitate

Lever Rule  diopside/anorthite (42%/58%) crystallize until last of melt precipitates and the rock composition is Z


Slide14 l.jpg

  • Melting  when heated to eutectic, the rock would melt such that all the heat goes towards heat of fusion of diopside and anorthite, melts so that 42% diopside / 58% anorthite…

  • When diopside gone, temperature can increase and rest of anorthite can melt (along liquidus)


Melt crystal equilibrium 2 miscibility l.jpg

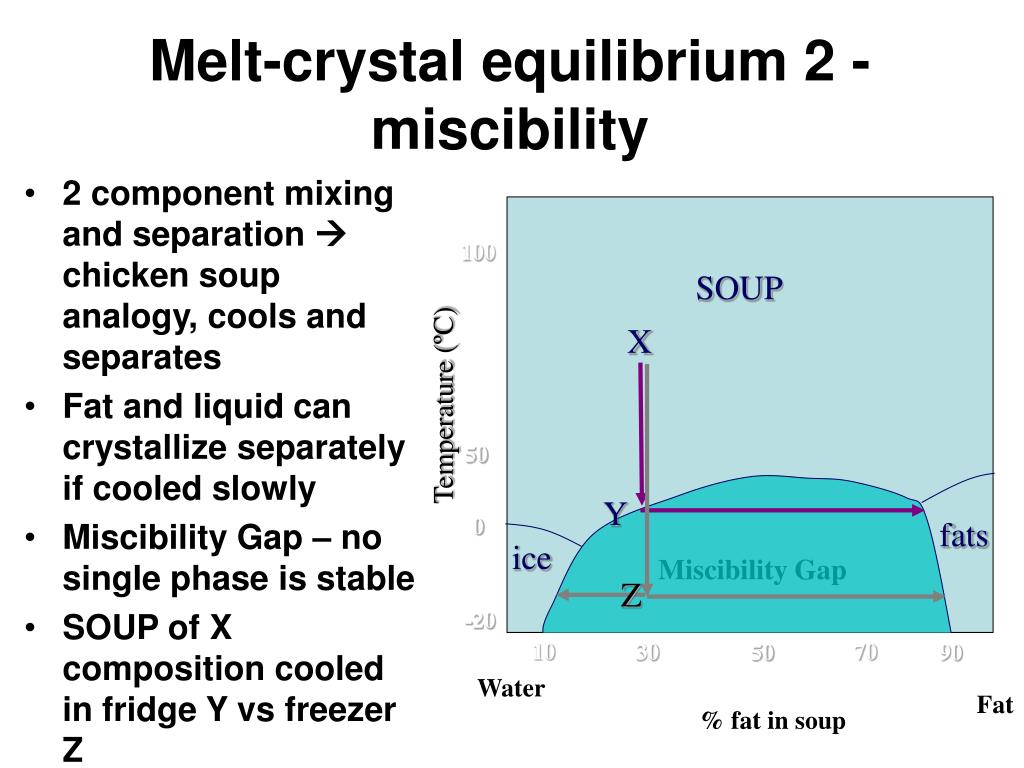

Melt-crystal equilibrium 2 - miscibility

  • 2 component mixing and separation  chicken soup analogy, cools and separates

  • Fat and liquid can crystallize separately if cooled slowly

  • Miscibility Gap – no single phase is stable

  • SOUP of X composition cooled in fridge Y vs freezer Z

100

SOUP

X

Temperature (ºC)

50

Y

0

fats

ice

Miscibility Gap

Z

-20

10

70

30

50

90

Water

Fat

% fat in soup


Melt crystal equilibrium 2 miscibility16 l.jpg

monalbite

anorthoclase

1100

high albite

sanidine

900

intermediate albite

Temperature (ºC)

700

orthoclase

low albite

microcline

500

Miscibility Gap

300

10

70

30

50

90

Orthoclase

KAlSi3O8

Albite

NaAlSi3O8

% NaAlSi3O8

Melt-crystal equilibrium 2 - miscibility

  • 2 component mixing and separation  chicken soup analogy, cools and separates

  • Fat and liquid can crystallize separately if cooled slowly

  • Miscibility Gap – no single mineral is stable in a composition range for x temperature


Combining phase and composition diagrams for mineral groups l.jpg

Muscovite

KAl2(AlSi3O10)(OH)2

No micas

Miscibility Gap

Biotite series

Phlogopite

KMg3(AlSi3O10)(OH)2

Annite

KFe3(AlSi3O10)(OH)2

Combining phase and composition diagrams for mineral groups

Mica ternary


Solid solution l.jpg

SOLID SOLUTION

  • Occurs when, in a crystalline solid, one element substitutes for another.

  • For example, a garnet may have the composition: (Mg1.7Fe0.9Mn0.2Ca0.2)Al2Si3O12.

  • The garnet is a solid solution of the following end member components:

    Pyrope - Mg3Al2Si3O12; Spessartine - Mn3Al2Si3O12;

    Almandine - Fe3Al2Si3O12; and Grossular - Ca3Al2Si3O12.


Goldschmidt s rules l.jpg

GOLDSCHMIDT’S RULES

1. The ions of one element can extensively replace those of another in ionic crystals if their radii differ by less than approximately 15%.

2. Ions whose charges differ by one unit substitute readily for one another provided electrical neutrality of the crystal is maintained. If the charges differ by more than one unit, substitution is generally slight.

3. When two different ions can occupy a particular position in a crystal lattice, the ion with the higher ionic potential forms a stronger bond with the anions surrounding the site.


Ringwood s modification of goldschmidt s rules l.jpg

RINGWOOD’S MODIFICATION OFGOLDSCHMIDT’S RULES

4. Substitutions may be limited, even when the size and charge criteria are satisfied, when the competing ions have different electronegativities and form bonds of different ionic character.

This rule was proposed in 1955 to explain discrepancies with respect to the first three Goldschmidt rules.

For example, Na+ and Cu+ have the same radius and charge, but do not substitute for one another.


Incompatible vs compatible trace elements l.jpg

INCOMPATIBLE VS. COMPATIBLE TRACE ELEMENTS

Incompatible elements: Elements that are too large and/or too highly charged to fit easily into common rock-forming minerals that crystallize from melts. These elements become concentrated in melts.

Large-ion lithophile elements (LIL’s): Incompatible owing to large size, e.g., Rb+, Cs+, Sr2+, Ba2+, (K+).

High-field strength elements (HFSE’s): Incompatible owing to high charge, e.g., Zr4+, Hf 4+, Ta4+, Nb5+, Th4+, U4+, Mo6+, W6+, etc.

Compatible elements: Elements that fit easily into rock-forming minerals, and may in fact be preferred, e.g., Cr, V, Ni, Co, Ti, etc.


Slide22 l.jpg

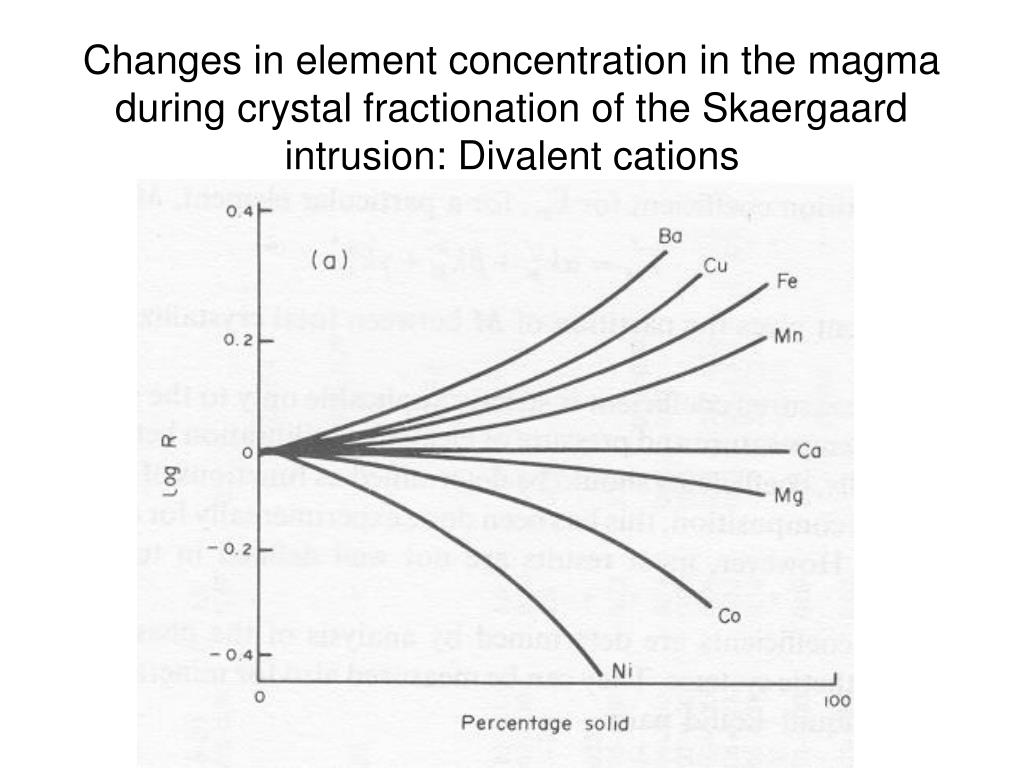

Changes in element concentration in the magma during crystal fractionation of the Skaergaard intrusion: Divalent cations


Slide23 l.jpg

Changes in element concentration in the magma during crystal fractionation of the Skaergaard intrusion: Trivalent cations


Three types of trace element substitution l.jpg

THREE TYPES OF TRACE-ELEMENT SUBSTITUTION

1) CAMOUFLAGE

2) CAPTURE

3) ADMISSION


Camouflage l.jpg

CAMOUFLAGE

  • Occurs when the minor element has the same charge and similar ionic radius as the major element (same ionic potential; no preference.

  • Zr4+ (0.80 Å); Hf4+ (0.79 Å)

  • Hf usually does not form its own mineral; it is camouflaged in zircon (ZrSiO4)


Capture l.jpg

CAPTURE

  • Occurs when a minor element enters a crystal preferentially to the major element because it has a higher ionic potential than the major element.

  • For example, K-feldspar captures Ba2+ (1.44 Å; Z/r = 1.39) or Sr2+ (1.21 Å; Z/r = 1.65) in place of K+ (1.46 Å, Z/r = 0.68).

  • Requires coupled substitution to balance charge: K+ + Si4+ Sr2+ (Ba2+) + Al3+


Admission l.jpg

ADMISSION

  • Involves entry of a foreign ion with an ionic potential less than that of the major ion.

  • Example Rb+ (1.57 Å; Z/r = 0.637) for K+ (1.46 Å, Z/r = 0.68) in K-feldspar.

  • The major ion is preferred.


Partition coefficients l.jpg

Partition Coefficients

  • How can we quantify the distribution of trace elements into minerals/rocks?

  • Henry’s Law describes equilibrium distribution of a component (we usedit for thinking about gases dissolved in water recently):

    • aimin = kiminXimin

    • aimelt = kimeltXimelt

    • All simplifies to:

  • Often termed KD, values tabulated…

http://www.earthref.org/databases/index.html?main.htm


Limitations of k d l.jpg

Limitations of KD

  • What factors affect how well any element gets into a particular rock???


Melting and crystallization l.jpg

Melting and Crystallization

  • Considering how trace elements incorporate the melt or solid:

  • Where KD(rock)=SKD(j minerals)Xj

  • For consideration of trace elements into a solid, use Rayleigh fractionation equation:

  • Where F is the fraction of melt remaining


Slide31 l.jpg

  • However, most KD values reported close to equilibrium T-P values commonly encountered (?) and are reasonable, at least in terms of relative values between different elements…


Homework l.jpg

Homework

  • Chapter 8

  • Problems 2, 6
