  1. Wavion Video Surveillance Solution Aug 2010

  2. Agenda • Why Video Surveillance? • Video over WiFi Solution • Why WiFi? • Video over WiFi - Challenges • Why Wavion? • Case Studies Wavion proprietary

  3. Why Video Surveillance?

  4. Safely and Protection • Increase Personal Safety & Reduce Crime • Remote monitoring of strategic locations • Bridges, industrial zones, high crime / risk areas, parks, train / bus stations, etc. • Increase efficiency • Improve response time of emergency services • Analyzing images before arriving to event area • Property Protection • Businesses, utility companies, long gas pipes, etc. • Nature protection • E.g.Early detection of fires in forests • Illegal hunting • Military applications • Securing borders and military bases • Facilities safety • University, School, Kid garden, Library, Gallery, Museum etc.

  5. Intrusion Detection Vehicle Detection Unattended Baggage Face Capture Abnormal Behavior License Plate Recognition Deterrence, Early Detection & Prevention Police and other forces can’t be at all places at all times ($$$$, Time, Human resources)

  6. Event Management 3D Geospatial display Video Management Effective Resolution Video Wall

  7. Railroads Monitoring and Control • Solution Package: • Transmitting live junction picture to locomotive driver • Full functionality with mobility • Railwayssurvey • Monitor trains railways exchange

  8. Traffic Monitoring & Control Traffic Control • Traffic monitoring and analysis (loads, plates etc.) • Reduce pollution and traffic jams • Control traffic lights remotely • Monitor plates for Toll road

  9. Video over WiFi Solution

  10. Why WiFi ? • Simple installation • Fast deployment • High Tput for HD video • Reliable and mature technology • Flexibility - camera deployment changes • Cost reduction- No infrastructure to camera location • Cameras can be on spread locations • No need to dig-up the streets

  11. Video over WiFi - Challenges • Video Traffic Characteristics • Mostly Uplink Traffic • Usually the weak link in the Wireless network • Multiple concurrent cameras • Possible problems of hidden nodes • TCP vs. UDP transmission • Unicast vs. Multicast • WiFi network requirements • Handle the outdoor challengeable environment • Reduce collisions and PER • Support QoS and priority • Bandwidth Guaranty • High Tput • Work in high rates (high modulations)

  12. Typical Video WiFi Diagram

  13. Why Wavion?

  14. Why Wavion? • Wavion’s technology designed to meet the outdoor WiFi challenges • Beamforming radio technologies for stronger link • Bottom-up design for outdoor needs • Unmatched coverage • Exclusive Dynamic Interference Handling technology • Optimized Video mode setting • Unique rate algorithm • Provide E2E solution with Wavion certified CPE • Supports WMM • Fixed, high gain, outdoor CPE • Optimize transmission rate • Unique CPE configuration for Multicast traffic

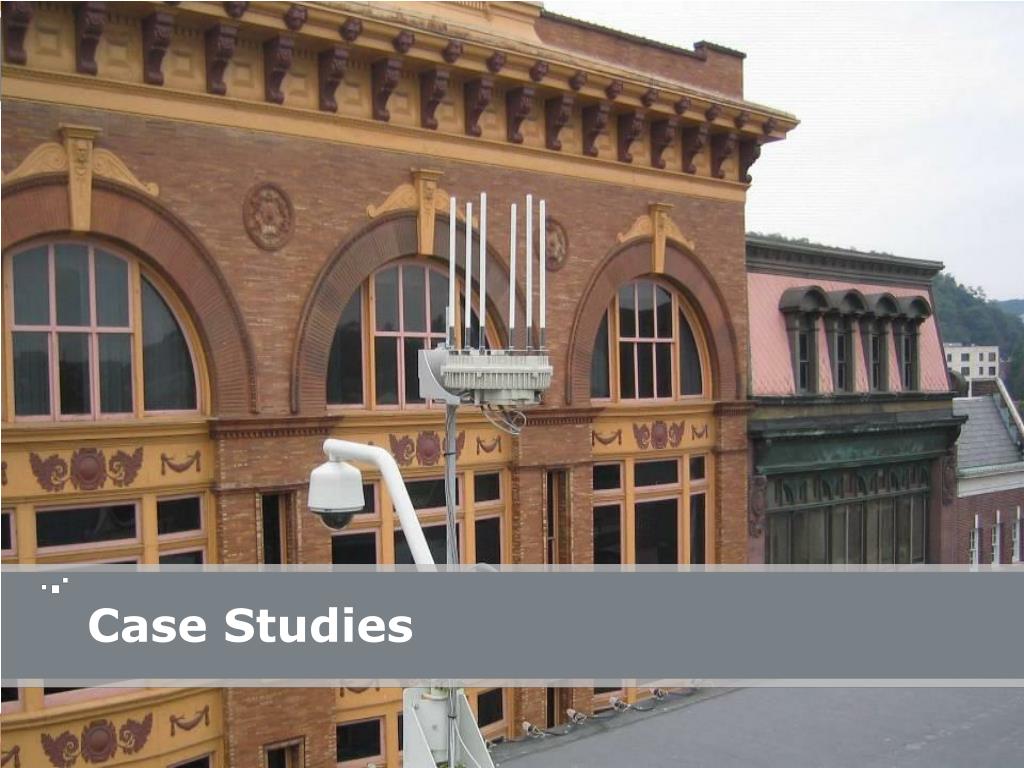

  15. Case Studies

  16. Customer – Nes Ziona Municipality • Customer Information • Municipality with population of 50,000 people • Mitigate “no crime city” • The Project - Ness Ziona Surveillance • Video Surveillance cameras • Control municipality premises

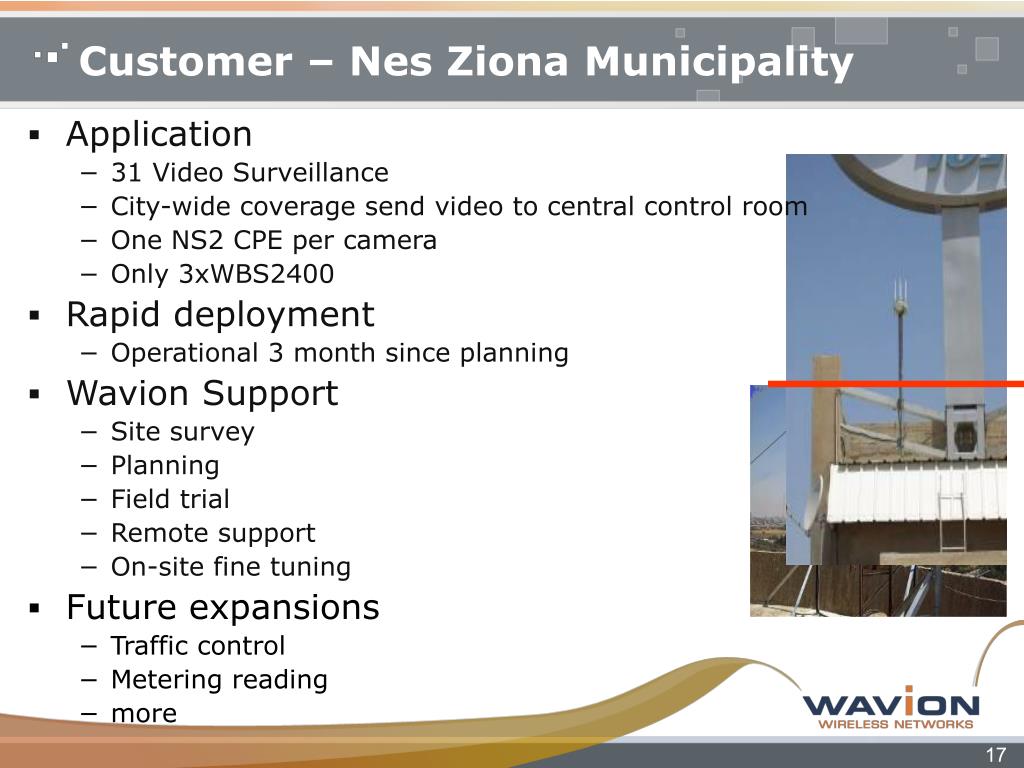

  17. Customer – Nes Ziona Municipality • Application • 31 Video Surveillance • City-wide coverage send video to central control room • One NS2 CPE per camera • Only 3xWBS2400 • Rapid deployment • Operational 3 month since planning • Wavion Support • Site survey • Planning • Field trial • Remote support • On-site fine tuning • Future expansions • Traffic control • Metering reading • more

  18. Nes Ziona Municipality – Control Room

  19. Peace City Project in China • City-wide video surveillance network • City Peace, Public safety • 12 Base stations • 40 CPEs • 120 Cameras located in strategic positions to monitor public buildings, roads, major junctions and traffic load.

  20. Bahia Carnival in Bahia state, Brazil • City-wide video surveillance network • City Peace, Public safety • 20 Base stations 5.8Ghz • 2-4 Cameras per WBS, 3 Mbps each

  21. Thank You
