Apax 5000 pac product introduction

APAX-5000 PAC Product Introduction

CC Lin

APAX PSM


Agenda

Agenda

  • Product Overview

  • Product Position

  • Product Line Introduction & Application

  • Competitors Analysis

  • Product Target Market Reference

  • Reference Application


Advantech apax 5000 overview

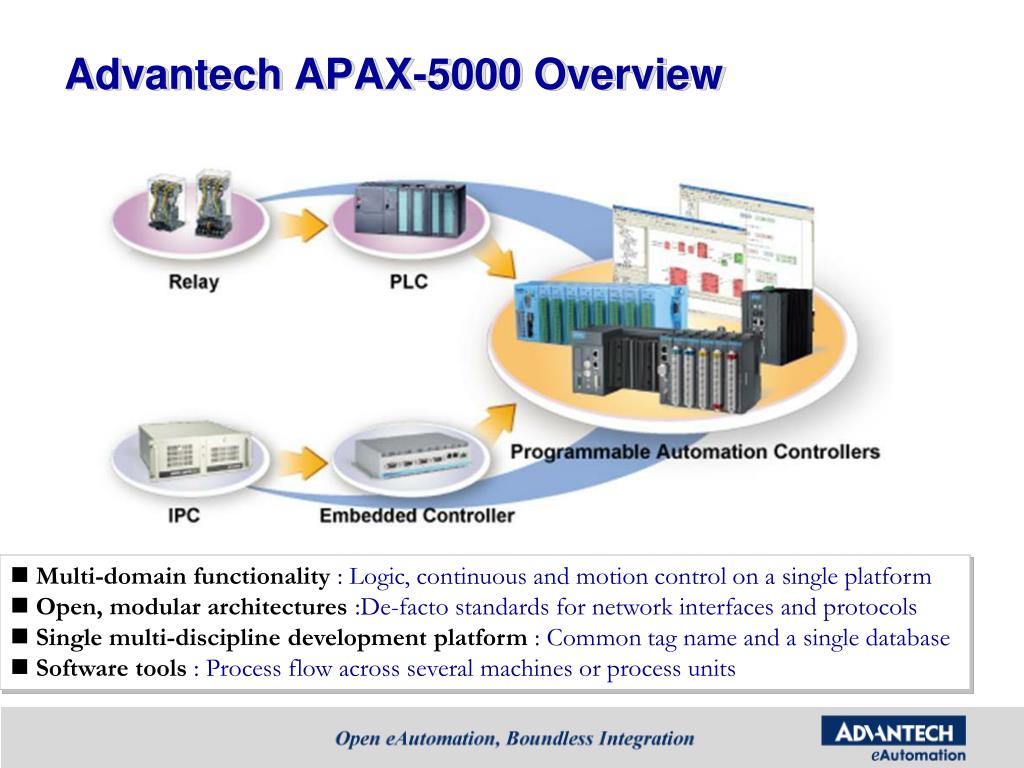

Advantech APAX-5000 Overview

  • Multi-domain functionality : Logic, continuous and motion control on a single platform

  • Open, modular architectures :De-facto standards for network interfaces and protocols

  • Single multi-discipline development platform : Common tag name and a single database

  • Software tools : Process flow across several machines or process units


Apax controller application position

APAX Controller Application Position

Information Process

(HMI , Recipe , Video )

APAX-5570

Beckhoff CX

APAX-5570

GE RX3i

NI Compact point

Honeywell HC900

ICPDAS X8000

Siemens S7 -300

APAX-5520

APAX-5520

Discrete control

(On/Off , motion )

Continuous processes

(PID , Batch )


Apax controller performance

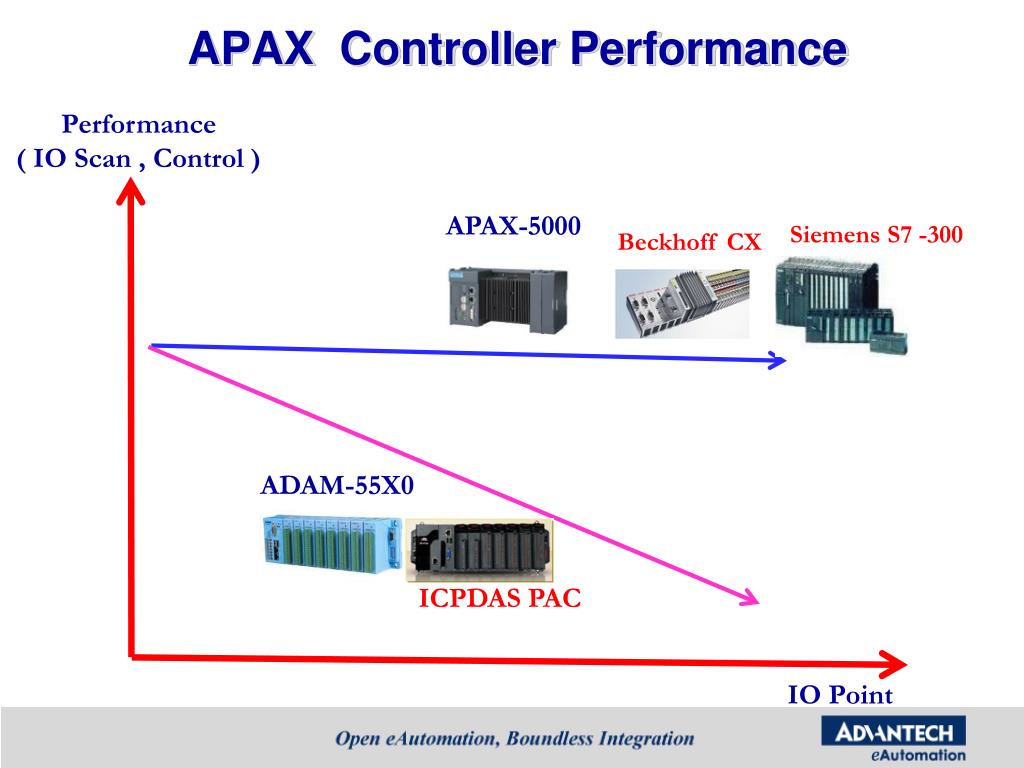

APAX Controller Performance

Performance

( IO Scan , Control )

APAX-5000

Siemens S7 -300

Beckhoff CX

ADAM-55X0

ICPDAS PAC

IO Point


Apax product launch 2009

APAX Product Launch-2009

  • PAC Controller :

    • Standard : 4 Models

    • Multi-Function : 4 Models

    • Standard : 2 Models (Q4 )

  • Remote Control IO Coupler :

    • ModBus/TCP RIO

    • Ethernet/IP RIO (Q4)

  • IO Modules :

    • AIO , DI , DO , DIO , Relay : 6 Models

    • RTD , T/C , AI , PI : 4 models ( Q4, ES ready by order)

  • Motion Interface

    • AMONet Master (Q4)


Apax product launch in sep

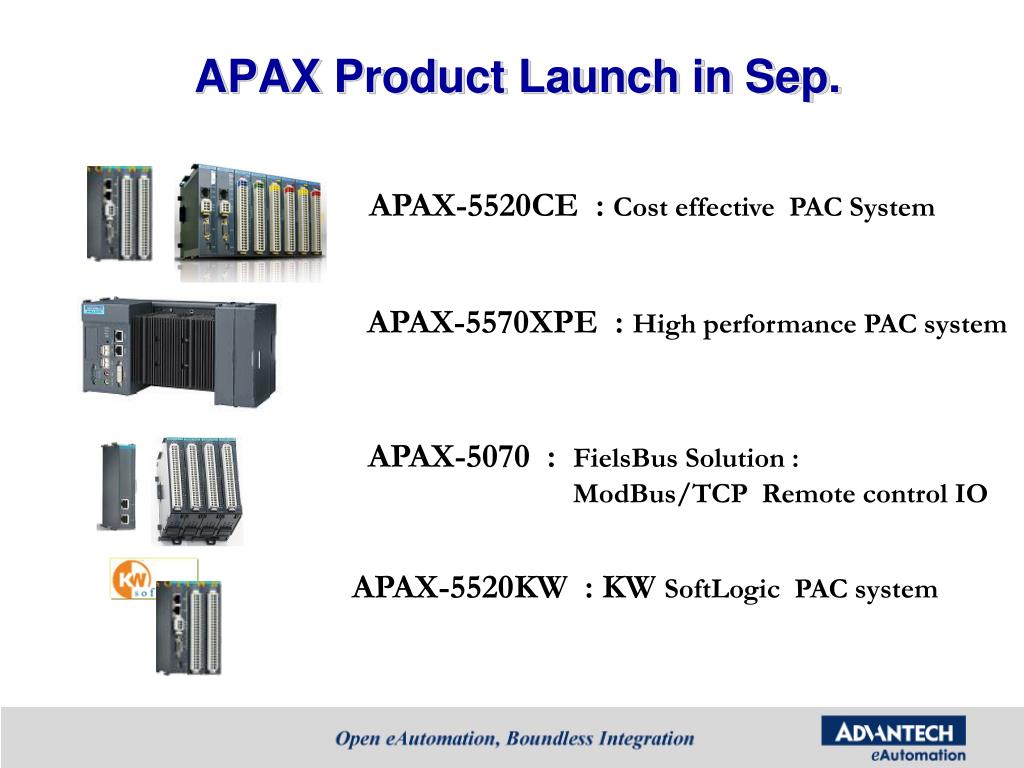

APAX Product Launch in Sep.

APAX-5520CE : Cost effective PAC System

APAX-5570XPE : High performance PAC system

  • APAX-5070 : FielsBus Solution :

    • ModBus/TCP Remote control IO

APAX-5520KW : KW SoftLogic PAC system


Apax 5000 controller family standard

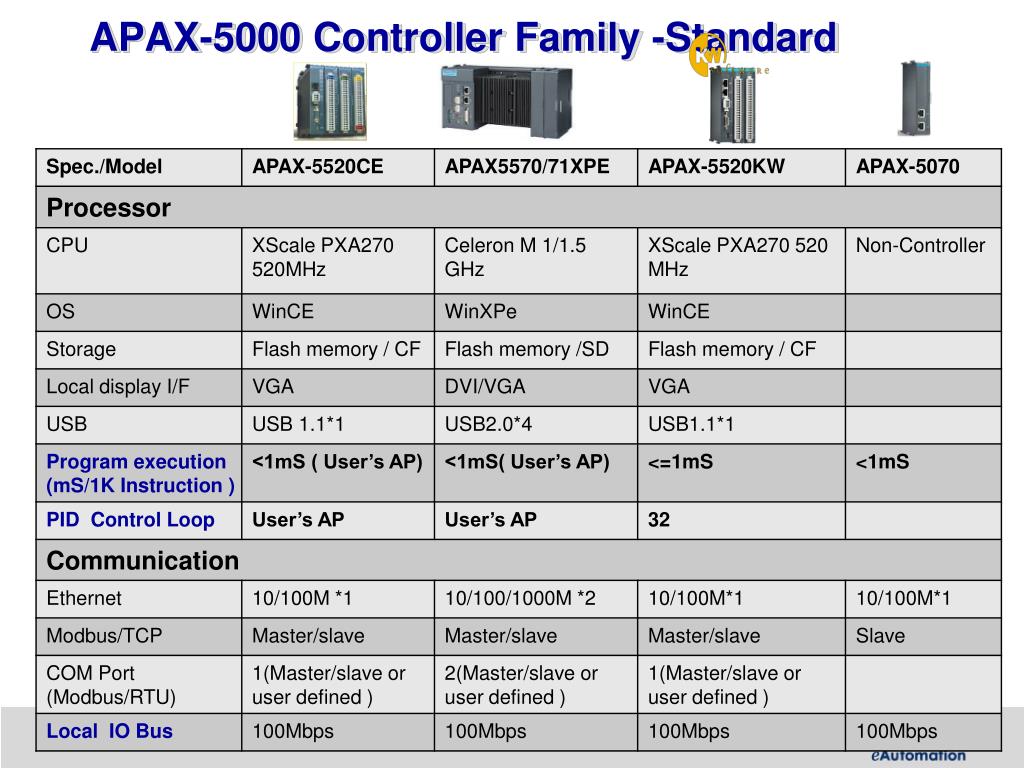

APAX-5000 Controller Family -Standard


Apax 5000 controller family standard1

APAX-5000 Controller Family : Standard


Apax 5000 controller family multi function

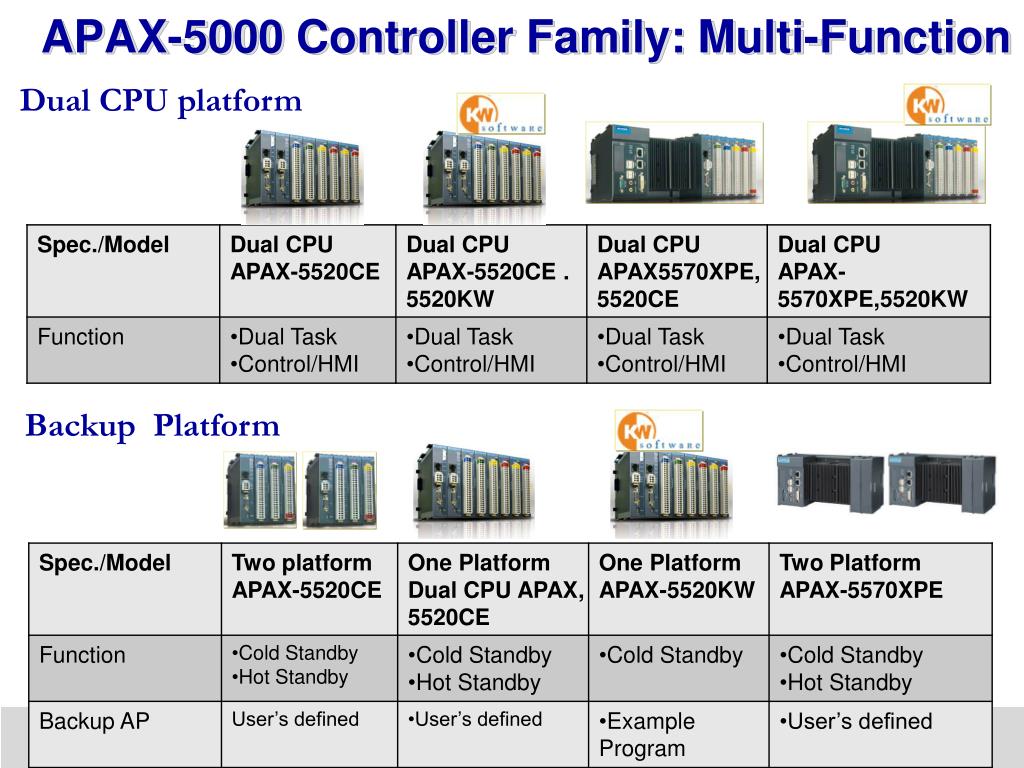

APAX-5000 Controller Family: Multi-Function

Dual CPU platform

Backup Platform


Apa 5000 controller

APA-5000 Controller

  • APAX-5520CE: Cost effective PAC

  • Key Features :

    • WinCE-based Control Platform

    • Flexible IO connection for easily wiring

    • 1 mS Real-time IO access time

    • Support Windows .Net Class Library

    • Dual CPU design for multi-function application

  • Application:

    • MA:Sequence or Process control machine & equipment

    • FA : Cell controller

    • EFMS:RTU ( Remote Terminal Unit)

  • Target Customer/Service offering :

    • KAs : Machine Maker , Solution provider  Site training & service

    • Channels with technical support  Product training

  • Value Proposition :

    • Compact size & flexible IO Architecture

    • Cost effective in AIO processing application

    • High Value/Cost ratio

Pack selling:

FPM-3060G


Apa 5000 controller1

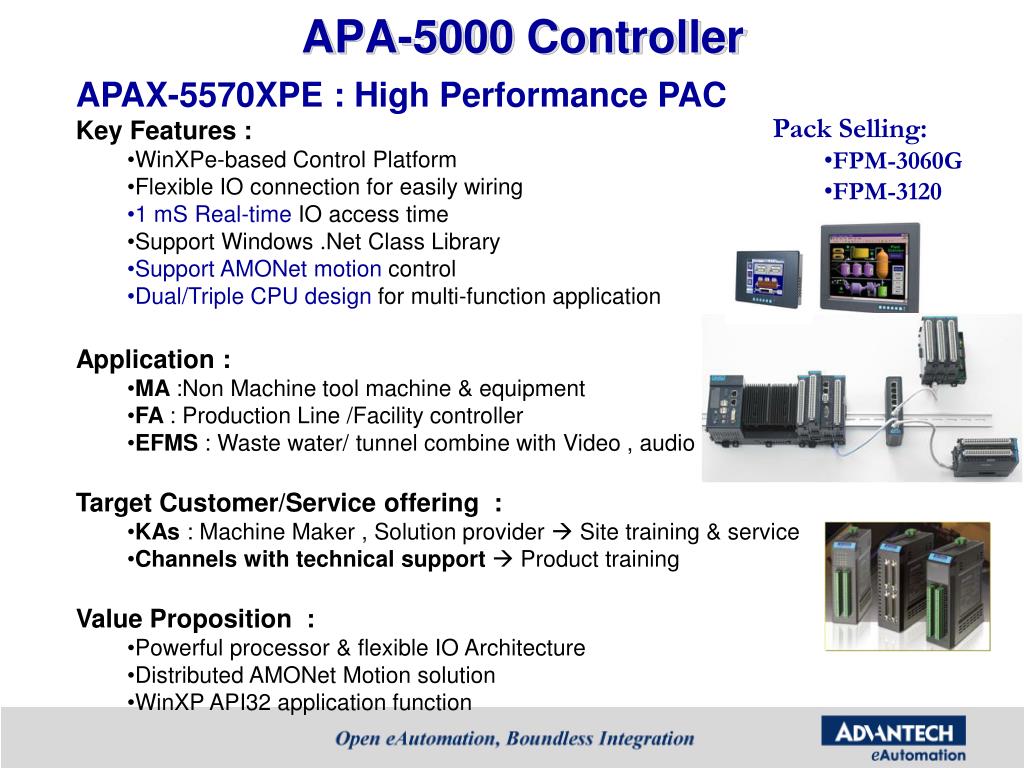

APA-5000 Controller

  • APAX-5570XPE : High Performance PAC

  • Key Features :

    • WinXPe-based Control Platform

    • Flexible IO connection for easily wiring

    • 1 mS Real-time IO access time

    • Support Windows .Net Class Library

    • Support AMONet motion control

    • Dual/Triple CPU design for multi-function application

  • Application:

    • MA:Non Machine tool machine & equipment

    • FA : Production Line /Facility controller

    • EFMS: Waste water/ tunnel combine with Video , audio

  • Target Customer/Service offering :

    • KAs : Machine Maker , Solution provider  Site training & service

    • Channels with technical support  Product training

  • Value Proposition :

    • Powerful processor & flexible IO Architecture

    • Distributed AMONet Motion solution

    • WinXP API32 application function

  • Pack Selling:

    • FPM-3060G

    • FPM-3120


Different couplers with same i o

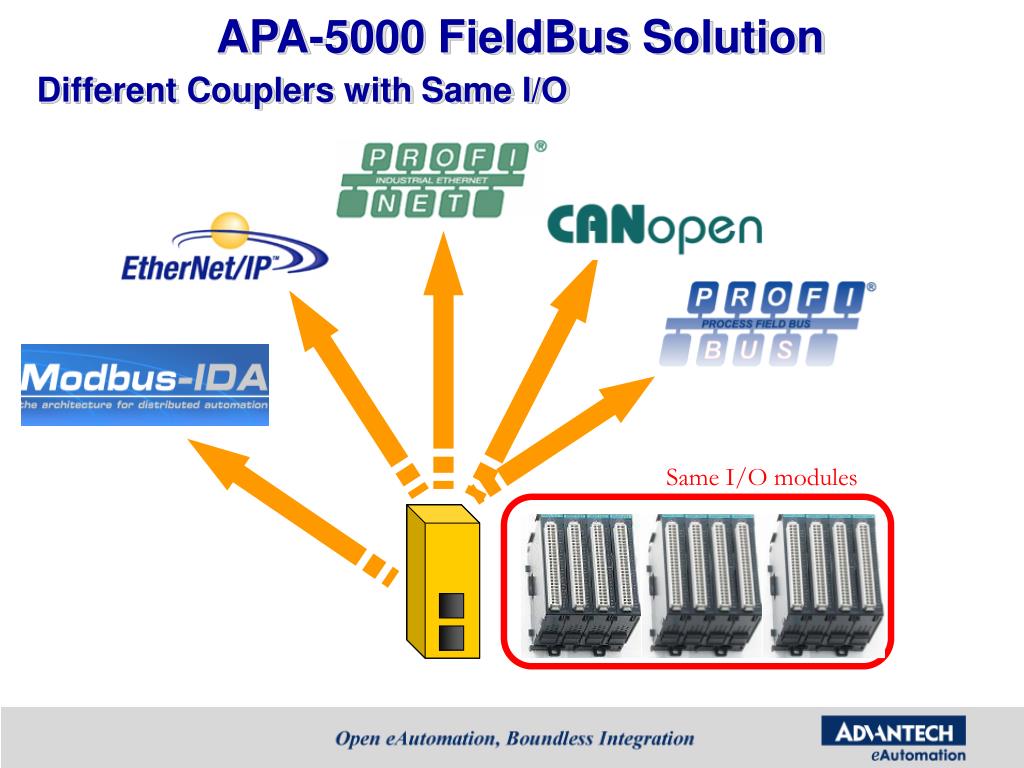

APA-5000 FieldBus Solution

Different Couplers with Same I/O

And More ….

Same I/O modules

I/O modules can link to different protocol networks


Apa 5000 fieldbus solution

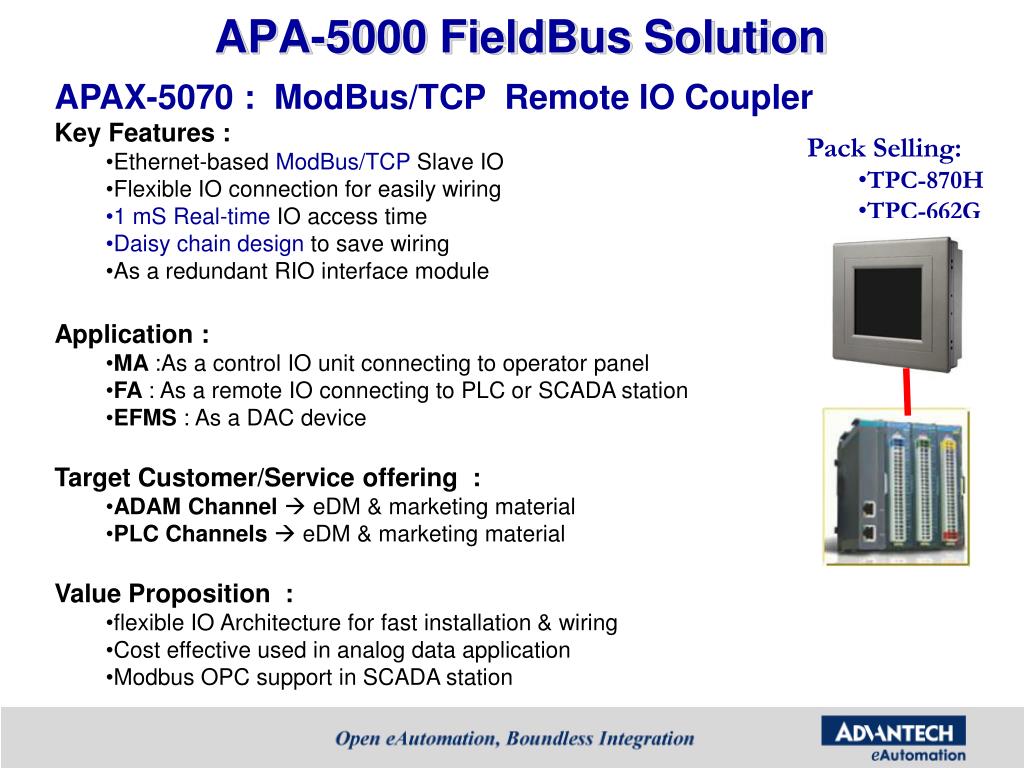

APA-5000 FieldBus Solution

  • APAX-5070 : ModBus/TCP Remote IO Coupler

  • Key Features :

    • Ethernet-based ModBus/TCP Slave IO

    • Flexible IO connection for easily wiring

    • 1 mS Real-time IO access time

    • Daisy chain design to save wiring

    • As a redundant RIO interface module

  • Application:

    • MA:As a control IO unit connecting to operator panel

    • FA : As a remote IO connecting to PLC or SCADA station

    • EFMS: As a DAC device

  • Target Customer/Service offering :

    • ADAM Channel  eDM & marketing material

    • PLC Channels  eDM & marketing material

  • Value Proposition :

    • flexible IO Architecture for fast installation & wiring

    • Cost effective used in analog data application

    • Modbus OPC support in SCADA station

  • Pack Selling:

    • TPC-870H

    • TPC-662G


Apa 5000 controller2

APA-5000 Controller

  • APAX-5520KW SoftLogic PAC system

  • Key Features :

    • IEC61131-3 5 programming language : LD,FBD,SFC,IL & ST

    • Flexible IO connection for easily wiring

    • 1 mS Real-time IO access time

    • Up to 32 PID loops With Auto-Tuning

    • Dual CPU architecture

    • Install into APAX-5570XPE for advance application

  • Application:

    • MA:Hybrid application Machine : Furnace , Batch , Reactor , Semi-com

    • FA : Clear room facility system , Production line

    • EFMS: RTU

  • Target Customer/Service offering :

    • ADAM Channel  eDM & marketing material

    • PLC Channels  eDM & marketing material

  • Value Proposition :

    • SoftLogic function combine with HMI function

    • Provide multi-CPU combination for versatile application

End of Q4


Apa 5000 controller3

APA-5000 Controller

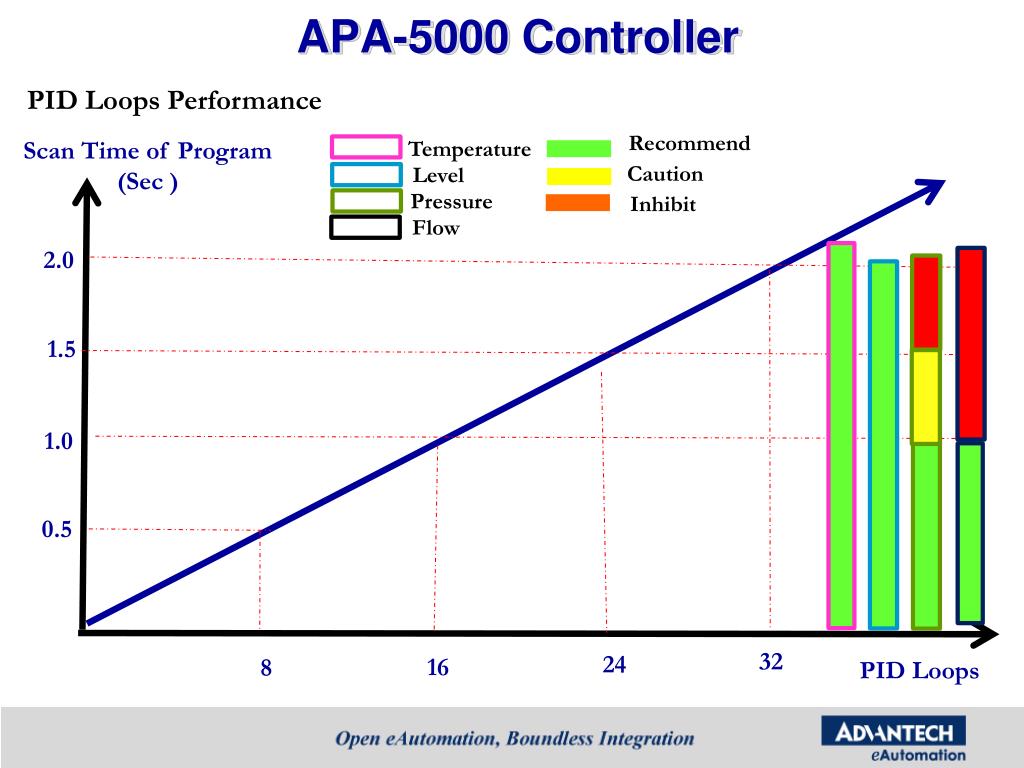

PID Loops Performance

Recommend

Scan Time of Program

(Sec )

Temperature

Caution

Level

Pressure

Inhibit

Flow

2.0

1.5

1.0

0.5

32

24

16

8

PID Loops


Apa 5000 controller4

End of Q4

APA-5000 Controller

  • APAX-5521KW SoftLogic PAC system w/CANOpen

  • Key Features :

    • IEC61131-3 5 programming language : LD,FBD,SFC,IL & ST

    • Flexible IO connection for easily wiring

    • 1 mS Real-time IO access time

    • Up to 32 PID loops application

    • Dual CPU architecture

    • Install into APAX-5570XPE for advance application

    • Support CANOpen for Motion Application

  • Application:

    • MA:Motion application Machine : GMC machine

  • Target Customer/Service offering :

    • KAs : Machine maker  CANOpen technical service

    • Production Equipment  Totally solution bundling service

  • Value Proposition :

    • SoftLogic function with HMI function together

    • CANOpen Motion solution ready

    • Provide multi-CPU combination for versatile application


Apax 5000 controller family multi function1

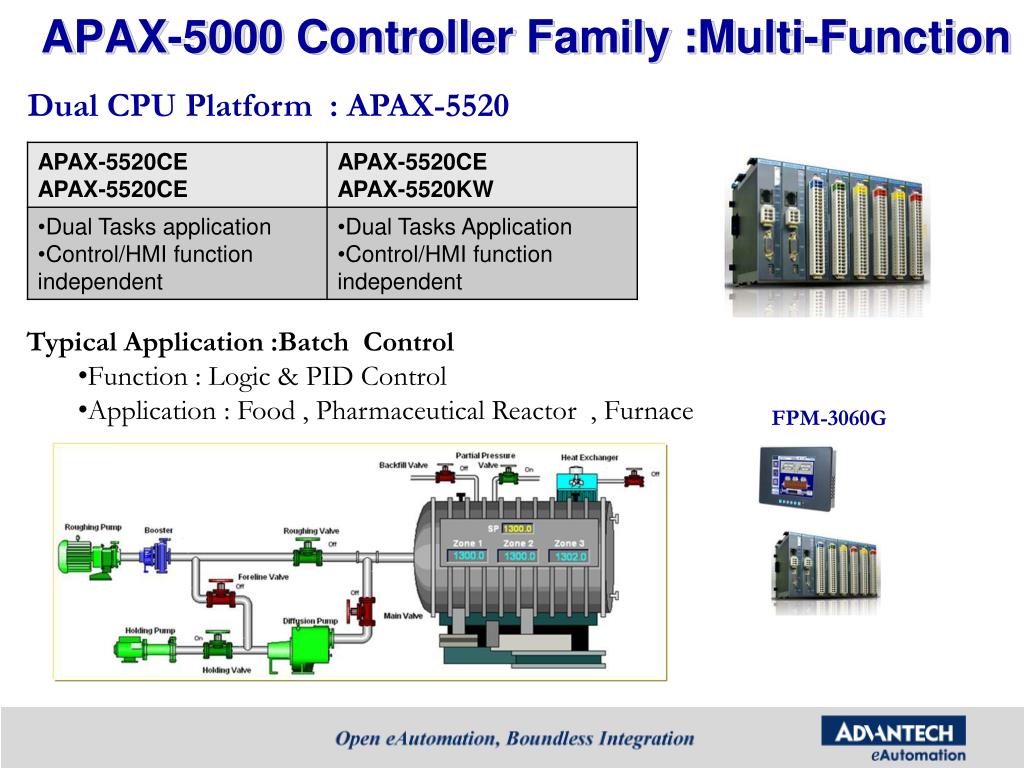

APAX-5000 Controller Family :Multi-Function

Dual CPU Platform : APAX-5520

  • Typical Application :Batch Control

    • Function : Logic & PID Control

    • Application : Food , Pharmaceutical Reactor , Furnace

FPM-3060G


Apax 5000 controller family multi function2

APAX-5000 Controller Family:Multi-Function

Dual CPU Platform : APAX-5570 , 5520

  • Typical Application : Machine Automation

    • Function : Logic & PID Control

    • Application : Semi-con. Packaging & Testing

  • FPM-3120


Apax 5000 controller family multi function3

APAX-5000 Controller Family :Multi-Function

Backup System Platform : Single Platform

  • Typical Application : Batch & motion control

    • Function : Logic & PID Control

    • Application : Heat Treatment Furnace , Glass Production

FPM-3060G


Apax 5000 controller family multi function4

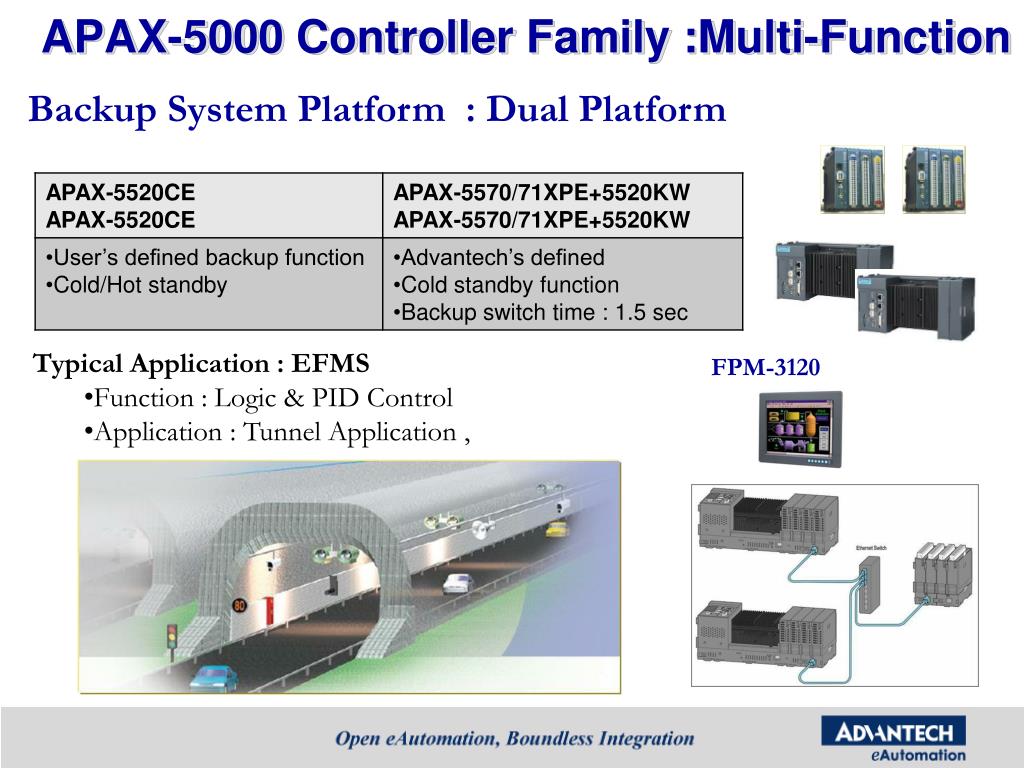

APAX-5000 Controller Family :Multi-Function

Backup System Platform : Dual Platform

  • Typical Application : EFMS

    • Function : Logic & PID Control

    • Application : Tunnel Application ,

  • FPM-3120


Flexible topology for io expansion

APAX-5000 Controller IO Modules

Flexible Topology for IO Expansion

Line/Bus Topology

Tree/Star Topology

  • Local bus expansion:

    • Maximum 32 I/O modules

      • Maximum 16 AI/O modules (Max 10 AIO with single power module)

  • Remain real-time performance with remote expansion

    • Standard industrial cable to connect backplanes (Suggest CAT 6)

    • Unmanaged industrial Ethernet Switch for tree or star topology


Changeable cpus with the same i o

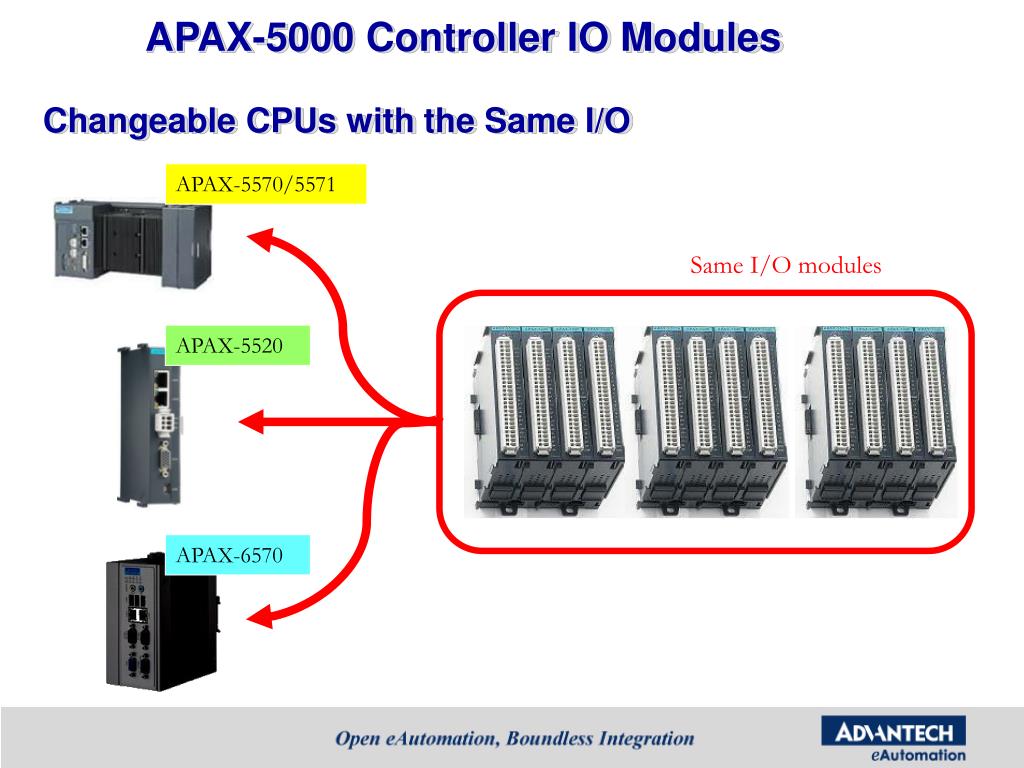

APAX-5000 Controller IO Modules

Changeable CPUs with the Same I/O

APAX-5570/5571

Same I/O modules

APAX-5520

APAX-6570


Apax 5000 controller io modules

APAX-5000 Controller IO Modules

Analog Input/Output Modules


Apax 5000 controller io modules1

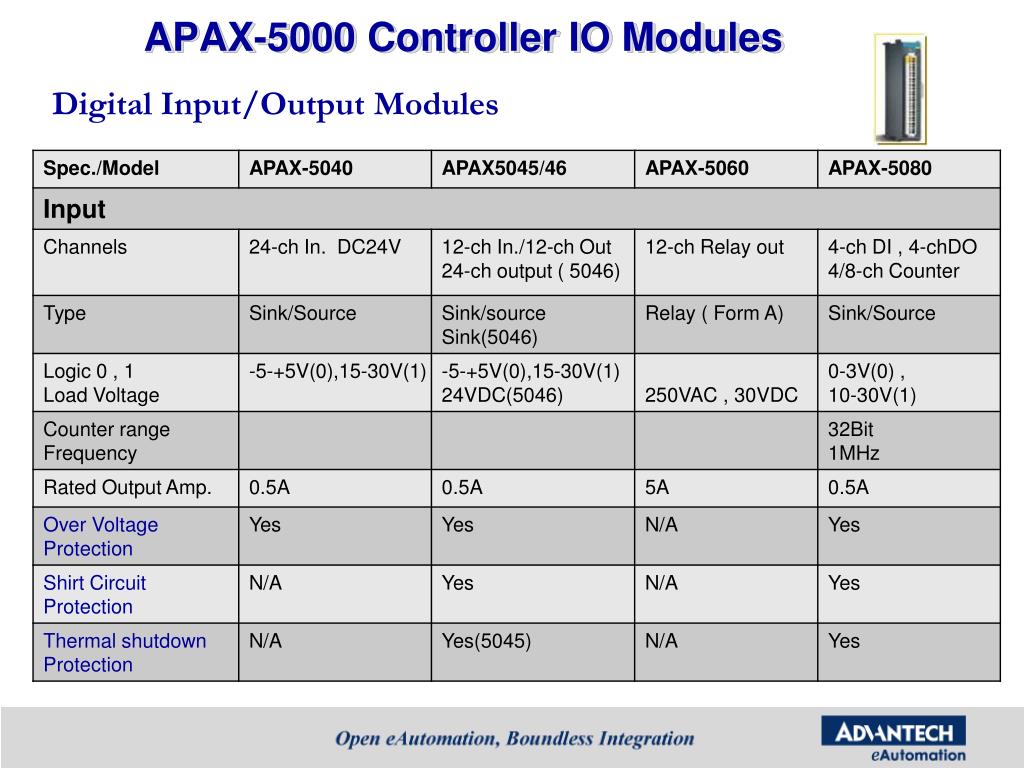

APAX-5000 Controller IO Modules

Digital Input/Output Modules


Clamp type terminal

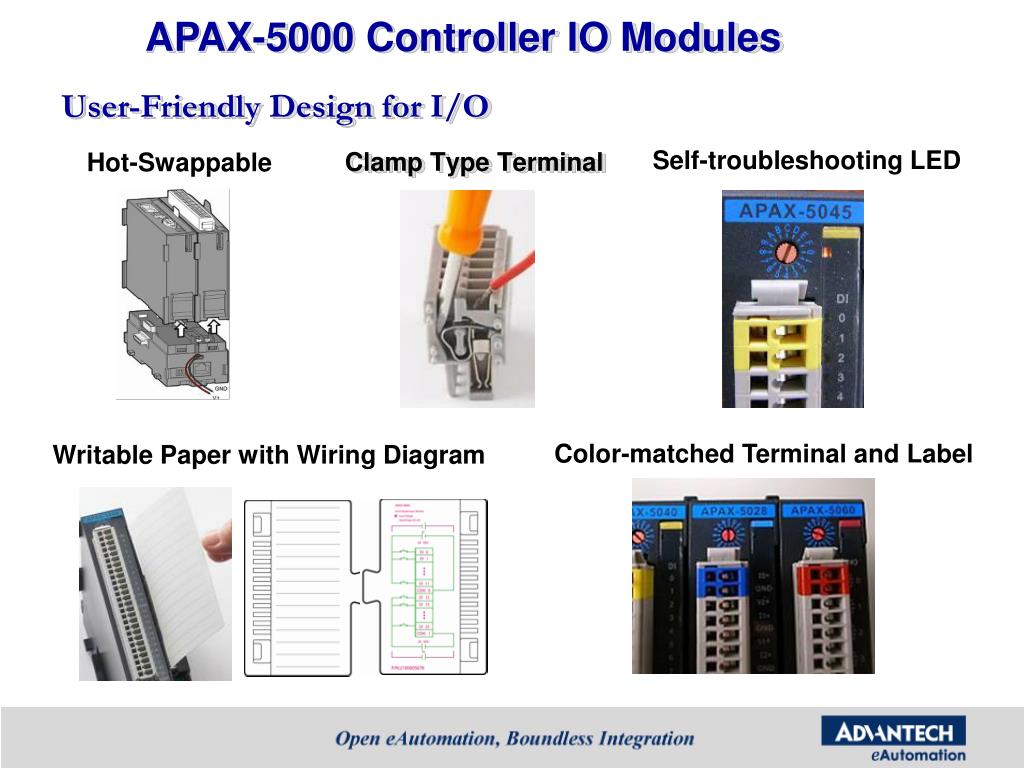

APAX-5000 Controller IO Modules

Clamp Type Terminal

User-Friendly Design for I/O

Self-troubleshooting LED

Hot-Swappable

Writable Paper with Wiring Diagram

Color-matched Terminal and Label


Certification proven robust design

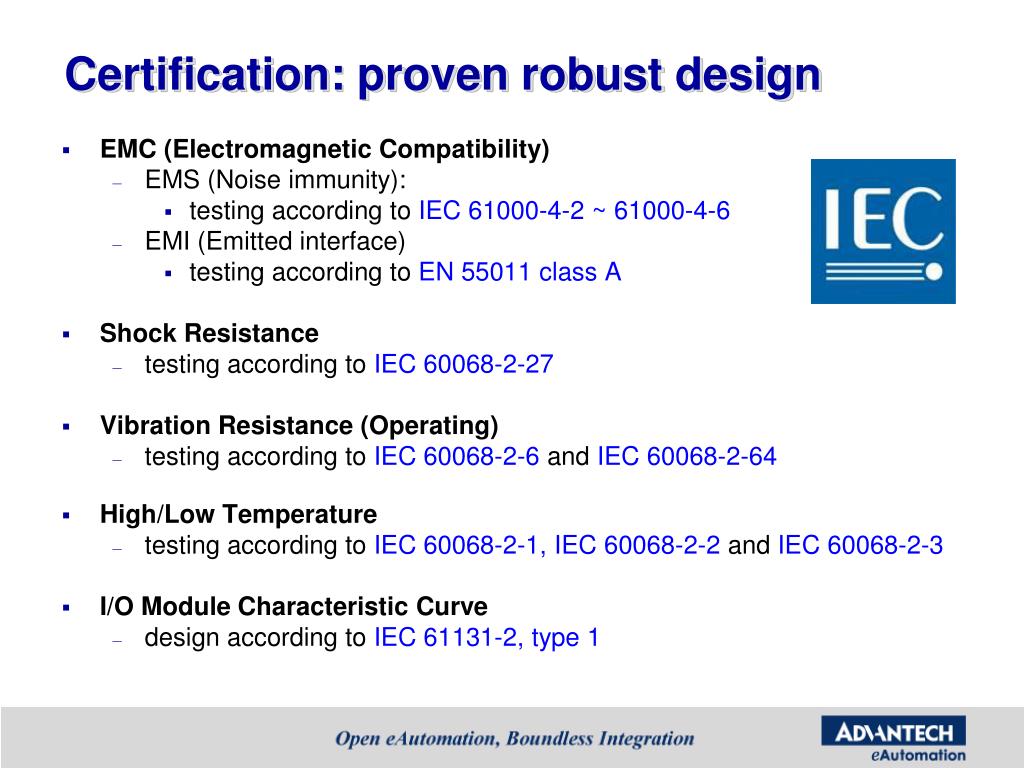

Certification: proven robust design

  • EMC (Electromagnetic Compatibility)

    • EMS (Noise immunity):

      • testing according to IEC 61000-4-2 ~ 61000-4-6

    • EMI (Emitted interface)

      • testing according to EN 55011 class A

  • Shock Resistance

    • testing according to IEC 60068-2-27

  • Vibration Resistance (Operating)

    • testing according to IEC 60068-2-6 and IEC 60068-2-64

  • High/Low Temperature

    • testing according to IEC 60068-2-1, IEC 60068-2-2 and IEC 60068-2-3

  • I/O Module Characteristic Curve

    • design according to IEC 61131-2, type 1


Apax controller v s other controllers

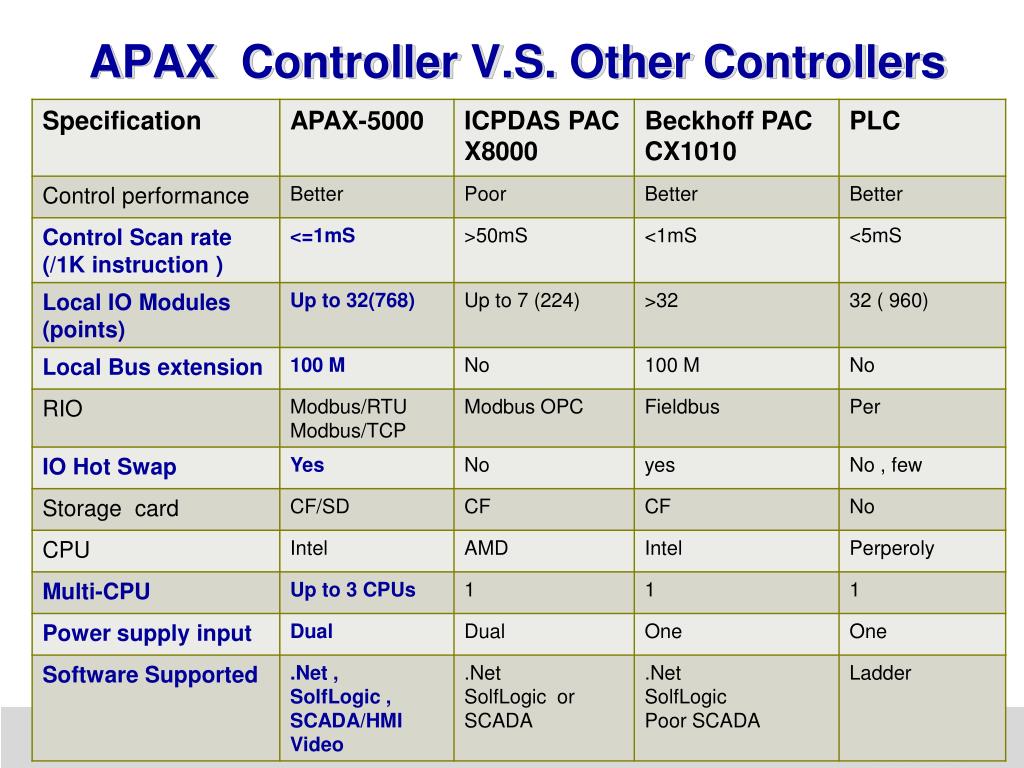

APAX Controller V.S. Other Controllers


Apax target market reference

APAX Target Market Reference

Factory Automation

Machine Automation

  • Production Information

  • Convey control

  • Shop flow control

  • Water treatment

  • Warehouse

  • MA GMC (General Motion)

  • Semi-con. Testing

  • Packing

  • Printing

  • MAw/Process

  • Semi-com Packaging

  • Plastic

  • Rubber

  • Chiller

  • Chamber

  • Reactor

  • EFMS

  • Ultra Pure Water Treatment RTU

  • Waste water Station RTU

  • Tunnel facility RTU


Target application reference batch control concrete batch control system

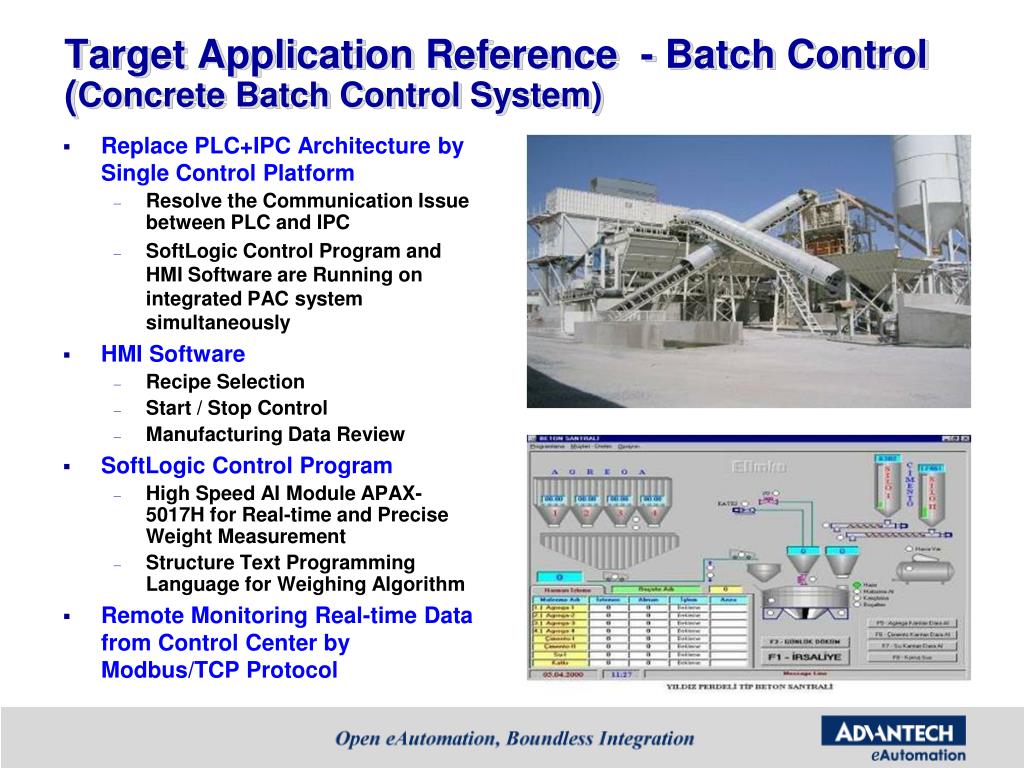

Target Application Reference - Batch Control(Concrete Batch Control System)

  • Replace PLC+IPC Architecture by Single Control Platform

    • Resolve the Communication Issue between PLC and IPC

    • SoftLogic Control Program and HMI Software are Running on integrated PAC system simultaneously

  • HMI Software

    • Recipe Selection

    • Start / Stop Control

    • Manufacturing Data Review

  • SoftLogic Control Program

    • High Speed AI Module APAX-5017H for Real-time and Precise Weight Measurement

    • Structure Text Programming Language for Weighing Algorithm

  • Remote Monitoring Real-time Data from Control Center by Modbus/TCP Protocol


Target application reference batch control concrete batch control system1

Target Application Reference - Batch Control(Concrete Batch Control System)

FPM-3150G (Local HMI)

Modbus/TCP

Control Center

APAX-5570XPE+APAX-5520KW

Analog Input

APAX-5017H

Digital Input

APAX-5040

Digital Output

APAX-5046

Start / Stop SW, Pause Load SW, Unload SW

Load / Unload Control for Materials

Hi-speed AI for Weight

Measurement


Target application reference facility monitoring train station facility monitoring system

Water Treatment System

Central Control System

Wastewater Treatment System

Air Conditioner System

Fire Control System

Power Line System

Security Access & Surveillance

Target Application Reference– Facility Monitoring(Train Station Facility Monitoring System)

  • Monitoring train station’s water, air conditioner, lighting, fire control, power line, security access & surveillance


Target application reference facility monitoring train station facility monitoring system1

Target Application Reference– Facility Monitoring(Train Station Facility Monitoring System)

SCADA Monitor Center (Redundancy)

WebAccess, Browser-based HMI/SCADA Software

WebAccess, Browser-based HMI/SCADA Software

APAX-5000 Segment stage Data Collection

APAX-5000 Segment stage Data Collection

Local HMI

Local HMI

。。。。

Analog I/O , Digital I/O, Temperature

Analog I/O , Digital I/O, Temperature

Water, Air Conditioner, Lighting,

Fire- control, Power Line

Water, Air Conditioner, Lighting,

Fire- control, Power Line


Target application reference facility management system semi con facility monitoring control system

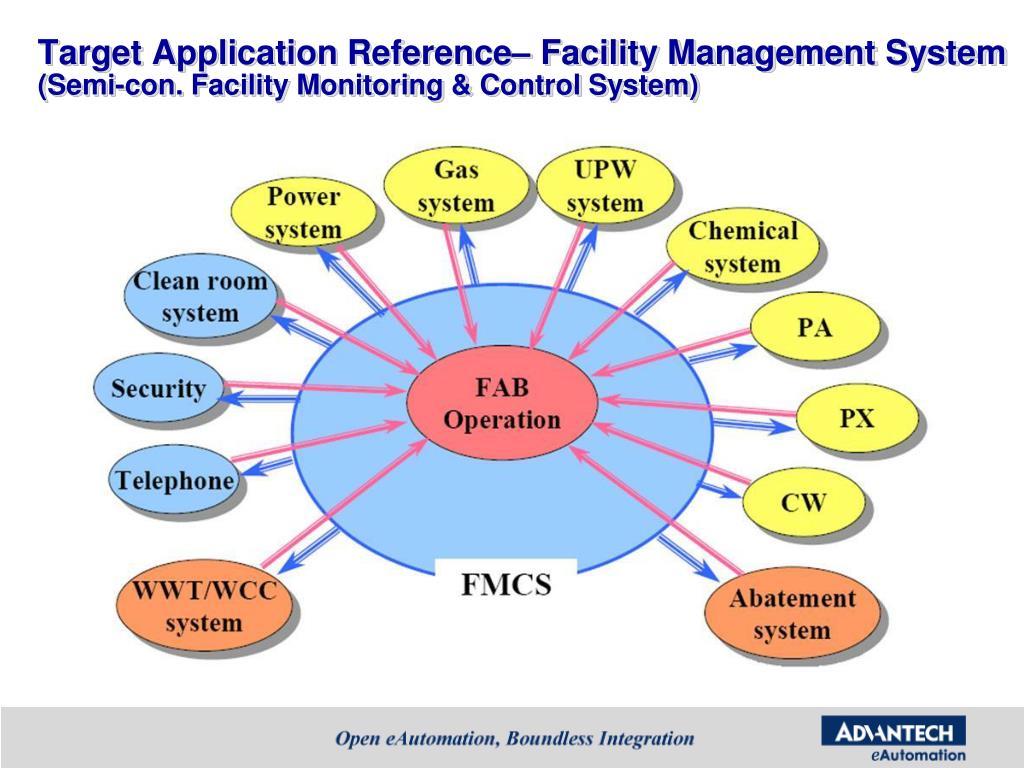

Target Application Reference– Facility Management System(Semi-con. Facility Monitoring & Control System)


Target application reference facility management system semi con facility monitoring control system1

Target Application Reference– Facility Management System(Semi-con. Facility Monitoring & Control System)

Clean Room System

Ultra Pure Water System

Waste Water Treatment System


Target application reference facility management system semi con facility monitoring control system2

Target Application Reference– Facility Management System(Semi-con. Facility Monitoring & Control System)

Client Stations

Internet

UNO-3000

Management

Supervisor Station

(SCADA Node)

Ethernet (Modbus/TCP,UDP)

Local HMI

Control

and

Monitoring

APAX-5520KW

APAX-5520KW

APAX-5000

APAX Local Bus

Modbus/RTU

I/O Device

3’rd party

Modbus Device

3’rd party

Modbus Device

Modbus

Meter

APAX-5070

APAX I/O

APAX I/O


Contact information

Contact Information

CC Lin, PAC Product Sales Manager

VOIP: 511-2382

E-mail: [email protected]

Sindy Lin, PAC Marketing Communication

VOIP: 511-2336

E-mail: [email protected]

Peishan Juan, APAX PD Manager

VOIP: 511-2175

E-mail: peishan.juan @advantech.com.tw

Kunyu, APAX-5000 series Product Manager

VOIP: 511-2852

E-mail: [email protected]

Alan Su, ADAM-5000/APAX-6000 series Product Manager

VOIP: 511-2985

E-mail: [email protected]


Thank you

Thankyou!


  • Login
