Presentation Transcript


Slide1 l.jpg

Presented by

Tar Heel Green Performance

Bringing you,


Slide2 l.jpg

Spark plug technology

  • The spark plug has not really changed in 120 years.

  • While there have been many introductions based on manipulation of the electrodes they are still limited to 50 watts of power &

  • Power ignites fuel !

    -Improved fuel economy

    -Lower emissions

    -More power

50 Watts

1 Million Watts

The value proposition

“Great product!  It put the ‘sport’ back in my car.” - R. Smith, 1994 3000GT


Slide3 l.jpg

What is a pulse plug?

  • Pulsed power technology – accumulating energy over a relatively long period of time and releasing it very quickly thus increasing the instantaneous power.

  • Sandia National Laboratories – leader in pulsed power technology.

  • A spark plug with integral capacitor that employs intelligent energy management to increase the amount of ignition energy coupled to the fuel charge.

Z Machine - 290 trillion watts - 4 billionths of a second, about 80 times the entire world's output of electricity.

Efficient energy management


Slide4 l.jpg

Evolution

  • First patent on “peaking spark power” with a capacitor 1918

  • First Company (HDI Systems) patent 1982

  • First commercial test Chrysler Corp. 1986

  • HDI Systems acquired by Combustion Technology Products Corp. 1990

  • Assistance by Sandia National Laboratories to perfect design and engineering 1992

  • Assistance by Amoco Polymers to develop insulating dielectric for design 1993

  • First commercially viable current peaking capacitor introduced to the automotive aftermarket 1994

  • Patent issued for “Current Peaking Sparkplug” 2001

  • Combustion Technology Product Corp changed to Enerpulse, Inc. 2003

  • Assistance Sandia National Laboratories “Ceramics Div” prototype 2004

  • Commercial prototype testing 2005-2006

  • Manufacturing plant established Albuquerque 2007

  • Product offered for sale 2008

  • Redesign to Generation-3 January 2009

  • Gen3 in C-P-I families December 2009

  • 11 Patents issued for “Current Peaking Sparkplug” since 2001, 16 pending

20 years of development experience


Slide5 l.jpg

How Pulstar Works

50 Watts

Energy from the coil is stored in the patented capacitor. At the exact moment needed the energy is released in a high energy pulse increasing cylinder pressure by as much as 10% producing more torque.

Pulstar 1,000,000 watts vs. 50 watts for all other plugs


Slide6 l.jpg

Flame Kernel Growth

This comparison was captured on high-speed video ( 68,000 frames/sec). It shows the Pulse Plugs flame kernel growing larger and larger. Fuel burns sooner and more efficiently, which results in added power and better fuel mileage.

Pulse plug

13707 µsec

33187 µsec

Spark plug

Pulse plugs ignite more volume.

“Great product!  It put the ‘sport’ back in my car.” - R. Smith, '94 3000GT

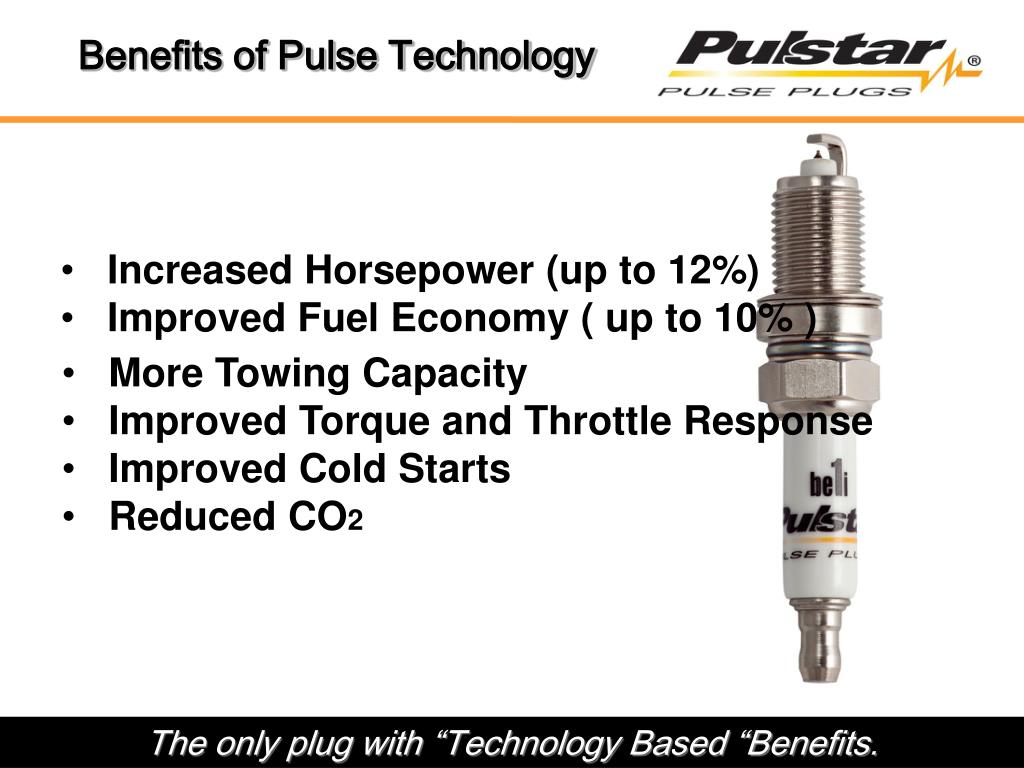

Slide7 l.jpg

Benefits of Pulse Technology

  • Increased Horsepower (up to 12%)

  • Improved Fuel Economy ( up to 10% )

  • More Towing Capacity

  • Improved Torque and Throttle Response

  • Improved Cold Starts

  • Reduced CO2

The only plug with “Technology Based “Benefits.


Performance claims backed by testing l.jpg

Performance Claims backed by Testing

  • 62% larger flame kernel – Southwest Research Institute

  • 11% better fuel economy – Procat Testing

  • 1,000,000 watts spark power – Sandia National Laboratories

  • 50% reduction in cycle-to cycle variation in combustion pressure – Chrysler Corporation

  • 16% reduction in Total Hydro Carbon emissions – Procat Testing

  • 6% more HP 266 vs. 253 – Drift Office

  • 5% more HP 317 vs 302 – Speed Dreams Fab

  • 11% reduction in CO2 emissions – Procat Testing

  • 10% increase in combustion pressure – Chrysler Corp

Extensive Testing


Improves even the best performers increase of 12 hp on this 2001 corvette for 100 investment l.jpg

Improves even the best performers !Increase of 12 HP on this 2001 Corvette for $100 investment

12 Hp for $ 80 !


Improves even the most efficient 9 savings in fuel on this 2007 prius l.jpg

Improves even the most efficient !9% savings in fuel on this 2007 Prius

In 1 year this Prius “saved $ 700 in fuel costs” and “prevented over 500 pounds of CO2” from entering the environment by investing $ 40 in Pulstar Plugs.

Test Data: NGK IR IFR5A-11 Pulstar BE-1 Improvement

HP (peak) 140 142 1.43%

Torque (peak) 147 150 2.04%

Acceleration 40-80mph 9.93 9.83 1.01%

Fuel use USO6 in CC 691.594 631.0275 8.76%

Pays for itself in 1 month!


Slide11 l.jpg

Test Results vs. Factory Spark Plugs

“Something good always happens with Pulstar”

Something good always happens


Our warranty says it all l.jpg

Our Warranty Says It All !

Lifetime Limited Warranty

Pulstar Platinum & Pulstar Iridium Pulse Plugs

PULSTAR® 30-DAY CUSTOMER SATISFACTION GUARANTEE.

If for any reason you are not completely satisfied with PULSTAR®, you may return your order within 30-days of the purchase date on the receipt for a full refund.

The last plug your car will ever need!


Slide13 l.jpg

Pulstar Pulse Plug

AD1

BE1

CB1

DG1

EF1

Thread

14mm

14mm

14mm

14mm

14mm

Reach

17.7mm

19.0mm

11.6mm

26.5mm

25.0mm

Seat

Tapered

Flat

Tapered

Flat

Tapered

Applications

Most

Most GM

Most GM and

Infiniti, Nissan,

Chryler, Dodge,

European,

Ford

Ford products

Subaru,

Jeep products

Asian and

products

Mercedes

Chrysler

products

products

1996-2009

1976-2009

1976-1995

2002-2009

2002-2009

Application Coverage

  • 5 Skus provide 80% coverage minimizing inventory investment.

  • ROI potential exceeds any other plug on the market.

5 pulse plugs = 80% of vehicles on the road


Slide14 l.jpg

The Best BANG FOR THE BUCK

2001 Corvette 5.7L

Air Intake = 11.5 hp gain /cost of $ 389 or $ 33 per HP

Programmer = 13 HP gain / cost of $ 379 or $ 29 per HP

Exhaust System = 10 gain / cost of $ 699. or $ 70 per Hp

( actual numbers from mfg sites and internet retail pricing)

Pulstar = 12 hp gain/ cost $ 80 or $ 6.60 per Hp

* 2005 Honda S averaged $4 per HP !!!!!!!!!!!!!!!!!!!!!!!!!!!!!

50 Watts

1 Million Watts

Pulstar® is the most cost-effective horsepower available.

“…significant improvement in both fuel economy and throttle response." - D. Thompson, '98 Subaru


Slide15 l.jpg

This is a “Pulse Plug” not a Spark Plug

50 vs 1,000,000 watts! Why use anything else?
