Presentation Transcript


The quadrilateral family tree

The Quadrilateral Family Tree

Wednesday 1/5/11 –

Thursday 1/6/11

SPECIAL PARALLELOGRAMS


Special parallelograms

Special Parallelograms

Rectangles, rhombuses, and squares


Rectangles

Rectangles


Rectangle

Rectangle

  • A quadrilateral with four right angles


Rectangle1

Rectangle

  • Has all the properties of a parallelogram

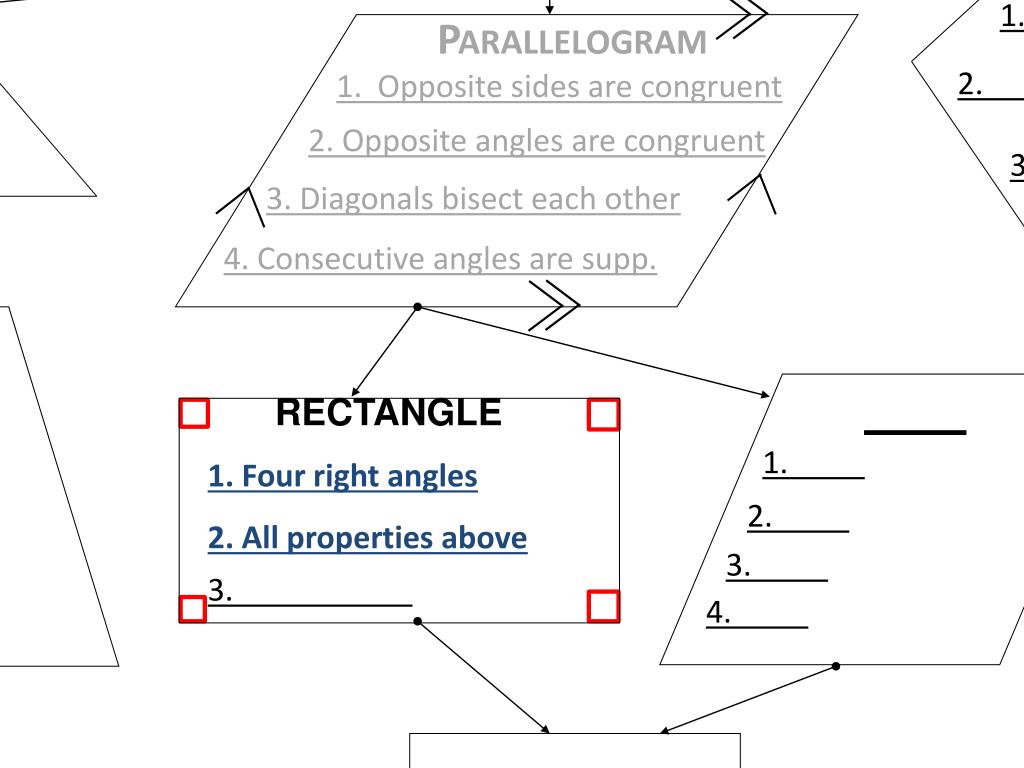

The quadrilateral family tree

Quadrilateral

1. Four-sided polygon

Parallelogram

1.

2. Opposite angles are congruent

3. Diagonals bisect each other

4. Consecutive angles are supp.

RECTANGLE

1.

1.

1. Four right angles

2.

2.

3.

2. All properties above

3.

4.

3.

Square

1.

2.

1.

2.

1. Opposite sides are congruent

3.


Rectangle2

Rectangle

  • What should be true about the overlapping triangles formed by the diagonals?

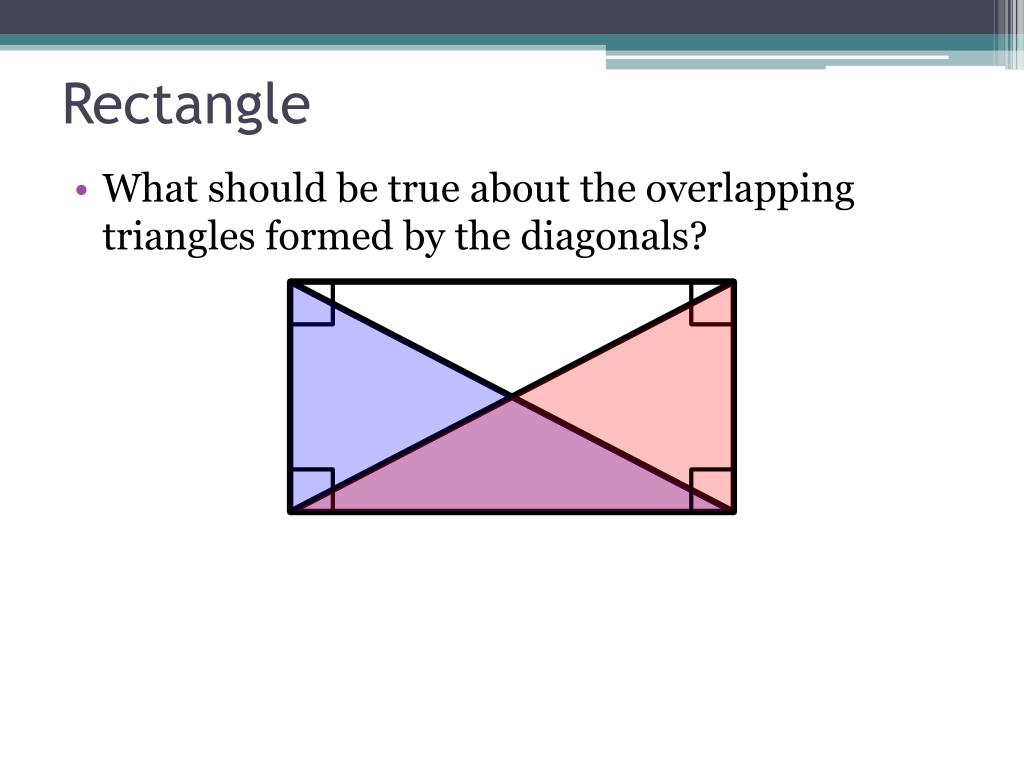

Rectangle3

Rectangle

  • What should be true about the overlapping triangles formed by the diagonals?


Rectangle4

Rectangle

  • The triangles are congruent by SAS since opposite sides of a parallelogram are congruent


Rectangle5

Rectangle

  • So the diagonals in a rectangle must be congruent by CPCTC


The quadrilateral family tree

Quadrilateral

1. Four-sided polygon

Parallelogram

1.

2. Opposite angles are congruent

3. Diagonals bisect each other

4. Consecutive angles are supp.

RECTANGLE

1.

1.

1. Four right angles

2.

2.

3.

2. All properties above

3.

4.

3. Diagonals are congruent

Square

1.

2.

1.

2.

1. Opposite sides are congruent

3.


The quadrilateral family tree

 diags. bisect each other

Example 1: Craft Application

A woodworker constructs a rectangular picture frame so that JK = 50 cm and JL = 86 cm. Find HM.

Rect.  diags. 

KM = JL = 86


The quadrilateral family tree

Check It Out! Example 1a

Carpentry The rectangular gate has diagonal braces.

Find HJ.

Rect.  diags. 

HJ = GK = 48


The quadrilateral family tree

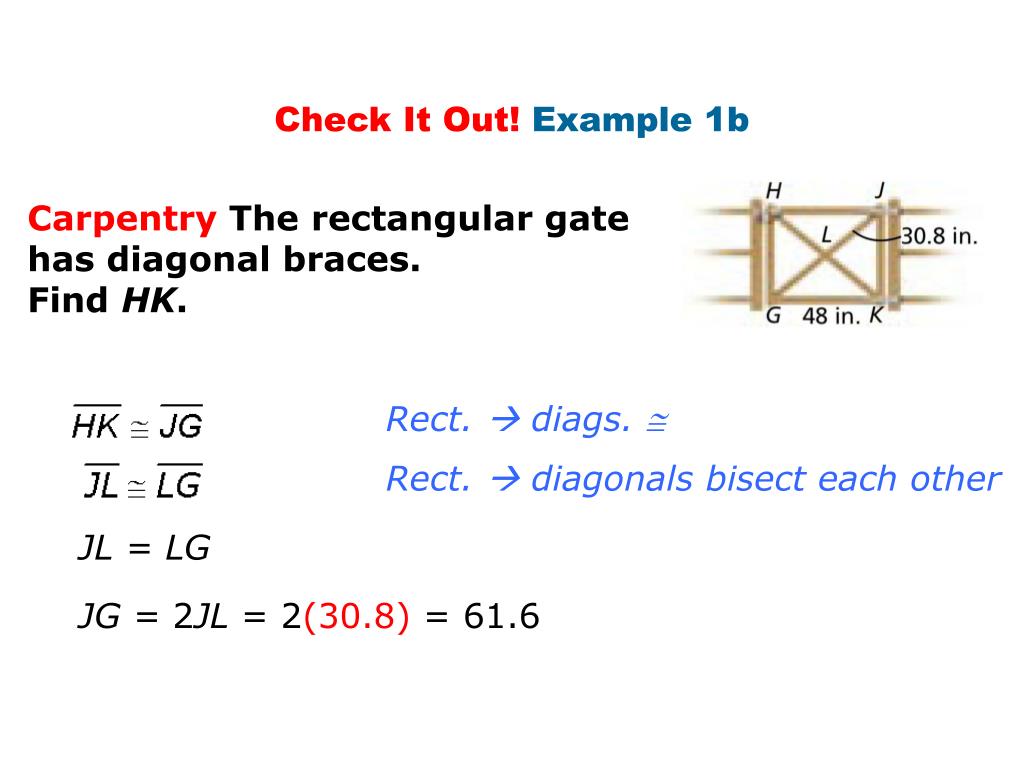

Check It Out! Example 1b

Carpentry The rectangular gate has diagonal braces.

Find HK.

Rect.  diags. 

Rect.  diagonals bisect each other

JL = LG

JG = 2JL = 2(30.8) = 61.6


Rhombuses

Rhombuses

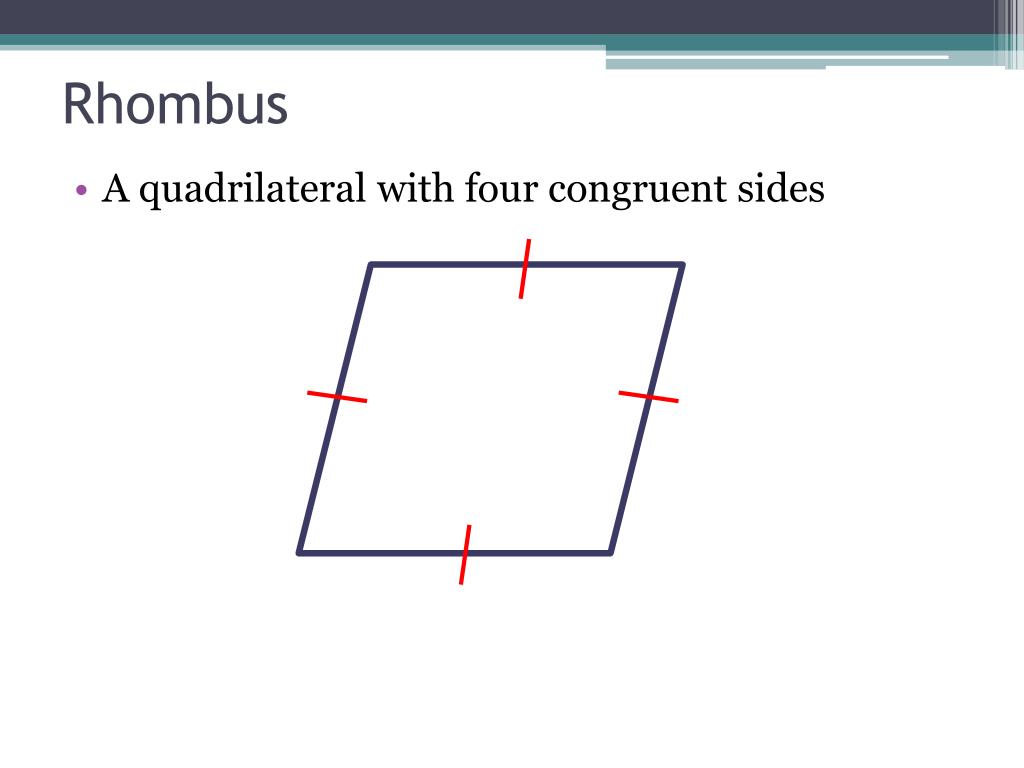

Rhombus

Rhombus

  • A quadrilateral with four congruent sides


Rhombus1

Rhombus

  • Also has all the properties of a parallelogram

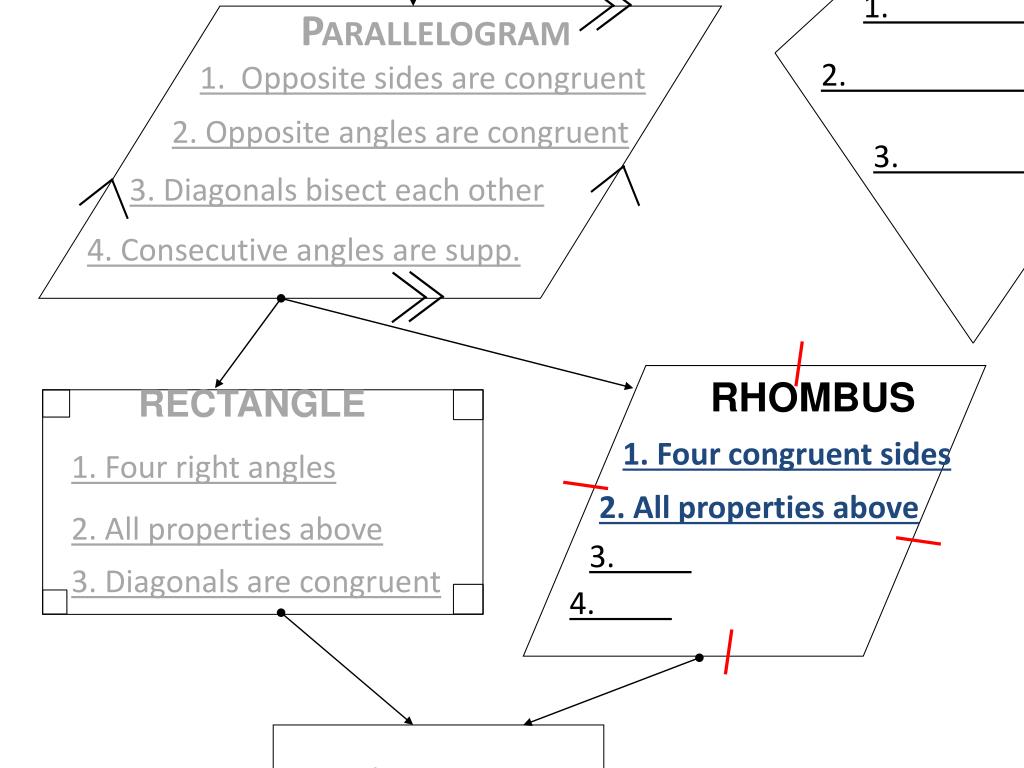

The quadrilateral family tree

Quadrilateral

1. Four-sided polygon

Parallelogram

1.

2. Opposite angles are congruent

3. Diagonals bisect each other

4. Consecutive angles are supp.

RHOMBUS

RECTANGLE

1.

1. Four congruent sides

1. Four right angles

2. All properties above

2.

3.

2. All properties above

3.

4.

3. Diagonals are congruent

Square

1.

2.

1.

2.

1. Opposite sides are congruent

3.


Rhombus2

Rhombus

  • What kind of triangles are formed by a diagonal?


Rhombus3

Rhombus

  • What kind of triangles are formed by a diagonal?


Rhombus4

Rhombus

  • What kind of triangles are formed by a diagonal?

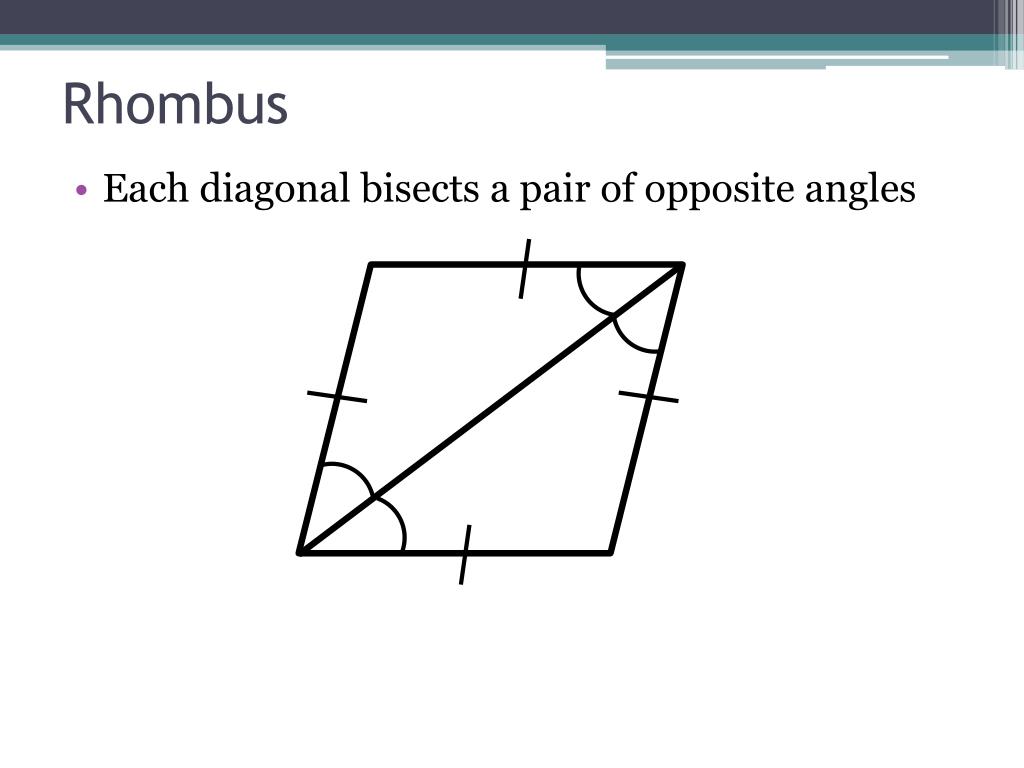

Rhombus5

Rhombus

  • Each diagonal bisects a pair of opposite angles


Rhombus6

Rhombus

  • Each diagonal bisects a pair of opposite angles


The quadrilateral family tree

Quadrilateral

1. Four-sided polygon

Parallelogram

1.

2. Opposite angles are congruent

3. Diagonals bisect each other

4. Consecutive angles are supp.

RHOMBUS

1. Four congruent sides

RECTANGLE

1.

2. All properties above

1. Four right angles

2.

3. Diagonals bisect opposite angles

2. All properties above

3.

3. Diagonals are congruent

4.

Square

1.

2.

1.

2.

1. Opposite sides are congruent

3.

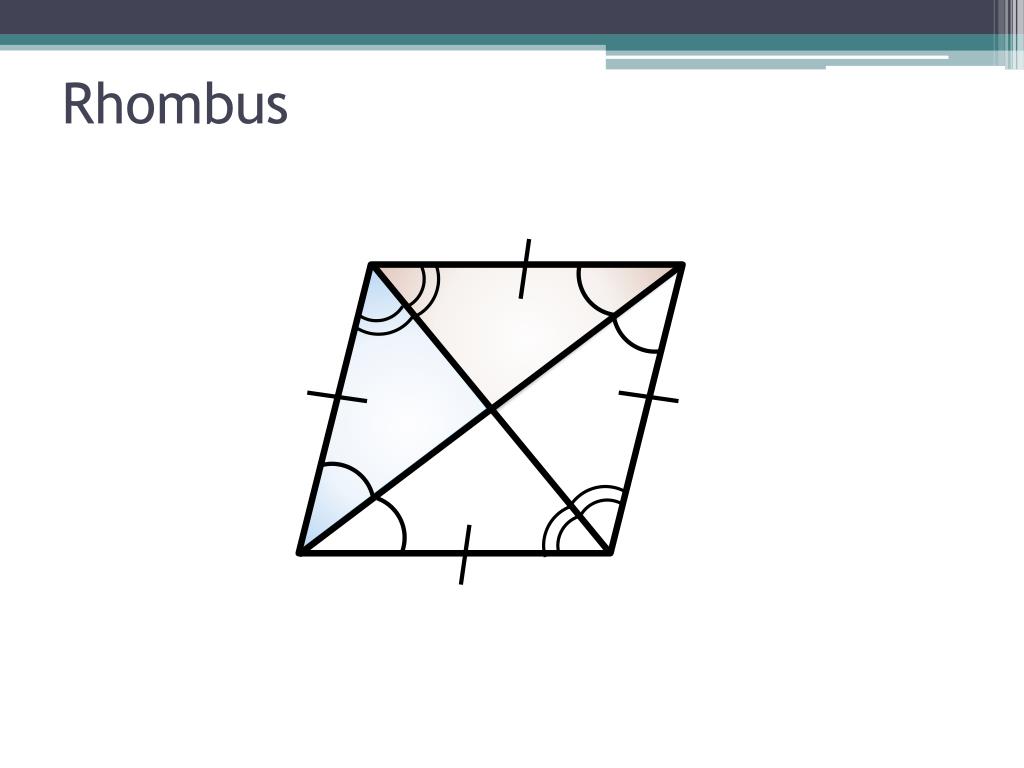

Rhombus7

Rhombus

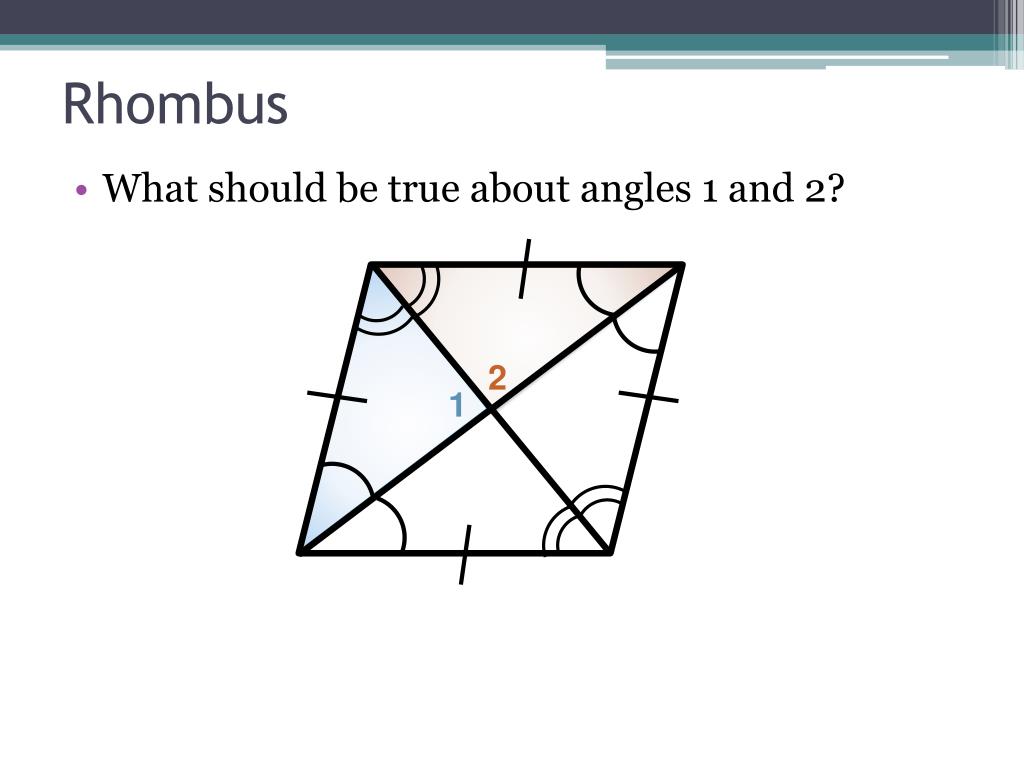

Rhombus8

Rhombus

  • What should be true about angles 1 and 2?

2

1


Rhombus9

Rhombus

  • What would the angle measures have to be?

2

1


Rhombus10

Rhombus

  • What would the angle measures have to be?

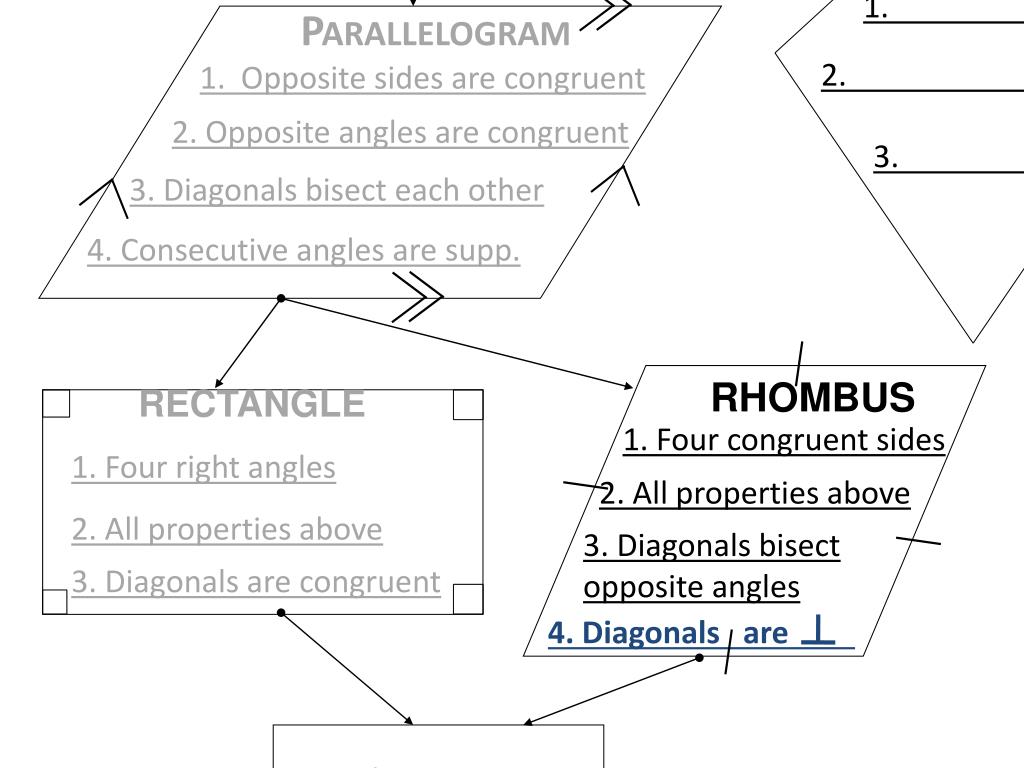

The quadrilateral family tree

Quadrilateral

1. Four-sided polygon

Parallelogram

1.

2. Opposite angles are congruent

3. Diagonals bisect each other

4. Consecutive angles are supp.

RHOMBUS

1. Four congruent sides

RECTANGLE

1.

2. All properties above

1. Four right angles

2.

3. Diagonals bisect opposite angles

2. All properties above

3.

3. Diagonals are congruent

4. Diagonals are

Square

1.

2.

1.

2.

1. Opposite sides are congruent

3.


The quadrilateral family tree

Example 2A: Using Properties of Rhombuses to Find Measures

TVWX is a rhombus. Find TV.

WV = XT

13b – 9=3b + 4

10b =13

b =1.3

TV = XT

TV =3b + 4

TV =3(1.3)+ 4 = 7.9


The quadrilateral family tree

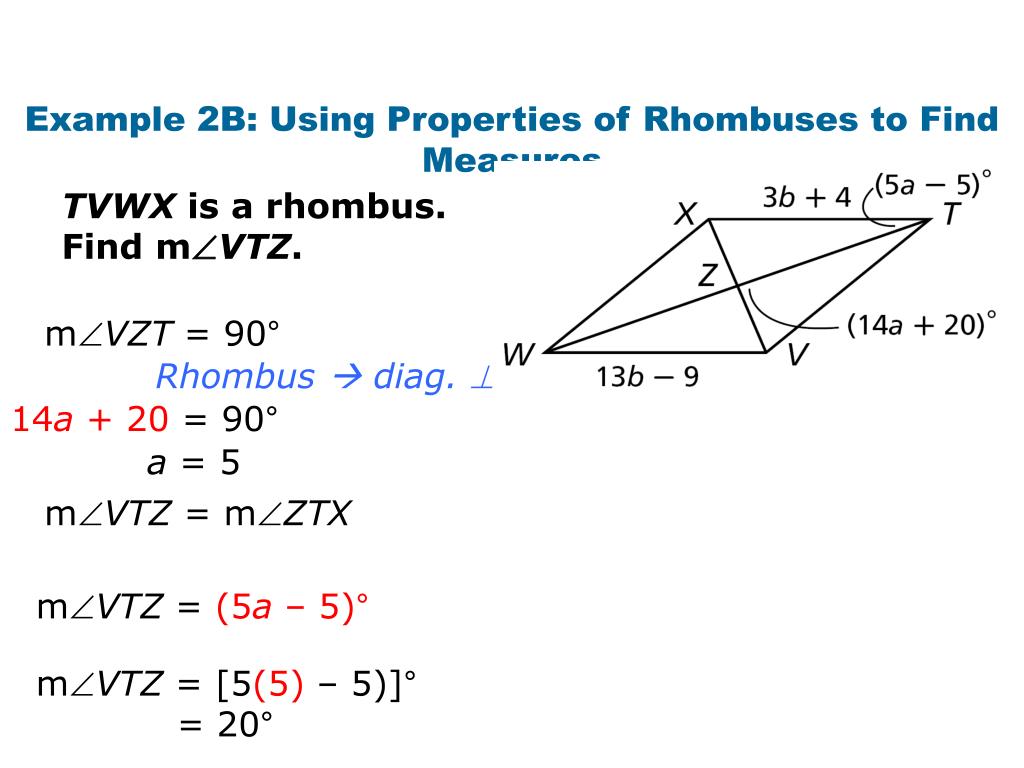

Example 2B: Using Properties of Rhombuses to Find Measures

TVWX is a rhombus. Find mVTZ.

mVZT =90°

Rhombus  diag. 

14a + 20=90°

a=5

mVTZ =mZTX

mVTZ =(5a – 5)°

mVTZ =[5(5) – 5)]°

= 20°


The quadrilateral family tree

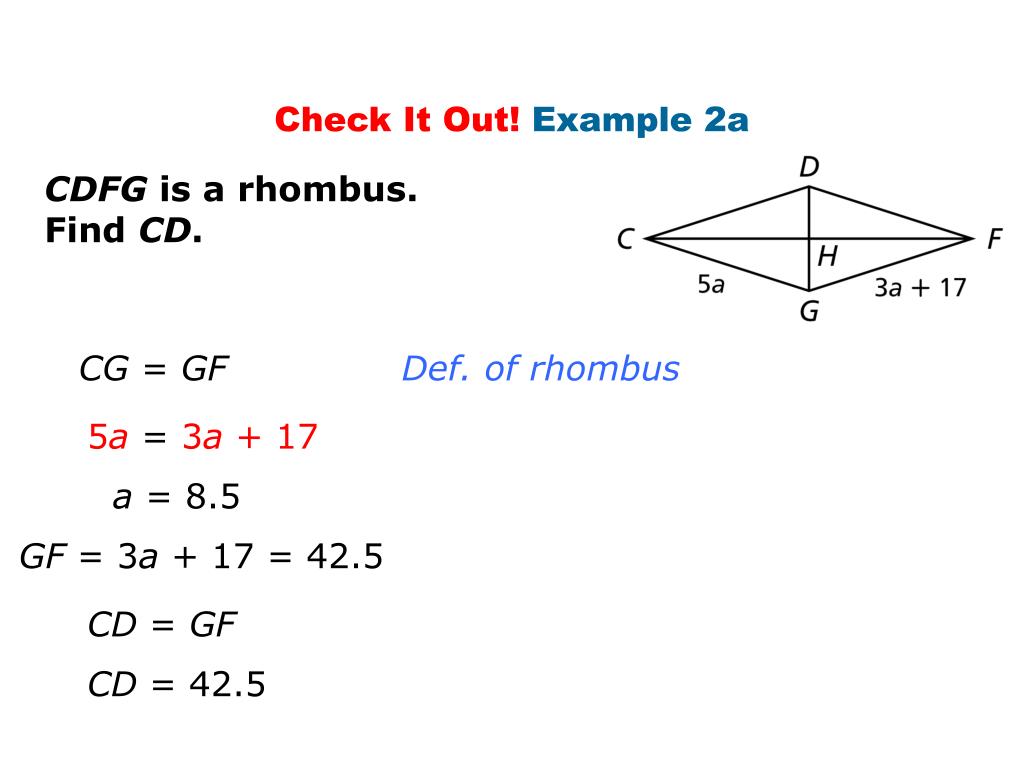

Check It Out! Example 2a

CDFG is a rhombus. Find CD.

CG = GF

Def. of rhombus

5a =3a + 17

a =8.5

GF = 3a + 17=42.5

CD = GF

CD = 42.5


The quadrilateral family tree

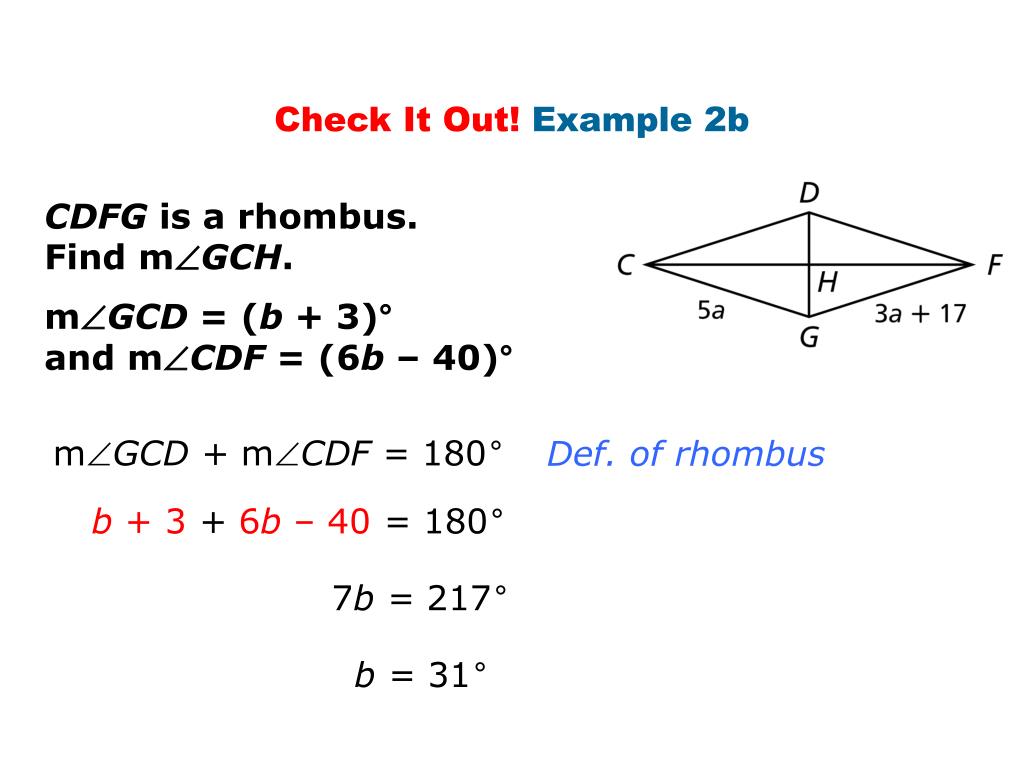

Check It Out! Example 2b

CDFG is a rhombus.

Find mGCH.

mGCD = (b + 3)°

and mCDF = (6b – 40)°

Def. of rhombus

mGCD + mCDF = 180°

b + 3 + 6b –40 = 180°

7b = 217°

b = 31°


The quadrilateral family tree

Check It Out! Example 2b Continued

CDFG is a rhombus.

Find mGCH.

mGCD = (b + 3)°

and mCDF = (6b – 40)°

mGCH + mHCD = mGCD

Rhombus  each diag. bisects opp. s

2mGCH = mGCD

Substitute.

2mGCH = (b + 3)

Substitute.

2mGCH = (31 + 3)

Simplify and divide both sides by 2.

mGCH = 17°


Squares

Squares


Square

Square

  • A quadrilateral with four right angles (like a rectangle) and four congruent sides (like a rhombus)


Square1

Square

  • So a square has all the properties of both a rectangle and a rhombus


The quadrilateral family tree

Quadrilateral

1. Four-sided polygon

Parallelogram

1.

2. Opposite angles are congruent

3. Diagonals bisect each other

4. Consecutive angles are supp.

Rhombus

1. Four congruent sides

Rectangle

1.

2. All properties above

1. Four right angles

2.

3. Diagonals bisect opposite angles

2. All properties above

3.

SQUARE

3. Diagonals are congruent

4. Diagonals are

1. All properties of a rectangle

1.

2.

1. Opposite sides are congruent

3.

2. All properties of a rhombus


The quadrilateral family tree

Parallelograms

Rectangles

Rhombuses

Squares

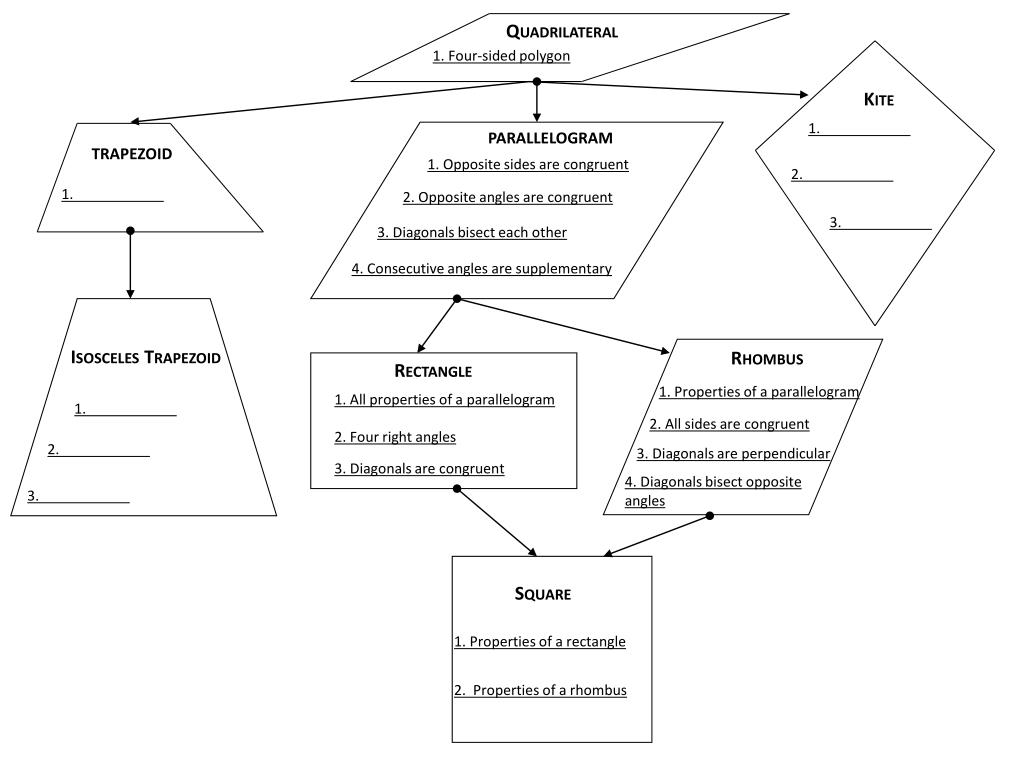

The quadrilateral family tree

Quadrilateral

1. Four-sided polygon

Kite

TRAPEZOID

1.

PARALLELOGRAM

1. Opposite sides are congruent

1.

2.

2. Opposite angles are congruent

3.

3. Diagonals bisect each other

4. Consecutive angles are supplementary

Isosceles Trapezoid

Rhombus

1.

Rectangle

1. Properties of a parallelogram

1. All properties of a parallelogram

2. All sides are congruent

2.

3. Diagonals are perpendicular

2. Four right angles

3.

4. Diagonals bisect opposite angles

3. Diagonals are congruent

Square

1. Properties of a rectangle

2. Properties of a rhombus
