  1. A proposed Trusted-Flow system architecture with aspect-oriented implementation Paolo Falcarin, Mario Baldi Riccardo Scandariato, Maurizio Morisio (Politecnico di Torino) Trento, June, 28th 2004

  2. Tamper resistance approaches • Integrity-checking • Static self-checking • Dynamic self-checking [Horne01, Chen02] • Making Reverse-Engineering complex • Customization [Aucsmith96] • Obfuscation [Collberg02] • Anti-debugging • Code identification • Watermarking [Barak01, Collberg99] • Code signature Trento, IP-Flow meeting, June 28th, 2004

  3. Our approach • Self-checking relies on code checkers • whose position is hidden in the application • whose behavior is obfuscated • Our solution extends the power of code checkers in two ways • remote verificationthat self-checking has been performed • continuous replacement of self-checking code Trento, IP-Flow meeting, June 28th, 2004

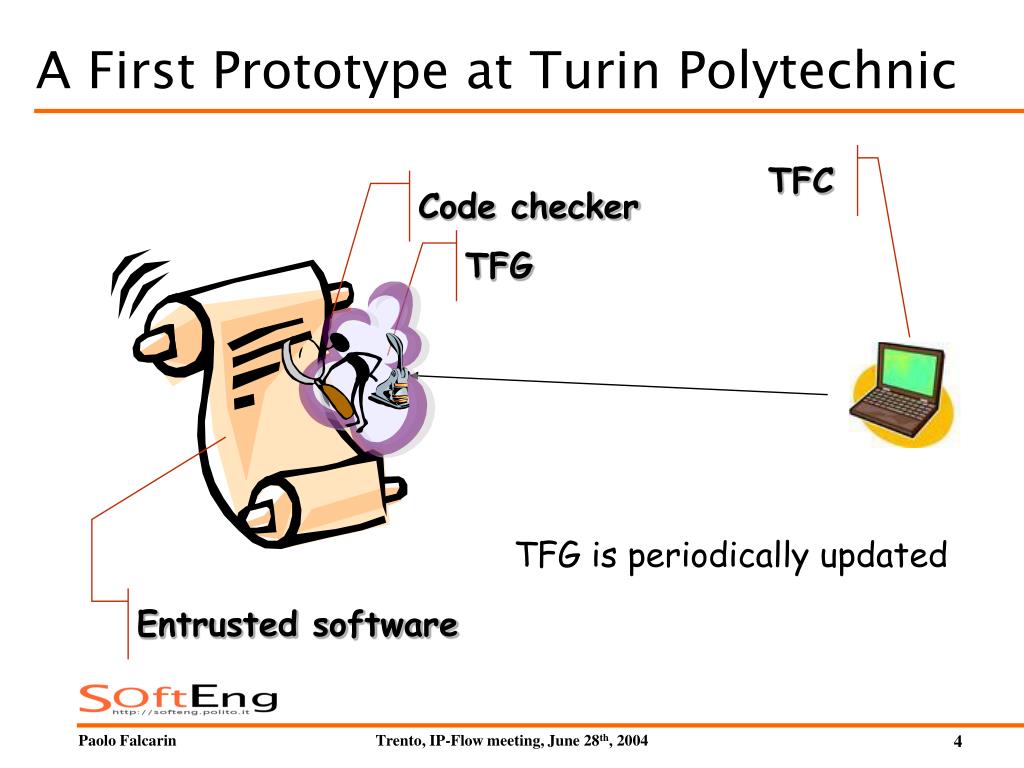

  4. A First Prototype at Turin Polytechnic TFC Code checker TFG TFG is periodically updated Entrusted software Trento, IP-Flow meeting, June 28th, 2004

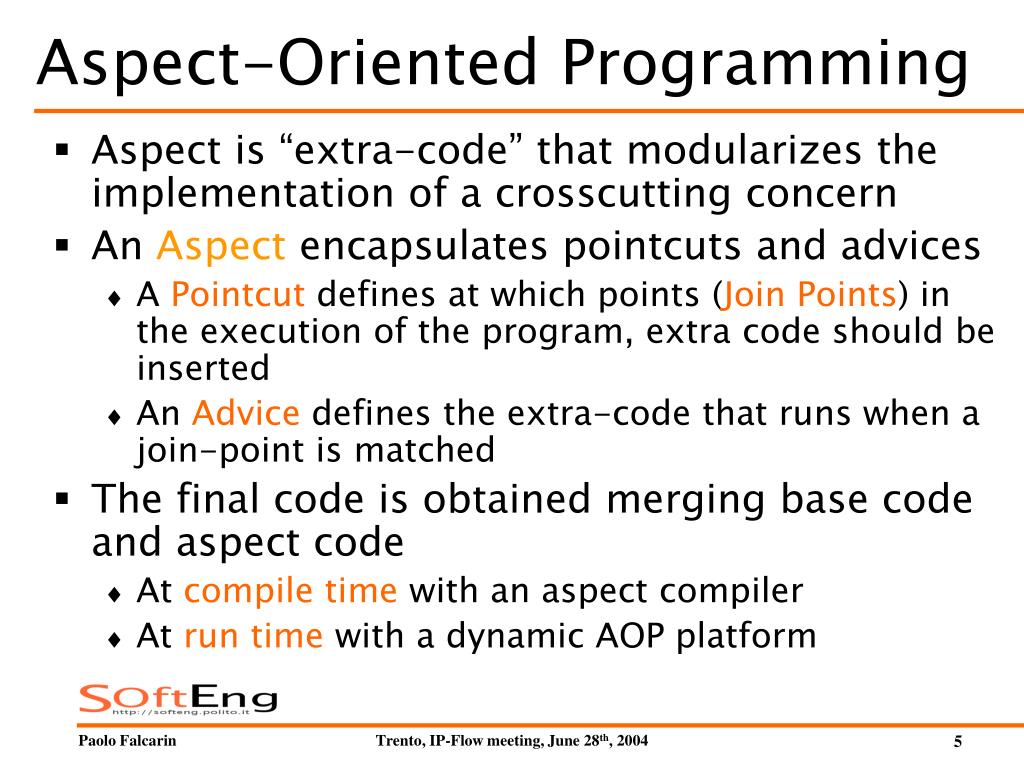

  5. Aspect-Oriented Programming • Aspect is “extra-code” that modularizes the implementation of a crosscutting concern • An Aspect encapsulates pointcuts and advices • A Pointcut defines at which points (Join Points) in the execution of the program, extra code should be inserted • An Advice defines the extra-code that runs when a join-point is matched • The final code is obtained merging base code and aspect code • At compile time with an aspect compiler • At run time with a dynamic AOP platform Trento, IP-Flow meeting, June 28th, 2004

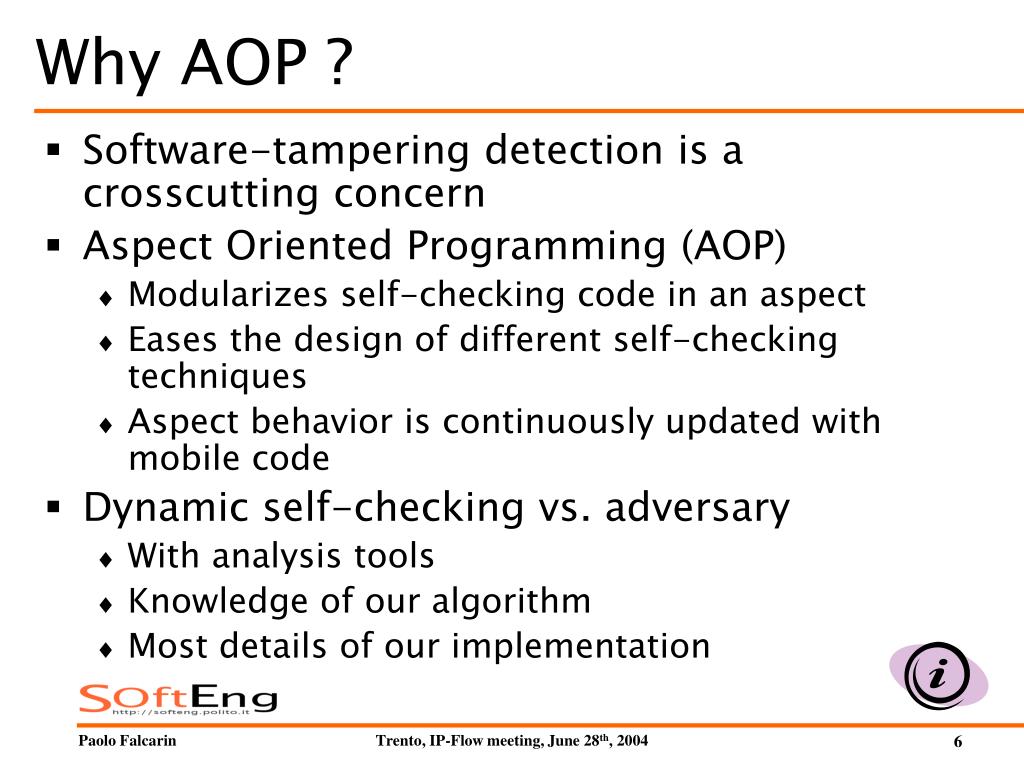

  6. Why AOP ? • Software-tampering detection is a crosscutting concern • Aspect Oriented Programming (AOP) • Modularizes self-checking code in an aspect • Eases the design of different self-checking techniques • Aspect behavior is continuously updated with mobile code • Dynamic self-checking vs. adversary • With analysis tools • Knowledge of our algorithm • Most details of our implementation Trento, IP-Flow meeting, June 28th, 2004

  7. A Proof of Concept: Chat System • Java Chat server/reflector with TFC • TFC generates aspects code • TFC pushes code to oblivious clients • Java Chat client with TFG • AOP to intercept calls to application methods • Mobile Code (aspects) is woven by AOP platform • Aspect contains • Session key • TFG and encryption algorithm • Pointcuts to application code Trento, IP-Flow meeting, June 28th, 2004

  8. Threats & Countermeasures • Discovery • Static inspection to find self-checking code • Mobile code against static inspection • Disablement • Disable checking • Disablement stops tag generation • TFC can block untrusted client • Replacement • Disable checking but sending correct info • Replacement must be applied before TFG expires • Overlapping aspects checking each other Trento, IP-Flow meeting, June 28th, 2004

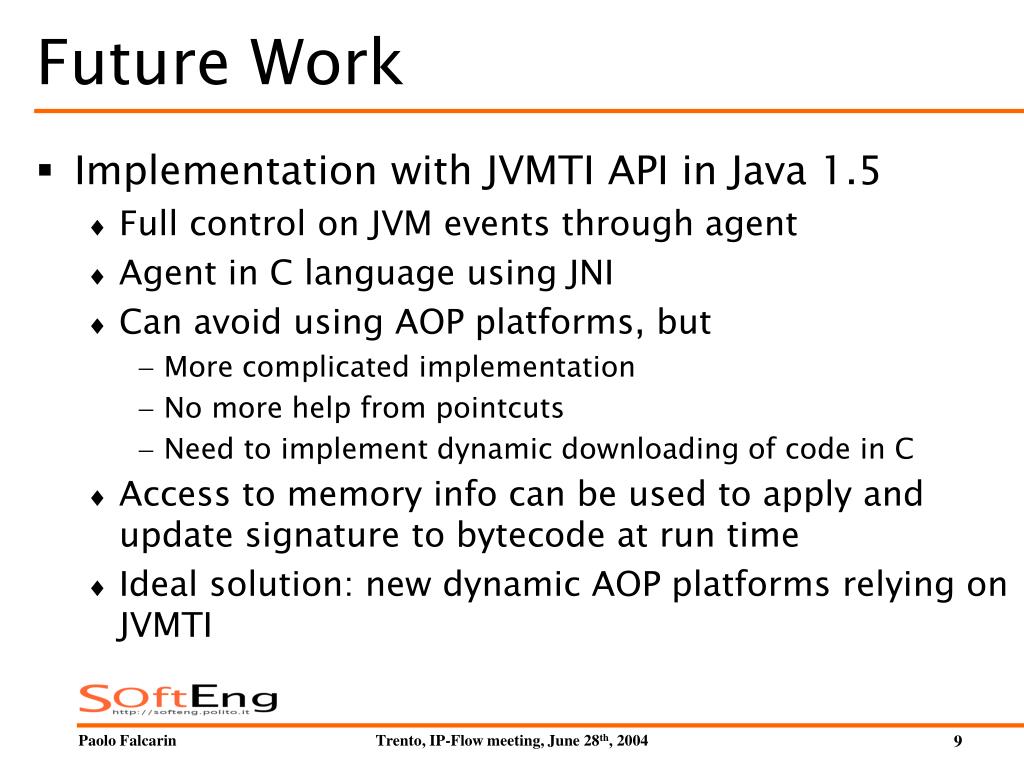

  9. Future Work • Implementation with JVMTI API in Java 1.5 • Full control on JVM events through agent • Agent in C language using JNI • Can avoid using AOP platforms, but • More complicated implementation • No more help from pointcuts • Need to implement dynamic downloading of code in C • Access to memory info can be used to apply and update signature to bytecode at run time • Ideal solution: new dynamic AOP platforms relying on JVMTI Trento, IP-Flow meeting, June 28th, 2004

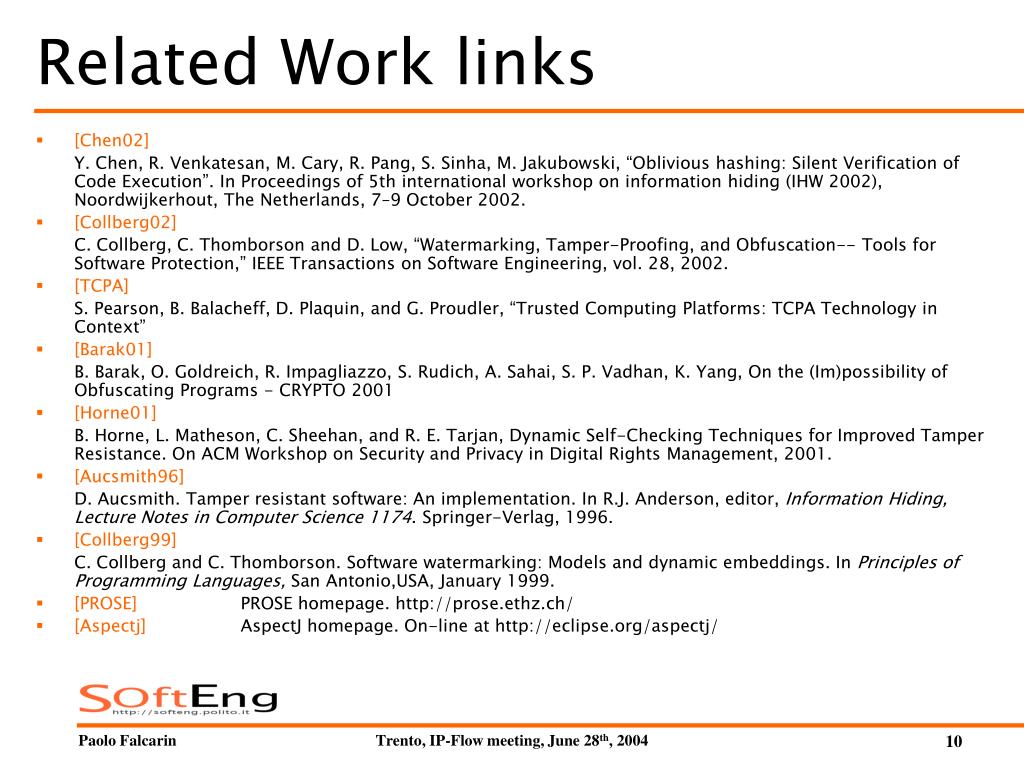

  10. Related Work links • [Chen02] Y. Chen, R. Venkatesan, M. Cary, R. Pang, S. Sinha, M. Jakubowski, “Oblivious hashing: Silent Verification of Code Execution”. In Proceedings of 5th international workshop on information hiding (IHW 2002), Noordwijkerhout, The Netherlands, 7–9 October 2002. • [Collberg02] C. Collberg, C. Thomborson and D. Low, “Watermarking, Tamper-Proofing, and Obfuscation-- Tools for Software Protection,” IEEE Transactions on Software Engineering, vol. 28, 2002. • [TCPA] S. Pearson, B. Balacheff, D. Plaquin, and G. Proudler, “Trusted Computing Platforms: TCPA Technology in Context” • [Barak01] B. Barak, O. Goldreich, R. Impagliazzo, S. Rudich, A. Sahai, S. P. Vadhan, K. Yang, On the (Im)possibility of Obfuscating Programs - CRYPTO 2001 • [Horne01] B. Horne, L. Matheson, C. Sheehan, and R. E. Tarjan, Dynamic Self-Checking Techniques for Improved Tamper Resistance. On ACM Workshop on Security and Privacy in Digital Rights Management, 2001. • [Aucsmith96] D. Aucsmith. Tamper resistant software: An implementation. In R.J. Anderson, editor, Information Hiding, Lecture Notes in Computer Science 1174. Springer-Verlag, 1996. • [Collberg99] C. Collberg and C. Thomborson. Software watermarking: Models and dynamic embeddings. In Principles of Programming Languages, San Antonio,USA, January 1999. • [PROSE] PROSE homepage. http://prose.ethz.ch/ • [Aspectj] AspectJ homepage. On-line at http://eclipse.org/aspectj/ Trento, IP-Flow meeting, June 28th, 2004
