Operating system concepts 8 th edition

Operating System Concepts 8th Edition

Chapter 2. System Structures

Gan Lin, OSLab. GNU


Operating system concepts 8 th edition

Contents

  • 2.1 Operating-System Services

  • 2.2 User Operating-System Interface

  • 2.3 System Calls

  • 2.4 Types of System Calls

  • 2.5 System Programs

  • 2.6 Operating-System Design and Implementation

  • 2.7 Operating-System Structure

  • 2.8 Virtual Machines

  • 2.9 Operating-System Debugging

  • 2.10 Operating-System Generation

  • 2.11 System Boot

  • 2.12 Summary

- Ch.2 System Structures -


Operating system concepts 8 th edition

Objectives

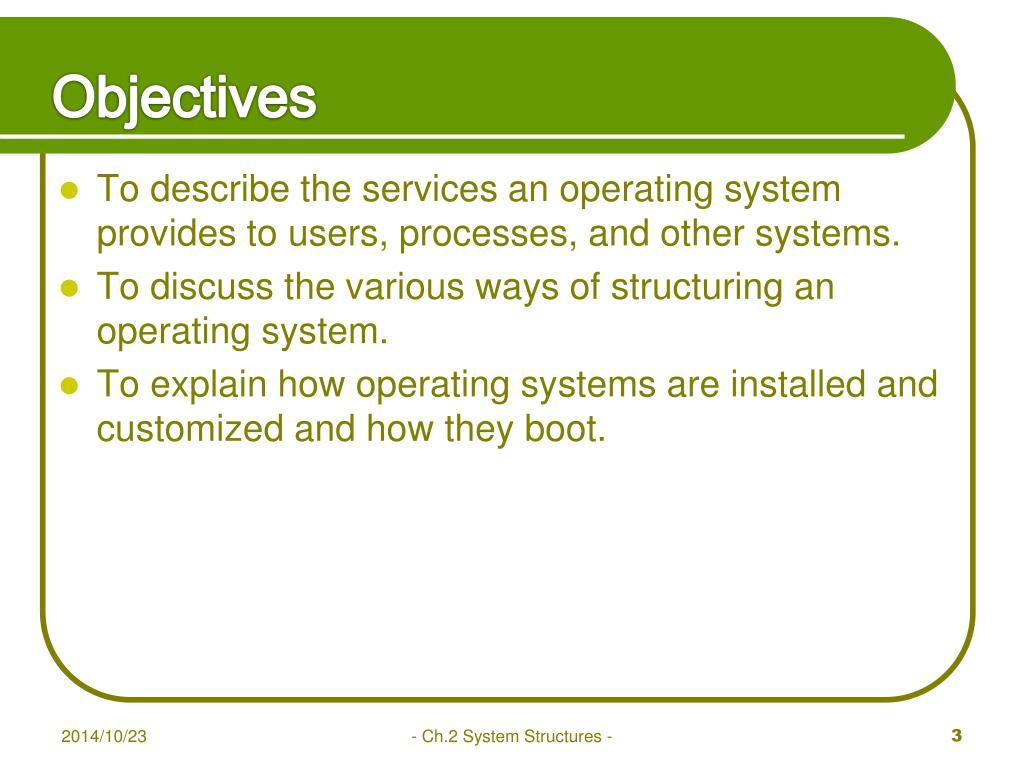

  • To describe the services an operating system provides to users, processes, and other systems.

  • To discuss the various ways of structuring an operating system.

  • To explain how operating systems are installed and customized and how they boot.

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.1 Operating-System Services

user and other system programs

Fig. 2.1 A view of operating system services

GUI

batch

command line

user interface

system calls

program execution

I/O operations

file

systems

communication

resource allocation

accounting

error detection

protection & security

services

operating system

hardware

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.2 User Operating-System Interface

  • Command Interpreter

  • Graphical User Interfaces

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.3 System Calls

Example System Call Sequence

Acquire input file name

Write prompt to screen

Accept input

Acquire output file name

Write prompt to screen

Accept input

Open the input file

if file doesn't exits, abort

Create out file

if file exits, abort

Loop

Read from input file

Write to output file

Until read fails

Close output file

Write completion message to screen

Terminate normally

Fig. 2.2 Example of how

system calls are used

source file

destination file

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.3 System Calls

  • API(Application Programming Interface)

    - Win32 API, POSIX API, and Java API

return value

BOOLReadFile c (HANDLEfile,

LPVOIDbuffer,

DWORDbytes To Read,

LPDWORDbytes Read,

LPOVERLAPPEDovl);

parameters

function name

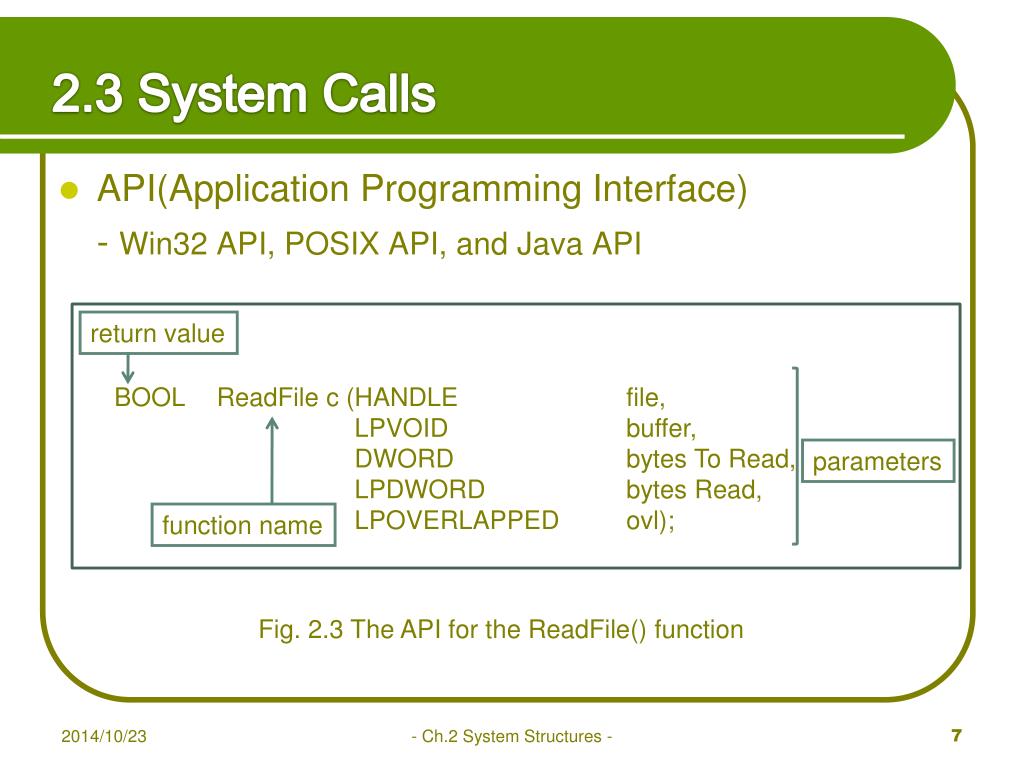

Fig. 2.3 The API for the ReadFile() function

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.3 System Calls

  • System-call interface

user application

open()

user mode

system call interface

kernel mode

open()

Implementationof

open() system call

return

.

.

.

i

.

.

Fig.2.4 The handling of a user application invoking the open() system call

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.4 Types of System Calls

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.5 System Programs

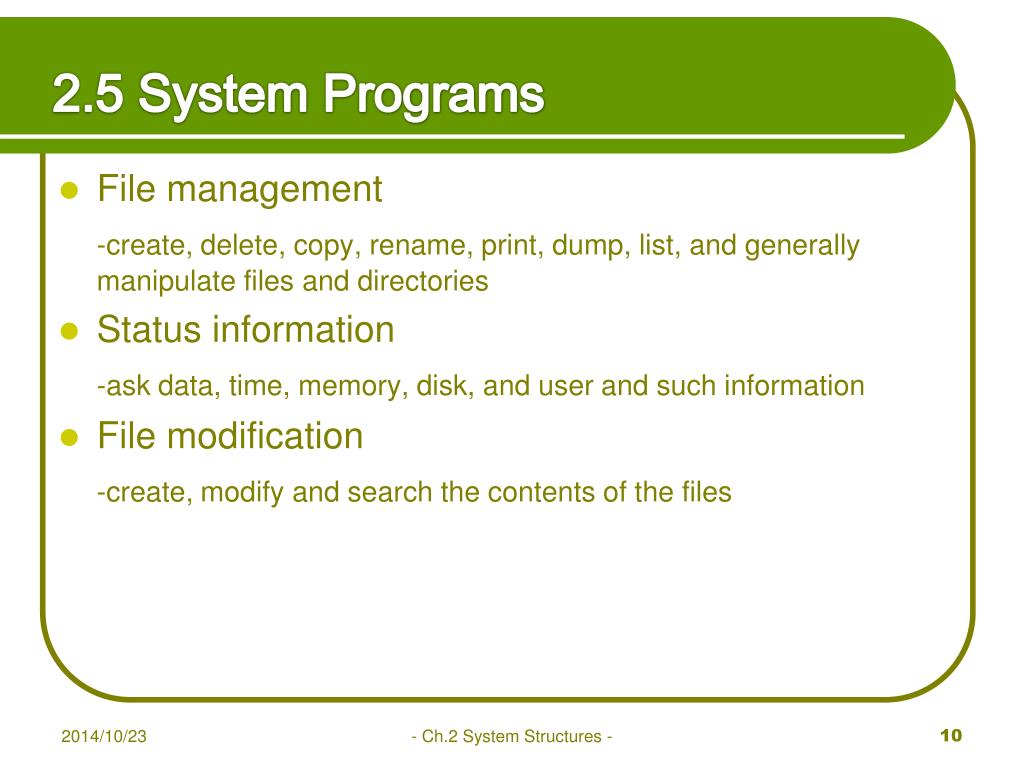

  • File management

    -create, delete, copy, rename, print, dump, list, and generally manipulate files and directories

  • Status information

    -ask data, time, memory, disk, and user and such information

  • File modification

    -create, modify and search the contents of the files

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.5 System Programs

  • File management

    -create, delete, copy, rename, print, dump, list, and generally manipulate files and directories

  • Status information

    -ask data, time, memory, disk, and user and such information

  • File modification

    -create, modify and search the contents of the files

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.5 System Programs

  • Programming-language support

    -compilers, assemblers, debuggers and interpreters

  • Program loading and execution

    -absolute loaders, relocatable loaders, linkage editors and overlay loaders

  • Communications

    -create virtual connections among processes, users, and computer systems.

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.6 Operating-System Design

and Implementation

  • Design Goals

  • Mechanisms and Policies

  • Implementation

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.7 Operating-System Structure

  • Simple Structure

Application program

Resident system program

MS-DOS device drivers

Application program

Fig. 2.5 MS-DOS layer structure

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.7 Operating-System Structure

  • Layered Approach

layer N

user interface

layer 1

layer 0

hardware

Fig. 2.6 A layered operating system

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.7 Operating-System Structure

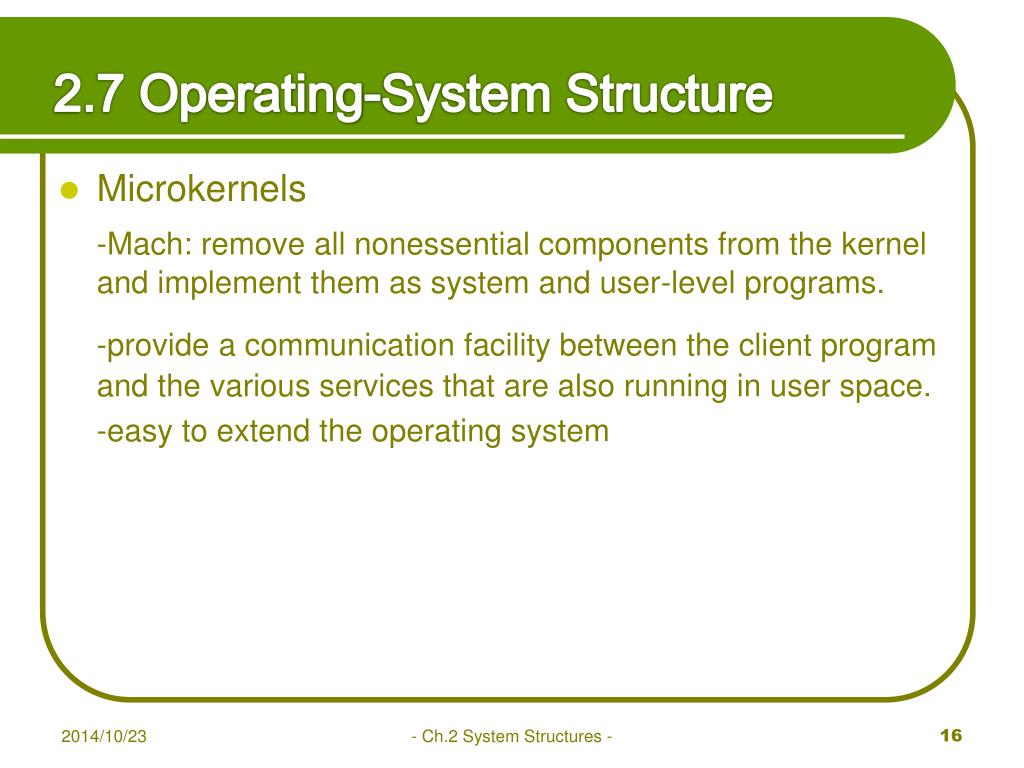

  • Microkernels

    -Mach: remove all nonessential components from the kernel and implement them as system and user-level programs.

    -provide a communication facility between the client program and the various services that are also running in user space.

    -easy to extend the operating system

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.7 Operating-System Structure

  • Modules

scheduling classes

device and bus drivers

file systems

Core Solaris kernel

miscellaneous modules

loadable system call

STREAMS modules

executable formats

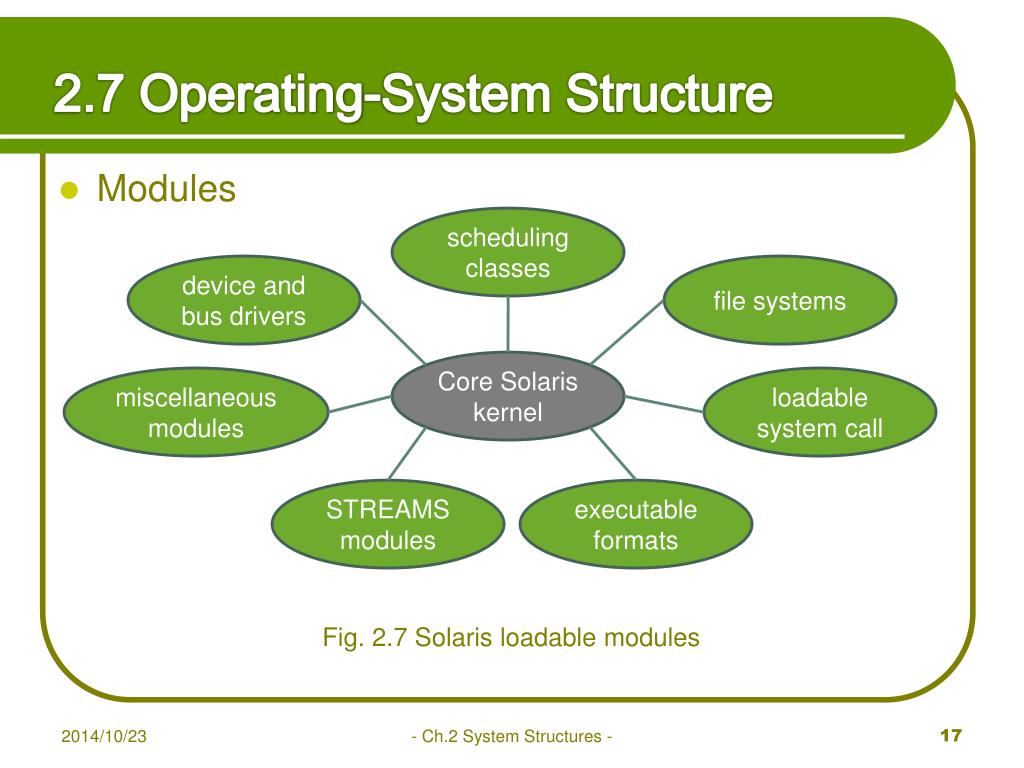

Fig. 2.7 Solaris loadable modules

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.10 Operating-System Generation

  • An operating system is designed to run on any of a class of machines at a variety of sites with a variety of peripheral configurations.

  • SYSGEN(system generation)

    -reads from a given file, or ask for information.

- Ch.2 System Structures -


Operating system concepts 8 th edition

2.11 System Boot

  • Bootstrap program/loader

    -a small piece of code which locates the kernel and loads it into main memory, and starts its execution.

1.Powered up

2.IR load a predefined location

3.Bootstrap perform a variety of tasks(diagnostics)

4.Start the operating system

- Ch.2 System Structures -


  • Login
