FTA’s Transit Economic Requirements Model (TERM)

FTA’s Transit Economic Requirements Model (TERM). John D. Giorgis Federal Transit Administration Director, Office of Strategic Planning . Transit Economic Requirements Model (TERM).

gittel
Download Presentation

FTA’s Transit Economic Requirements Model (TERM)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FTA’s Transit Economic Requirements Model (TERM) John D. GiorgisFederal Transit AdministrationDirector, Office of Strategic Planning

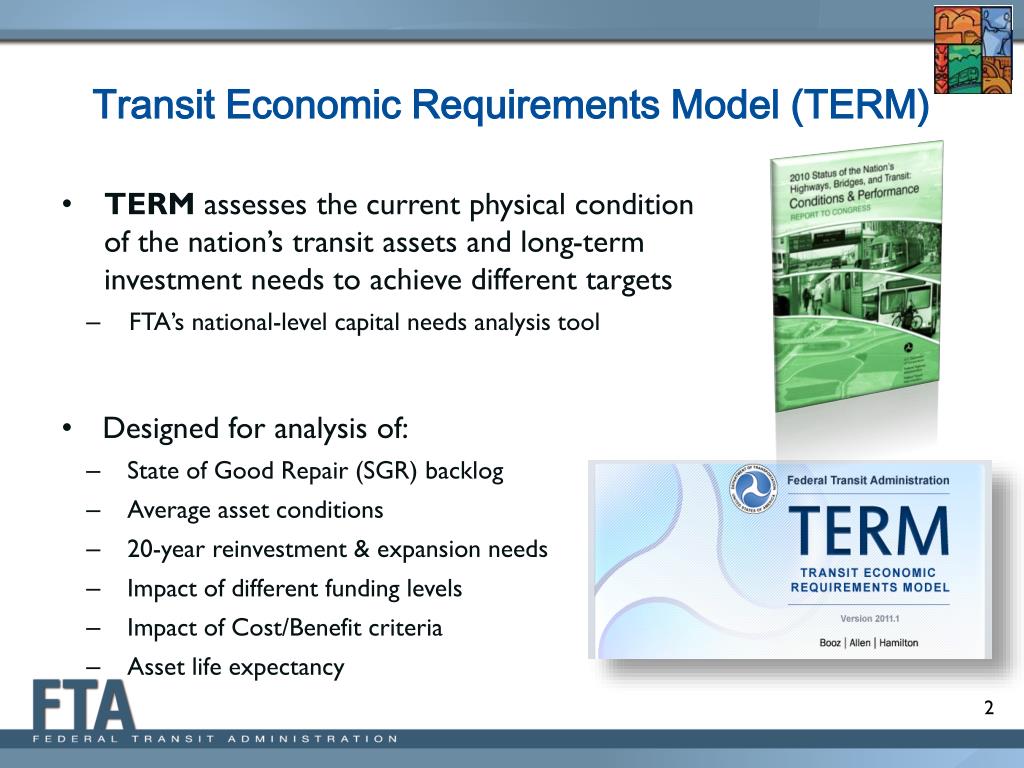

  2. Transit Economic Requirements Model (TERM) • TERM assesses the current physical condition of the nation’s transit assets and long-terminvestment needs to achieve different targets • FTA’s national-level capital needs analysis tool • Designed for analysis of: • State of Good Repair (SGR) backlog • Average asset conditions • 20-year reinvestment & expansion needs • Impact of different funding levels • Impact of Cost/Benefit criteria • Asset life expectancy

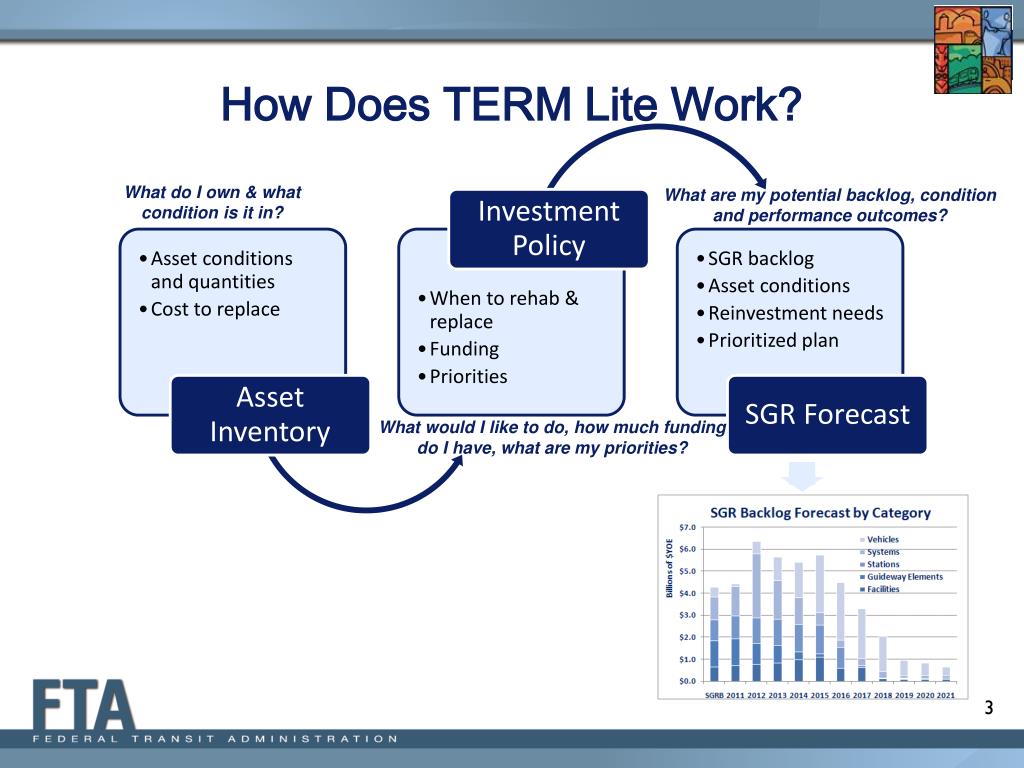

  3. How Does TERM Lite Work? What do I own & what condition is it in? What are my potential backlog, condition and performance outcomes? What would I like to do, how much funding do I have, what are my priorities?

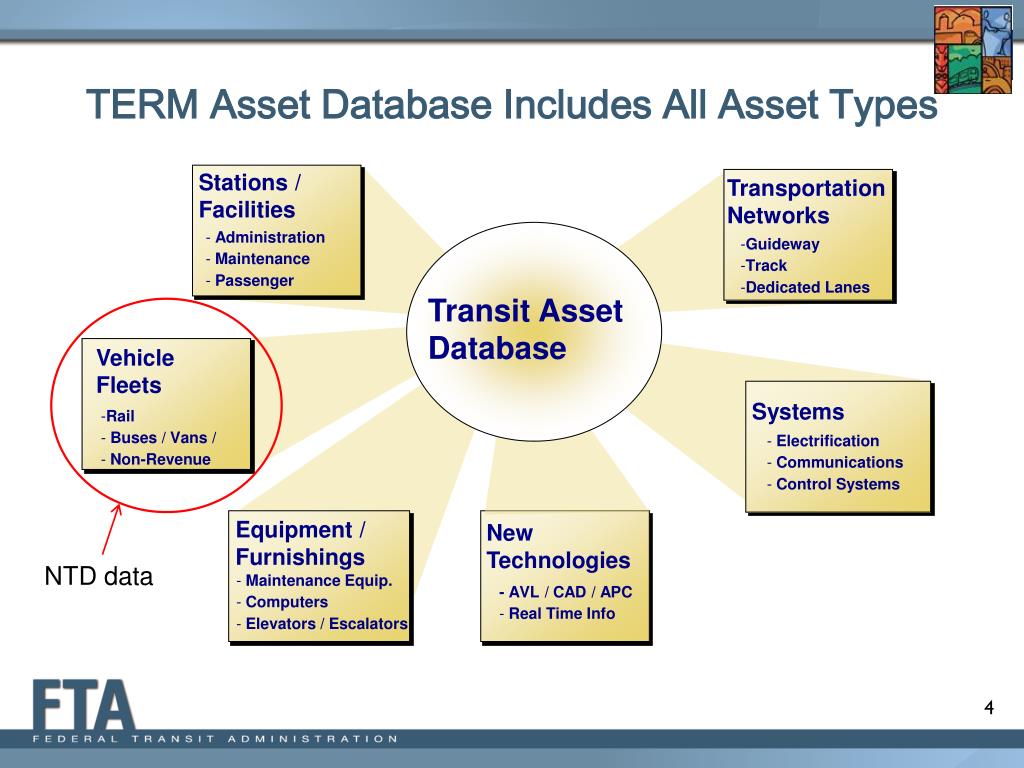

  4. TERM Asset Database Includes All Asset Types Stations / Facilities Transportation Networks • Administration • Maintenance • Passenger • Guideway • Track • Dedicated Lanes Transit Asset Database Vehicle Fleets Systems • Rail • Buses / Vans / • Non-Revenue • Electrification • Communications • Control Systems Equipment / Furnishings New Technologies NTD data • Maintenance Equip. • Computers • Elevators / Escalators • - AVL / CAD / APC • Real Time Info

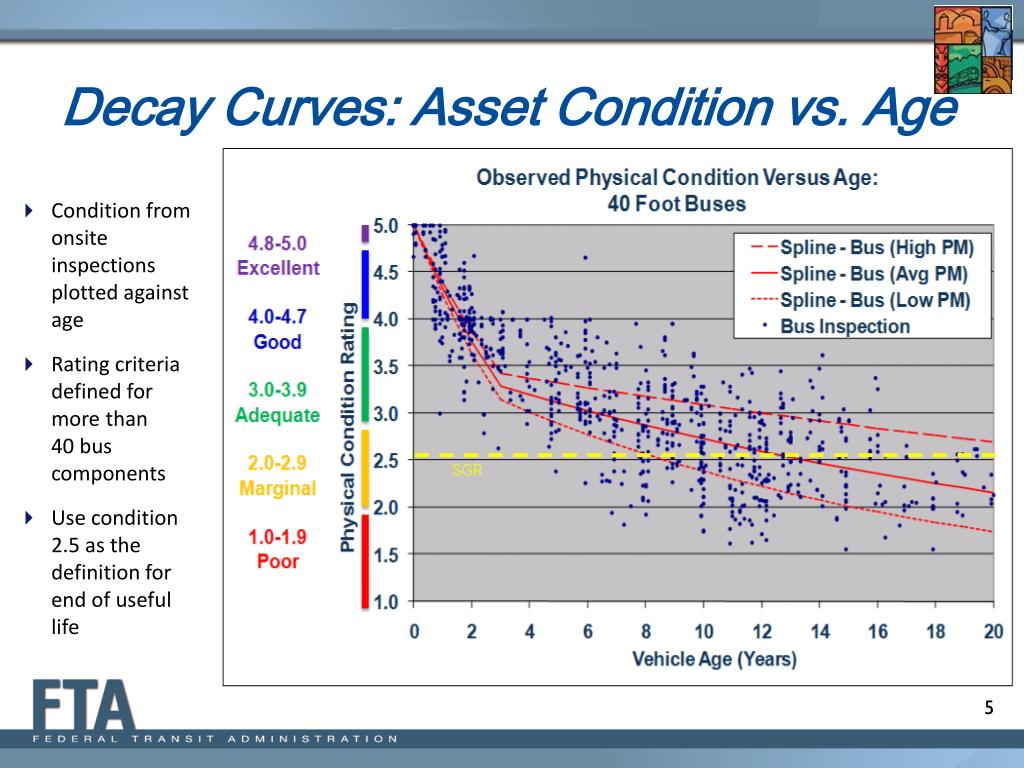

  5. Decay Curves: Asset Condition vs. Age • Condition from onsite inspections plotted against age • Rating criteria defined for more than 40 bus components • Use condition 2.5 as the definition for end of useful life

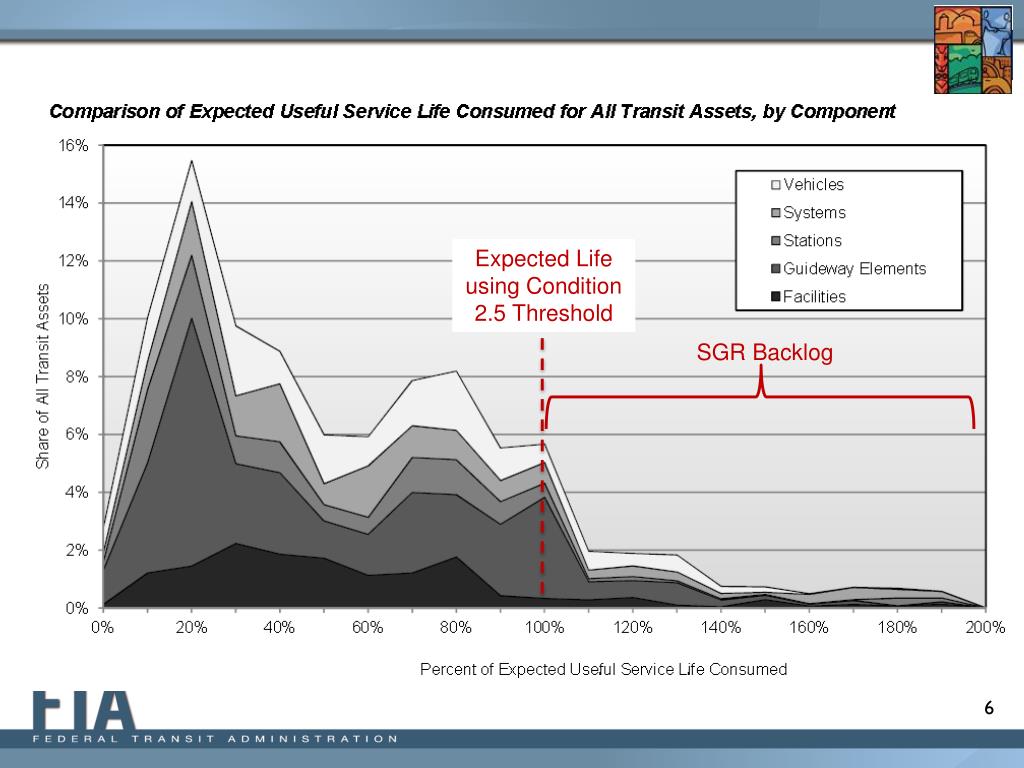

  6. Expected Life using Condition 2.5 Threshold SGR Backlog

  7. Capital Reinvestment Needs Forecast - SGR Backlog Evaluate reinvestment backlog and out-year replacement needs $77.7 B backlog$14.4 B average = 5.4 years behind

  8. TERMLite • TERM for local or regional transit agencies • Well-documented and user friendly, training is available • For local long-term capital planning analysis • MS Access application • Free through FTA • Comparable to HERS-St

  9. TERM Lite: Support for Capital Planning

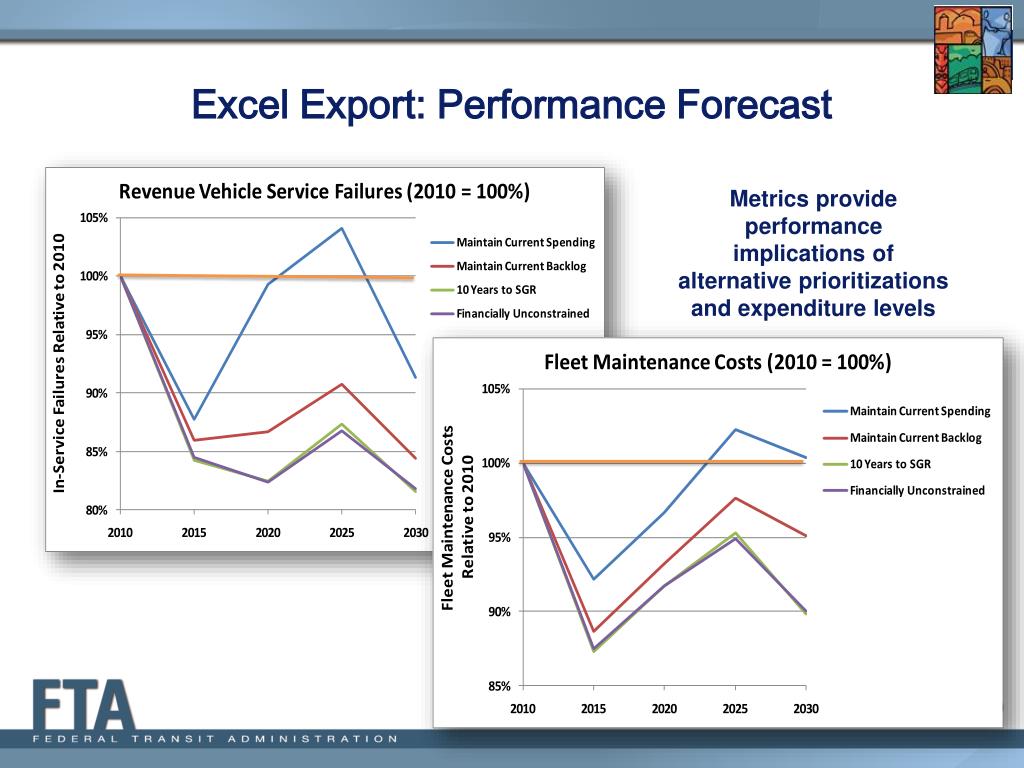

  10. Excel Export: Performance Forecast Metrics provide performance implications of alternative prioritizations and expenditure levels

  11. Questions? John D. Giorgis Federal Transit Administration Director, Office of Strategic Planning john.giorgis@dot.gov
