Process Equipment Warehouse A division of Mather Process Solutions Used And Remanufactured Processing Equipment. Used AeroFreeze Spiral Freezer Model # 3622-23-150 33” wide usable belt 1391’ of usable belt length 3” product clearance 23 total tiers of belt Freezer still installed.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Used AeroFreeze Spiral Freezer Model # 3622-23-150 33” wide usable belt ' - gita


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

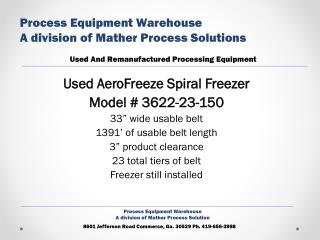

slide1

Process Equipment Warehouse

A division of Mather Process Solutions

Used And Remanufactured Processing Equipment

Used AeroFreeze Spiral Freezer

Model # 3622-23-150

33” wide usable belt

1391’ of usable belt length

3” product clearance

23 total tiers of belt

Freezer still installed

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 150
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Complete Electrical Control Cabinet
    • 460/3/60 hz
    • 65 KW power requirment
  • 304 Stainless Steel
  • Nema 4 Enclosure
  • VFD Belt drive controls
  • Lighting controls
  • Air temperature display

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1501
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Insulated enclosure
  • 6” polystyrene insulation
  • Stainless steel cladding on interior
  • White enamel exterior
  • (Qty. 3) electrically heated Stainless Steel doors

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1502
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Insulated enclosure
    • 34’ long
    • 23’ 5” wide
    • 17’ 6” height

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1503
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Elevated In-feed Belt
    • Top to bottom spiral configuration
    • 14’ 10” infeed height
    • 38” discharge height

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1504
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Stainless Steel Floor
    • Welded on site
  • Stainless Steel drive structure
  • Stainless Steel drum assembly
  • B24-10-17 Stainless fusion welded belt

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1505
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Stainless Steel Drum Enclosure

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1506
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Stainless Steel Interior wall panels

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1507
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Stainless Steel upper mezzanine

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1508
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Aluminum Air Plenum
  • (Qty. 3) Sisw 25 hp. Centrifugal air fans

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 1509
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Complete refrigeration system
    • 105 tons refrigeration capacity
    • -35 deg. f at evaporator
    • NH3 pumped 5:1
    • Water defrost

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 15010
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Complete refrigeration system

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 15011
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Complete refrigeration system

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 15012
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Complete refrigeration system

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988

used aerofreeze spiral freezer model 3622 23 15013
Used AeroFreeze Spiral FreezerModel # 3622-23-150
  • Complete refrigeration system

Process Equipment Warehouse

A division of Mather Process Solution

8601 Jefferson Road Commerce, Ga. 30529 Ph. 419-656-3988
