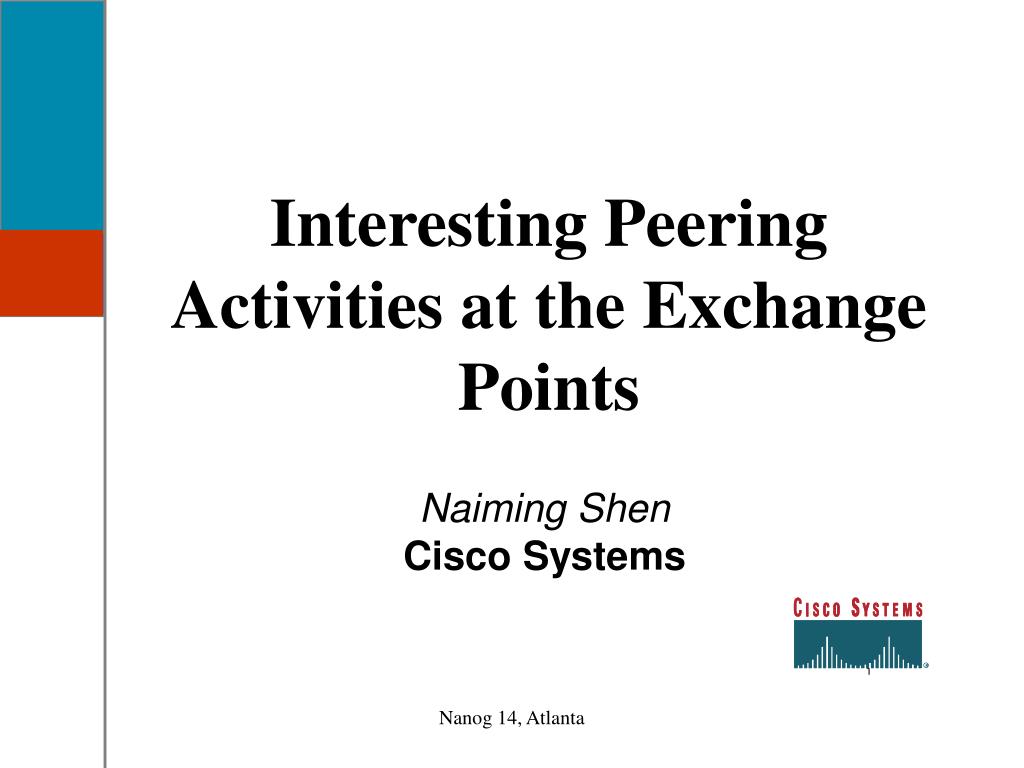

  1. Interesting Peering Activities at the Exchange Points Naiming Shen Cisco Systems 1 Nanog 14, Atlanta

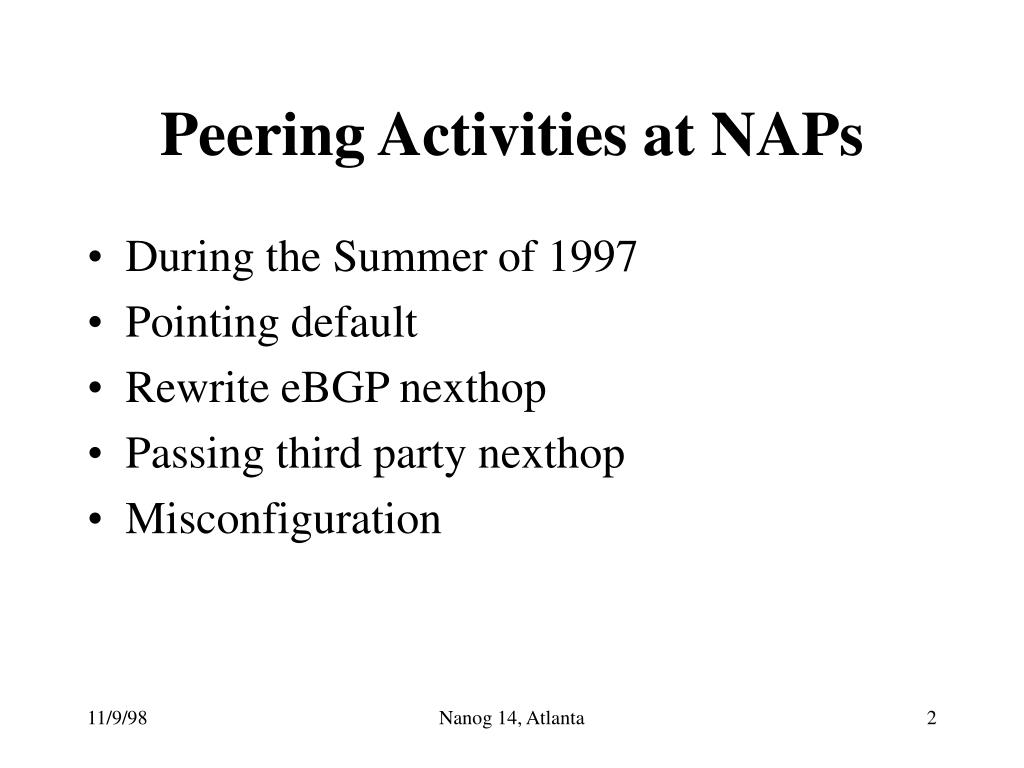

  2. Peering Activities at NAPs • During the Summer of 1997 • Pointing default • Rewrite eBGP nexthop • Passing third party nexthop • Misconfiguration Nanog 14, Atlanta

  3. Case#1: Rewrite eBGP Nexthop ACLs ISP 3 cpe2 Mae-East NAP ISP 2 iMCI ISP 1 Private Peering Nanog 14, Atlanta

  4. Case#1: Continue... • Netflow shown 15% extra traffic from a single subnet • traceroute -g shown the traffic coming to us • Install a static route of 212.x.x.x pointing to this router and traceroute stopped at ISP1 • Install the route in BGP, traceroute shown it coming back to us • Thus this router of ISP3 had to rewrite the eBGP nexthop base on the AS numbers • This could not be misconfiguration or a simple pointing default. Also this was not just used towards iMCI. Nanog 14, Atlanta

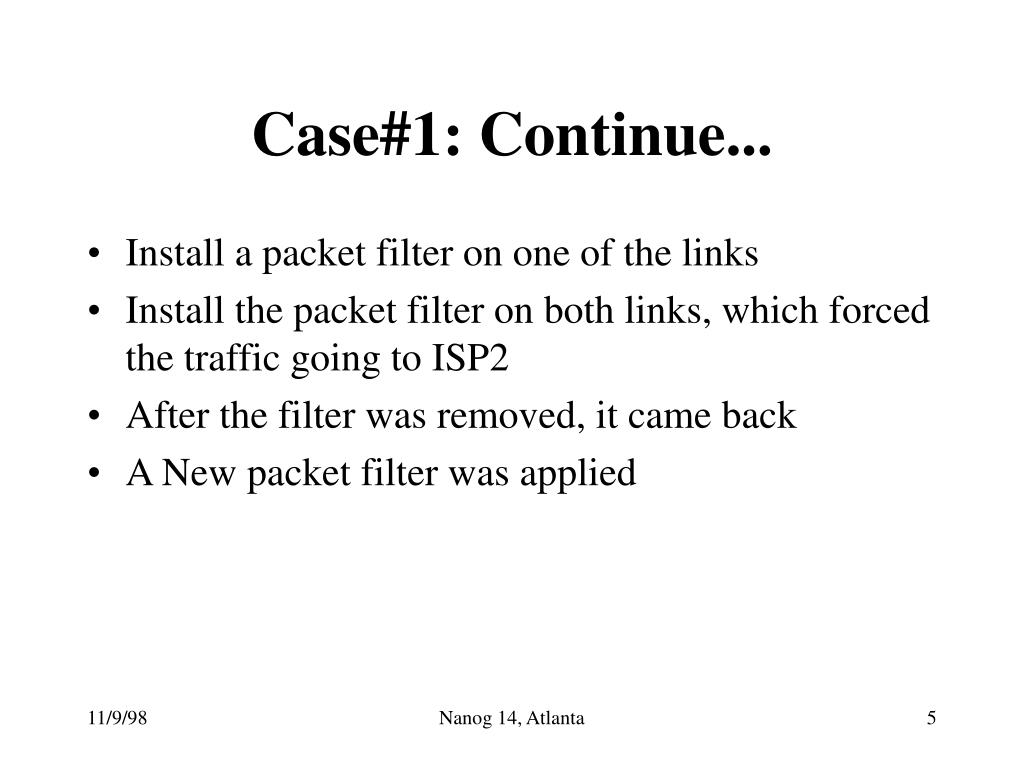

  5. Case#1: Continue... • Install a packet filter on one of the links • Install the packet filter on both links, which forced the traffic going to ISP2 • After the filter was removed, it came back • A New packet filter was applied Nanog 14, Atlanta

  6. Case #1: Continue... • ACL 123access-list 123 permit icmp x.x.x.0 0.0.31.255 anyaccess-list 123 permit udp x.x.x.0 0.0.31.255 any gt 32000access-list 123 permit udp x.x.x.0 0.0.31.255 any eq 53access-list 123 deny ip x.x.x.0 0.0.31.255 anyaccess-list permit ip any any • The new filter was there for four days Nanog 14, Atlanta

  7. Case#2: Passing 3rd Party Nexthop NAP LAN ISP 5 traffic iMCI Peering/customer Peering ISP 4 Nanog 14, Atlanta

  8. Case#2: Continue... • Netflow did not find this case • Even you can rewrite the nexthop to your peer’s address, you can’t stop your peer passing your nexthop to the 3rd party • route-map commandset ip next-hop peer-address • Use “next-hop-self” Nanog 14, Atlanta

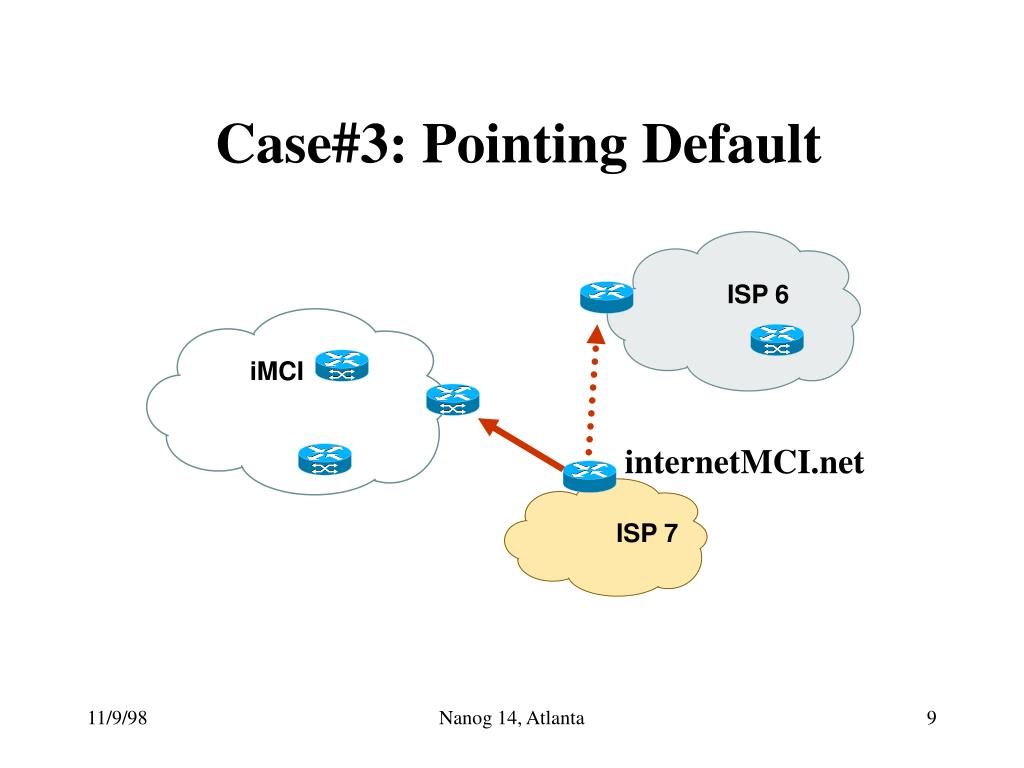

  9. Case#3: Pointing Default ISP 6 iMCI internetMCI.net ISP 7 Nanog 14, Atlanta

  10. Case#3: Continue... • It first pointing to ISP6, then to iMCI • reverse DNS lookup was xxx.internetmci.net • SNMP query had default route MIB value:ip.ipRouteTable.ipRouteEntry.ipRouteNexthop.0.0.0.0 = IpAddress:192.41.177.180 • After we exchanged some email, they pointed to someone else Nanog 14, Atlanta

  11. Case#4: Tunneling GRE ISP 9 NAP1 ISP 8 NAP2 ISP 9 Nanog 14, Atlanta

  12. Case#4: Continue... ISP 10 Upstream Provider NAP3 E1 E3 ISP 11 Nanog 14, Atlanta

  13. Other Activities • Run IGP at the NAPs • Run Native Multicast • Inconsistent route announcement at different peering points • Run CDP Nanog 14, Atlanta

  14. Detection • Netflow stats for reverse route lookup and traffic matrix • traceroute -g • If LSR is disabled, use Ping-Pong trace • MAC address accounting Nanog 14, Atlanta

  15. Filtering • Packet level filtering • MAC address filtering/rate-limit, sometimes combined with WRED • Null out offender’s routes within your domain Nanog 14, Atlanta

  16. Preventive Measures • NAP GIGAswitch L2 filtering • NAP ATM PVCs • Use “next-hop-self” and reset peer-address • Remove non-customer routes from NAP routers • Do not carry NAP subnets in the backbone • Enforce consistent route announcements Nanog 14, Atlanta
