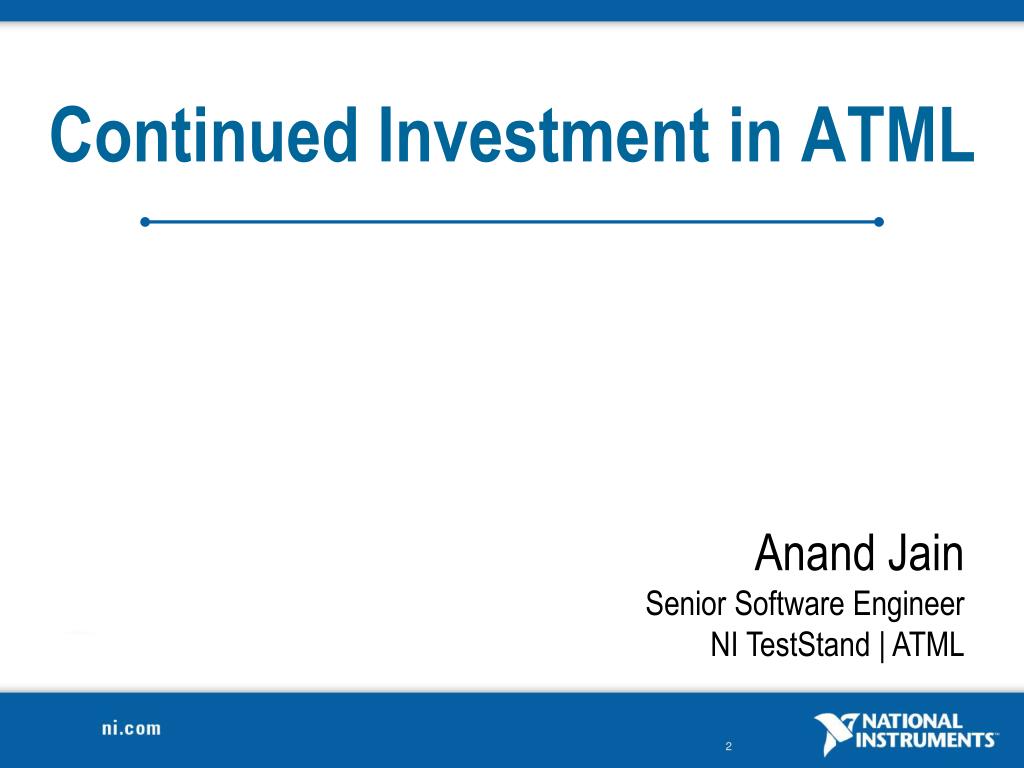

Continued Investment in ATML

Anand Jain

Senior Software Engineer

NI TestStand | ATML


The ni investment in atml

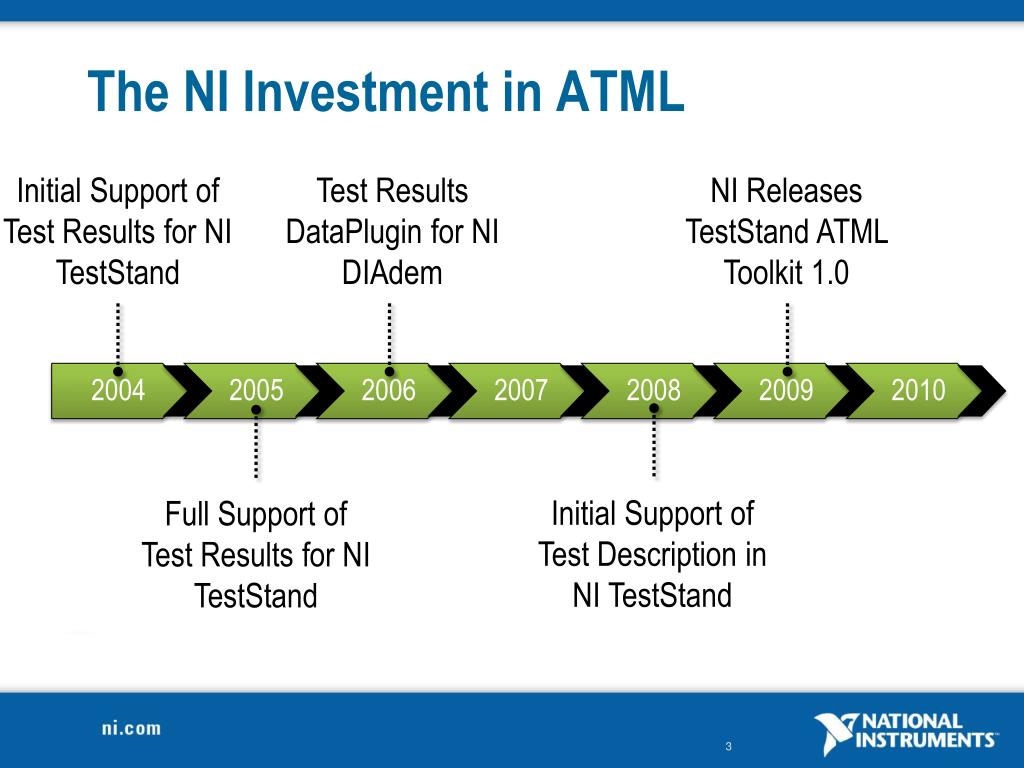

The NI Investment in ATML

Initial Support of Test Results for NI TestStand

Test Results DataPluginfor NI DIAdem

NI Releases TestStand ATML Toolkit 1.0

Initial Support of Test Description in NI TestStand

Full Support of Test Results for NI TestStand


Ni teststand atml toolkit 1 0 2009

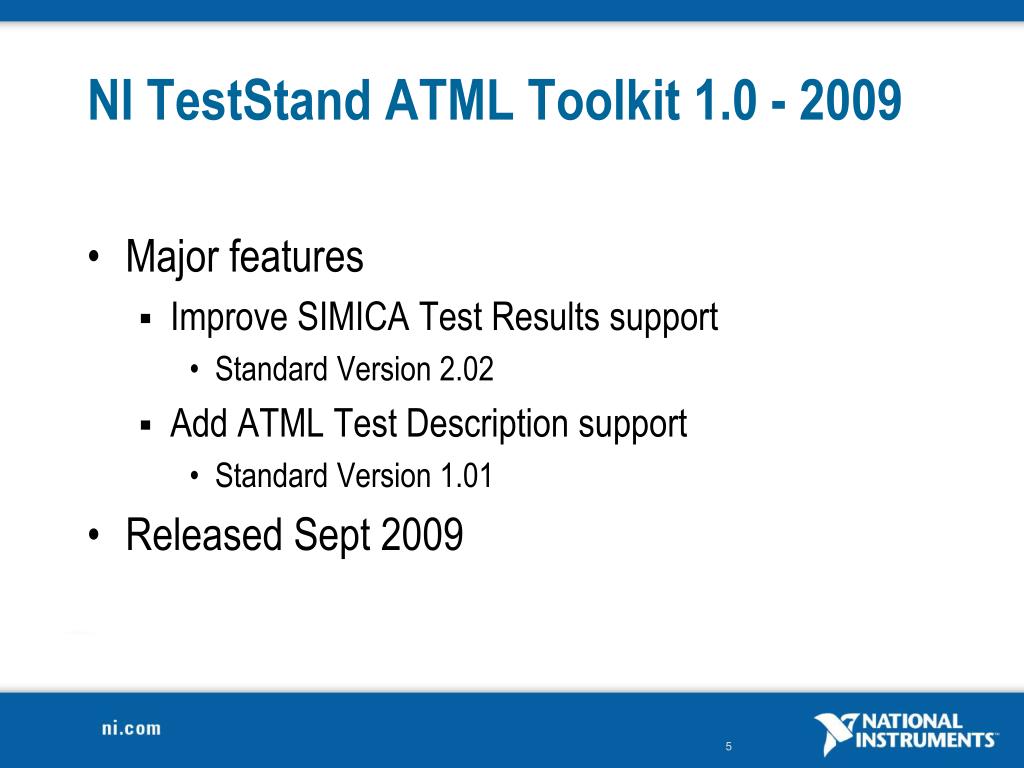

NI TestStand ATML Toolkit 1.0 - 2009

  • Major features

    • Improve SIMICA Test Results support

      • Standard Version 2.02

    • Add ATML Test Description support

      • Standard Version 1.01

  • Released Sept 2009


Simica test results using ni teststand

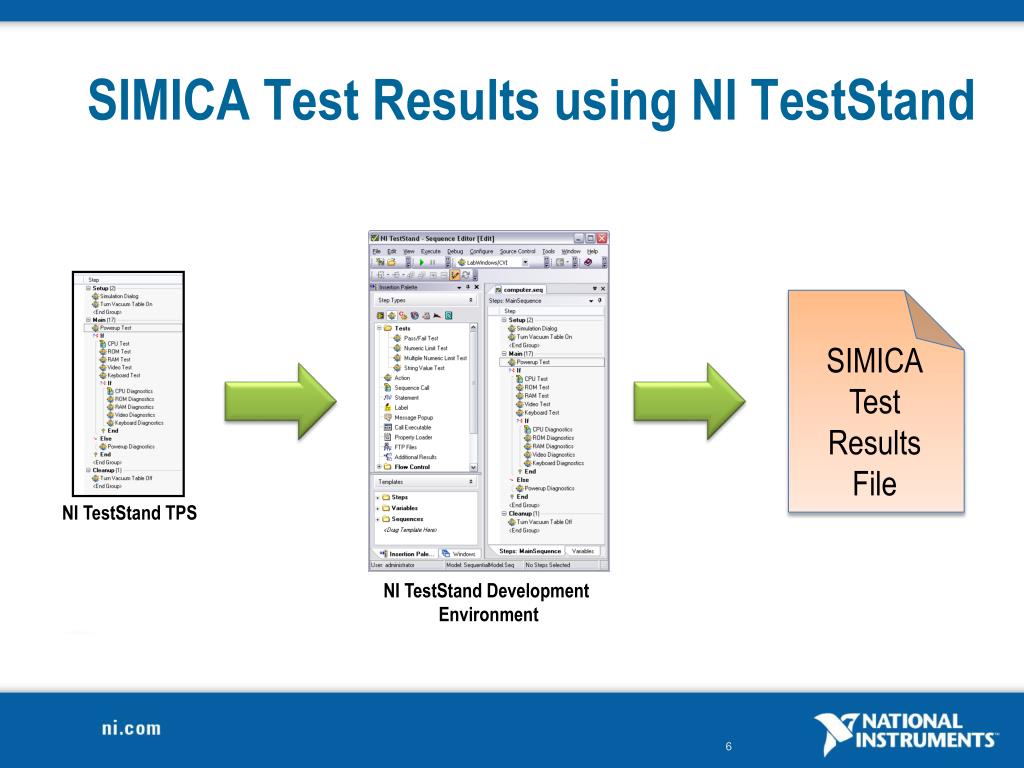

SIMICA Test Results using NI TestStand

SIMICA

Test Results

File

NI TestStand TPS

NI TestStand Development

Environment


Simica test results support

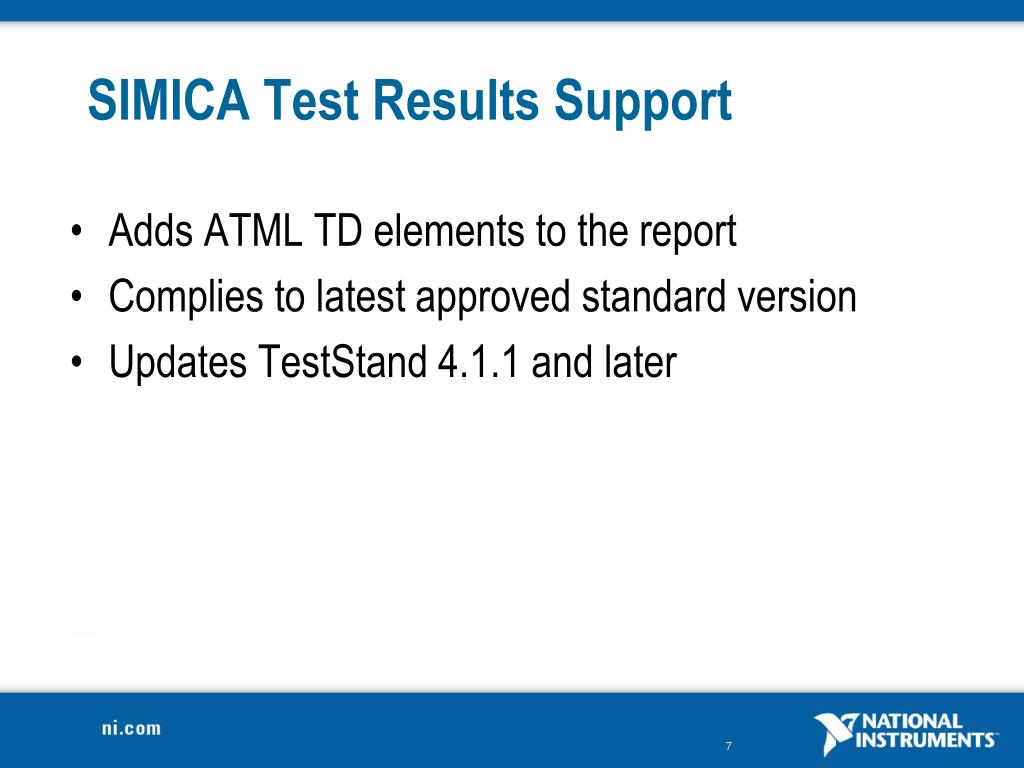

SIMICA Test Results Support

  • Adds ATML TD elements to the report

  • Complies to latest approved standard version

  • Updates TestStand 4.1.1 and later


Atml test description support

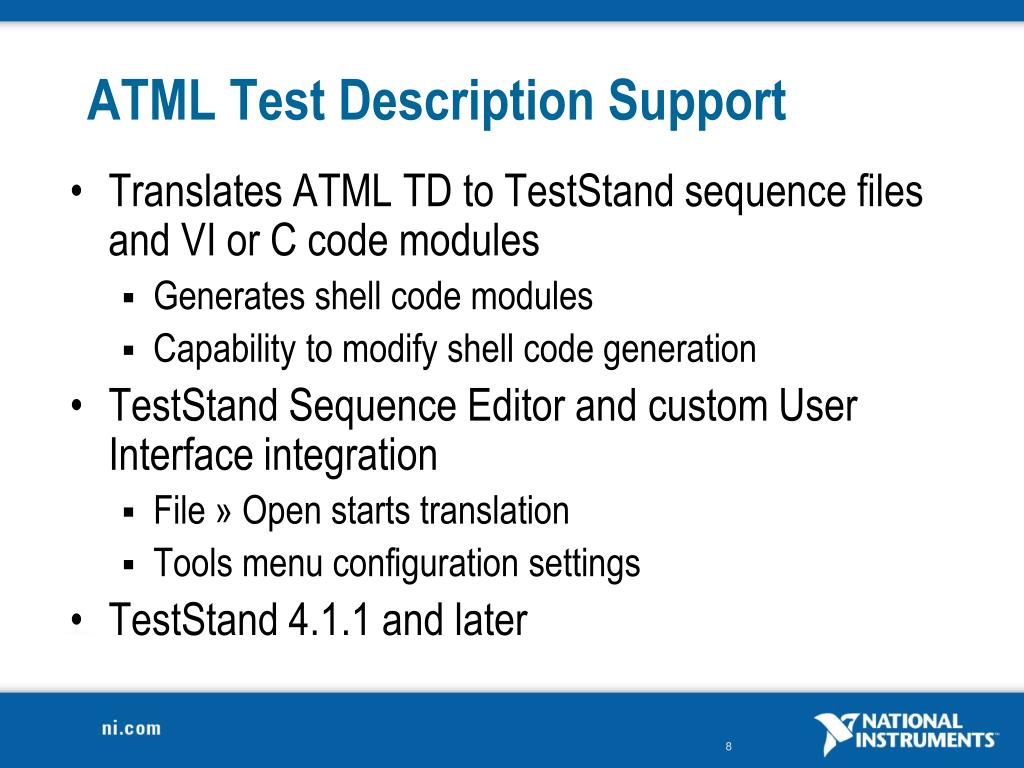

ATML Test Description Support

  • Translates ATML TD to TestStand sequence files and VI or C code modules

    • Generates shell code modules

    • Capability to modify shell code generation

  • TestStand Sequence Editor and custom User Interface integration

    • File » Open starts translation

    • Tools menu configuration settings

  • TestStand 4.1.1 and later


Additional feature

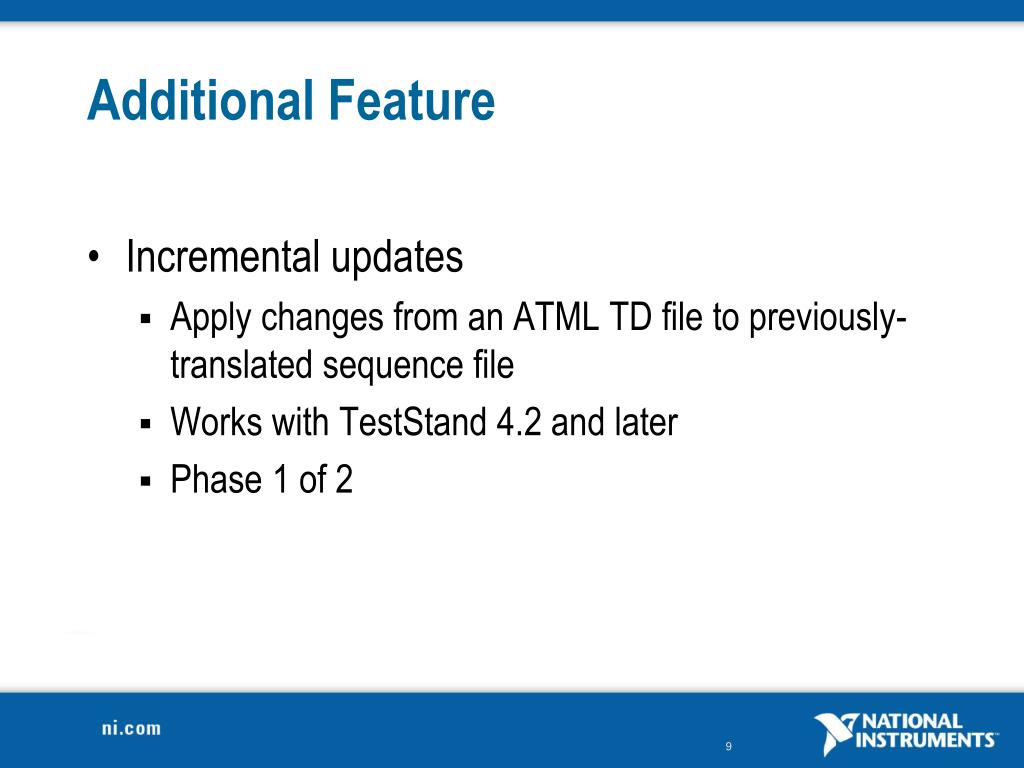

Additional Feature

  • Incremental updates

    • Apply changes from an ATML TD file to previously-translated sequence file

    • Works with TestStand 4.2 and later

    • Phase 1 of 2


Atml td translation using the ni atml toolkit

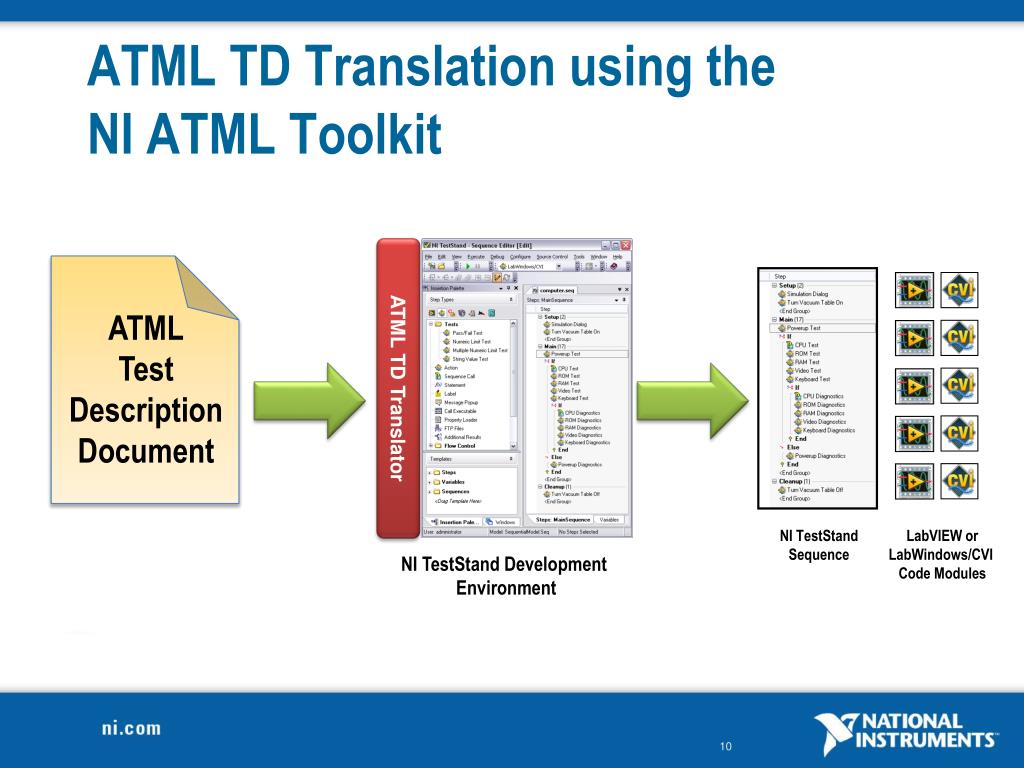

ATML TD Translation using the NI ATML Toolkit

ATML TD Translator

ATML

Test

Description

Document

NI TestStand

Sequence

LabVIEW or

LabWindows/CVI

Code Modules

NI TestStand Development

Environment


Ni teststand atml toolkit 2011

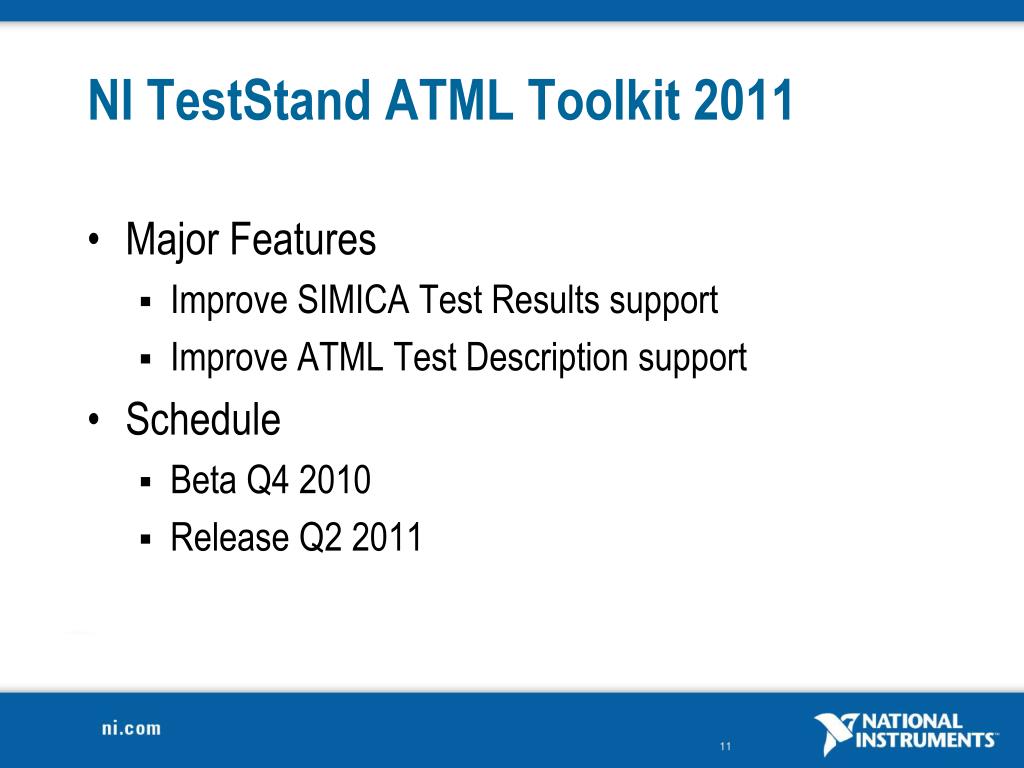

NI TestStand ATML Toolkit 2011

  • Major Features

    • Improve SIMICA Test Results support

    • Improve ATML Test Description support

  • Schedule

    • Beta Q4 2010

    • Release Q2 2011


Diadem datafinder atml plug in

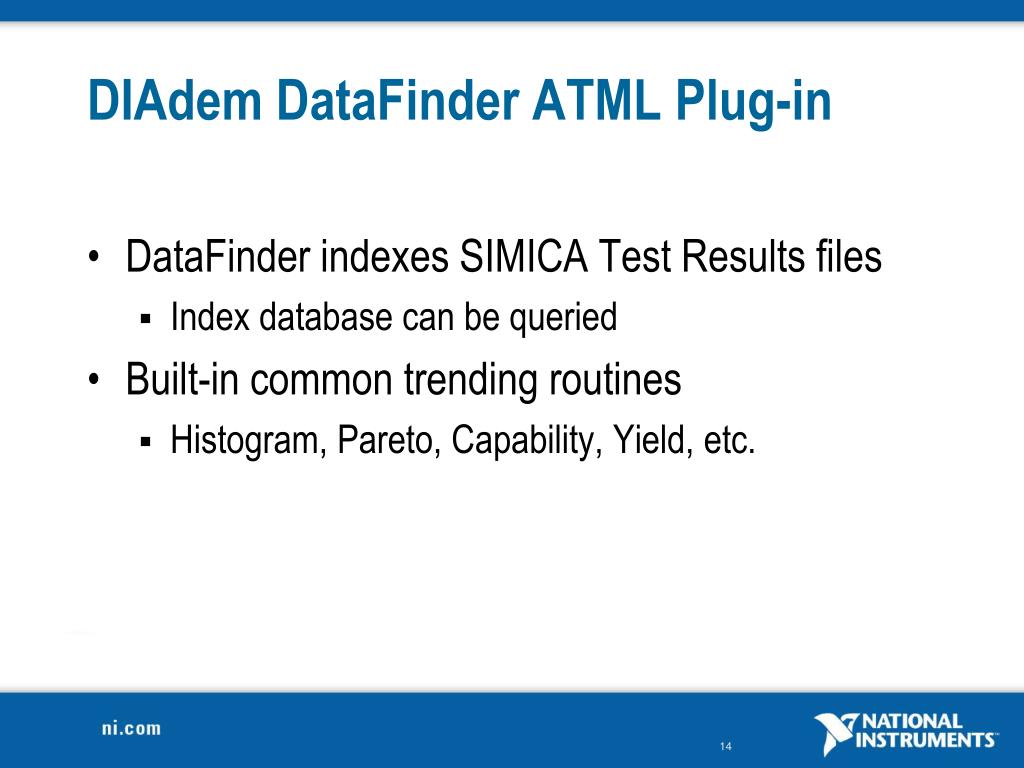

DIAdem DataFinderATML Plug-in

  • DataFinder indexes SIMICA Test Results files

    • Index database can be queried

  • Built-in common trending routines

    • Histogram, Pareto, Capability, Yield, etc.


Trending analysis using diadem and test results

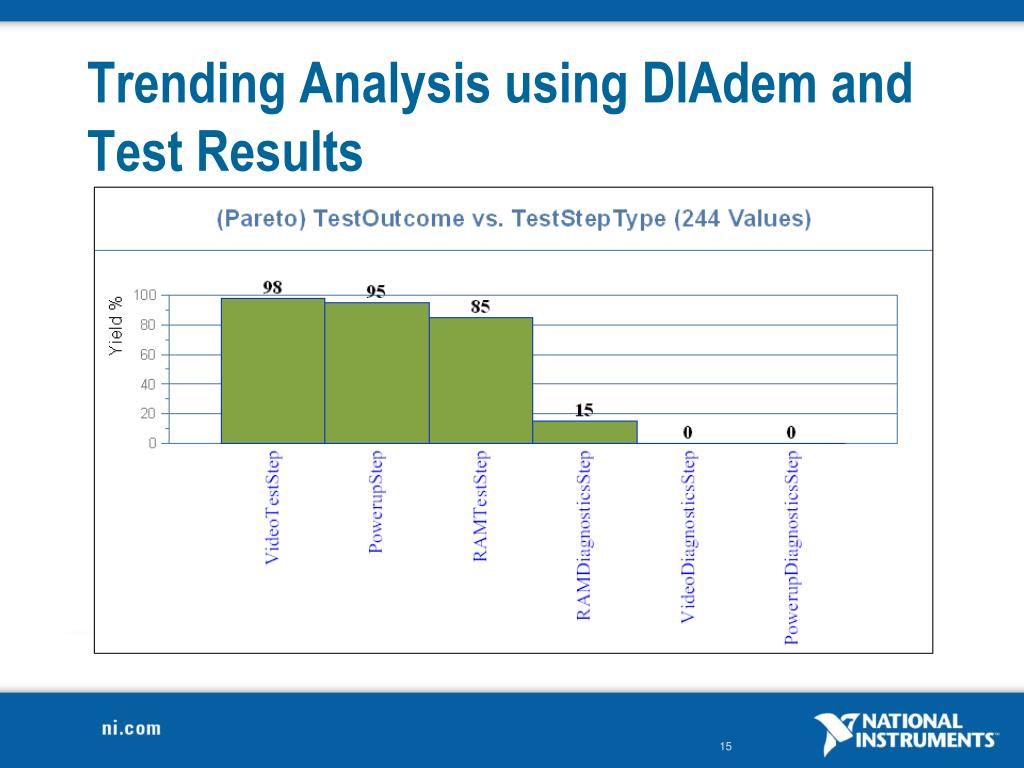

Trending Analysis using DIAdem and Test Results


Benefits of using atml

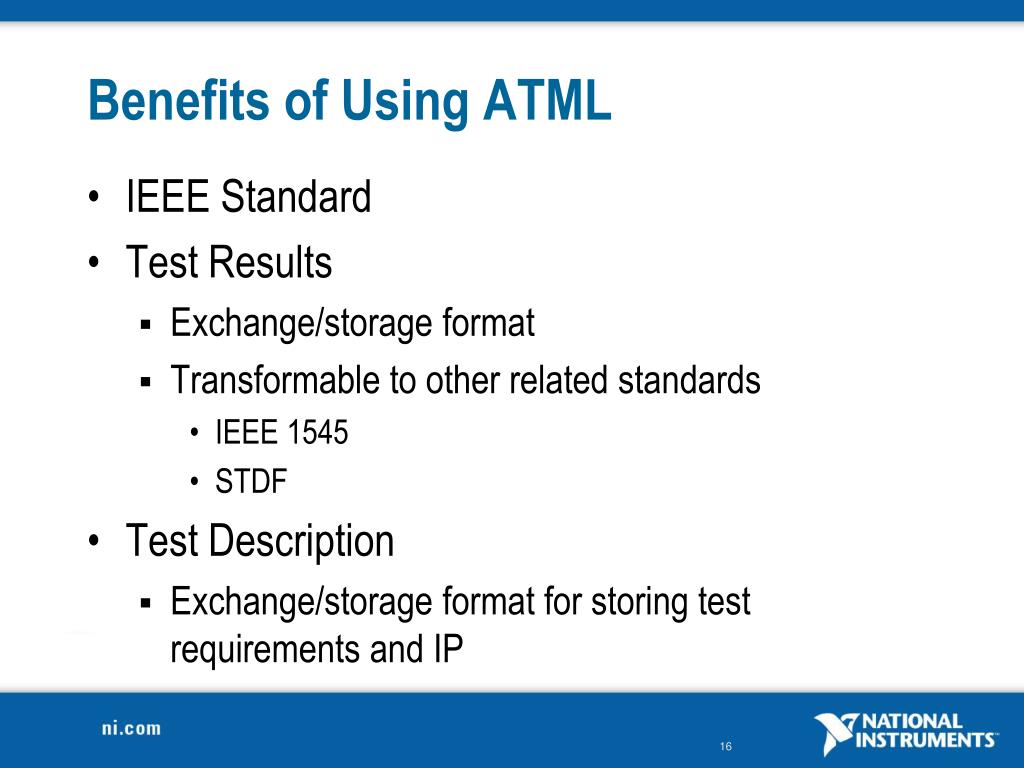

Benefits of Using ATML

  • IEEE Standard

  • Test Results

    • Exchange/storage format

    • Transformable to other related standards

      • IEEE 1545

      • STDF

  • Test Description

    • Exchange/storage format for storing test requirements and IP


Issues encountered

Issues Encountered

  • Lack of an ATML users guide

  • Lack of toolsets required to create an ATML test system

    • Editors for ATML instance documents

  • “Trial-Use” IEEE standards

  • Costs associated with IEEE standards


Learn more today

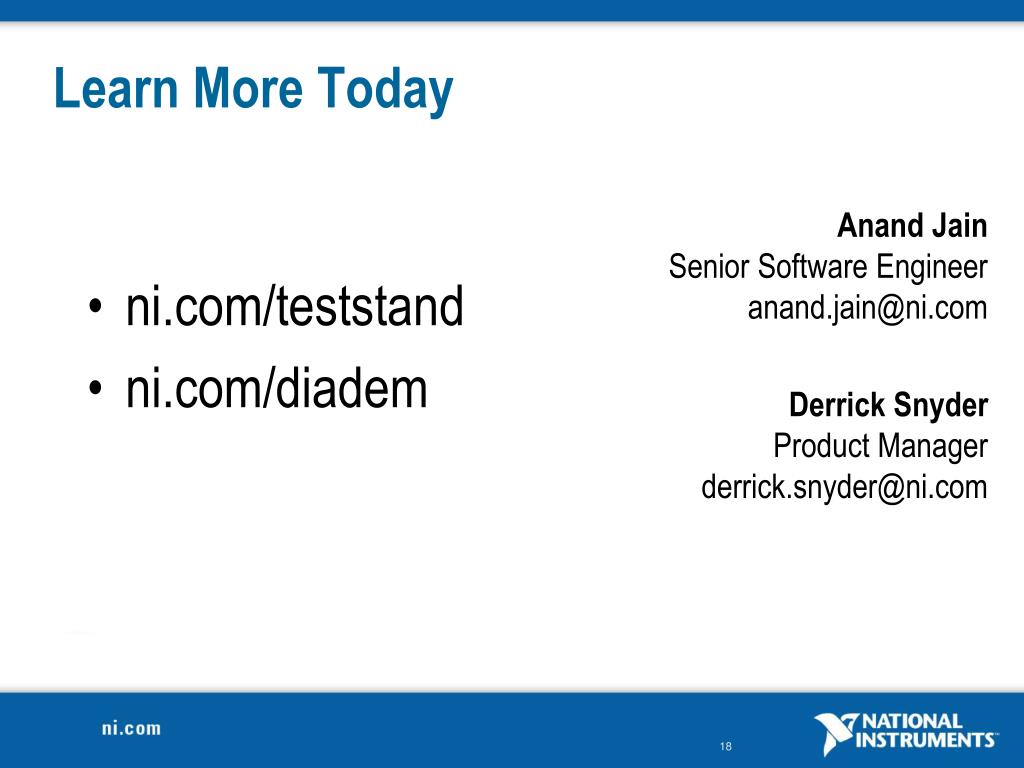

Learn More Today

Anand Jain

Senior Software Engineer

[email protected]

  • ni.com/teststand

  • ni.com/diadem

Derrick Snyder

Product Manager

[email protected]
