  1. Chapter 2System 800xA Architecture Course T314

  2. System Architecture Overview • Objectives After this chapter you should be able to: • Tell how 800xA fits into the IIT strategy • Describe the network structure in an 800xA architecture • Describe the functionality of the major components • Explain the concept of Aspects and Objects • Explain the Client/Server principles • Reference Documentation • 3BSE038018 IndustrialIT 800xA – System System Guide – Functional Description • 3BSE041434 IndustrialIT 800xA – System System Guide – Technical Data and Configuration • 3BSE034463 IndustrialIT 800xA – System Automation System Network – Design and Configuration • 3BSE036903 IndustrialIT 800xA – System Basic Operation

  3. System Architecture System 800xA Architecture • System Overview • Aspect Object Concept • Architecture with AC 800M • Client / Server Principle • Configuration Wizard

  4. System Overview IndustrialITExtended Automation System 800xA Offers more than a traditional Distributed Control System. It gives you a single application to organize and access plant information.

  5. System Overview Options grouped in Functional Areas Base System and a set of options, grouped in Functional Areas

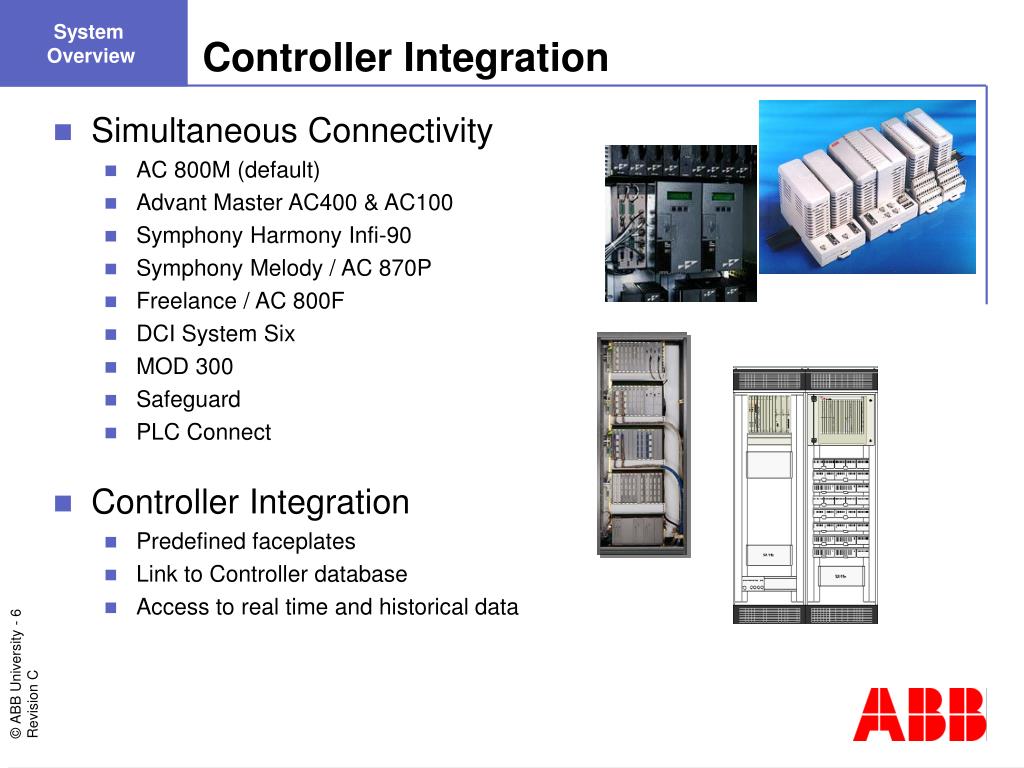

  6. System Overview Controller Integration • Simultaneous Connectivity • AC 800M (default) • Advant Master AC400 & AC100 • Symphony Harmony Infi-90 • Symphony Melody / AC 870P • Freelance / AC 800F • DCI System Six • MOD 300 • Safeguard • PLC Connect • Controller Integration • Predefined faceplates • Link to Controller database • Access to real time and historical data

  7. Windows 2003 / XP Internet Explorer Visual Basic ActiveX Controls OPC - OLE for Process Control Microsoft Component Object Model (COM) PROFIBUS Fieldbus Foundation System Overview Use of Standards

  8. System Architecture System 800xA Architecture • System Overview • Aspect Object Concept • Architecture with AC 800M • Client / Server Principle • Configuration Wizard

  9. Aspect ObjectsConcept RealObject Aspects and Objects Aspects Aspect Systems Applications Control Builder M Control ModelObject Faceplate ProcessPortal Graphics MS Excel Report Auto CAD Drawings

  10. Aspect ObjectsConcept Control Logic Maintenance Record P & I Diagram Process Graphics Product Description Control Dialog Operator Notes Simulation Model Example of a Control Valve

  11. Aspect ObjectsConcept Intuitive Navigation Right click on the object in the Graphic Right click on the object in the Alarm List Available Aspects

  12. Aspect ObjectsConcept Information Management Asset Optimization Field Device Integration Advant Harmony Melody Aspect Framework (afw) • One common platform for all software products • Many Aspect Systems to enter and view data • Connectivity to several Controllers Batch Management Other Aspect Systems Aspect Framework / System 800xA Platform AC800M Other OPC

  13. System Architecture System 800xA Architecture • System Overview • Aspect Object Concept • Architecture with AC 800M • Client / Server Principle • Configuration Wizard

  14. Architecturewith AC 800M System Topology Domain Server(s) Application Server(s) Workplaces Client/Server Network Aspect Server(s) Connectivity Server(s) • Single • 1oo2 • 2oo3 • Single • 1oo2 Control Network Controllers Fieldbus Field devices

  15. Architecturewith AC 800M Single Node System Aspect ServerConnectivity ServerWorkplace (Client) Automation Network Controllers Fieldbus Field devices

  16. Architecturewith AC 800M AC 800M Redundancy Connectivity Server(s) Control Network Upper CPU Lower CPU CEX-Bus CEX-Bus ProfiBus DP RCU Link ProfiBus DP-V1 ModuleBusOptic Cable Redundant ModuleBusSolution Redundant I/O Module

  17. Architecturewith AC 800M Remote (Thin) Client Thin Clients Internet Firewall Thin Clients Plant Network Router Firewall Citrix Server(s) Application Server(s) Workplaces Client/Server Network Aspect Server(s) Connectivity Server(s) Control Network Controllers Fieldbus Field devices

  18. System Architecture System 800xA Architecture • System Overview • Aspect Object Concept • Architecture with AC 800M • Client / Server Principle • Configuration Wizard

  19. Client/ServerPrinciple Aspect Directory • Aspect Systems interact through the Aspect Framework • The Aspect Directory keeps track of • Aspect Systems and their capabilities • Aspect Objects and what Aspects they have ClientApplication 1 2 3 4 5 ProcessGraphics AspectFramework Control Reports etc. Aspect Directory Aspect Systems

  20. Client/ServerPrinciple Aspect System Aspect Directory Graphic Display Example: Graphic Display Client OperatorWorkplace(s) Real-time data Configuration data Client/ServerNetwork Connectivity Server(s) Aspect Server(s) Control Network

  21. Client/ServerPrinciple System A System B System C System D Multi-System Integration • Multi-System integration makes it possible to view and operate objects configured in one 800xA System from another 800xA System. Central Control Room Subscriber Local Control Rooms 1…10 Provider Provider Provider Note: Only AC 800M controllers are supported in Provider System(s) with SV5.0 SP1

  22. System Architecture System 800xA Architecture • System Overview • Aspect Object Concept • Architecture with AC 800M • Client / Server Principle • Configuration Wizard

  23. ConfigurationWizard Connect / Disconnect Clients
