Geometry Spheres

Geometry Spheres . Warm Up. Describe the effect on the volume that results from the given change. The side length of a cube are multiplied by ¾. The height and the base area of a prism are multiplied by 5. 1) the volume is decreased by 27/64 times. 2) the volume is increased by 25 times.

gina
Download Presentation

Geometry Spheres

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. GeometrySpheres CONFIDENTIAL

  2. Warm Up • Describe the effect on the volume that results from the given change. • The side length of a cube are multiplied by ¾. • The height and the base area of a prism are multiplied by 5. 1) the volume is decreased by 27/64 times. 2) the volume is increased by 25 times. CONFIDENTIAL

  3. Spheres A sphere is the locus of points in space that are a fixed distance from a given point called the center of a sphere. A radius of a sphere connects the center of the sphere to any point on the sphere to any point on the sphere. A hemisphere is half of a sphere. A great circle divides a sphere into two hemispheres. Great circle Hemisphere Radius Center Next Page: CONFIDENTIAL

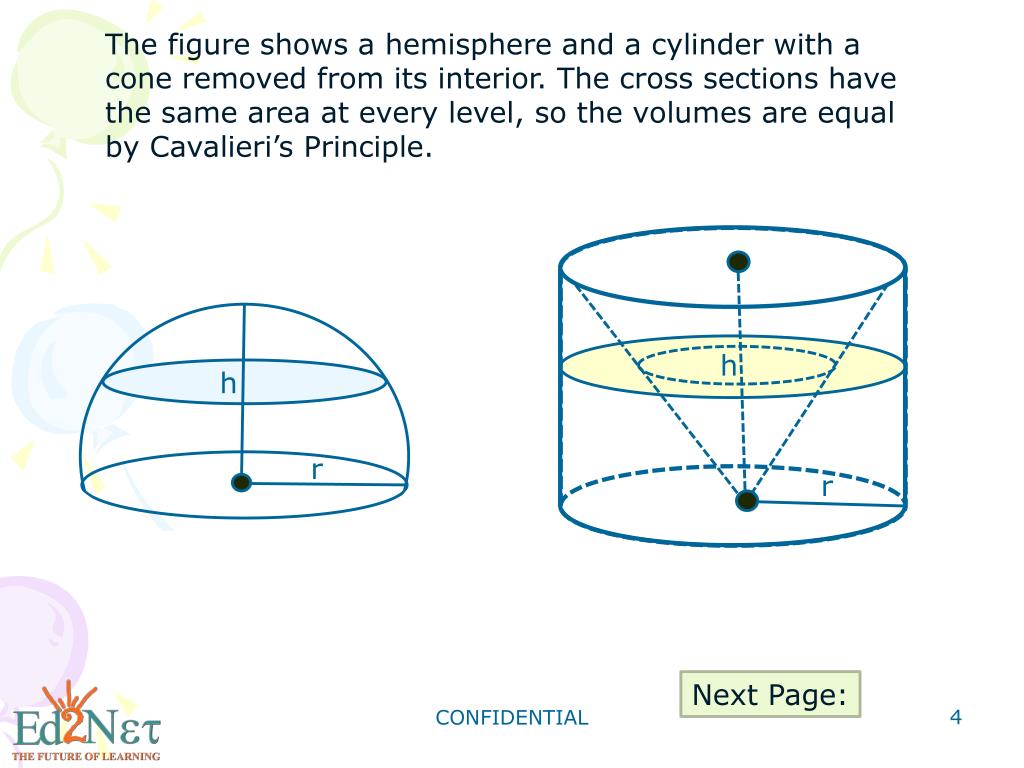

  4. The figure shows a hemisphere and a cylinder with a cone removed from its interior. The cross sections have the same area at every level, so the volumes are equal by Cavalieri’s Principle. h h r r Next Page: CONFIDENTIAL

  5. h h r r CONFIDENTIAL

  6. Volume of a Sphere r CONFIDENTIAL

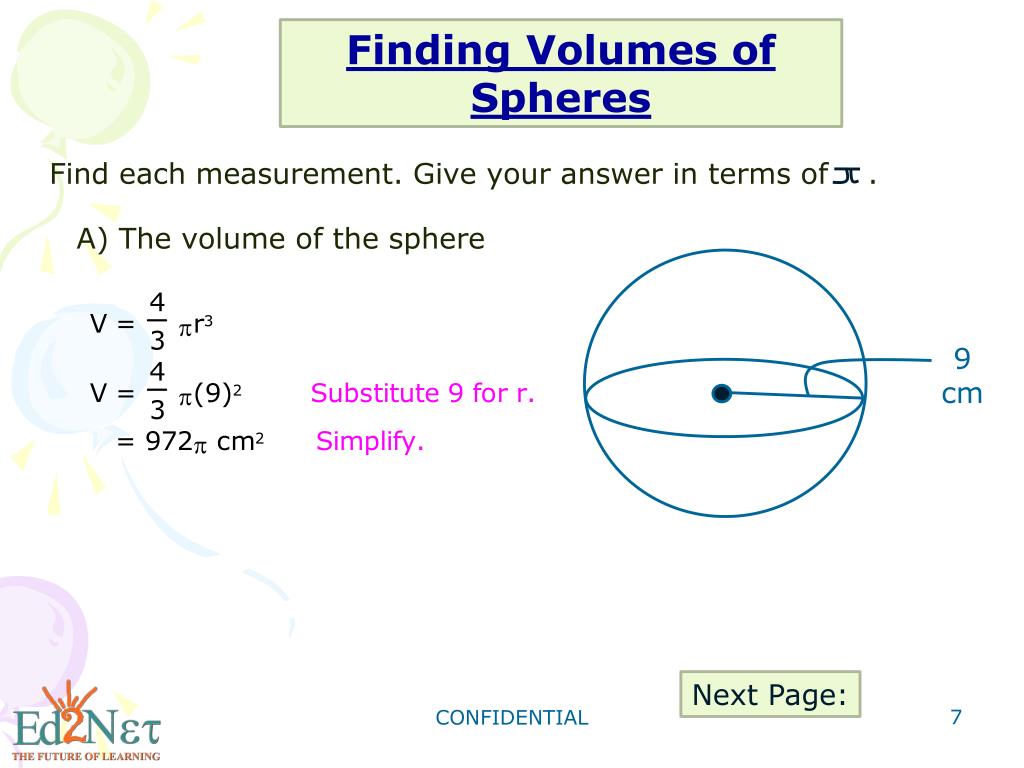

  7. Finding Volumes of Spheres Find each measurement. Give your answer in terms of . A) The volume of the sphere 9 cm Next Page: CONFIDENTIAL

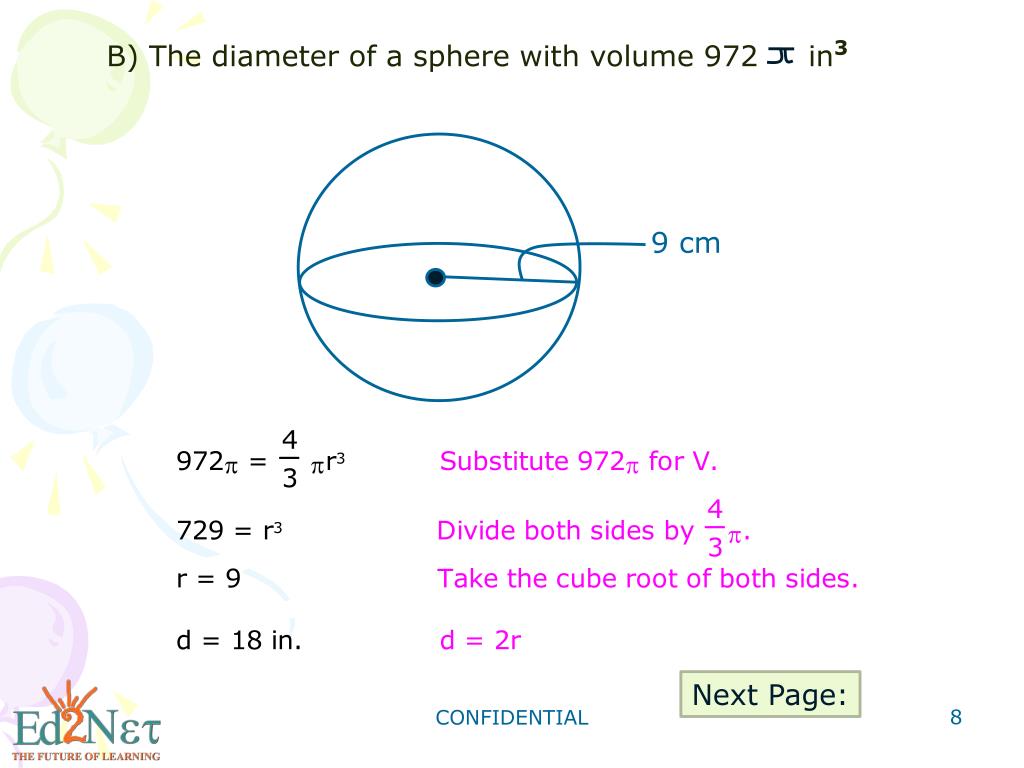

  8. 3 B) The diameter of a sphere with volume 972 in 9 cm Next Page: CONFIDENTIAL

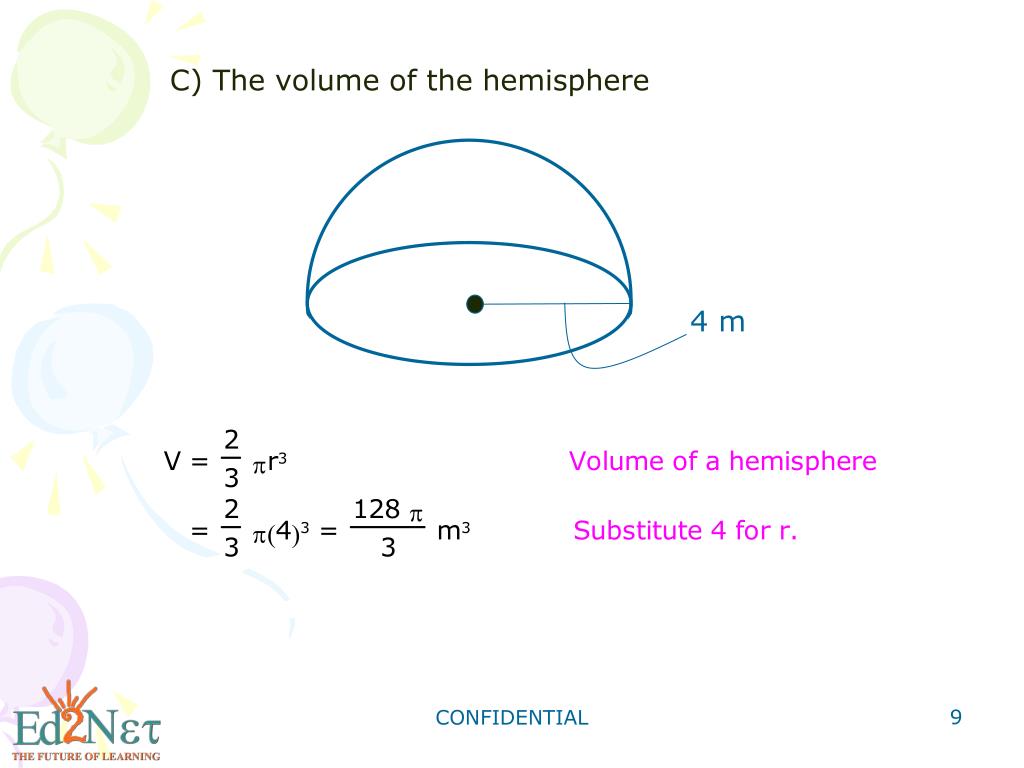

  9. C) The volume of the hemisphere 4 m CONFIDENTIAL

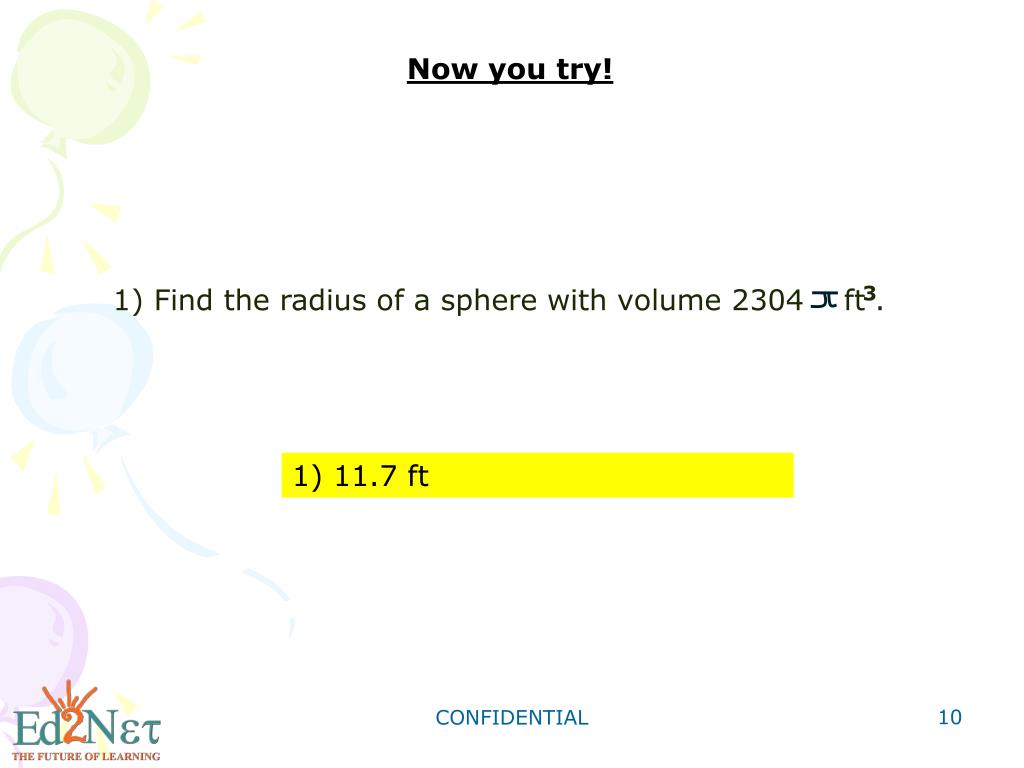

  10. 3 1) Find the radius of a sphere with volume 2304 ft . Now you try! 1) 11.7 ft CONFIDENTIAL

  11. Biology Application Giant squid need large eyes to see their prey in low light. The eyeball of a giant squid is approximate a sphere with a diameter of 25 cm, which is bigger than a soccer ball. A human eyeball is approximate a sphere with a diameter of 2.5 cm. How many times as great is the volume of a giant squid eyeball as the volume of a human eyeball? A giant squid eyeball is about 1000 times as great in volume as a human eyeball. CONFIDENTIAL

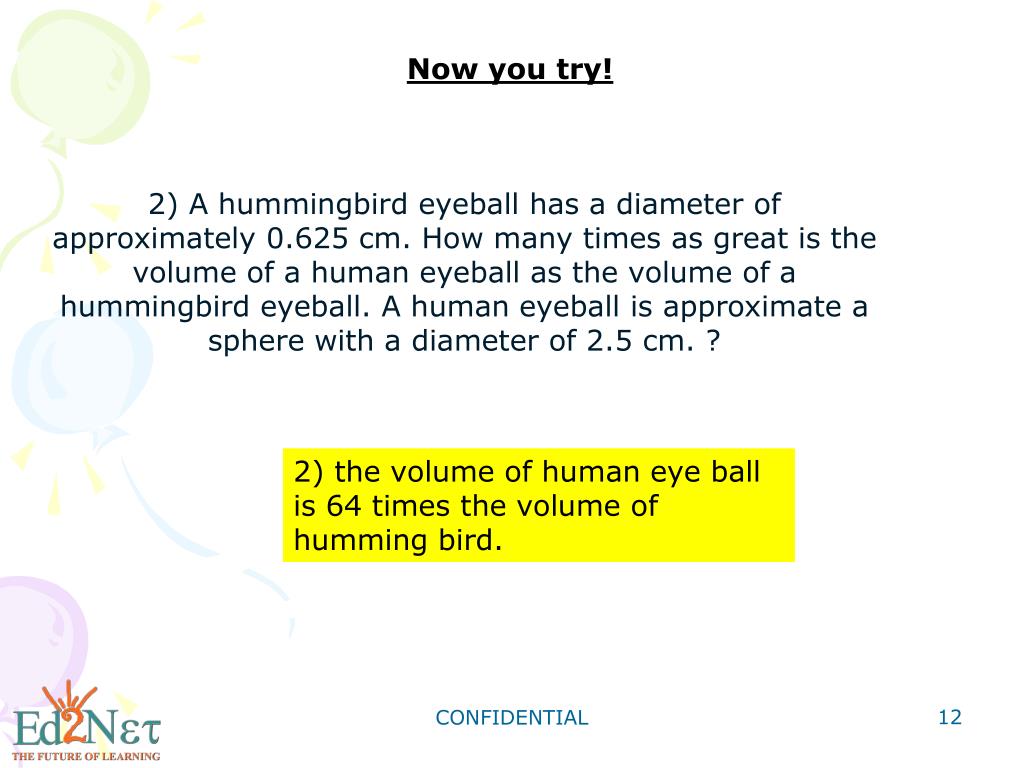

  12. Now you try! 2) A hummingbird eyeball has a diameter of approximately 0.625 cm. How many times as great is the volume of a human eyeball as the volume of a hummingbird eyeball. A human eyeball is approximate a sphere with a diameter of 2.5 cm. ? 2) the volume of human eye ball is 64 times the volume of humming bird. CONFIDENTIAL

  13. In the figure, the vertex of the pyramid is at the center of the sphere. The height of the pyramid is approximate the radius r of the sphere. Suppose the entire sphere is filled with n pyramids that each have base area B and height r. Next Page: CONFIDENTIAL

  14. Next Page: CONFIDENTIAL

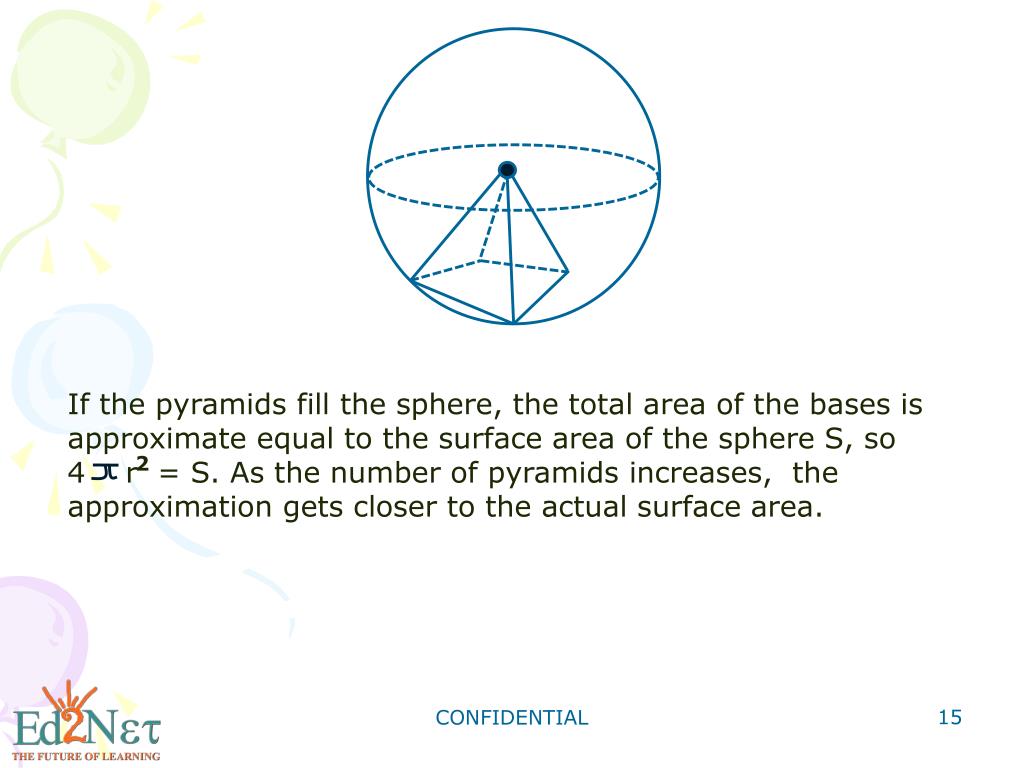

  15. If the pyramids fill the sphere, the total area of the bases is approximate equal to the surface area of the sphere S, so 4 r = S. As the number of pyramids increases, the approximation gets closer to the actual surface area. 2 CONFIDENTIAL

  16. Surface Area of a Sphere 2 The surface area of a sphere with radius r is S = 4 r . r CONFIDENTIAL

  17. Finding Surface Area of Spheres Find each measurement. Give your answers in terms of . Next Page: CONFIDENTIAL

  18. CONFIDENTIAL

  19. Now you try! 3) Find the surface area of the sphere. 50 cm 3) 2500∏ cm2 CONFIDENTIAL

  20. Exploring Effects of Changing Dimensions The radius of the sphere is tripled. Describe the effect on the volume. 3 m CONFIDENTIAL

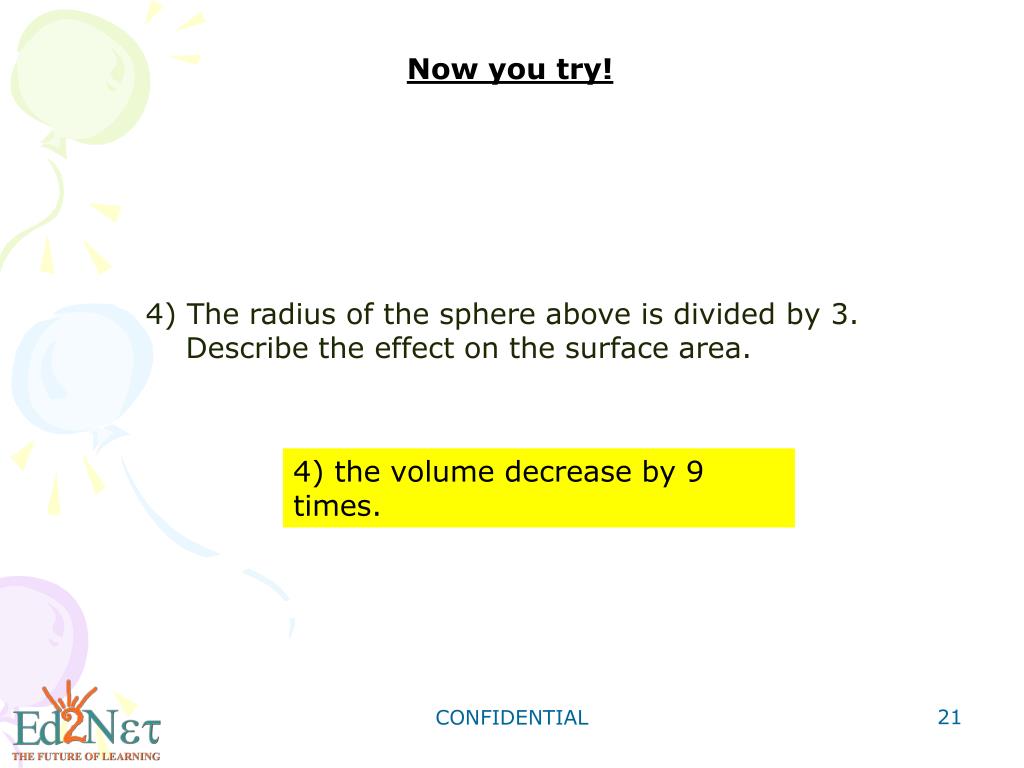

  21. Now you try! 4) The radius of the sphere above is divided by 3. Describe the effect on the surface area. 4) the volume decrease by 9 times. CONFIDENTIAL

  22. Finding Surface Areas and Volumes of Composite Figures Find the surface area and volume of the composite figure. Give your answers in terms of . Step 1 Find the surface area of the composite figure. The surface area of the composite figure is the sum of the surface area of the hemisphere and the lateral area of the cone. 7 cm 25 cm Next Page: CONFIDENTIAL

  23. Step 2 Find the volume of the composite figure. First find the height of the cone. The volume of the composite figure is the sum of the volume of the hemisphere and the volume of the cone. 7 cm 25 cm CONFIDENTIAL

  24. Now you try! 5) Find the surface area and volume of the composite figure. 3 ft 5 ft 5) 57∏ ft2 CONFIDENTIAL

  25. Now some problems for you to practice ! CONFIDENTIAL

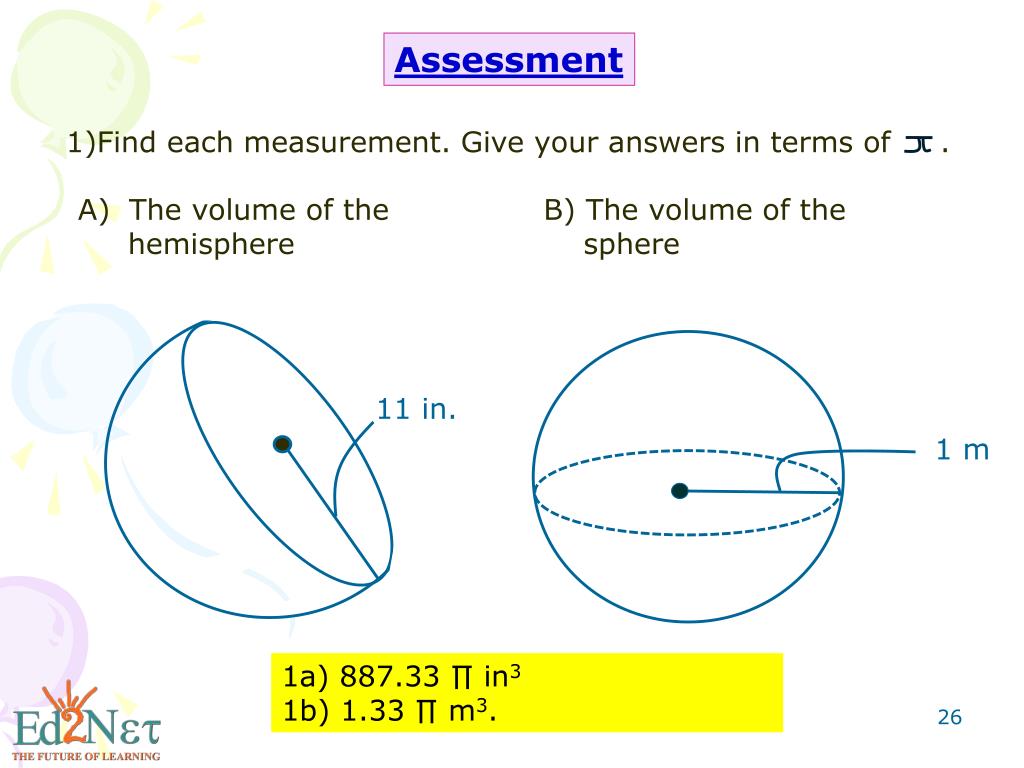

  26. Assessment 1)Find each measurement. Give your answers in terms of . • The volume of the • hemisphere B) The volume of the sphere 1 m 11 in. 1a) 887.33 ∏ in3 1b) 1.33 ∏ m3. CONFIDENTIAL

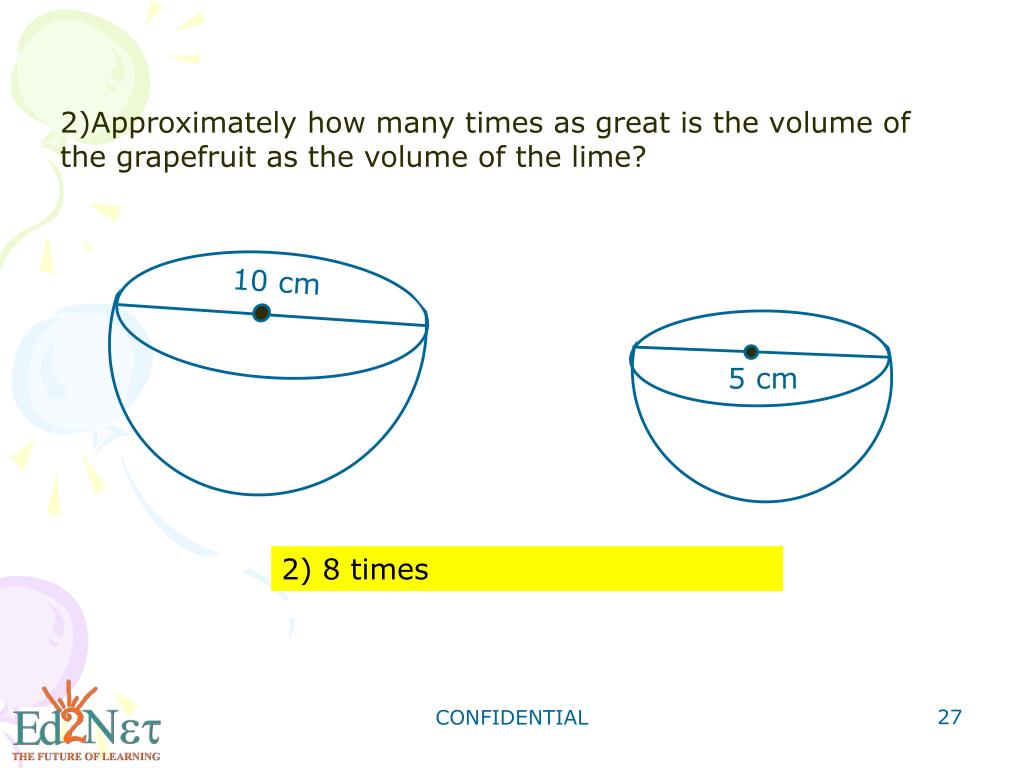

  27. 2)Approximately how many times as great is the volume of the grapefruit as the volume of the lime? 5 cm 10 cm 2) 8 times CONFIDENTIAL

  28. 3)Find each measurement. Give your answers in terms of . • The surface area of • the sphere B) The surface area of the sphere 16 yd 3a) 256∏ yd2 3b) 196∏ cm2. CONFIDENTIAL

  29. 4) Describe the effect of each change on the given measurement of the figure. • Surface area • The dimensions are doubled. B) Volume The dimensions are multiplied by ¼. 15 in. 16 cm 4a) Increases by 4 times 4b) Decreases by 64 times. CONFIDENTIAL

  30. 5) Find the surface area and volume of the composite figure. 5 ft 2 ft 5a) SA = 36∏ ft3 V = 30.67∏ ft3 CONFIDENTIAL

  31. Let’s review CONFIDENTIAL

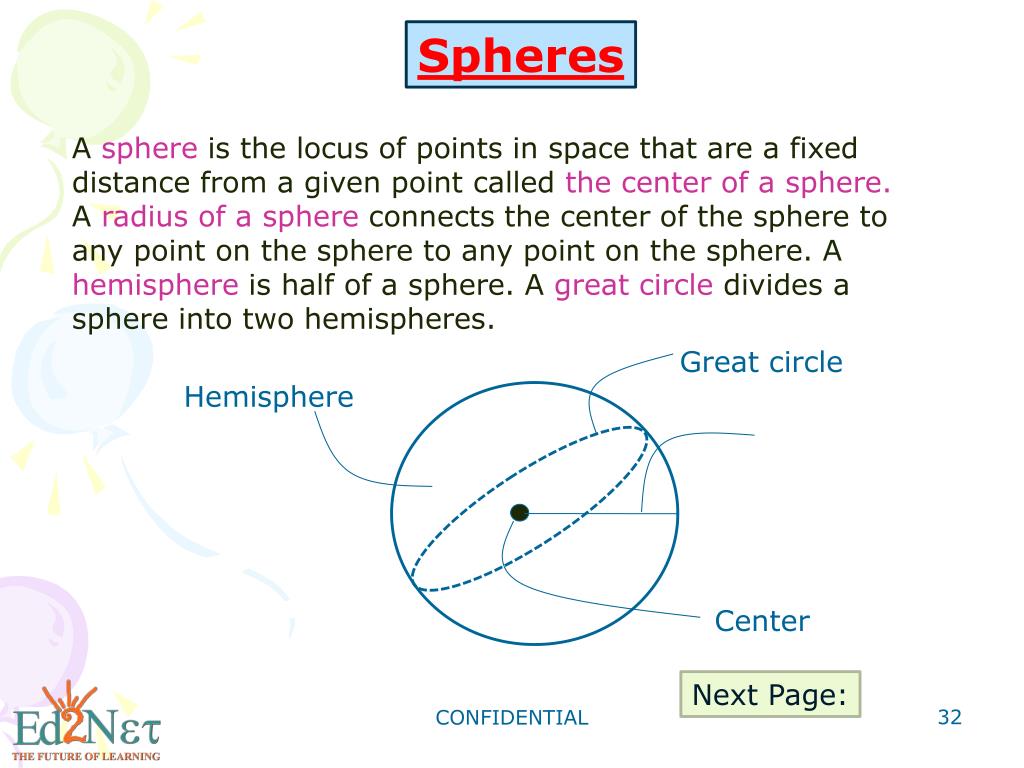

  32. Spheres A sphere is the locus of points in space that are a fixed distance from a given point called the center of a sphere. A radius of a sphere connects the center of the sphere to any point on the sphere to any point on the sphere. A hemisphere is half of a sphere. A great circle divides a sphere into two hemispheres. Great circle Hemisphere Center Next Page: CONFIDENTIAL

  33. The figure shows a hemisphere and a cylinder with a cone removed from its interior. The cross sections have the same area at every level, so the volumes are equal by Cavalieri’s Principle. h h r r Next Page: CONFIDENTIAL

  34. h h r r CONFIDENTIAL

  35. Volume of a Sphere r CONFIDENTIAL

  36. Finding Volumes of Spheres Find each measurement. Give your answer in terms of . A) The volume of the sphere 9 cm Next Page: CONFIDENTIAL

  37. 3 B) The diameter of a sphere with volume 972 in 9 cm Next Page: CONFIDENTIAL

  38. C) The volume of the hemisphere 4 m CONFIDENTIAL

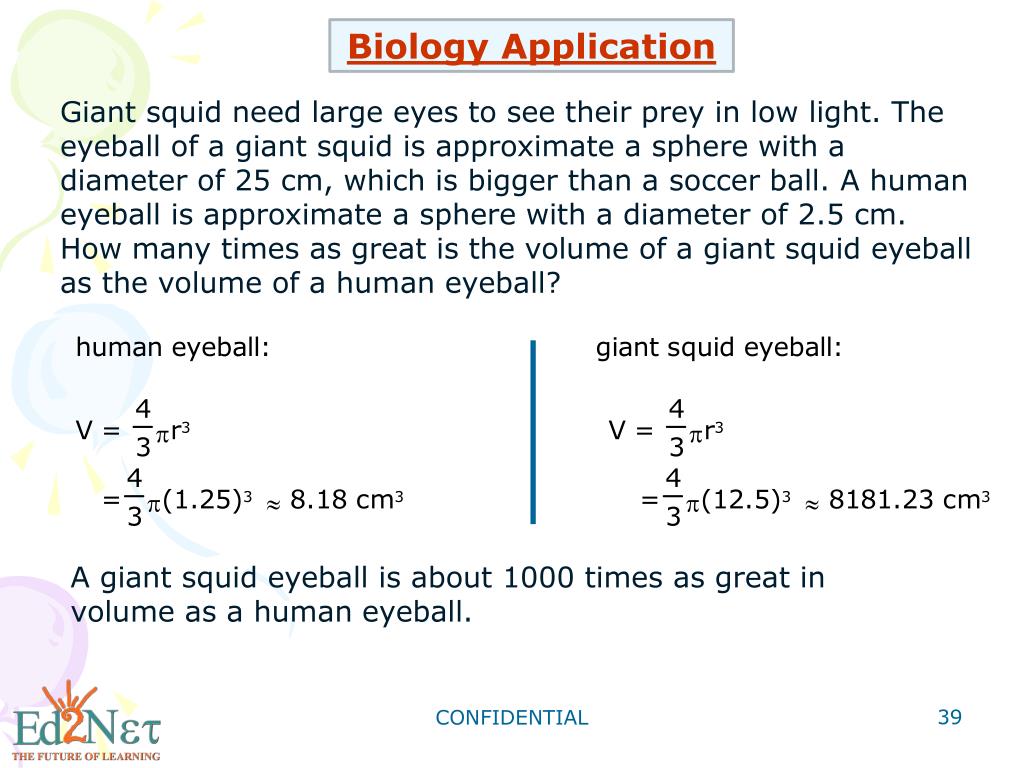

  39. Biology Application Giant squid need large eyes to see their prey in low light. The eyeball of a giant squid is approximate a sphere with a diameter of 25 cm, which is bigger than a soccer ball. A human eyeball is approximate a sphere with a diameter of 2.5 cm. How many times as great is the volume of a giant squid eyeball as the volume of a human eyeball? A giant squid eyeball is about 1000 times as great in volume as a human eyeball. CONFIDENTIAL

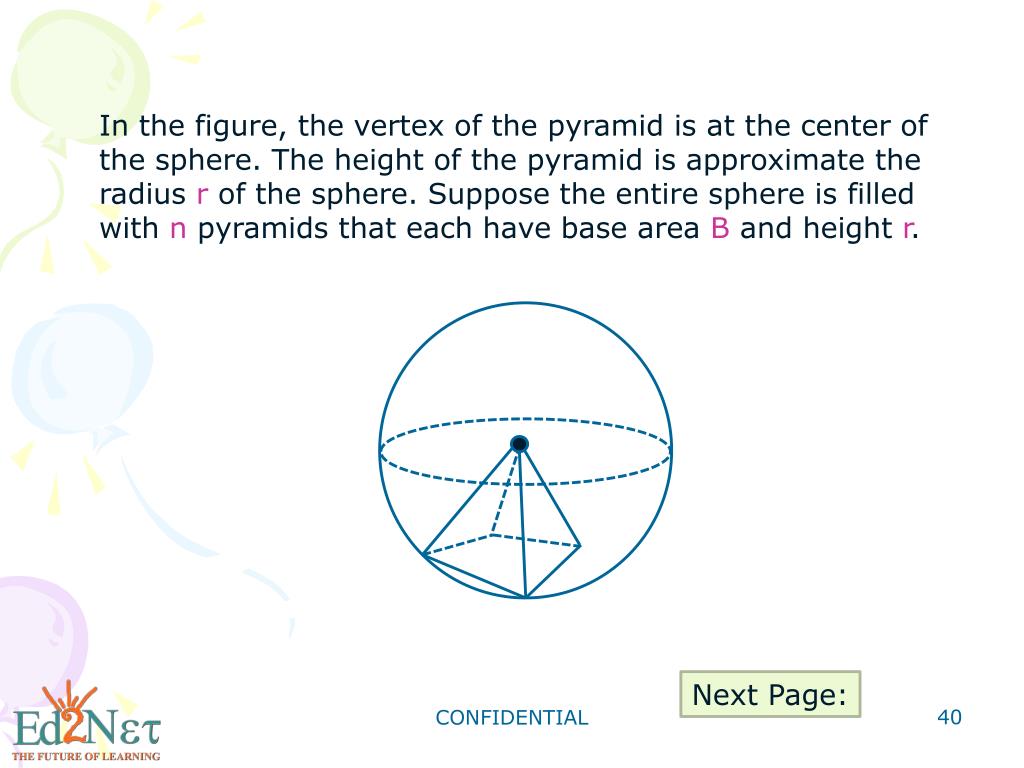

  40. In the figure, the vertex of the pyramid is at the center of the sphere. The height of the pyramid is approximate the radius r of the sphere. Suppose the entire sphere is filled with n pyramids that each have base area B and height r. Next Page: CONFIDENTIAL

  41. Next Page: CONFIDENTIAL

  42. If the pyramids fill the sphere, the total area of the bases is approximate equal to the surface area of the sphere S, so 4 r = S. As the number of pyramids increases, the approximation gets closer to the actual surface area. 2 CONFIDENTIAL

  43. Surface Area of a Sphere 2 The surface area of a sphere with radius r is S = 4 r . r CONFIDENTIAL

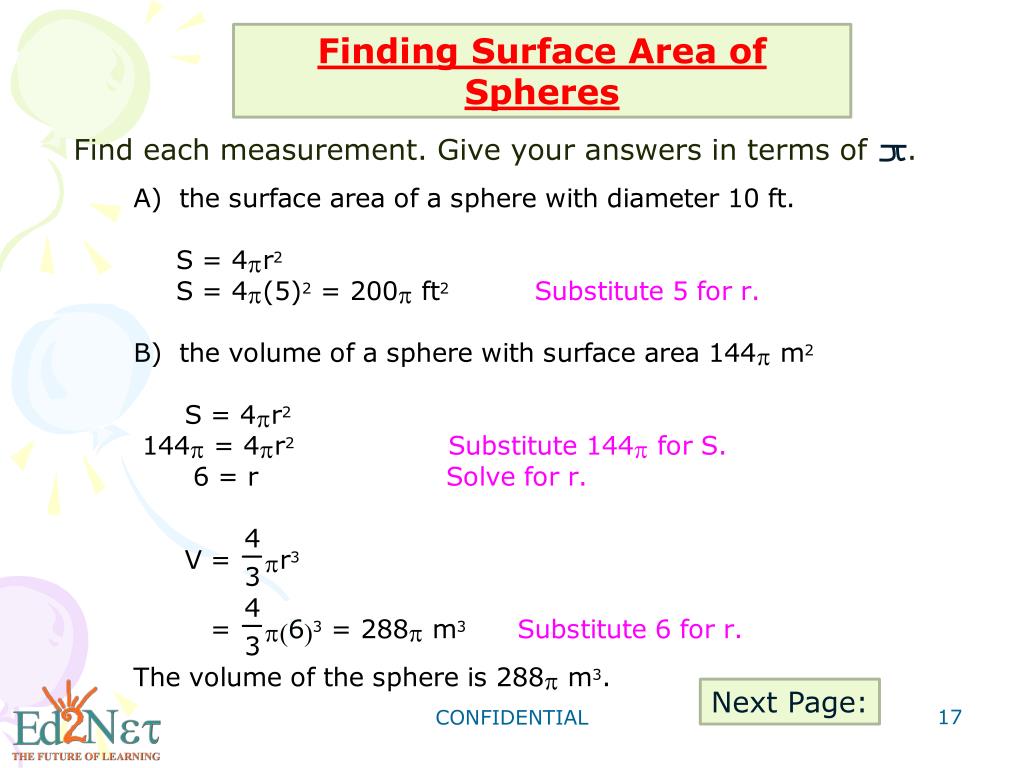

  44. Finding Surface Area of Spheres Find each measurement. Give your answers in terms of . Next Page: CONFIDENTIAL

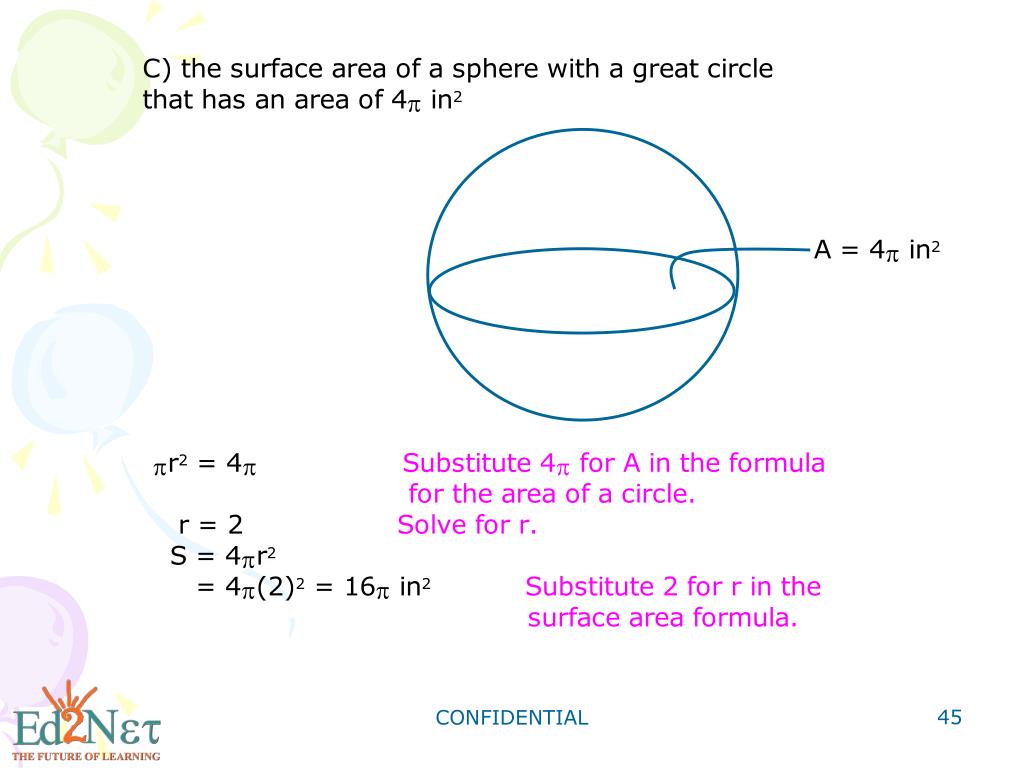

  45. CONFIDENTIAL

  46. Exploring Effects of Changing Dimensions The radius of the sphere is tripled. Describe the effect on the volume. 3 m CONFIDENTIAL

  47. Finding Surface Areas and Volumes of Composite Figures Find the surface area and volume of the composite figure. Give your answers in terms of . Step 1 Find the surface area of the composite figure. The surface area of the composite figure is the sum of the surface area of the hemisphere and the lateral area of the cone. 7 cm 25 cm Next Page: CONFIDENTIAL

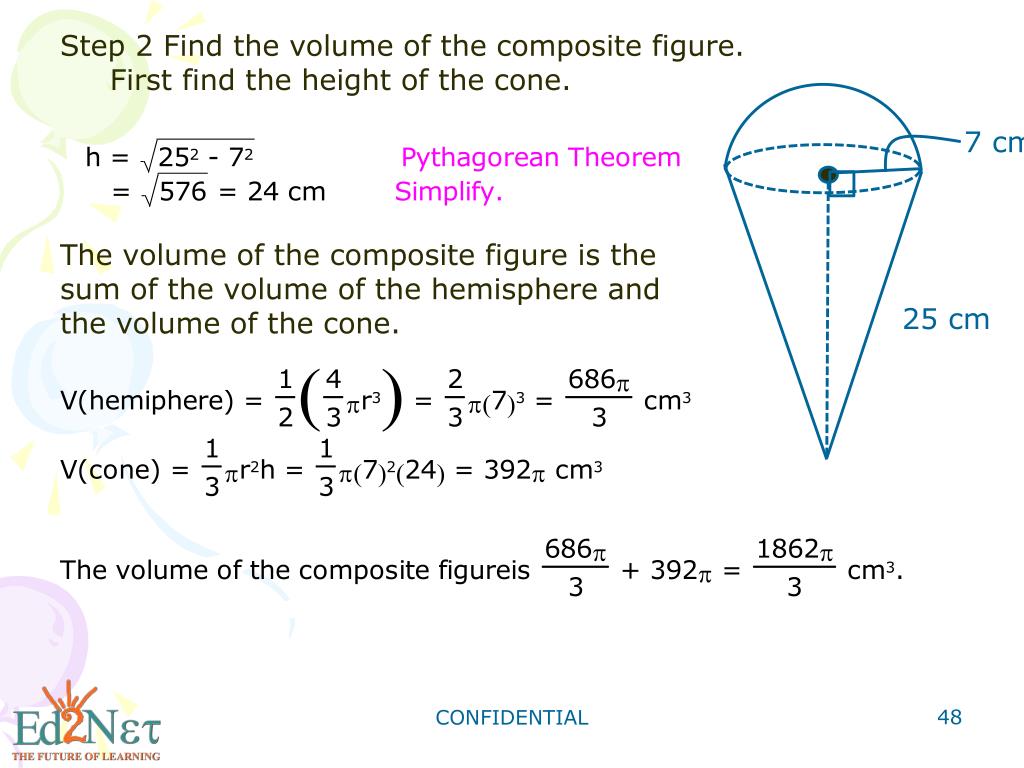

  48. Step 2 Find the volume of the composite figure. First find the height of the cone. The volume of the composite figure is the sum of the volume of the hemisphere and the volume of the cone. 7 cm 25 cm CONFIDENTIAL

  49. You did a great job today! CONFIDENTIAL
