1 / 4

Straight

Straight. 1. Wit/oranje Tx+ 2. Oranje Tx- 3. wit/groen Rx+ 4. Blauw - 5. wit/blauw - 6. Groen Rx- 7. wit/bruin - 8. bruin -.

gilles
Download Presentation

Straight

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Straight 1. Wit/oranje Tx+2. Oranje Tx-3. wit/groen Rx+ 4. Blauw - 5. wit/blauw -6. Groen Rx- 7. wit/bruin -8. bruin - 1. Wit/oranje Tx+2. Oranje Tx-3. wit/groen Rx+4. blauw - 5. wit/blauw -6. groen Rx-7. wit/bruin -8. bruin - * Tx – Transmitter Rx – Receiver

  2. Cross-over 1 Wit/Oranje Tx + 2 Oranje Tx - 3 Wit/Groen Rx + 4 Blauw 5 Wit/Blauw 6 Groen Rx - 7 Wit/Bruin 8 Bruin 1 Wit/Groen Tx + 2 Groen Tx - 3 Wit/Oranje Rx+ 4 Blauw 5 Wit/Blauw 6 Oranje Rx - 7 Wit/Bruin 8 Bruin * Tx – Transmitter Rx – Receiver

  3. WCD Pc 1. Wit/oranje Tx+ 2. Oranje Tx-3. wit/groen Rx+4. - 5. -6. groen Rx-7. -8. - 1. Wit/oranje – 2. Oranje -3. wit/groen -4. Groen - 5. wit/blauw -6. Blauw -7. wit/bruin -8. bruin - Pc 1. Wit/blauw Tx+ 2. Blauw Tx-3. wit/bruin Rx+4. - 5. -6. Bruin Rx-7. -8. - * Tx – Transmitter Rx – Receiver

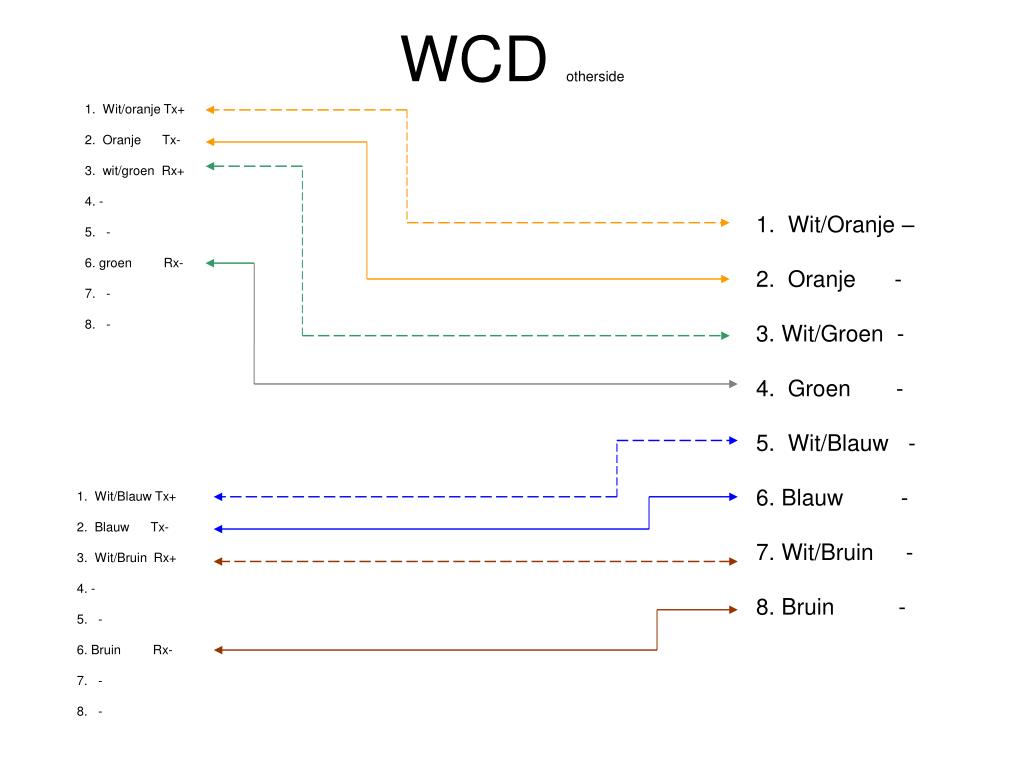

  4. WCD otherside 1. Wit/oranje Tx+ 2. Oranje Tx-3. wit/groen Rx+4. - 5. -6. groen Rx-7. -8. - 1. Wit/Oranje – 2. Oranje -3. Wit/Groen -4. Groen - 5. Wit/Blauw -6. Blauw -7. Wit/Bruin -8. Bruin - 1. Wit/Blauw Tx+ 2. Blauw Tx-3. Wit/Bruin Rx+4. - 5. -6. Bruin Rx-7. -8. -
