Cell Structure and Function

Cell Structure and Function. Chapter 7 Biology. Cell. Cells are the basic unit of structure and functional unit of living things. English scientist named Robert Hooke made a simple microscope. He observed small, box-shaped structures, called cellulae (meaning small room). Cell Theory.

gili
Download Presentation

Cell Structure and Function

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

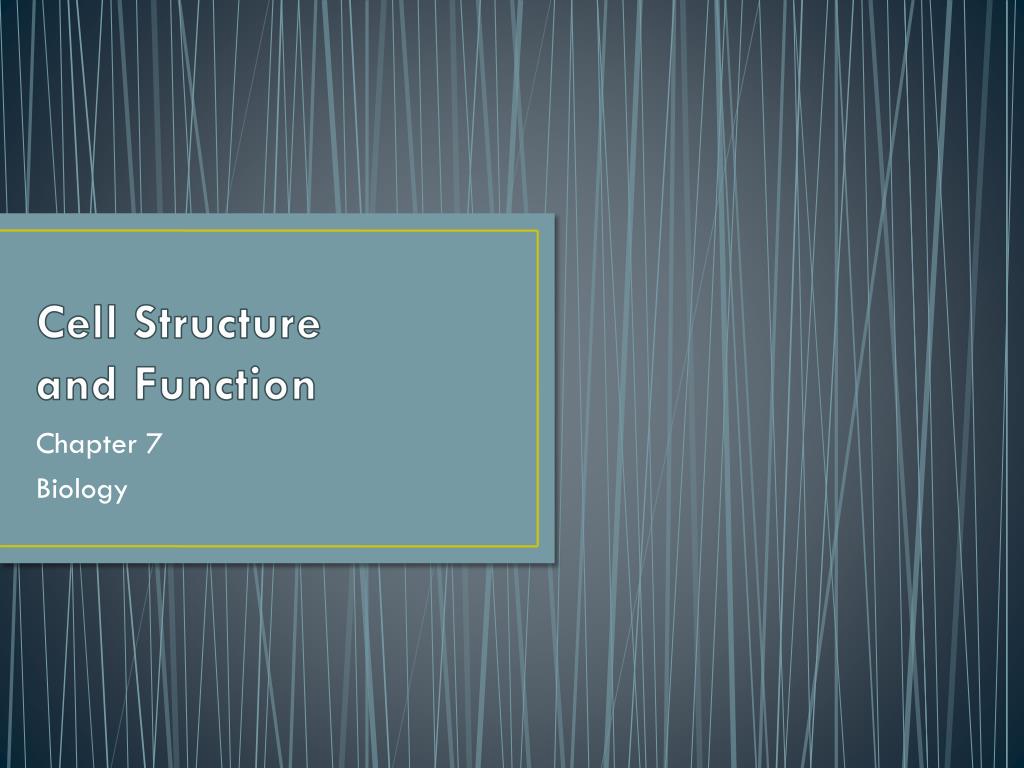

  1. Cell Structure and Function Chapter 7 Biology

  2. Cell • Cells are the basic unit of structure and functional unit of living things. • English scientist named Robert Hooke made a simple microscope. He observed small, box-shaped structures, called cellulae (meaning small room)

  3. Cell Theory • All living things are made of one or more cells. • Cells are the basic unit of structure and function in the organization of living things. • All cells come from pre-existing cells.

  4. Eukaryotic vs. Prokaryotic Cells • Eukaryotic cells contain DNA in the nucleus. Prokaryotic cells contain DNA in a concentrated region called the nucleoid.

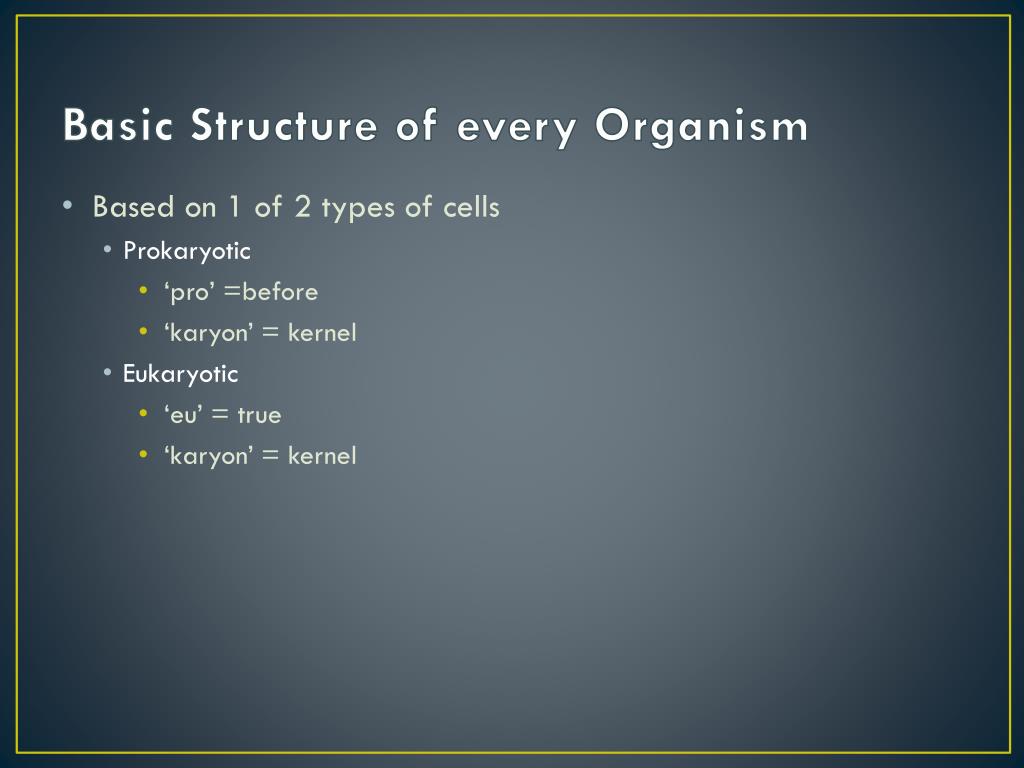

  5. Basic Structure of every Organism • Based on 1 of 2 types of cells • Prokaryotic • ‘pro’ =before • ‘karyon’ = kernel • Eukaryotic • ‘eu’ = true • ‘karyon’ = kernel

  6. Basic Structure of every Organism • Based on 1 of 2 types of cells • Prokaryotic • Only exist in domains of Bacteria or Archaea • Eukaryotic • Protists, fungi, animals, and plants

  7. Eukaryotic Cell (plant)

  8. Eukaryotic Cell (animal)

  9. Prokaryotic Cell (Bacteria)

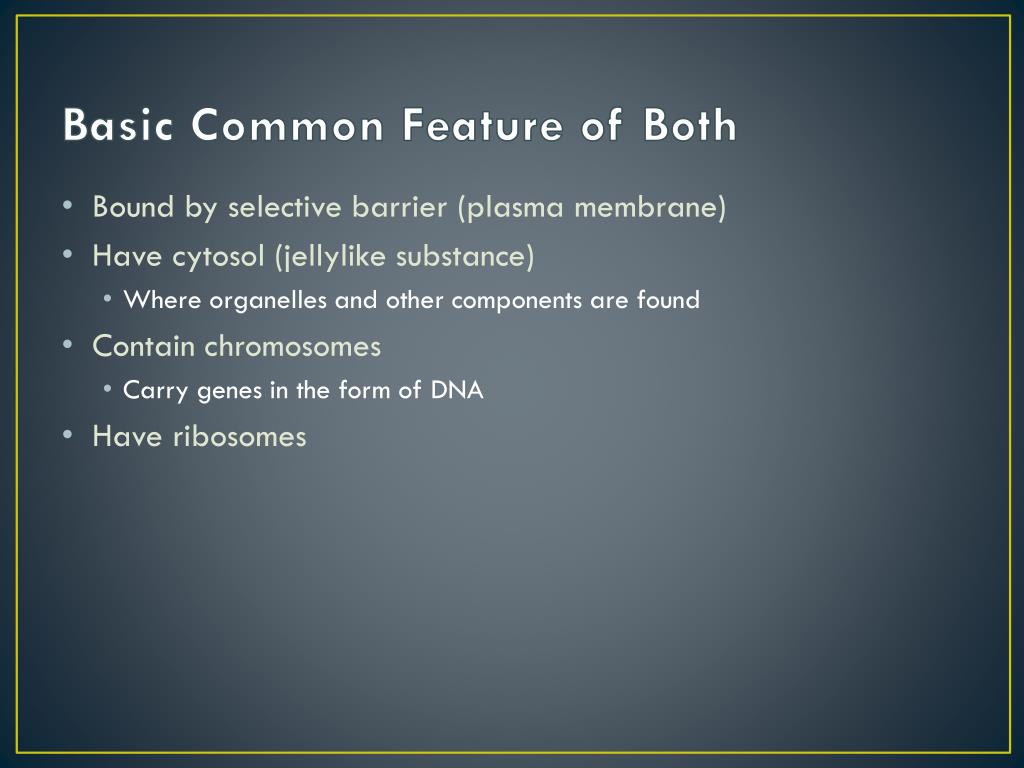

  10. Basic Common Feature of Both • Bound by selective barrier (plasma membrane) • Have cytosol (jellylike substance) • Where organelles and other components are found • Contain chromosomes • Carry genes in the form of DNA • Have ribosomes

  11. Different Features of Both • Location of DNA • Eukaryotes • Most DNA is in nucleus • Nucleus is bound by double membrane • “true kernel” • Prokaryotes • DNA is concentrated in region not membrane-enclosed • Nucleoid

  12. Different Features of Both • Cytoplasm • Eukaryotes • Region between the nucleus and plasma membrane • Contains a variety of organelles of specialized form and function • Prokaryotes • Interior of prokaryotic cell

  13. Different Features of Both • Organelles • Eukaryotes • Membrane- bound organelles are Present • Specialized form and function • Prokaryotes • Absence of organelles

  14. Different Features of Both • Size • Eukaryotes • Generally Larger than prokaryotes • Size relates to function • 10 – 100um in diameter • Metabolic requirements limit size practicality of cells • Prokaryotes • Smallest cells known • 1 – 5 um in diameter

  15. Plasma Membrane • Acts as a selective barrier • Allows sufficient passage of oxygen, nutrients, and wastes to service entire cell

  16. The Plasma Membrane • Plasma Membrane- a selective barrier (semipermeable) that allows passage of enough oxygen, nutrients, and wastes to and from the cell. • The plasma membrane is a lipid bilayer embedded with diverse proteins.

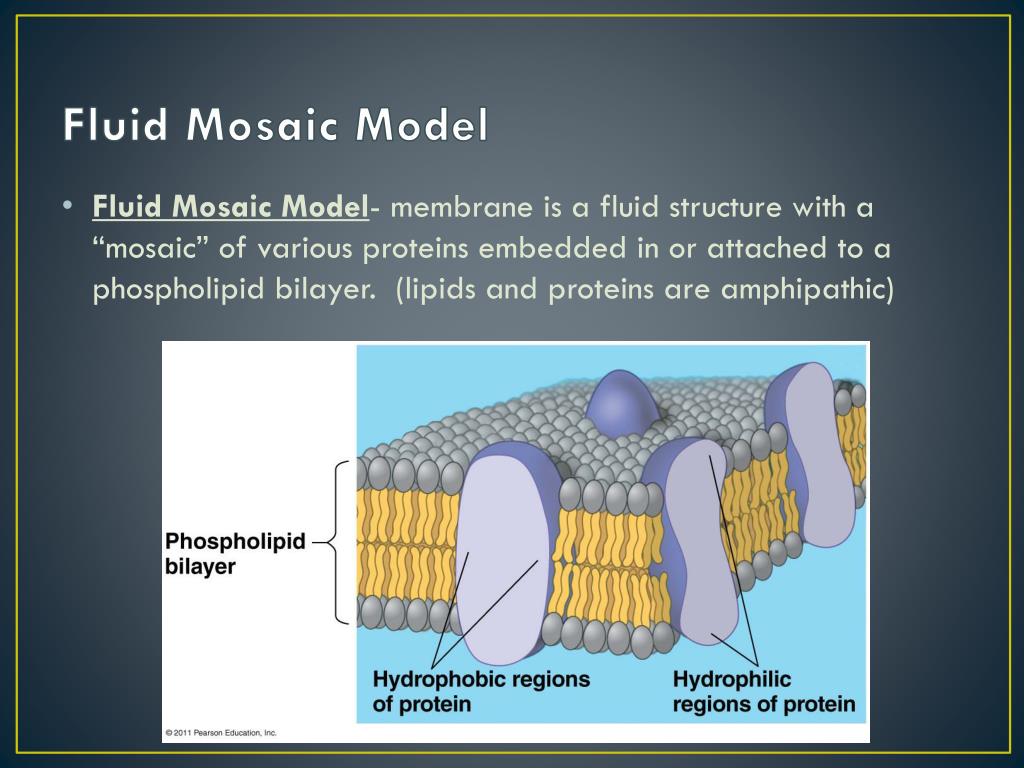

  17. Fluid Mosaic Model • Fluid Mosaic Model- membrane is a fluid structure with a “mosaic” of various proteins embedded in or attached to a phospholipid bilayer. (lipids and proteins are amphipathic)

  18. Nucleus: Information Central • Nucleus- contains cellular DNA which includes most of the genes in the cell. The nucleus is surrounded by the nuclear envelope.

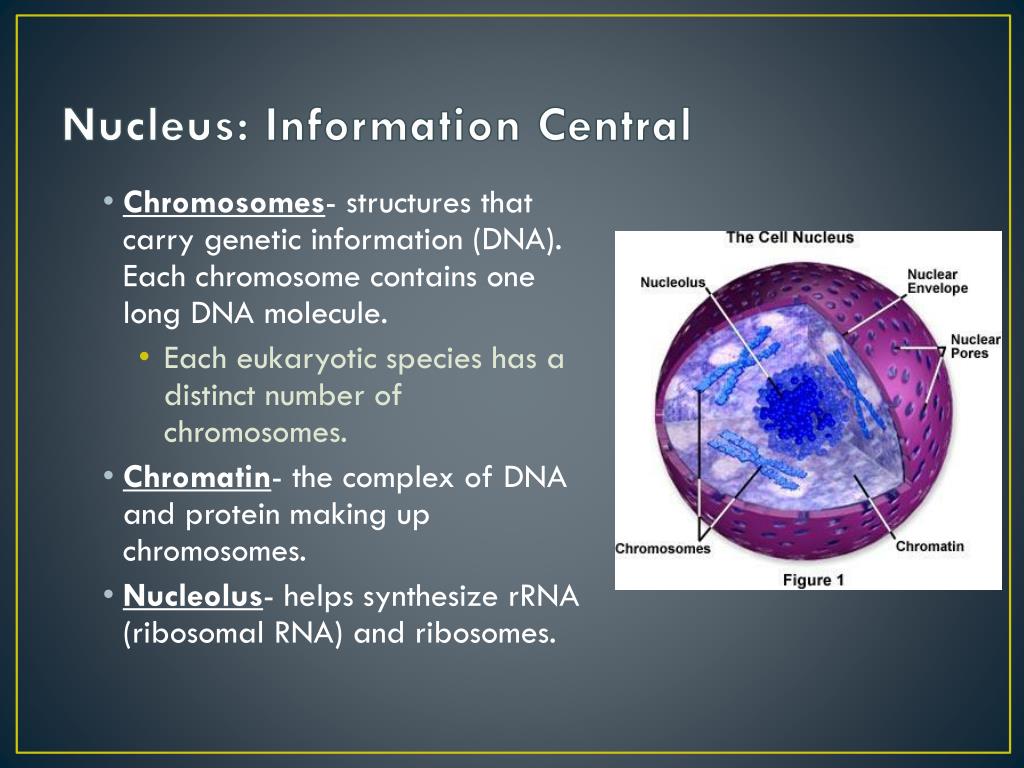

  19. Nucleus: Information Central • Chromosomes- structures that carry genetic information (DNA). Each chromosome contains one long DNA molecule. • Each eukaryotic species has a distinct number of chromosomes. • Chromatin- the complex of DNA and protein making up chromosomes. • Nucleolus- helps synthesize rRNA (ribosomal RNA) and ribosomes.

  20. Ribosomes: Protein Factory • Ribosomes- made of rRNA and proteins- carry out protein synthesis. • Ribosomes exist as either free ribosomes (suspended in cytosol) or bound ribosomes (attached to the Rough ER or nuclear envelope)

  21. Endoplasmic Reticulum: Biological Factory • Endoplasmic Reticulum- consists of membranous tubules, and sacs, called cisternae. • Smooth ER- lacks ribosomes. Functions lipid synthesis, detoxification, and storing calcium ions. • Rough ER- has ribosomes on surface. Continuous with the nuclear envelope. Synthesizes glycoproteins and other secretory proteins.

  22. Golgi Apparatus: Shipping and Receiving • Golgi Apparatus- made of flattened membranous sacs called cisternae. Has 2 sides the cis face (receiving) and the trans face (shipping).

  23. Lysosomes: Digestive Compartments • Lysosome- contains hydrolytic enzymes used to digest molecules. • Phagocytosis- “cell eating”- lysosome digesting food • Autophagy- lysosome breaking down damaged organelles.

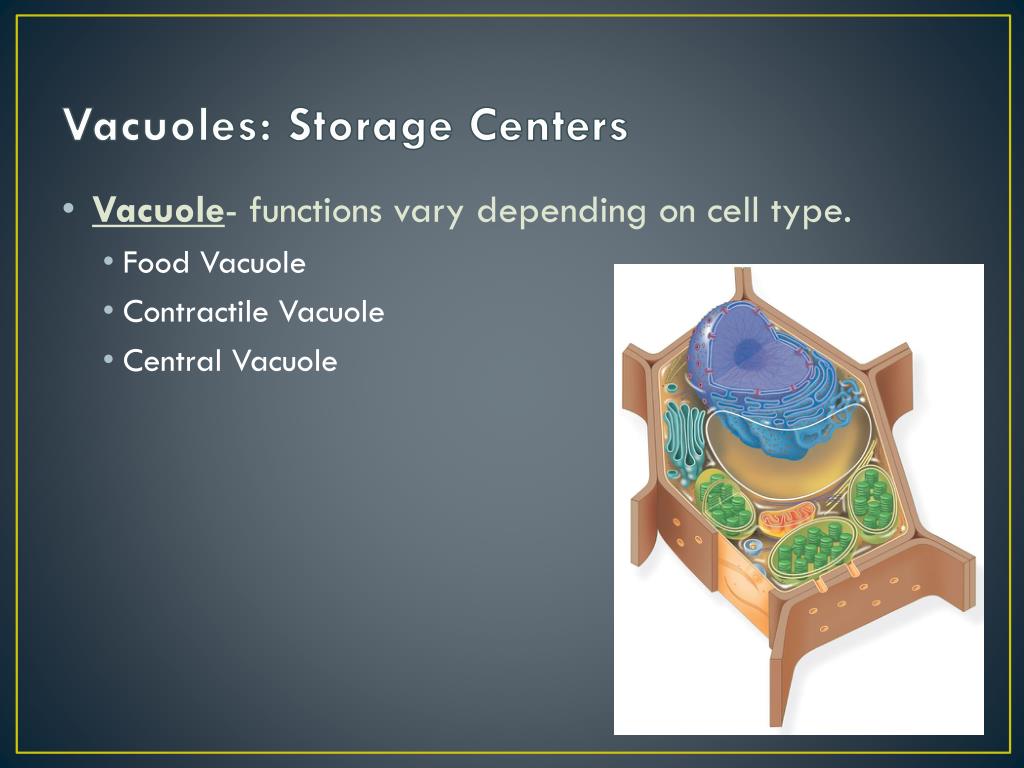

  24. Vacuoles: Storage Centers • Vacuole- functions vary depending on cell type. • Food Vacuole • Contractile Vacuole • Central Vacuole

  25. Mitochondria: Chemical Energy Supercenter • Mitochondria- site of cellular respiration. • Cellular Respiration- the process that uses O2 to generate ATP by extracting energy from sugars, fats, and other fuels.

  26. Chloroplast: Light Energy Capturer • Chloroplast- found in plants and algae- the site of photosynthesis. Contain the green pigment chlorophyll. • Is a member of the plastid family- a group of plant organelles.

  27. Peroxisomes: Oxidation • Peroxisomes- contain enzymes that remove hydrogen atoms and transfer them to oxygen, producing hydrogen peroxide (H2O2).

  28. Cytoskeleton • Cytoskeleton- a network of fibers extending throughout the cytoplasm- plays a major role in organizing the structure and activities of the cells. • Motor Proteins- allows for cell movement.

  29. Cytoskeleton • Microtubules- the thickest cytoskeletal fiber, provide a track that organelles with motor proteins can move along. Help separate chromosomes during mitosis. Form flagella and cilia. • Centrosome- region where microtubules are organized. Contains a pair of centrioles. Only in animal cells.

  30. Cytoskeleton • Microfilaments- the thinnest fiber. Actin and myosin filaments help muscle cells contract. Aide in pseudopodia movement by converting cytoplasm from a liquid to a gel. • Cytoplasmic Streaming- circular flow of cytoplasm within cells. Speeds distribution of cell materials.

  31. Cytoskeleton • Intermediate Filaments- more permanent fixtures, fix the position of organelles and shape of the cell. Include keratin proteins.

  32. Cell Wall • Cell Wall- extracellular structure of plant cells. Protects the cell, maintains its shape, and prevents excessive uptake of water. Holds the plant up against gravity. • Primary Cell Wall, Middle Lamella, Secondary Cell Wall • Plasmodesmata-perforations in the plant cell wall that allows cytoplasm to be continuous between neighboring plant cells.

  33. Passive Transport • Passive Transport- moves solute from high to low concentration. DOES NOT requires energy.

  34. Diffusion • Diffusion- movement of molecules of any substance until they spread out evenly in the available space. (equilibrium). • Diffusion is a spontaneous process, needing no energy input. • Rule of Diffusion: in the absence of a force, a substance will diffuse from high concentration to low concentration.

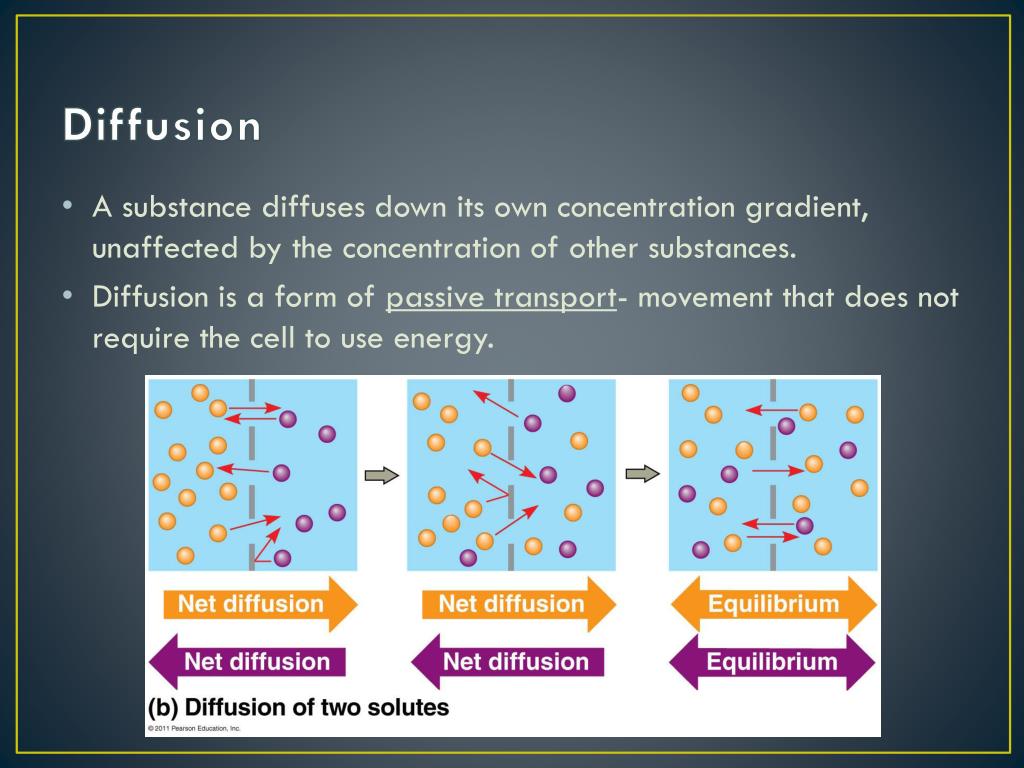

  35. Diffusion • A substance diffuses down its own concentration gradient, unaffected by the concentration of other substances. • Diffusion is a form of passive transport- movement that does not require the cell to use energy.

  36. Osmosis • Osmosis- the diffusion of water. Water diffuses from the region of lower solute concentration (higher water concentration) to the area of higher solute concentration (lower water concentration)- until equilibrium is reached.

  37. Osmosis • Tonicity- the ability of a surrounding solution to cause a cell to gain or lose water. • Hypertonic- concentration of solution is more than the cell. Cell will lose water, shrivel, and probably die. • Hypotonic- concentration of solution is less than the cell. Water will enter the cell and the cell will swell and lyse (burst). • Isotonic- concentration of solutions is the same on both sides of the membrane. No net movement of water = stable volume.

  38. Facilitated Diffusion • Facilitated Diffusion- passive transport aided by proteins. • Frequently involves polar molecules. • Ion Channels- channel proteins that transport ions down the concentration gradient. No energy required. • Gated Channels- open or close in response to a stimulus.

  39. Active Transport • Active Transport- moves solute from low to high concentration. Requires energy (usually ATP). Uses carrier proteins. • Active transport allows a cell to have an internal concentration different from its surroundings. • Sodium-Potassium Pump- an example of active transport that exchanges Na+ for K+ across the plasma membrane.

  40. Endocytosis/Exocytosis • Exocytosis- the secretion of large molecules by the fusion of vesicles with the plasma membrane. Requires energy. • Endocytosis- cell takes in molecules by forming new vesicles from the plasma membrane. • Phagocytosis- cell eating • Pinocytosis- cell drinking • Receptor-Mediated Endocytosis

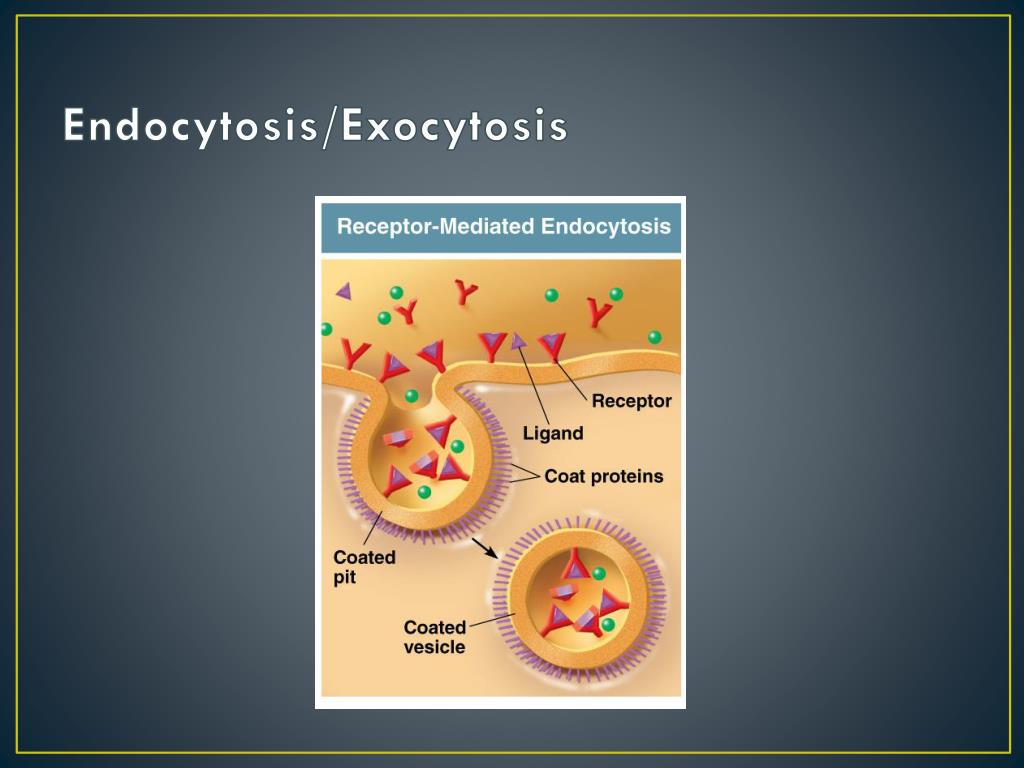

  41. Endocytosis/Exocytosis
