Local helioseismology

Local Helioseismology

Laurent Gizon (Stanford)


Outline
Outline

  • Some background

  • Time-distance helioseismology:

  • Solar-cycle variations of large-scale flows

  • Near surface convection

  • Sunspots: structure and dynamics


Why is helioseismology useful
Why is helioseismology useful?

  • To test the standard model of stellar structure

  • To help understand solar magnetism


Global modes of resonance
Global modes of resonance

Millions of modes of oscillation

excited by near-surface turbulent convection.

Acoustic modes with similar wave

speeds probe similar depths.

MDI-SOHO measures Dopplergrams every minute

since 1996.

Figure: m-averaged medium-l

power spectrum (60-day run).


Mean rotation gong mdi
Mean rotation (GONG & MDI)


Global p mode frequency shifts
Global p-mode frequency shifts

Palle et al.

  • Frequencies of low-degree acoustic modes of oscillation increase with magnetic activity.

  • Woodard & Noyes (1985) first notice changes in irradiance oscillation data (ACRIM).

  • Confirmed by ground-based full-disk velocity data (e.g. Bison).

  • Fractional change of 2x10-4 through the solar cycle.

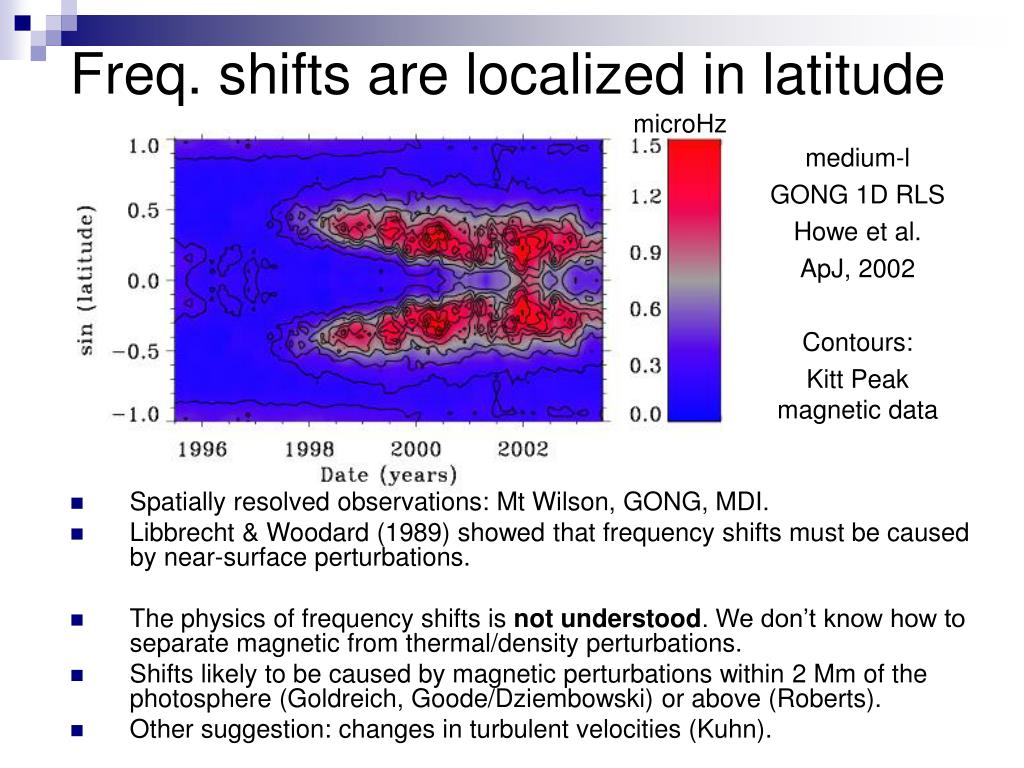

Freq shifts are localized in latitude
Freq. shifts are localized in latitude

microHz

medium-l

GONG 1D RLS

Howe et al.

ApJ, 2002

Contours:

Kitt Peak magnetic data

  • Spatially resolved observations: Mt Wilson, GONG, MDI.

  • Libbrecht & Woodard (1989) showed that frequency shifts must be caused by near-surface perturbations.

  • The physics of frequency shifts is not understood. We don’t know how to separate magnetic from thermal/density perturbations.

  • Shifts likely to be caused by magnetic perturbations within 2 Mm of the photosphere (Goldreich, Goode/Dziembowski) or above (Roberts).

  • Other suggestion: changes in turbulent velocities (Kuhn).


Local helioseismology1
Local helioseismology

The goal is to make 3D images of flows, temperature and density inhomogeneities,

and magnetic field in the solar interior. Local helioseismology includes different techniques that complement each other (see Gizon & Birch, Living Reviews, submitted).

Time-distance helioseismology (Duvall et al. 1993) is based on measurements of travel times for wavepackets travelling between any two points on the solar surface.

  • Flows along the path break the symmetry between travel times for waves propagating in opposite directions

  • Travel-time difference  flows

  • Measurements of travel times between all pairs of points give access to the 3D vector flow field, in principle.

  • Local helioseismology is potentially more powerful than global-mode helioseismology:

     Longitudinal resolution (3D image)

     North-south flows


Time distance diagram duvall
Time-distance diagram (Duvall)

Correlation between two surface locations versus distance and time-lag.


Near surface global flows
Near-surface “global” flows

Longitudinal averages from f-mode time-distance helioseismology

Rotation

Meridional circulation

Mean meridional circulation is

poleward in both hemispheres

(~20 m/s at 20 deg latitude)

Important ingredient in some

theories of the solar dynamo.

Directly observed down to 0.8R, so far (Giles 1998).

To study solar-cycle variations: subtract time average over many years…

CONFIRMS

GLOBAL-MODE

HELIOSEISMOLOGY

NEW

INFORMATION

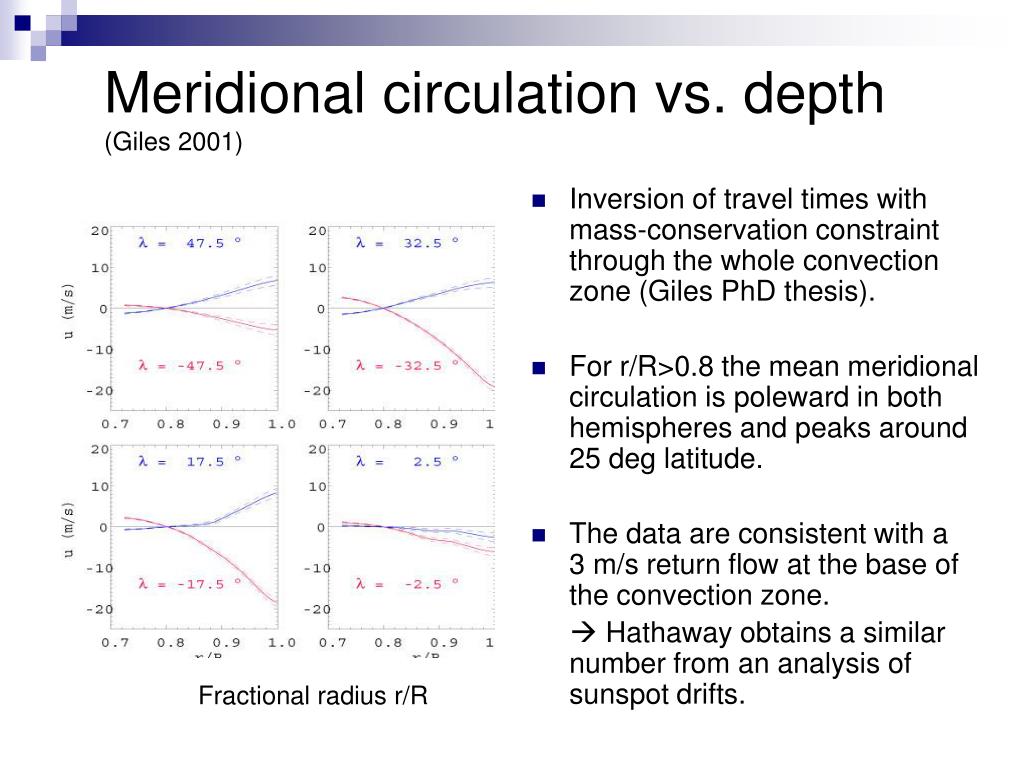

Meridional circulation vs depth giles 2001
Meridional circulation vs. depth (Giles 2001)

  • Inversion of travel times with mass-conservation constraint through the whole convection zone (Giles PhD thesis).

  • For r/R>0.8 the mean meridional circulation is poleward in both hemispheres and peaks around 25 deg latitude.

  • The data are consistent with a 3 m/s return flow at the base of the convection zone.

     Hathaway obtains a similar number from an analysis of sunspot drifts.

Fractional radius r/R


Solar cycle variation of large scale flows
Solar-cycle variation of large-scale flows

Plots of residuals of rotation and meridional circulation after subtraction of a temporal average. About 50 Mm deep (Beck, Gizon & Duvall, 2002).

Zonal flow residuals (torsional oscillations)

red=prograde blue= retrograde

Increased differential rotation shear at active latitudes. First discovered by Howard & Labonte (1980), agrees with global mode splittings.

May be caused by the back reaction of the Lorentz force from a propagating dynamo wave (Schuessler, 1981). [Other explanations exist.]

Latitude (deg)

Meridional flow residuals

Residuals: red=equatorward, green=poleward

At 50 Mm depth, residual north-south flow diverging from the mean latitude of activity

(agrees with Chou 2001, acoustic imaging).

The opposite is seen near the surface!

(Gizon 2003, Zhao 2003).

Latitude (deg)

Year (19962002)


Residuals mc longitudinal averages
Residuals MC: longitudinal averages

  • (e) surface inflow (5 m/s) TD/RD

  • (d) deeper outflow (5 m/s) TD

  • (a) zonal shear (+/- 5 m/s) TD/RD/Global


Near surface flows around active regions
Near-surface flows around active regions

Local 50 m/s surface flows converging toward active regions (Gizon et al. 2001).

Excellent agreement with ring-diagram analysis (Hindman, Gizon et al. 2004).

 Local inflows responsible for temporal variations of surface meridional flow (Gizon 2004)

At depth of 10-15 Mm: an outflow is observed (Haber et al. 2003, Zhao et al. 2003)

Looks like a toroidal flow pattern around AR: surface outflow and deeper inflow.

Surface inflow consistent with a model by Spruit (2003).


Local flows around ar
Local flows around AR

  • Sketch of near-surface flows from local helioseismology.

  • (a) Zonal shear. (m) meridional flow.

  • (b) 30-50 m/s large-scale inflow. (c) super-rotation.

  • Time-distance and ring analyses are consistent (Hindman et al. 2004).

  • Note that Spruit’s model predicts the inflow.


Convective flows
Convective flows

Supergranulation

F-mode time-distance

(Duvall & Gizon)

Spatial sampling = 3 Mm

Temporal sampling = 8 hr

Horizontal divergence:

white = divergent flows

black = convergent flows

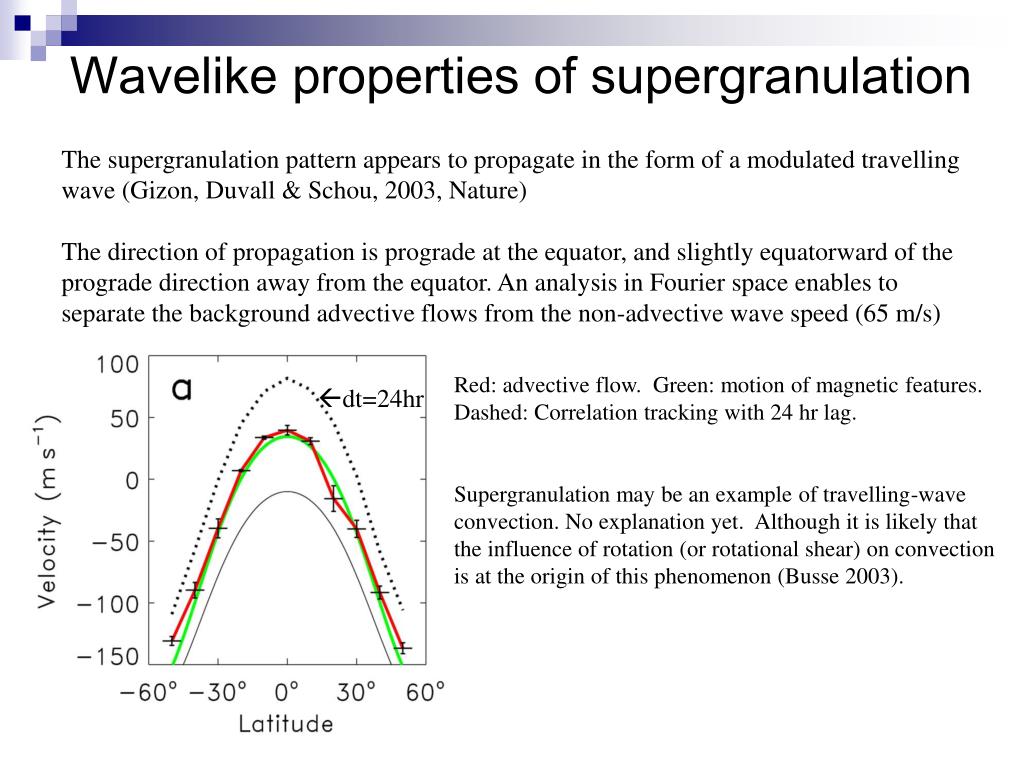

Wavelike properties of supergranulation

The supergranulation pattern appears to propagate in the form of a modulated travelling wave (Gizon, Duvall & Schou, 2003, Nature)

The direction of propagation is prograde at the equator, and slightly equatorward of the prograde direction away from the equator. An analysis in Fourier space enables to separate the background advective flows from the non-advective wave speed (65 m/s)

Red: advective flow. Green: motion of magnetic features.

Dashed: Correlation tracking with 24 hr lag.

Supergranulation may be an example of travelling-wave convection. No explanation yet. Although it is likely that the influence of rotation (or rotational shear) on convection is at the origin of this phenomenon (Busse 2003).

dt=24hr


Advection of supergranulation
Advection of Supergranulation

  • Flows introduce a Doppler shift in the spectrum.

  • Shown are the longitudinal averages of zonal and meridional flows in the supergranular layer.

  • Increased differential rotation shear near AR

  • North-south residual flow converging toward AR.

     consistent with near-surface flows from local helioseismology


Sunspot seismology
Sunspot seismology?

Complex flow picture.

Not always meaningful…

Zhao et al. 2003

Gizon et al. 2001


Wave-speed anomalies(Kosovichev 1999)


Far side imaging lindsey braun
Far side imaging (Lindsey &Braun)

From MDI pipeline (almost real time)

 Predictive power


Flares produce sunquakes (Kosovichev & Zharkova)


Linear forward and inverse problems in local helioseismology
Linear forward and inverse problemsin local helioseismology

Linear sensitivity of travel time to small steady changes in the solar model:

In principle, have to consider all possible types ( ) of perturbations, including flows, temperature, density, magnetic field, damping and excitation…

A general recipe for computing kernels must include a physical description of the wave field generated by a stochastic source model and the details of the measurement procedure (Gizon & Birch 2002). Linearization is achieved through the Born or Rytov approximations (single-scattering). Done for sound-speed perturbations (Birch et al. 2004). Need to do it for other types of perturbations

Still some very hard problems to solve…



Toy problem sound speed only couvidat et al 2004
Toy problem : sound-speed only (Couvidat et al. 2004)

3D Inversion taking account

of correlations in data errors

Cut through 3D input

sound-speed perturbation

3D Inversion assuming

no correlation in data errors

  • Known input sound speed perturbations

  • Compute travel times by convolution of (1) with 3D Born kernels.

  • Add noise to the data with the correct statistics (T=8 hrs).

  • 3D multi-channel deconvolution


Conclusion
