Presentation Transcript


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

NCL and PyNGLCommunity data analysis and visualization software2005 User Forum, May 17-19  CISL/IMAGe/SCD Mary Haley, [email protected]

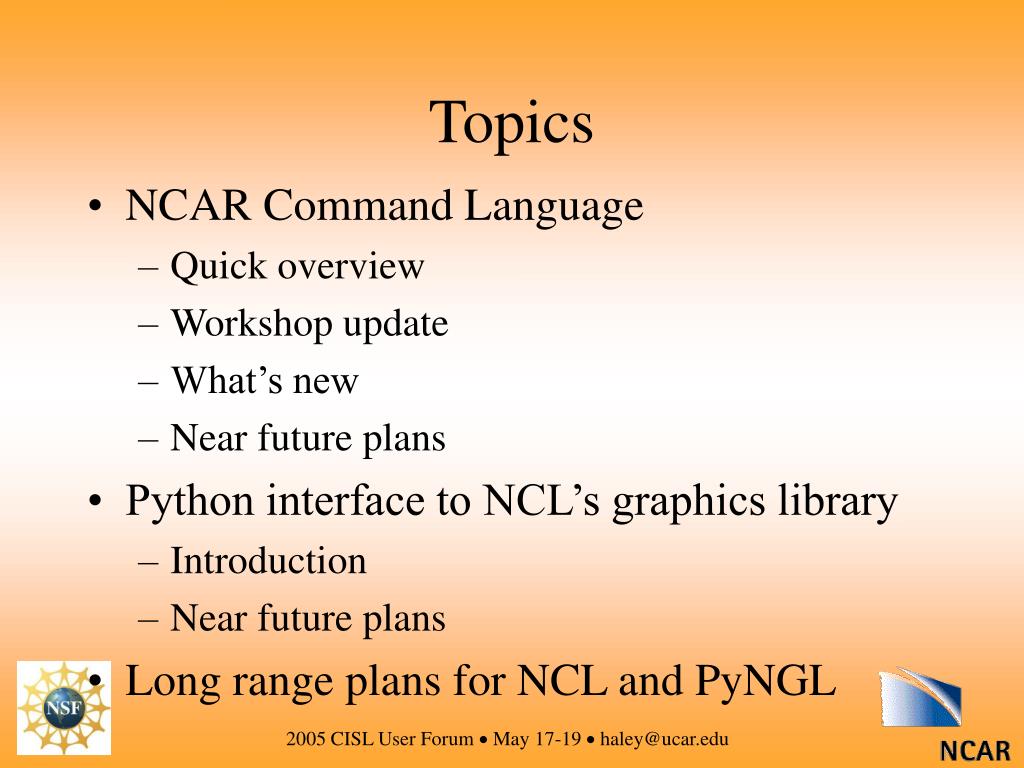

Topics

Topics

  • NCAR Command Language

    • Quick overview

    • Workshop update

    • What’s new

    • Near future plans

  • Python interface to NCL’s graphics library

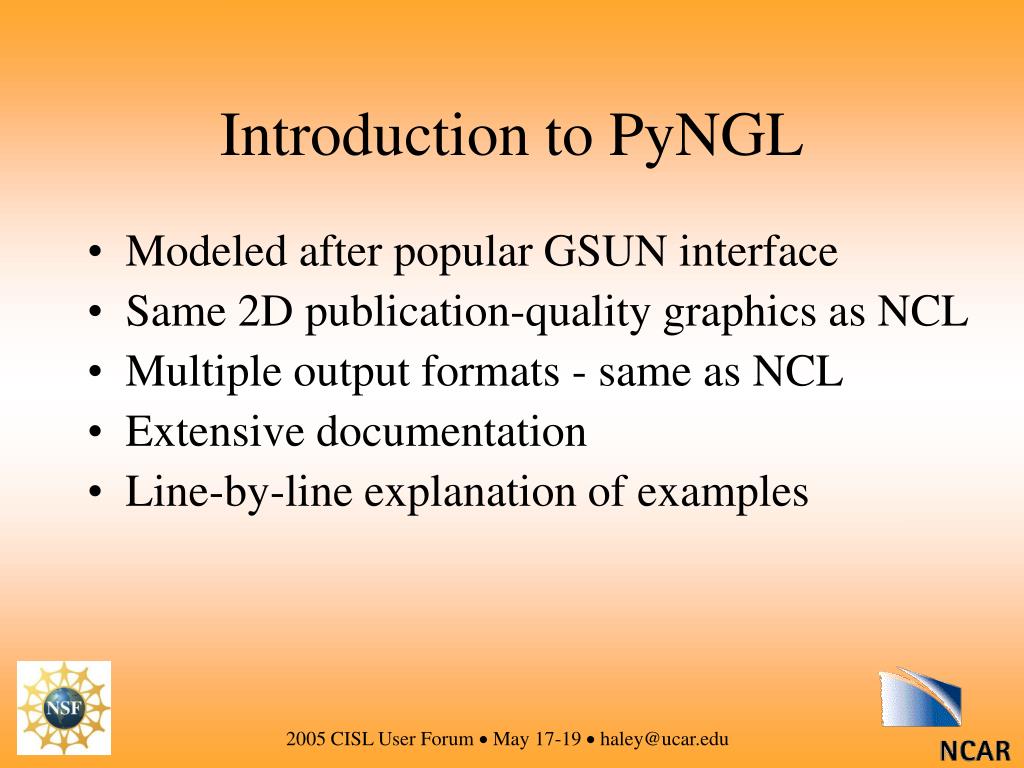

    • Introduction

    • Near future plans

  • Long range plans for NCL and PyNGL


Ncl quick overview

NCL - Quick overview

  • An interpreted language designed for the analysis and visualization of data

  • Powerful in three areas: file I/O, data analysis, visualization

  • Runs on most UNIX systems, including MacOSX, LINUX, Windows/Cygwin

  • FREE


Ncl overview file i o

NCL overview: file I/O

  • Data model based on netCDF model

  • One function to read multiple data formats

  • Handles netCDF, GRIB-1, HDF4, HDF-EOS4, CCM History tape

  • GRIB reader one of the best

  • ASCII, binary

Answer to question from yesterday: NCL supports NARR data and includes the NARR parameter table (NCEP parameter table 131).


Ncl overview data analysis

NCL overview: data analysis

  • Over 800 functions

    • Spherical harmonics

    • Scalar and vector regridding

    • Vertical interpolation

    • EOFs

  • Many tailored to geosciences

  • Most handle missing data

  • Can call C and Fortran routines


Ncl overview visualization

NCL overview: visualization

  • High-quality visualizations

  • Contours, XY, vectors, streamlines, maps

  • Specialized scripts for skew-T, wind roses, histograms, panels, bar charts

  • GSUN interface: NCL scripts for simplifying visualization calls

  • Hundreds of plot options available


Ncl strengths

NCL strengths

  • Huge web-based example suite

  • NCL workshops

  • Consulting is knowledgeable and quick

  • Trivial to install, precompiled binaries

  • Enhancements based on user demand*

* Get ready for the data analysis and visualization survey!


Ncl workshops

NCL workshops

  • 3 full-day classes with lectures and labs

  • Taught by CGD staff

  • 22 in the last 4 years: 15 in Boulder, rest off-site:

    • University of California at Santa Cruz

    • University of Alaska at Fairbanks

    • UCLA (twice)

    • Purdue

    • Naval Research Lab - Stennis Space Center

    • National Ocean Service - NOAA

  • Cancelled until further notice


What s new

What’s new

  • New NCL website

  • Command line options

  • Contouring on triangular meshes

  • NCL binaries on Earth System Grid

  • Enhancements to GRIB reader

  • Vis5D writer functions

Online survey later this month


New ncl website http www ncl ucar edu

New NCL websitehttp://www.ncl.ucar.edu/

  • Consolidates ngwww.ucar.edu and the www.cgd.ucar.edu graphics website

  • Function documentation in one location

  • “Applications” includes over 500 examples

  • Lots of documentation; printable manuals


Command line option preview

Command line option preview

  • Predefined options (-V, -x, -P)

  • Can assign variables and execute commands:

    ncl i=1 x=3.14 ‘vars=(/“T”,“U”,“V”/)’ file.ncl

  • More options to come: byte-swapping control, printing control; would like to hear from you!

http://www.ncl.ucar.edu/Document/Manuals/Ref_Manual/


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

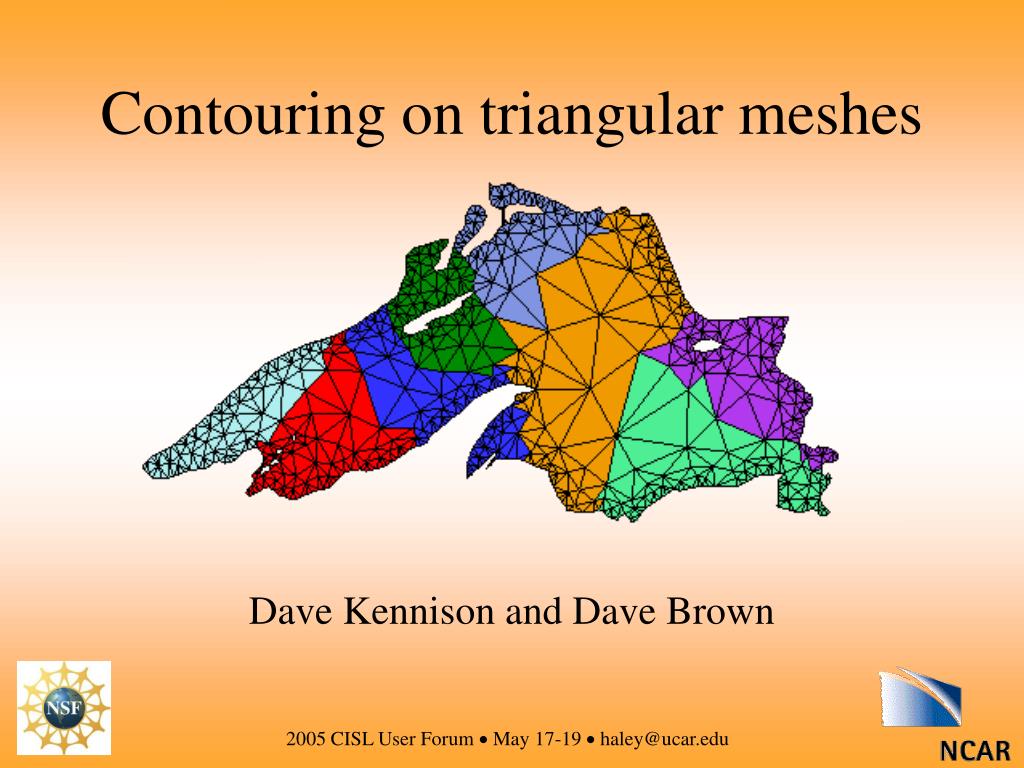

Contouring on triangular meshes

Dave Kennison and Dave Brown


New types of grids you can contour

New types of grids you can contour

  • Grids already on a triangular mesh

  • Grids represented by one-dimensional arrays of x, y, and z values

  • Grids with “cell boundary” information


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

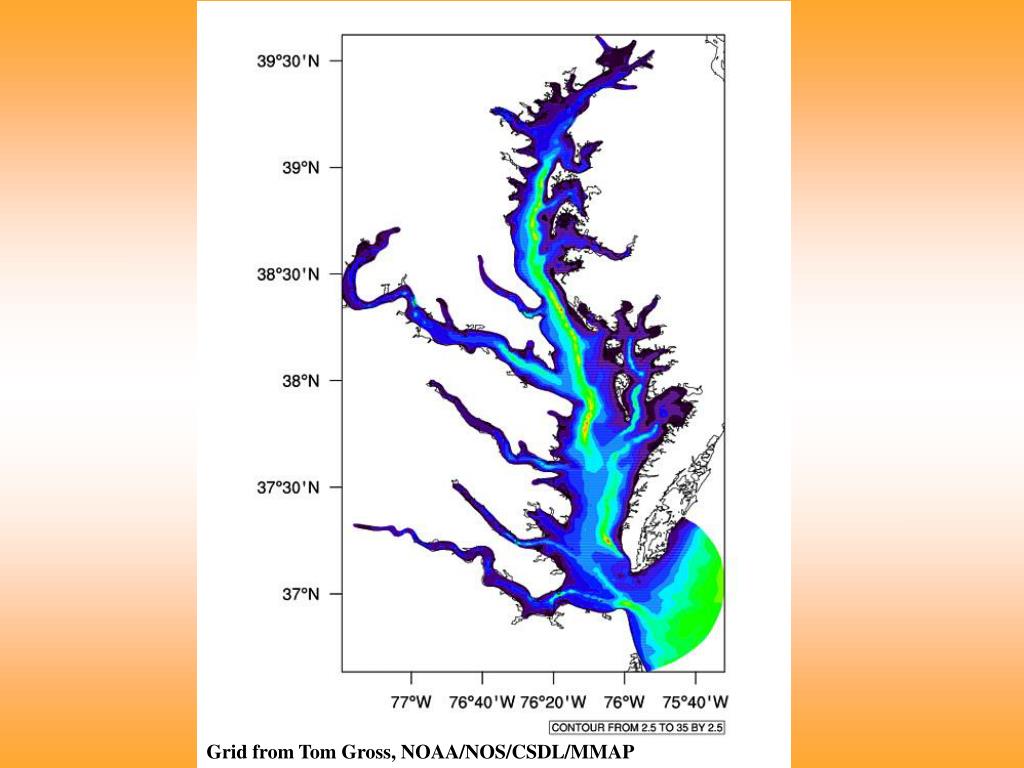

Grid from Tom Gross, NOAA/NOS/CSDL/MMAP


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Grid from Tom Gross, NOAA/NOS/CSDL/MMAP


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

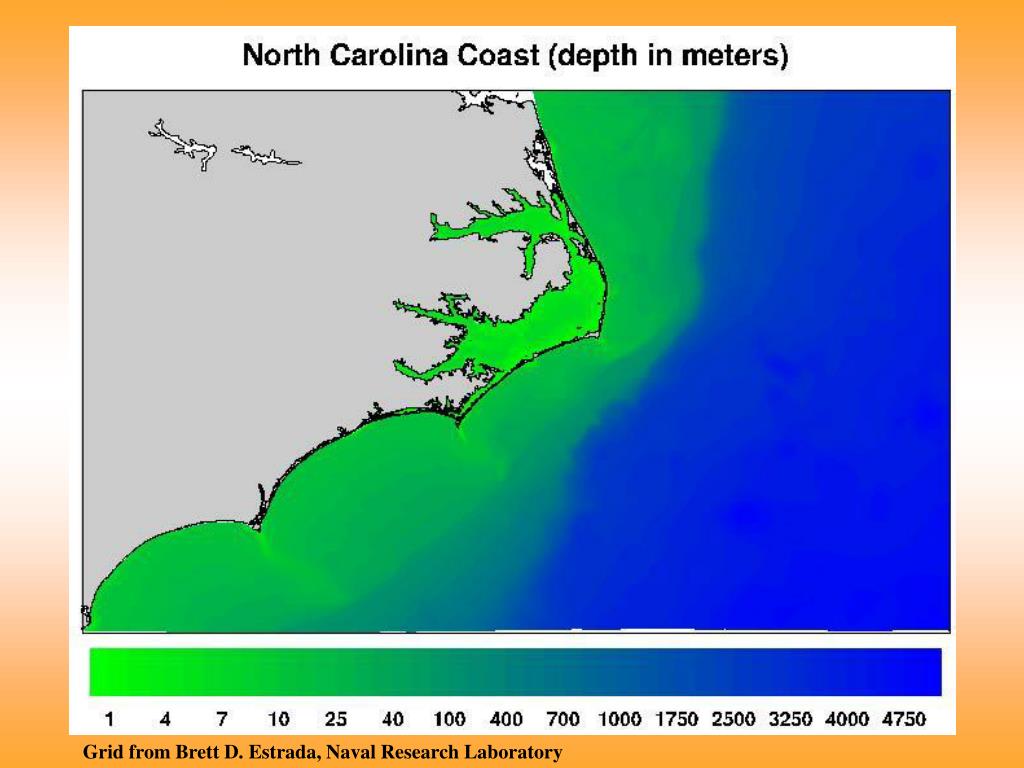

Grid from Brett D. Estrada, Naval Research Laboratory


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Grid from Brett D. Estrada, Naval Research Laboratory


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

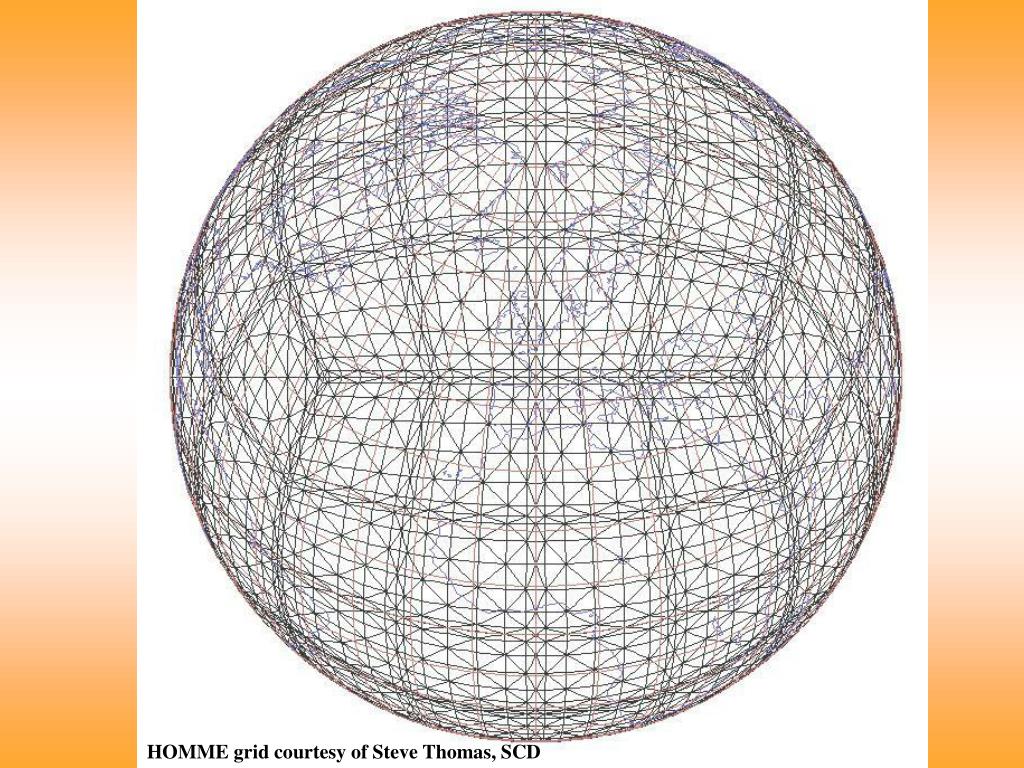

HOMME grid courtesy of Steve Thomas, SCD


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

HOMME grid courtesy of Steve Thomas, SCD


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

HOMME grid courtesy of Steve Thomas, SCD


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

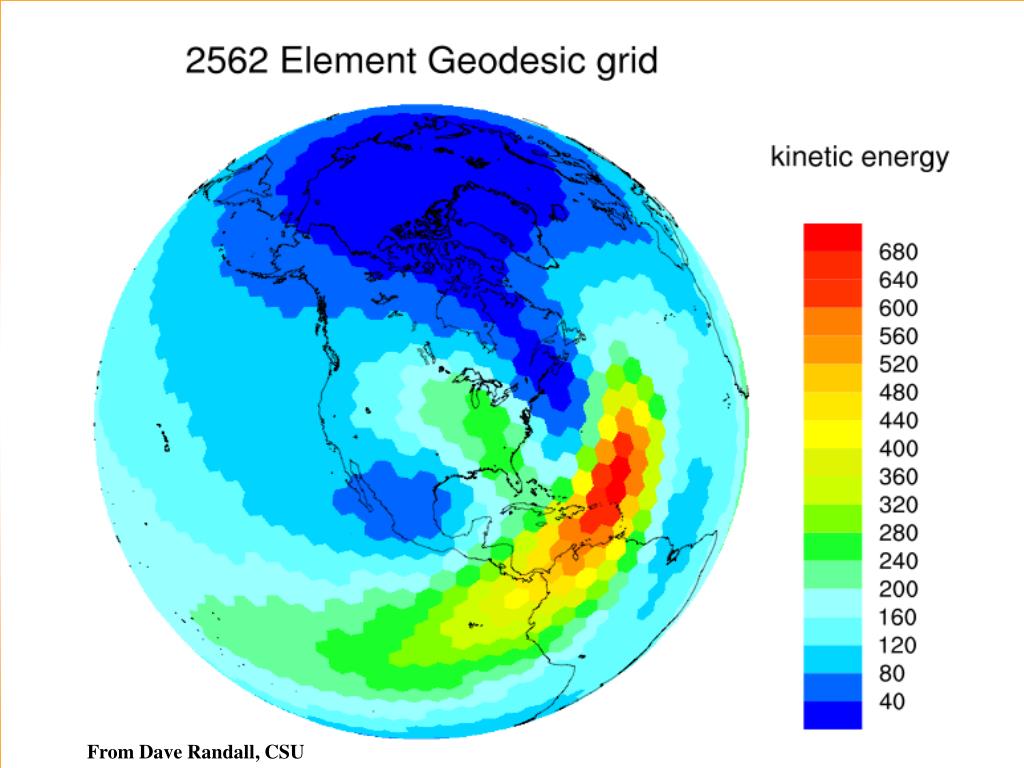

From Dave Randall, CSU


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

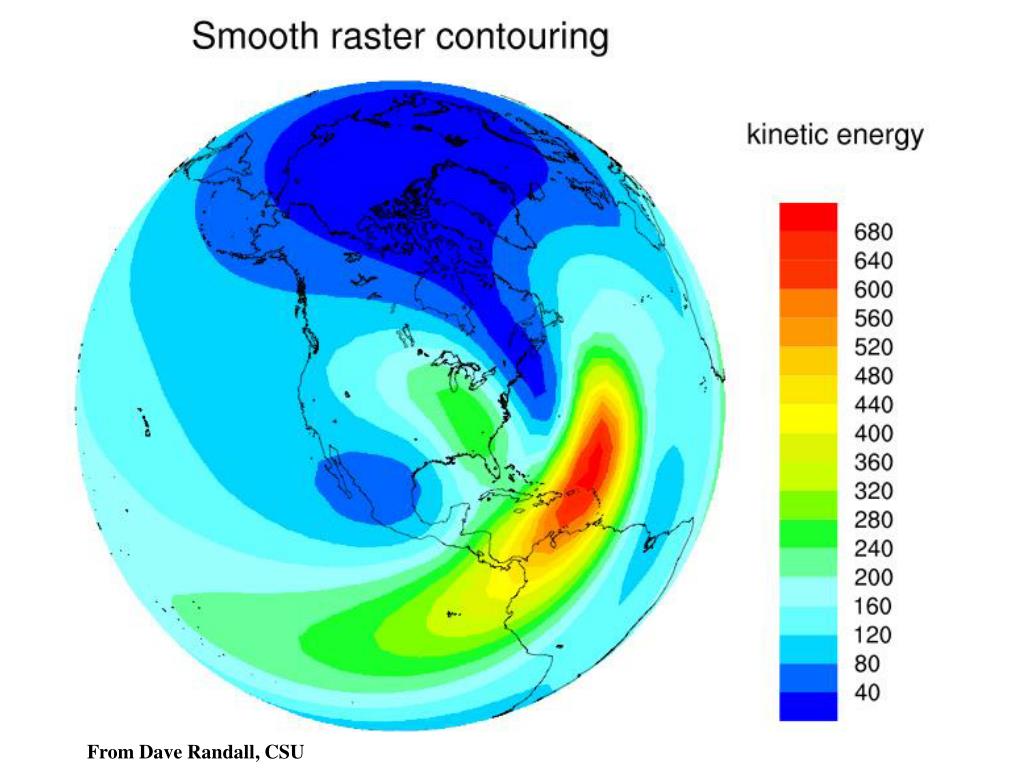

From Dave Randall, CSU


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

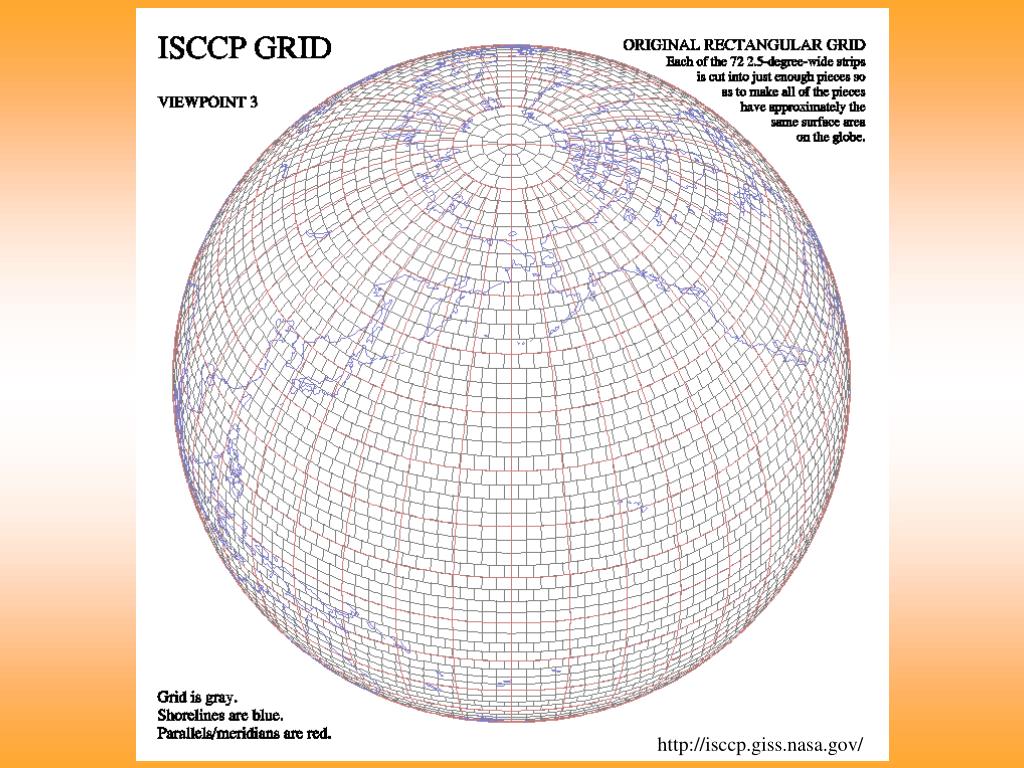

http://isccp.giss.nasa.gov/


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

http://isccp.giss.nasa.gov/


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Christophe Cassou (CNRS/CERFACS)


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

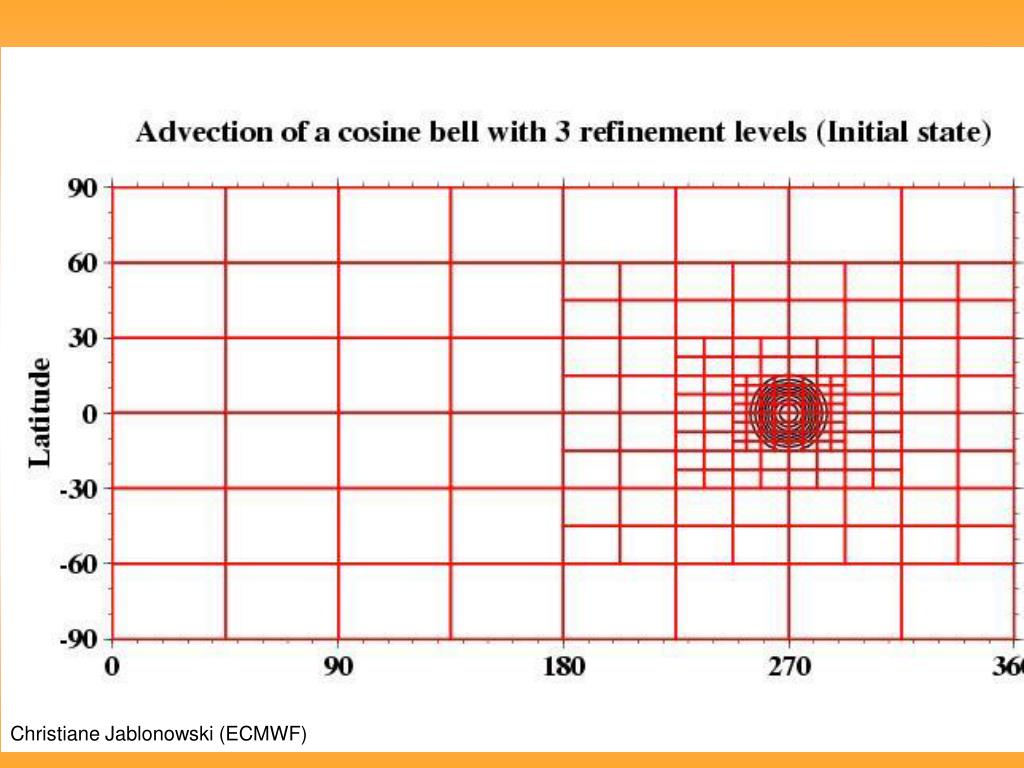

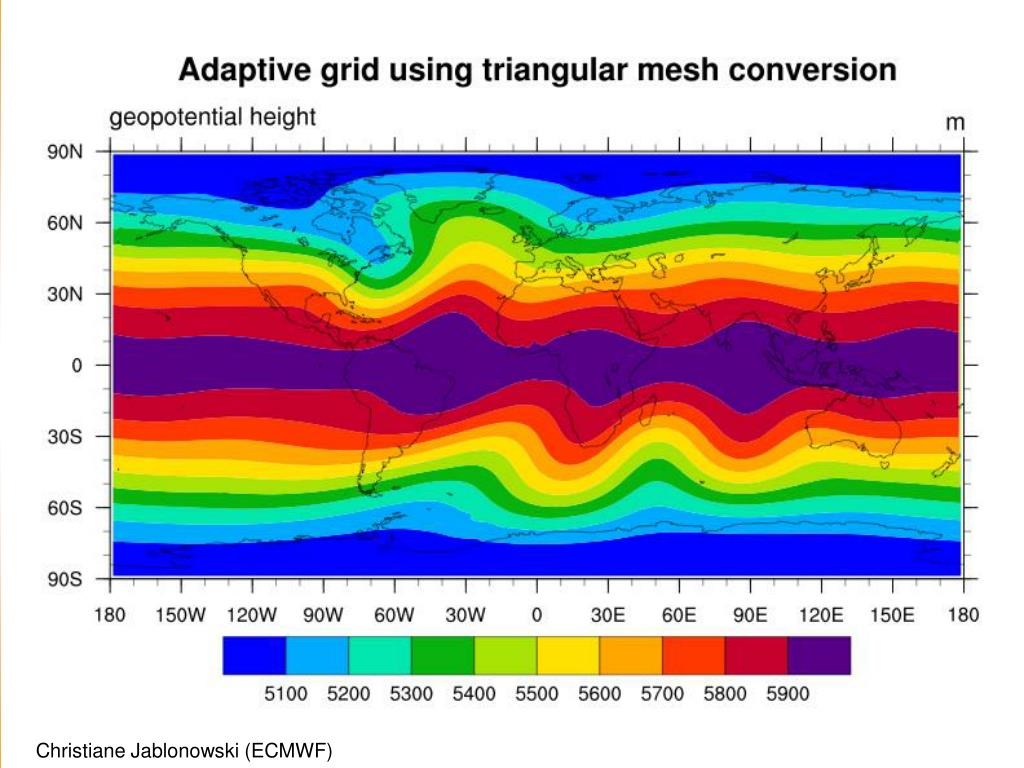

Christiane Jablonowski (ECMWF)


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Christiane Jablonowski (ECMWF)


To see some ncl examples go to http www ncl ucar edu applications and click on non uniform grids

To see some NCL examplesgo to:http://www.ncl.ucar.edu/Applications/and click on “Non-uniform grids”


Ncl near future plans

NCL near future plans

  • CLOs - initial release

  • Revisiting our I/O module: HDF5, GRIB2, netCDF 4 coming up

  • Streamlines and vectors on a triangular mesh

  • Large file support, currently has same limitations as older versions of netCDF

Did I mention the survey?


Sites that have downloaded and or used ncl in the last few years

Sites that have downloaded and/or used NCLin the last few years


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Department of Meteorology, Yugoslavia

Nanjing University, China

University of Michigan

UCLA

METRI/KMA, Korea

Frontier Research System for Global Change, Japan

Iowa State

Hong Kong University of Science and Technology

UCSD

Czech Hydrometeorological Institute

Osservatorio Meteorologico Regionale, Italy

Institute for Atmospheric and Climate Science, Switzerland

University of Reading, UK

International Centre for Theoretical Physics, Italy

NOAA-CIRES Climate Diagnostics Center

Cooperative Institute for Mesoscale Meteorological Studies

Woods Hole Oceanographic Institution Joint Program

Department of Geology and Geophysics, Yale

NOAA/NOS/Coast Survey Development Laboratory


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Center for Ocean-Land-Atmosphere Studies

Department of Physics (Atmospheric Physics), University of Toronto

Universidade Federal da Bahia

New Mexico Institute of Mining and Technology

Pacific Northwest National Laboratory

Atmospheric Science Division at LLNL

Argonne National Lab

University of Colorado

Lawrence Berkeley National Lab

University of Illinois

NRL, Navy

Climate Change & Impacts Laboratory, UCSC

University of Washington

University of Arizona

Arctic Region Supercomputing Center, University of Alaska

Center for Sustainability and the Global Environment, Univ of Wisconsin-Madison

Fleet Numerical Meteorology and Oceanography Center

Air pollution Section/Research Department, Norwegian Meteorological Institute

Frontier Research System for Global Change, University of Alaska Fairbanks

University of Virginia


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

University of Nevada

Astronomy, Physics and Geophysics, University of Copenhagen

Institute of Urban Meteorology, Beijing, China

Scripps Institution of Oceanography, University of California

CERFACS, France

EMS Environment Institute, Penn State

Centre Meteo UQAM Montreal, Montreal

National Research Institute for Earth Science and Disaster Prevention, Japan

University of L'Aquila, Department of Physics, Italy

International Research Institute for Climate Prediction, Columbia University

Alaska Experimental Forecast Facility

Central Research Institute of Electric Power Industry, Japan

National Severe Storms Laboratory

Lamont-Doherty Earth Observatory, Columbia University, NY

UBC Earth and Ocean Sciences, Canada

Earth Tech, Concord, Massachusetts

School of the Environment, Leeds University, UK

Institute For Terrestrial and Planetary Atmospheres, State Univ of NY

College of Oceanic and Atmospheric Sciences, Oregon State University

Institute of Geophysics - Climatology, University of Bergen, Norway

Institute for Geophysics, UT-Austin


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

University New South Wales

Indonesia National Institute of Aeronautics and Space

University of Nebraska

Queensland Department of Natural Resources

NC State University

University of Costa Rica

Louisiana State University

MIT

University College London

Nagasaki University

Deutscher Wetterdienst

Institute of Atmospheric Physics, Chinese Academy of Sciences

United Nations University

YSA Corporation

Chesapeake Research Consortium

Naval Postgraduate School

University of North Carolina at Chapel Hill

Research Center for Environmental Changes, Taiwan

IMAQS, U. of Houston

Pusan national University, Korea

University of Victoria, British Columdia, Canada


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Institute of Oceanology, Russia

Rudjer Boskovic Institute, Croatia

Mississippi State University

Advanced Environment Monitoring Research Center, Korea

Kyushu University, Korea

University of Northern British Columbia

Korea Meteorological Administration

International Pacific Research Center/School of Ocean and Earth Science, Hawaii

German Weather Service

University of Waterloo

Comalco Aluminium Ltd, New Zealand

Altai State University, Russia

University of Maine

IQAFF, Quebec

Kinetica Analysis Corporation/University of Central Florida

Centre for Mathematical Modelling and Computer Simulation, India

University of British Columbia

Howard University

Universidad del Pais Vasco

Indian Institute of Science

University of Delaware


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

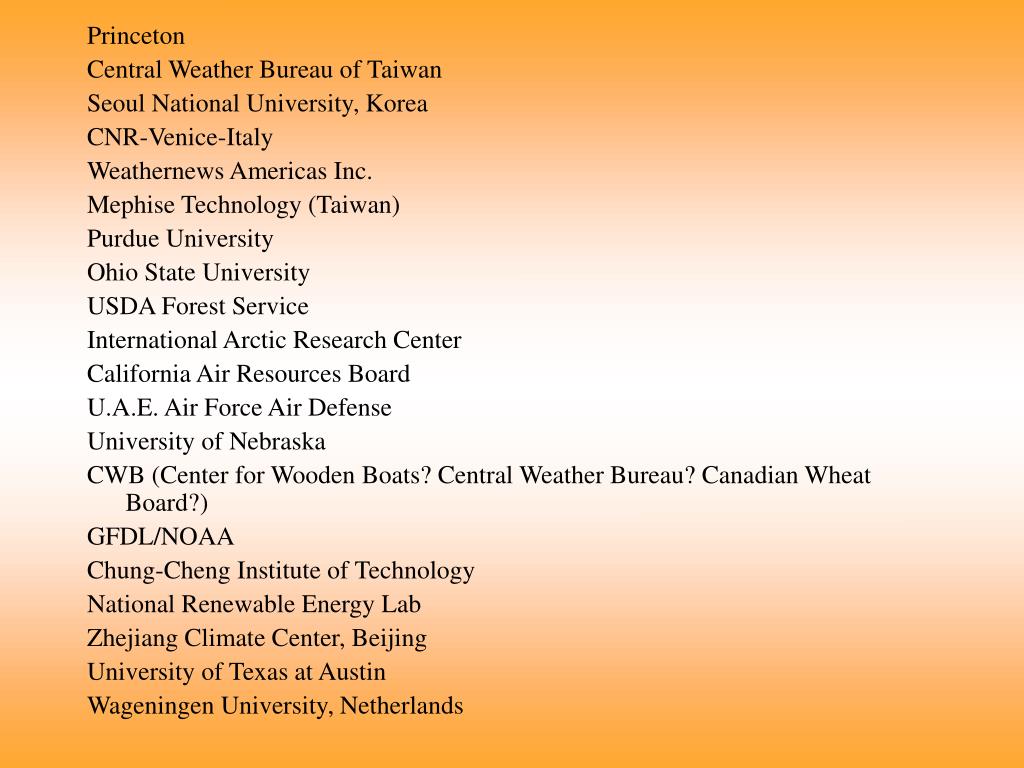

Princeton

Central Weather Bureau of Taiwan

Seoul National University, Korea

CNR-Venice-Italy

Weathernews Americas Inc.

Mephise Technology (Taiwan)

Purdue University

Ohio State University

USDA Forest Service

International Arctic Research Center

California Air Resources Board

U.A.E. Air Force Air Defense

University of Nebraska

CWB (Center for Wooden Boats? Central Weather Bureau? Canadian Wheat Board?)

GFDL/NOAA

Chung-Cheng Institute of Technology

National Renewable Energy Lab

Zhejiang Climate Center, Beijing

University of Texas at Austin

Wageningen University, Netherlands


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

University of Athens

Macao Meteorological Bureau, Hong Kong

Duke University

Texas A&M University

SD School of Mines

Department of Marine, Earth and Atmospheric Sciences, NCSU

Universidad Politecnica de Catalunya, Spain

National Taiwan University

University of Pecs, Hungary

Kobe University, Japan

University of Tartu, Estonia

UC, Irvine

Institute of Meteorology, University of Edinburgh

San Francisco State University

University of Kentucky

College of Resources Science and Technology, Beijing Normal University

Meteo-France

Agromet

LS Cable Ltd., chiller development

Potsdam Institute for Climate Impact Research, Germany

ARPA Piemonte, Italy


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

USDA Animal Improvement Programs Laboratory

Marine Meteorological Observation and Investigation

Drexel University

Indian Institute of Technology, Delhi

Caltech

Abu Dhabi International Airport Meteorological Office

Michigan Tech University

SongXiaoya University

Yonsei University, Seoul, Korea

Jackson State University

Climate Research, Tokyo University


Py thon interface to n cl s g raphics l ibrary pyngl fred clare and mary haley

Python interface toNCL’s Graphics Library(PyNGL)Fred Clare and Mary Haley

http://www.pyngl.ucar.edu/


What is python

What is Python?

An interpreted, interactive, object-oriented programming language often comparedwith Perl, Tcl, and Java.


Python strengths

Python strengths

  • Open source and portable

  • Full object oriented capabilities

  • Well documented and easy to learn

  • Modular

  • Toolkits for building GUIs - Tkinter

  • 3D visualization - vtk, OpenGL

  • Extendable with C/C++ and Fortran

  • Large and rapidly growing user base


Python strengths lots of existing code

Python strengths: lots of existing code

  • PyTables - HDF5 reader

  • PIL - Python Imaging Library

  • Libraries of scientific tools

    • netCDF module

    • FFTPACK, SPHEREPACK, LAPACK

  • PyGlobus - toolkit for GRID computing


Why a python interface

Why a Python interface?

  • Demand for high-quality 2D visualizations

  • Mainstream language - wider audience

  • Open source

  • Collaboration opportunities

  • Capitalize on the work of others

  • Contribution to Python community


Introduction to pyngl

Introduction to PyNGL

  • Modeled after popular GSUN interface

  • Same 2D publication-quality graphics as NCL

  • Multiple output formats - same as NCL

  • Extensive documentation

  • Line-by-line explanation of examples


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

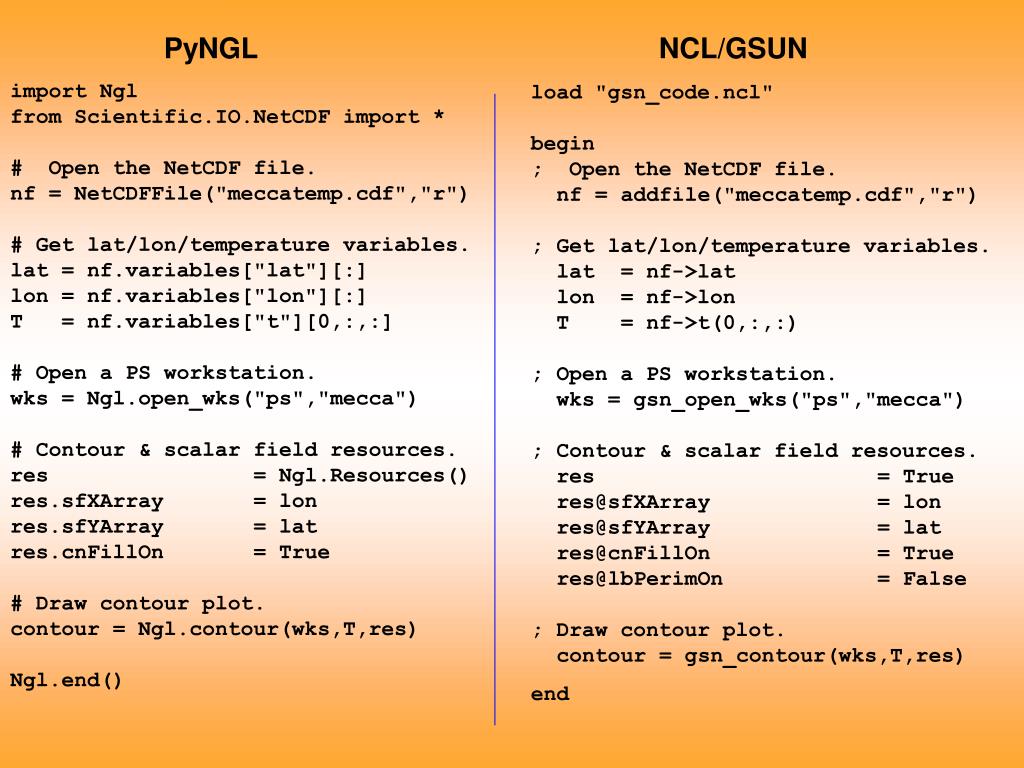

PyNGL

NCL/GSUN

import Ngl

from Scientific.IO.NetCDF import *

# Open the NetCDF file.

nf = NetCDFFile("meccatemp.cdf","r")

# Get lat/lon/temperature variables.

lat = nf.variables["lat"][:]

lon = nf.variables["lon"][:]

T = nf.variables["t"][0,:,:]

# Open a PS workstation.

wks = Ngl.open_wks("ps","mecca")

# Contour & scalar field resources.

res = Ngl.Resources()

res.sfXArray = lon

res.sfYArray = lat

res.cnFillOn = True

# Draw contour plot.

contour = Ngl.contour(wks,T,res)

Ngl.end()

load "gsn_code.ncl"

begin

; Open the NetCDF file.

nf = addfile("meccatemp.cdf","r")

; Get lat/lon/temperature variables.

lat = nf->lat

lon = nf->lon

T = nf->t(0,:,:)

; Open a PS workstation.

wks = gsn_open_wks("ps","mecca")

; Contour & scalar field resources.

res = True

[email protected] = lon

[email protected] = lat

[email protected] = True

[email protected] = False

; Draw contour plot.

contour = gsn_contour(wks,T,res)

end


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

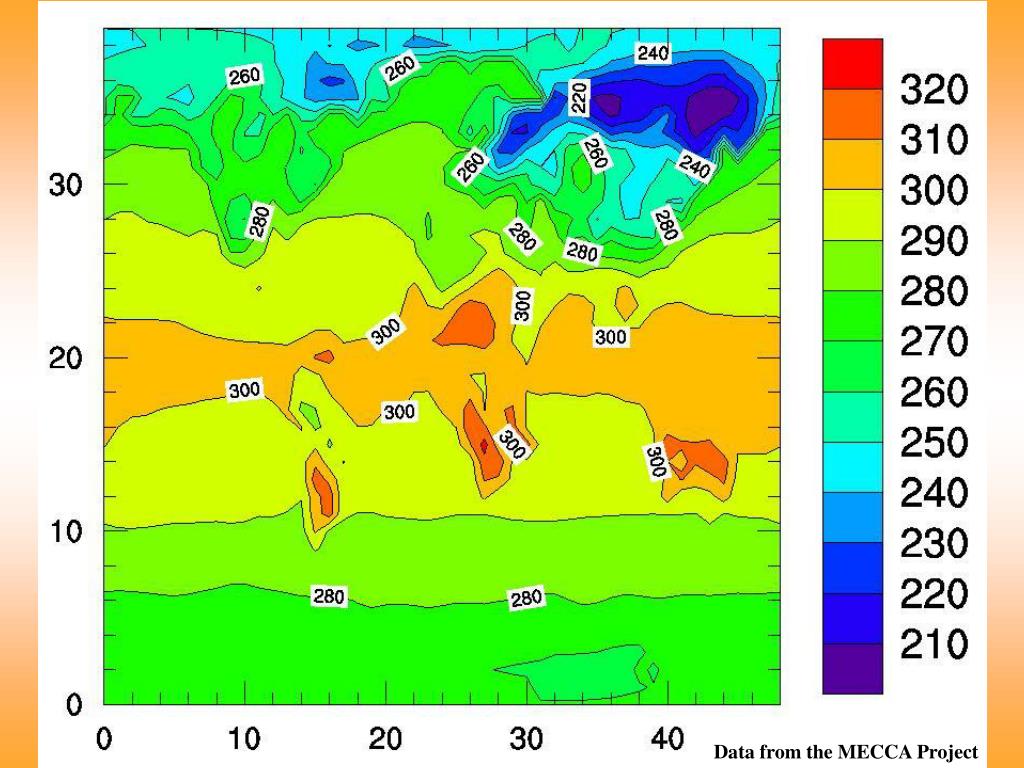

Data from the MECCA Project


Sample pyngl visualizations

Sample PyNGL visualizations


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Dummy data


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Courtesy Dennis Shea


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Data from the MECCA Project


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Data from the MECCA Project


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Data from the MECCA Project


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Courtesy Sylvia Murphy, NCAR ACD


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

From John Ertl, FNMOC


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Based on a visualization of Joel Norris (Scripps) using dummy data


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Climate division data courtesy Mark Stevens, NCAR CGD


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Courtesy Mark Stevens, NCAR CGD


Current pyngl status

Current PyNGL status

  • Documentation complete (200+ pages)

  • Released PyNGL alpha in January 2004

  • Announced PyNGL beta in September at SciPy

  • Implementing processing and I/O modules

  • Researching compatibility with other packages - especially 3D and file I/O

  • Responding to user requests and questions

Early reactions have been positive


Near future pyngl plans

Near future PyNGL plans

  • Finish beta test

  • Release processing and I/O modules for alpha testing

  • Add more functionality and examples

  • Announce to Python world

  • Potential collaboration with other Python developers


Long range plans for ncl and pyngl

Long range plans forNCL and PyNGL

  • Re-architecture the data model

  • Performance enhancements - mainly file I/O (aggregation)

  • Image processing

  • Review of display model

  • Open source


Documentation

Documentation

http://www.ncl.ucar.edu/

http://www.pyngl.ucar.edu/

My email address: [email protected]


Ncl and pyngl community data analysis and visualization software 2005 user forum may 17 19 cisl

Questions?


  • Login
