Cifs in alfresco 4 0

CIFS in Alfresco 4.0

  • Mark Rogers

  • Senior Software Engineer, Alfresco


Introduction

Introduction


Cifs and alfresco in 4 0

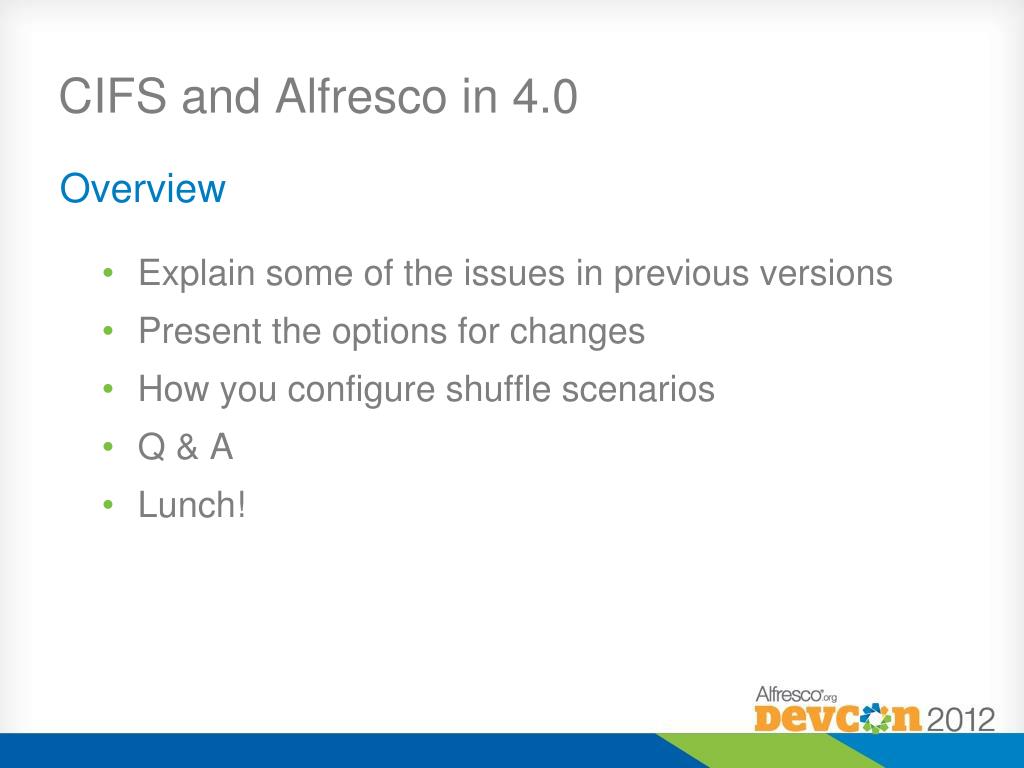

CIFS and Alfresco in 4.0

  • Overview

    • Explain some of the issues in previous versions

    • Present the options for changes

    • How you configure shuffle scenarios

    • Q & A

    • Lunch!


Cifs and jlan and alfresco

CIFS and JLAN and Alfresco

CIFS

NFS

FTP

JLAN

DB Driver

Alfresco


Cifs and jlan

CIFS and JLAN

CIFS

  • File State Cache

    • Packet level metadata

      • Last modified

      • File size

    • Locks

    • Session Information

Protocol Handler

File State Cache

Alfresco

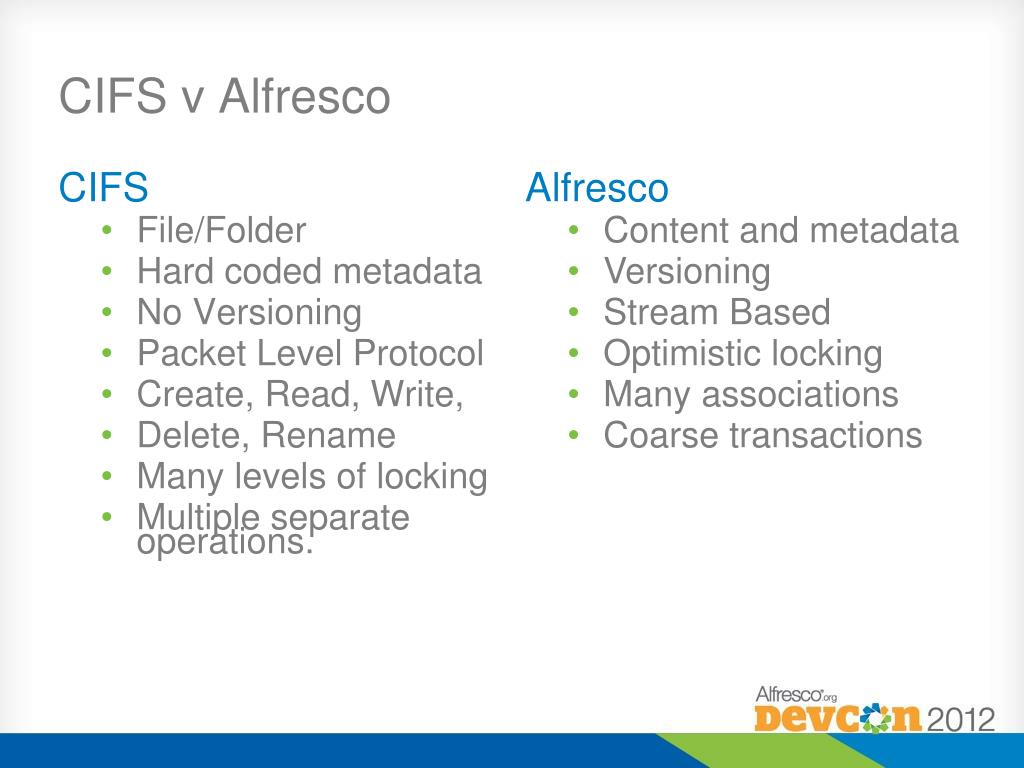

Cifs v alfresco

CIFS v Alfresco

  • CIFS

    • File/Folder

    • Hard coded metadata

    • No Versioning

    • Packet Level Protocol

    • Create, Read, Write,

    • Delete, Rename

    • Many levels of locking

    • Multiple separate operations.

      • Body Level Two

        • Body Level Three

          • Body Level Four

  • Alfresco

    • Content and metadata

    • Versioning

    • Stream Based

    • Optimistic locking

    • Many associations

    • Coarse transactions

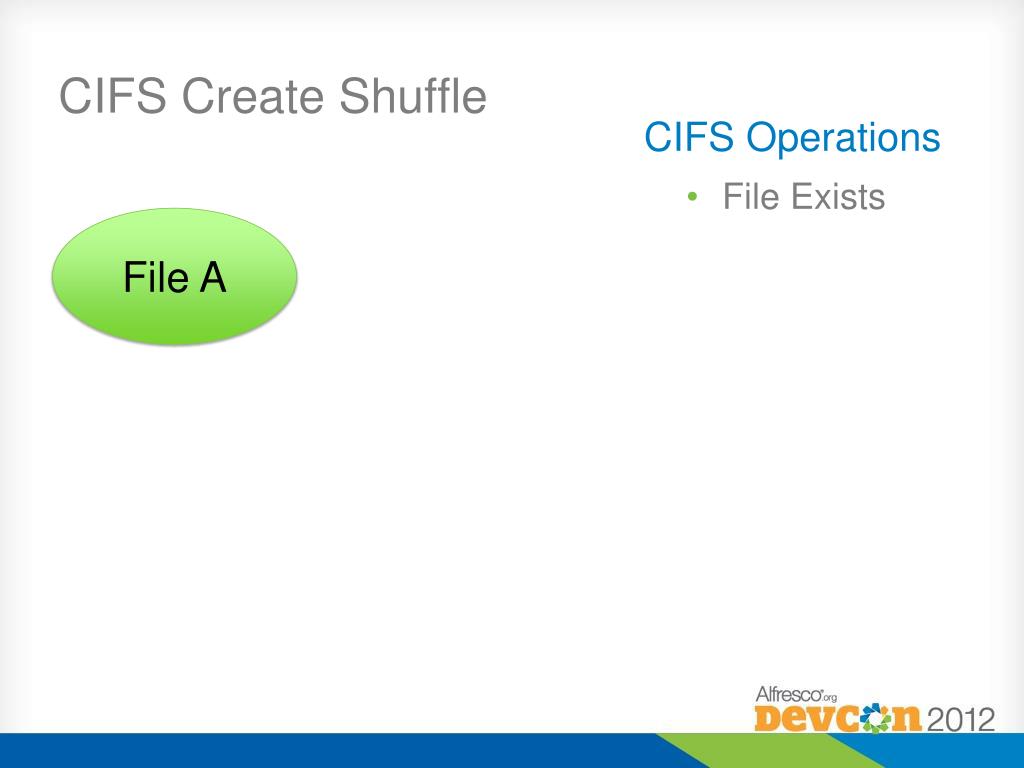

Cifs create shuffle

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

File A

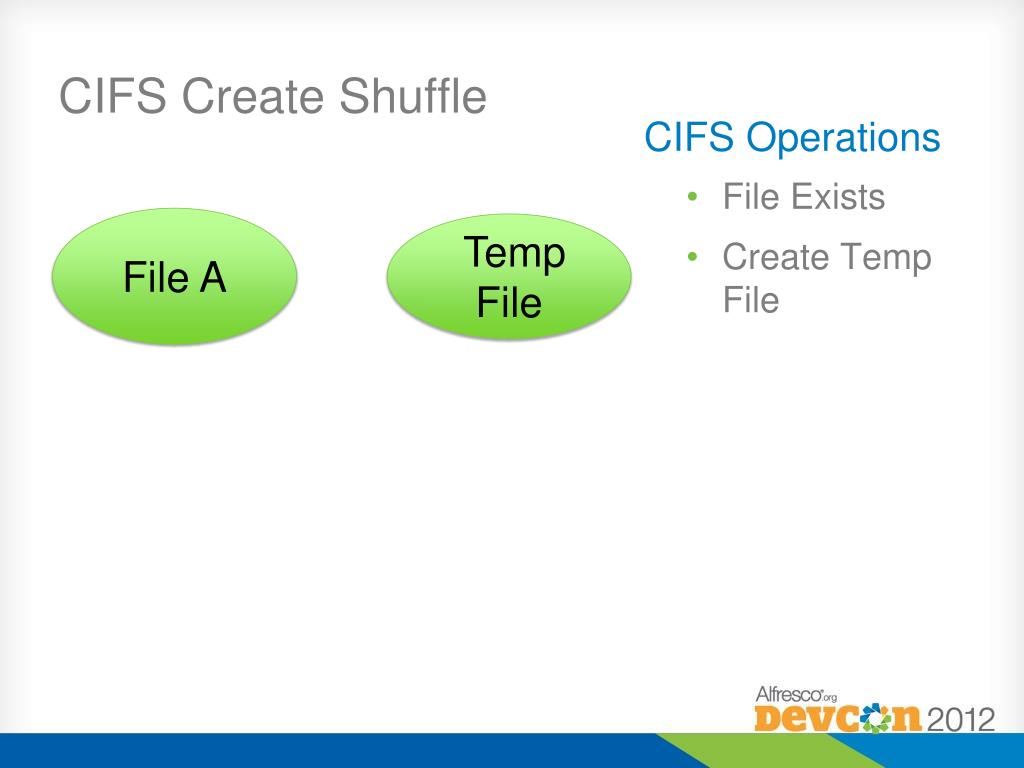

Cifs create shuffle1

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

    • Create Temp File

File A

Temp File

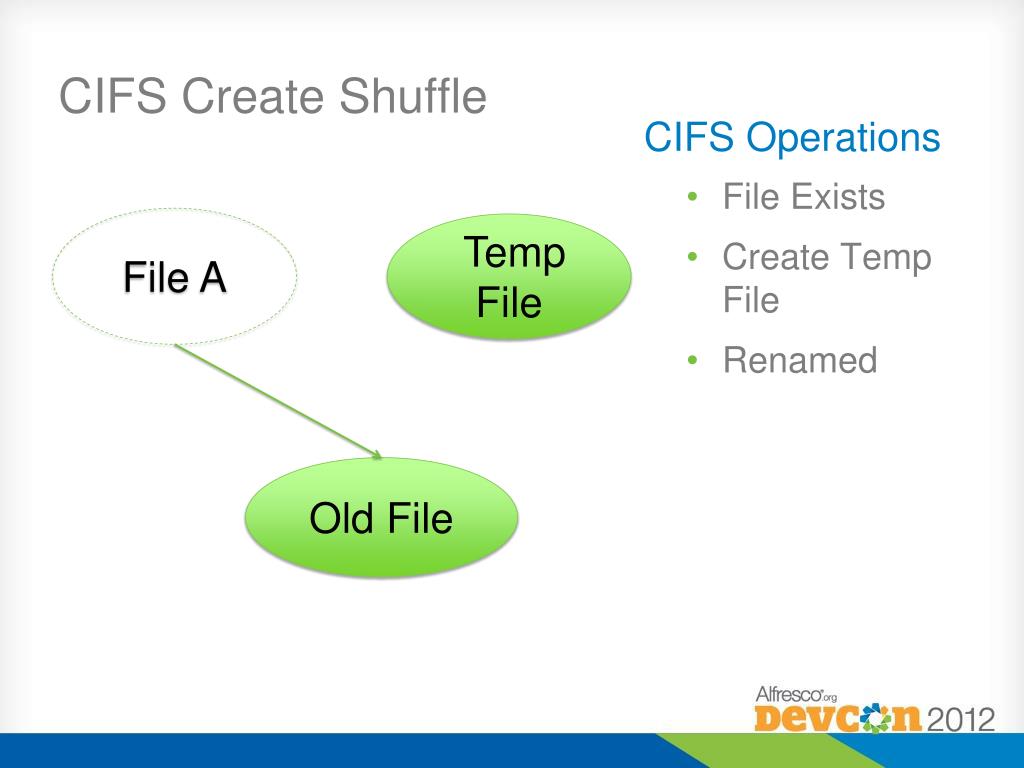

Cifs create shuffle2

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

    • Create Temp File

    • Renamed

File A

Temp File

Old File


Cifs create shuffle3

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

    • Create Temp File

    • Renamed

    • Temp File

      moved into place

File A

Temp File

Old File


Cifs create shuffle4

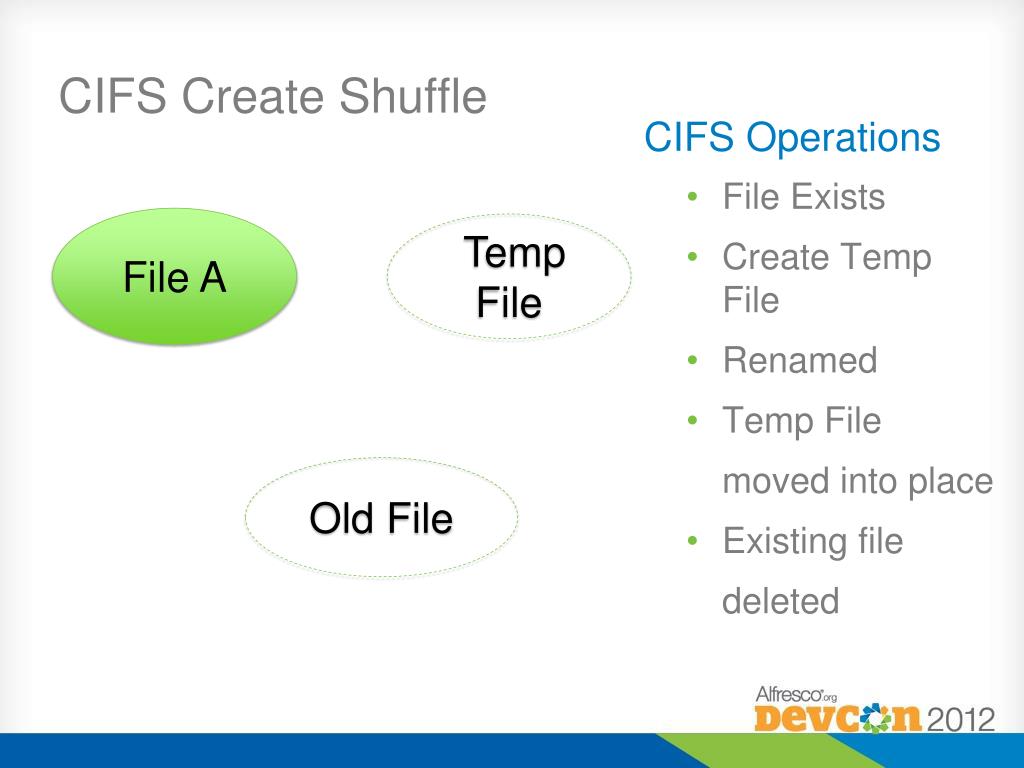

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

    • Create Temp File

    • Renamed

    • Temp File

      moved into place

    • Existing file

      deleted

File A

Temp File

Old File


Issues

Issues


Cifs and alfresco

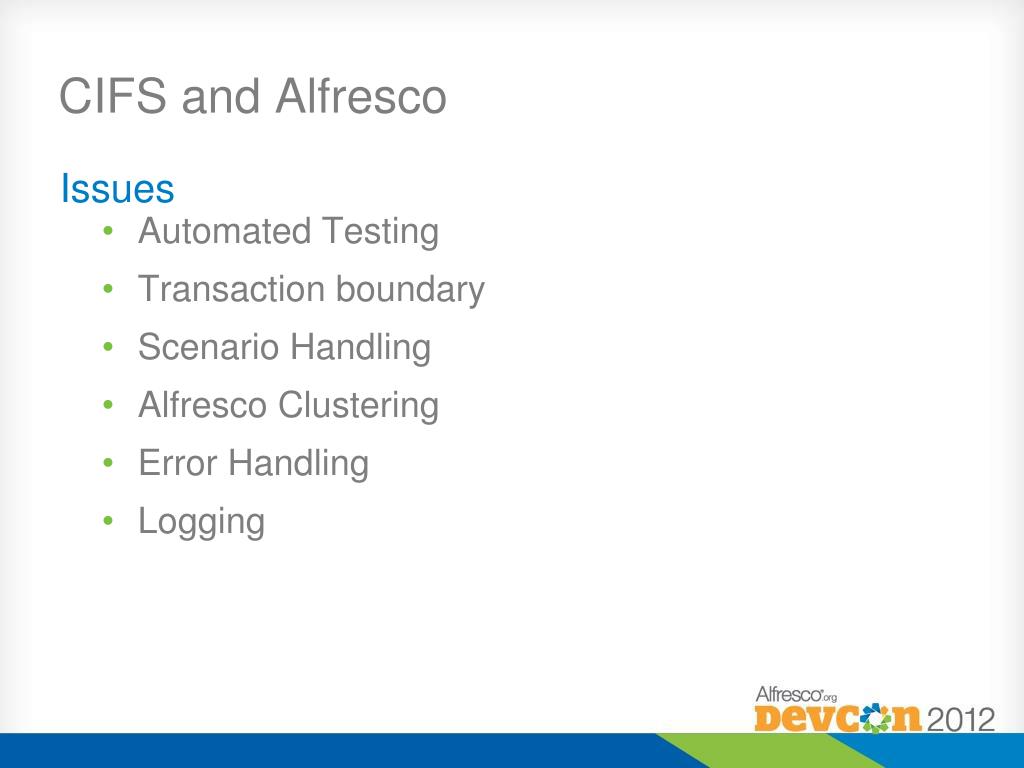

CIFS and Alfresco

  • Issues

    • Automated Testing

    • Transaction boundary

    • Scenario Handling

    • Alfresco Clustering

    • Error Handling

    • Logging

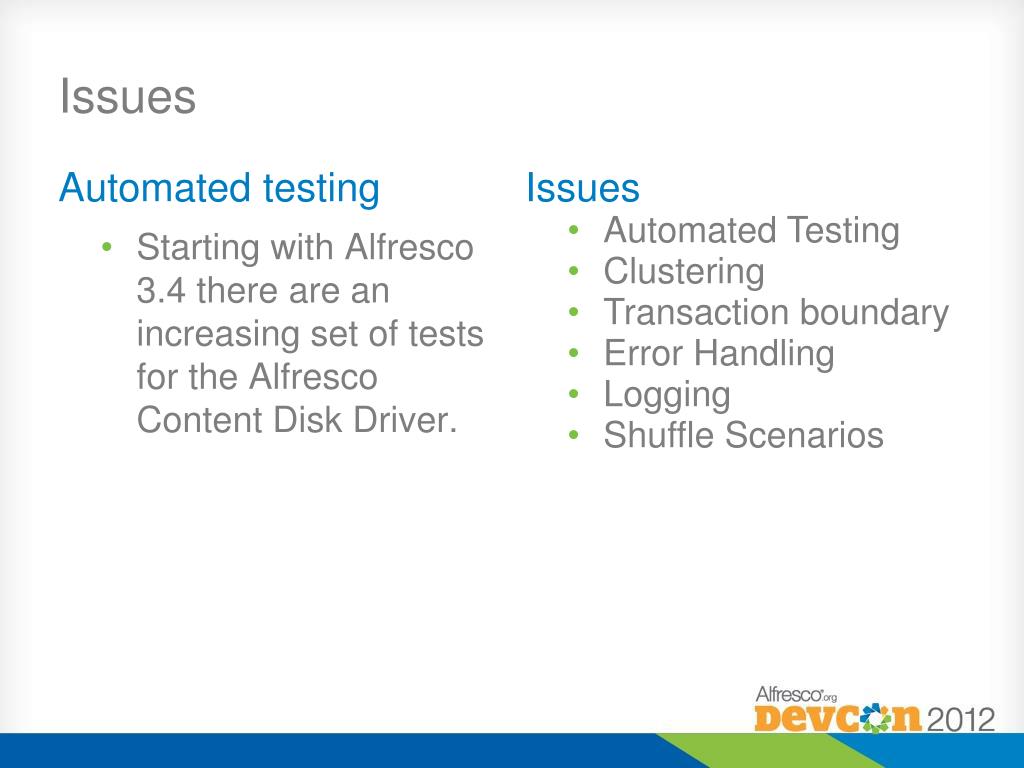

Issues1

Issues

  • Automated testing

    • Starting with Alfresco 3.4 there are an increasing set of tests for the Alfresco Content Disk Driver.

  • Issues

    • Automated Testing

    • Clustering

    • Transaction boundary

    • Error Handling

    • Logging

    • Shuffle Scenarios

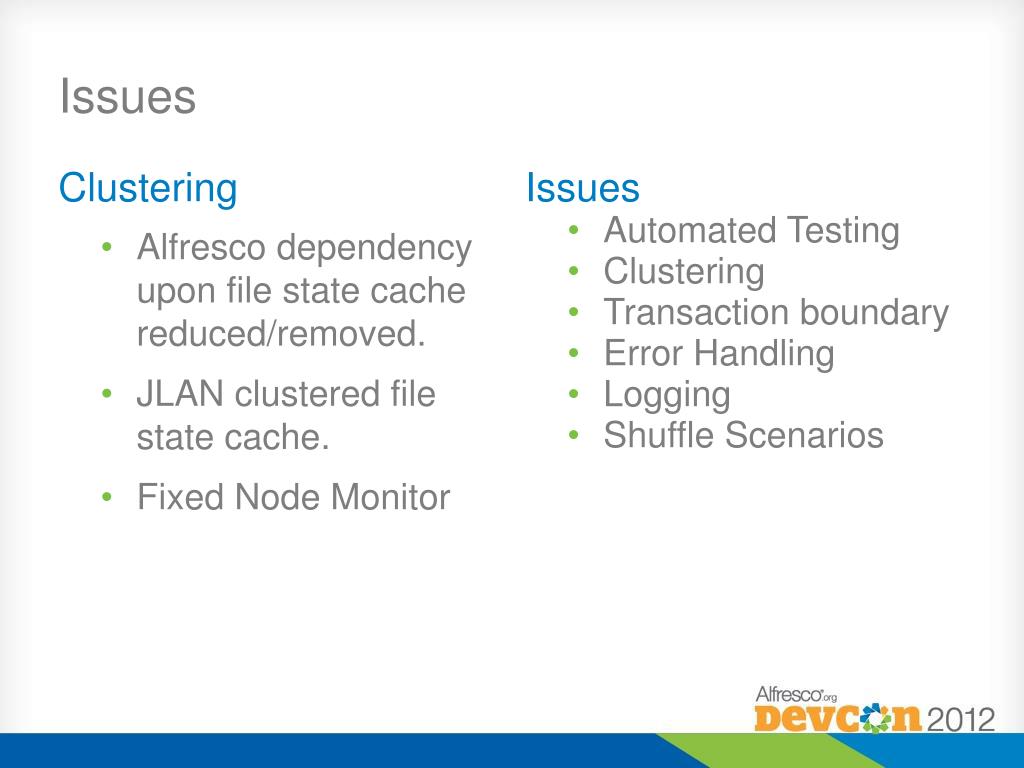

Issues2

Issues

  • Clustering

    • Alfresco dependency upon file state cache reduced/removed.

    • JLAN clustered file state cache.

    • Fixed Node Monitor

  • Issues

    • Automated Testing

    • Clustering

    • Transaction boundary

    • Error Handling

    • Logging

    • Shuffle Scenarios

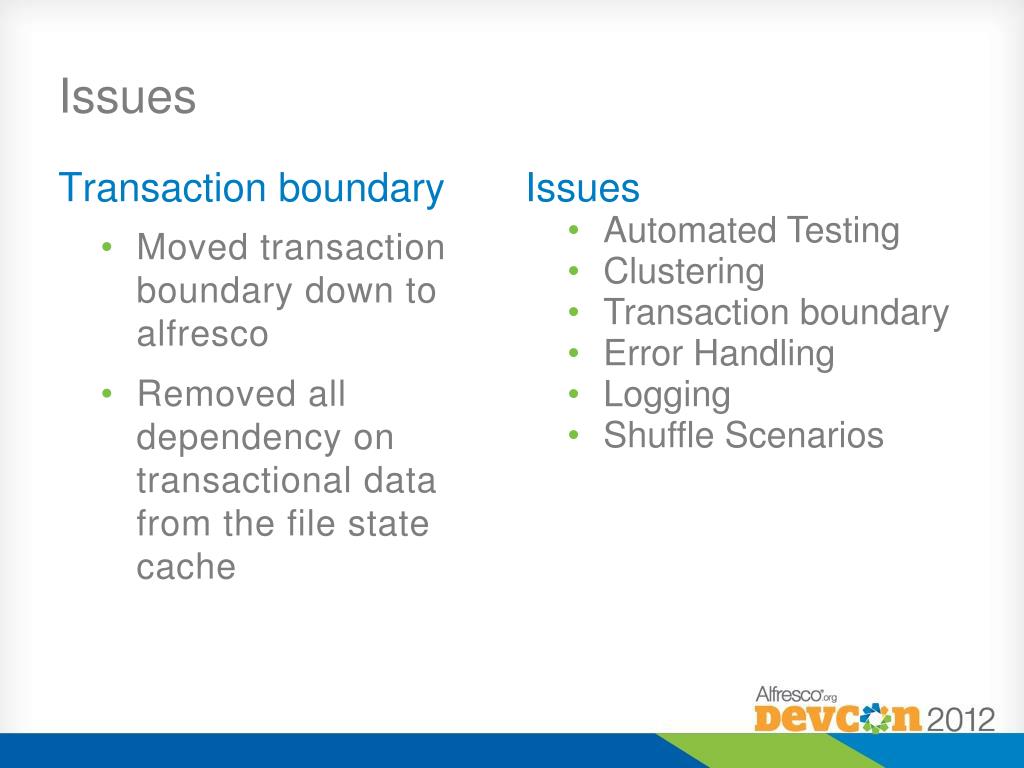

Issues3

Issues

  • Transaction boundary

    • Moved transaction boundary down to alfresco

    • Removed all dependency on transactional data from the file state cache

  • Issues

    • Automated Testing

    • Clustering

    • Transaction boundary

    • Error Handling

    • Logging

    • Shuffle Scenarios


Issues4

Issues

  • Error Handling

    • Rework

  • Issues

    • Automated Testing

    • Clustering

    • Transaction boundary

    • Error Handling

    • Logging

    • Shuffle Scenarios


Issues5

Issues

  • Logging

    • “Alfresco style” log4j logging for Disk Driver and other alfresco code.

  • Issues

    • Automated Testing

    • Clustering

    • Transaction boundary

    • Error Handling

    • Logging

    • Shuffle Scenarios


Issues6

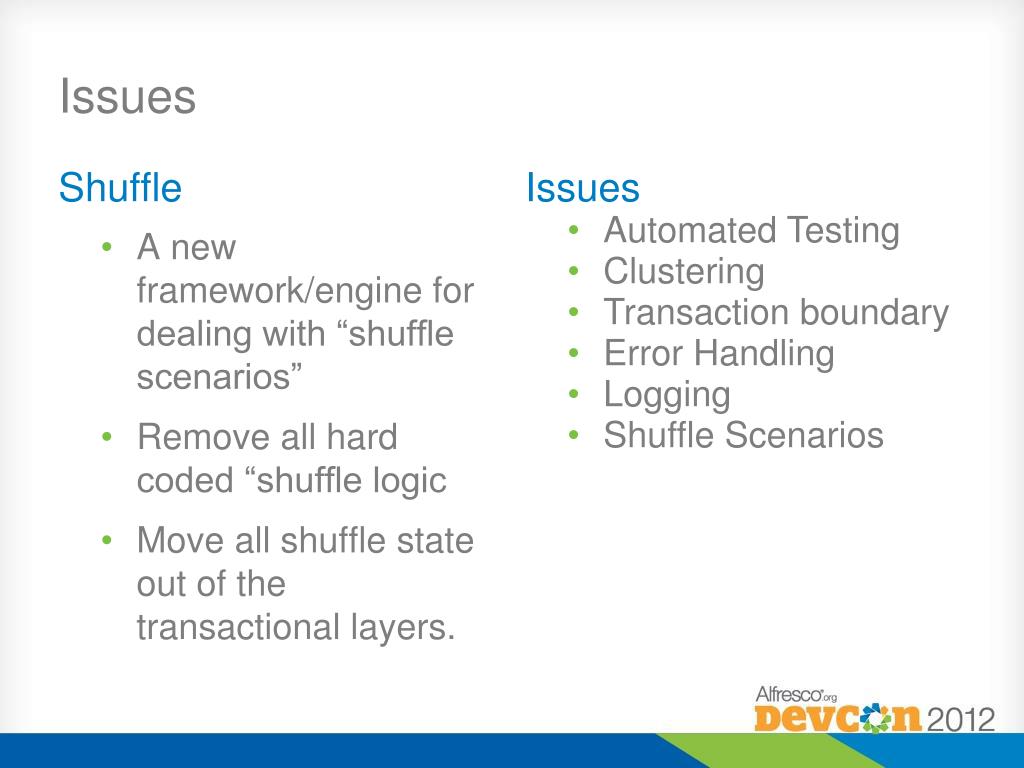

Issues

  • Shuffle

    • A new framework/engine for dealing with “shuffle scenarios”

    • Remove all hard coded “shuffle logic

    • Move all shuffle state out of the transactional layers.

  • Issues

    • Automated Testing

    • Clustering

    • Transaction boundary

    • Error Handling

    • Logging

    • Shuffle Scenarios


Cifs shuffles

CIFS Shuffles

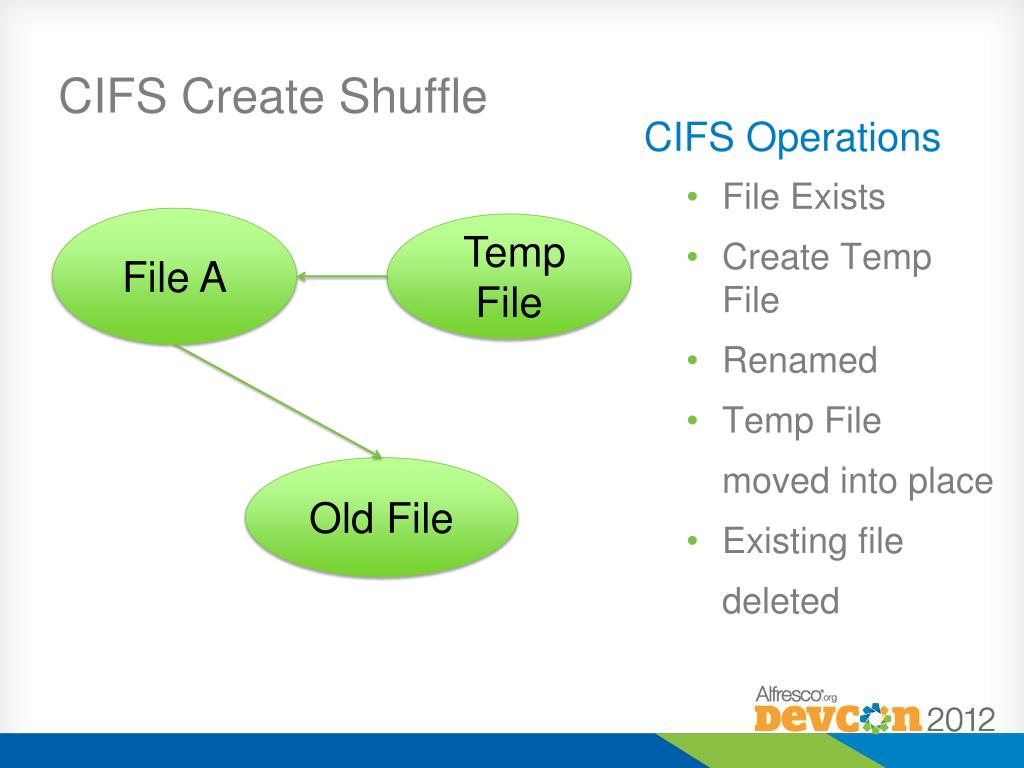

Cifs create shuffle5

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

    • Create Temp File

    • Renamed

    • Temp File

      moved into place

    • Existing file

      deleted

File A

Temp File

Old File


Cifs rename shuffle

CIFS Rename Shuffle

  • CIFS Operations

    • File Exists

    • Rename File

    • Create New File

    • Delete Temp File

    • Scenario Fires

File A

File A ~


Cifs shuffles1

CIFS Shuffles

  • Approaches

    • The sausage machine

    • The “watchers”


Cifs shuffles2

CIFS Shuffles

  • Shuffle

    • Simple operations such as “does file A exist” need to read the cached instructions in the pipeline in addition to getting the state from the repo…

    • Data loss on crashing!

  • The sausage machine

  • CIFS Commands go into a pipeline and once we have a complete scenario we update the repo with a complete coarse grained transaction.


Cifs shuffles3

CIFS Shuffles

  • Shuffle

    • Scenarios compete

    • At the end of each command alfresco is in a known persistent state.

    • As and when scenarios fire they can “counter transact” previous behaviour.

  • The watchers

  • CIFS Commands go through a set of scenarios which say what to do. The highest priority scenario wins.

  • The scenarios contain their own state.

  • Many scenarios run at once


Cifs create shuffle6

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

File A


Cifs create shuffle7

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

    • Create Temp File

File A

Temp File


Cifs create shuffle8

CIFS Create Shuffle

1.Copy Content

  • CIFS Operations

    • File Exists

    • Create Temp File

    • Rename

    • Scenario Fires

File A

Temp File

3.Rename File A to Temp File

2.Rename temp file to Old File

Old File


Cifs create shuffle9

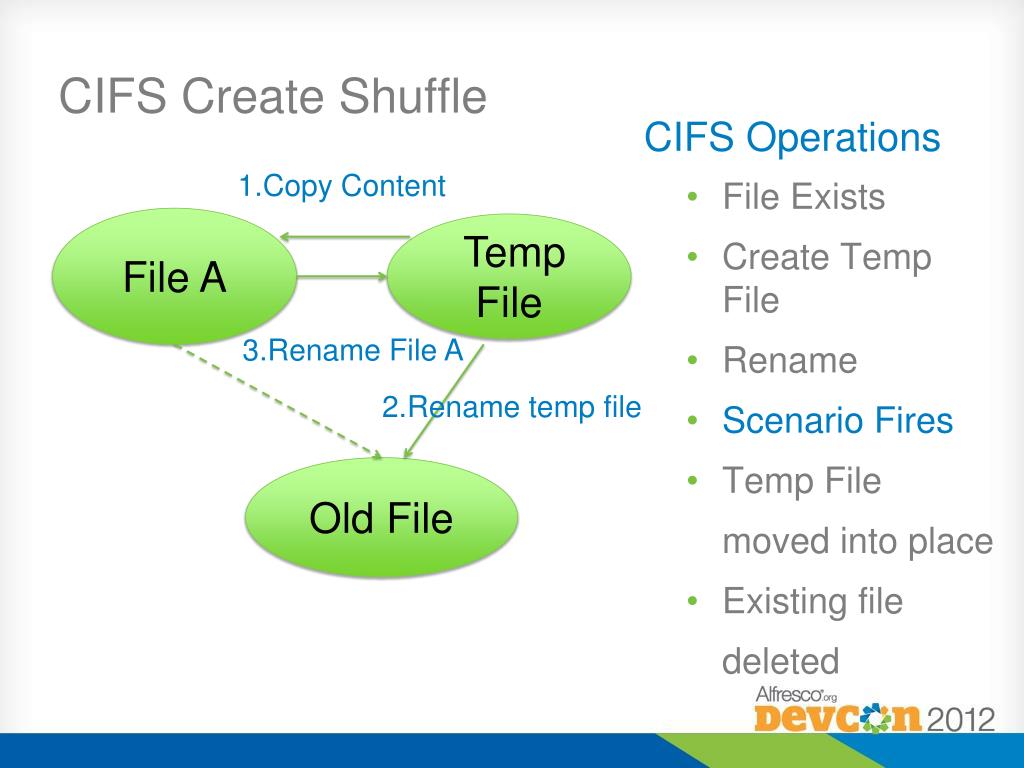

CIFS Create Shuffle

1.Copy Content

  • CIFS Operations

    • File Exists

    • Create Temp File

    • Rename

    • Scenario Fires

    • Temp File

      moved into place

    • Existing file

      deleted

File A

Temp File

3.Rename File A

2.Rename temp file

Old File

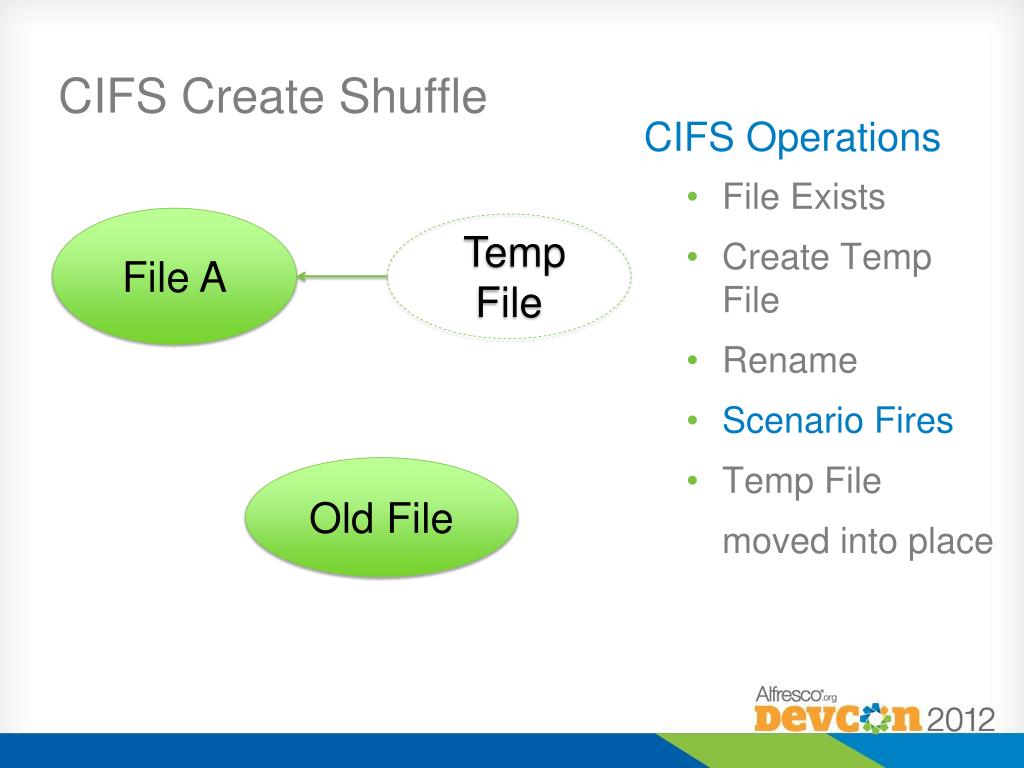

Cifs create shuffle10

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

    • Create Temp File

    • Rename

    • Scenario Fires

    • Temp File

      moved into place

File A

Temp File

Old File


Cifs create shuffle11

CIFS Create Shuffle

  • CIFS Operations

    • File Exists

    • Create Temp File

    • Rename

    • Scenario Fires

    • Temp File

      moved into place

    • Old file deleted

File A

Old File


Architecture

Architecture

JLAN

Buffered Content Disk Driver

Non Transactional Disk Driver

Rule Evaluator

Filesystem Command Executor

Scenario

Content Disk Driver 2


Cifs shuffles4

CIFS Shuffles

  • Scenarios

    • Scenario Create

    • Scenario Rename

    • Scenario Create Delete Rename

    • Scenario Double Rename

    • Scenario Open File

    • Scenario Simple Non Buffered

    • And others …


Configuration

Configuration

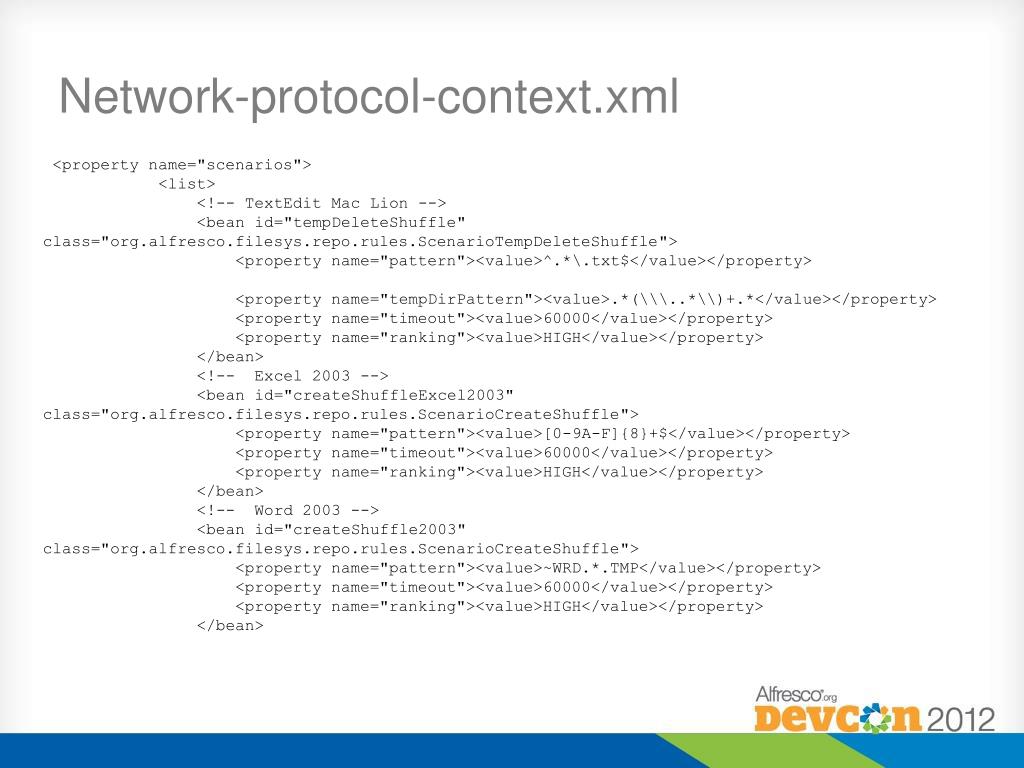

Network protocol context xml

Network-protocol-context.xml

<property name="scenarios">

<list>

<!-- TextEdit Mac Lion -->

<bean id="tempDeleteShuffle" class="org.alfresco.filesys.repo.rules.ScenarioTempDeleteShuffle">

<property name="pattern"><value>^.*\.txt$</value></property>

<property name="tempDirPattern"><value>.*(\\\..*\\)+.*</value></property>

<property name="timeout"><value>60000</value></property>

<property name="ranking"><value>HIGH</value></property>

</bean>

<!-- Excel 2003 -->

<bean id="createShuffleExcel2003" class="org.alfresco.filesys.repo.rules.ScenarioCreateShuffle">

<property name="pattern"><value>[0-9A-F]{8}+$</value></property>

<property name="timeout"><value>60000</value></property>

<property name="ranking"><value>HIGH</value></property>

</bean>

<!-- Word 2003 -->

<bean id="createShuffle2003" class="org.alfresco.filesys.repo.rules.ScenarioCreateShuffle">

<property name="pattern"><value>~WRD.*.TMP</value></property>

<property name="timeout"><value>60000</value></property>

<property name="ranking"><value>HIGH</value></property>

</bean>


Scenario instance

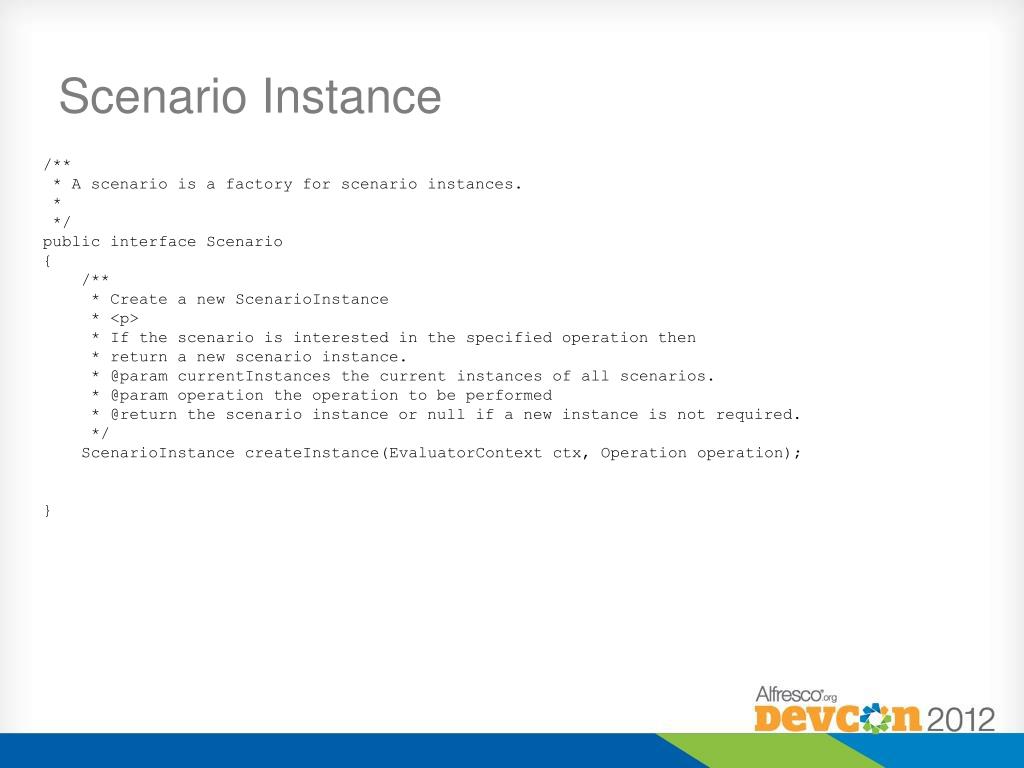

Scenario Instance

/**

* A scenario is a factory for scenario instances.

*

*/

public interface Scenario

{

/**

* Create a new ScenarioInstance

* <p>

* If the scenario is interested in the specified operation then

* return a new scenario instance.

* @paramcurrentInstances the current instances of all scenarios.

* @param operation the operation to be performed

* @return the scenario instance or null if a new instance is not required.

*/

ScenarioInstancecreateInstance(EvaluatorContextctx, Operation operation);

}

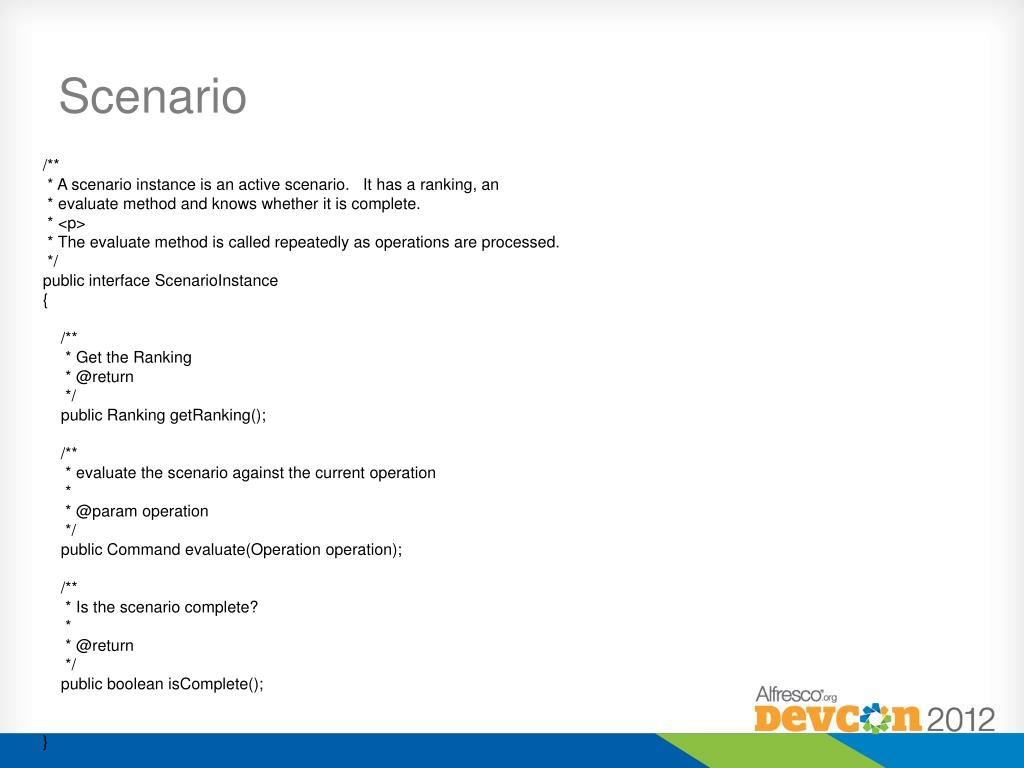

Scenario

Scenario

/**

* A scenario instance is an active scenario. It has a ranking, an

* evaluate method and knows whether it is complete.

* <p>

* The evaluate method is called repeatedly as operations are processed.

*/

public interface ScenarioInstance

{

/**

* Get the Ranking

* @return

*/

public Ranking getRanking();

/**

* evaluate the scenario against the current operation

*

* @param operation

*/

public Command evaluate(Operation operation);

/**

* Is the scenario complete?

*

* @return

*/

public booleanisComplete();

}


Lunch

Lunch !


  • Login
