Overview. Getting data into ArcView Displaying themes Theme display properties _. Getting data into ArcView. Theme feature types Spatial data sources for themes Additional data sources for themes Creating a view Adding a feature theme to a view Adding an image theme to a view

Download Presentation

Overview

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Overview

  • Overview

Getting data into ArcView

Displaying themes

Theme display properties_


Overview

  • Getting data into ArcView

Theme feature types

Spatial data sources for themes

Additional data sources for themes

Creating a view

Adding a feature theme to a view

Adding an image theme to a view

Adding a theme from x,y coordinates

Theme tables

Saving a project_


Overview

  • Getting data into ArcView

    • Theme feature types

points (e.g., wells, utility poles, bird nests),

lines (e.g., roads, streams, utility lines),

polygons (e.g., cities, forest stands, sections, counties),

images (photographic, satellite, raster grids)

Each different feature type is represented with different symbology._


Overview

  • Getting data into ArcView

    • Spatial data sources for themes

ArcView shapefiles

ARC/INFO coverages

ARC/INFO map librarian or ArcStorm database libraries

computer aided design (CAD) files

Spatial Database Engine (SDE) connections_


Overview

  • Getting data into ArcView

    • Additional raster data sources for themes

  • ERDAS Imagine

  • Generic image formats

    • BSQ (band sequential),

    • BIL (band interleave by line), and

    • BIP (band interleave by pixel)

  • Sun raster files

  • BMP

  • Run-length compressed (RLC) files

  • JPEG compressed images

  • ARC/INFO's image catalogue

  • ARC/INFO grid

  • Generic raster (ASCII, binary)

  • USGS digital elevation model (DEM)_


Overview

  • Getting data into ArcView

    • Additional tabular data sources for themes

SQL database queries

dBASE tables

INFO tables

Comma or tab delimited ASCII files_


Overview

  • Getting data into ArcView

    • Creating a view


Overview

  • Getting data into ArcView

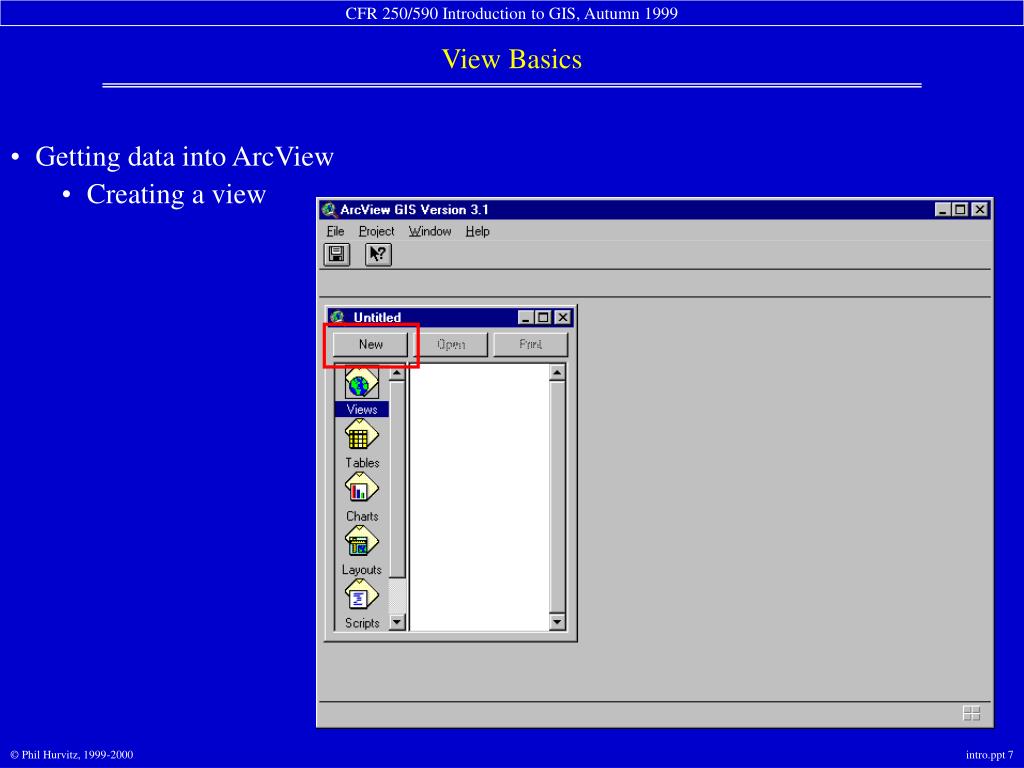

    • Creating a view


Overview

  • Getting data into ArcView

    • Adding a feature theme to a view


Overview

  • Getting data into ArcView

    • Adding a feature theme to a view


Overview

  • Getting data into ArcView

    • Adding a feature theme to a view


Overview

  • Getting data into ArcView

    • Adding an image theme to a view


Overview

  • Getting data into ArcView

    • Adding an image theme to a view


Overview

  • Getting data into ArcView

    • Adding an image theme to a view


Overview

  • Getting data into ArcView

    • Adding a theme from x,y coordinates


Overview

  • Getting data into ArcView

    • Theme tables

Shape

Geometry fields

Identification fields

User attribute fields

Entity fields


Overview

  • Getting data into ArcView

    • Saving a project

“Save EARLY and OFTEN”_


Overview

  • Displaying themes

    • Why alter theme display?

    • What do you want to communicate?


Overview

single symbol

  • Displaying themes

    • Thematic mapping


Overview

unique value

  • Displaying themes

    • Thematic mapping


Overview

graduated color

  • Displaying themes

    • Thematic mapping


Overview

chart symbol

  • Displaying themes

    • Thematic mapping


Overview

dot density

  • Displaying themes

    • Thematic mapping


Overview

graduated symbol

  • Displaying themes

    • Thematic mapping


Overview

natural breaks

  • Displaying themes

    • Classification methods


Overview

quantile

  • Displaying themes

    • Classification methods


Overview

equal interval

  • Displaying themes

    • Classification methods


Overview

equal area

  • Displaying themes

    • Classification methods


Overview

standard deviation

  • Displaying themes

    • Classification methods


Overview

population

  • Displaying themes

    • Normalization of data

      • percentage or proportion


Overview

population / area (density)

  • Displaying themes

    • Normalization of data

      • percentage or proportion


Overview

10 classes

  • Displaying themes

    • Manipulating classes


Overview

3 classes with custom labels

  • Displaying themes

    • Manipulating classes


Overview

  • Displaying themes

    • Altering legends


Overview

fill palate

  • Displaying themes

    • Changing symbols

changes solid fill symbols


Overview

pen palate

  • Displaying themes

    • Changing symbols

changes line symbols


Overview

marker palate

  • Displaying themes

    • Changing symbols

changes point marker symbols


Overview

font palate

  • Displaying themes

    • Changing symbols

changes solid fonts


Overview

color palate

  • Displaying themes

    • Changing symbols

changes colors of

  • foreground,

  • background,

  • outline, and

  • text


Overview

palate manager

  • Displaying themes

    • Changing symbols

loads, saves, manages allpalettes


Overview

  • Defining theme properties

Defining theme subsets

Setting scale thresholds

Labeling theme features

Locking theme properties_


Overview

  • Defining theme properties

    • Defining theme subsets


Overview

  • Defining theme properties

    • Setting scale thresholds


Overview

  • Defining theme properties

    • Setting scale thresholds


Overview

  • Defining theme properties

    • Setting scale thresholds


Overview

  • Defining theme properties

    • Labeling theme features


Overview

  • Defining theme properties

    • Locking theme properties
