Presentation Transcript


Ks4 chemistry

KS4 Chemistry

Ionic Bonding


Full electron shells

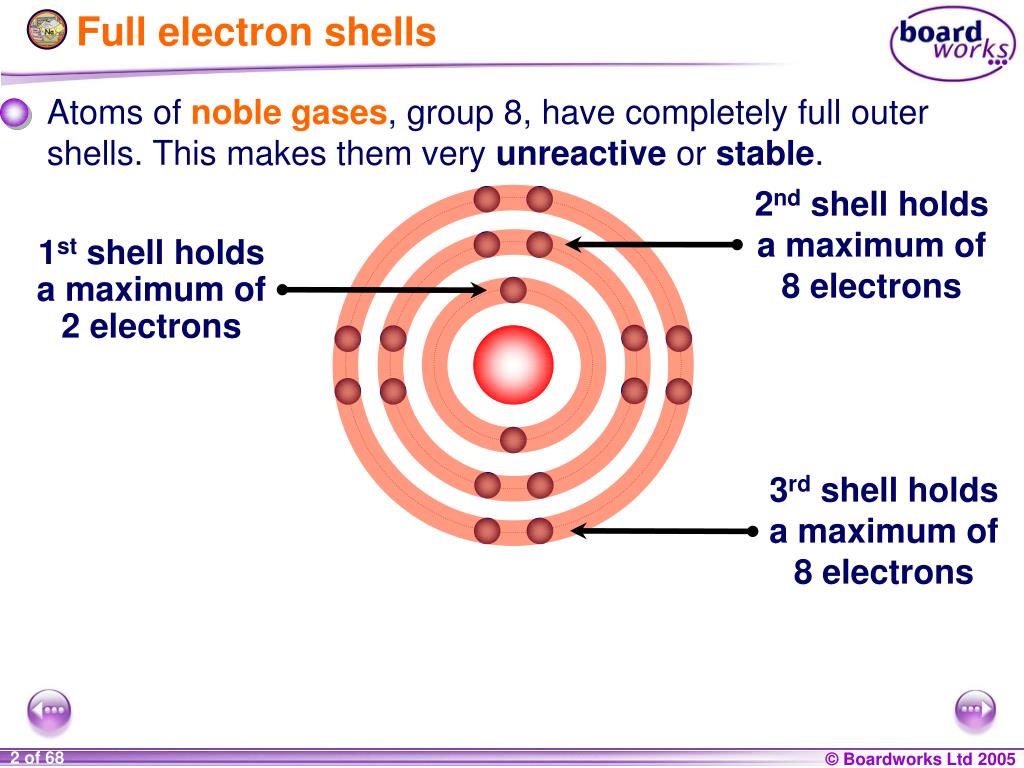

Full electron shells

2nd shell holdsa maximum of8 electrons

1st shell holdsa maximum of2 electrons

3rd shell holdsa maximum of8 electrons

Atoms of noble gases, group 8, have completely full outer shells. This makes them very unreactive or stable.


Atoms and electron changes

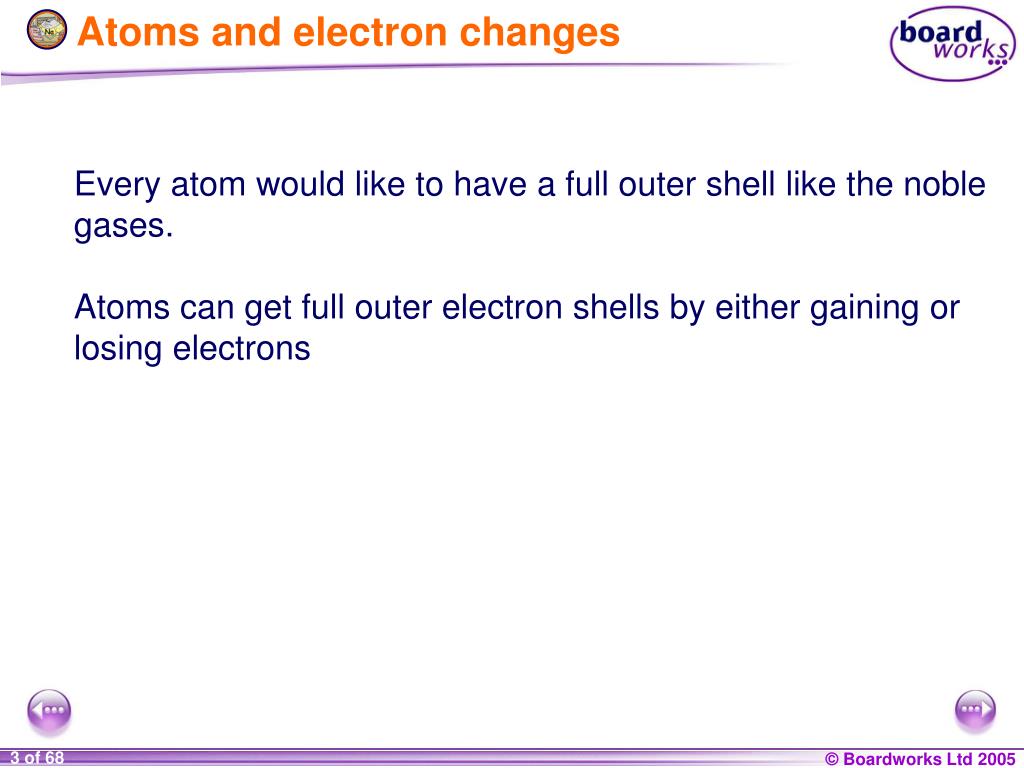

Atoms and electron changes

Every atom would like to have a full outer shell like the noble gases.

Atoms can get full outer electron shells by either gaining or losing electrons


From atoms to ions

From atoms to ions

How can reactive metal atoms become stable positive ions?


Bonding example 1

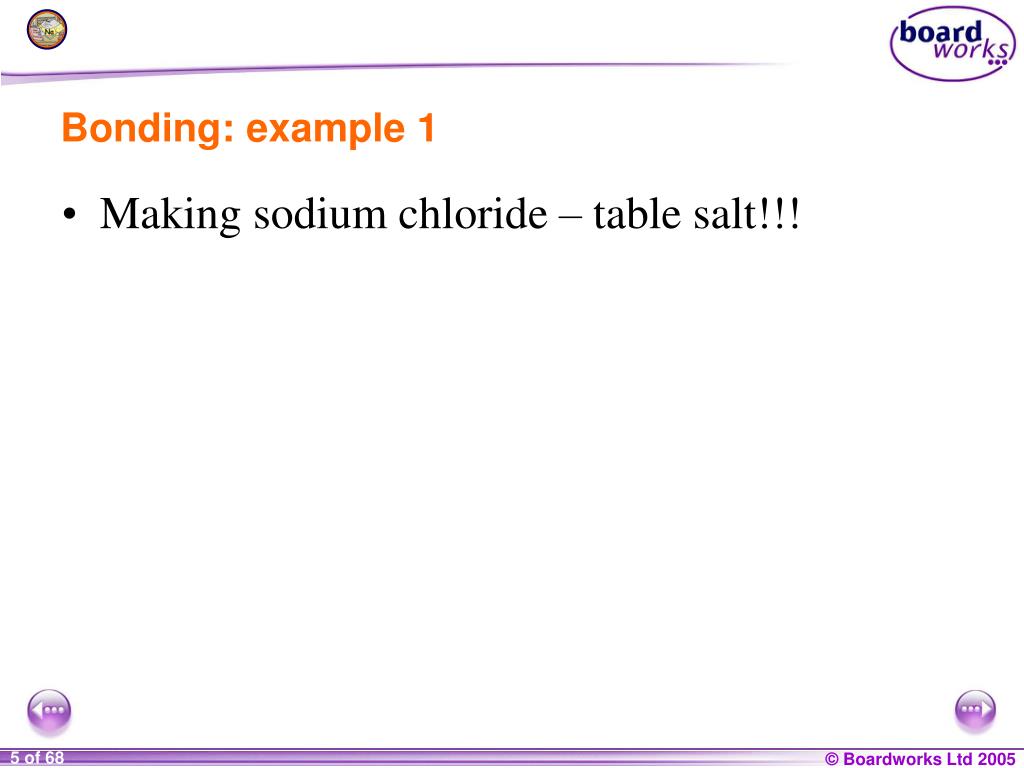

Bonding: example 1

Making sodium chloride – table salt!!!


Ks4 chemistry

What would a chlorine atom have to do to have a stable electron configuration like a noble gas?

It will have to gain an electron!!!


Ks4 chemistry

What would a sodium atom have to do to have a stable electron configuration like a noble gas?

It will have to lose an electron!!!


Ks4 chemistry

Can you think of a way that chlorine could gain an electron and sodium could lose an electron?


Ks4 chemistry

Sodium gives an electron to chlorine!!!


Ks4 chemistry

Once this happens both of the atoms will now be ions and will each have a charge!!


The oppositely charged ions attract each other and form an ionic bond

The oppositely charged ions attract each other and form an ionic bond!!


Key definitions

Key definitions

An ionic bond is formed when ions that have opposite charges attract


Formation of an ionic bond

Formation of an ionic bond


Ionic lattices

Ionic lattices

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

In an ionic compound, millions and millions of ions are packed all joined by ionic bonds

-

-

-

+

+

+

-

-

-

+

+

+

-

-

-

+

+

+

-

-

-

+

+

+

-

-

-

+

+

+


Bonding example 2

Bonding example 2

Making Magnesium oxide


What would magnesium need to do to get a stable full outer shell

What would magnesium need to do to get a stable full outer shell?

Mg


Ks4 chemistry

O

What would oxygen need to do to get a stable full outer shell?


Can you think of a way that magnesium could lose two electrons and oxygen could gain two electrons

Can you think of a way that Magnesium could lose two electrons and oxygen could gain two electrons?

O

Mg

Magnesium gives two electrons to oxygen!


Once this happens the magnesium and oxygen atoms each get charge and become ions of opposite charge

Once this happens the Magnesium and Oxygen atoms each get charge and become ions of opposite charge

2+

2-

O

Mg

[2.8]2+

[2.8]2-

2.8.2

2.6


Magnesium oxide part 2

Magnesium oxide: part 2

O

Mg

The positive magnesium ions and the negative oxygen ions are strongly attracted to each other and form an ionic bond.

-2

+2


Ionic lattices1

Ionic lattices

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

-

-

-

-

-

-

+

+

+

+

+

+

In an ionic compound, millions and millions of ions are packed together in a regular cubic arrangement, joined by ionic bonds..

-

-

-

+

+

+

-

-

-

+

+

+

-

-

-

+

+

+

-

-

-

+

+

+

-

-

-

+

+

+


Formation of an ionic bond1

Formation of an ionic bond


Multiple choice quiz

Multiple-choice quiz


Compounds

Compounds

H

O

H

Compounds are made up of two OR MORE different elements chemically combined

Example: water – H20

Others compounds, like DNA, have large, complex structures containing thousands or even millions of bonded atoms.
