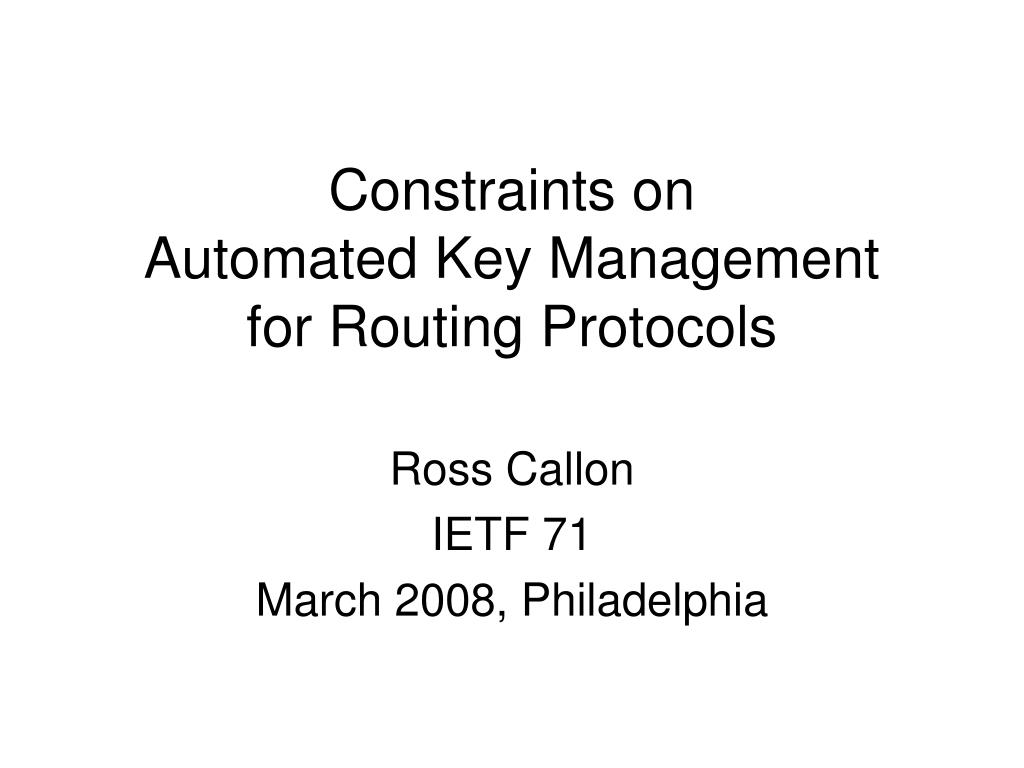

  1. Constraints on Automated Key Managementfor Routing Protocols Ross Callon IETF 71 March 2008, Philadelphia

  2. AKM for Routing Protocols • Link State protocol constraints • Bootstrapping the routing protocol • Operation over Broadcast Media • Don’t take down the network • Simplicity and Comprehensibility

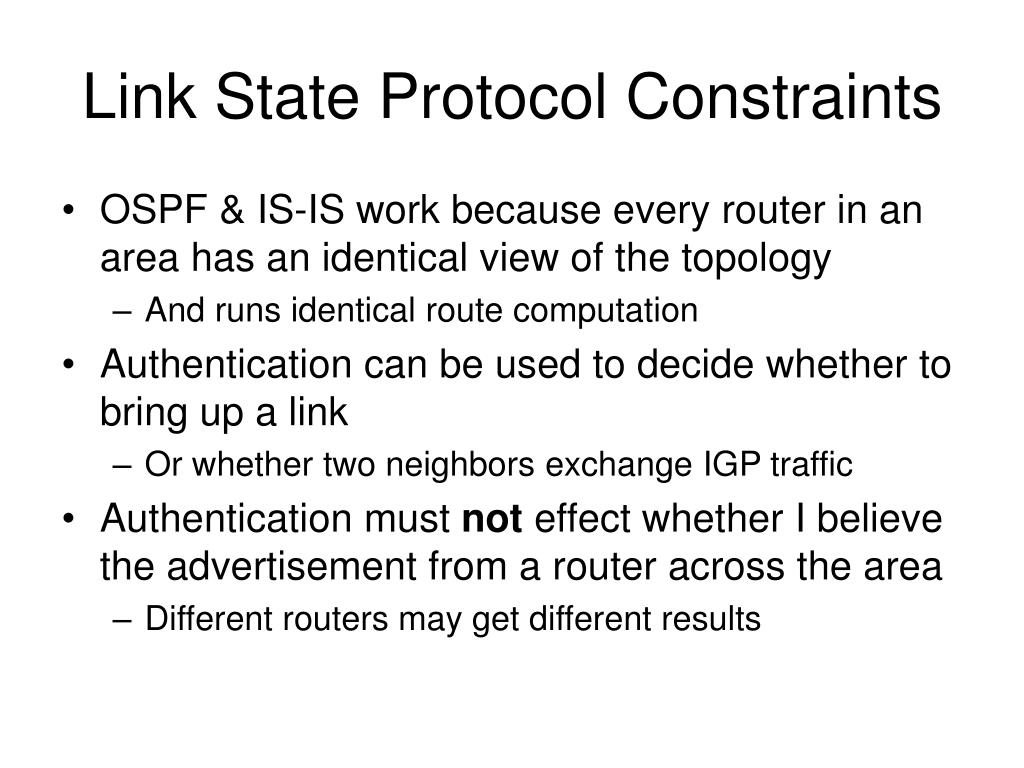

  3. Link State Protocol Constraints • OSPF & IS-IS work because every router in an area has an identical view of the topology • And runs identical route computation • Authentication can be used to decide whether to bring up a link • Or whether two neighbors exchange IGP traffic • Authentication must not effect whether I believe the advertisement from a router across the area • Different routers may get different results

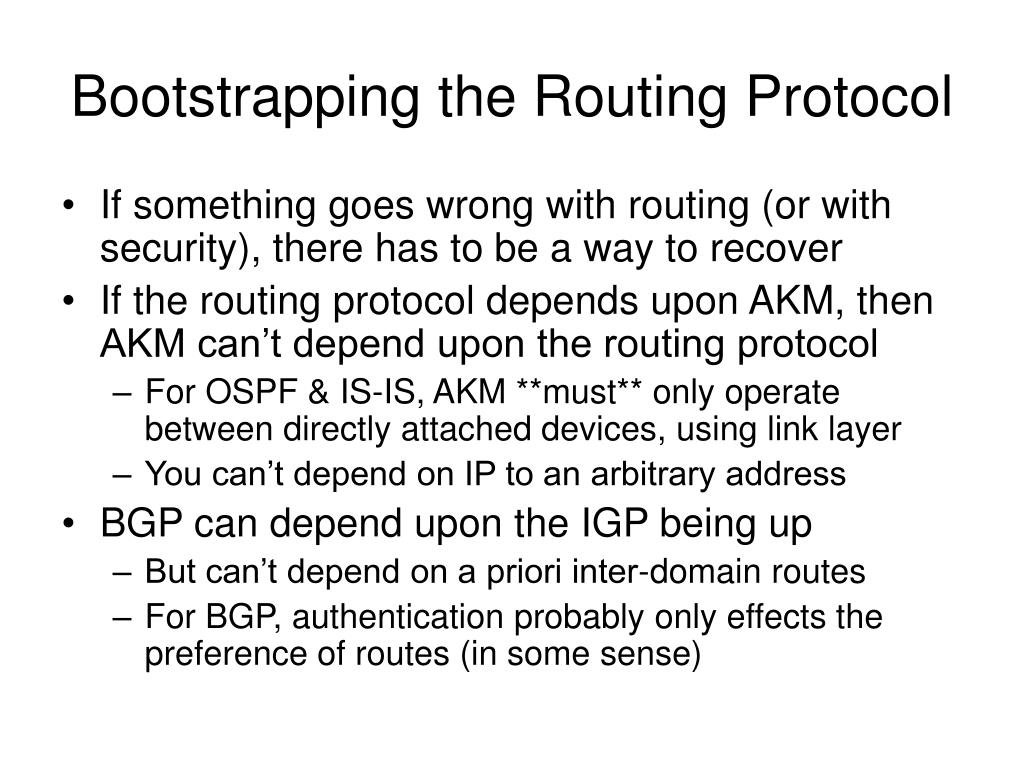

  4. Bootstrapping the Routing Protocol • If something goes wrong with routing (or with security), there has to be a way to recover • If the routing protocol depends upon AKM, then AKM can’t depend upon the routing protocol • For OSPF & IS-IS, AKM **must** only operate between directly attached devices, using link layer • You can’t depend on IP to an arbitrary address • BGP can depend upon the IGP being up • But can’t depend on a priori inter-domain routes • For BGP, authentication probably only effects the preference of routes (in some sense)

  5. Broadcast Media • OSPF / IS-IS / RIP operate over broadcast media (eg, Ethernet) • A router on a broadcast LAN uses link layer multicast to send one packet to multiple other routers on the same LAN • AKM will need to operate over the LAN • And provide a key that one router can use to send a single packet to multiple other routers

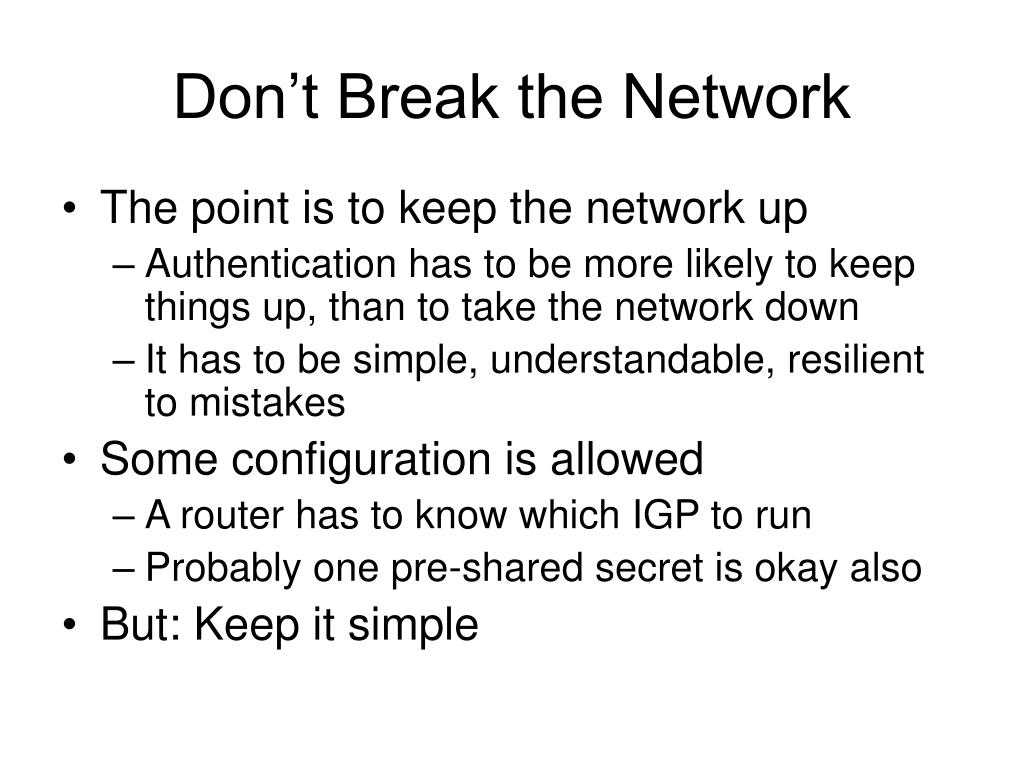

  6. Don’t Break the Network • The point is to keep the network up • Authentication has to be more likely to keep things up, than to take the network down • It has to be simple, understandable, resilient to mistakes • Some configuration is allowed • A router has to know which IGP to run • Probably one pre-shared secret is okay also • But: Keep it simple

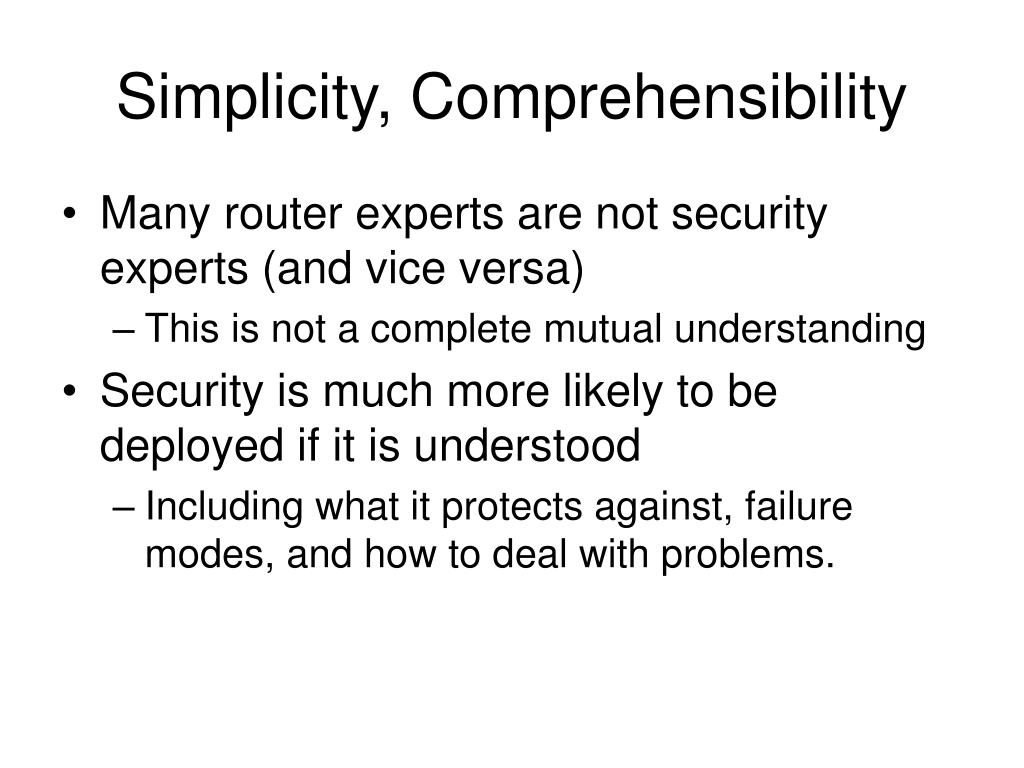

  7. Simplicity, Comprehensibility • Many router experts are not security experts (and vice versa) • This is not a complete mutual understanding • Security is much more likely to be deployed if it is understood • Including what it protects against, failure modes, and how to deal with problems.

  8. Summary • It has to work • It (AKM for RPs) has to bootstrap • It has to work over broadcast LANs • It has to be simple, foolproof • It has to solve a perceived problem • Requirements may differ by protocol (OSPF, IS-IS, RSVP, LDP, UDP, TCP for BGP, TCP for not-BGP, …)
