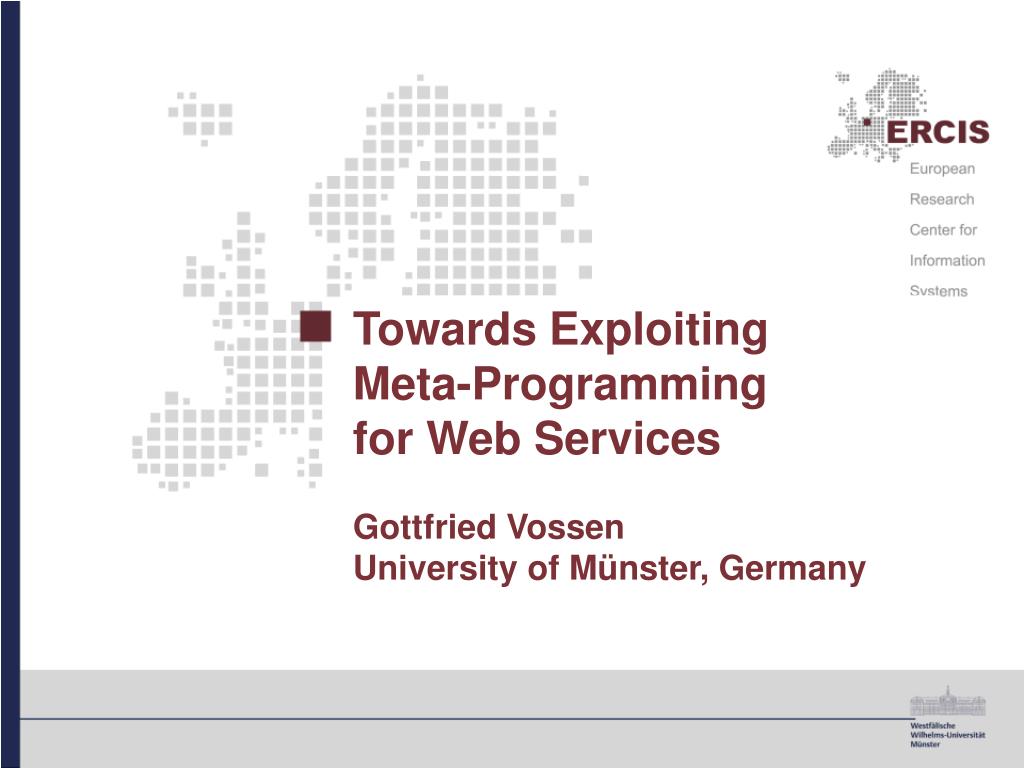

Towards ExploitingMeta-Programmingfor Web ServicesGottfried VossenUniversity of Münster, Germany



  • Background: PL and DB getting back together again

  • Ways to integrate data and programs(to “meta-program” databases)

  • “Service-SQL”: SQL at your (web) service



  • Stonebraker: QUEL as a data type (1984)

  • Gray, Turing award speech (1993)

  • Asilomar Report (1998)

  • Gray & Compton: A Call to Arms, ACM Queue (2005)

    Treat procedural data as data (not as text); give up the separation of data and programs!

    Done already in data dictionaries, OR databases, active databases, web logs, …

Approach i

Approach I

  • The sky is the limit: the Reflective Algebra

    • Data in data relations, programs (RA expressions) in separate program relations (over a generic format)

    • Allows to compute the PTIME queries (since program relations can be created and evaluated dynamically)

    • Enables novel search facilities on the web

    • Catches: untyped setting, languages difficult to use

    • Refs: PODS ’93 & JCSS ’96also ADBIS ’00 & IDEAS ´00

Approach ii

Approach II

  • Getting real: the Meta Algebra

    • type-safe language closer to classical algebra

    • “meta” relations can hold queries and data

    • manipulation thru new operators for query columns such as extract, rewrite, eval

    • allows for elegant and concise querying

    • catch: modern DBMS allow for even more elegant things

    • refs: PODS ’98 & Information Systems ’99

Approach iii

Approach III

  • Getting practical: Meta-SQL

    • combining meta querying and XML “nicely”

    • idea: stay declarative, i.e., with SQL, but exploit modern DBMS functionality (external functions, XML as a data type)

    • queries stored in “query columns”, but as XML syntax trees

    • rewrite, extract, etc. done through XSLT functions

    • eval implemented on top

    • refs: EDBT ’04 & Information Systems ’05

Joint work with Jan Van den Bussche, Frank Neven, Stijn Vansummeren

Meta query samples

Meta-Query Samples

  • Which queries in the log do the most joins?Syntactical; queries stored query expressions

  • Which queries in the log return an empty answer on the current state of the database?Semantical; answer depends on result of dynamic execution

  • In each query in the log, replace each view name by its definition from the catalog.Syntactical; performs transformations

  • Given new view definitions, which stored queries now give new answers?Syntactical and semantical

Encoding sql queries in xml

Encoding SQL Queries in XML

select director, avg(rating) as avgrat from Movies group by director

<query><select> <sel-item> <column>director</column></sel-item><sel-item> <aggregate><avg/> <column-ref><column>rating</column></column-ref> </aggregate> <alias>avgrat</alias></sel-item></select><from><table-ref> <table>Movies</table> </table-ref></from><group-by> <column-ref> <column>director</column> </column-ref></group-by></query>

Foundation: Date‘s BNF grammar for SQL, turned into a DTD

Use of xslt

Use of XSLT

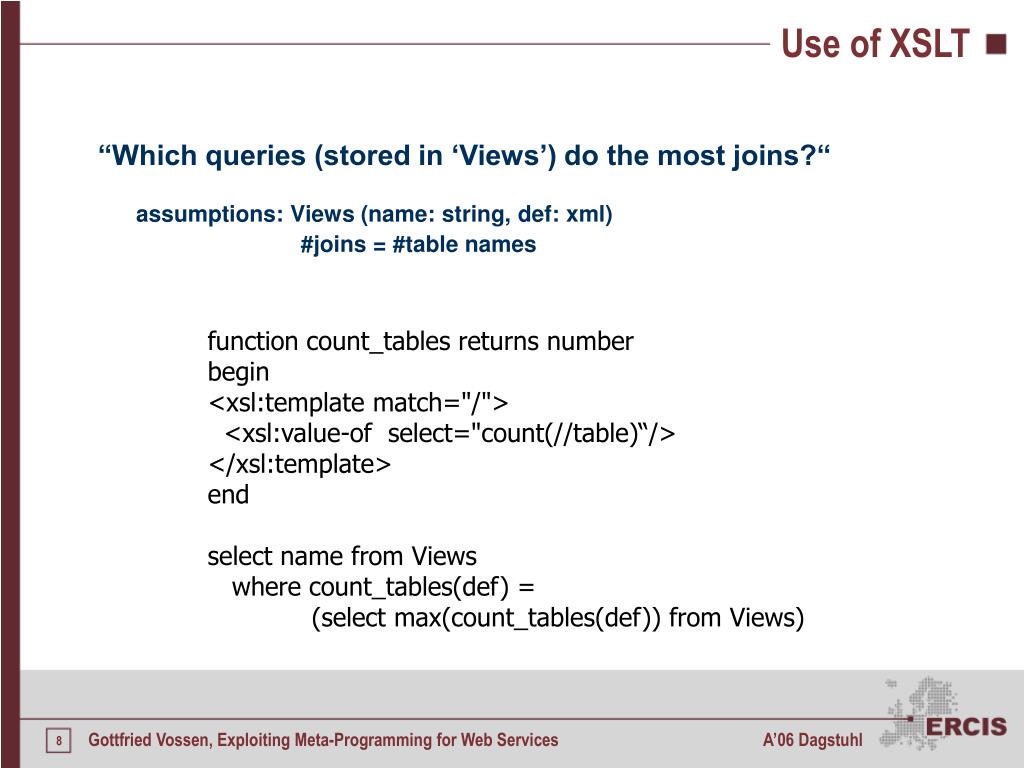

“Which queries (stored in ‘Views’) do the most joins?“assumptions: Views (name: string, def: xml)

#joins = #table names

function count_tables returns numberbegin<xsl:template match="/"> <xsl:value-of select="count(//table)“/></xsl:template>endselect name from Views where count_tables(def) = (select max(count_tables(def)) from Views)

Use of xslt cont d

Use of XSLT (cont‘d)

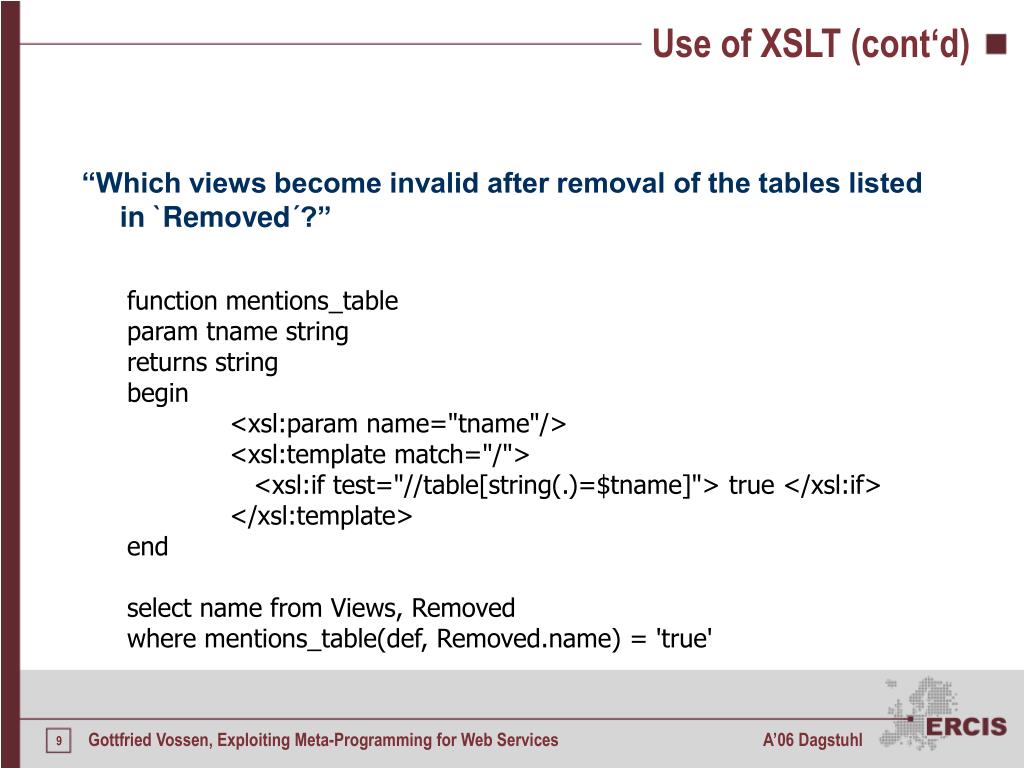

“Which views become invalid after removal of the tables listed in `Removed´?”

function mentions_tableparam tname stringreturns stringbegin<xsl:param name="tname"/><xsl:template match="/"> <xsl:if test="//table[string(.)=$tname]"> true </xsl:if></xsl:template>endselect name from Views, Removedwhere mentions_table(def, = 'true'

Tools for syntactic queries

Tools for (Syntactic) Queries

  • XML variables

    • Range over the sub-elements of an XML tree

    • Range can be narrowed by an XPath expression

    • Allow to go a from a single to a set of XML documents

  • XML aggregation

    • For combining a set of XML documents into a single one

Example extract subelements

Example: Extract Subelements

“Find all pairs (v,t) s.t. v is is a view name and t is a table name occurring in the definition of v“

function string_value returns string



select, string_value(x)

from Views v,x in v.def[//table]

returns the string value of a table subelement

Log example

Log Example

Stored queries in column Q of table Log;goal is to find “hot spots,” i.e., subqueries occurring in at least 10 different queries:

select s

from Log l, s in l.Q[//query]

group by s

having count(l.Q) >= 10

Sample semantic query

Sample Semantic Query

“On table Customer (custid: string, query: xml), (where each query returns a table with columns item, price, …) find the max price of items requested by each customer:”

EVAL returns a table

select custid, max(t.price)

from Customer c, EVAL(c.query) t

group by custid

t is a standard SQL range var

UEVAL available for cases where output schema unknown

Overview 5157095

Web Services

XML doc

SQL query



XML doc


MetaSQL query


Modeling services

Modeling Services

  • Relational Transducers (Abiteboul, Vianu et al.):

    • State of an application: relational database(schema + state transition program)

    • Interaction from outside world: input relations

    • Response of an application: output relations

  • Thus: machine maps input to output relations

  • Here: transducer represented as a database allowing meta programming

  • For simplification: SQL instead of XML

Joint work with Stephan Hagemann

Relational transducer

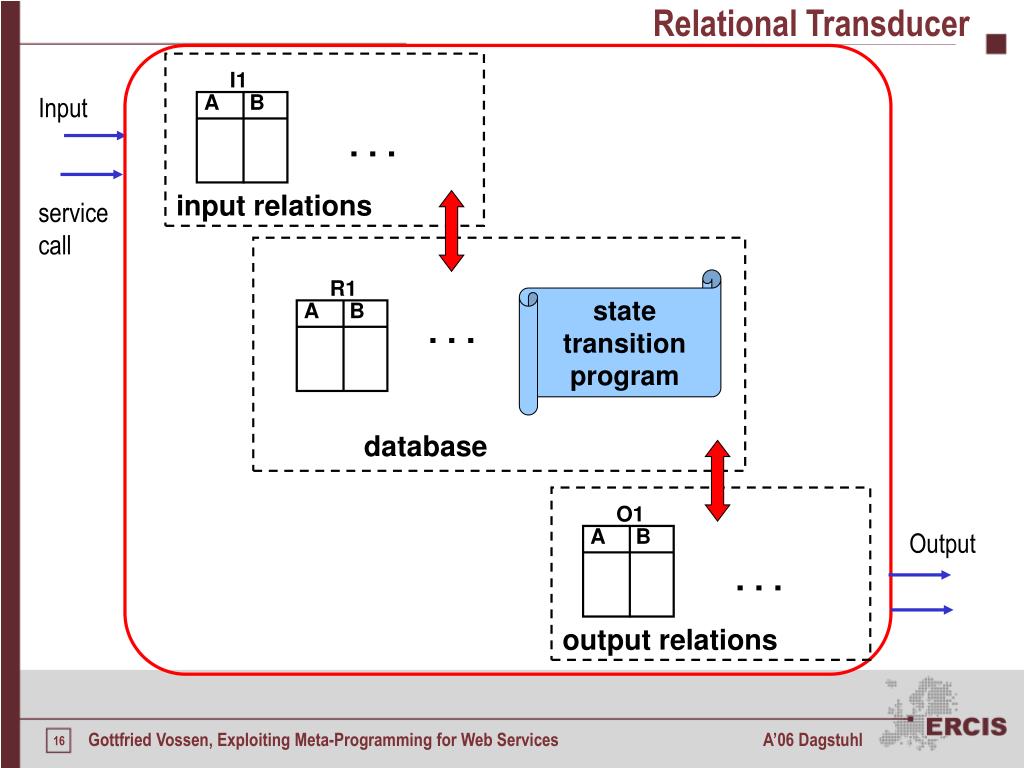

Relational Transducer


. . .

input relations



. . .



. . .

output relations










. . .

input relations



. . .



Sample transducer ordering newspapers

Sample Transducer: Ordering Newspapers

  • Relations:database: price, availableinput: order, pay, pending-billsstate: pastOrder, pastPay

    output: sendbill, deliver, unavailable rejectpay, alreadypaid, rebill

  • State rules:pastOrder(X) +:- order(X);pastPay(X, Y) +:- pay(X, Y);



  • Database  data tables

  • Input parameter tables

  • Input tuples service callsthus, we can offer order, pay, and pending-bills services

  • State status tables

  • Output not explicitly put in tables, just shown interactively

  • State rules  insertions into status tables

Servicesql supporting tables

ServiceSQL – Supporting Tables

Data Tables

Parameter Tables

Status Tables







Sample transducer cont d

Sample Transducer, cont‘d

  • Output rules: sendbill(X, Y):- order(X), price(X, Y), NOT pastPay(X,Y);deliver(X):- pastOrder(X), price(X, Y), pay(X, Y), NOT pastPay(X,Y);unavailable(X):- order(X), NOT available(X);rejectpay(X):- pay(X, Y), NOT pastOrder(X);rejectpay(X):- pay(X, Y), pastOrder(X), NOT price(X, Y);alreadypaid(X):- pay(X, Y), pastPay(X, Y);rebill(X, Y):- pending-bills, pastOrder(X), price(X, Y), NOT pastPay(X, Y).



  • Output rules select statements, to be executed in parallel

  • State transitions are services in a Services table w/

    • input parameters,

    • return values,

    • actions as SQL statements

Servicesql services table

ServiceSQL – Services Table


service is called as soon as the corresponding input relation is filled.

Servicesql services

ServiceSQL – Services

  • Code 1 – order

    • --sendbillSELECT pr.newspaper, pr.priceFROM order o, price prWHERE o.newspaper = pr.newspaper AND NOT EXISTS(SELECT * FROM pastPay pp WHERE pp.newspaper = o.newspaper AND pp.price = o.price);--unavailableSELECT o.newspaperFROM order oWHERE NOT EXISTS(SELECT * FROM available a WHERE a.newspaper = o.newspaper);--Status updateINSERT INTO pastOrder (newspaper) VALUES (SELECT * FROM order)

needs to be executed atomically!  transactional aspects

Servicesql services1

ServiceSQL – Services

  • Code 2 – pay

    • --deliverSELECT pr.newspaperFROM pay p, pastOrder po, price prWHERE p.newspaper = po.newspaper and p.newspaper = pr.newspaper and p.price = pr.price and NOT EXISTS(SELECT * FROM pastPay pp where pp.newspaper = po.newspaper and pp.price=po.price);--rejectpay 1SELECT pr.newspaperFROM pay pWHERE NOT EXISTS(SELECT * FROM pastOrder po where po.newspaper = p.newspaper);--rejectpay 2SELECT pr.newspaperFROM pay p, pastOrder poWHERE p.newspaper = po.newspaper and NOT EXISTS(SELECT * FROM price pr where pr.newspaper = p.newspaper and pr.price=p.price);--alreadypaidSELECT pr.newspaperFROM pay p, pastPay ppWHERE p.newspaper = pp.newspaper and p.price = pp.price;--Status updateINSERT INTO pastPay (newspaper, price) VALUES (SELECT * FROM pay)

Servicesql services2

ServiceSQL – Services

  • Code 3 – pending-bills

    • SELECT pr.newspaper, pr.priceFROM pastOrder po, price prWHERE po.newspaper = pr.newspaper AND NOT EXISTS(SELECT * FROM pastPay pp WHERE pp.newspaper = pr.newspaper AND pp.price = pr.price);

the “rebill” functionality

Execution example

Execution Example

  • order (Time):[sendbill(Time, 55), unavailable()]

  • order(Newsweek):[sendbill(Newsweek, 45), unavailable()]

  • order(Die Zeit):[sendbill(), unavailable(Die Zeit)]

  • pending-bills():{(Time, 55), (Newsweek, 45)}

  • pay(Time, 55):deliver(Time)

  • pay(Newsweek, 48):rejectpay(Newsweek)

  • pay(Newsweek, 45):deliver(Newsweek)

Ongoing research

Ongoing Research

  • Imagine all this in XML disguise (Meta SQL as described before); how compact can manipulation be, using, e.g., XQuery?
