Nmr nuclear magnetic resonance

NMR = Nuclear Magnetic Resonance

NMR spectroscopy is the most powerful technique available to organic chemists for determining molecular structures.

Looks at nuclei with odd mass numbers or odd number of protons:

1H, 13C, 15N, 19F, 31P


Nmr nuclear magnetic resonance

NMR spectroscopy that is looking at 1H nuclei is called proton NMR or 1H-NMR. If you just say NMR, it will generally be assumed you’re talking about proton NMR.

NMR looking at 13C nuclei is called 13C-NMR.

Nuclei with odd mass numbers or number of protons have nuclear spin states.

Spinning nuclei generate magnetic fields.


Nmr nuclear magnetic resonance

Spinning nuclei will line up with or against an external magnetic field (B0).

Aligned against the field

Aligned with the field


Nmr nuclear magnetic resonance

Alignment with the field (lower energy) is called the  spin state. Alignment against the field (higher energy) is called the  spin state.

The difference in energy between  and : E.

In the absence of an external magnetic field, orientations are random. Application of the external field forces nuclei into the  or  spin states.

B0

E

no external field


Nmr nuclear magnetic resonance

A photon of the correct energy (E) can cause flipping from the  spin state to the  spin state. When flipping occurs, the energy of that photon is absorbed.

When the combination of the external magnetic field strength and photon energy produce flipping, the nucleus is “in resonance” with the magnetic field and that frequency of electromagnetic radiation.

E is proportional to the external magnetic field strength.

h

E =   B0

2

where B0 is measured in gauss and  is the gyromagnetic ratio – unique for each kind of nucleus


Nmr nuclear magnetic resonance

h

E =   B0

2

For a proton,  = 26,753 sec1 gauss1

Since E = h

h

h =   B0

2

Factoring out h, gives

1

 =   B0

2

The frequency () and field strength (B0 ) are directly proportional.


Nmr nuclear magnetic resonance

1

 =   B0

2

This equation tells us that for a frequency of 60 MHz (radio frequency or RF), a magnet with a strength of 14,092 gauss is needed for resonance with a bare proton (H nucleus).

A radio frequency of 300 MHz requires a magnet 5x stronger (70,459 gauss) for resonance with a bare proton.


Nmr nuclear magnetic resonance

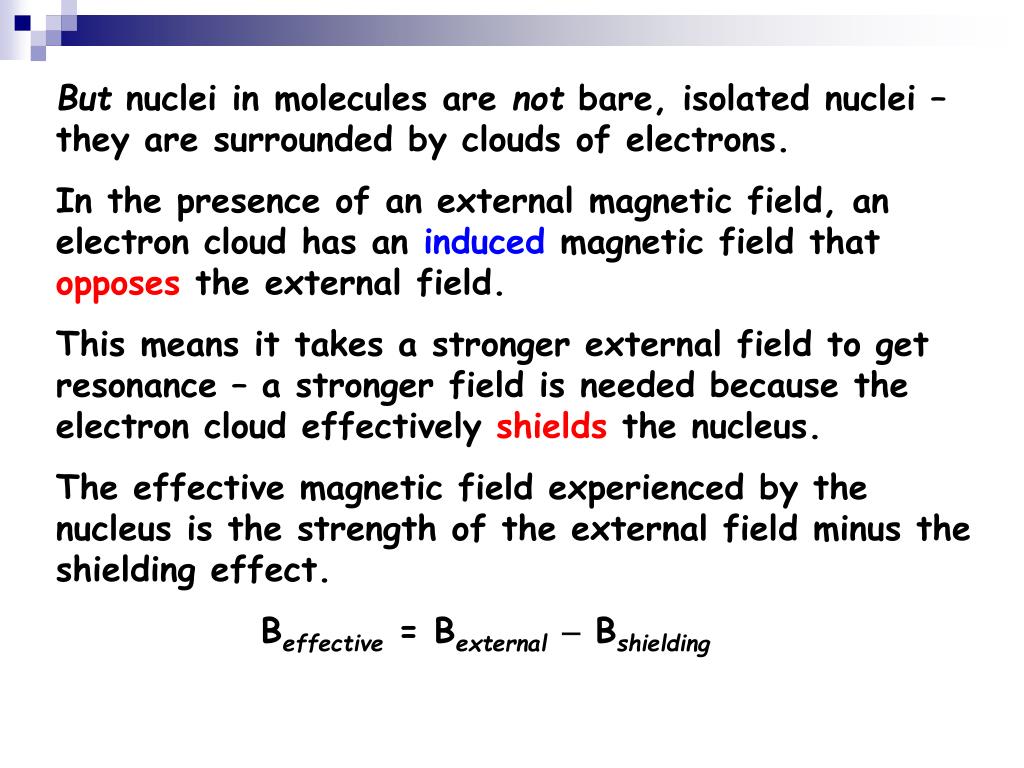

But nuclei in molecules are not bare, isolated nuclei – they are surrounded by clouds of electrons.

In the presence of an external magnetic field, an electron cloud has an induced magnetic field that opposes the external field.

This means it takes a stronger external field to get resonance – a stronger field is needed because the electron cloud effectively shields the nucleus.

The effective magnetic field experienced by the nucleus is the strength of the external field minus the shielding effect.

Beffective = Bexternal Bshielding


Nmr nuclear magnetic resonance

The electron cloud density (and thus shielding) is different for different nuclei due to different chemical environments (magnetic environments).

less shielded proton due to electron withdrawing effect of electronegative oxygen requiring lower field strength to get resonance at a specific 

more shielded protons requiring higher field strength to get resonance at a specific 

The differences in shielding mean that the we can detect the differences in the chemical environments of the nuclei in an NMR spectrometer.


Nmr nuclear magnetic resonance

NMR spectrometer:

RF is held constant – common frequencies are 60 MHz, 100 MHz, and 300 MHz.

Magnetic strength is varied


Nmr nuclear magnetic resonance

upfield

downfield

increasing magnetic field strength


Nmr nuclear magnetic resonance

Chemical shift

Chemical shift for protons = the difference between magnetic field strength needed for resonance of a given proton and the magnetic field strength needed for resonance of a proton in tetramethylsilane (TMS).

Due to the low electronegativity of the central silicon atom, protons in TMS are more shielded than any other protons likely to show up in organic compounds.

Proton signals in most organic compounds will therefore be shifted downfield from TMS (i.e. require weaker fields for resonance).


Nmr nuclear magnetic resonance

The amount of downfield shifting from TMS is expressed in Hz and is divided by the radio frequency of the instrument. (Even though NMR spectrometers vary magnet strength, remember that frequency is proportional to magnetic field strength.)

chemical shift =

shift downfield from TMS in Hz

instrument frequency in MHz

Since Hz units cancel, the chemical shift is unitless.

Since MHz are 1,000,000 times Hz, the amount of chemical shift is called parts per million (ppm).

The chemical shift is symbolized by  (delta scale).


Nmr nuclear magnetic resonance

The advantage of expressing chemical shift data on the delta scale is that it is easily allows for the comparison of data from instruments that are operating at different field strengths.


Nmr nuclear magnetic resonance

The higher field strength instruments are used because they give higher resolution and higher sensitivity. The main drawbacks to the higher field strength instruments are initial cost and very high maintenance cost.


Nmr nuclear magnetic resonance

300 MHz NMR spectrum of methanol:

Ultimately, the number of signals indicates the number of different chemical environments in the molecule.


Nmr nuclear magnetic resonance

Since the number of signals is related to how many different chemical environments are present in a molecule, it is useful to be able to recognize groups of chemically equivalent protons.

How many groups of chemically equivalent protons are present in each of the following compounds. Hint: Think about symmetry.

If different chemical shifts are so close that the signals cannot be resolved, the protons are called accidentally equivalent. Accidental equivalence can only be determined experimentally.


Nmr nuclear magnetic resonance

Diastereotopic protons are in different chemical environments (i.e. are not chemically equivalent) and therefore give different chemical shifts (may only resolve in 300 MHz instrument).

Diastereotopic protons are identified by seeing if you get diastereomers by replacing them.

Are these protons chemically equivalent?

imagine replacing each with Br or some other atom

What is the relationship between these two structures?


Nmr nuclear magnetic resonance

Are these protons chemically equivalent?

imaginary replacement

R enantiomer

S enantiomer

Replacement did not produce diastereomers, therefore the chemical environments are the same. Therefore both protons will give the same chemical shift.

The protons in question are enantiotopic protons which are chemically equivalent. NMR can not distinguish enantiomer.


Nmr nuclear magnetic resonance

How many groups of chemically equivalent protons are present in the following compounds?


Nmr nuclear magnetic resonance

Again, different protons have different expected chemical shifts – depending upon their different chemical environments.

CH3-CH2-CH2-CH3 CH3-CH2-CH2-CH2-Br

 = 0.9 1.3 1.3 0.9 0.9 1.3 1.7 3.4

deshielding caused by nearby Br = 0.0 0.0 0.4 2.5


Nmr nuclear magnetic resonance

Typical Values of Chemical Shifts (see Table 13-3)


Nmr nuclear magnetic resonance

Predict the expected chemical shifts of the following groups of chemically equivalent protons.

Chemical shift values are approximately additive – when you predict chemical shifts you need to take into account additive effects.


Nmr nuclear magnetic resonance

Groups on a benzene ring can cause downfield or upfield shifts depending upon whether the group is electron withdrawing or electron donating.


Nmr nuclear magnetic resonance

Origins of chemical shifts

In some cases, electron withdrawing effects cause deshielding (and electron donation causes more shielding).

Ex. CH3-CH2-CHO CH3-CH2-NO2

In other cases, shielding and deshielding are caused by magnetic effects of nearby pisystems…


Nmr nuclear magnetic resonance

 = 7.2


Nmr nuclear magnetic resonance

 = 5 - 6


Nmr nuclear magnetic resonance

 = 2.5


Nmr nuclear magnetic resonance

Aldehyde protons are strongly deshielded by a combination of electron withdrawing and magnetic effects.

 = 9 - 10


Nmr nuclear magnetic resonance

Carboxylic acid protons are very strongly deshielded due to being attached to an O which is attached to an electron-withdrawing C=O. ( = 10 – 12)

What else can you say about the compound that gave the above spectrum?


Nmr nuclear magnetic resonance

Peak area – related to number of protons in a given chemical environment. Indicated by an “integral trace” on NMR spectrum. (height of trace is proportional to peak area) (peaks with bigger areas are usually taller)

a

b

c

a

a

3.0

d

6 spaces total

b

1.5

c

1.0

d

0.5

Ratio of protons - a:b:c:d = 3.0 : 1.5 : 1.0 : 0.5

To get whole numbers multiply by 2 to get: 6 : 3 : 2 : 1


Nmr nuclear magnetic resonance

a

b

c

a

a

3.0

d

6 spaces total

b

1.5

c

1.0

d

0.5

A ratio of 6 : 3 : 2 : 1 could represent a compound with a total of 12 H’s (6 + 3 + 2 + 1 = 12) or…

Any compound with the same ratio and a multiple of 12 H’s

Ex. 12 : 6 : 4 : 2 ratio for a total of 24 H’s


Nmr nuclear magnetic resonance

a

b

c

a

a

3.0

d

6 spaces total

b

1.5

c

1.0

d

0.5

Or if total number of H’s is known to start with, figure out how many spaces = 1 H (You have a molecular formula.)

6 spaces = 12 H’s means 0.5 spaces = 1 H

The integral with 3 spaces then represents 6 H’s giving that signal.


Nmr nuclear magnetic resonance

a

b

c

a

a

3.0

d

6 spaces total

b

1.5

c

1.0

d

0.5

Integral traces are not always this neat and well-defined. Sometimes deciding where traces start and end is tricky – may require some trial and error to get ratios that make sense.


Nmr nuclear magnetic resonance

Insert NMR with integration curve and have class determine ratio on a handout.


Nmr nuclear magnetic resonance

Spin-Spin Splitting

Signals of protons often do not show up as single peaks – their signal can be split by magnetically coupled protons.

Because a proton we’re interested in may be near other protons, the magnetic fields of those nearby protons can reinforce (add to) or oppose (subtract from) the external magnetic field – shifting a signal downfield or upfield.

Downfield shift due to one adjacent proton adding to field strength

Upfield shift due to one adjacent proton subtracting from field strength

Expected signal location


Nmr nuclear magnetic resonance

The more magnetically coupled protons there are, the more complex splitting gets because all adjacent protons could be spinning in the same direction, all adding or all opposing the external field or some could be spinning in opposite directions giving mixed effects. Ultimately, this splitting will tell you the number of protons on adjacent carbons.

Notice that the peak area ratios reflect the number of combinations that cause each peak


Nmr nuclear magnetic resonance

The splitting pattern ultimately follows an N + 1 Rule:

N equivalent coupled protons split a signal into N + 1 peaks.

Relative peak areas

Number of peaks (multiplicity)

N

0 1 (singlet) 1

1 2 (doublet) 1 : 1

2 3 (triplet) 1 : 2 : 1

3 4 (quartet) 1 : 3 : 3 : 1

4 5 (quintet) 1 : 4 : 6 : 4 : 1

5 6 (sextet) 1 : 5 : 10 : 10 : 5 : 1

6 7 (septet)


Nmr nuclear magnetic resonance

H

H

1

4

CCC

3

2

Most splitting is caused by adjacent protons.

Ph-CH2-CH3

Some splitting is caused by protons on the same carbon (only if diastereotopic).

Splitting by protons separated by a total of 4 or more bonds is normally not observed (but there are exceptions)

These protons should split each other’s signals – splitting is reciprocal.

These protons will split each other’s signal

Too far away to be magnetically coupled


Nmr nuclear magnetic resonance

Characteristic splitting patterns to know:

Peaks representing magnetically coupled protons often “lean” toward one another.

  • Pattern for isopropyl group

  • Pattern for p-disubstituted benzene (1 withdrawing group, 1 donating group)


Nmr nuclear magnetic resonance

Coupling constants (J) – how much proton signals split each other. The magnitude of the J value is also reciprocal.


Nmr nuclear magnetic resonance

Areas of the NMR Spectra can be expanded to show greater detail. Below it is easier to measure the value of thecoupling constant in the expanded view.


Nmr nuclear magnetic resonance

Assign the proton signals in the following spectrum of 4,4-dimethylcyclohe-2-en-1-one.


Nmr nuclear magnetic resonance

Complex splitting

When a signal is split by two or more protons that have different coupling constants, the pattern of the peaks no longer follows an N + 1 rule.


Nmr nuclear magnetic resonance

a

c

Protons a and b are trans with coupling constant (Jab) = 17 Hz

b

Protons a and c are cis with Jac = 11 Hz

You can draw a splitting tree to show the expected pattern of peaks for the signal of proton a – starting with the biggest split.


Nmr nuclear magnetic resonance

a

c

b

Protons a and b are trans with coupling constant (Jab) = 17 Hz

Protons b and c are geminal with Jbc = 1.4 Hz


Nmr nuclear magnetic resonance

Label each set of peaks in the NMR spectrum with the letter of the corresponding protons in the following structure:


Nmr nuclear magnetic resonance

Label the groups of protons in the structure below with the letter corresponding to the peak in the NMR spectrum associated with those protons:

d

e

a

b

c


Nmr nuclear magnetic resonance

Determine the structure for a compound with a formula of C9H10O2 if an IR spectrum shows a strong peak at 1705 cm1.


Nmr nuclear magnetic resonance

Determine the structure for a compound with a formula of C9H10O2 if an IR spectrum shows a strong peak at 1735 cm1.


Nmr nuclear magnetic resonance

Determine the structure for a compound with a chemical formula of C5H11Cl given the following NMR spectrum:


Nmr nuclear magnetic resonance

Determine the structure for a compound with the chemical formula C4H10O given the below NMR spectrum:


Nmr nuclear magnetic resonance

Exchangeable protons:

Some protons are exchangeable – they come off the atom to which they are attached and can be replaced with a proton from another molecule or the solvent.

R-COOHR-OH R-NH2R-CONH2

The proton of an alcohols rapidly exchanges in water or weakly acidic solutions giving a single peak – no splitting.

Splitting is observed in ultra-pure alcohols (but not always).

Moderate exchange gives a broadened peak. Protons on N often show broadened peaks.

You generally will not see spin-spin splitting from protons that are attached to O or N.


Nmr nuclear magnetic resonance

Deuterium Exchange:

Peaks that are do to OH or NH protons can be identified by exchange with deuterium.

Deuterium is not observed in the 1H NMR spectra.

Shaking a sample containing an exchangeable proton with D2O causes the exchangeable proton to be replaced by deuterium. And as a result the signal for the exchangeable proton disappears from the spectrum.

R-OH + D2O  R-OD + H-O-D

R-NH2 + 2 D2O  R-ND2 + 2 D-O-H


Nmr nuclear magnetic resonance

13C-NMR

Signal is weaker because:

a) gyromagnetic ratio is only about 1/4th that of a proton, and

b) only about 1% of C’s in a compound are 13C.

To obtain a 13 C NMR spectrum hundreds of spectra have to be averaged to get a good signal to noise ratio.

FT-NMR allows hundreds of spectra to be taken in a hour or two – computer converts free induction decay signal (transients) to an NMR spectrum.

(Lower gyromagnetic ratio means radiofrequencies used are lower – 75.6 MHz and 15.1 MHz vs. 300 MHz and 60 MHz)


Nmr nuclear magnetic resonance

Chemical shifts in 13C-NMR

TMS is still used as the reference standard.

Chemical shifts are 15-20 times larger than for a proton on the corresponding C.

Ex: CH3-OH H has a  of 3-4 ppm

for CH3-OH C has a  of 55-85 ppm

CHO H has 9-10

CHO C has 180-200


Nmr nuclear magnetic resonance

This chart will be given on the test…

…but multiplying proton shift values by 15-20 probably just as useful.


Nmr nuclear magnetic resonance

The acquisition of 13C NMR is more complex than 1H NMR. Each of the protons on a carbon are spin-spin coupled to that carbon, which results in splitting of the carbon signal. Splitting by adjacent 13C’s is not observed because of the low natural abundance of 13C.

Splitting of the carbon signal by the protons attached to the carbon can be used to identify the type of carbon that is responsible for a particular peak.

However, proton splitting does complicate the 13C spectrum. To eliminate the proton coupling, 13C NMR are generally run decoupled. Spin decoupling of the protons involves irradiation of the sample with broadband rf noise at the proton resonance frequency. This causes rapid proton flipping which averages out their magnetic effects.

An added benefit of running a proton decoupled spectrum is that the energy put into the proton from the decoupler is transferred to the carbons causing a change in the distribution of the alpha and beta spin states. This ultimately result in an enhancement of the carbon signal. (less time to get the spectrum)


Nmr nuclear magnetic resonance

Two decoupling protocols:

Proton-spin decoupling – removes splitting effect of protons completely. All peaks are singlets (most common).

Off-resonance decoupling – noise removes splitting effect of all but the protons directly attached to the C. Number of peaks follows an N + 1 where N = number of protons directly on the C – not adjacent as in 1H-NMR.


Nmr nuclear magnetic resonance

(q)

(t)

(q)

(s)


Nmr nuclear magnetic resonance

  • Interpreting 13C-NMR

  • 1. Number of peaks = number of kinds of C’s.

  • 2. Chemical shifts indicate functional groups containing the C’s.

  • Splitting pattern in off-resonance decoupled spectra indicate

  • how many H’s are attached to the C’s.

  • Peak areas – only indicate numbers of C’s in some types of

  • experiments.


Nmr nuclear magnetic resonance

CH3-CH2-CH2-CH2-CH2-Cl


Nmr nuclear magnetic resonance

O

CH3-C-CH2-CH2-O-CH2-CH3


Nmr nuclear magnetic resonance

C9H10O2


Nmr nuclear magnetic resonance

Given the following three spectra, determine the structure of the compound.


Nmr nuclear magnetic resonance

Assign peaks in the final structure.


Nmr nuclear magnetic resonance

Given the following three spectra, determine the structure of the compound.


Nmr nuclear magnetic resonance

Assign peaks in the final structure.


  • Login
