  1. Jens Dalsgaard NielsenJan Dimon BendtsenDept. of Electronic Systems Basic ProgrammingINS-basis GF, PDP and HST

  2. Course Goals • To understand the activity of programming • To become familiar with computing environments, compilers etc. • To be able to program, compile and run Java programs • To be able to recognize (and fix) syntax and logic errors • To be able to use computer programs as an engineering tool

  3. Prerequisites • Computer savvy (file management, text editing) • Problem solving skills • Time management • High school math (algebra, trigonometry) • No prior programming background required

  4. Course Organization • Introduction to the course, getting started • Tools, getting operational • Classes and objects • Program control • Basic GUI programming • Data structures • File I/O • Slightly less basic GUI programming • +10) Mini-project

  5. Examination • “Mini-project” - at the end of the course, you write a program that: • Satisfies a “requirement specification” posed by the lecturers • Demonstrates that you know how to program in Java • Demonstrates that you are able to use an Integrated Development Environment (Eclipse) • Individual examination (but it is OK to do the actual work in small groups)‏

  6. Chapter 1Introduction to Java Programming

  7. What Is Programming? • Computers are programmed to perform tasks • Different tasks = different programs • Program • Sequence of basic operations executed in succession • Contains instruction sequences for all tasks it can execute • Sophisticated programs require teams of highly skilled programmers and other professionals

  8. Schematic Diagram of a Computer Figure 5: Schematic Diagram of a Computer

  9. The Java Programming Language • Simple • Safe • Platform-independent ("write once, run anywhere") • Rich library (packages) • Designed for the internet

  10. An Integrated Development Environment Figure 9:An Integrated Development Environment

  11. File HelloTester.java 1:public class HelloTester 2: { 3:public static void main(String[] args) 4: { 5:// Display a greeting in the console window6:7: System.out.println("Hello, World!"); 8: } 9: } Output Hello, World!

  12. HelloTester in an IDE Figure 12:Running the HelloTester Program in an Integrated Development Environment

  13. A Simple Program • public class ClassName • public static void main(String[] args) • // comment • Method call Figure 13:Calling a Method System Class System.out Object println Method

  14. Syntax 1.1: Method Call object.methodName(parameters)‏ Example:  System.out.println("Hello, Dave!"); Purpose: To invoke a method of an object and supply any additional parameters

  15. Errors • Syntax errors • Detected by the compiler • Logic errors • Detected (hopefully) through testing System.ouch.print(". . .");System.out.print("Hello); System.out.print("Hell");

  16. The Compilation Process Figure 14:From Source Code to Running Program

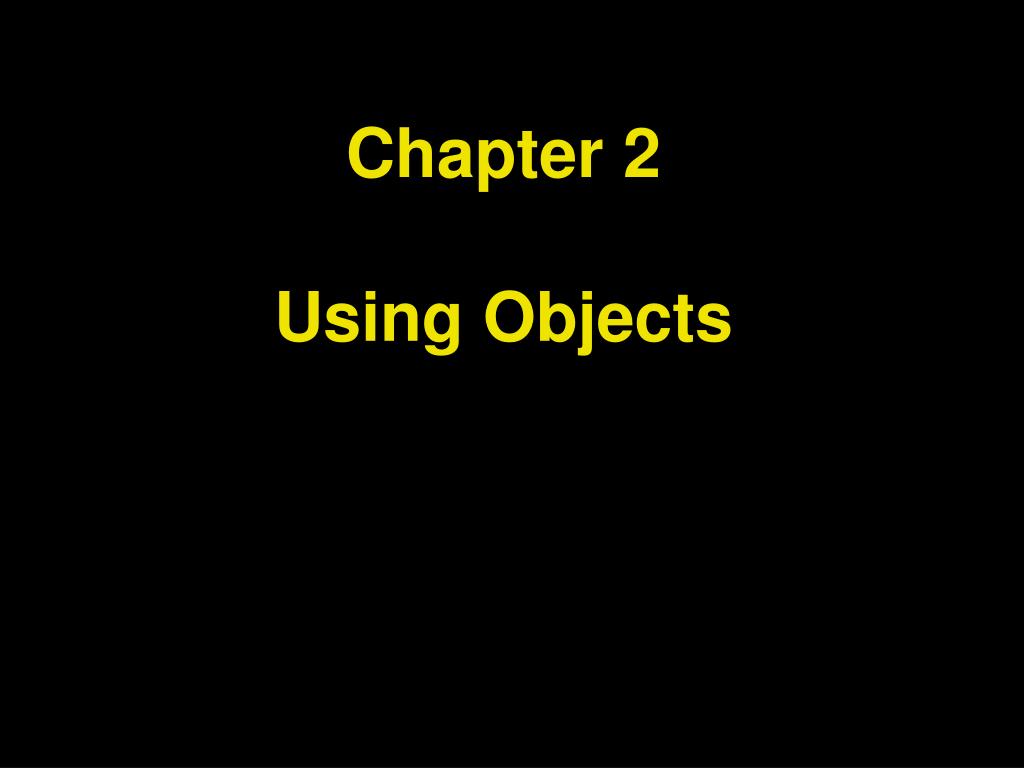

  17. Chapter 2Using Objects

  18. Types and Variables • Every value has a type • Variable declaration examples: • Variables • Store values • Can be used in place of the objects they store String greeting = "Hello, World!";PrintStream printer = System.out;int luckyNumber = 13;

  19. Types and Variables • Every value has a type • Variable declaration examples: • Variables • Store values • Can be used in place of the objects they store String greeting = "Hello, World!";PrintStream printer = System.out;int luckyNumber = 13;

  20. Syntax 2.1: Variable Definition typeName variableName = value; ortypeName variableName; Example:   String greeting = "Hello, Dave!"; Purpose: To define a new variable of a particular type and optionally supply an initial value

  21. Identifiers • Identifier: name of a variable, method, or class • Rules for identifiers in Java: • Can be made up of letters, digits, and the underscore (_) character • Cannot start with a digit • Cannot use other symbols such as ? or % • Spaces are not permitted inside identifiers • You cannot use reserved words • They are case sensitive Continued…

  22. The Assignment Operator • Assignment operator: = • Not used as a statement about equality • Used to change the value of a variableint luckyNumber = 13; luckyNumber = 12; Figure 1:Assigning a New Value to a Variable

  23. Uninitialized Variables • Error: int luckyNumber;System.out.println(luckyNumber);   // ERROR - uninitialized variable Figure 2:An Uninitialized Object Variable

  24. Syntax 2.2: Assignment variableName = value; Example: luckyNumber = 12; Purpose: To assign a new value to a previously defined variable.

  25. Summary • Main goal: Programming as an Engineering tool • Examination: Mini-project • Organization: Short(?) lectures and plenty of programming at the PC • Programming exercises are carried out in Eclipse • “Hello World” • Variables are used for storing values, via assignment; they are referred to using identifiers (names)‏
