Linear Data Structures(Queue)

Oleh : Nur Hayatin, S.ST

Teknik Informatika - Universitas Muhammadiyah Malang (UMM)

Tahun Akademik 2010-2011

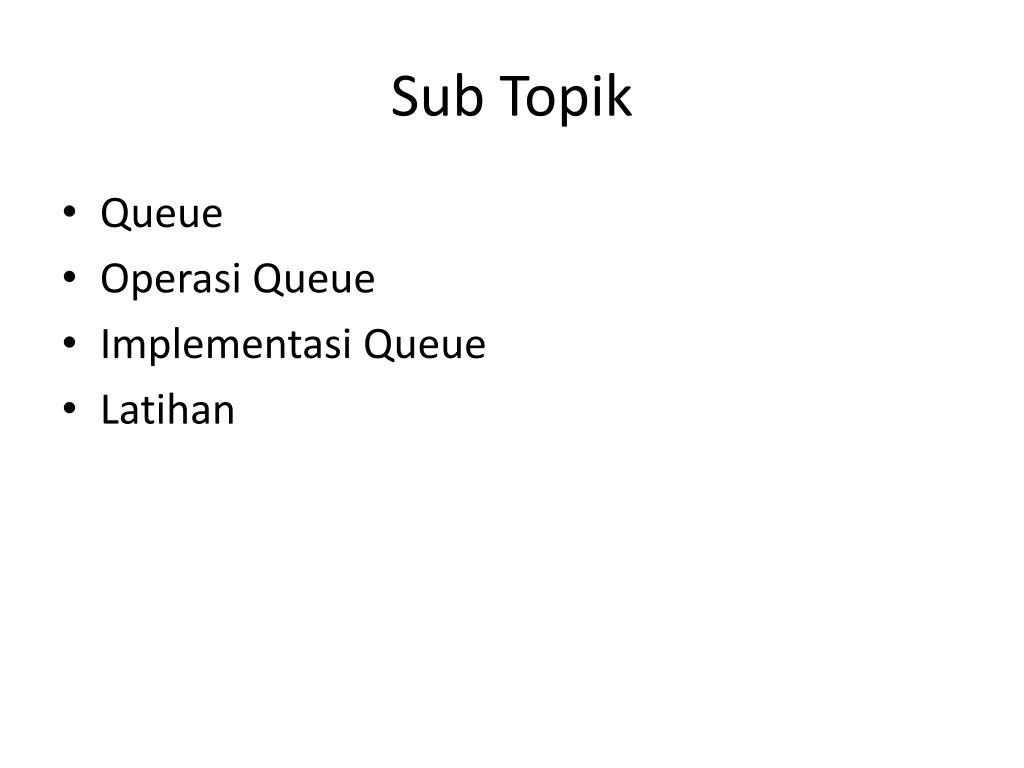

Sub topik

Sub Topik

  • Queue

  • Operasi Queue

  • Implementasi Queue

  • Latihan


Queue antrian

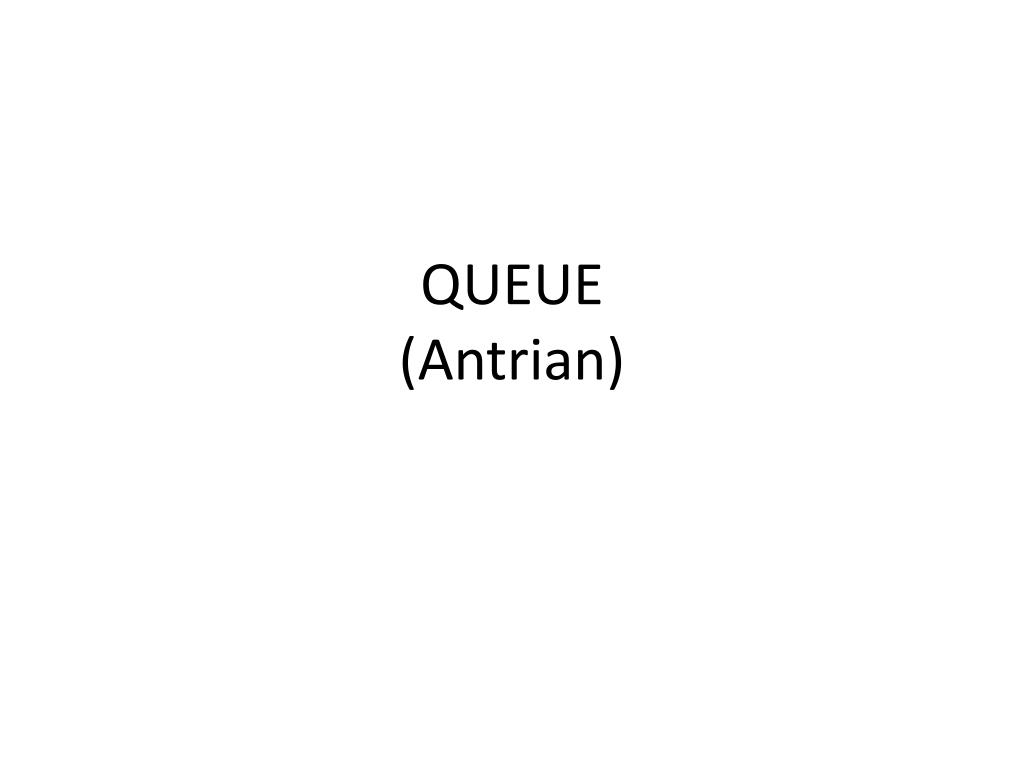

QUEUE(Antrian)


Definisi

Definisi

  • Urutan elemen yang mengikuti konsep FIFO.

  • FIFO(First In First Out)

  • Front  menunjuk pada elemen yang paling atas.

  • Rear  menunjuk pada elemen yang paling belakang.


Gambaran proses

Gambaran Proses

Front: Depan

Rear: Belakang


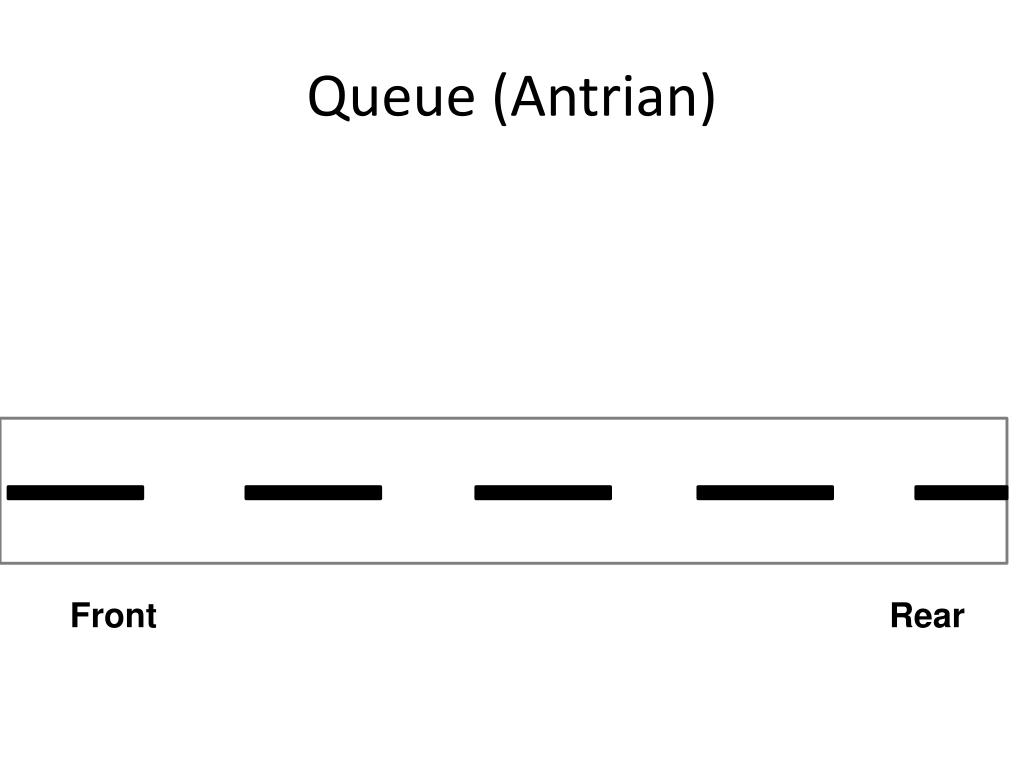

Queue antrian1

Queue (Antrian)

Front

Rear


Queue antrian2

Queue (Antrian)

Front

Rear


Queue antrian3

Queue (Antrian)

Front

Rear


Queue antrian4

Queue (Antrian)

Front

Rear


Queue antrian5

Queue (Antrian)

Front

Rear


Queue antrian6

Queue (Antrian)

Front

Rear


Operasi queue

Operasi Queue


Operasi

Operasi

  • Enqueue/put

    (operasi penambahan elemen)

  • Dequeue/remove

    (operasi penghapusan elemen)

  • Get front

    (operasi pengaksesan elemen terdepan)

  • Get rear

    (operasi pengaksesan elemen paling belakang)


Operasi enqueue add

Operasi Enqueue (add)

  • Operasi penambahan elemen pada antrian.

  • Dilakukan pada rear.

  • Increment rear.


Operasi dequeue remove

Operasi Dequeue (remove)

  • Operasi penghapusan elemen pada antrian.

  • Untuk Queue array terjadi pergeseran elemen dari belakang ke depan.

  • Dilakukan pada Front.

  • Decrement rear.


Operasi get front

Operasi Get Front

  • Pengambilan/pengaksesan elemen yang paling depan.

  • Elemen yang ditunjuk oleh front.


Operasi get rear

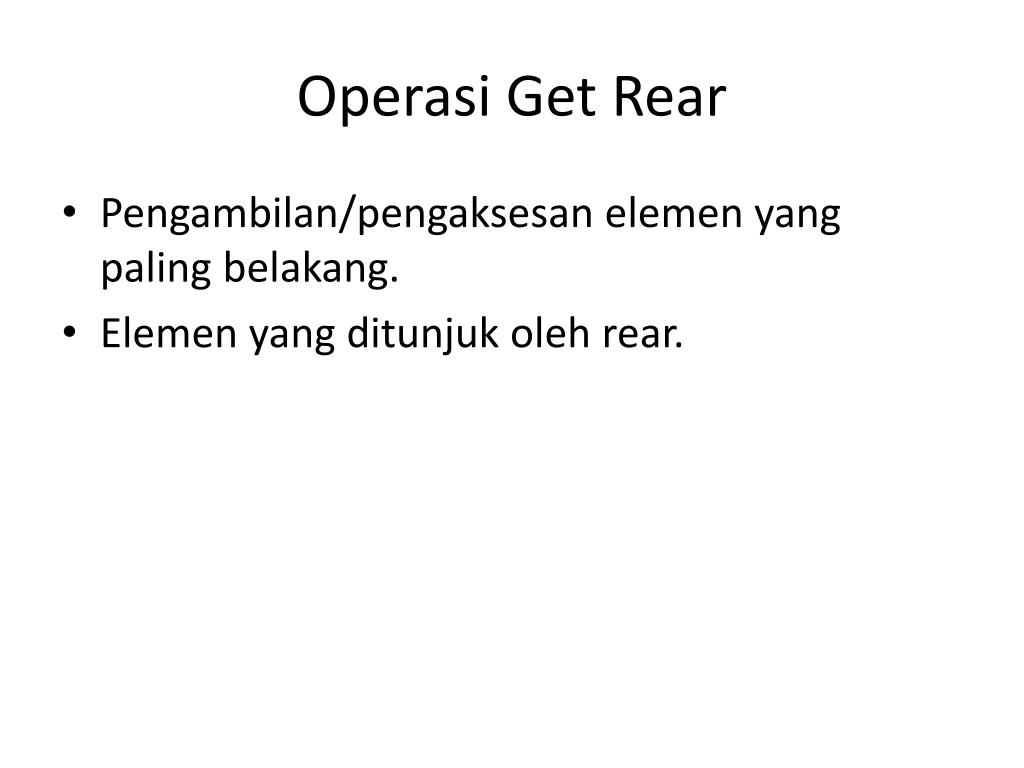

Operasi Get Rear

  • Pengambilan/pengaksesan elemen yang paling belakang.

  • Elemen yang ditunjuk oleh rear.


Contoh penerapan queue

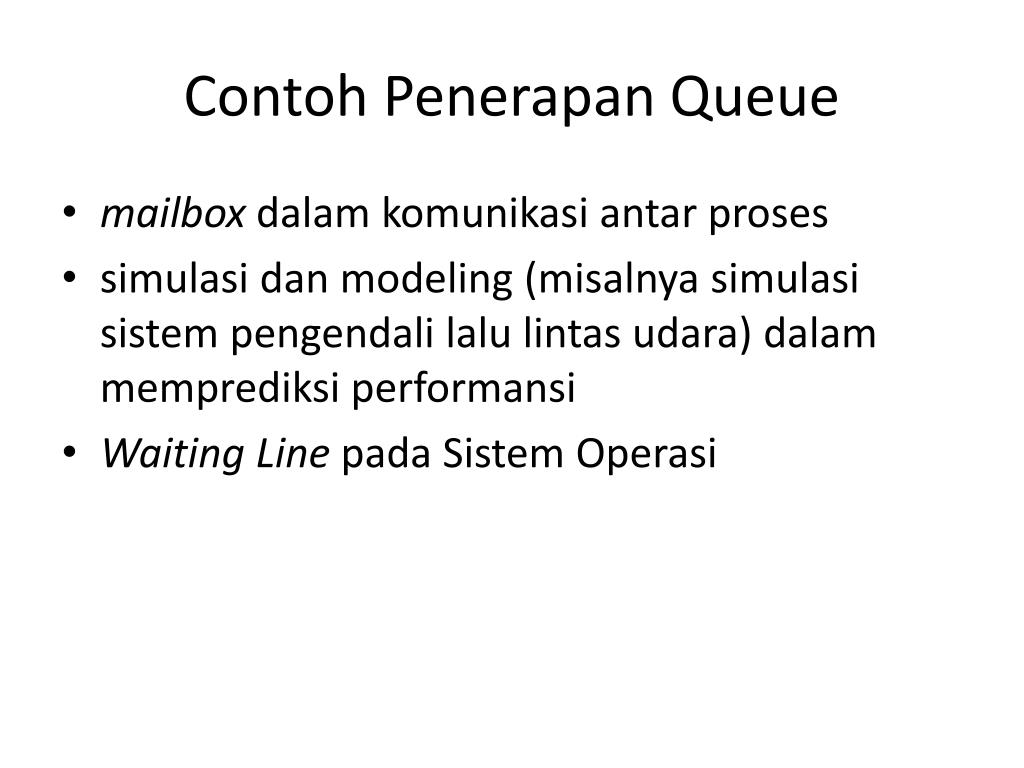

Contoh Penerapan Queue

  • mailbox dalam komunikasi antar proses

  • simulasi dan modeling (misalnya simulasi sistem pengendali lalu lintas udara) dalam memprediksi performansi

  • Waiting Line pada Sistem Operasi


Queue dengan circular array

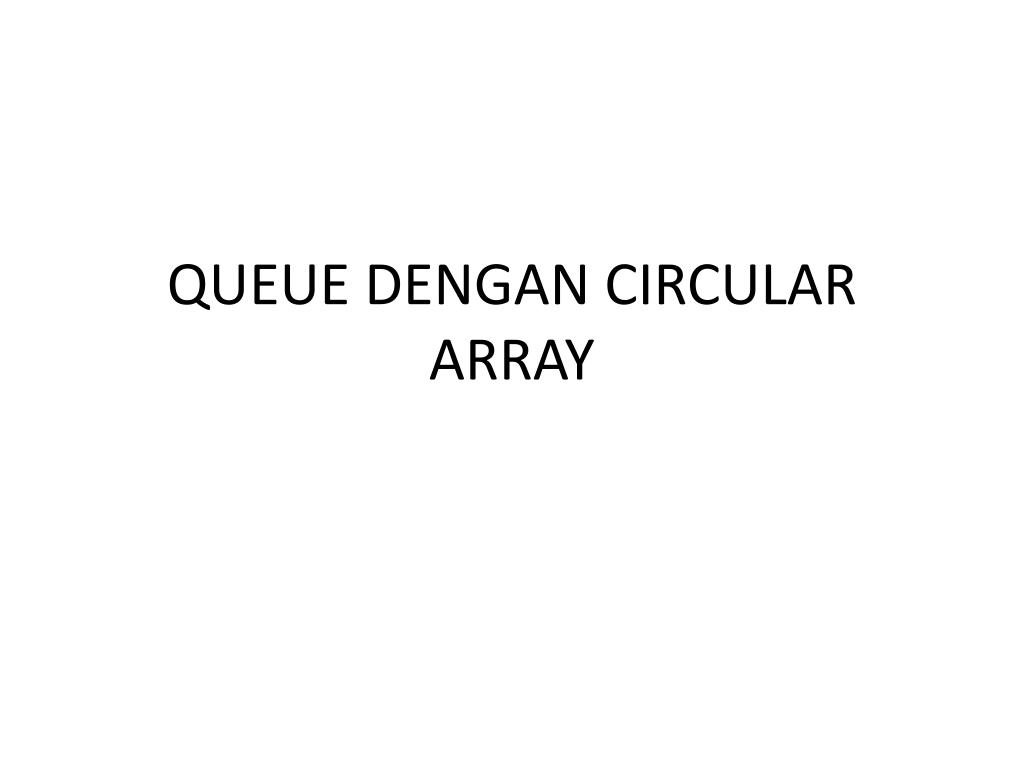

QUEUE DENGAN CIRCULAR ARRAY


Circular array

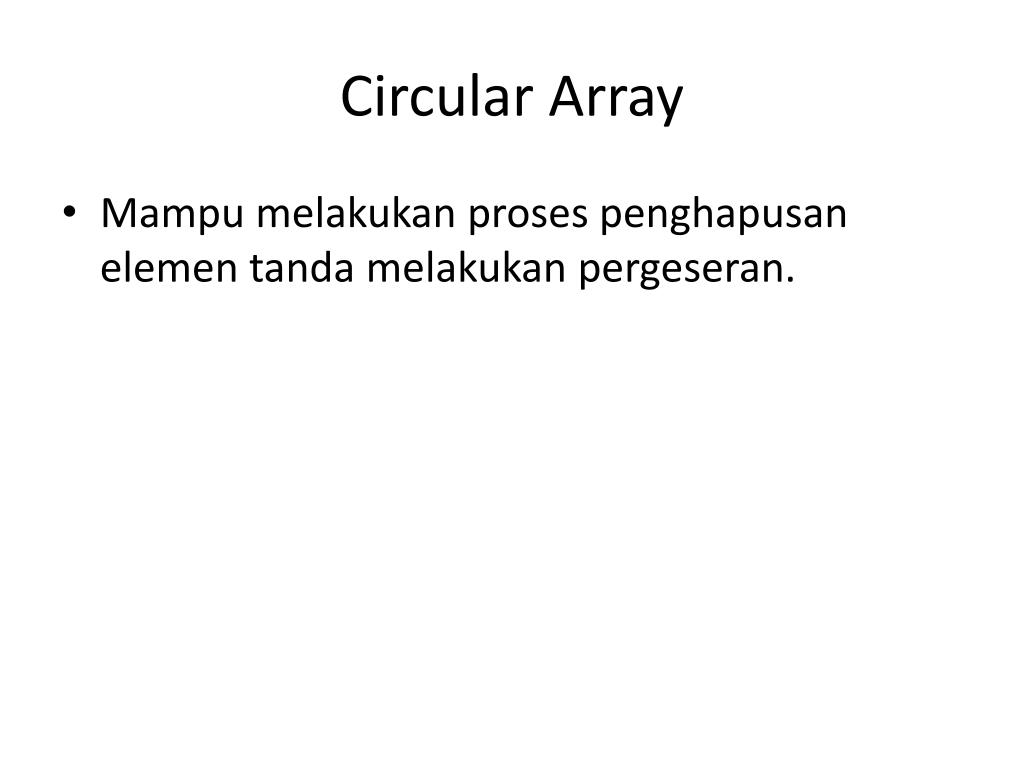

Circular Array

  • Mampu melakukan proses penghapusan elemen tanda melakukan pergeseran.


Aturan circular array

Aturan Circular Array

  • Proses penghapusan dilakukan dengan cara nilai depan (front) ditambah 1 : depan=depan + 1.

  • Proses penambahan elemen sama dengan queue linear array yaitu nilai belakang ditambah 1 : belakang=belakang + 1.

  • Jika depan = maks dan ada elemen yang akan dihapus, maka nilai depan = 1.

  • Jika belakang = maks dan depan tidak 1 maka jika ada elemen yang akan ditambahkan, nilai belakang=1.

  • Jika hanya tinggal 1 elemen di queue (depan = belakang), dan akan dihapus maka depan diisi 0 dan belakang diisi dengan 0 (queue kosong).


Circular array1

Circular Array


Proses circular array

Proses Circular Array


Proses circular array1

Proses Circular Array


Queue dalam program

Queue dalam Program


The interface queue

The Interface Queue

public interface Queue

{

public boolean isEmpty();

public Object getFrontEelement();

public Object getRearEelement();

public void put(Object theObject);

public Object remove();

}


Class arrayqueue

Class ArrayQueue


Inisialisasi awal

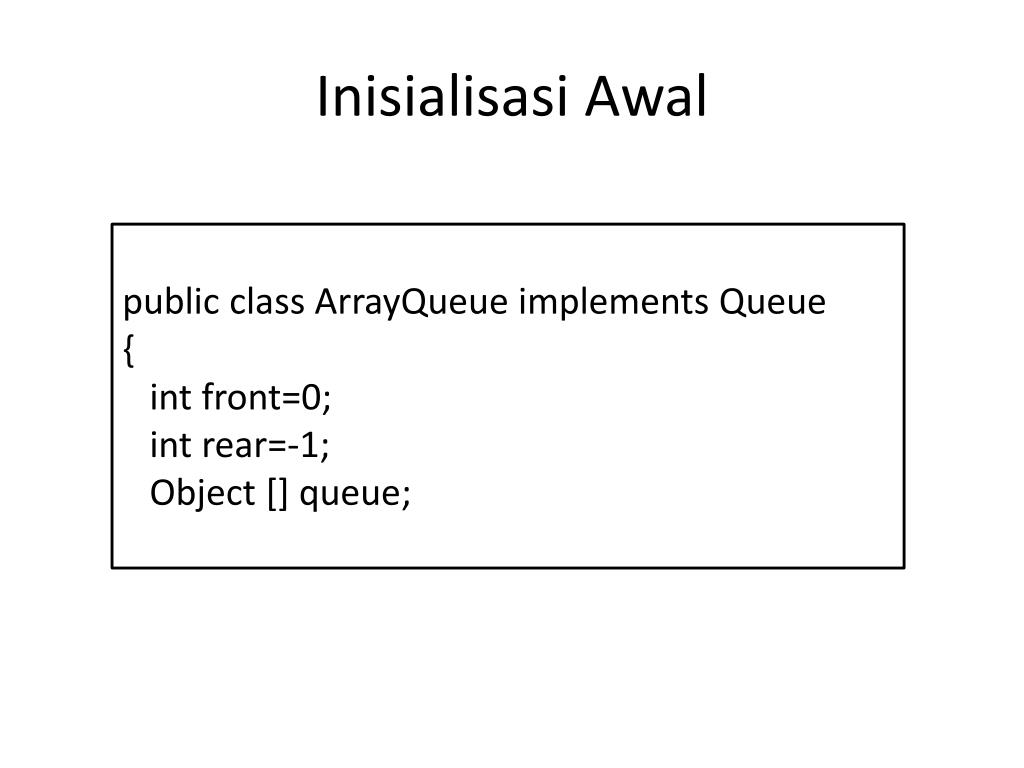

Inisialisasi Awal

public class ArrayQueue implements Queue

{

int front=0;

int rear=-1;

Object [] queue;


Constructor

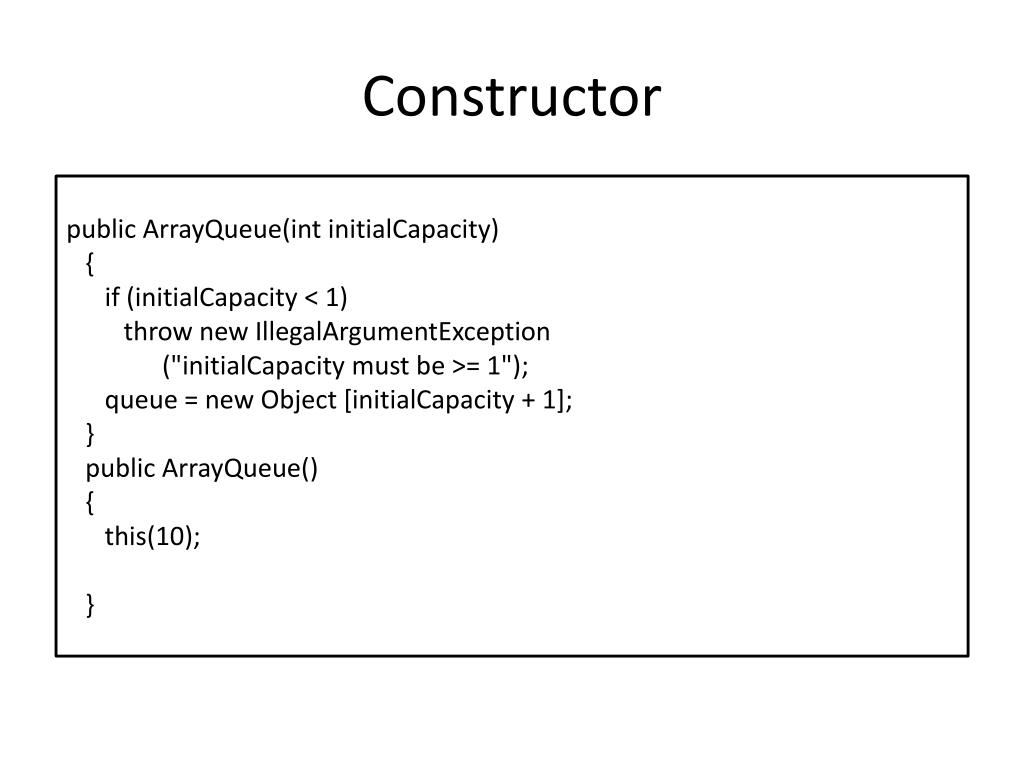

Constructor

public ArrayQueue(int initialCapacity)

{

if (initialCapacity < 1)

throw new IllegalArgumentException

("initialCapacity must be >= 1");

queue = new Object [initialCapacity + 1];

}

public ArrayQueue()

{

this(10);

}


Method empty

Method empty()

public boolean isEmpty()

{

return rear == -1;

}


Method getfront

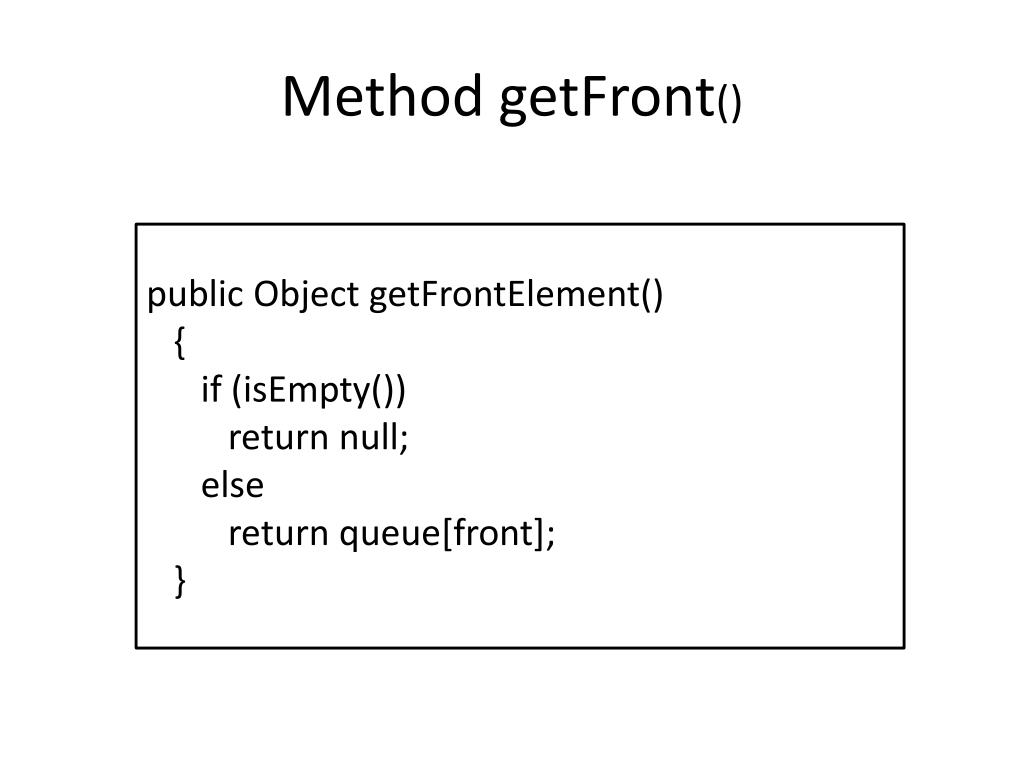

Method getFront()

public Object getFrontElement()

{

if (isEmpty())

return null;

else

return queue[front];

}


Method getrear

Method getRear()

public Object getRearElement()

{

if (isEmpty())

return null;

else

return queue[rear];

}


Method put

Method put()

public void put(Object theElement)

{

if (rear == queue.length - 1)

{

Object [] newArray = new Object [2*queue.length];

  System.arraycopy(queue, 0, newArray, 0, queue.length);

  queue = newArray;

}

  queue[++rear] = theElement;

}


Method remove

Method remove()

public Object remove()

{

if (isEmpty())

return null;

Object frontElement = queue[front];

for(int i = 1;i<=rear; i++)

queue[i-1] = queue[i];

--rear;

return frontElement;

}


Method main

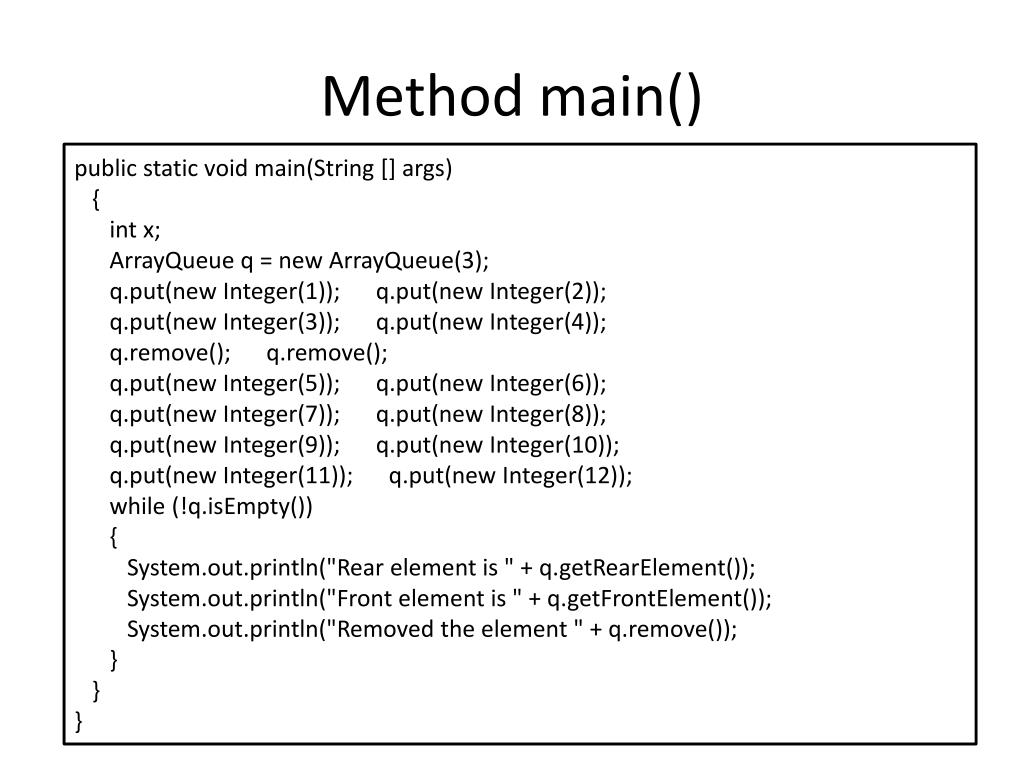

Method main()

public static void main(String [] args)

{

int x;

ArrayQueue q = new ArrayQueue(3);

q.put(new Integer(1)); q.put(new Integer(2));

q.put(new Integer(3)); q.put(new Integer(4));

q.remove(); q.remove();

q.put(new Integer(5)); q.put(new Integer(6));

q.put(new Integer(7)); q.put(new Integer(8));

q.put(new Integer(9)); q.put(new Integer(10));

q.put(new Integer(11)); q.put(new Integer(12));

while (!q.isEmpty())

{

System.out.println("Rear element is " + q.getRearElement());

System.out.println("Front element is " + q.getFrontElement());

System.out.println("Removed the element " + q.remove());

}

}

}


Class linkedqueue

Class LinkedQueue


Class chainnode

Class ChainNode

class ChainNode

{

// package visible data members

Object element;

ChainNode next;

// package visible constructors

ChainNode() {}

ChainNode(Object element)

{this.element = element;}

ChainNode(Object element, ChainNode next)

{this.element = element;

this.next = next;}

}


Inisialisasi awal1

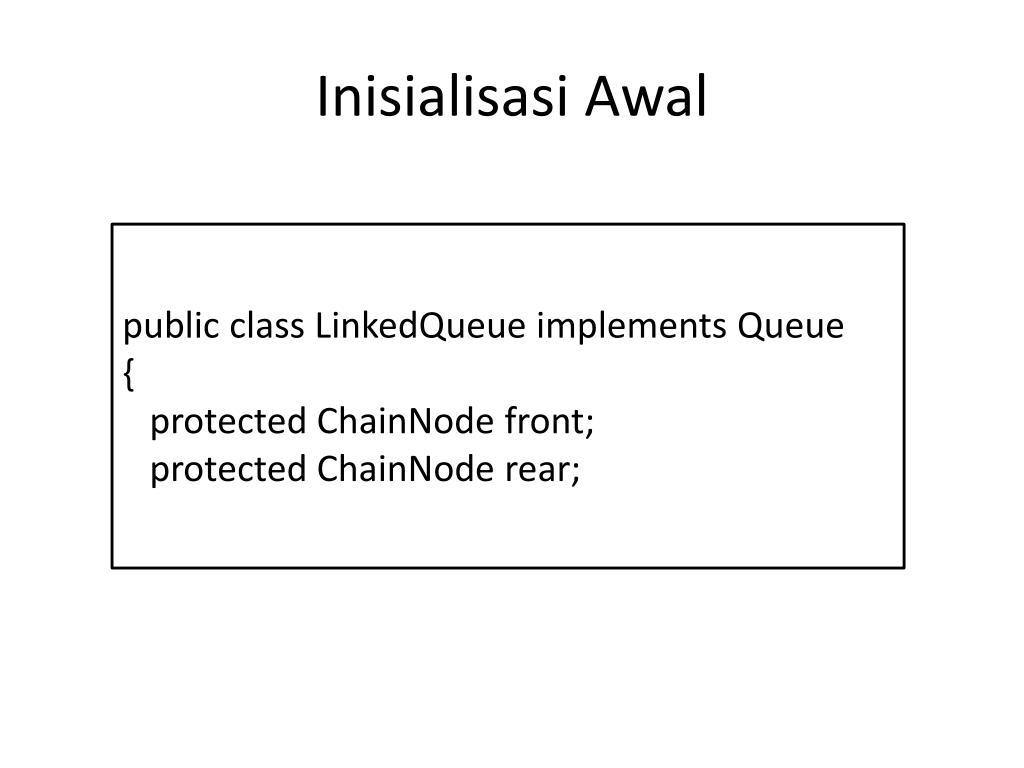

Inisialisasi Awal

public class LinkedQueue implements Queue

{

protected ChainNode front;

protected ChainNode rear;


Method isempty

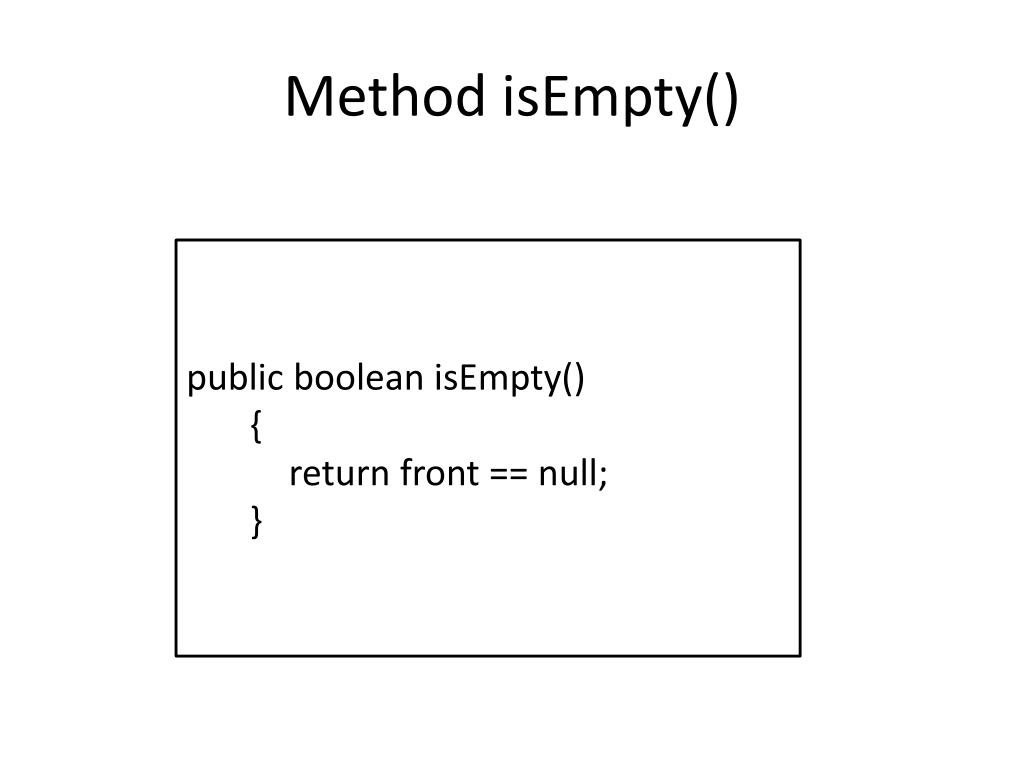

Method isEmpty()

public boolean isEmpty()

{

return front == null;

}


Method getfront1

Method getFront()

public Object getFrontElement()

{

if (isEmpty())

return null;

else

return front.element;

}


Method getrear1

Method getRear()

public Object getRearElement()

{

if (isEmpty())

return null;

else

return rear.element;

}


Method put1

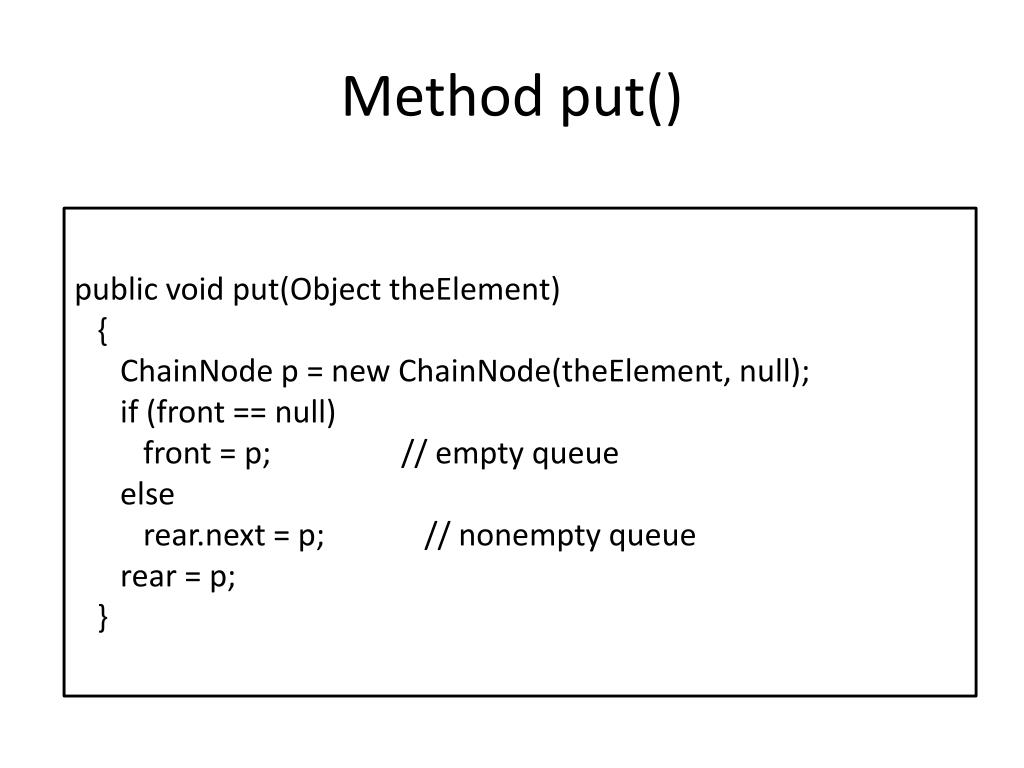

Method put()

public void put(Object theElement)

{

ChainNode p = new ChainNode(theElement, null);

if (front == null)

front = p; // empty queue

else

rear.next = p; // nonempty queue

rear = p;

}


Method remove1

Method remove()

public Object remove()

{

if (isEmpty())

return null;

Object frontElement = front.element;

front = front.next;

if (isEmpty())

rear = null; // enable garbage collection

return frontElement;

}


Method main1

Method main()

public static void main(String [] args)

{

int x;

LinkedQueue q = new LinkedQueue(3);

q.put(new Integer(1));

q.put(new Integer(2));

q.put(new Integer(3));

q.put(new Integer(4));

while (!q.isEmpty())

{

System.out.println("Rear element is " + q.getRearElement());

System.out.println("Front element is " + q.getFrontElement());

System.out.println("Removed the element " + q.remove());

}

}

}


Class circularqueue

Class CircularQueue


Inisialisasi awal2

Inisialisasi Awal

  • class CircularQueue

  • {

    • private intmaxSize;

    • private int[] queArray;

    • private int front;

    • private int rear;

    • private intnItems;


Constructor1

Constructor

  • public CircularQueue(int s)

  • {

    • maxSize = s;

    • queArray = new int[maxSize];

    • front = 0;

    • rear = -1;

    • nItems = 0;

  • }


Method isempty1

Method isEmpty()

  • public booleanisEmpty()

  • {

    • return (nItems==0);

  • }


Method peekfront

Method peekFront()

public intpeekFront()

{

return queArray[front];

}


Method insert

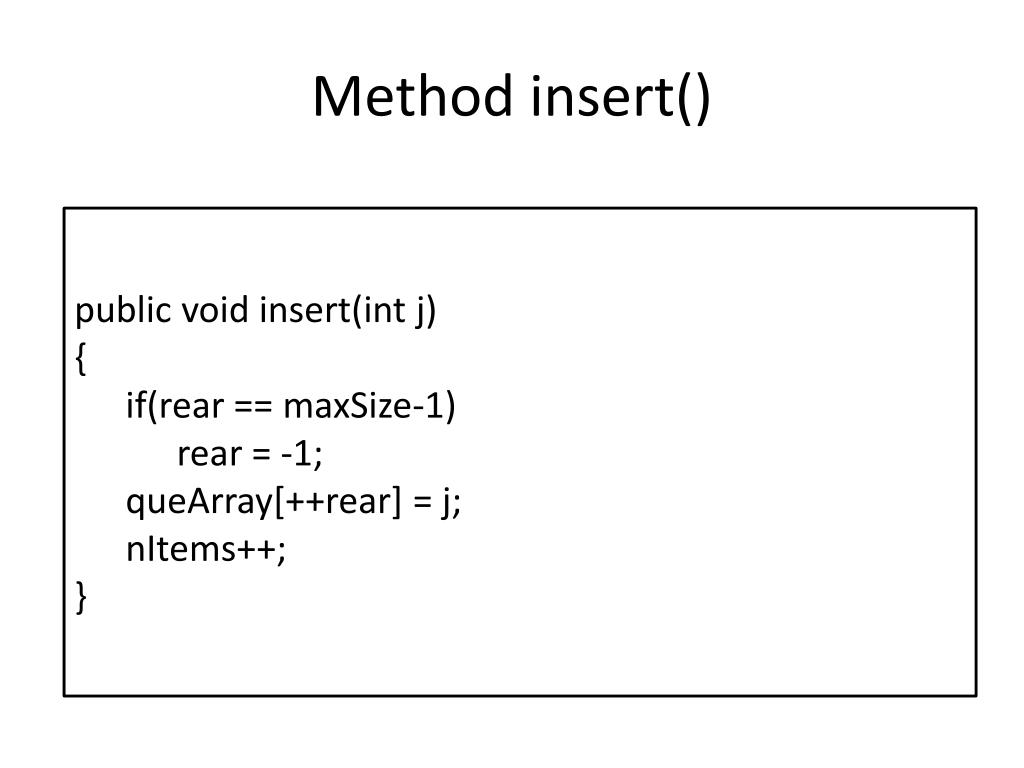

Method insert()

  • public void insert(int j)

  • {

    • if(rear == maxSize-1)

    • rear = -1;

    • queArray[++rear] = j;

    • nItems++;

  • }


Method remove2

Method remove()

  • public int remove()

  • {

    • int temp = queArray[front++];

    • if(front == maxSize)

    • front = 0;

    • nItems--;

    • return temp;

  • }


Method main2

Method main()

  • public static void main(String[] args)

  • {

    • CircularQueuetheQueue = new CircularQueue(5); // queue holds 5 items

    • System.out.println("front : " + theQueue.front + "rear : " + theQueue.rear);

    • theQueue.insert(10); theQueue.insert(20);

    • theQueue.insert(30);theQueue.insert(40);

    • theQueue.remove();

    • System.out.println(“remove 1x, front : " +theQueue.front+" rear : " +theQueue.rear);

    • theQueue.insert(50);

    • theQueue.insert(60);

    • System.out.println("add 2 elemen, front : " +theQueue.front+"rear:”+theQueue.rear);

    • theQueue.remove();

    • System.out.println(“remove 1x, front : " +theQueue.front+ “rear : " +theQueue.rear);

    • while( !theQueue.isEmpty() )

    • {

      • int n = theQueue.remove();

      • System.out.print(n);

      • System.out.print(" ");

    • }
