  1. Inner Life of a Cell • Inner Life Of A Cell - Full Version.mkv – YouTube • Music • Narrative: Harvard http://www.youtube.com/watch?v=GigxU1UXZXo&feature=fvwrel

  2. Agenda: Nov. 26th Homework: rDNA project due on Friday, Nov 30th Pfeiffer Thank you notes due on Wed. Objective: To determine how proteins are made Warm up: Central Dogma Proteins and how they are synthesized Gene expression - review of process Shape determines function Senior Project Presentation Tuesday: Proteins in more depth

  3. Warm up: What is the Central Dogma of Biology and Biotechnolgy? Why is it important?

  4. The CENTRAL DOGMAsays: DNA  _________ ___________ • The first step will be to convert DNA to ______. This happens in the _______ and the process is called _____________. • Next, the _____ will be converted to a protein. This happens in the ___________ and the process is called ____________. This process will require assistance from the ___________ in the cell.

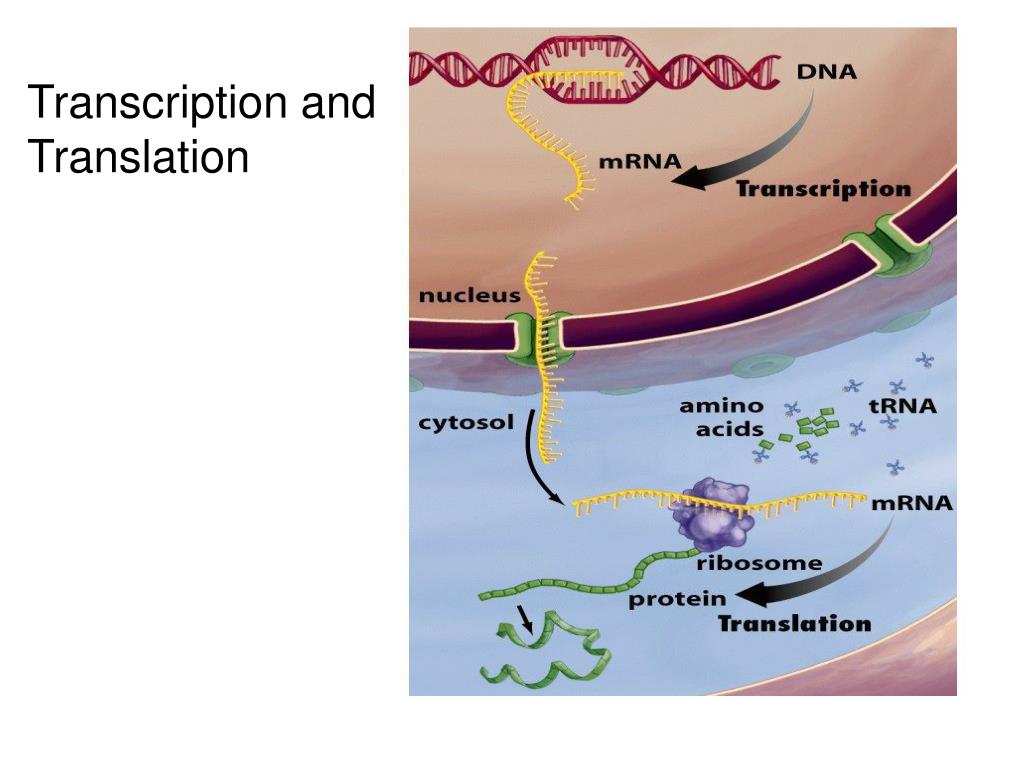

  5. Transcription and Translation

  6. Inside a Cell • Journey Inside The Cell - YouTube

  7. Protein structure and function “Gene Expression” Also known as “how to make a protein and how it works”

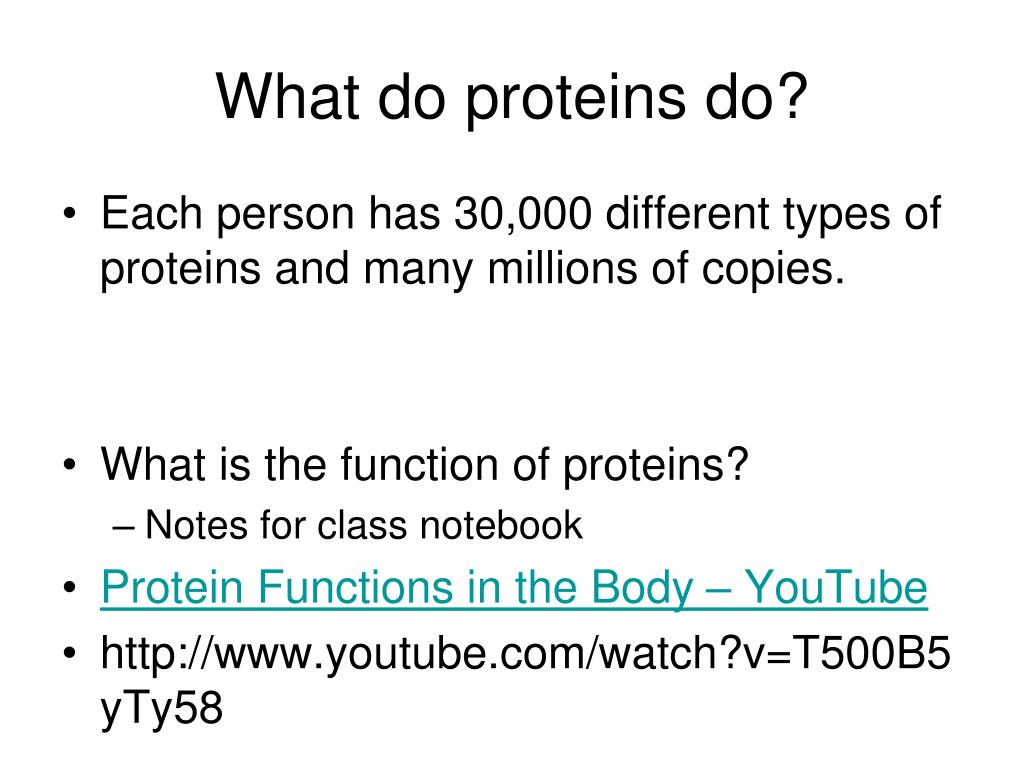

  8. What do proteins do? • Each person has 30,000 different types of proteins and many millions of copies. • What is the function of proteins? • Notes for class notebook • Protein Functions in the Body – YouTube • http://www.youtube.com/watch?v=T500B5yTy58

  9. The Structure of Life • Skim pages 6 – 9

  10. Proteins are the body’s worker molecules

  11. Proteins • Structure determines function • Or “proteins are shaped to get the job done” The Structure of Life • Genetic Code p. 12-13 • Peering into Protein Factories p. 23 • Beyond Drug Design pp. 52-55

  12. Proteins • Structure determines function • Or “proteins are shaped to get the job done” • Examples:

  13. Proteins – in musclesMyosin slides across actin

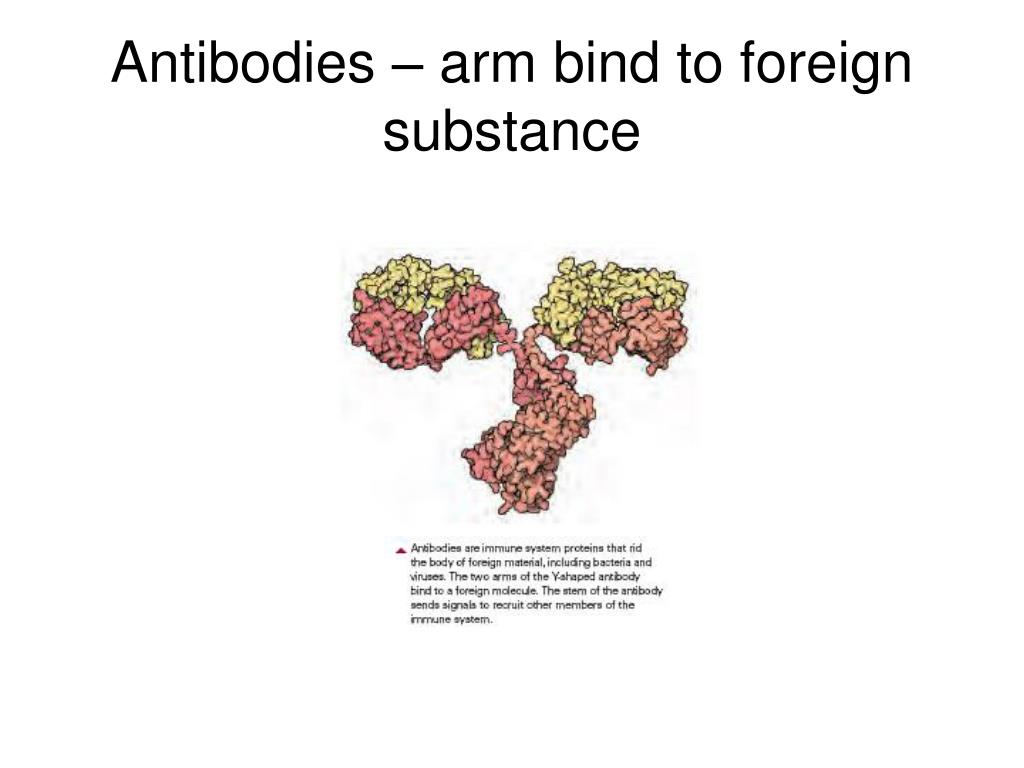

  14. Antibodies – arm bind to foreign substance

  15. Cartilage and tendons 3 strand, rope-like structure provides strength Collagen

  16. Review Base Pairing Rules for Transcription & Translation

  17. See p.12-13 Structure of Life for amino acid names & more details. The Genetic Code

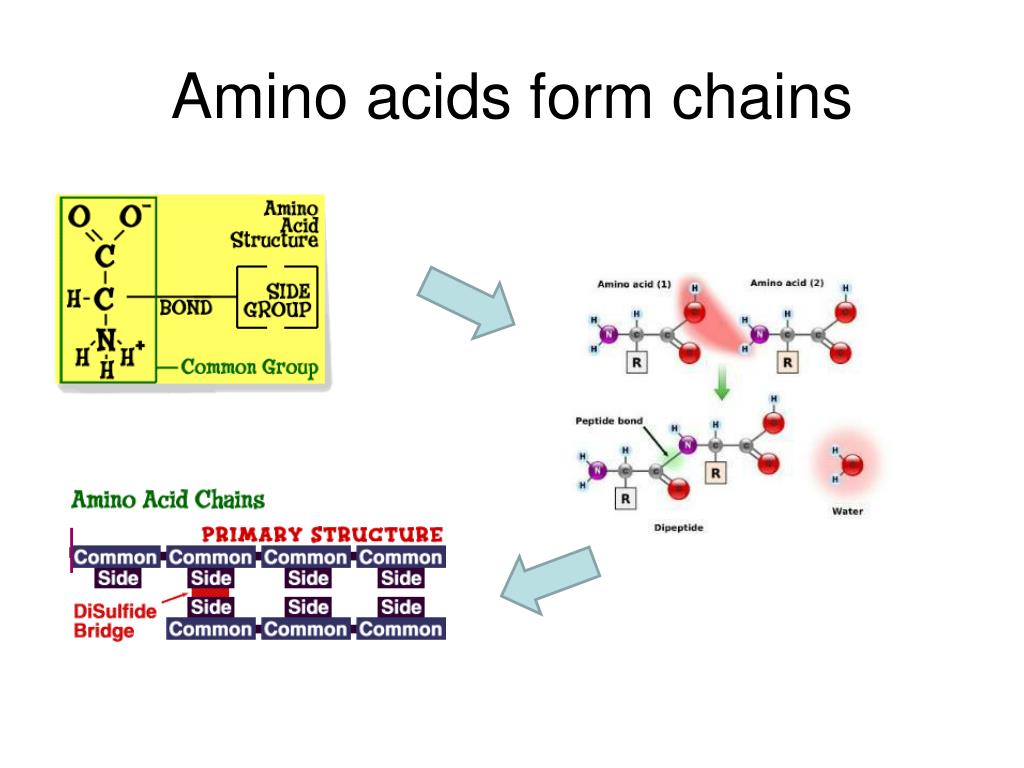

  18. Amino acids form chains

  19. Example of amino acids linked by polypeptide bonds(Note: protein synthesis has direction N to C) Part of a protein: an opioid peptide that modulates the perception of pain

  20. Codes for Amino Acids & Proteins

  21. Enzyme: “Pencil transferase” • You will make a new protein (an enzyme) whose job (function) is to transfer a pencil. • Bend the pipe cleaner (chenille stems) so that a pencil can be moved from one table to another. • For the “pencil transferase” to function correctly, you cannot touch the pencil when moving it from your table to the next one. • Keep the successful shape. Draw it in your class notebook.

  22. Questions: Describe the shape of your protein. How would the shape change if one of the amino acids was eliminated?

  23. Proteins – shape determines function Structure: Primary Secondary Tertiary Quaternary

  24. Shape determines function • Primary structure • Order of amino acids • Combine 50-2000 to make proteins • Secondary structure • Alpha helix • Beta Sheet • Plus unstructured loops

  25. Shape determines function • Tertiary • Globular: compact • Fibrous: linear • Quaternary • Multiple polypeptides (amino acid chains) come together

  26. Agenda: Tuesday 11/27 • Read The Structure of Life • The Genetic Code: pp. 12-13 • Worksheet: Genes to Polypeptides • Four Levels of Protein Structure • In more depth • Epigenome – When are proteins produced?

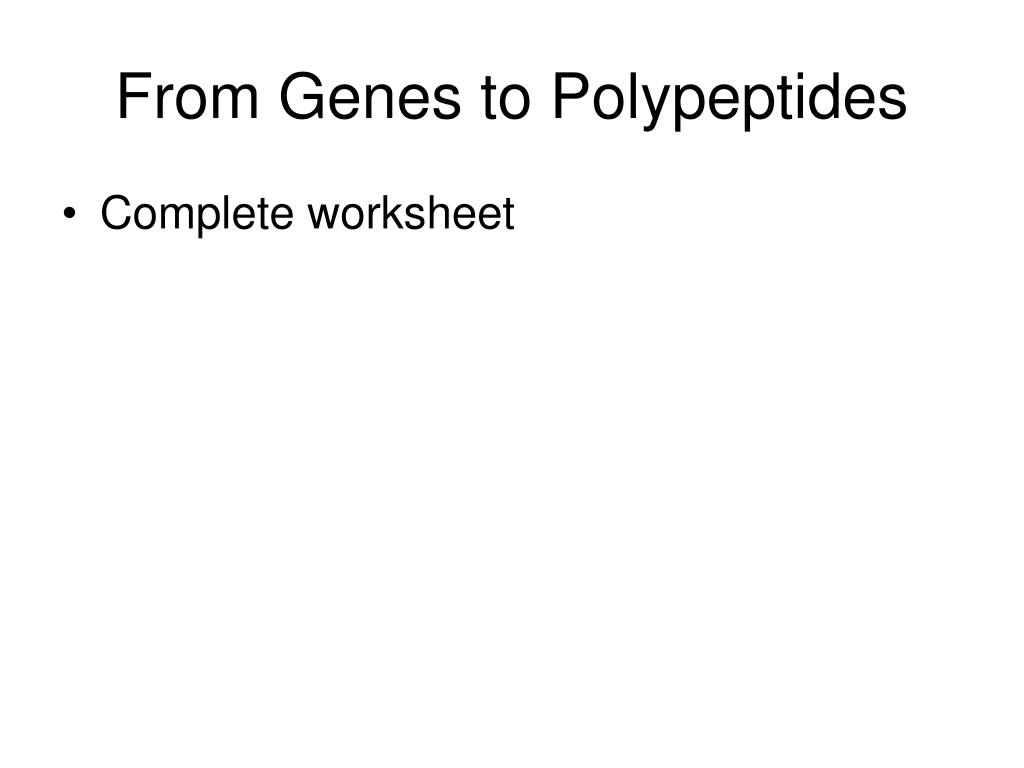

  27. From Genes to Polypeptides • Complete worksheet

  28. See p.12-13 Structure of Life for amino acid names & more details. The Genetic Code

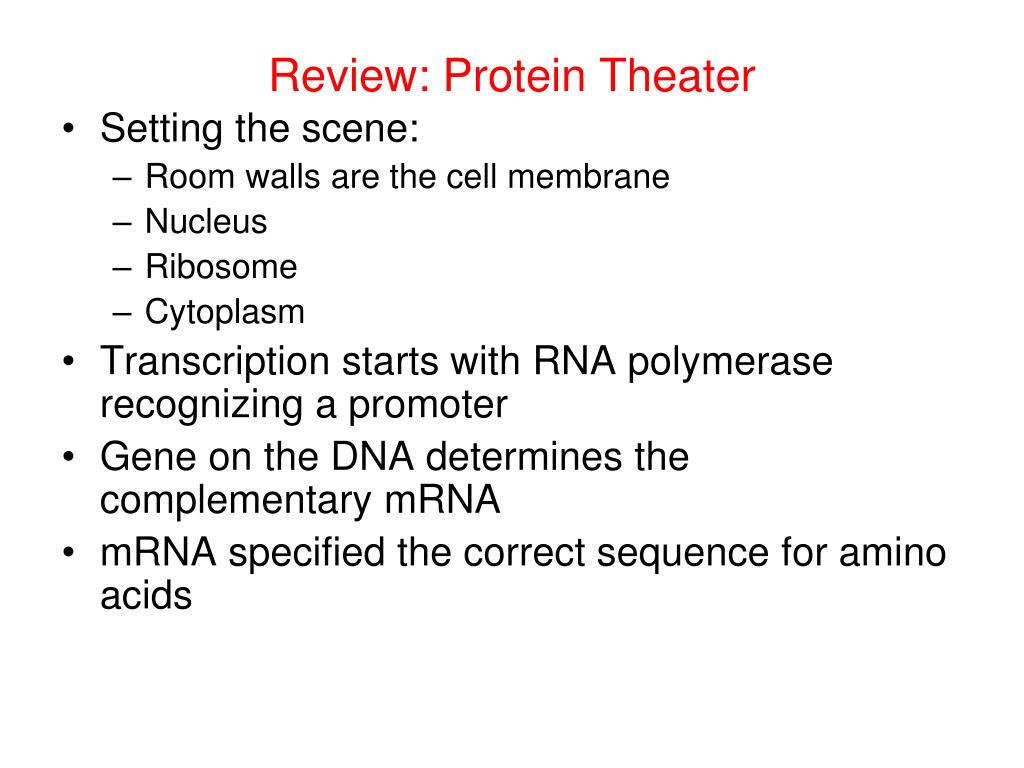

  29. Review: Protein Theater • Setting the scene: • Room walls are the cell membrane • Nucleus • Ribosome • Cytoplasm • Transcription starts with RNA polymerase recognizing a promoter • Gene on the DNA determines the complementary mRNA • mRNA specified the correct sequence for amino acids

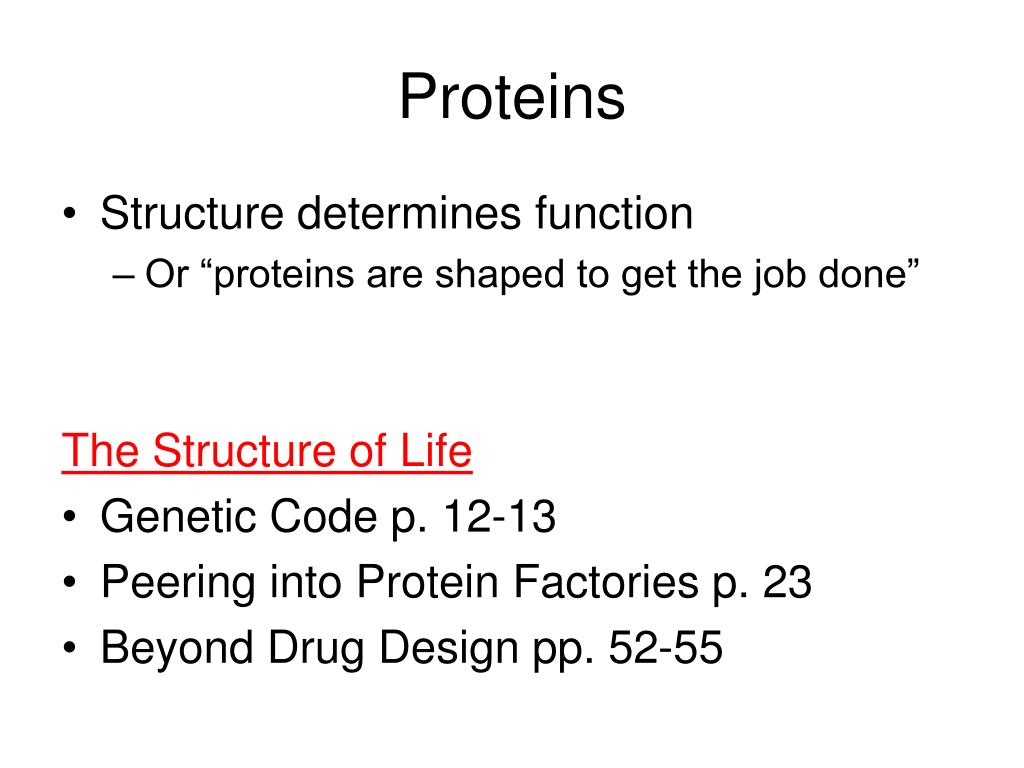

  30. Proteins • Structure determines function • Or “proteins are shaped to get the job done” The Structure of Life • Genetic Code p. 12-13 • Peering into Protein Factories p. 23 • Beyond Drug Design pp. 52-55

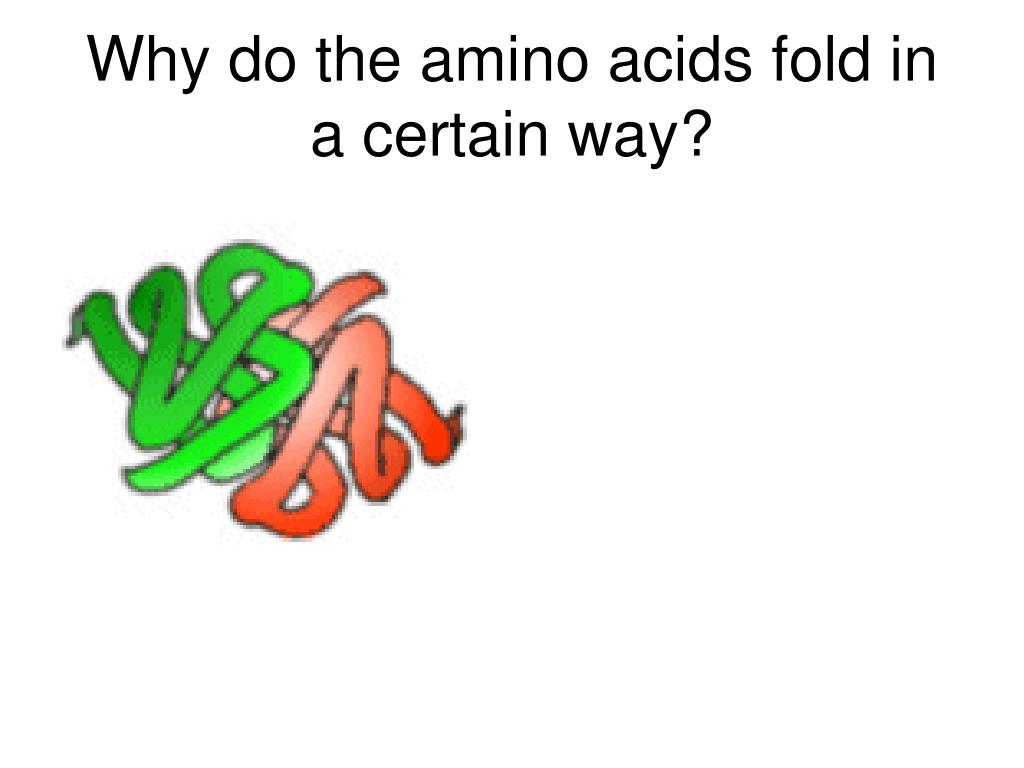

  31. Why do the amino acids fold in a certain way?

  32. Differences in the amino acids • Resource: • Chem4Kids.com: Biochemistry:Twenty Amino Acids Amino Acid Sequence of Bovine Insulin

  33. Four Levels of Protein Structure 1. A protein’s primary structure is its amino acid sequence • Primary structure: the sequence of amino acids that form the polypeptide chains • A change in the primary structure can alter the resulting protein

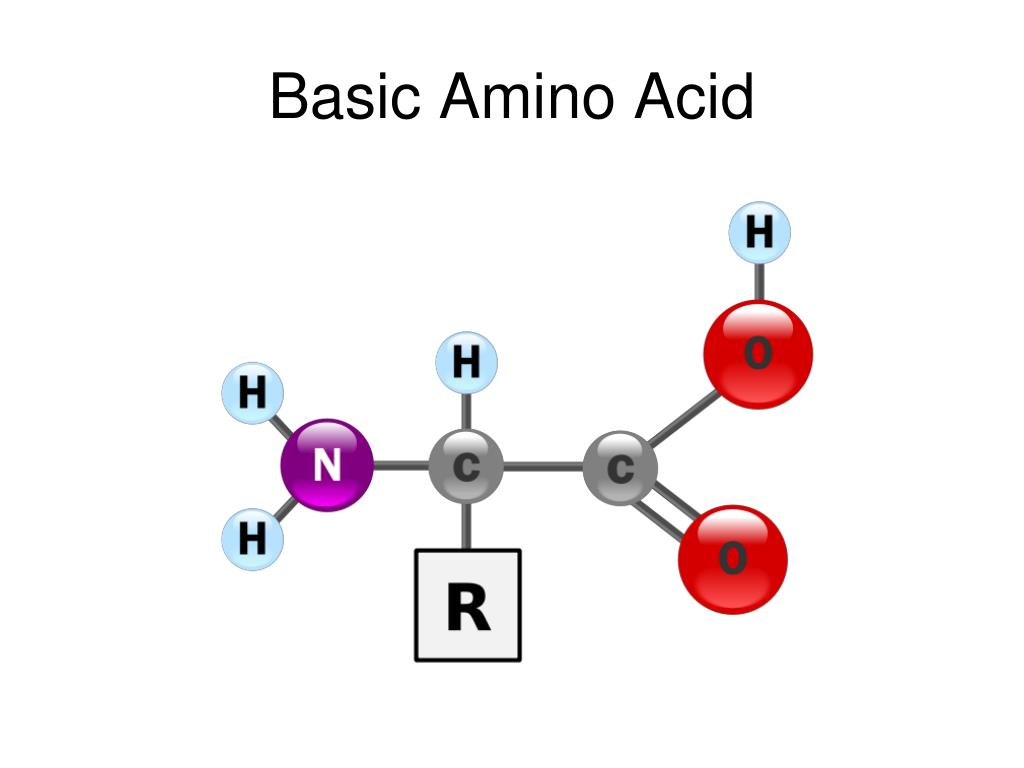

  34. Basic Amino Acid

  35. 20 amino acids • http://www.personal.kent.edu/~cearley/PChem/amino/3d.htm • http://wbiomed.curtin.edu.au/biochem/tutorials/AAs/AA.html • http://www.chem4kids.com/files/aminoacids/index.html • Chem4Kids.com: Biochemistry:Twenty Amino Acids

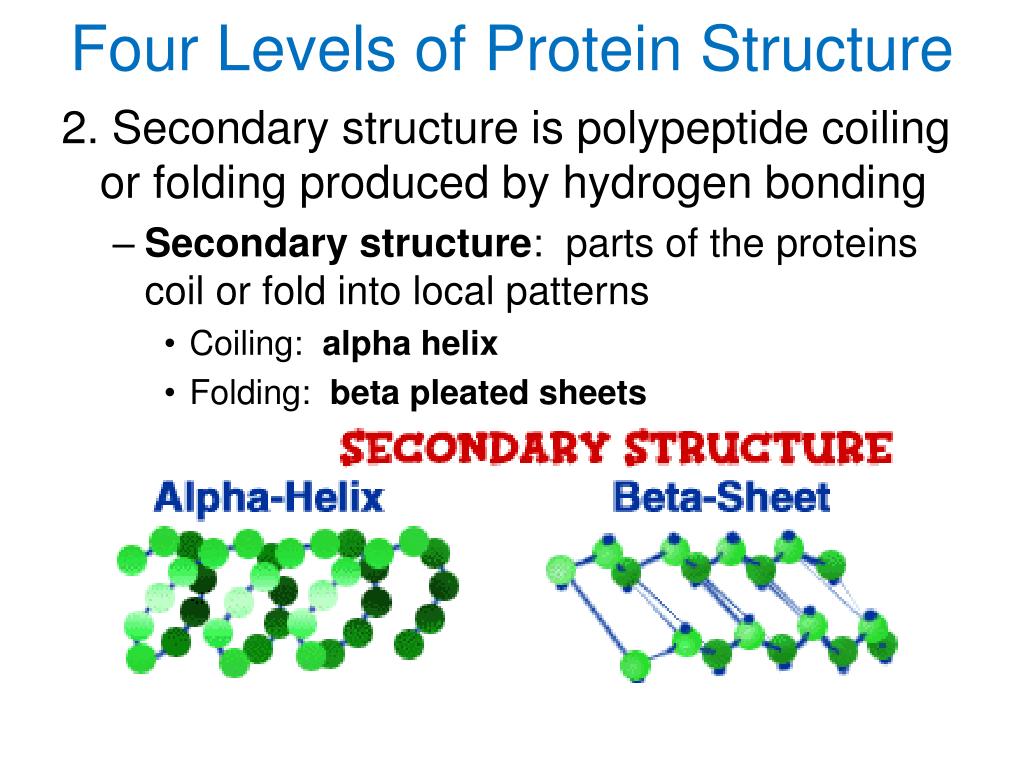

  36. Four Levels of Protein Structure 2. Secondary structure is polypeptide coiling or folding produced by hydrogen bonding • Secondary structure: parts of the proteins coil or fold into local patterns • Coiling: alpha helix • Folding: beta pleated sheets

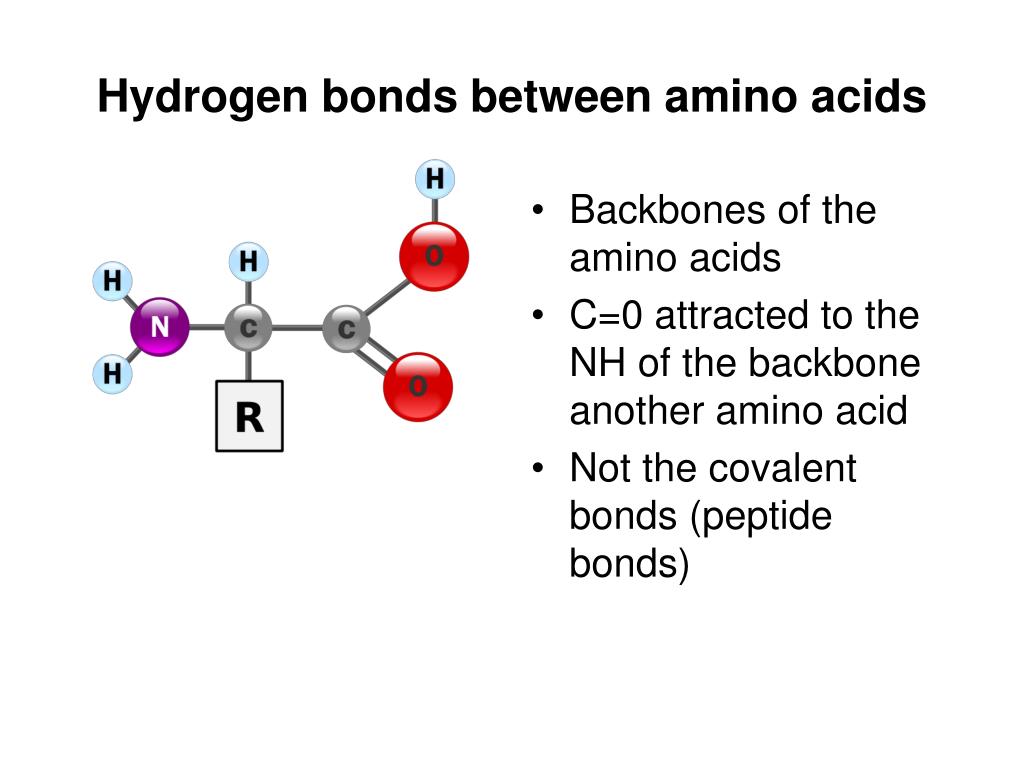

  37. Hydrogen bonds between amino acids • Backbones of the amino acids • C=0 attracted to the NH of the backbone another amino acid • Not the covalent bonds (peptide bonds)

  38. Alpha helix Beta Sheet Secondary Structure – Hydrogen Bonding (See other type.

  39. Secondary shapes often combined into one 3-D structure called a domainEach domain has a function. Note: Also unstructured loops Note: Di-sulfide bridge Strong covalent bond; acts as anchor

  40. 3.Tertiary structure is the overall shape of a polypeptide • Tertiary structure: overall 3 dimensional shape of a protein • Globular: compact shape, enzymes • Fibrous: helical, tough, water-insoluble • Result of hydrogen bonding as well as ionic bonding (hydrophilic R groups) • Folded so that hydrophobic R groups are on the inside

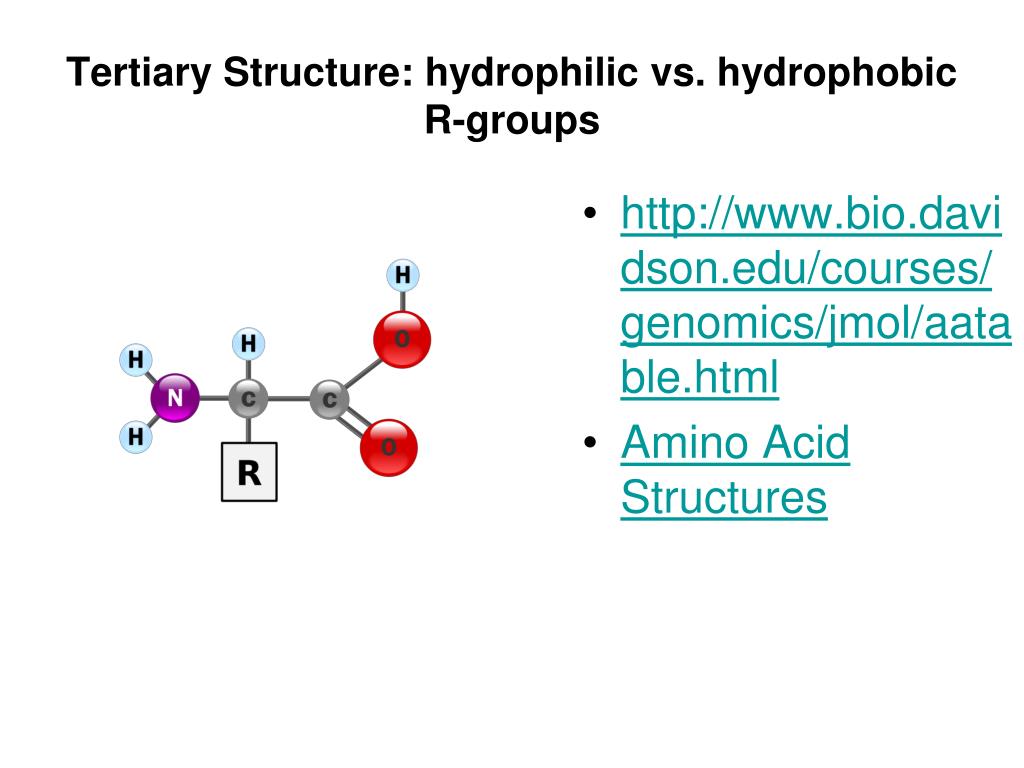

  41. Tertiary Structure: hydrophilic vs. hydrophobic R-groups http://www.bio.davidson.edu/courses/genomics/jmol/aatable.html Amino Acid Structures

  42. Basic Rules for Structure based on R groups Hydrophobic Hydrophilic Polar (ionic) Attracted to water since water is polar “Comfortable” in the watery environment of cytosol (cytoplasm) Fold to be on the outside of the protein • Non-polar • R groups with only C& H • Side chains fold up into the interior of the protein

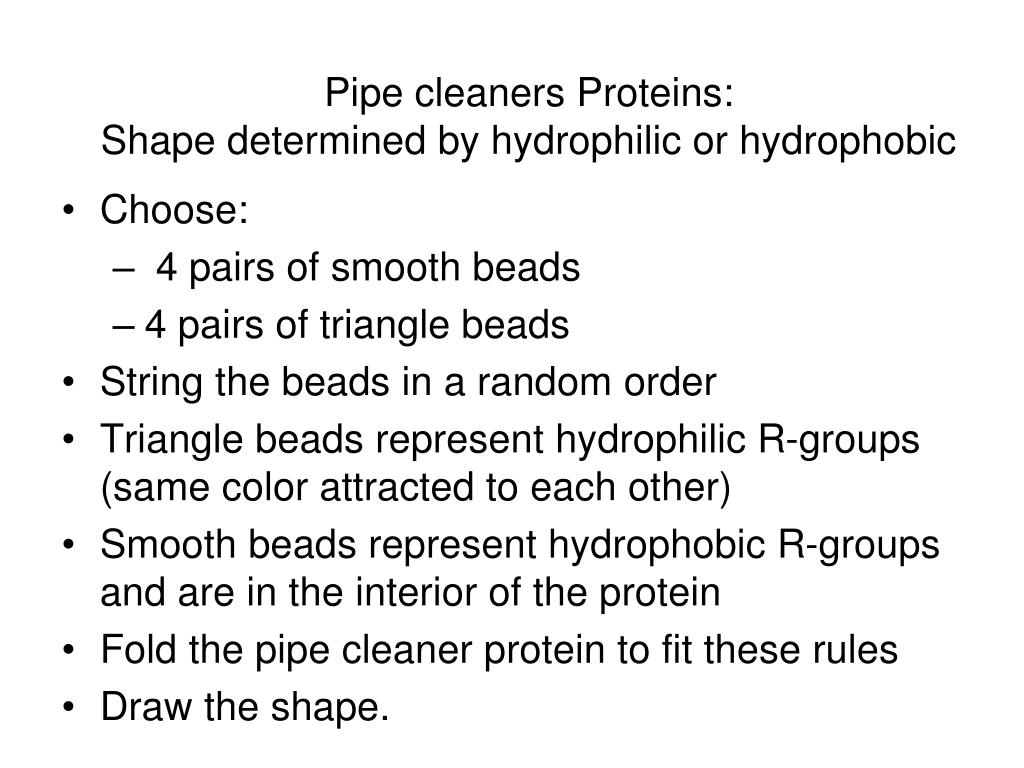

  43. Pipe cleaners Proteins:Shape determined by hydrophilic or hydrophobic • Choose: • 4 pairs of smooth beads • 4 pairs of triangle beads • String the beads in a random order • Triangle beads represent hydrophilic R-groups (same color attracted to each other) • Smooth beads represent hydrophobic R-groups and are in the interior of the protein • Fold the pipe cleaner protein to fit these rules • Draw the shape.

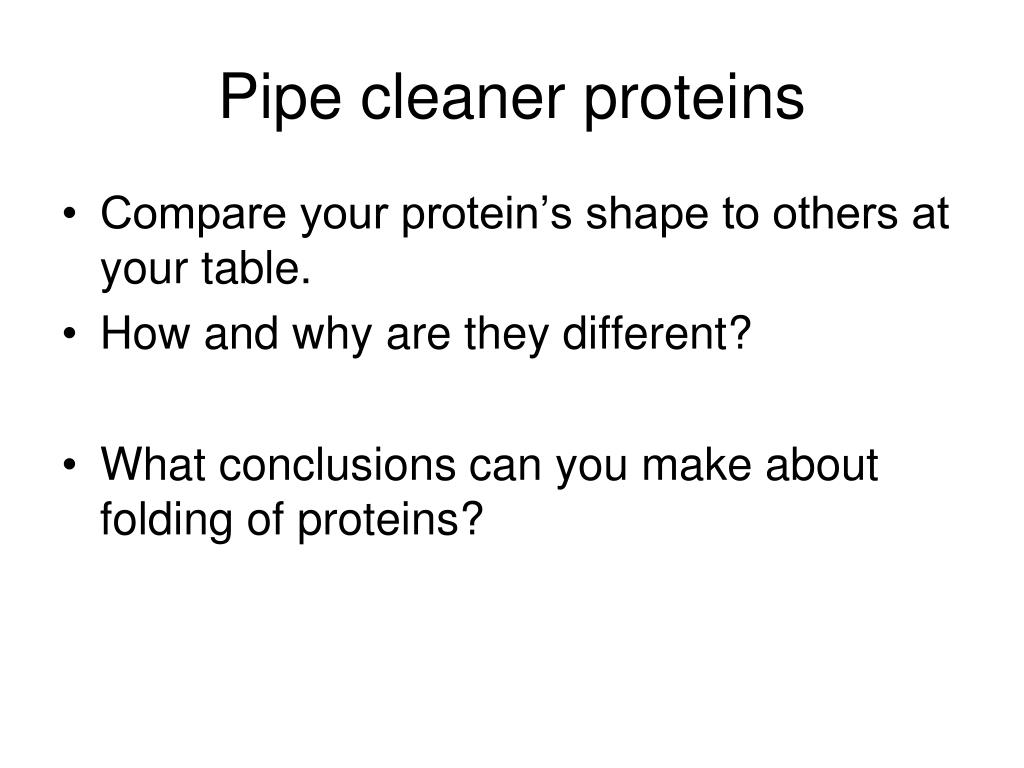

  44. Pipe cleaner proteins • Compare your protein’s shape to others at your table. • How and why are they different? • What conclusions can you make about folding of proteins?

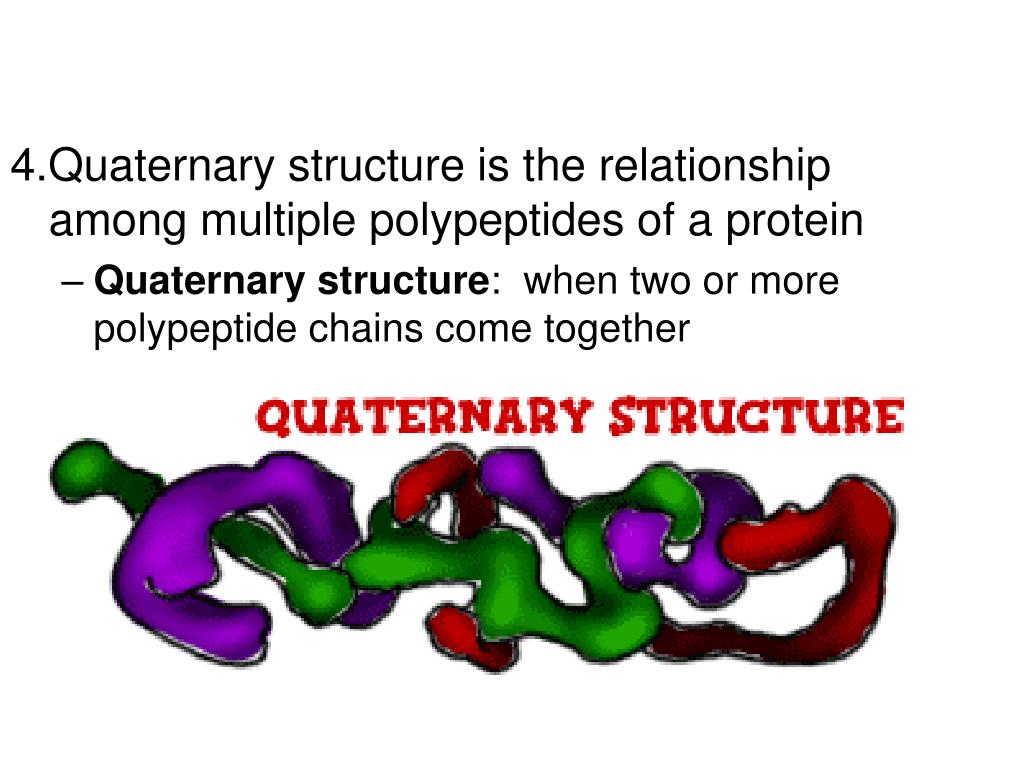

  45. 4.Quaternary structure is the relationship among multiple polypeptides of a protein • Quaternary structure: when two or more polypeptide chains come together

  46. Representing the structure of proteins Protein in cell membrane: Left: outside of membrane Purple: where protein crosses Right: inside of cell Receptor protein: pass molecular messages from receptors to inside of cell

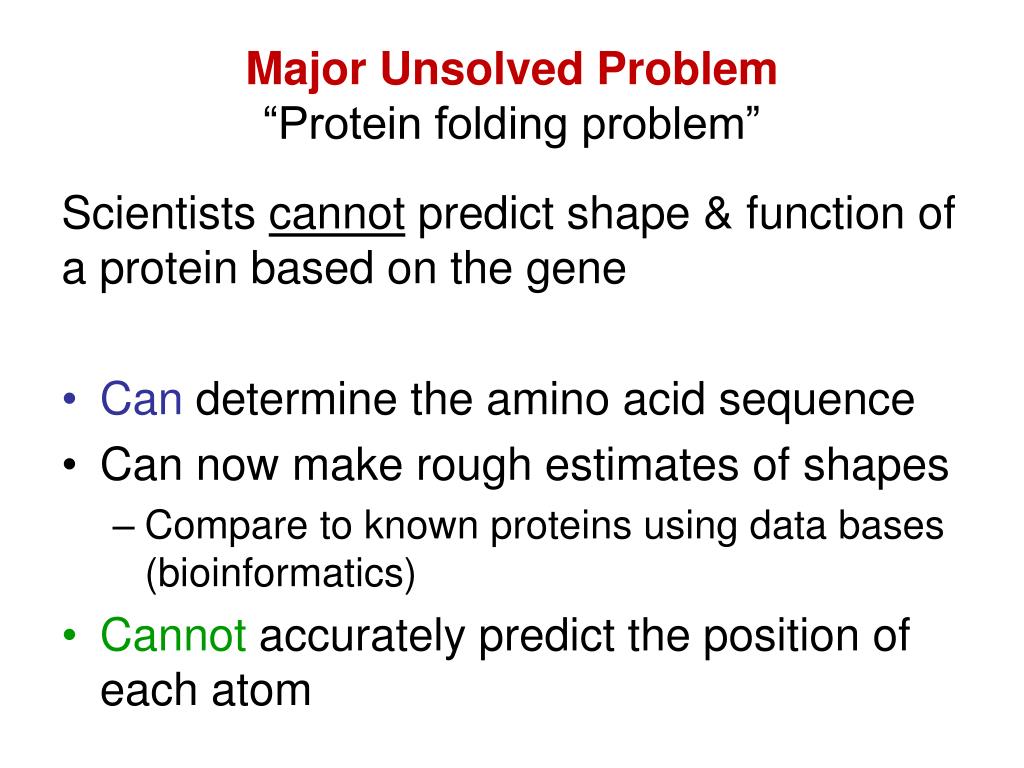

  47. Major Unsolved Problem“Protein folding problem” Scientists cannot predict shape & function of a protein based on the gene • Can determine the amino acid sequence • Can now make rough estimates of shapes • Compare to known proteins using data bases (bioinformatics) • Cannot accurately predict the position of each atom
