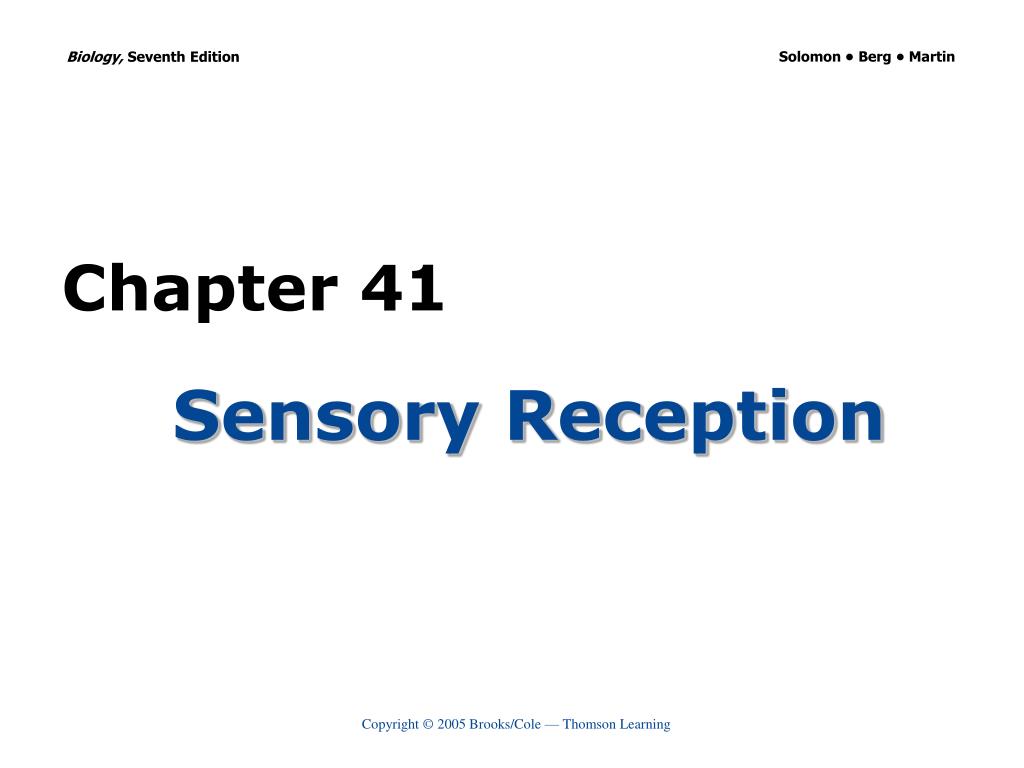

  1. Chapter 41 Sensory Reception

  2. Sensory receptors • Neuron endings • Specialized receptor cells in close contact with neurons • Sense organs • Sensory receptors • Accessory cells

  3. Mechanoreceptors • Transduce mechanical energy • Animal functions • Feeling • Hearing • Maintaining balance

  4. Chemoreceptors • Transduce certain kinds of chemical compounds • Allow taste and olfaction

  5. Thermoreceptors • Transduce thermal energy • In endothermic animals, thermoreceptors provide cues about body temperature • Some invertebrates use thermoreceptors to locate endothermic prey

  6. Thermoreception

  7. Electroreceptors • Used by predatory fishes to detect prey • Respond to electrical stimuli

  8. Photoreceptors • Transduce light energy • Serve as the sensory receptors in eyespots and eyes

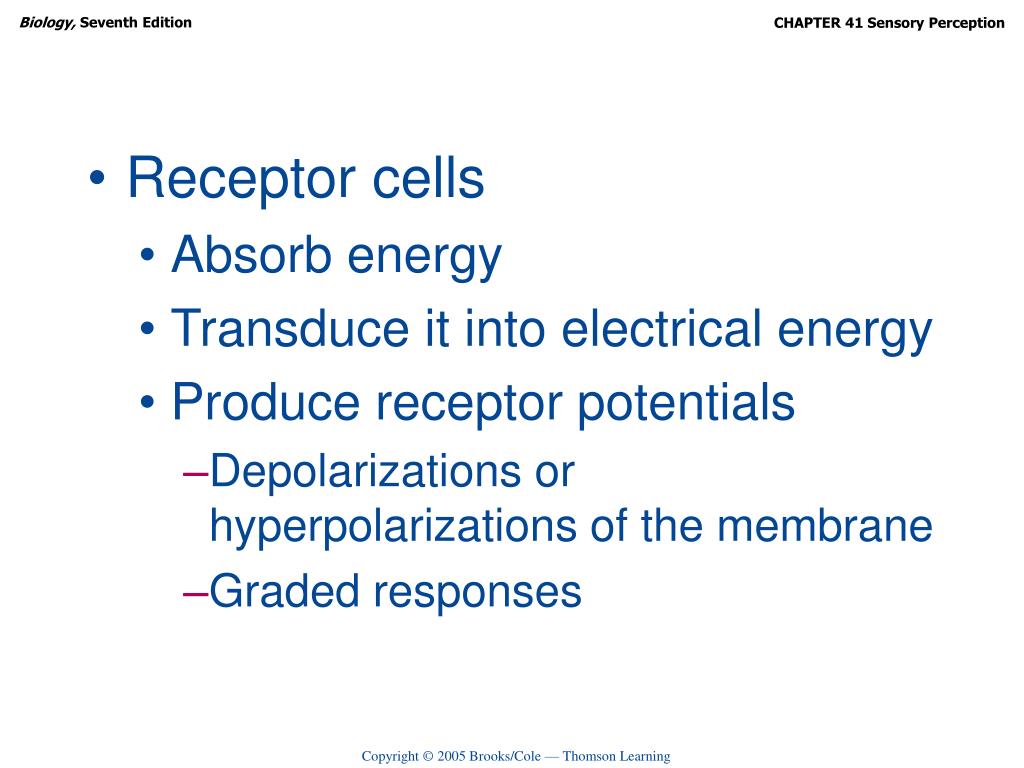

  9. Receptor cells • Absorb energy • Transduce it into electrical energy • Produce receptor potentials • Depolarizations or hyperpolarizations of the membrane • Graded responses

  10. Sensation process • Sensory receptors transmit coded signals • Brain interprets signals

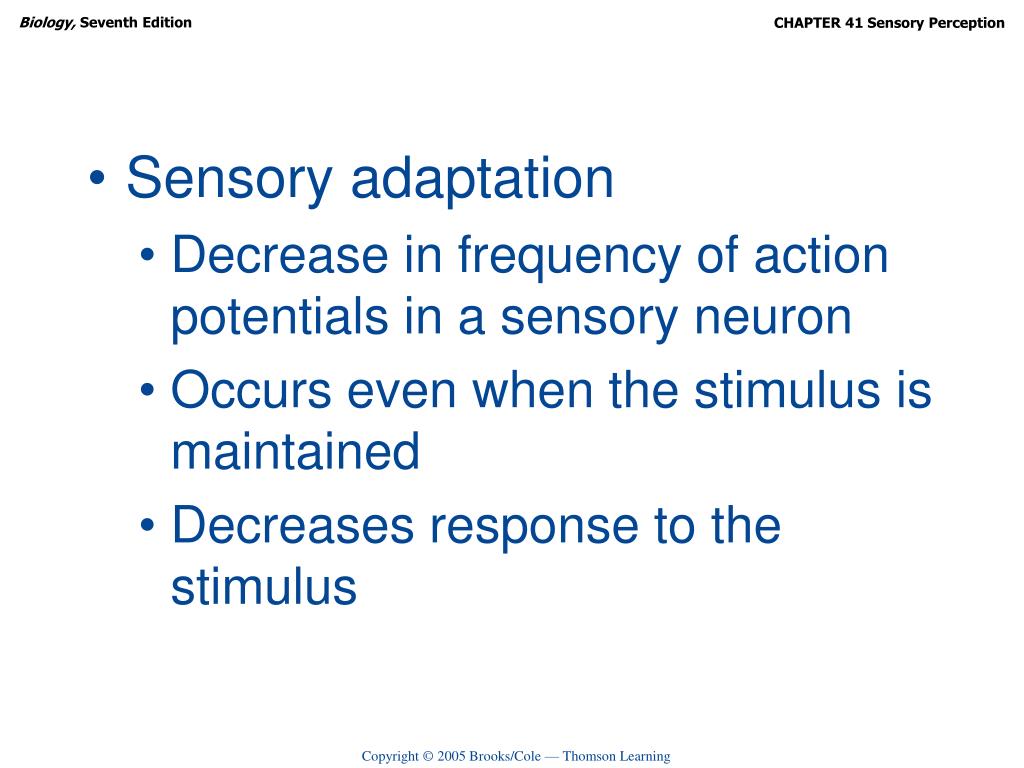

  11. Sensory adaptation • Decrease in frequency of action potentials in a sensory neuron • Occurs even when the stimulus is maintained • Decreases response to the stimulus

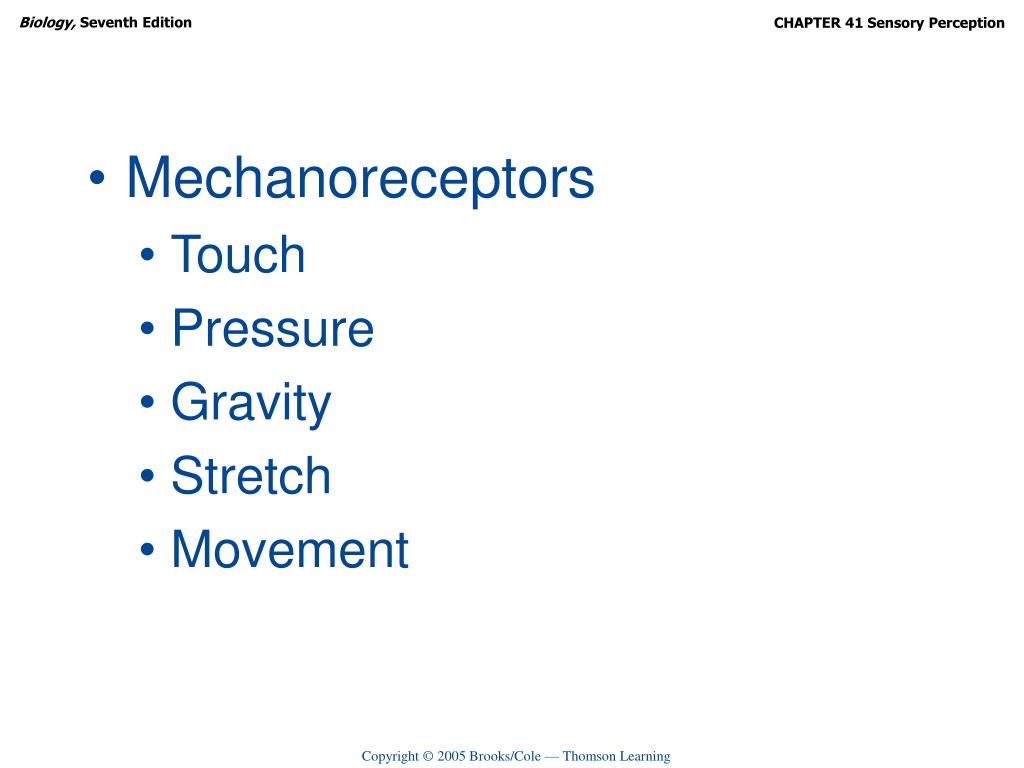

  12. Mechanoreceptors • Touch • Pressure • Gravity • Stretch • Movement

  13. Mechanoreceptors are activated when they change shape as a result of being mechanically pushed or pulled

  14. Tactile receptors • Found in the skin • Respond to mechanical displacement of hairs • Respond to displacement of the receptor cells

  15. Nociceptors • Pain receptors • Free nerve endings of certain sensory neurons • Strong tactile stimuli • Temperature extremes • Certain chemicals

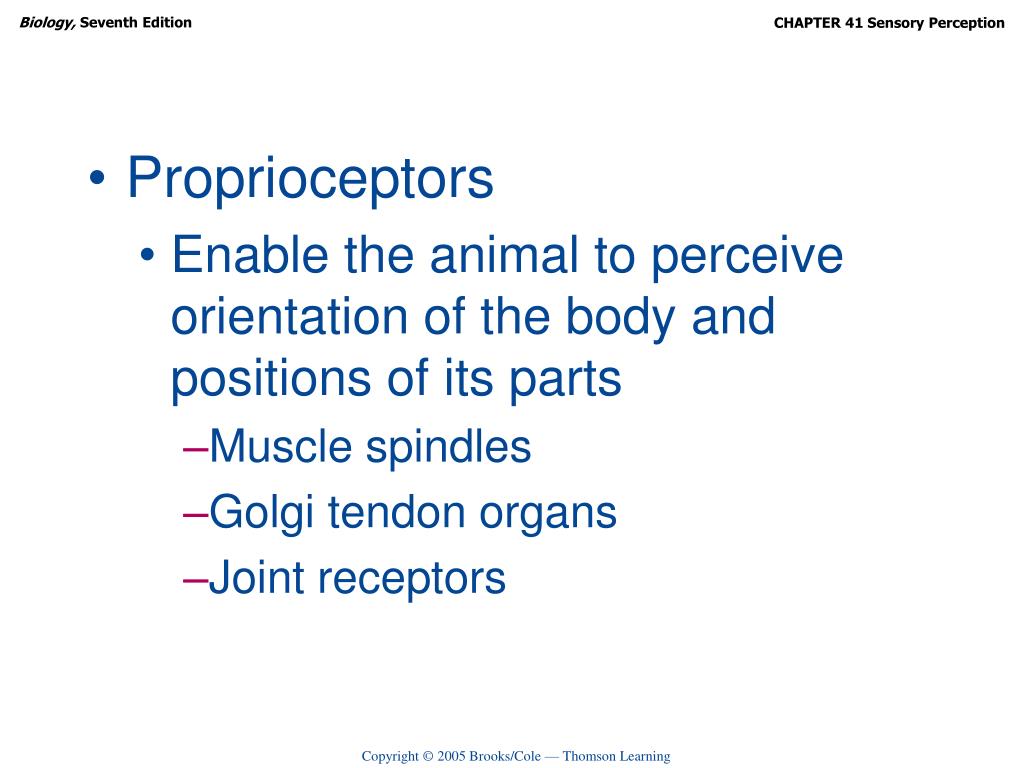

  16. Proprioceptors • Enable the animal to perceive orientation of the body and positions of its parts • Muscle spindles • Golgi tendon organs • Joint receptors

  17. Proprioceptors

  18. Statocysts • Gravity receptors • Found in many invertebrates

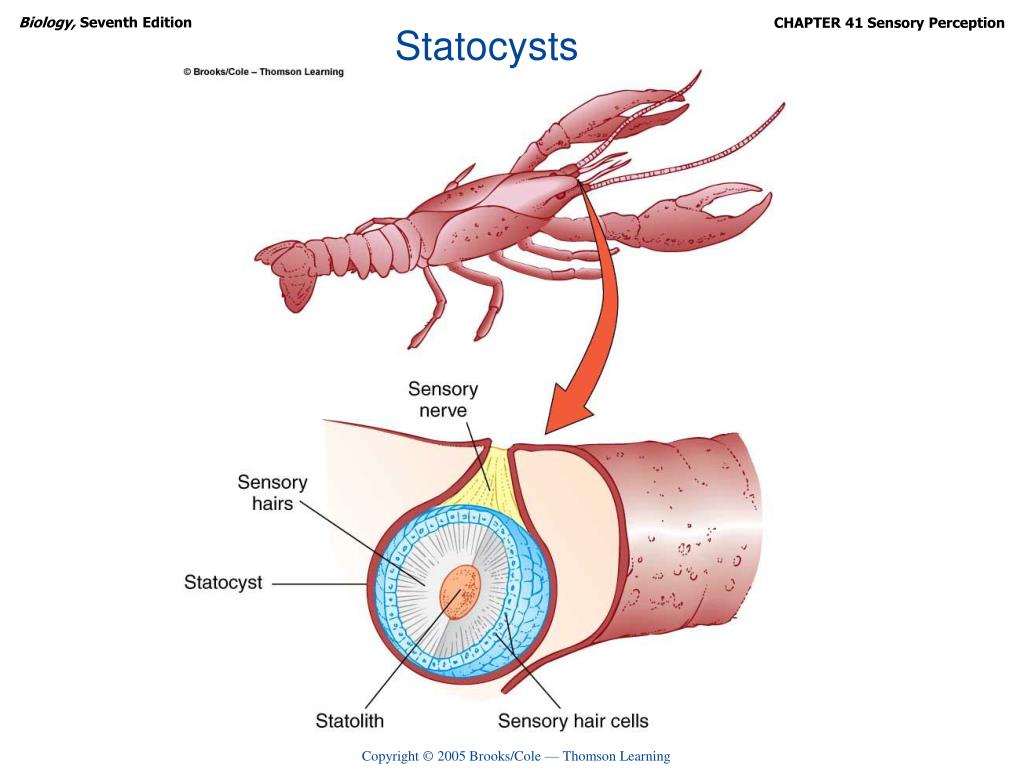

  19. Statocysts

  20. Vertebrate hair cells • Detect movement • Found in • Lateral line of fishes • Vestibular apparatus • Semicircular canals • Cochlea

  21. Vertebrate hair cells • Single kinocilium • True cilium • Stereocilia • Microvilli • Contain actin filaments

  22. Lateral line organs • Supplement vision in fish and some amphibians • Inform the animal of moving objects or objects in its path

  23. Lateral line organ

  24. Vertebrate inner ear • Labyrinth of fluid-filled chambers • Canals that help maintain equilibrium

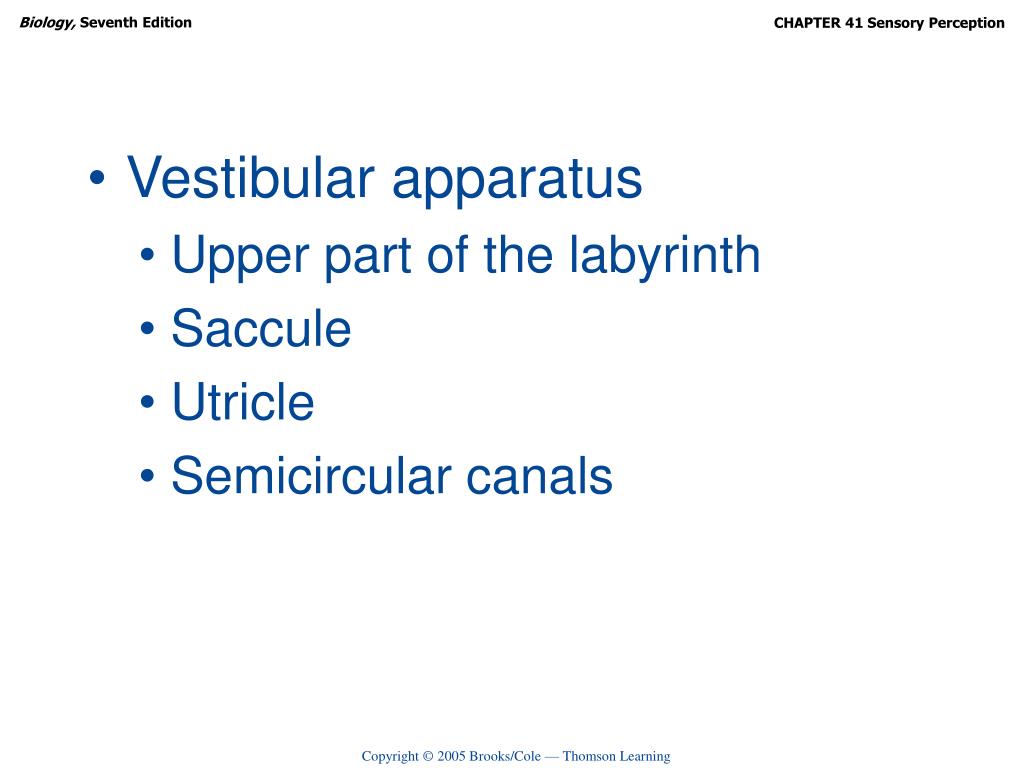

  25. Vestibular apparatus • Upper part of the labyrinth • Saccule • Utricle • Semicircular canals

  26. Human ear

  27. Otoliths • Stimulate hair cells that send signals to the brain • Enable the animal to perceive the direction of gravity

  28. Saccule and utricle • Change position when the head is tilted • Change position when the body is moving in a straight line • Semicircular canals • Inform the brain about turning movements

  29. Inner ear

  30. Cristae • Clumps of hair cells • Located within each bulblike enlargement • Stimulated by movements of the endolymph • Fluid that fills each canal

  31. Organ of Corti • Found within the cochlea • Contains auditory receptors

  32. Path taken by sound waves • Sound waves pass through the external auditory canal • Tympanic membrane (eardrum) vibrates • Ear bones transmit and amplify the vibrations through the middle ear

  33. Vibrations pass through the oval window to fluid within the vestibular duct • Pressure waves press on the membranes that separate the three ducts of the cochlea • Bulging of the round window serves as a pressure escape valve

  34. Pressure waves cause movements of the basilar membrane • Movements stimulate the hair cells of the organ of Corti by rubbing them against the overlying tectorial membrane

  35. Neural impulses • Initiated in the dendrites of neurons that lie at the base of each hair cell • Transmitted by the cochlear nerve to the brain

  36. Chemoreceptors for taste and smell • Taste receptor cells • Specialized epithelial cells in taste buds • Olfactory epithelium • Specialized olfactory cells • Axons that extend to the brain

  37. Olfactory epithelium

  38. Taste and smell process • Molecule binds with a receptor • Taste receptor cell • Olfactory receptor cell • Signal transduction process involving a G protein is initiated

  39. Eyespots (ocelli) • Found in cnidarians and flatworms • Detect light • Do not form images

  40. Eyespots

  41. Compound eye of insects and crustaceans • Visual units called ommatidia • Collectively produce a mosaic image • Transparent lens • Crystalline cone • Focuses light onto retinular receptor cells

  42. Human eye structures and functions • Light enters through the cornea • Light is focused by the lens • Image is produced on the retina • Iris regulates the amount of light

  43. Human eye

  44. Photoreceptor cells in the retina • Rods • Function in dim light • Black and white images • Cones • Function in bright light • Color vision

  45. Bipolar cells • Send signals to ganglion cells

  46. Lateral interneurons • Integrate information • Horizontal cells • Receive signals from the rods and cones • Send signals to bipolar cells

  47. Amacrine cells • Receive signals from bipolar cells • Send signals back to bipolar cells and to ganglion cells

  48. Neural pathway in the retina

  49. Human vision process • Light strikes the photopigment rhodopsin in the rod cells • Retinal portion changes shape • Initiates a signal transduction process that involves transducin

  50. G protein activates an esterase that hydrolyzes cGMP • Reduces cGMP concentration • Ion channels close • Membrane becomes hyperpolarized
