  1. VSP1999esxtop for Advanced Users Name, Title, Company

  2. Disclaimer • This session may contain product features that are currently under development. • This session/overview of the new technology represents no commitment from VMware to deliver these features in any generally available product. • Features are subject to change, and must not be included in contracts, purchase orders, or sales agreements of any kind. • Technical feasibility and market demand will affect final delivery. • Pricing and packaging for any new technologies or features discussed or presented have not been determined.

  3. Before we dive in…

  4. vSphere Performance Management Tools (1 of 2) • vCenter Alarms • Relies on static thresholds • Alarm trigger may not always indicate an actual performance problem • vCenter Operations • Aggregates metrics into workload, capacity and health scores • Relies on dynamic thresholds • vCenter Charts • Historical trends • Post mortem analysis, comparing metrics

  5. vSphere Performance Management Tools (2 of 2) • esxtop/resxtop • For live troubleshooting and root cause analysis • esxplot, perfmon and other tools can be used for offline analysis

  6. Performance Snapshot • For complicated problems • Technical support may ask you for a performance snapshot for offline analysis

  7. About This Talk This talk will focus on the esxtop counters using illustrative examples esxtop manual: • http://www.vmware.com/pdf/vsphere4/r41/vsp_41_resource_mgmt.pdf Interpreting esxtop statistics • http://communities.vmware.com/docs/DOC-11812 Previous vmworld talks: • VMworld 2008 - http://vmworld.com/docs/DOC-2356 • VMworld 2009 - http://vmworld.com/docs/DOC-3838 • VMworld 2010 - http://www.vmworld.com/docs/DOC-5101

  8. esxtop Screens Screens • c: cpu (default) • m: memory • n: network • d: disk adapter • u: disk device (added in ESX 3.5) • v: disk VM (added in ESX 3.5) • i: Interrupts (added in ESX 4.0) • p: power management (added in ESX 4.1) VM VM VM VM VMkernel CPU Scheduler Memory Scheduler Virtual Switch vSCSI c, i, p m n d, u, v

  9. New counters in ESX 5.0

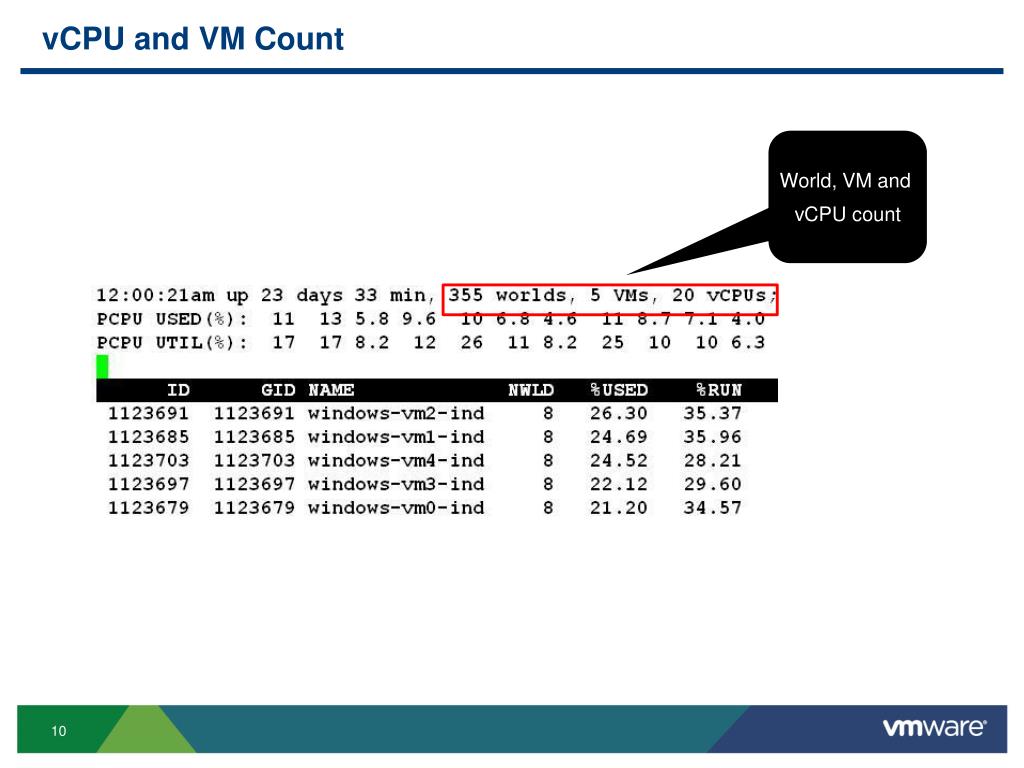

  10. vCPU and VM Count World, VM and vCPU count

  11. VMWAIT %WAIT - %IDLE More about this later…

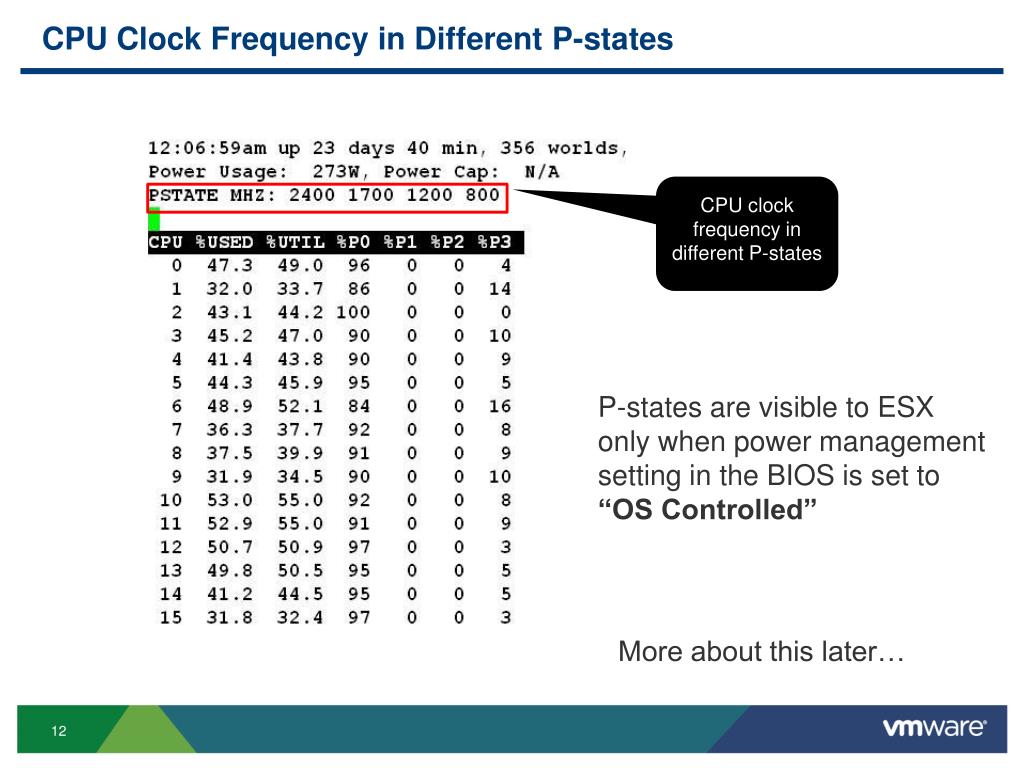

  12. CPU Clock Frequency in Different P-states CPU clock frequency in different P-states P-states are visible to ESX only when power management setting in the BIOS is set to “OS Controlled” More about this later…

  13. Failed Disk IOs Failed IOs are now accounted separately from successful IOs

  14. VAAI: Block Deletion Operations New set of VAAI stats for tracking block deletion VAAI : vStorage API for Array Integration

  15. Low-Latency Swap (Host Cache) Low-Latency (SSD) Swap

  16. Understanding CPU counters

  17. CPU State Times WAIT CSTP RUN RDY SWPWT MLMTD Guest I/O IDLE blocked Elapsed Time VMWAIT

  18. CPU Usage Accounting - OVRLP + SYS USED = RUN RUN OVRLP System Service SYS USED could be < RUN if the CPU is not running at its rated clock frequency

  19. Impact of P-States %USED: CPU usage with reference to rated base clock frequency %UTIL: CPU utilization with reference to current clock frequency %RUN: CPU occupancy time

  20. Factors That Affect VM CPU Usage Accounting • Chargeback • %SYS time • CPU frequency scaling • Turbo boost • USED > (RUN – SYS) • Power management • USED < (RUN – SYS) • Hyperthreading

  21. Poor performance due to power management

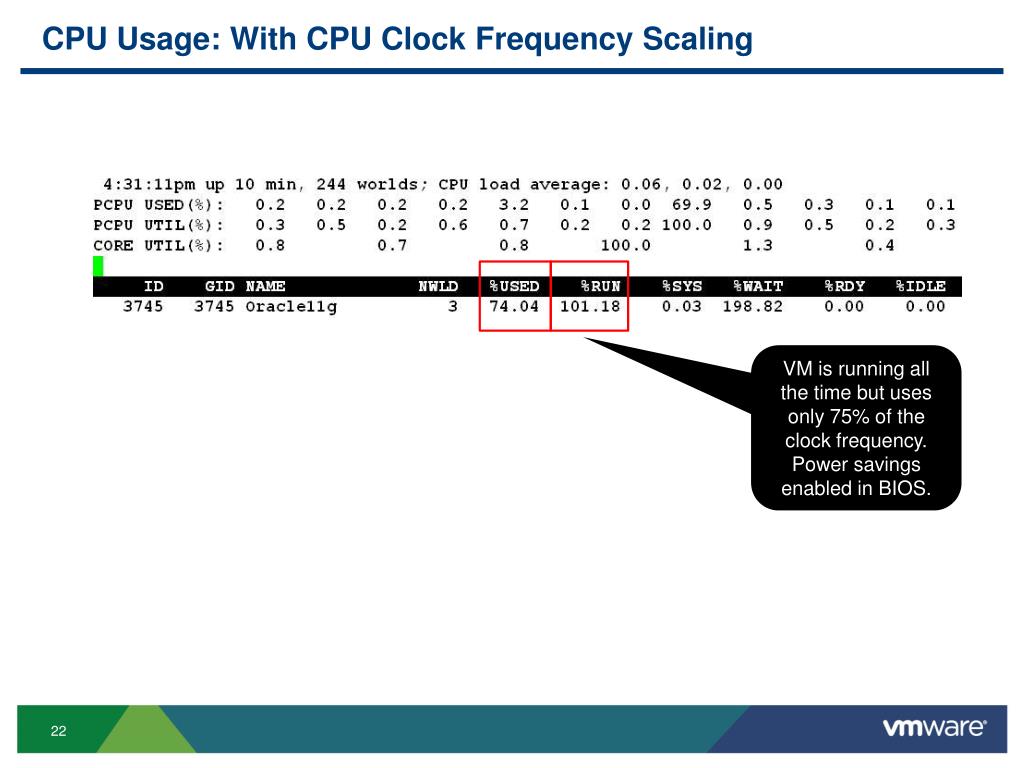

  22. CPU Usage: With CPU Clock Frequency Scaling VM is running all the time but uses only 75% of the clock frequency. Power savings enabled in BIOS.

  23. Poor performance due to core sharing

  24. Hyperthreading PCPU Core HT On HT Off ESX scheduler tries to avoid sharing the same core

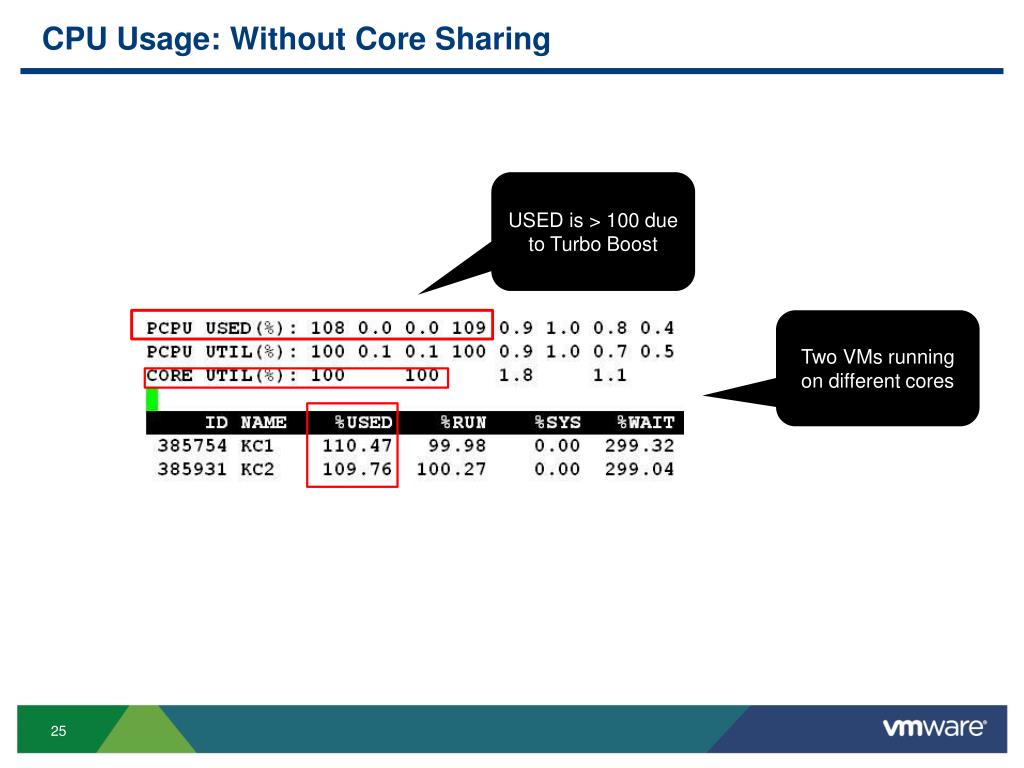

  25. CPU Usage: Without Core Sharing USED is > 100 due to Turbo Boost Two VMs running on different cores

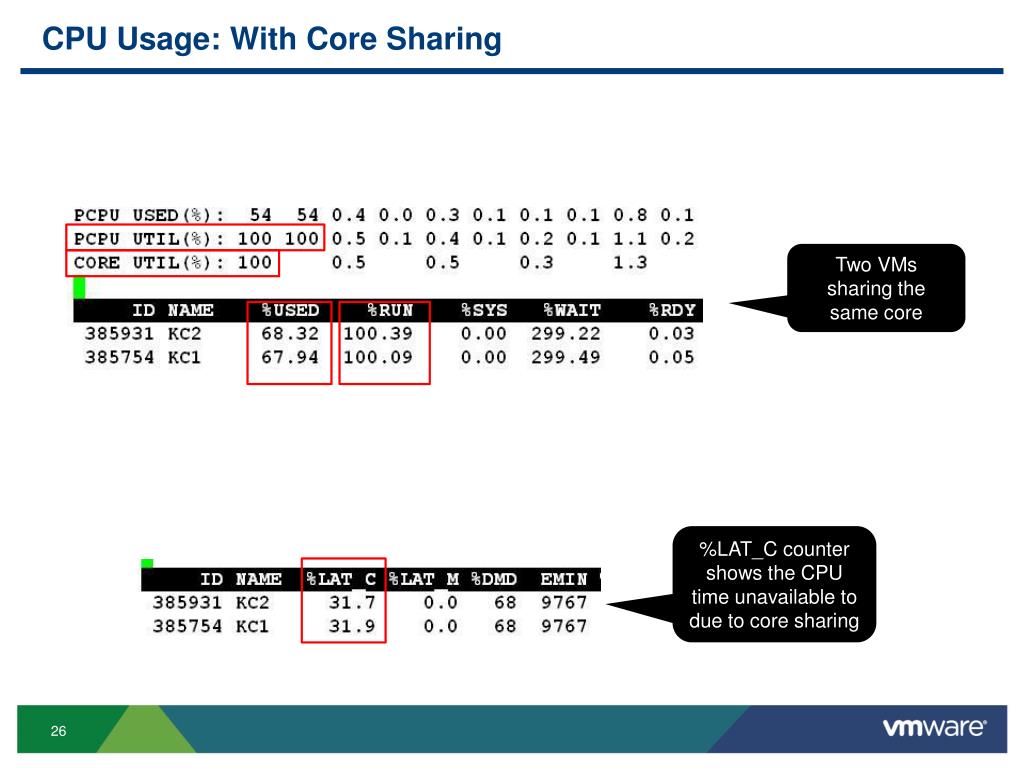

  26. CPU Usage: With Core Sharing Two VMs sharing the same core %LAT_C counter shows the CPU time unavailable to due to core sharing

  27. Performance Impact of Swapping

  28. Performance Impact of Swapping Some swapping activity Time spent in blocked state due to swapping

  29. How to identify storage connectivity issues

  30. NFS Connectivity Issue (1 of 2) I/O activity to NFS datastore System time charged for NFS activity

  31. NFS Connectivity Issue (2 of 2) No I/O activity on the NFS datastore VM is not using CPU VM blocked, connectivity lost to NFS datastore

  32. Poor performance during snapshot revert

  33. Snapshot Revert Reads in MB from VM check point file Not accounted in VM disk I/O traffic But can be seen in adapter view

  34. Wide-NUMA behavior in ESX 5.0

  35. Wide-NUMA Support in ESX 5.0 2 x 16G NUMA Nodes 1 vCPU VM 24G vRAM exceeds one NUMA node 1 home NUMA node assigned

  36. Wide-NUMA Support in ESX 5.0 2 x 16G NUMA Nodes 8vCPUs, exceeds one NUMA node 24G vRAM exceeds one NUMA node 2 Home NUMA nodes assigned

  37. Network packet drops due to CPU resource issue

  38. Network Packet Drops Packet drops at the vSwitch Excessive Ready time Max CPU limited

  39. Understanding esxtop disk counters

  40. Disk I/O Latencies Application Guest OS iostat/perfmon KAVG = GAVG – DAVG VMM vSCSI Time spent in ESX storage stack is minimal, for all practical purposes KAVG ~= QAVG In a well configured system QAVG should be zero ESX Storage Stack KAVG QAVG Driver HBA GAVG Fabric Array SP DAVG

  41. Disk I/O Queuing Application Guest OS D(/L)QLEN can change dynamically when SIOC is enabled GQLEN VMM vSCSI ESX Storage Stack WQLEN DQLEN Driver Reported in esxtop HBA AQLEN GQLEN – Guest Queue AQLEN – Adapter Queue WQLEN – World Queue D(/L)QLEN – LUN Queue SQLEN – Array SP Queue Fabric Array SP SQLEN

  42. Max IOPS = Max Outstanding IOs / Latency For example, with 64 outstanding IOs and 4msec average latency Max IOPS = 64/4ms = 16,000

  43. Identifying Queue bottlenecks

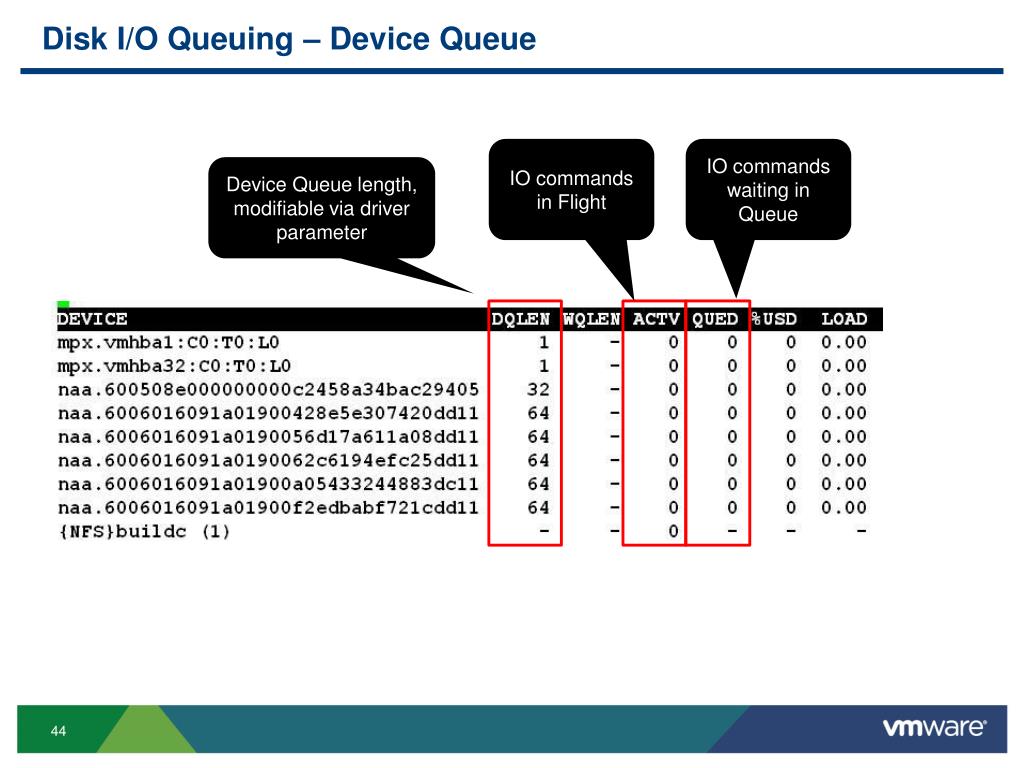

  44. Disk I/O Queuing – Device Queue IO commands in Flight IO commands waiting in Queue Device Queue length, modifiable via driver parameter

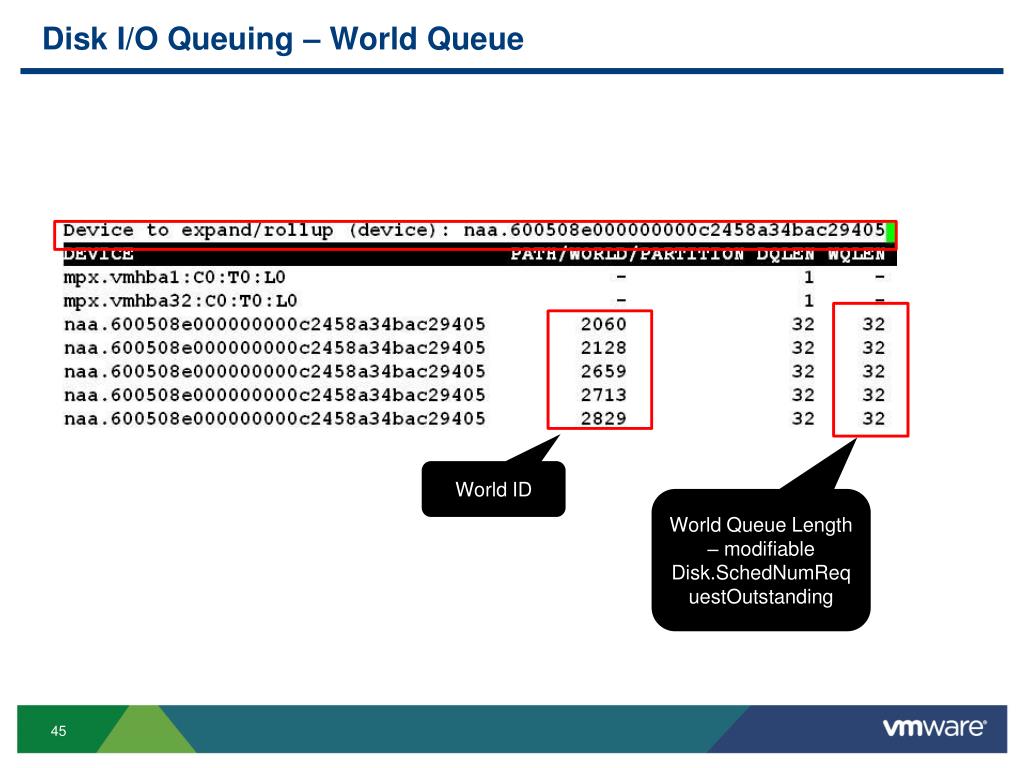

  45. Disk I/O Queuing – World Queue World ID World Queue Length – modifiable Disk.SchedNumRequestOutstanding

  46. Device Queue Full Queuing issue KAVG is non-zero 32 IOs in flight and 32 Queued LUN Queue depth is 32

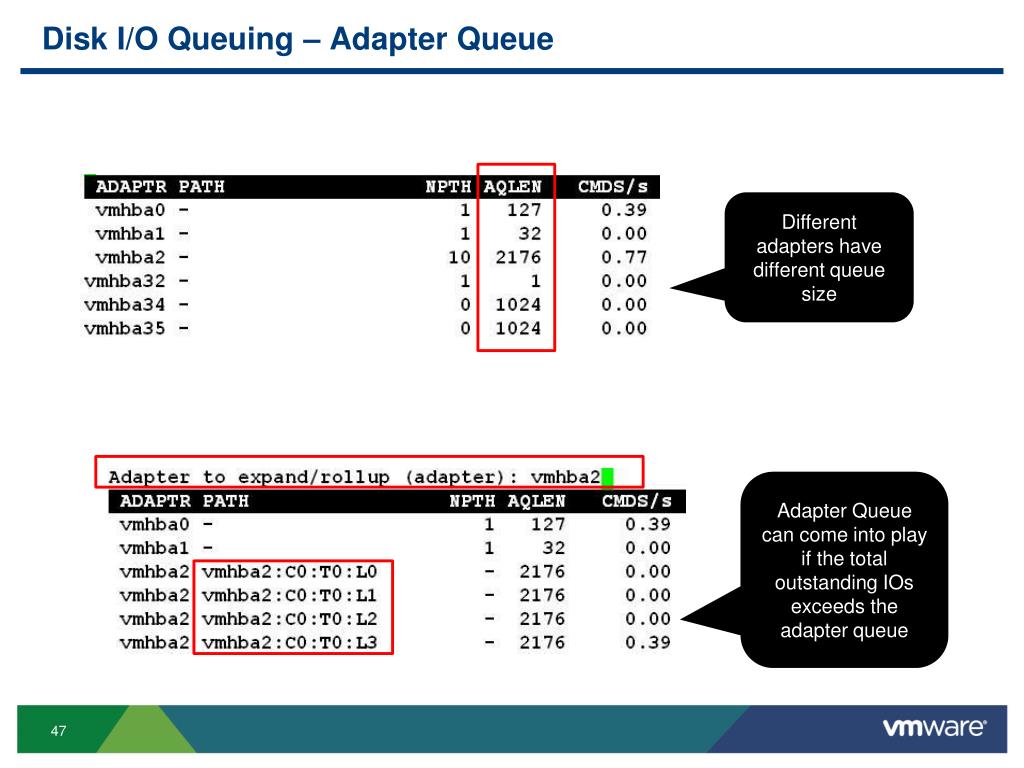

  47. Disk I/O Queuing – Adapter Queue Different adapters have different queue size Adapter Queue can come into play if the total outstanding IOs exceeds the adapter queue

  48. A few takeaways…

  49. Takeaways • esxtop is great for troubleshooting a diverse set of problems • You can do root-cause analysis by co-relating statistics from different screens • Good understanding of the counters is essential for accurate troubleshooting • esxtop is not designed for performance management • There are various other tools for vSphere performance management

  50. Thank You!
