Presentation Transcript

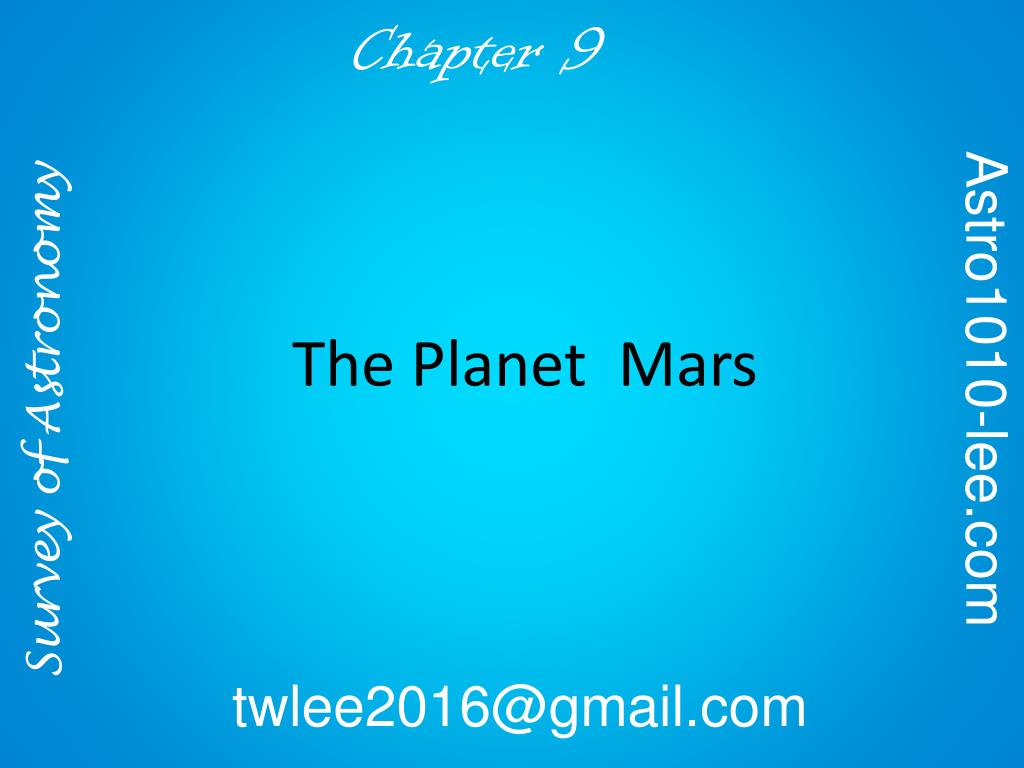

The planet mars

Chapter 9

The Planet Mars

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

The Red Planet Mars

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 10

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

Early observers did not have photography and had to draw what they saw.

Survey of Astronomy

Astro1010-lee.com

W. R. Dawes (1864 – 1865)

Giovanni Schiaparelli (1888)

Christian Huygens (1659)

[email protected]


The planet mars

Chapter 9

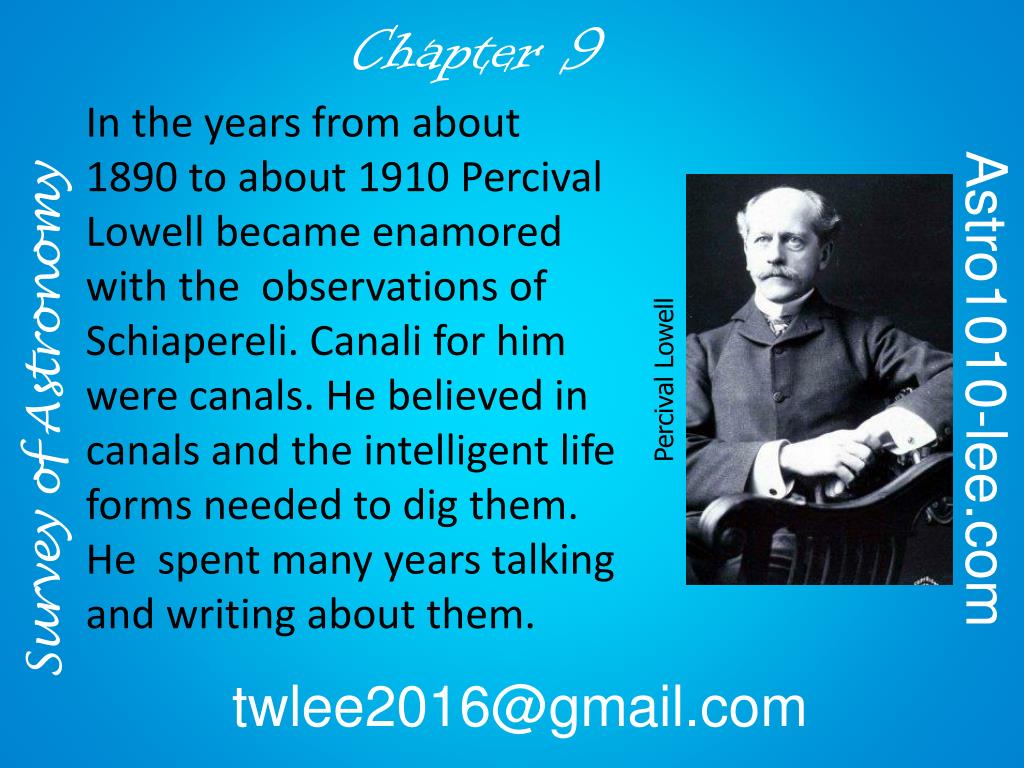

In the years from about 1890 to about 1910 Percival Lowell became enamored with the observations of Schiapereli. Canalifor him were canals. He believed in canals and the intelligent life forms needed to dig them. He spent many years talking and writing about them.

Percival Lowell

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 8

Mars Facts

Dist from Sun=1.5+ or app. 1.6 AU (T-B)

Year = 1.88 Earth years

Sol (Mars day) = 24h 37 m

Axis inclination = 25+ deg

Dia = .533 Earth dia

Surface gravity = .38 Earth

Surface Temp = -140 deg C to 20 deg C

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 10

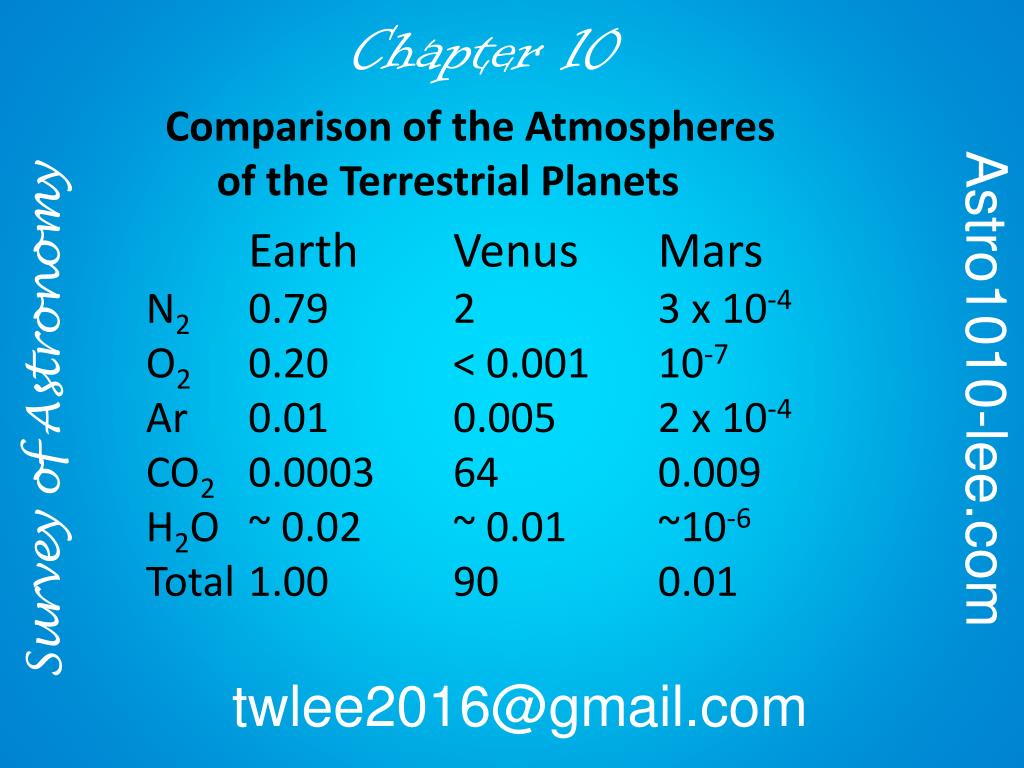

Comparison of the Atmospheres

of the Terrestrial Planets

Earth Venus Mars

N2 0.79 2 3 x 10-4

O2 0.20 < 0.001 10-7

Ar 0.01 0.0052 x 10-4

CO2 0.0003 64 0.009

H2O ~ 0.02 ~ 0.01 ~10-6

Total 1.00 90 0.01

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

The interior of Mars has not been studied by seismic waves. Surface clues indicate that the interior as shown is likely correct. Over time the interior has cooled and vulcanism has ceased.

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

Surface Features

The surface of Mars has been imaged and mapped at least as thoroughly as the Earth.

No liquid water has been found although there is much evidence that there has been standing and flowing water in the past.

The Southern Hemisphere is somewhat higher in elevation and covered with craters appearing much like The Moon.

The lower Northern Hemisphere is much more earthlike. It has giant volcanoes and canyons.

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 10

This topo-graphical map of the Tharsis Rise shows giant volcanoes, a giant canyon, apparent dry river beds and a dry ocean

Tharsis Bulge

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

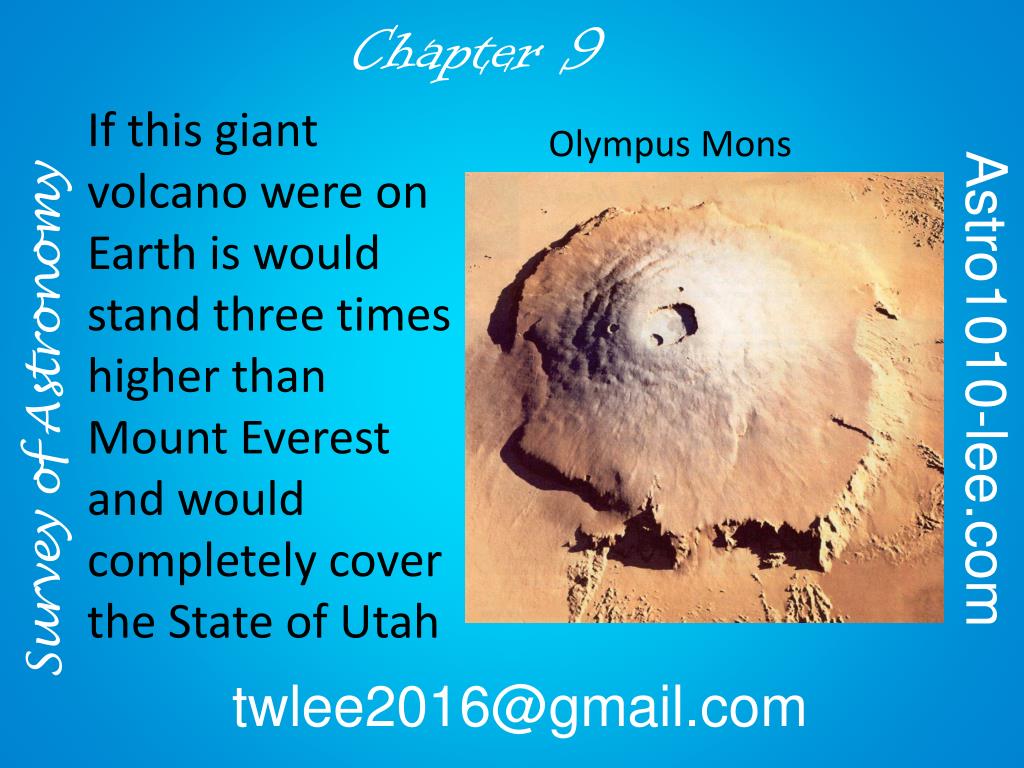

If this giant volcano were on Earth is would stand three times higher than Mount Everest and would completely cover the State of Utah

Olympus Mons

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

An image of a dry watershed

An image of a dry river bed

Survey of Astronomy

Astro1010-lee.com

A topographic map of the mouth of a dry river entering a dry ocean

[email protected]


The planet mars

Chapter 9

A canyon land region called South Candor

Survey of Astronomy

Astro1010-lee.com

A panoramic view of a rocky rolling valley

[email protected]


The planet mars

Chapter 9

The North Polar Cap seems to have water ice with much dry ice covering it. There is much information in the apparent layers that have accumulated over eons.

Survey of Astronomy

Astro1010-lee.com

The South Polar Cap seems to have less water ice and less layering.

[email protected]


The planet mars

Chapter 9

Mars

  • Today

    • Cold

    • Dry

  • Anciently

    • Warm

    • Wet

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

Robots to Mars

From the Mariner Probes in the early ‘60s to the extremely successful Phoenix Lander 2010 mankind has sent variety of robot orbiters and landers to prepare the way for a future manned mission to the exotic Red Planet.

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

Viking Program

  • Two Identical Systems

    • Orbiter

    • Lander

  • Mid 70’s

  • Search for Living Life

  • Chemical not biological results

  • Red color is iron oxide

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

A view from the Viking 2 Lander in summer and winter. The occasional frost layer only lasts until Sun up.

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

The Mars Global Surveyor took images in visible and infrared of the entire planet every day for one full Mars year. Among its discoveries was this of recent gullies

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

One of the trickiest parts of the Mars Exploration is actually getting the rovers to Mars in working condition.

Imagine trying to drop a sophisticated robot about 11-12 stories without breaking it (or even dropping an ordinary DVD player)

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

When the Pathfinder lander and the Sojourner rover arrived in 1997 they began the era of faster, cheaper spacecraft. Sojourner can be seen examining the rock “Yogi”

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

The next gener-ation Rovers were two, called the Spirit and Opportunity.

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

Spirit’s landing place was similar to the Vikings’; this is a 360° panoramic view

Survey of Astronomy

Astro1010-lee.com

Spirit View west from the Columbia Hills

[email protected]


The planet mars

Chapter 9

This is a view from Opportunity down into Victoria Crater. It spent nearly a full Earth year finding the best way down into the crater and this is it. Opportunity has now left Victoria Crater in search of another crater to explore.

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 9

Here we see the robotic arm at work. It cleans the rock, examines it then analyses it for elements.

Survey of Astronomy

Astro1010-lee.com

This is the Instrument complex which the RAT, imager and spectrographs

[email protected]


The planet mars

Chapter 10

Intrepid Geologists

Discoveries

  • Adventures

    - Stuck in sand dune

    • Covered by dust in a storm

    • Uncovered by a whirl wind

    • Lived through a long Mars winter

    • Are still going strong (four times as long as expected)

  • Layering as if by water deposit

  • Spherical pebbles such as in a stream

  • Rust (color) same as the red iron oxide as in Southern Utah

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 10

Survey of Astronomy

Astro1010-lee.com

The Pheonixscooped up icy dirt that gave off liquid water when warmed.

[email protected]


The planet mars

Chapter 10

Spirit Sojourner Cuiriosity

Each Rover has become more become bigger and more complex as we have learned how to build them and use them

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 10

  • Mars Pathfinder (Success)

  • Mars Global Surveyor (Success)

    • Actively taking pictures and gathering data

  • Mars Polar Lander (Failed)

  • Mars Atmosphere Observer (Failed)

  • 2001 Mars Odyssey

    • -arrived Oct 24. 2001

    • -gathering data today

  • Landers (Future)

  • -biology and geology Laboratory

    • -to gather rocks and return them to Earth

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 10

Phobos (Fear) is the large of the two. They are both tiny and badly scarred by impacts but Phobos looks like it was nearly shattered.

The Japonese are planning to send a robot to pick up dirt and rock samples from Diemos (Terror) to return them to Earth

Survey of Astronomy

Astro1010-lee.com

[email protected]


The planet mars

Chapter 10

End of Chapter 11
