Presentation Transcript


Concept v2 5

Concept V2.5

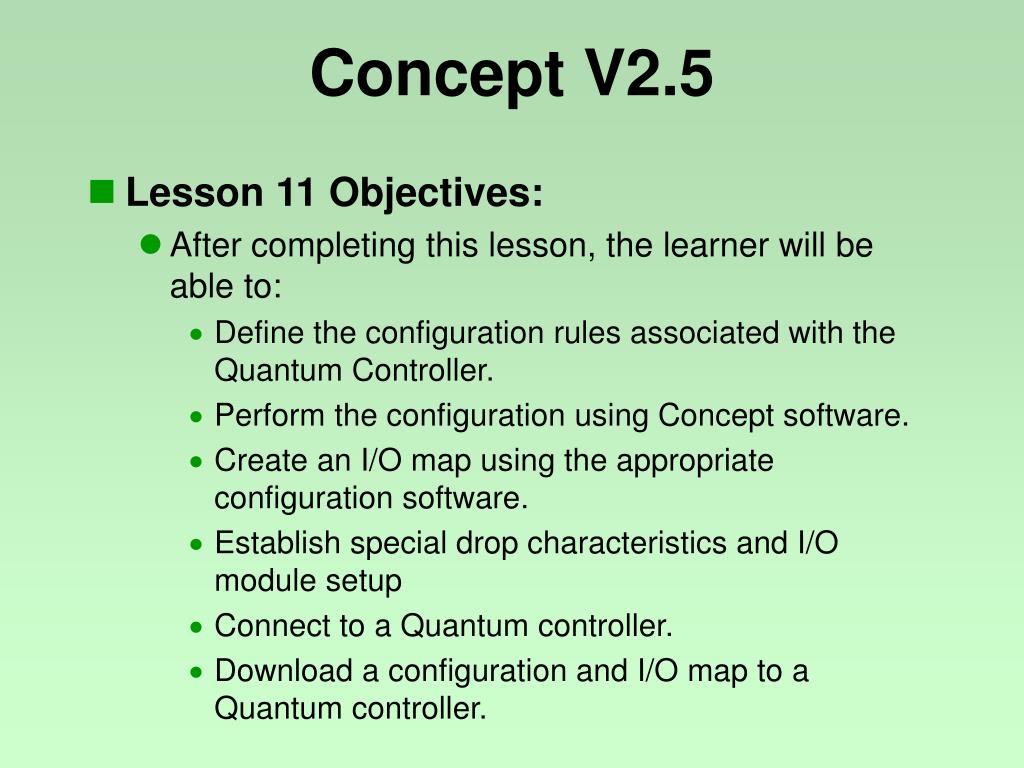

  • Lesson 11 Objectives:

    • After completing this lesson, the learner will be able to:

      • Define the configuration rules associated with the Quantum Controller.

      • Perform the configuration using Concept software.

      • Create an I/O map using the appropriate configuration software.

      • Establish special drop characteristics and I/O module setup

      • Connect to a Quantum controller.

      • Download a configuration and I/O map to a Quantum controller.


Concept v2 51

Concept V2.5


Concept v2 52

Concept V2.5


Concept v2 53

HW

State-RAM

DDI

...

1:1 - 1:32

1:1

1x

DDO

...

0:1 - 0:32

0x

0:1

AVI

...

3:1 - 3:8

3x

3:1

AVO

...

4:1 - 4:4

4x

4:1

I/O Map

Ranges

Concept V2.5

  • I/O Mapping to State Ram

FieldDevices

UserLogic


Concept v2 54

Concept V2.5

  • I/O Map Overview Screen


Concept v2 55

Concept V2.5


Concept v2 56

Concept V2.5

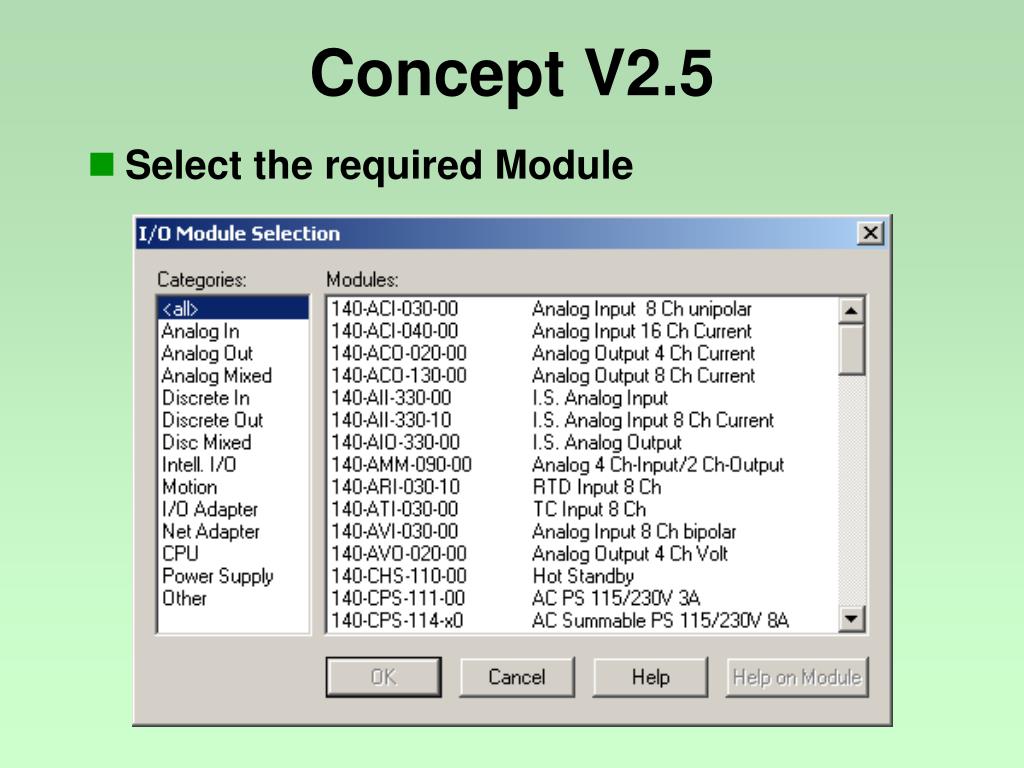

  • Select the required Module


Concept v2 57

Concept V2.5

  • Module Addressing


Concept v2 58

Concept V2.5

  • Module Parameters


Concept v2 59

Concept V2.5

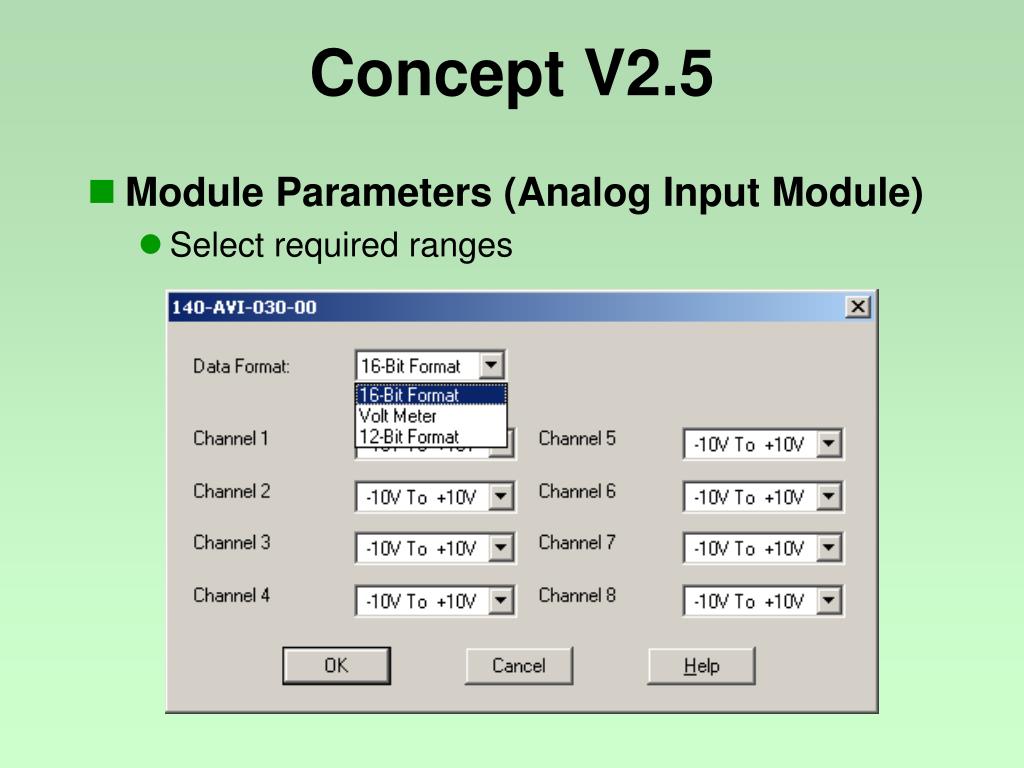

  • Module Parameters (Analog Input Module)

    • Select required ranges


Concept v2 510

Concept V2.5

  • Module Parameters Help Screen


Concept v2 511

Concept V2.5

  • Module Parameters (Analog Output Module)

    • Select required output behavior on Timeout


Concept v2 512

Concept V2.5

  • Module Parameters (Discrete Output Module)

    • Enter required output behavior on Timeout


Concept v2 513

Concept V2.5

  • Connecting to a Quantum PLC


Concept v2 514

Concept V2.5

  • Download and Start a Program


Concept v2 515

Concept V2.5

  • PLC Simulation

    • Two PLC simulators

      • Used for online testing of the IEC user program (FBD, SFC, LD, IL, and ST) without any hardware.

    • SIM (16 Bit)

      • Simulates a Quantum PLC connected via Modbus Plus.

      • This simulator is available under Windows 3.1, Windows for Workgroups 3.11, Windows 95 and Windows NT.

    • Concept PLCSIM32 (32 Bit)

      • Simulates a PLC connected via TCP/IP, includes simulation of signal states in I/O modules.

      • Up to 5 programming units can be connected to the simulated Quantum at the same time (via a TCP/IP Ethernet connection).

      • This simulator is only available under Windows 95/98 and Windows NT.


Concept v2 516

Concept V2.5

  • The 16 Bit Simulator File Location


Concept v2 517

Concept V2.5

  • The 32 Bit Simulator File Location


Concept v2 518

Concept V2.5

  • The 16 Bit Simulator


Simulators

Simulators

  • Starting the 32 Bit Simulator


Concept v2 519

Concept V2.5

  • 32 Bit Simulator Initial Quantum Startup

    • Nothing in Memory


Concept v2 520

Concept V2.5

  • Connect to IEC Simulator(32 Bit)

  • From IEC Simulator: Select required CPU type

  • Download configuration and program

Select CPU Type


Concept v2 521

Concept V2.5

  • Components of PLCSIM32

CPU Status

Select CPU Type

Left Mouse Button:

Select 16 bit input group

Left Mouse Button:

Select 16 bit output group

Left Mouse Button:

Change values of

Input, Output,

Register addresses

Left Mouse Button:

Select register address

Right Mouse Button:

Select value range, format


Concept v2 522

Concept V2.5

  • More Components of PLCSIM32

Left Mouse Button:

Change values

Right Mouse Button:

Change format


Concept v2 5

Configuration

Demonstration

and

Lab
