Presentation Transcript

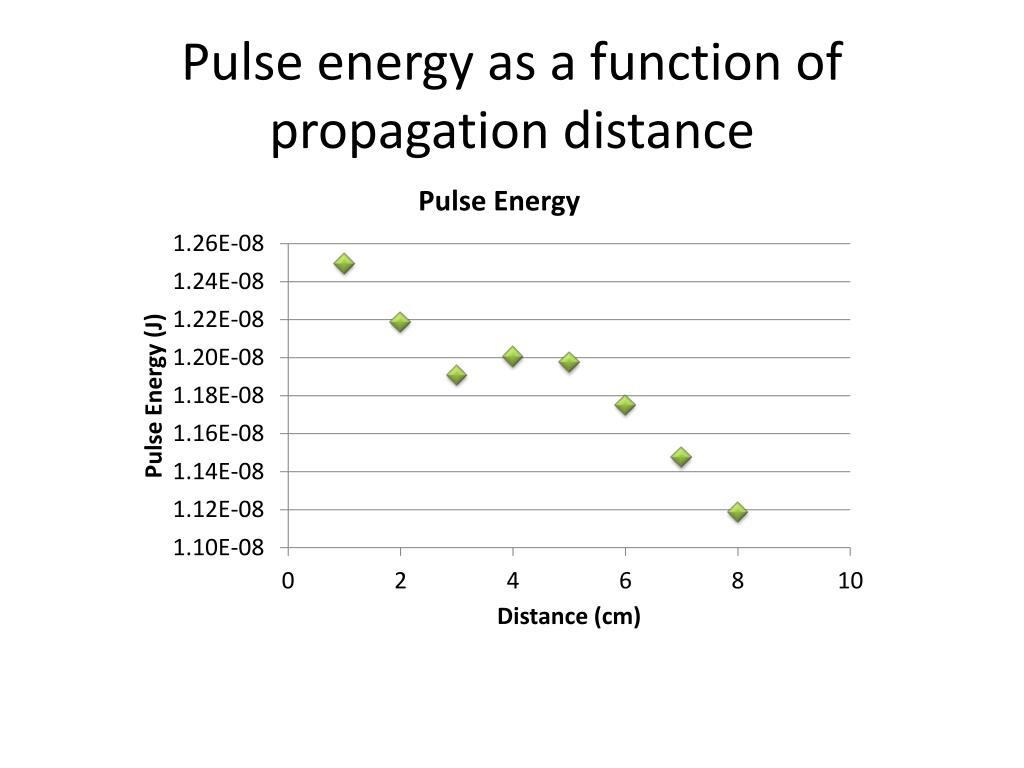

Pulse energy as a function of propagation distance

Pulse energy as a function of propagation distance

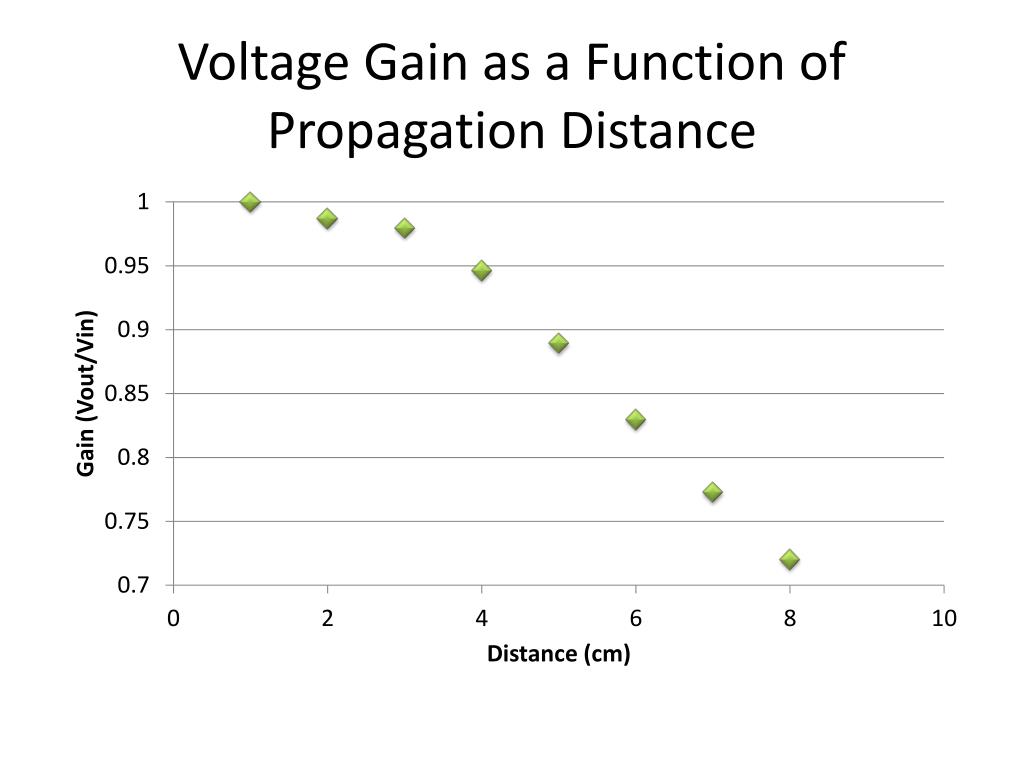

Voltage gain as a function of propagation distance

Voltage Gain as a Function of Propagation Distance

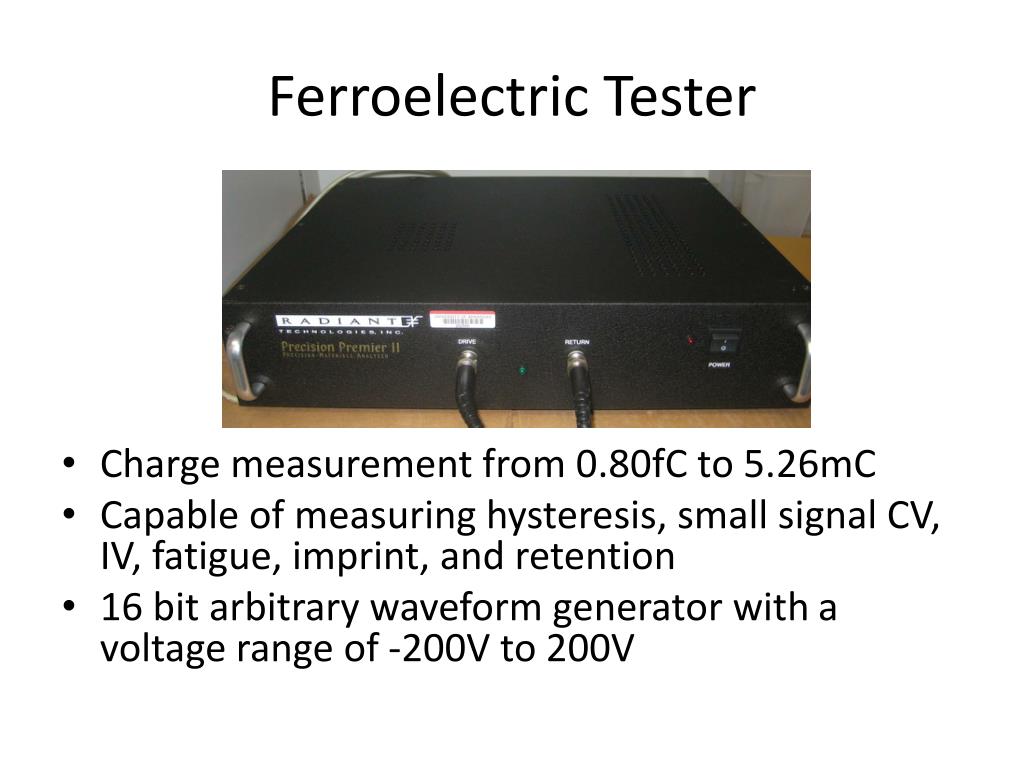

Ferroelectric tester

Ferroelectric Tester

  • Charge measurement from 0.80fC to 5.26mC

  • Capable of measuring hysteresis, small signal CV, IV, fatigue, imprint, and retention

  • 16 bit arbitrary waveform generator with a voltage range of -200V to 200V
