Silicon

Silicon. Silanes Silica, silicates, and zeolites Silicones Pure silicon Computer chips. Silanes : Si n H 2n+2 Same structure as alkanes All unstable, pyrophoric : SiH 4 + 2 O 2  SiO 2 + H 2 O Generally not stable beyond Si 8 or so. No “ silenes ” because … __________________.

gemma-ware
Download Presentation

Silicon

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

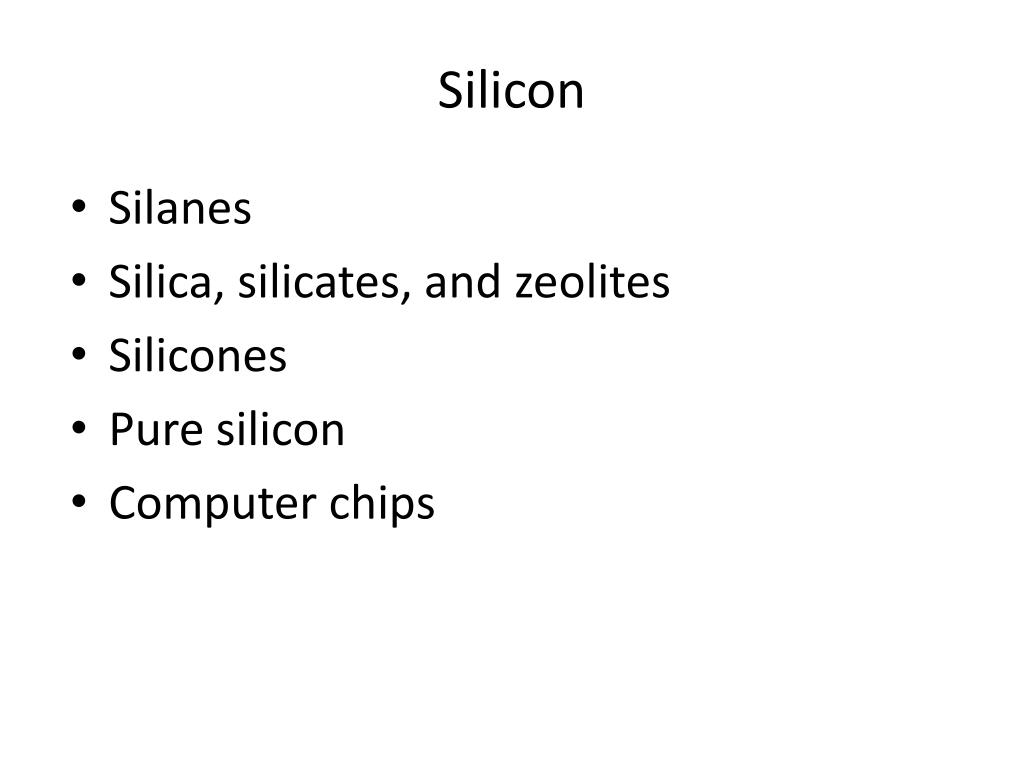

  1. Silicon • Silanes • Silica, silicates, and zeolites • Silicones • Pure silicon • Computer chips

  2. Silanes: SinH2n+2Same structure as alkanesAll unstable, pyrophoric: SiH4 + 2 O2 SiO2 + H2OGenerally not stable beyond Si8 or so. No “silenes” because … __________________

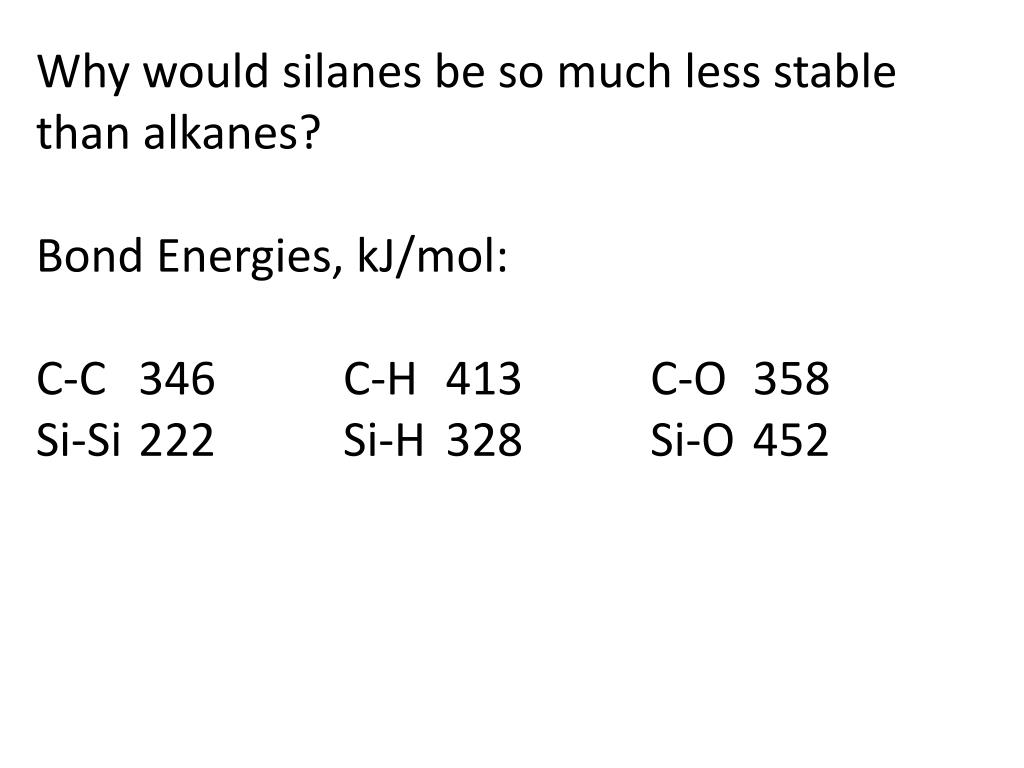

  3. Why would silanes be so much less stable than alkanes? Bond Energies, kJ/mol: C-C 346 C-H 413 C-O 358 Si-Si 222 Si-H 328 Si-O 452

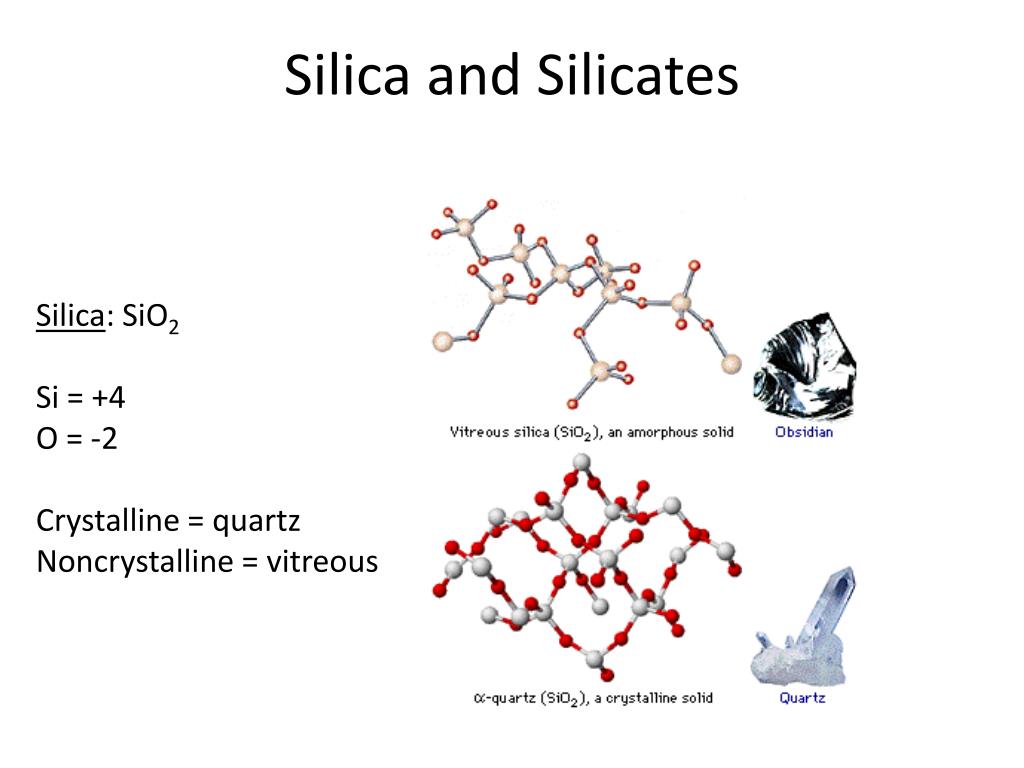

  4. Silica and Silicates Silica: SiO2 Si = +4 O = -2 Crystalline = quartz Noncrystalline = vitreous

  5. Silicates: Si-O anions + metal cations • General Rules: • Si always makes 4 Si-O bonds • Can be terminal (Si-O) or bridging (Si-O-Si) • Charge comes from Si = +4, O = -2

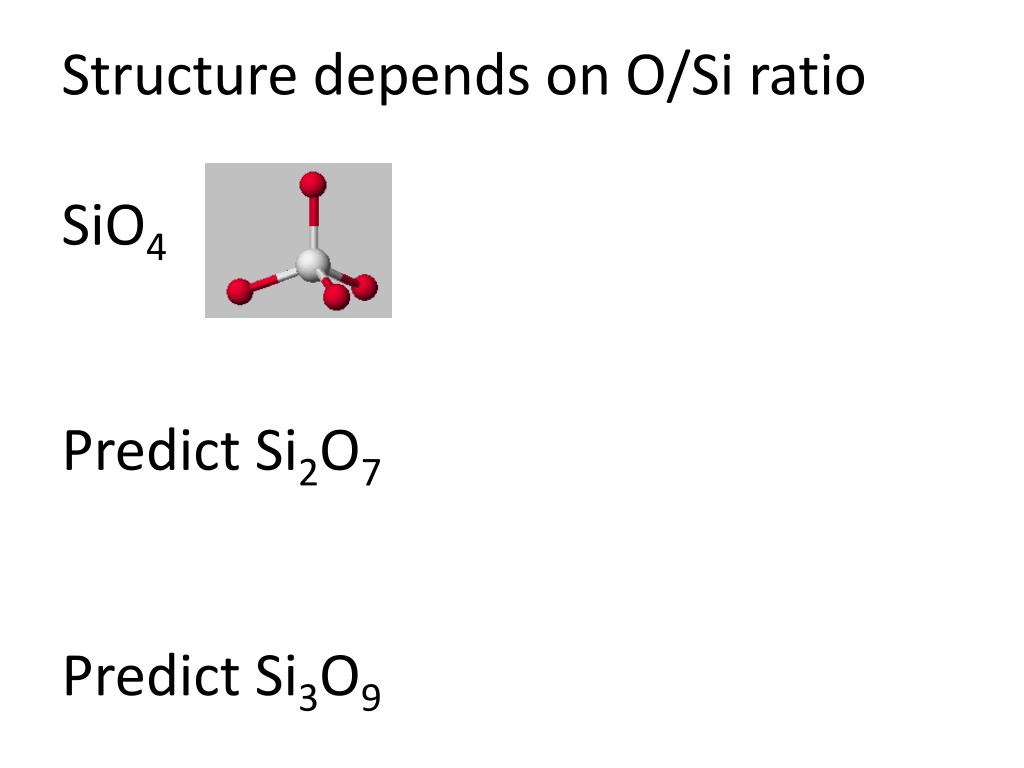

  6. Structure depends on O/Si ratioSiO4Predict Si2O7Predict Si3O9

  7. O/Si Ratio: 4 3.5 3

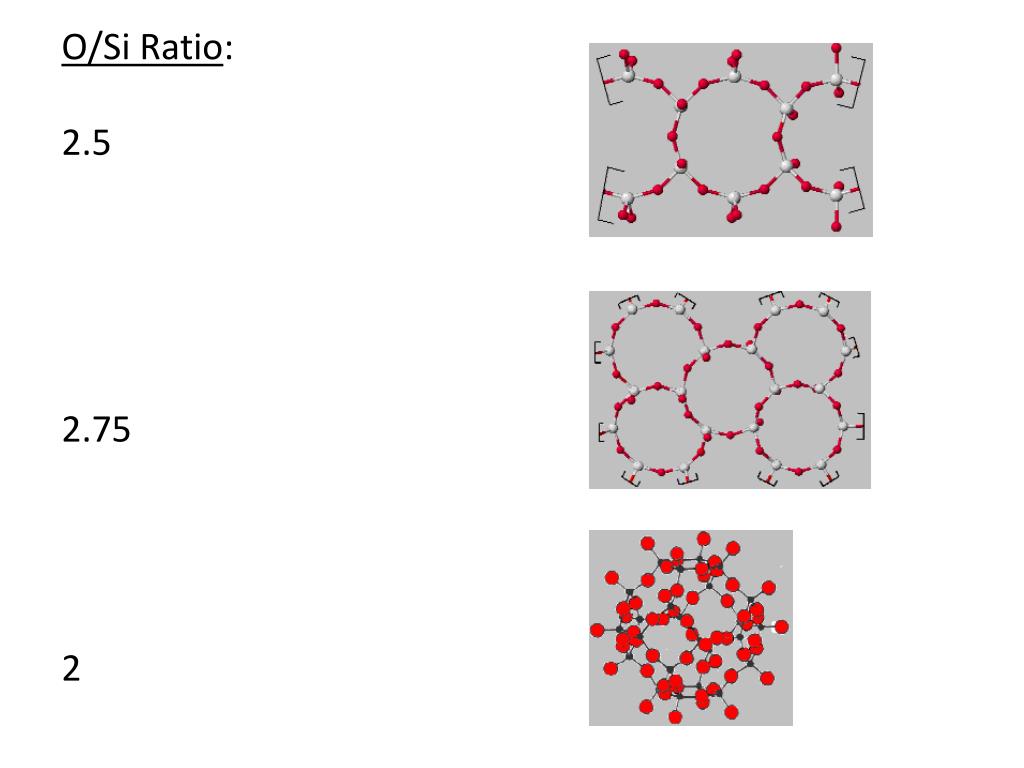

  8. O/Si Ratio: 2.5 2.75 2

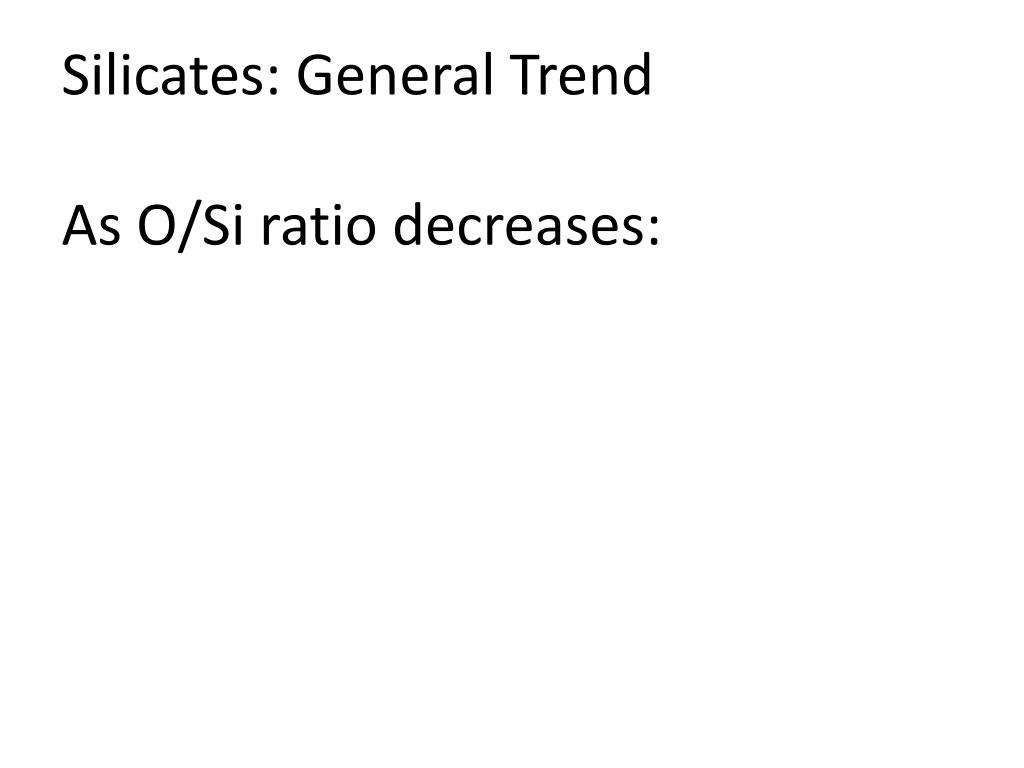

  9. Silicates: General TrendAs O/Si ratio decreases:

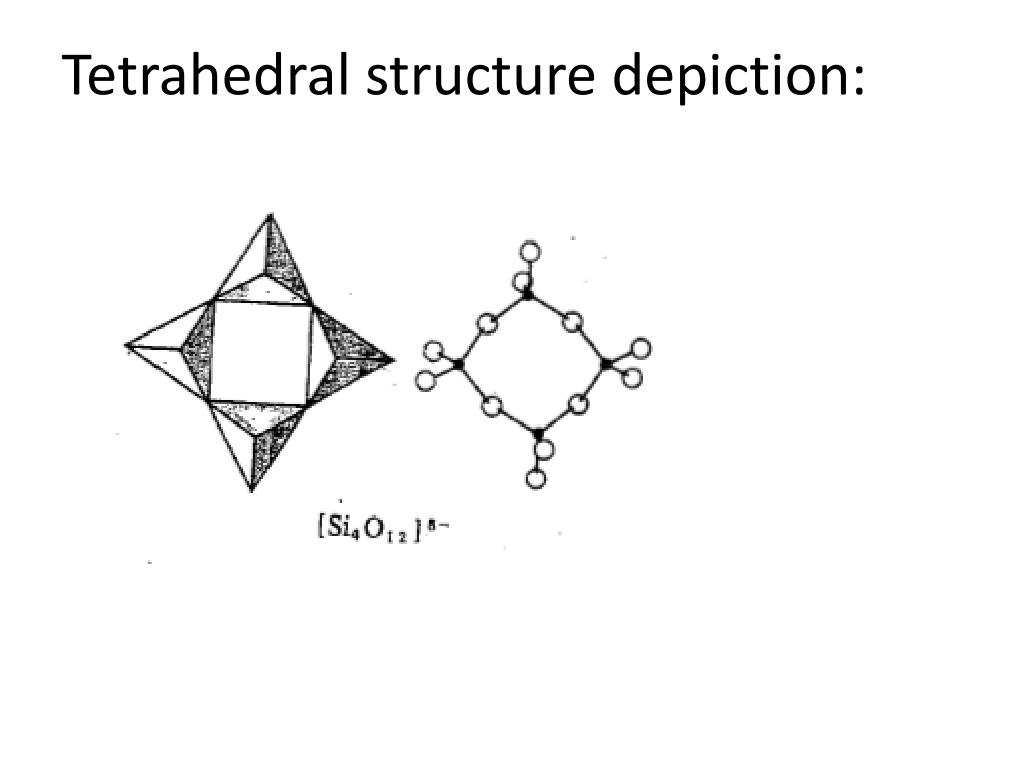

  10. Tetrahedral structure depiction:

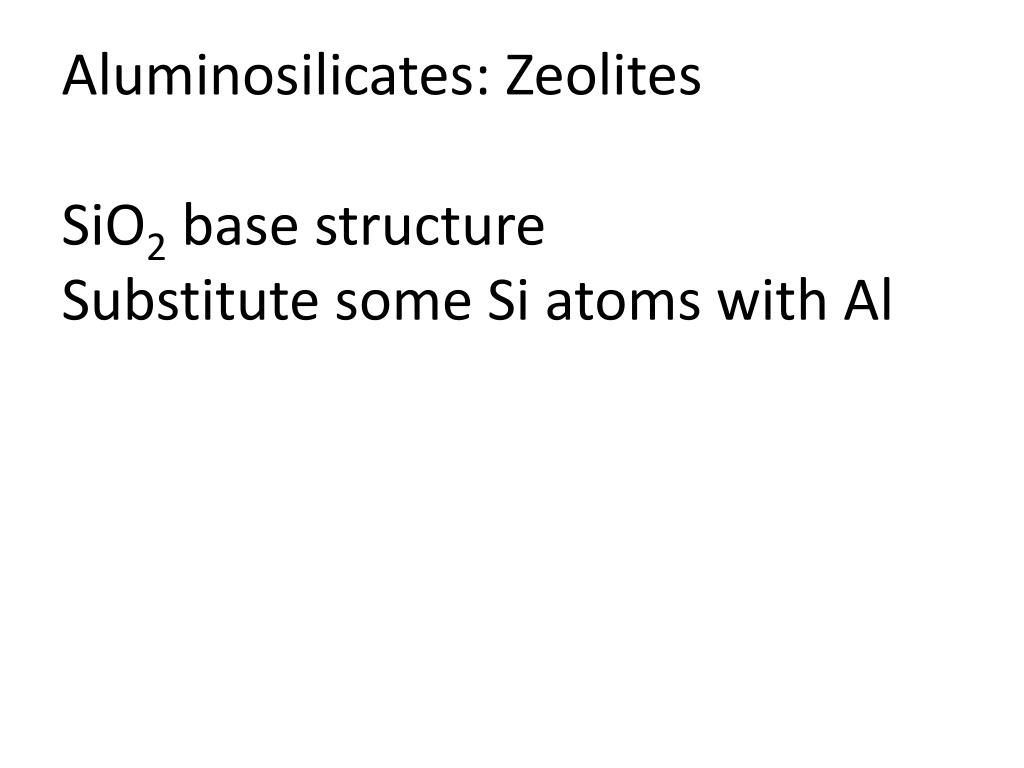

  11. Aluminosilicates: ZeolitesSiO2 base structureSubstitute some Si atoms with Al

  12. Another representation Ball and stick Tetrahedral connectivity

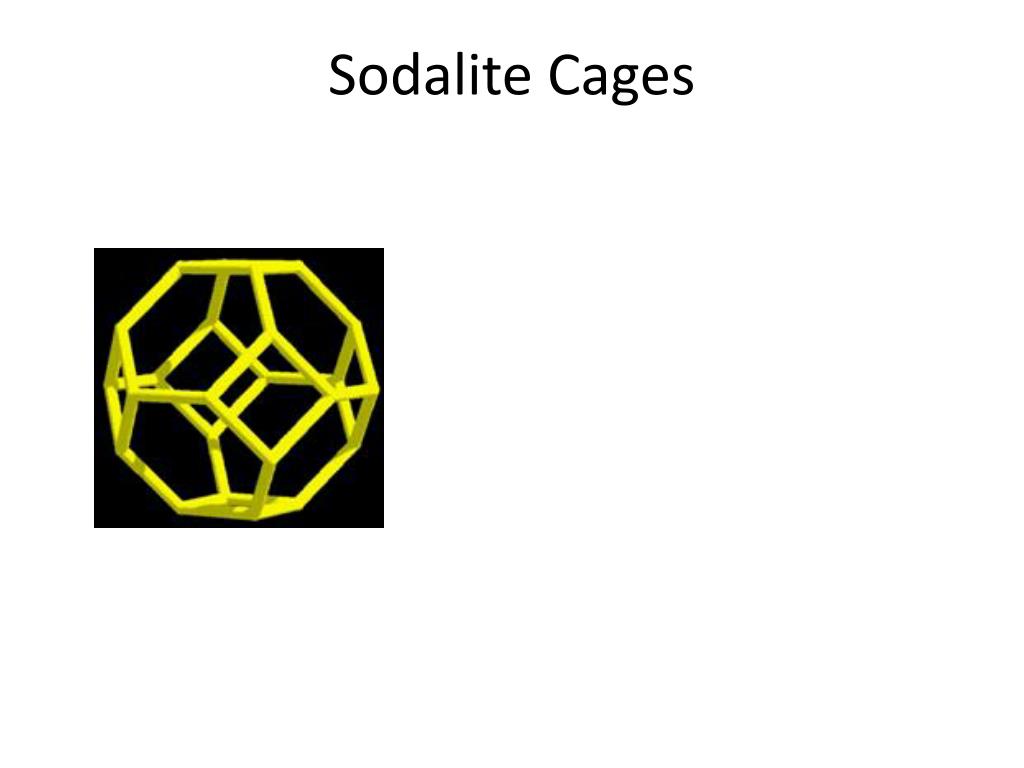

  13. Sodalite Cages

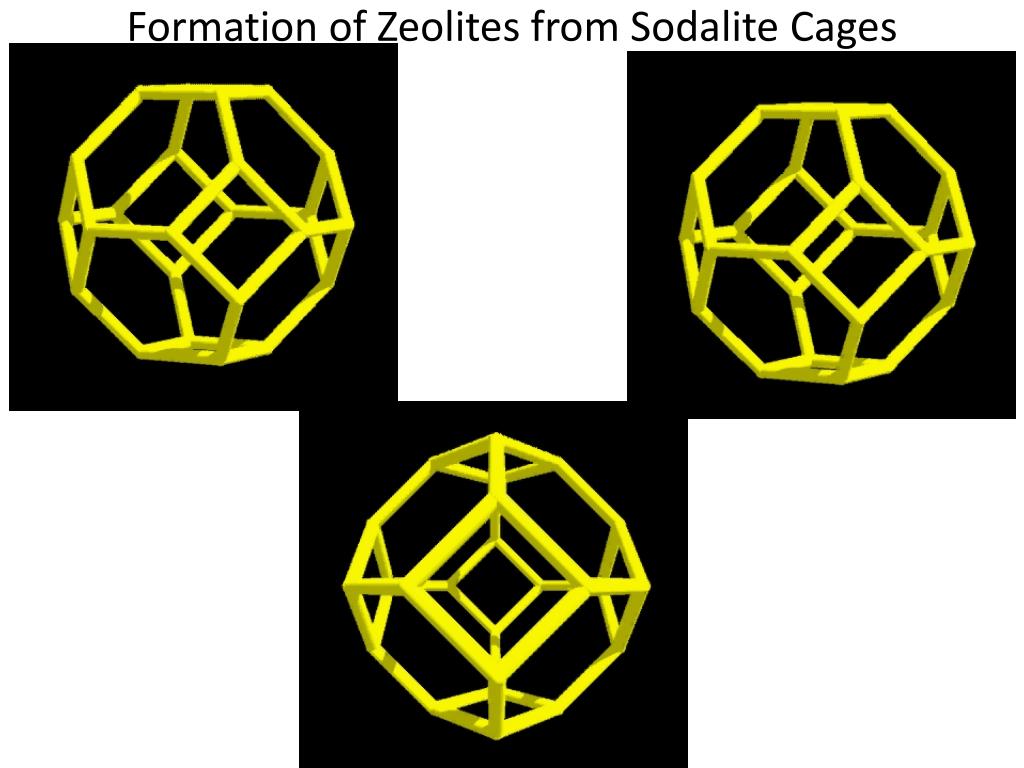

  14. Formation of Zeolites from Sodalite Cages

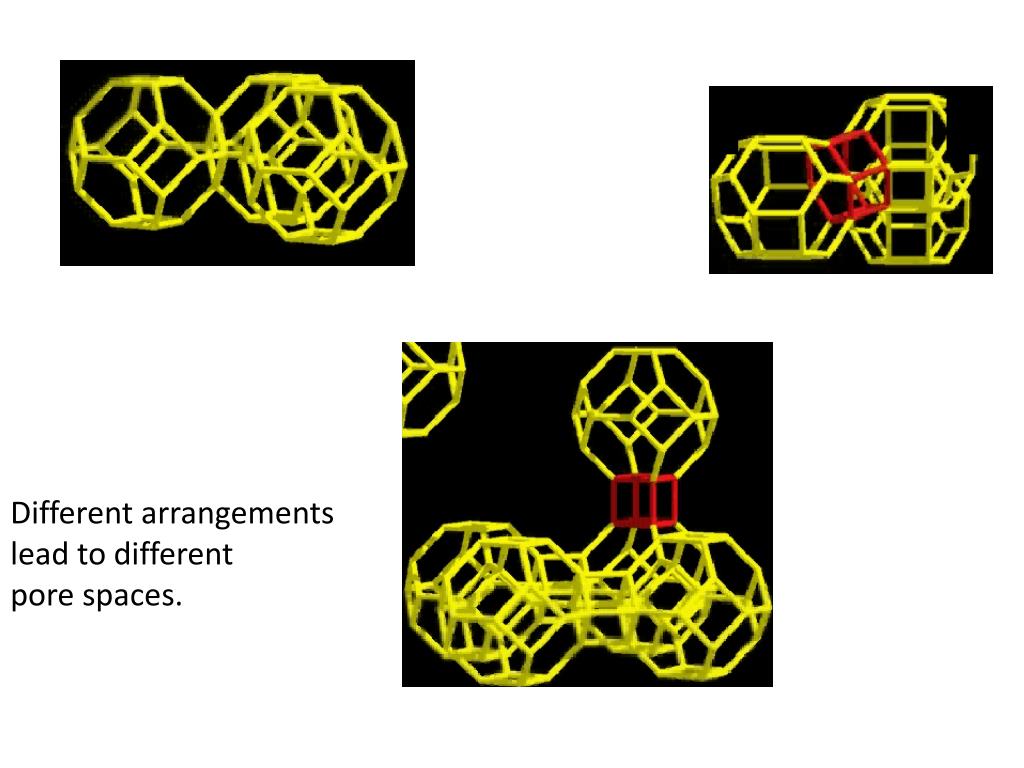

  15. Different arrangements lead to different pore spaces.

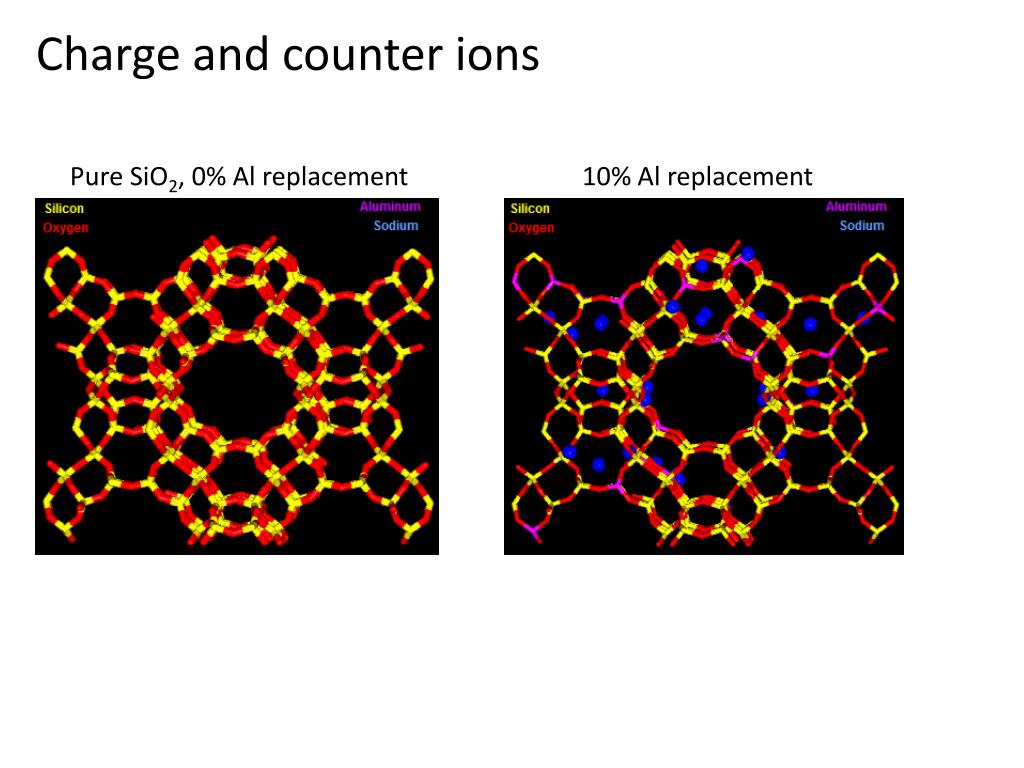

  16. Charge and counter ions Pure SiO2, 0% Al replacement 10% Al replacement

  17. Affinity for water 10% Al replacement Pure SiO2, 0% Al replacement

  18. Zeolites and Catalysis Purpose of a catalyst: increase rate, selectivity Desired: react para isomer to form terephthalic acid Problem: under reaction conditions, three isomers can interchange So, might end up with wrong isomers of C6C4(CO2H)2

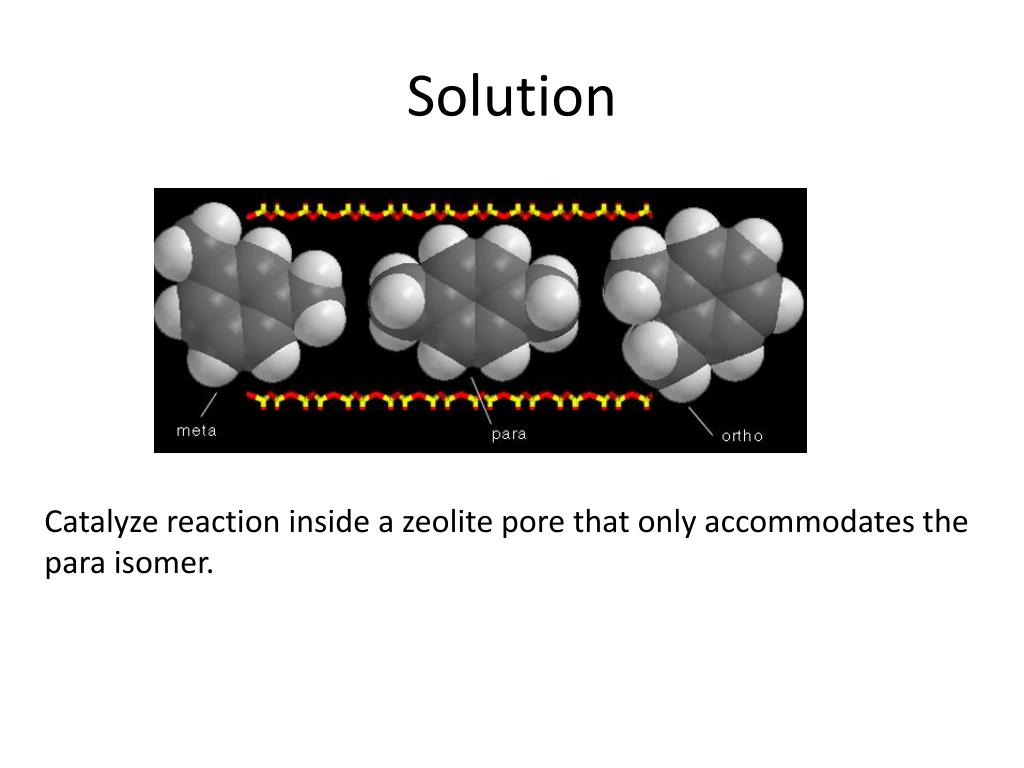

  19. Solution Catalyze reaction inside a zeolite pore that only accommodates the para isomer.

  20. Silicones

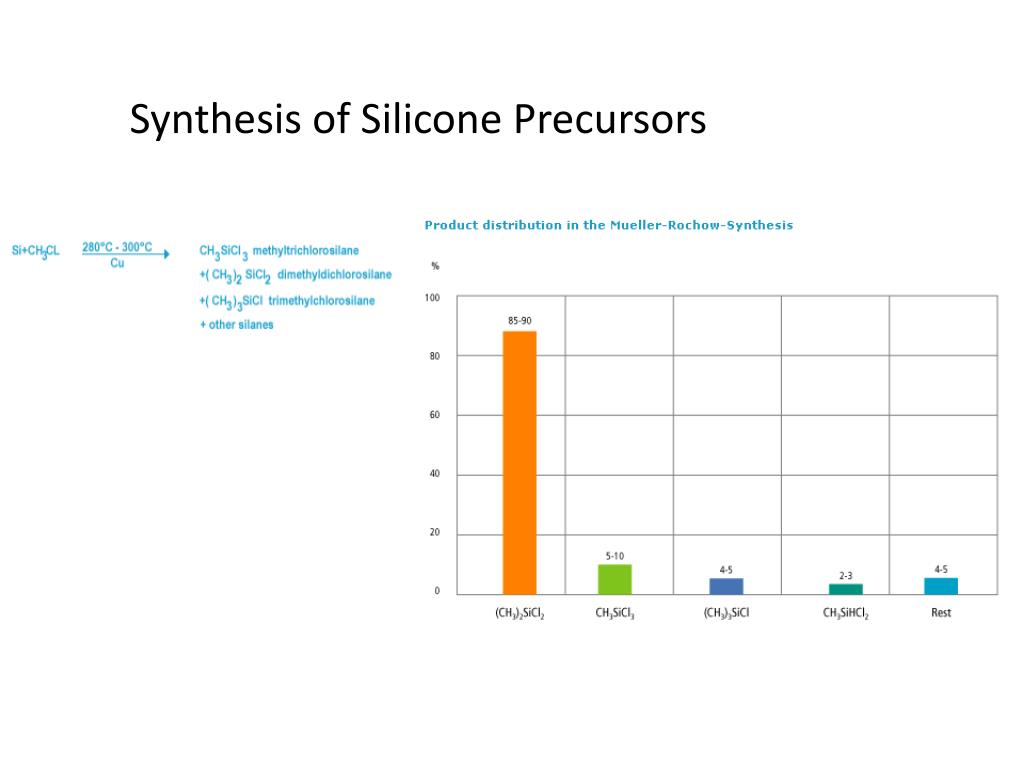

  21. Synthesis of Silicone Precursors

  22. General Reaction

  23. Polydimethylsiloxane is the most common and available silicone.

  24. Silicone Structure/Properties/Reactant Relationships
