  1. E E 2415 Lecture 16 2nd Order High Pass, Low Pass and Band Reject Filters

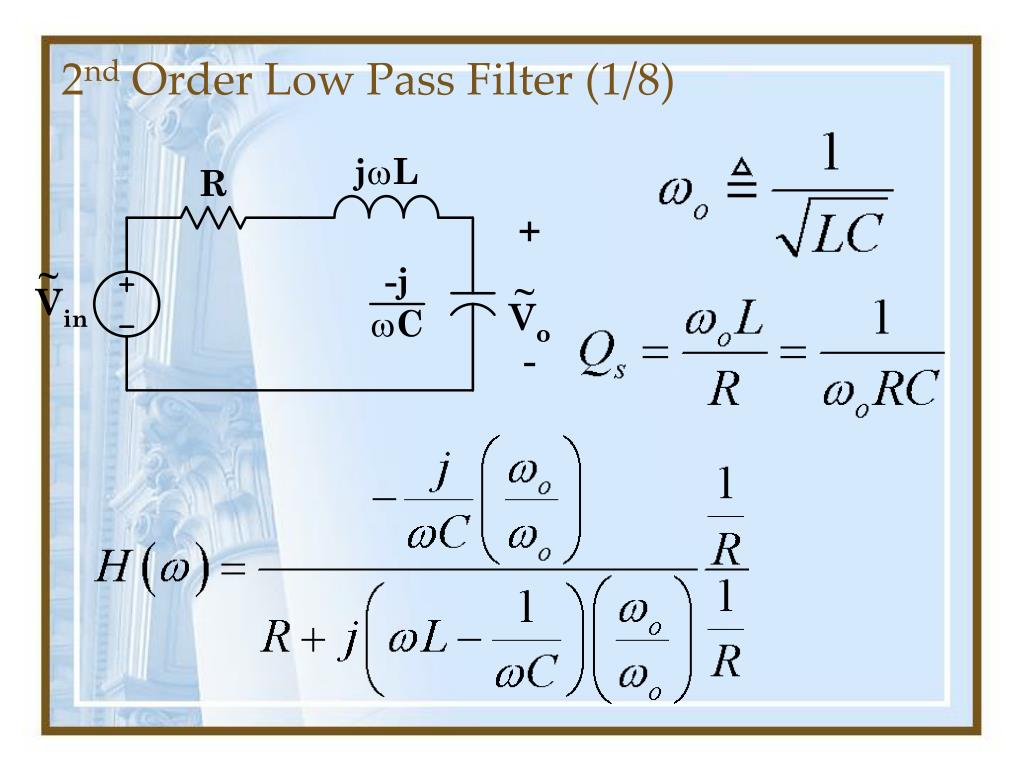

  2. 2nd Order Low Pass Filter (1/8)

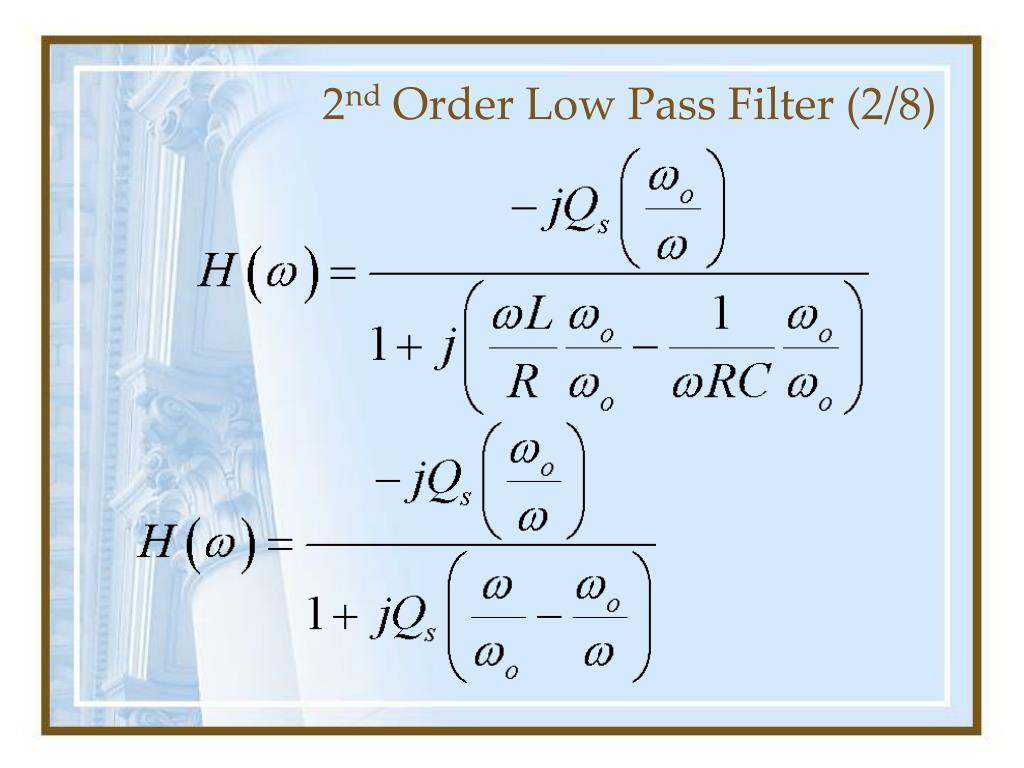

  3. 2nd Order Low Pass Filter (2/8)

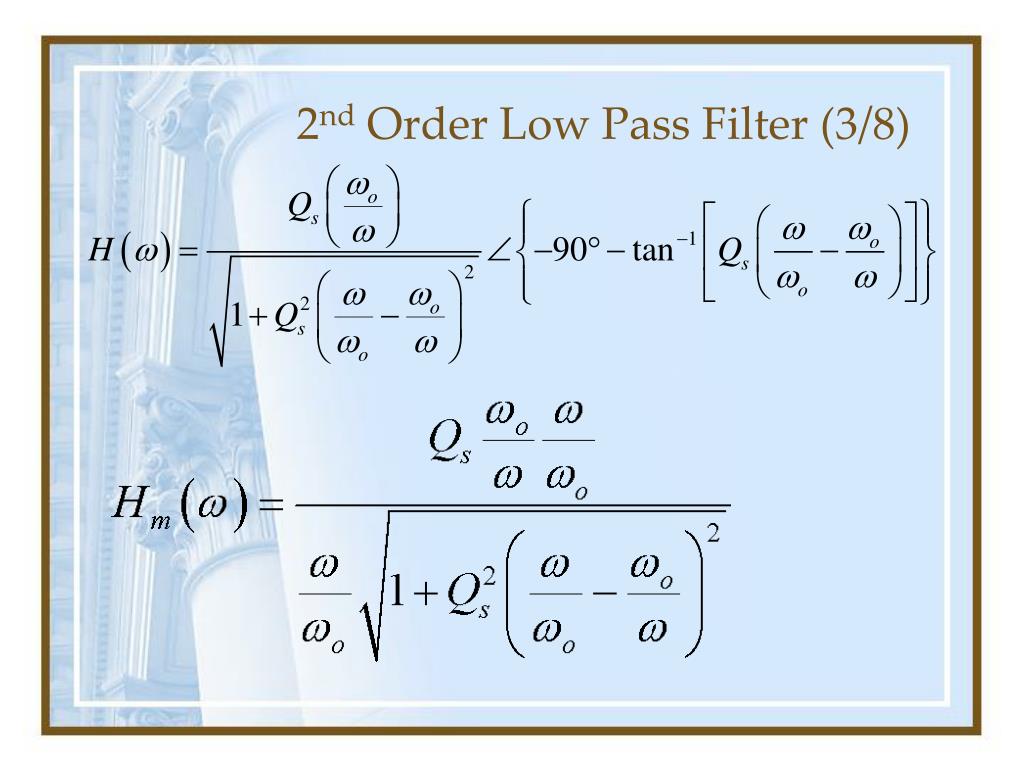

  4. 2nd Order Low Pass Filter (3/8)

  5. 2nd Order Low Pass Filter (4/8) • Two Poles

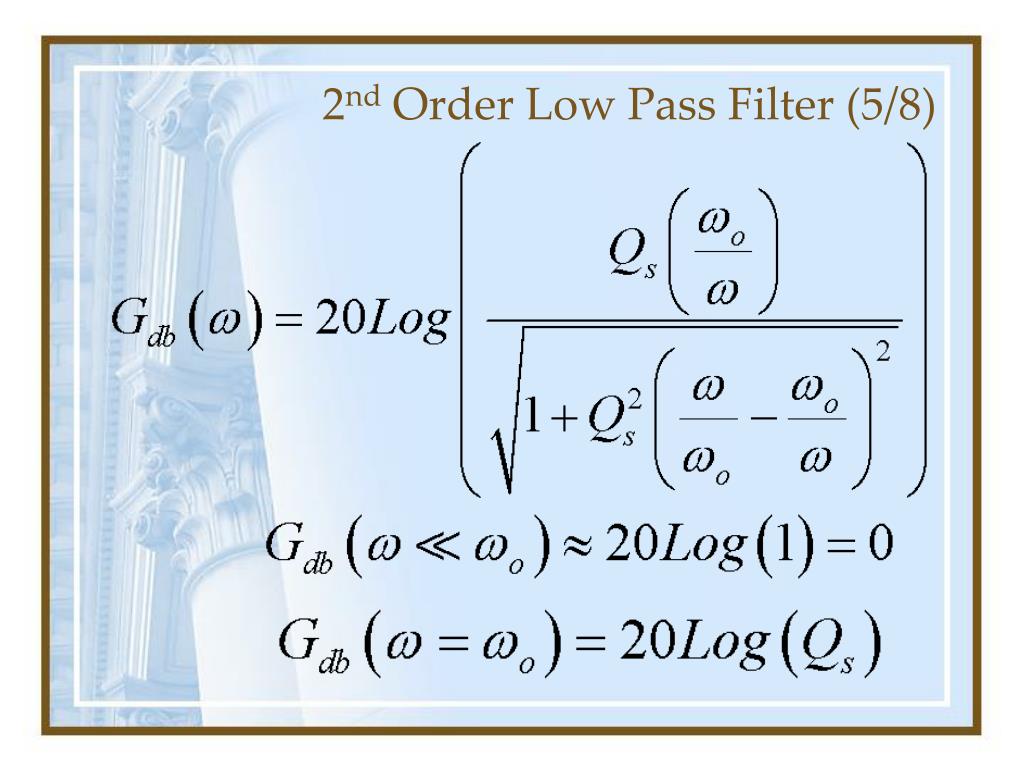

  6. 2nd Order Low Pass Filter (5/8)

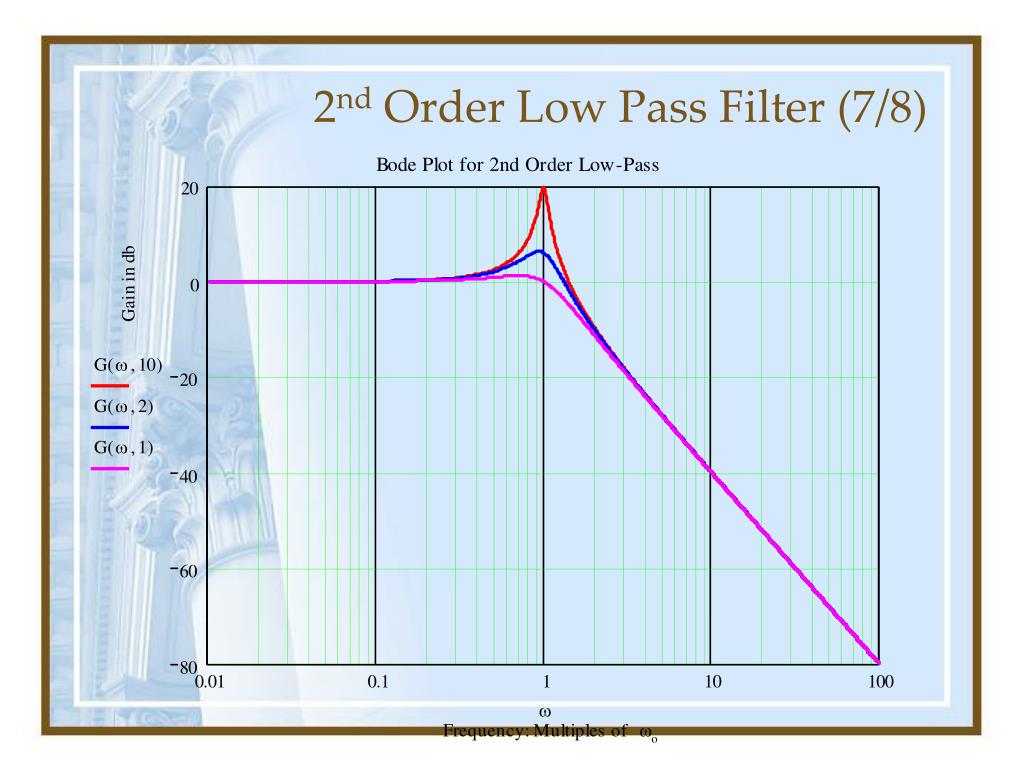

  7. 2nd Order Low Pass Filter (6/8) Slope is -40 db/decade

  8. 2nd Order Low Pass Filter (7/8)

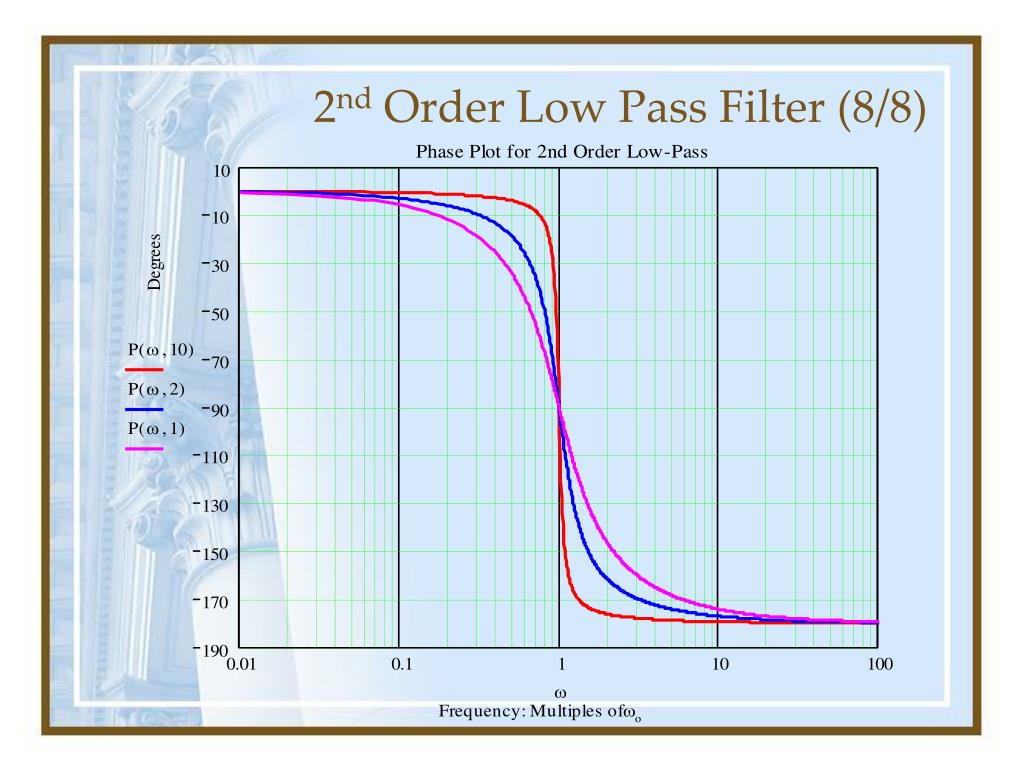

  9. 2nd Order Low Pass Filter (8/8)

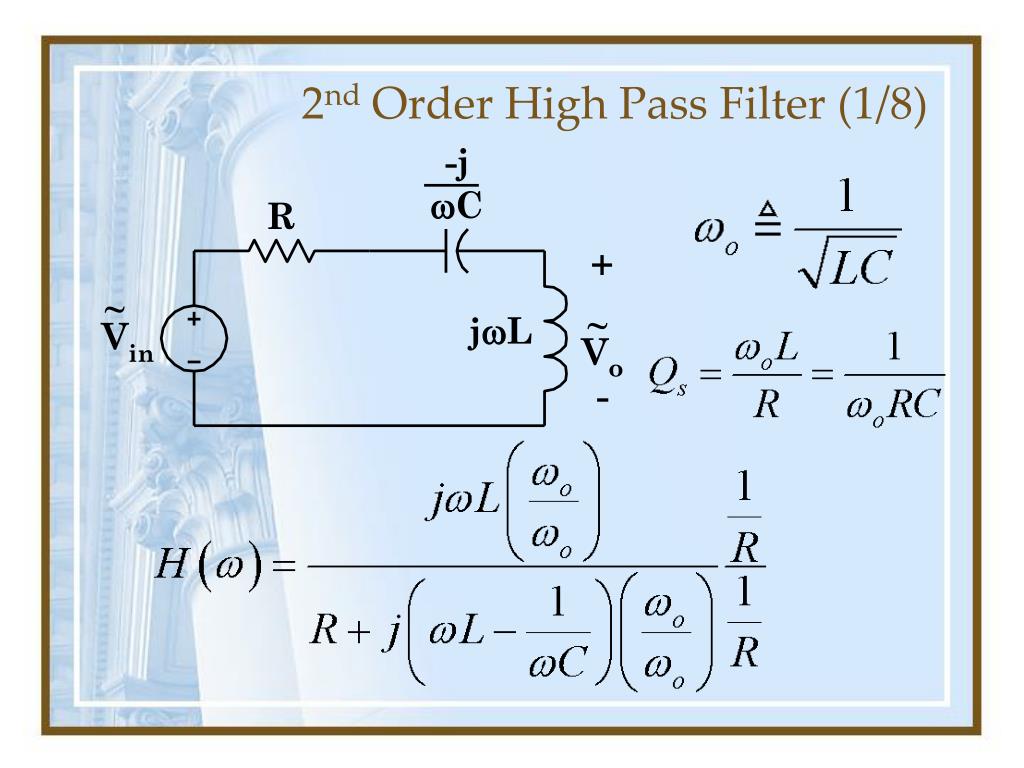

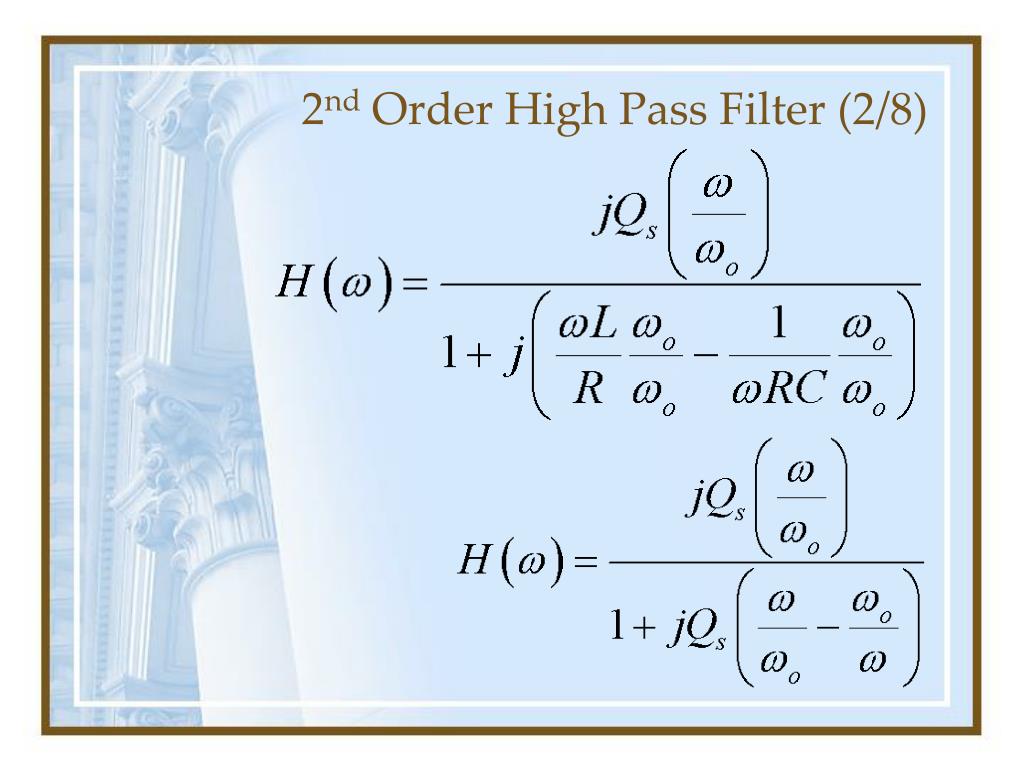

  10. 2nd Order High Pass Filter (1/8)

  11. 2nd Order High Pass Filter (2/8)

  12. 2nd Order High Pass Filter (3/8)

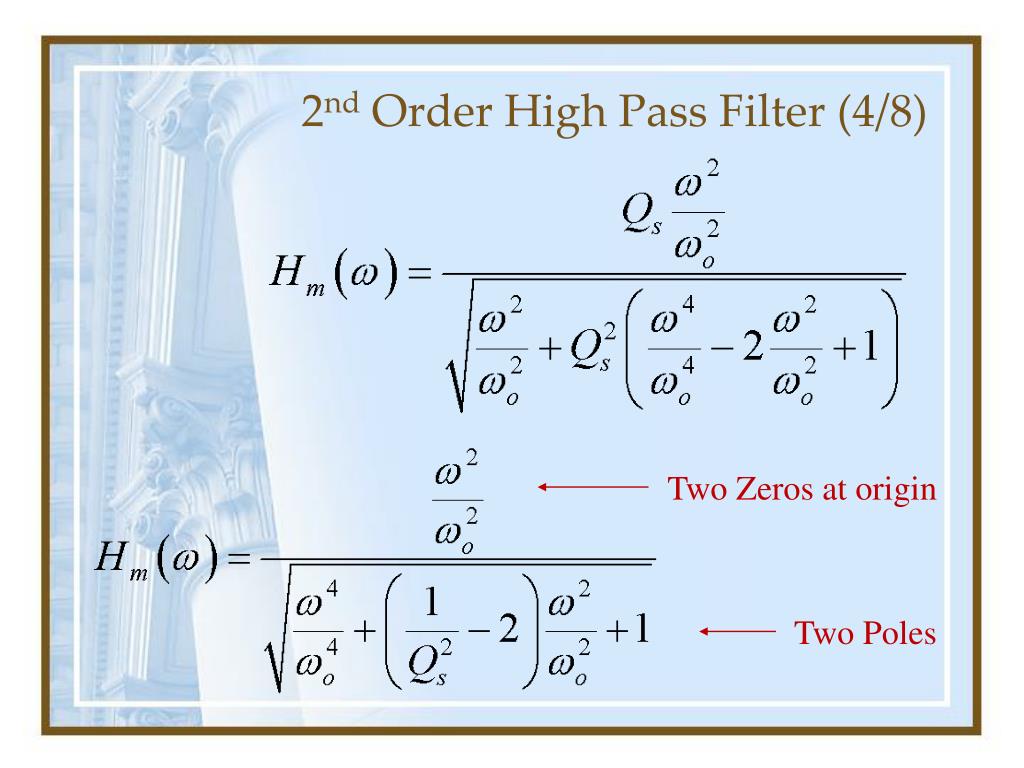

  13. 2nd Order High Pass Filter (4/8) Two Zeros at origin Two Poles

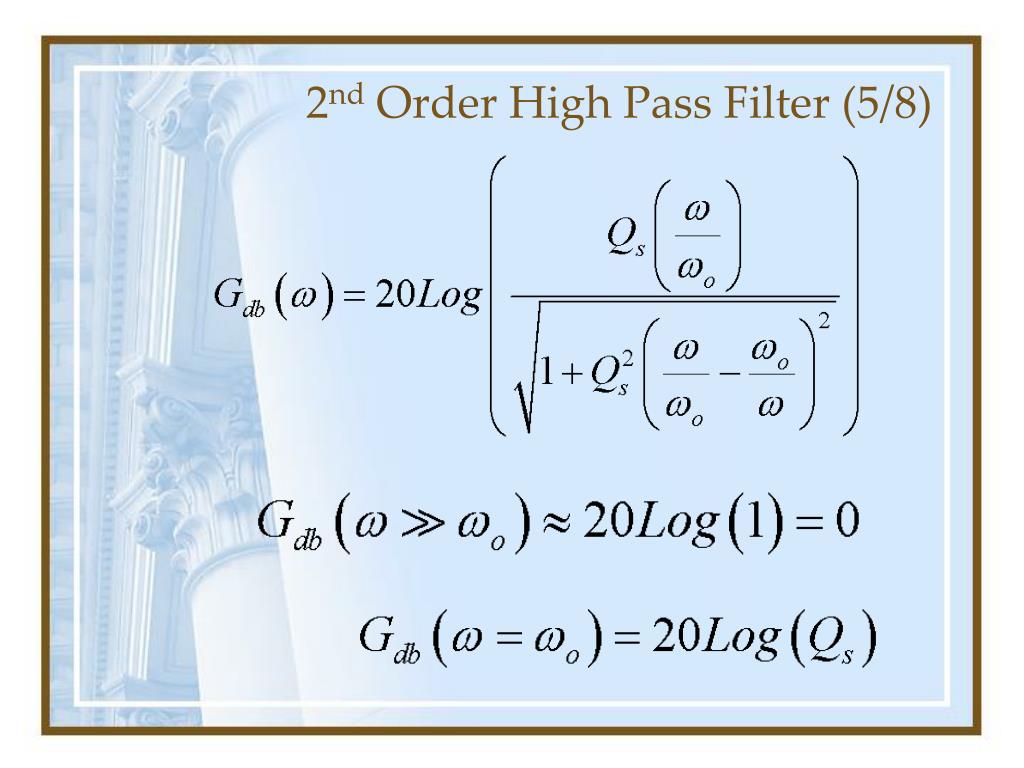

  14. 2nd Order High Pass Filter (5/8)

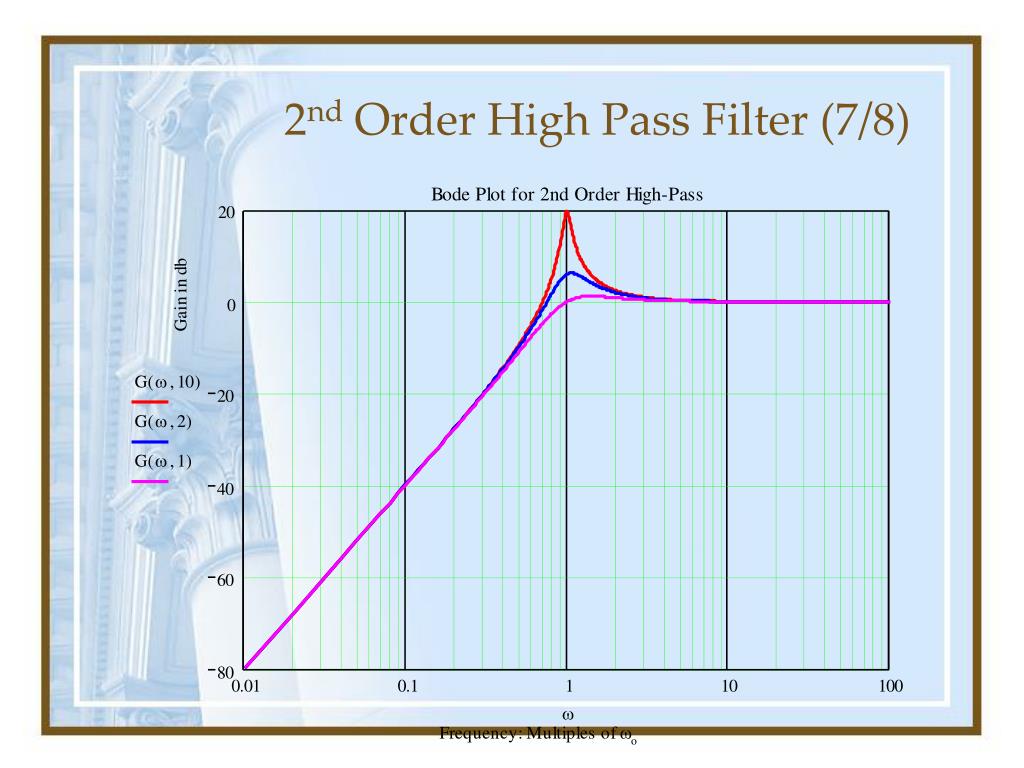

  15. 2nd Order High Pass Filter (6/8) Slope is 40 db/decade

  16. 2nd Order High Pass Filter (7/8)

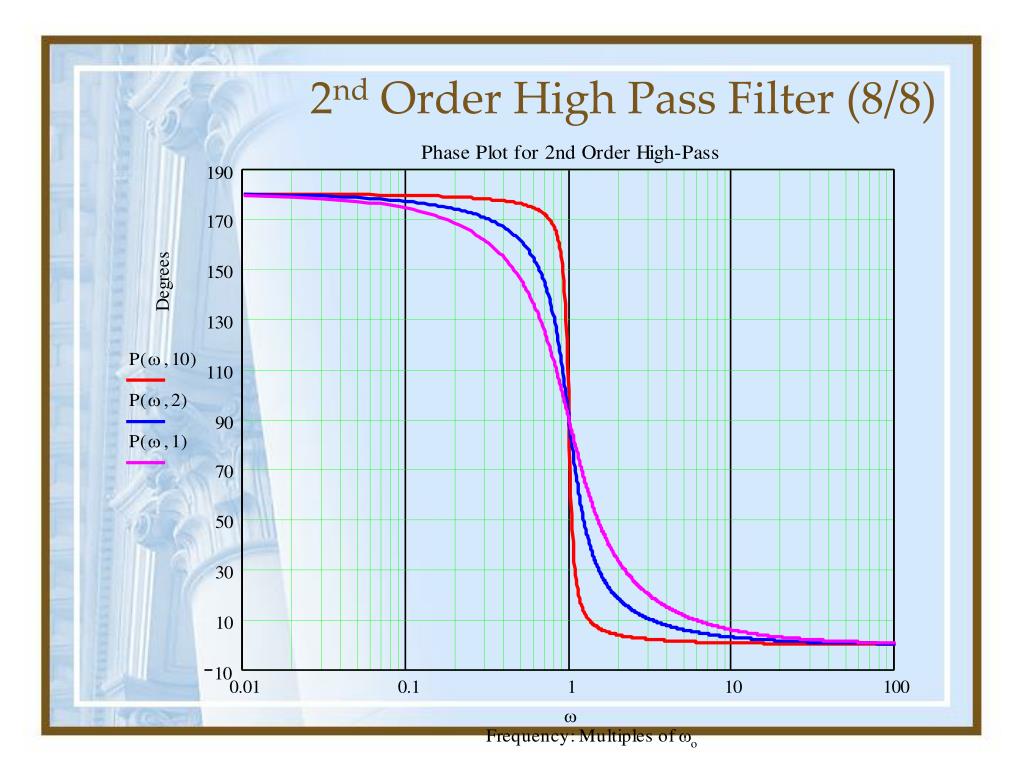

  17. 2nd Order High Pass Filter (8/8)

  18. 2nd Order Band Reject Filter (1/4)

  19. 2nd Order Band Reject Filter (2/4)

  20. 2nd Order Band Reject Filter (3/4)

  21. 2nd Order Band Reject Filter (4/4)
