  1. Temporal Action-Graph Games:A New Representation for Dynamic Games Albert Xin Jiang University of British Columbia Kevin Leyton-Brown University of British Columbia Avi Pfeffer Charles River Analytics

  2. Game Theory In One Slide  • A game: • an interaction between two or more self-interested agents • each agent independently chooses a strategy • each agent derives utility from the resulting strategy profile • Strategies: • simultaneous-move games: choosing from a set of actions • dynamic games: choosing actions at multiple points in time; conditioned on observations • can randomize over actions • Reasoning about games: • Often involves computation of solution concepts e.g. Nash equilibrium

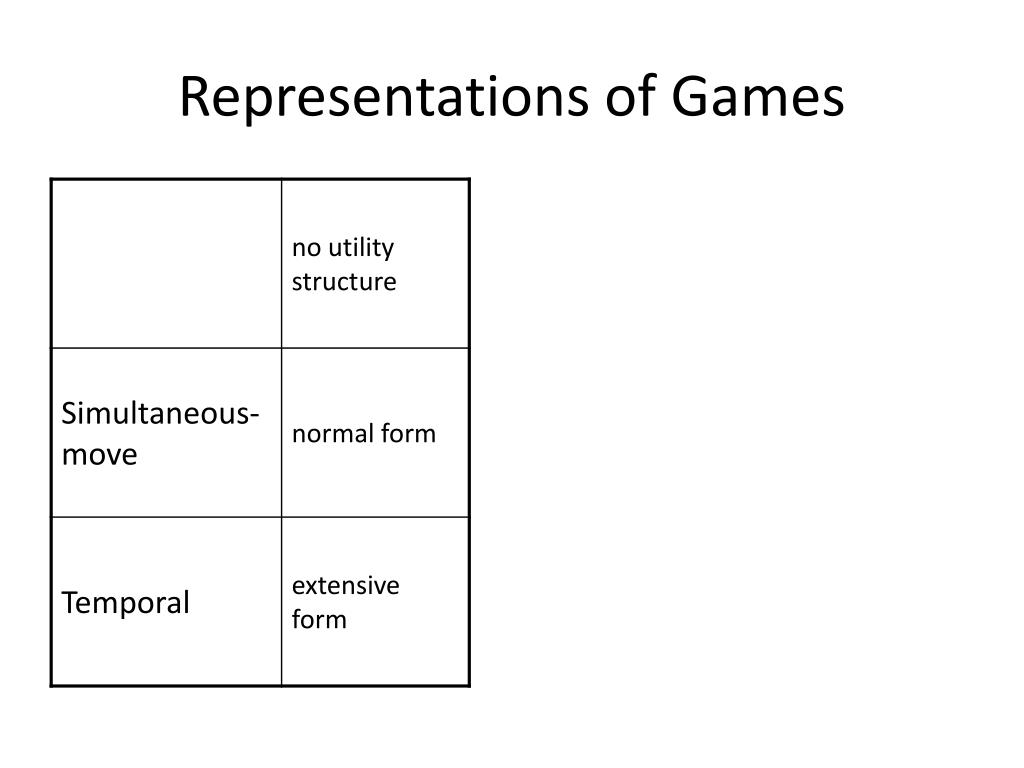

  3. Representations of Games

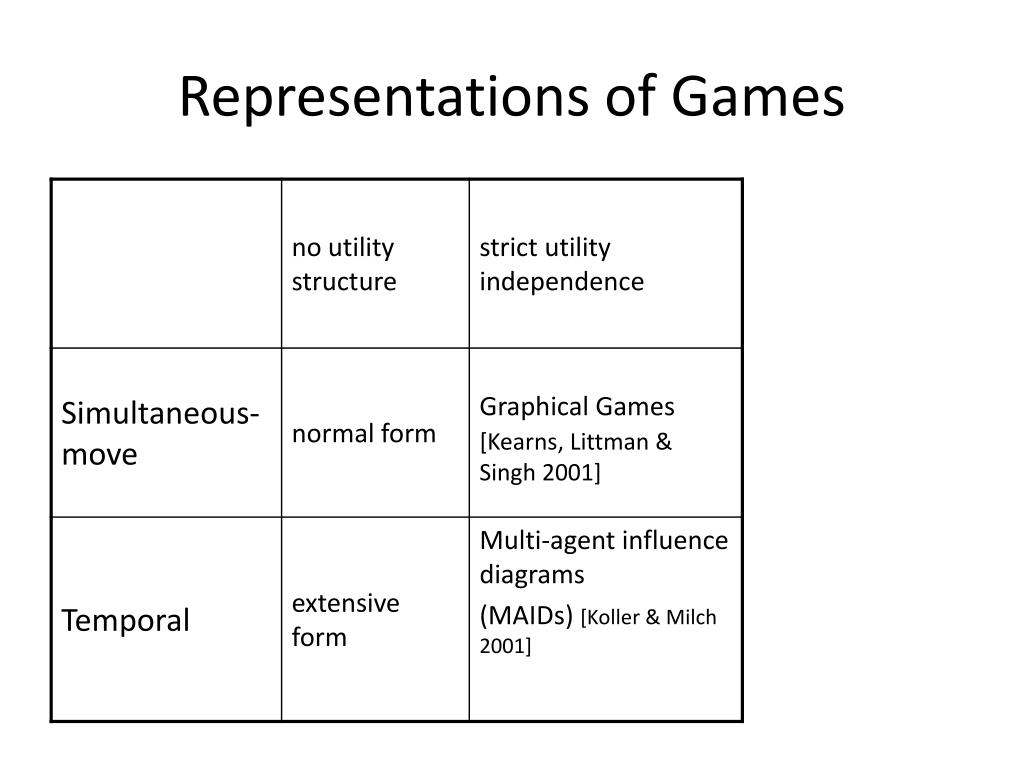

  4. Representations of Games

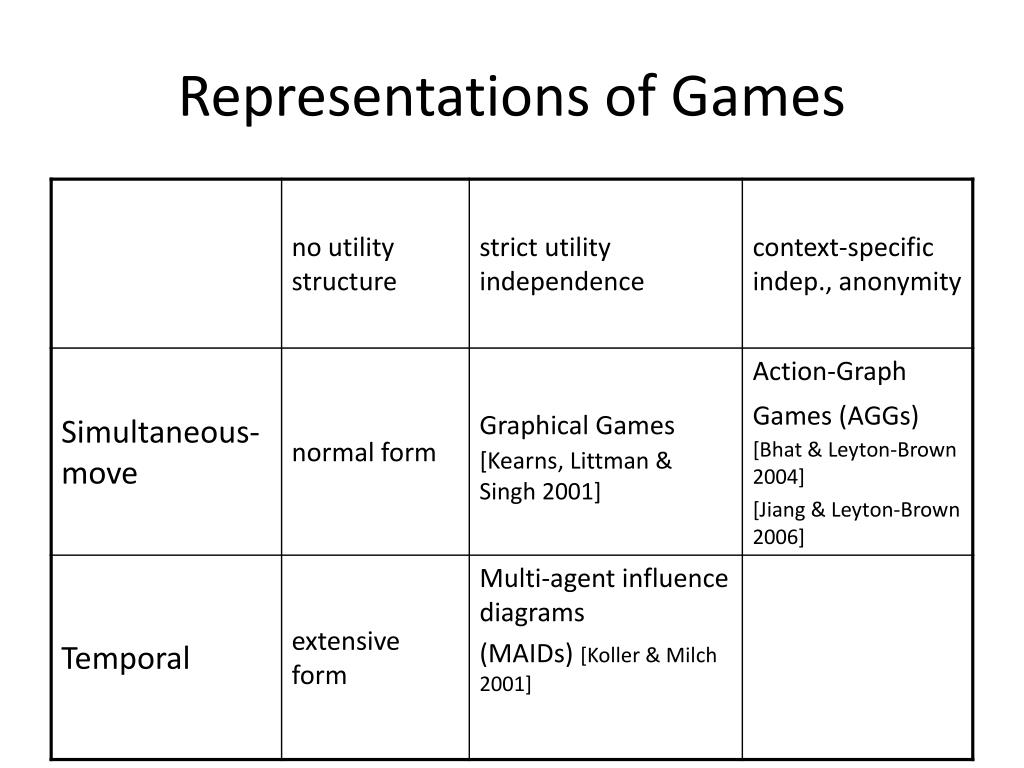

  5. Representations of Games

  6. Representations of Games

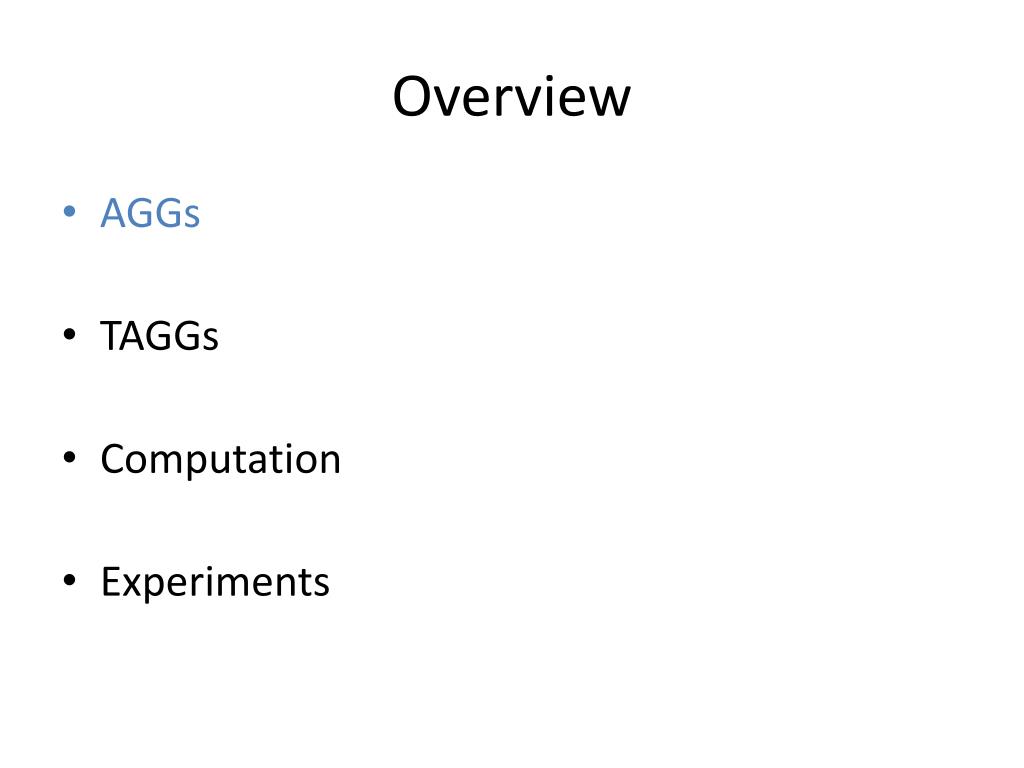

  7. Overview • AGGs • TAGGs • Computation • Experiments

  8. AGGs • played on a set of action nodes • each agent chooses an action node from a subset of action nodes • for each action node, an action count is tallied • utility dependence expressed by the action graph • utility of an agent depends only on • action chosen by the agent • action counts on the neighbors of the chosen action (configuration) • representation is compact when action graph has small in-degrees

  9. Example: simultaneous-move tollbooth game L1 L2 L3 • tollbooth with 3 lanes • 5 cars arrive • cars choose lanes simultaneously • utility depends on number of cars choosing same lane • context-specific independence (CSI): different independencies under diff context (player’s own action) • anonymity: utility depends on the numbers of agents taking certain actions, not their identities

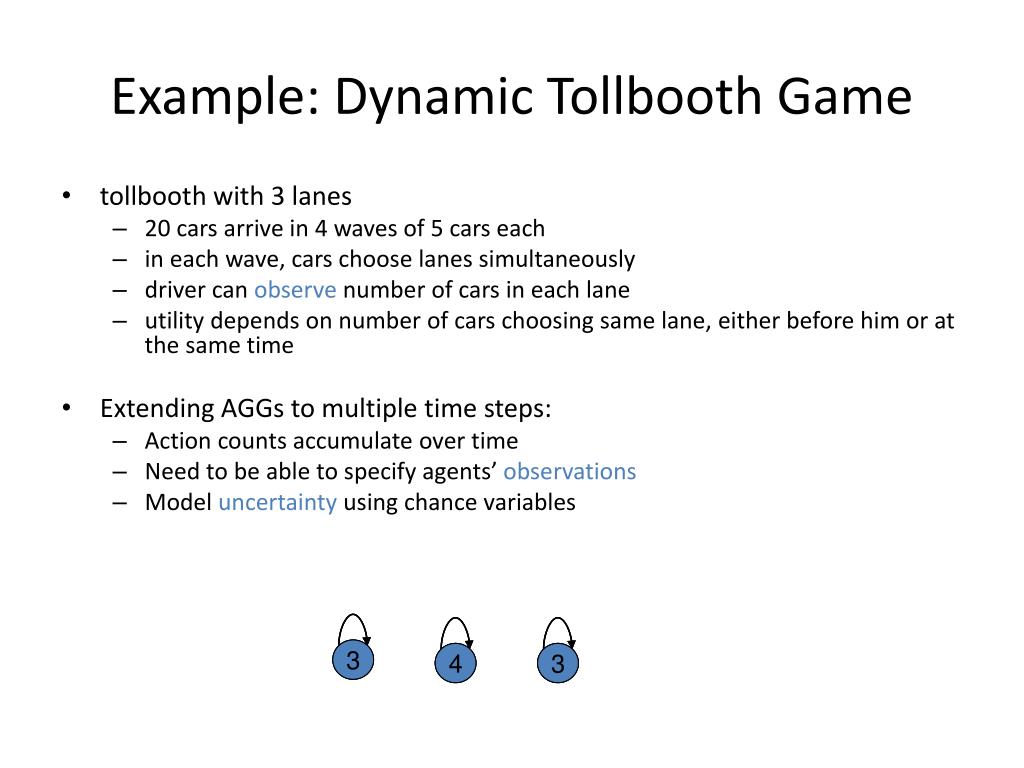

  10. Example: Dynamic Tollbooth Game 0 2 3 0 0 0 3 4 3 • tollbooth with 3 lanes • 20 cars arrive in 4 waves of 5 cars each • in each wave, cars choose lanes simultaneously • driver can observe number of cars in each lane • utility depends on number of cars choosing same lane, either before him or at the same time • Extending AGGs to multiple time steps: • Action counts accumulate over time • Need to be able to specify agents’ observations • Model uncertainty using chance variables

  11. Defining TAGGs • A TAGG is a tuple • N: set of players • T: duration • set of actions • set of chance variables • set of decisions • set of utility functions

  12. TAGGs • A decision D • Action set: a subset of • Observation set O[D]: of actions, decisions and chance vars • Set of payoff times pt(D) • Utility function • One for each action at each time step • Set of parents • Utility depends only on its parents’ instantiation at time • Evaluated at payoff times of decisions

  13. Strategies • A behavior strategy at decision D is a mapping from an instantiation of O[D] at time t(D)-1 to a distribution over its action set. • A behavior strategy for player i is a tuple consisting of a behavior strategy for each of her decisions • Behavior strategy profile: tuple of behavior strategies for all players

  14. Induced Bayes Net • Induced BN of a TAGG given a strategy profile • Formally describes how the TAGG is played out • Decisions, chance variables and utilities correspond to random variables in the BN • Action counts are time-dependent: we have a separate action count variable for each action at each time step • Decision-payoff variable as utility of decision D received at payoff time • Expected utility of a player is the sum of the expected values of her decisions’ decision-payoff variables. • Can similarly define induced MAID of a TAGG

  15. Induced BN / MAID: tollbooth example

  16. TAGGs and MAIDs • Any TAGG is utility-equivalent to its induced MAID • However, induced MAID (and BN) has large in-degree; exponentially larger representation size • For the other direction, any MAID can be efficiently encoded as a TAGG with same space complexity

  17. Overview • AGGs • TAGGs • Computation • Experiments

  18. Computing Expected Utility • Computing expected utility of a player, given a behavior strategy profile • An essential step in many game-theoretic computations • Can be cast as inference problem on the induced BN: compute expected values of • Can apply standard BN inference algorithm • TAGGs have additional structure; can be exploited to speedup computation

  19. Exploiting anonymity • Induced BN has large in-degrees for action-count variables • Their CPDs are counting functions with causal independence structure [Heckerman&Breese 1996] • Can reduce in-degree by transforming the BN • Create nodes representing intermediate counts

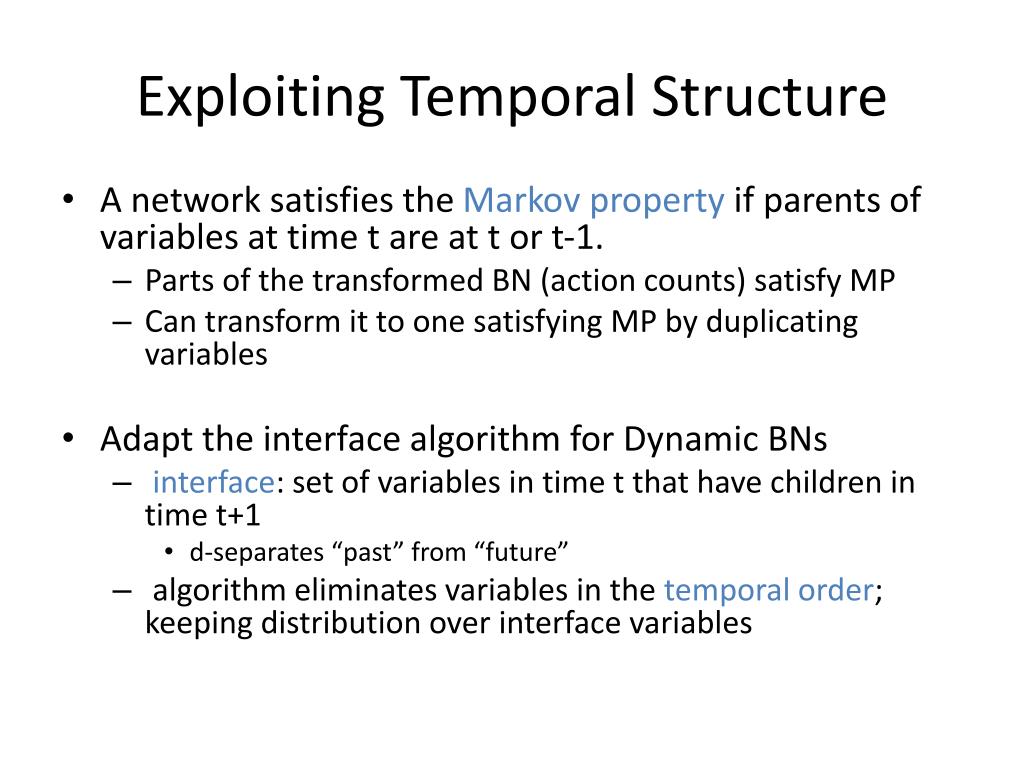

  20. Exploiting Temporal Structure • A network satisfies the Markov property if parents of variables at time t are at t or t-1. • Parts of the transformed BN (action counts) satisfy MP • Can transform it to one satisfying MP by duplicating variables • Adapt the interface algorithm for Dynamic BNs • interface: set of variables in time t that have children in time t+1 • d-separates “past” from “future” • algorithm eliminates variables in the temporal order; keeping distribution over interface variables

  21. Tollbooth example • interface at t: the action count variables at time t

  22. Computation, Ctd • Further exploiting the structure of transformed BN within the same time step • We can exploit CSI for further speedup • Our algorithm computes EU in poly time if • the number of interface variables at each time are bounded • inference over the chance variables can be done efficiently • Our methods an be applied to speedup computation of Nash equilibria

  23. Overview • AGGs • TAGGs • Computation • Experiments

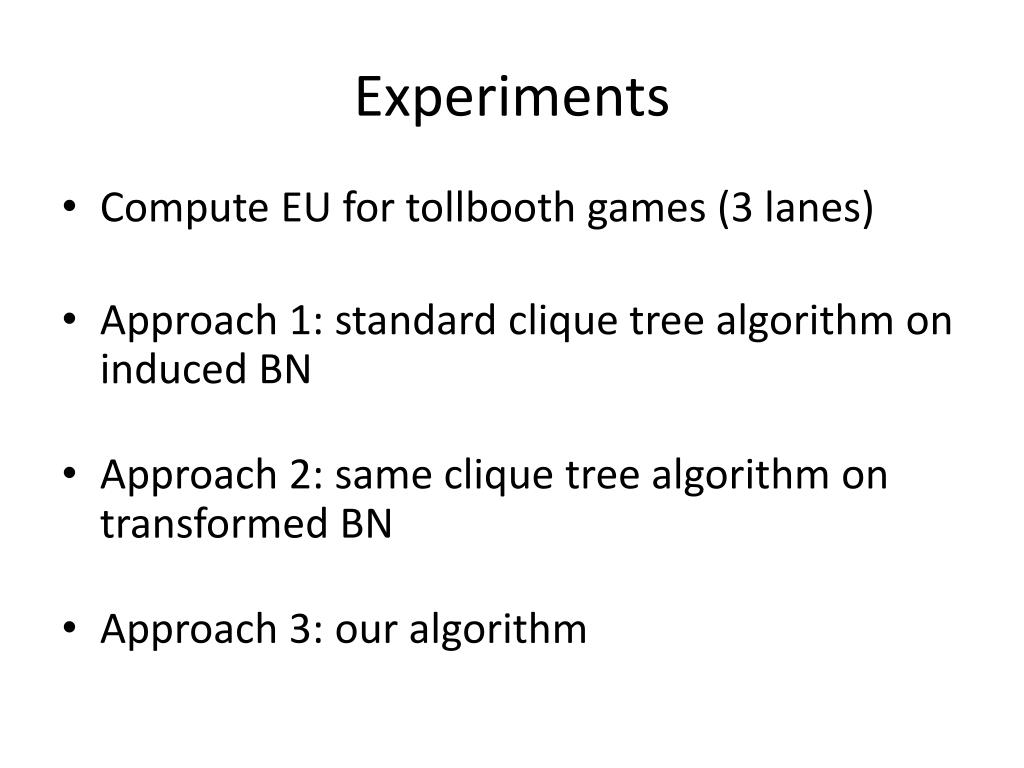

  24. Experiments • Compute EU for tollbooth games (3 lanes) • Approach 1: standard clique tree algorithm on induced BN • Approach 2: same clique tree algorithm on transformed BN • Approach 3: our algorithm

  25. Experiments: Tollbooth (5 cars per time step, varying T)

  26. Experiments: Tollbooth(T=3, varying # cars per time step)

  27. Conclusions • Temporal Action-Graph Games (TAGGs) • novel compact representation for dynamic games • extends AGGs to dynamic setting • compactly express wider variety of utility structure, including CSI and anonymity • exploit such structure for efficient computation • expected utility • Nash equilibrium

  28. 2 3 0 3 4 3

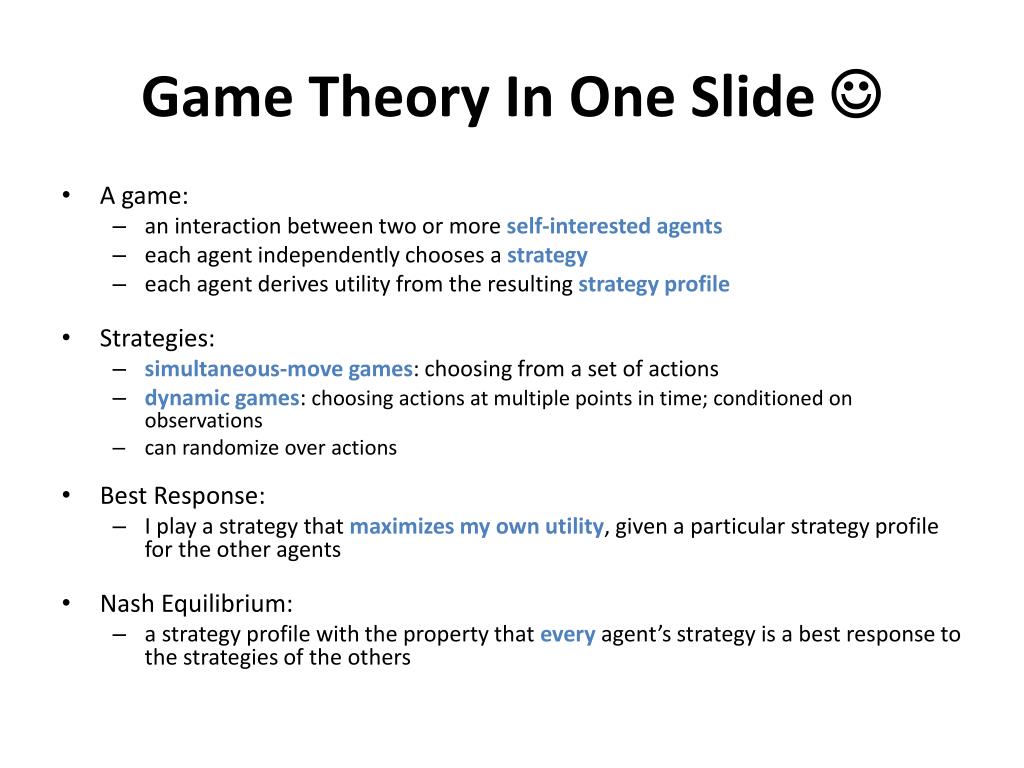

  29. Game Theory In One Slide  • A game: • an interaction between two or more self-interested agents • each agent independently chooses a strategy • each agent derives utility from the resulting strategy profile • Strategies: • simultaneous-move games: choosing from a set of actions • dynamic games: choosing actions at multiple points in time; conditioned on observations • can randomize over actions • Best Response: • I play a strategy that maximizes my own utility, given a particular strategy profile for the other agents • Nash Equilibrium: • a strategy profile with the property that everyagent’s strategy is a best response to the strategies of the others

  30. Representations of Games • Goal: modeling real-world systems • Standard Representations • normal form for simultaneous-move games: specify utilities for every action profile • extensive form (game trees) for dynamic games: specify utilities for every possible sequence of actions • such representations ignore structure in the games’ utilities • sizes grow exponentially in parameters of the games • CompactRepresentations • simultaneous-move: Graphical Games [Kearns, Littman & Singh 2001], Action-Graph Games (AGGs) [Bhat & Leyton-Brown 2004][Jiang & Leyton-Brown 2006] • dynamic: Multi-Agent Influence Diagrams (MAIDs) [Koller & Milch 2001]

  31. Representing Dynamic Games • Multi-Agent Influence Diagrams(MAIDs): directed acyclic graph over • Chance nodes • Decision nodes: a player chooses an action, observing instantiation of parents • Utility nodes: utility for a player, function of instantiation of parents • MAIDs are compact when utility functions exhibit strict independencies • Does not capture other kinds of structure

  32. Temporal Action-Graph Games • TAGGs: compact representation for dynamic games • Extension of AGGs to dynamic setting • Can efficiently encode arbitrary MAIDs • Can compactly represent dynamic games with CSI and/or anonymity structure • Efficient computation

  33. TAGGs at a high level • Played over a series of time steps 1 … T • At each time step, an AGG is played by a set of players, on a set of action nodes • Action counts on the action nodes are accumulated over time • Model uncertainty using chance variables • Decisions: player at each decision may observe a set of previous decisions, chance variables and action counts • Utility functions: action-specific and time-specific

  34. TAGG: tollbooth example • N correspond to the cars • T=4 • One action node for each lane • At each time step, we have 5 decisions • Action set is the entire set • Payoff time same as decision time: pt(D) = {t(D)} • Utility function has A as its only parent • Size of representation
