Overview of the (Public Switched Telephone Network) PSTN. Unit 1. Objectives. Describe the history and explain the basic parts and services of the PSTN Describe the evolution of the modern day PSTN.

Download Presentation

Unit 1

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Overview of the public switched telephone network pstn

Overview of the (Public Switched Telephone Network) PSTN

Unit 1


Objectives

Objectives

  • Describe the history and explain the basic parts and services of the PSTN

    • Describe the evolution of the modern day PSTN.

    • Explain the basic parts of the PSTN, such as signaling, analog and digital waves, and call flow.

    • Explain PSTN Numbering Plans.

    • Describe and explain the various services and applications that the PSTN uses.

  • Explain the drivers behind convergence between voice and data networking

    • Describe the drivers behind the current convergence of voice and data networking.

    • Explain the proposed new PSTN infrastructure model.

  • Compare and contrast the differences between the PSTN and enterprise telephony

    • Identify the basic features of Enterprise Telephony.

  • Provide common Enterprise Telephony designs

    • Describe some of the more common Enterprise Telephony Designs.


Basic four phone network

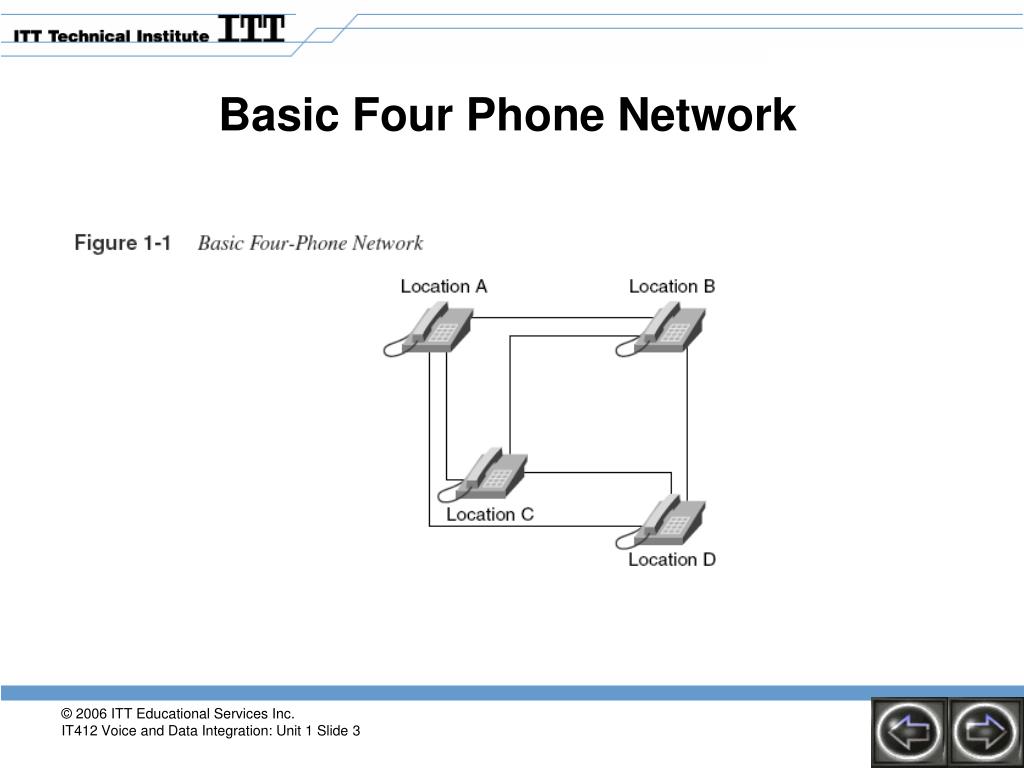

Basic Four Phone Network


Physical cable between all telephone users

Physical Cable Between All Telephone Users


Centralized operator the human switch

Centralized Operator: The Human Switch


Analog waveform

Analog Waveform


Analog line distortion

Analog Line Distortion


Digital line distortion

Digital Line Distortion


Circuit switching hierarchy

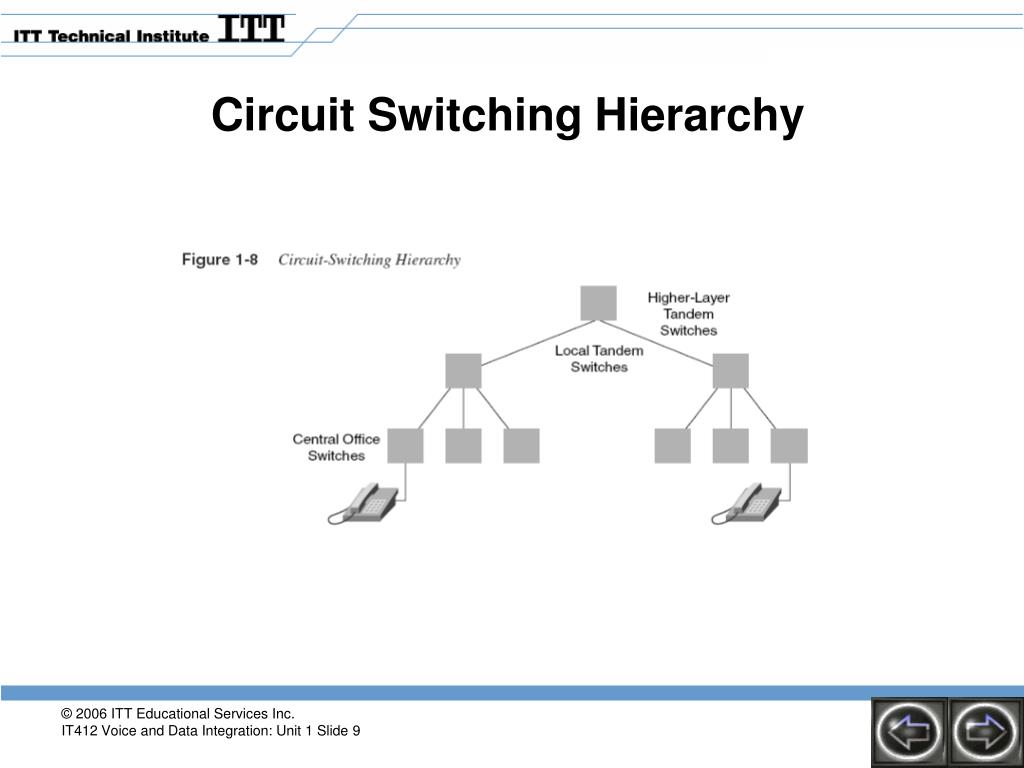

Circuit Switching Hierarchy


Unit 1

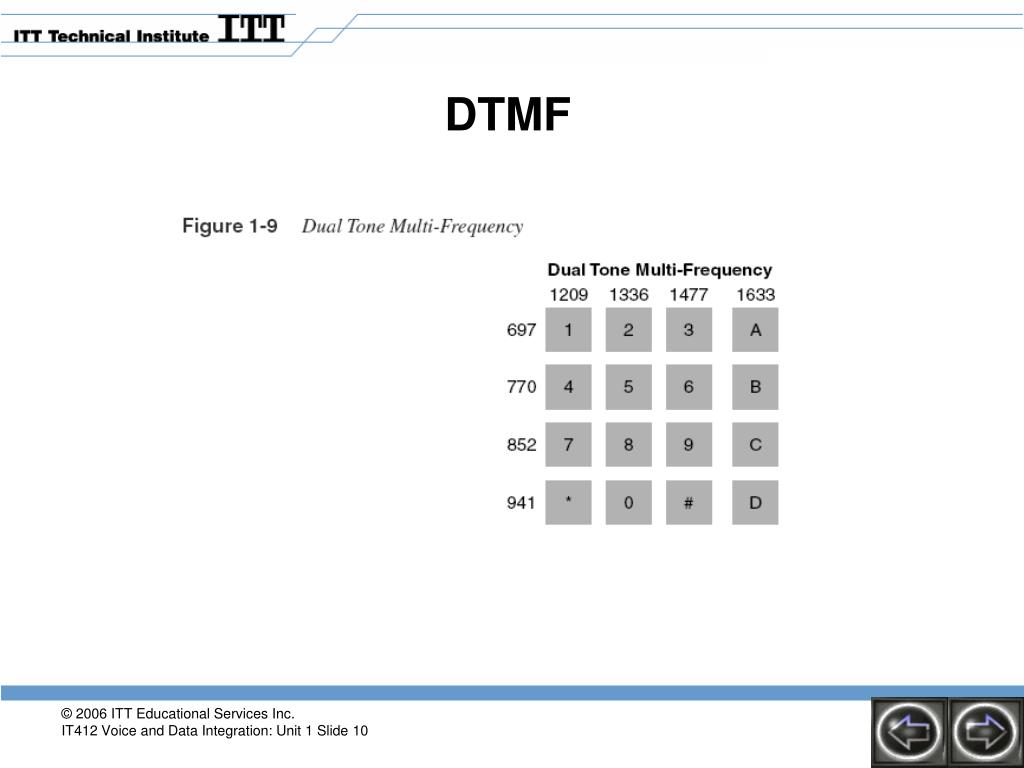

DTMF


Pstn call flow

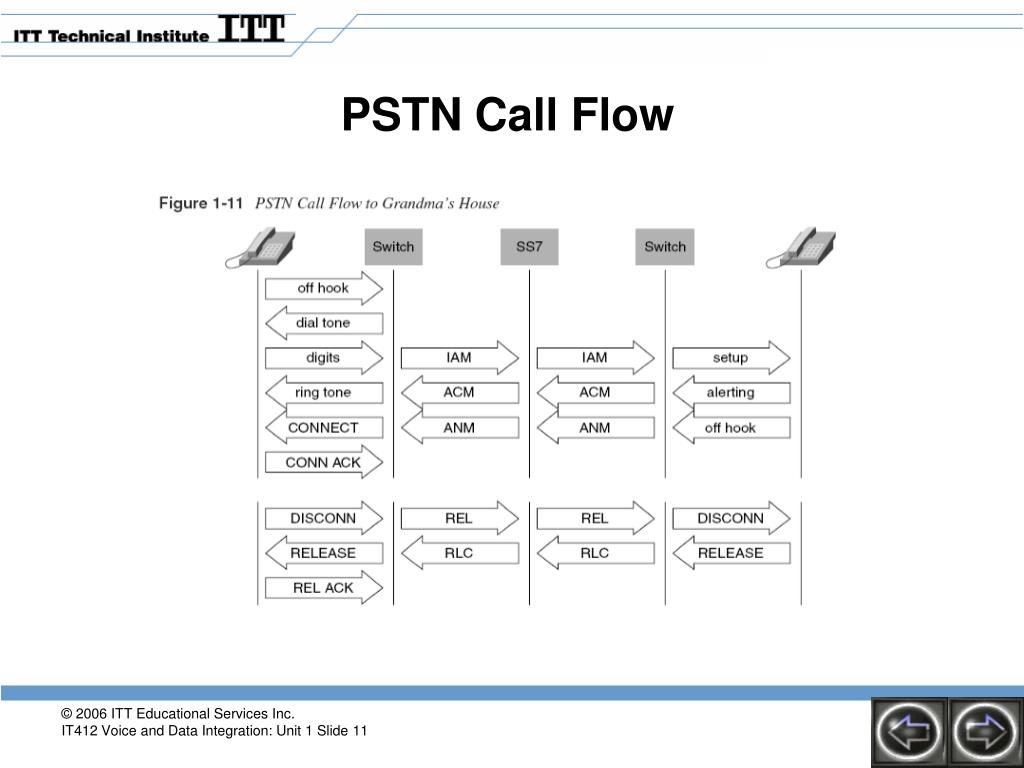

PSTN Call Flow


Circuit switching vs packet switching

Circuit Switching vs. Packet Switching


H 323 call flow

H.323. Call Flow


Elements of packet telephony

Elements of Packet Telephony


Unit 1

VPN


Pstn call through a pbx

PSTN Call Through a PBX


Number translation through a pbx

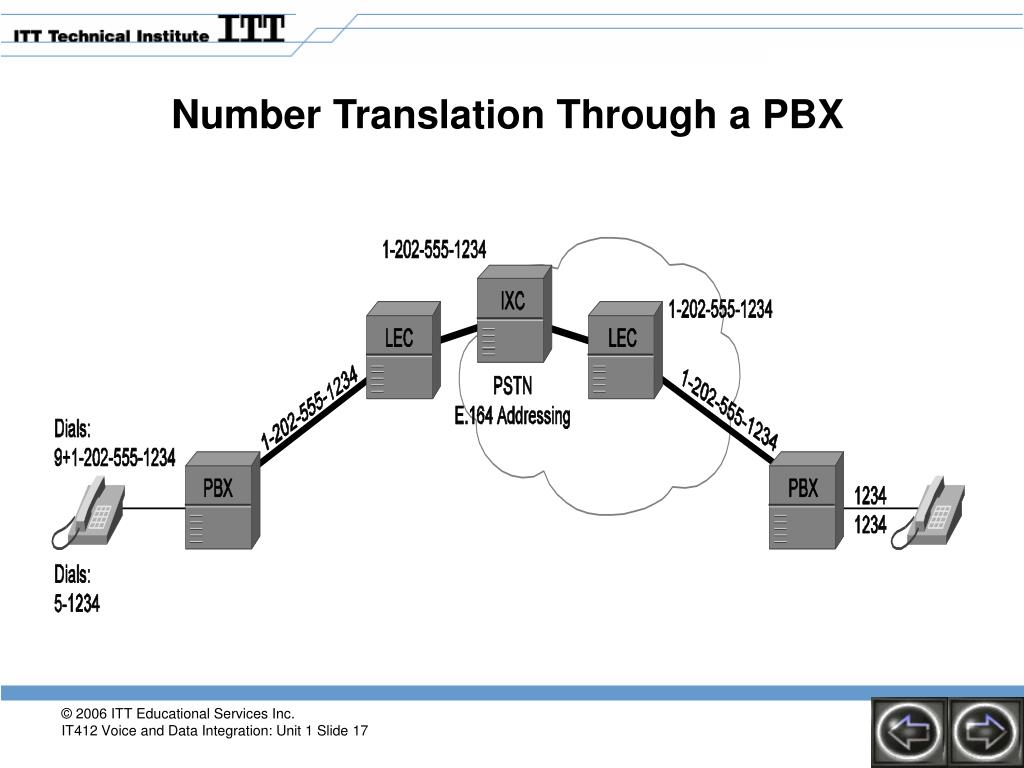

Number Translation Through a PBX


Tie line cost comparisons

Tie-line Cost Comparisons
