Prof s n panda head school of water resources

Prof. S. N. PandaHead, School of Water Resources

Groundwater Modelling of Ganga Basin – Opportunities and Challenges


Physiography and groundwater flow of ganga basin
Physiography and groundwater flow of Ganga basin

(Source: Ministry of Environment and Forests, Government of India)

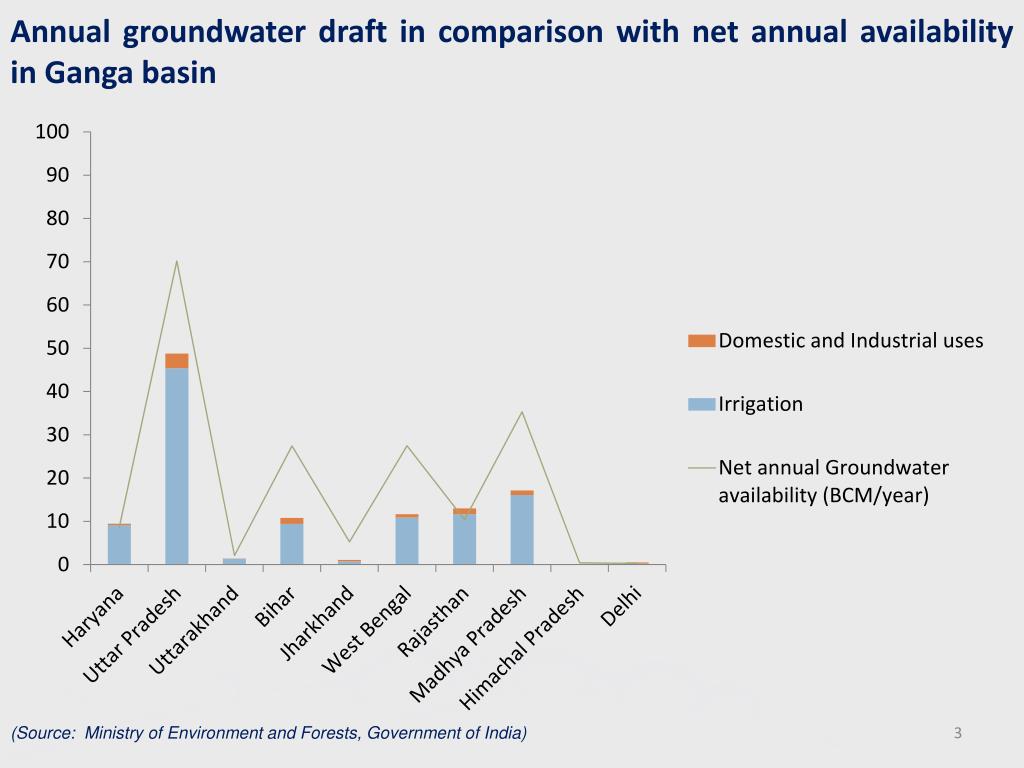

Annual groundwater draft in comparison with net annual availability in ganga basin
Annual groundwater draft in comparison with net annual availability in Ganga basin

(Source: Ministry of Environment and Forests, Government of India)


Annual replenishable groundwater in comparison with annual draft in ganga basin
Annual replenishable groundwater in comparison with annual draft in Ganga basin

(Source: Ministry of Environment and Forests, Government of India)


Schematic illustration for evaluating stream aquifer interaction
Schematic illustration for evaluating stream-aquifer interaction

Reach inflow

Evaporation

Change in storage

Groundwater inflow

Inflow or leakage to/from groundwater

Stream inflow

Rainfall

Reach Outflow

Stream Reach

Recharge to groundwater

Evapotranspiration

Groundwater outflow

Stream outflow



Types of Terrestrial Water interaction

Surface Water

Soil Moisture

Ground water

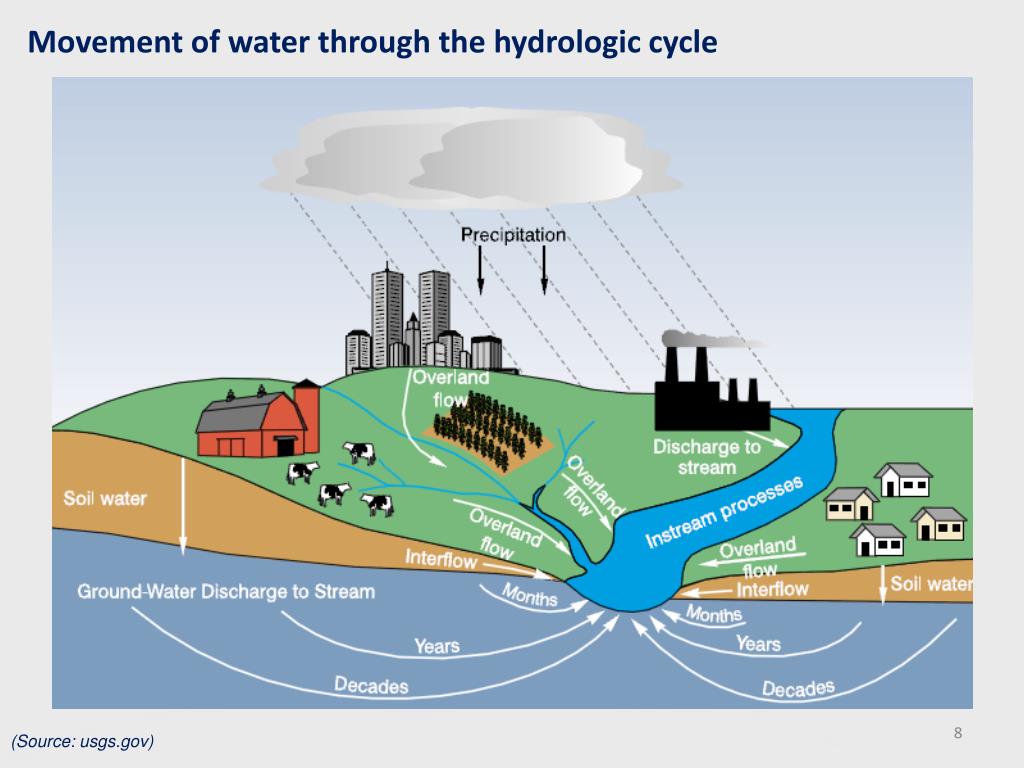

Movement of water through the hydrologic cycle
Movement of water through the hydrologic cycle interaction

(Source: usgs.gov)


Effluent and influent streams interaction

Gaining stream

Losing stream with shallow watertable

Base flow

Losing stream with deep watertable


Water balance concept
Water Balance Concept interaction

The basic concept of groundwater balance is:

Input to the system ‑ outflow from the system = change in storage of the system (over a period of time)


Flow components for assessing groundwater balance interaction

ET

Overland Flow

Pr

Ir

Boundary

Seepage

Pumping well

Per

Cap

Boundary

Watertable

Qper

Sgrw

Qdr

Qlsi

Qlso

Qup

Qdo

Clay

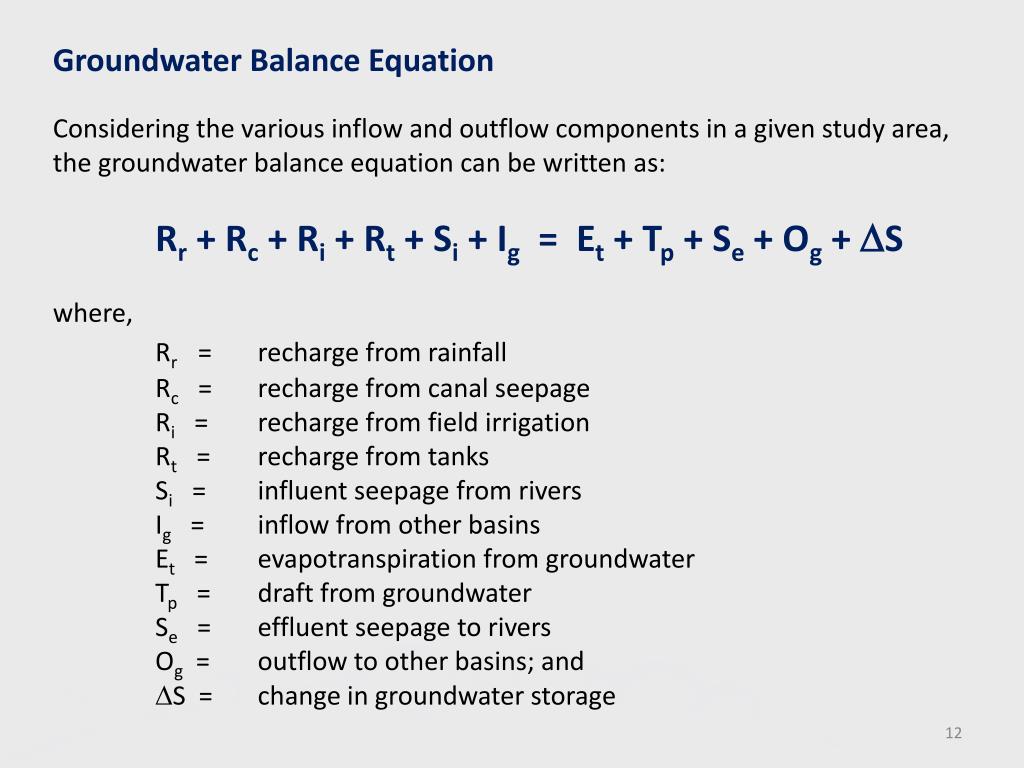

Groundwater Balance Equation interaction

Considering the various inflow and outflow components in a given study area, the groundwater balance equation can be written as:

Rr + Rc + Ri + Rt + Si + Ig = Et + Tp + Se + Og + S

where,

Rr = recharge from rainfall

Rc = recharge from canal seepage

Ri = recharge from field irrigation

Rt = recharge from tanks

Si = influent seepage from rivers

Ig = inflow from other basins

Et = evapotranspiration from groundwater

Tp = draft from groundwater

Se = effluent seepage to rivers

Og = outflow to other basins; and

S = change in groundwater storage


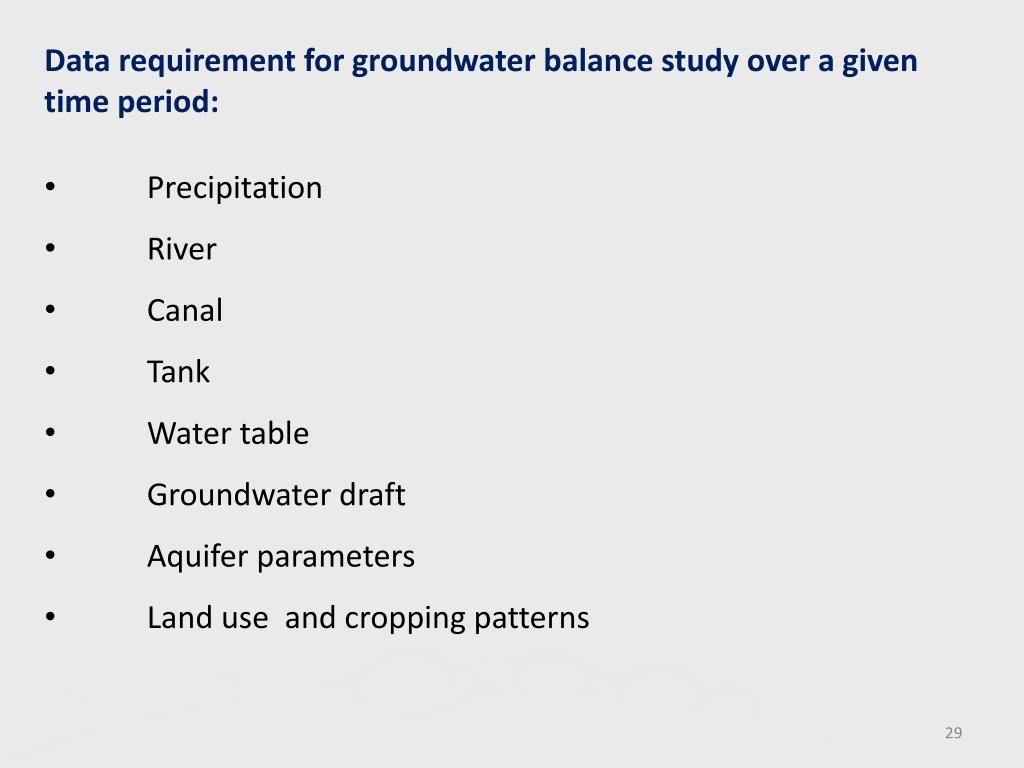

Groundwater survey and investigation
Groundwater Survey and Investigation interaction

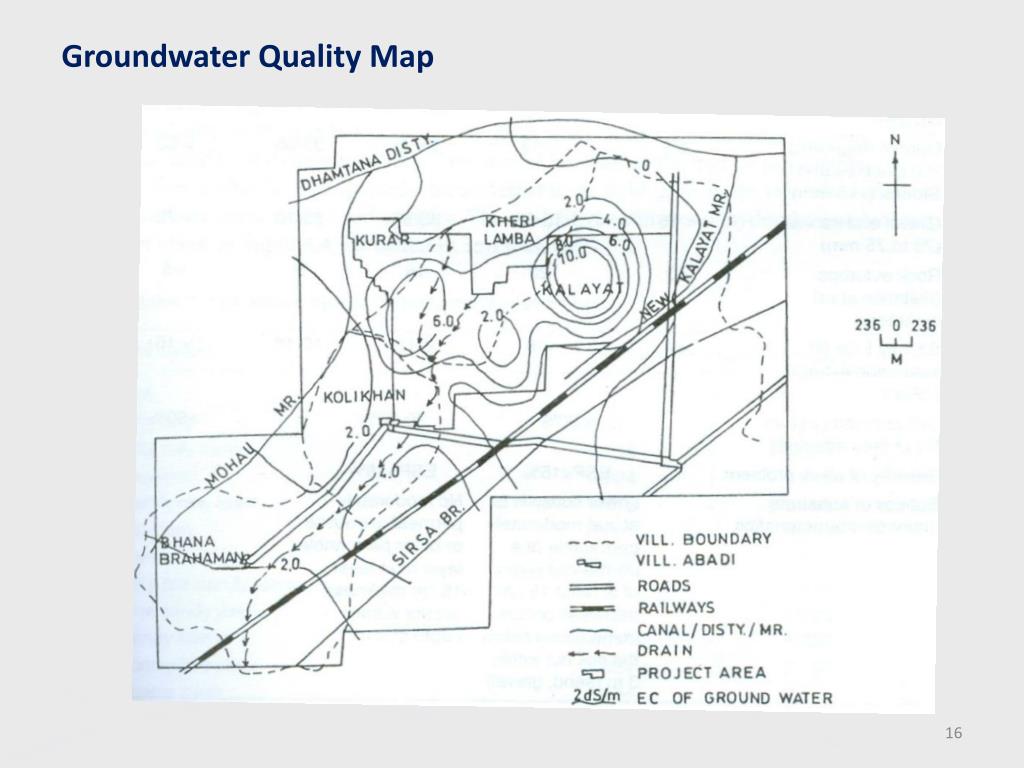

Water table contour map showing a local mound and depression in water table and direction of groundwater flow

Water table contour map


Flow net
Flow net interaction

Flow net technique for estimation of subsurface horizontal flow

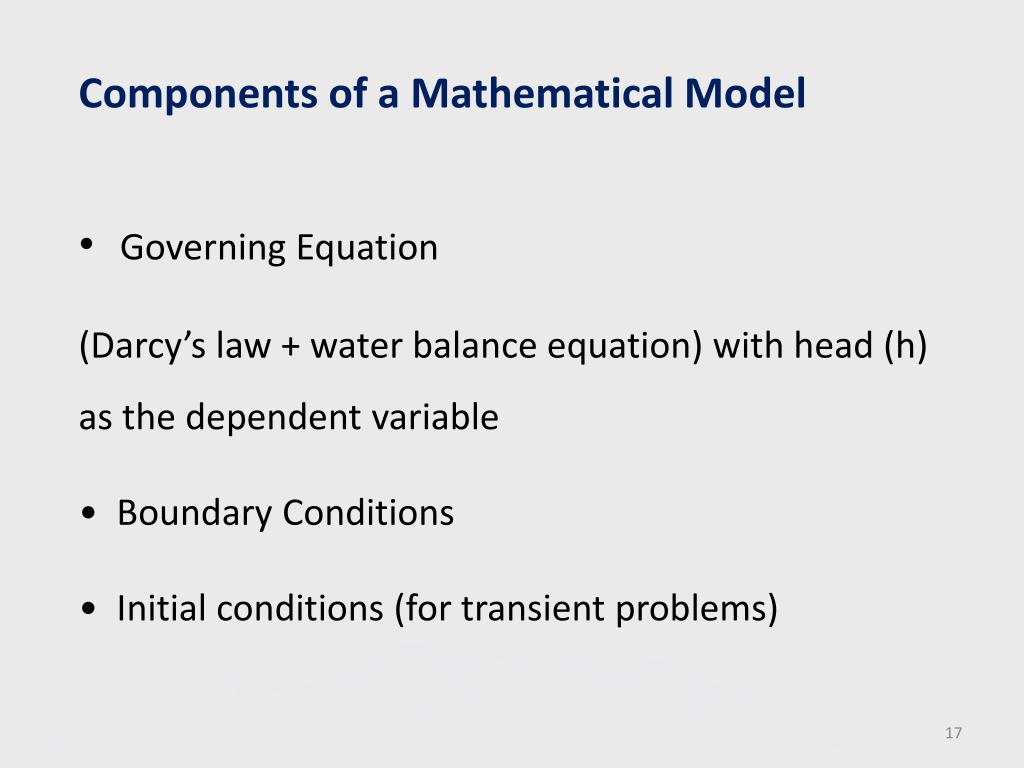

  • Components of a Mathematical Model interaction

  • Governing Equation

  • (Darcy’s law + water balance equation) with head (h) as the dependent variable

  • Boundary Conditions

  • Initial conditions (for transient problems)

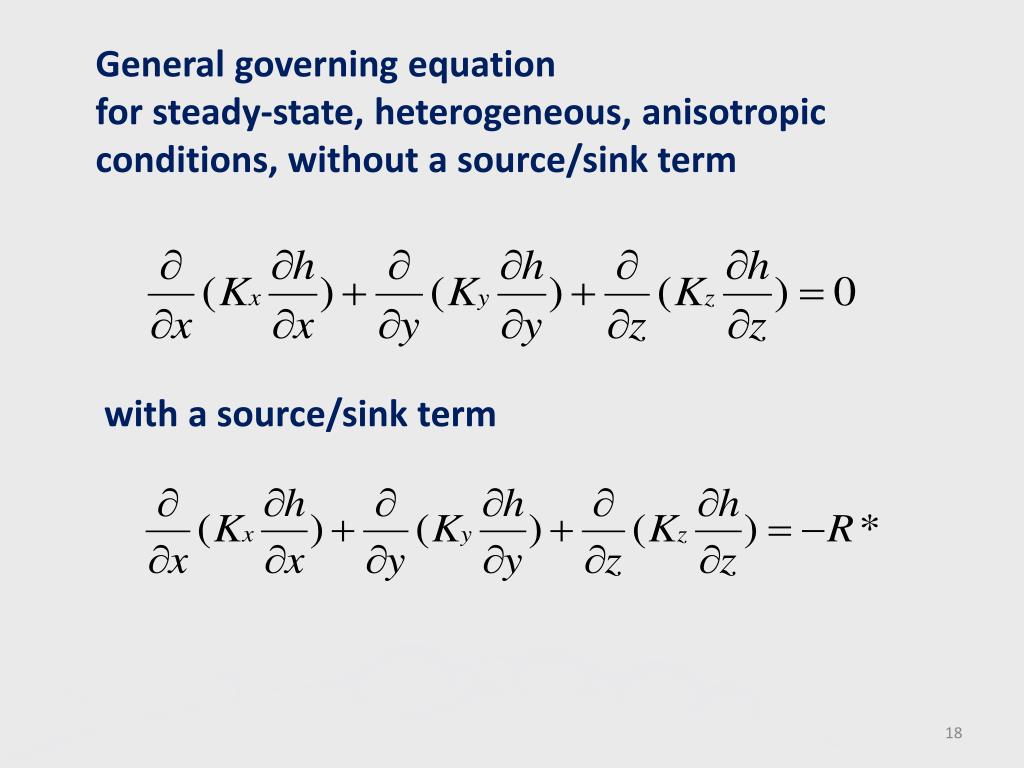

General governing equation interaction

for steady-state, heterogeneous, anisotropic conditions, without a source/sink term

with a source/sink term


Allows for multiple interaction

chemical species

Dispersion

Chemical

Reactions

Advection

Source/sink term

Change in concentration

with time

  • is porosity

    D is dispersion coefficient

    v is velocity

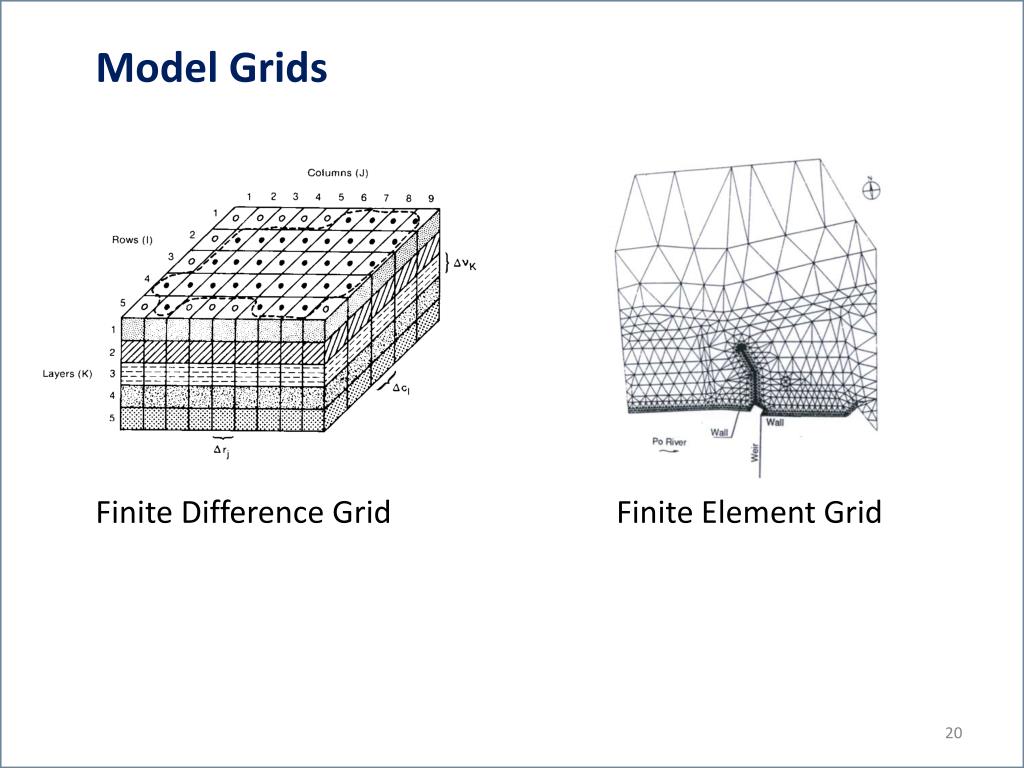

Model Grids interaction

Finite Difference Grid

Finite Element Grid


Modelling process

Conceptual Model interaction

Update Model

Mathematical Model

Unsatisfactory Results

Modelling Process

Computation

Poor Fit

Compare Model and Field

Calibrate Model

Satisfactory Results

Conclude study

(Decisions & Recommendations)


Opportunities and challenges in the ganga basin
Opportunities and Challenges in the Ganga Basin interaction

  • Wide variation in climate from semi-arid to sub-humid/sub-tropical regions

  • Large-scale spatial variation in

    • Soil texture and land-use

    • Type of aquifers and its properties

  • Spatio-temporal variation in

    - meteorological parameters associated with uncertainties

    - groundwater recharge and discharge components

  • Groundwater level monitoring is not being done regularly and intensively

  • Setting up/optimising monitoring networks and setting up groundwater protection zones

  • Groundwater resources too need to be planned and managed for maximum basin-level efficiency.


THANK YOU interaction

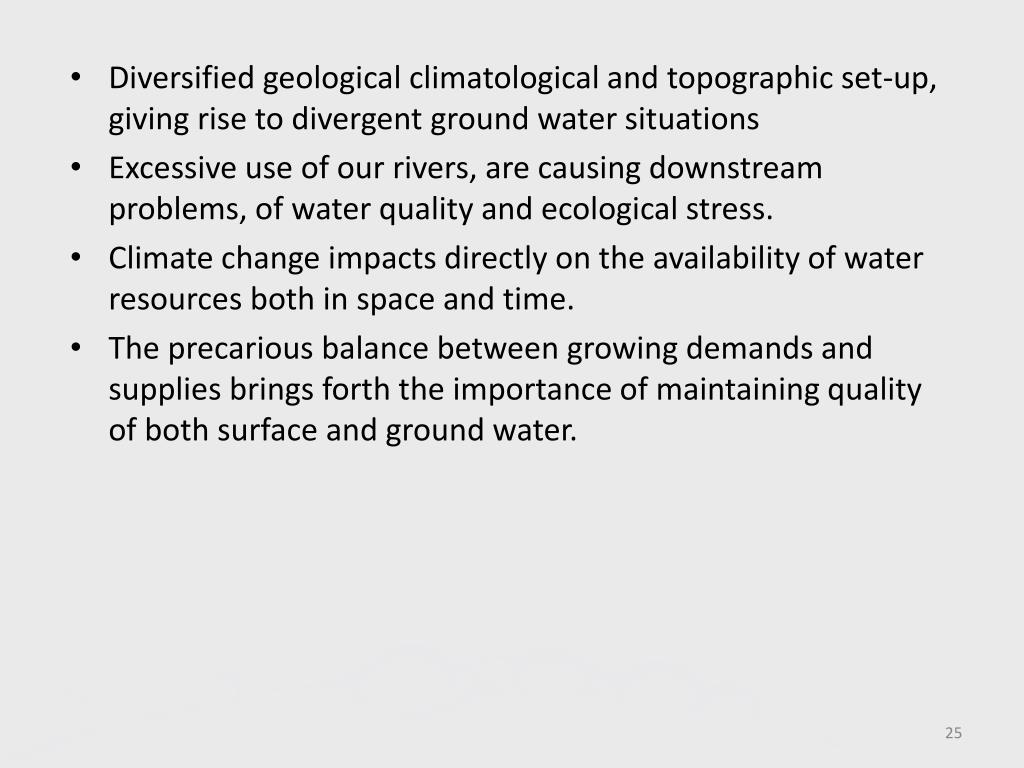

  • Diversified geological climatological and topographic set-up, giving rise to divergent ground water situations

  • Excessive use of our rivers, are causing downstream problems, of water quality and ecological stress.

  • Climate change impacts directly on the availability of water resources both in space and time.

  • The precarious balance between growing demands and supplies brings forth the importance of maintaining quality of both surface and ground water.

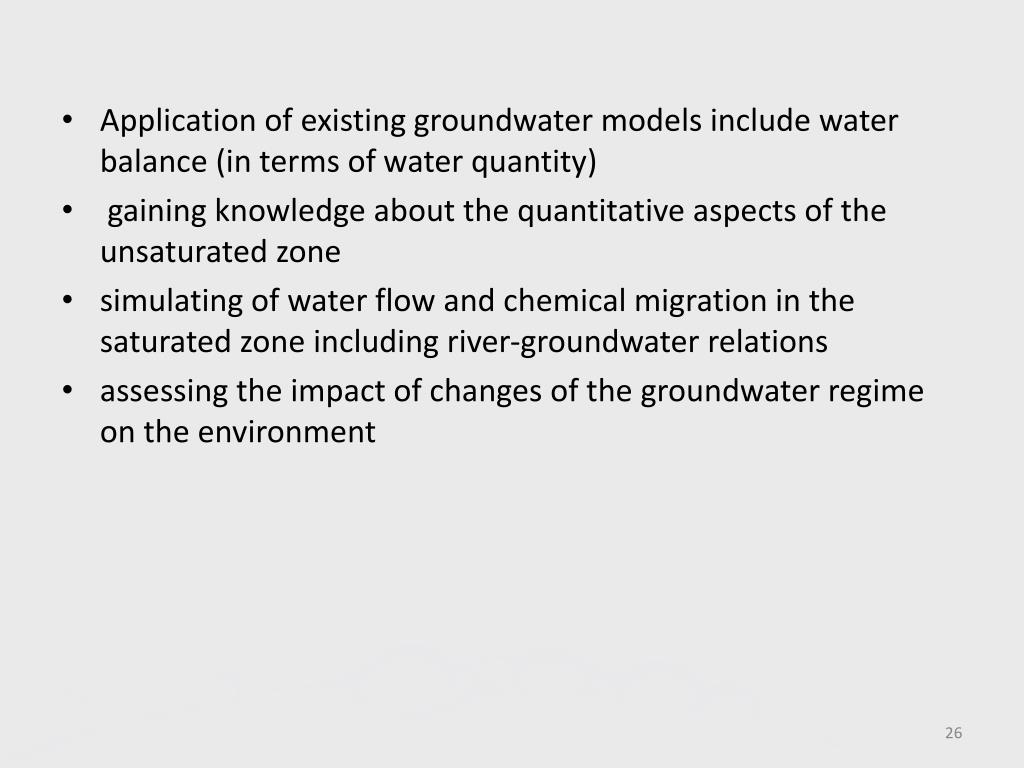

  • Application of existing groundwater models include water balance (in terms ofwater quantity)

  • gaining knowledge about the quantitative aspects of the unsaturated zone

  • simulating of water flow and chemical migration in the saturated zone including river-groundwater relations

  • assessing the impact of changes of the groundwater regime on the environment

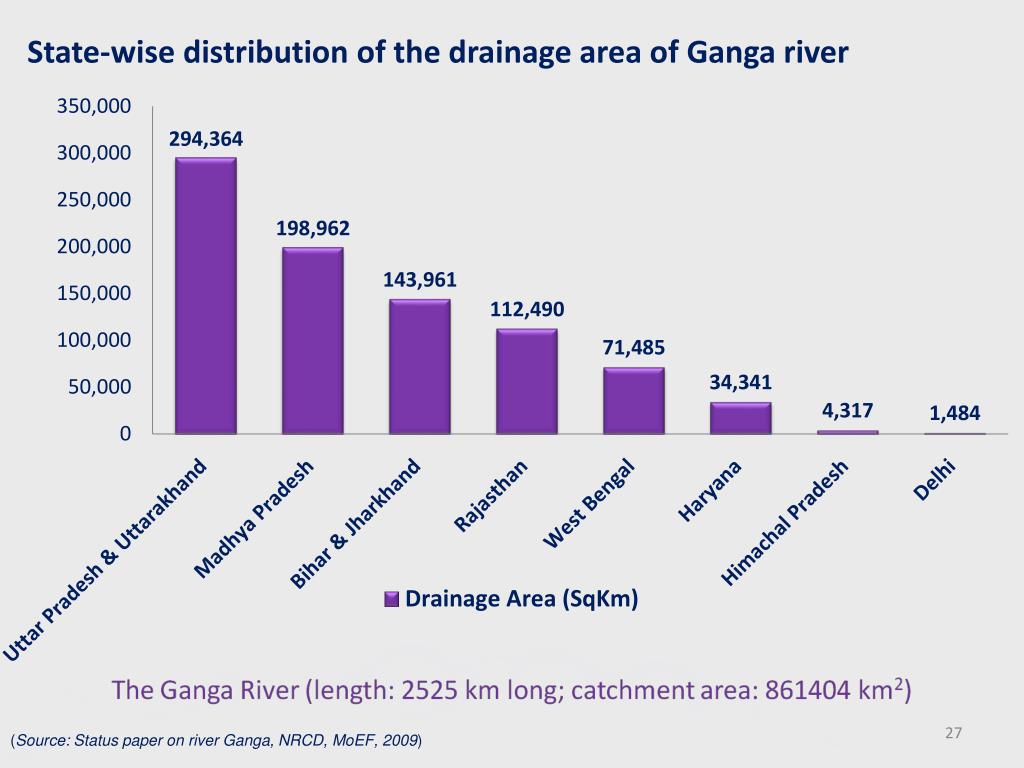

State wise distribution of the drainage area of ganga river
State-wise distribution of the drainage area of Ganga river balance (in terms of

(Source: Status paper on river Ganga, NRCD, MoEF, 2009)


Soil types in ganga basin
Soil types in Ganga basin balance (in terms of

(Source: Central Pollution Control Board, National River Conservation Directorate (MoEF) (2009))



  • Management of a groundwater system, means making such decisions as:

  • The total volume that may be withdrawn annually from the aquifer.

  • The location of pumping and artificial recharge wells, and their rates.

  • Decisions related to groundwater quality.

  • Groundwater contamination by:

  • Hazardous industrial wastes

  • Leachate from landfills

  • Agricultural activities such as the use of fertilizers and pesticides

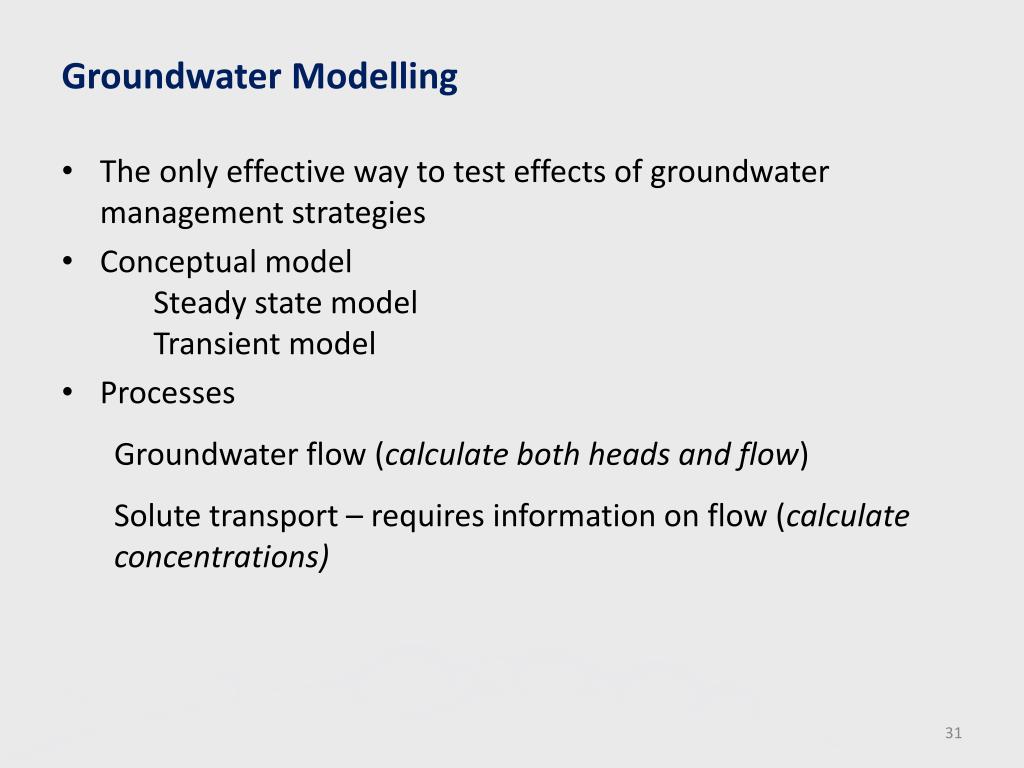

Groundwater modelling
Groundwater Modelling decisions as:

  • The only effective way to test effects of groundwater management strategies

  • Conceptual model Steady state model Transient model

  • Processes

    Groundwater flow (calculate both heads and flow)

    Solute transport – requires information on flow (calculate concentrations)


Model design
Model Design decisions as:

  • Conceptual Model

  • Selection of Computer Code

  • Model Geometry

  • Grid

  • Boundary array

  • Model Parameters

  • Boundary Conditions

  • Initial Conditions

  • Stresses

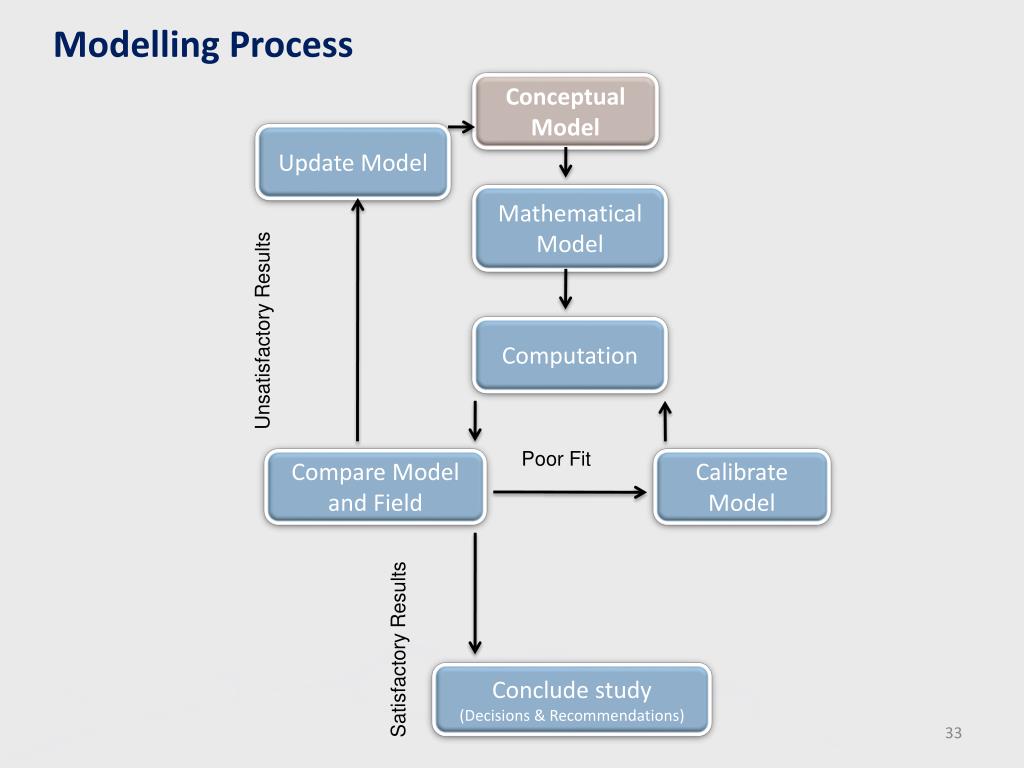

Modelling process1

Conceptual Model decisions as:

Update Model

Mathematical Model

Unsatisfactory Results

Modelling Process

Computation

Poor Fit

Compare Model and Field

Calibrate Model

Satisfactory Results

Conclude study

(Decisions & Recommendations)

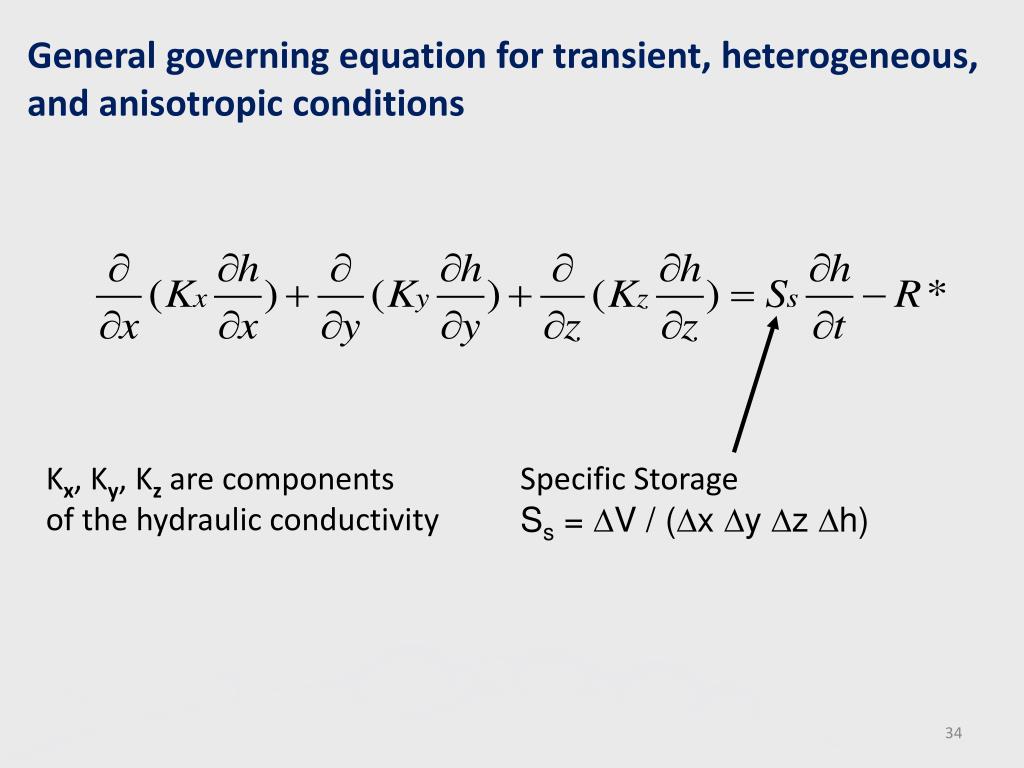

General governing equation for transient, heterogeneous, and anisotropic conditions

Kx, Ky, Kz are components

of the hydraulic conductivity

Specific Storage

Ss = V / (x y z h)

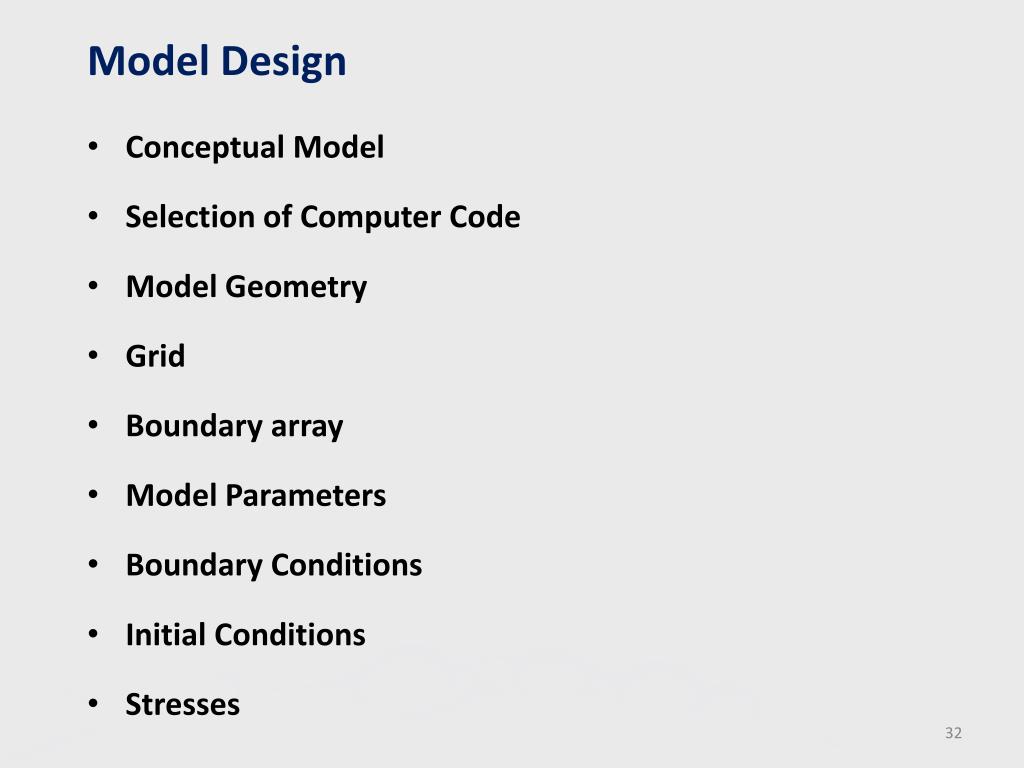

Model design1
Model Design anisotropic conditions

  • Conceptual Model

  • Selection of Computer Code

  • Model Geometry

  • Grid

  • Boundary array

  • Model Parameters

  • Boundary Conditions

  • Initial Conditions

  • Stresses

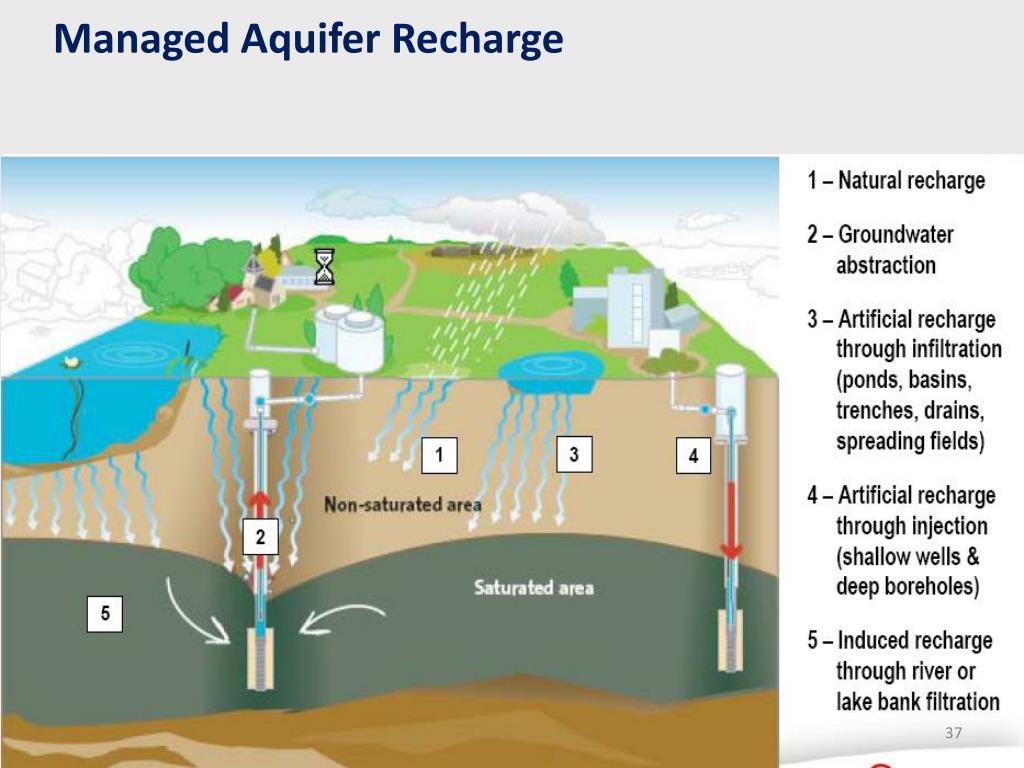

Managed Aquifer Recharge anisotropic conditions

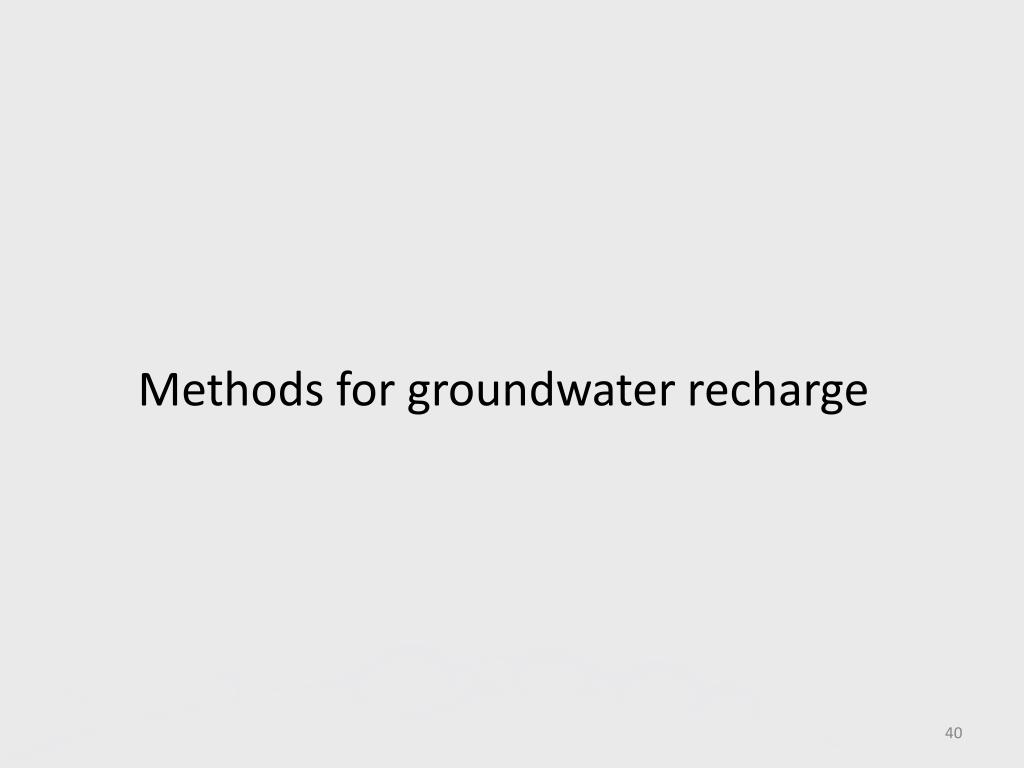

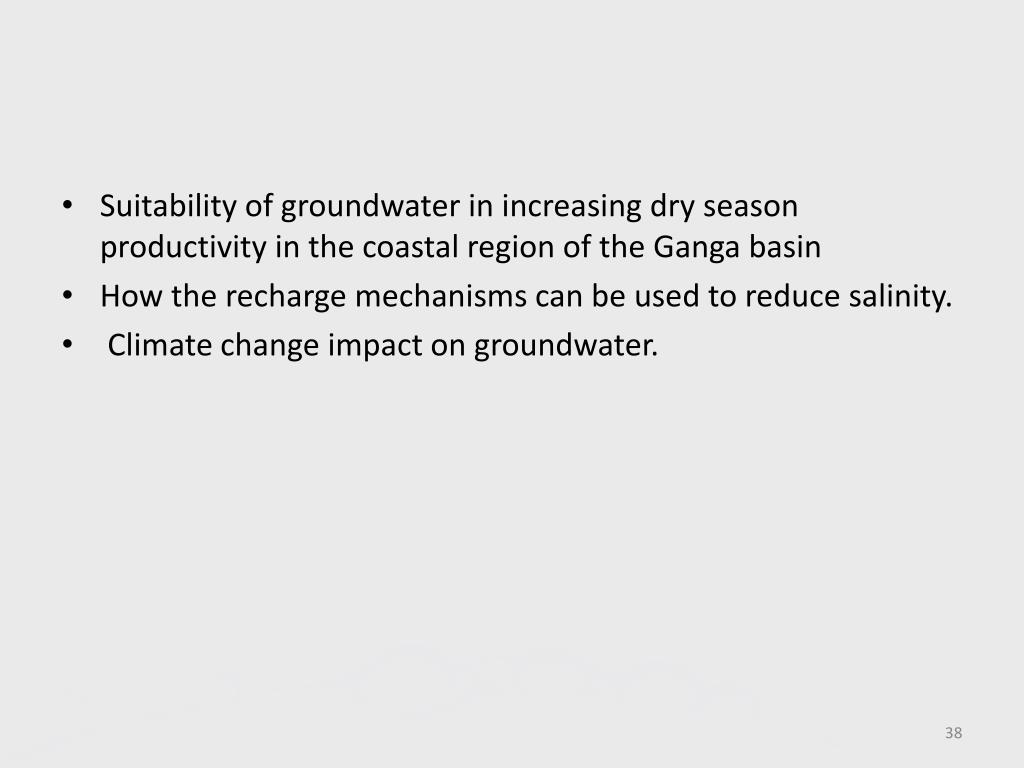

Methods for groundwater recharge
Methods for groundwater recharge productivity in the coastal region of the Ganga basin

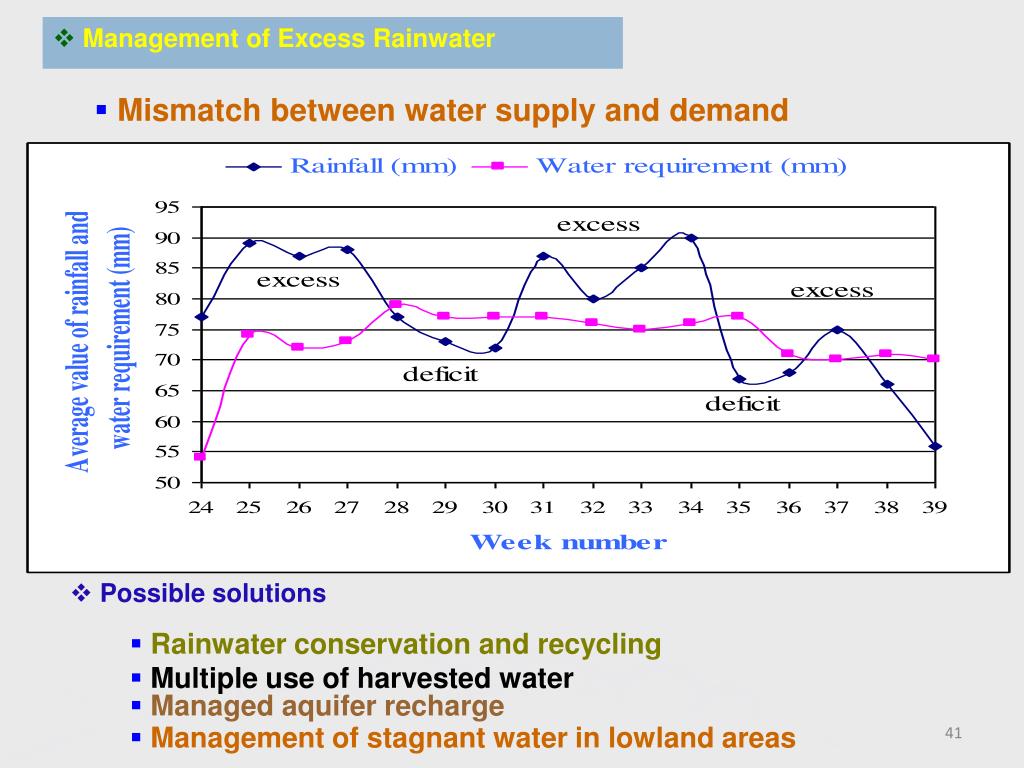

  • Mismatch between water supply and demand

  • Possible solutions

  • Rainwater conservation and recycling

  • Multiple use of harvested water

  • Managed aquifer recharge

  • Management of stagnant water in lowland areas


Rainwater conservation
Rainwater Conservation productivity in the coastal region of the Ganga basin

a. Storage of rainwater on surface reservoir

b. Recharge to ground water

  • Pits

  • Trenches

  • Dug wells

  • Hand pumps

  • Recharge wells

  • Recharge shafts

  • Lateral shafts with bore wells

  • Spreading techniques

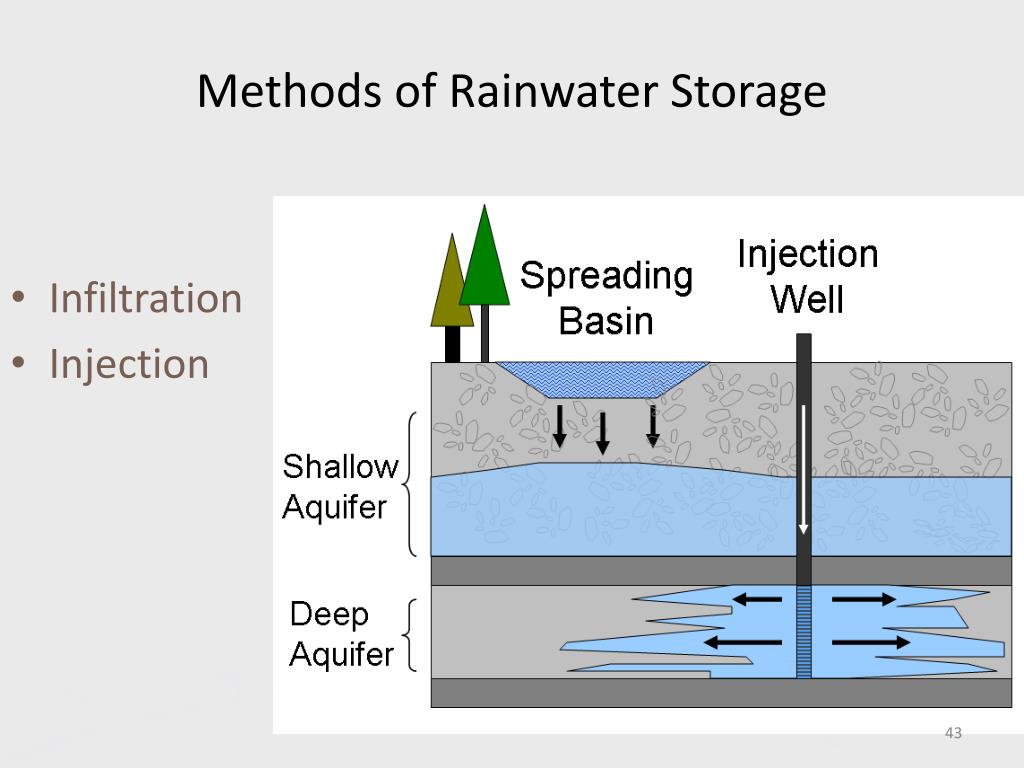

Methods of rainwater storage
Methods of Rainwater Storage productivity in the coastal region of the Ganga basin

  • Infiltration

  • Injection

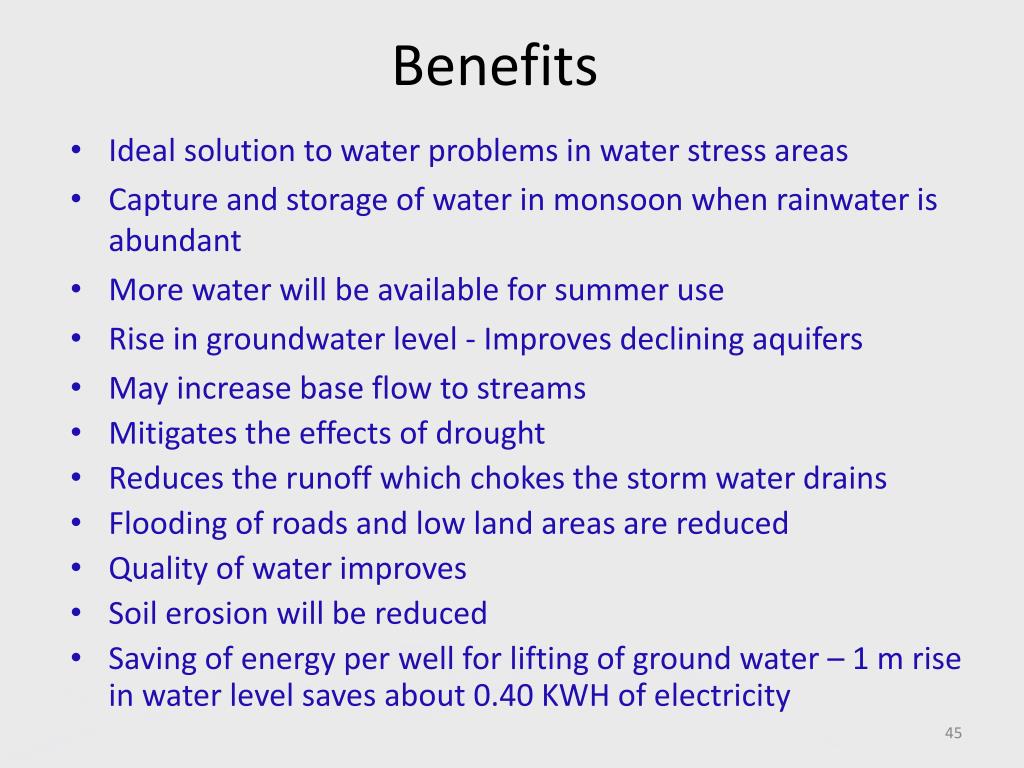

Benefits
Benefits productivity in the coastal region of the Ganga basin

  • Ideal solution to water problems in water stress areas

  • Capture and storage of water in monsoon when rainwater is abundant

  • More water will be available for summer use

  • Rise in groundwater level - Improves declining aquifers

  • May increase base flow to streams

  • Mitigates the effects of drought

  • Reduces the runoff which chokes the storm water drains

  • Flooding of roads and low land areas are reduced

  • Quality of water improves

  • Soil erosion will be reduced

  • Saving of energy per well for lifting of ground water – 1 m rise in water level saves about 0.40 KWH of electricity

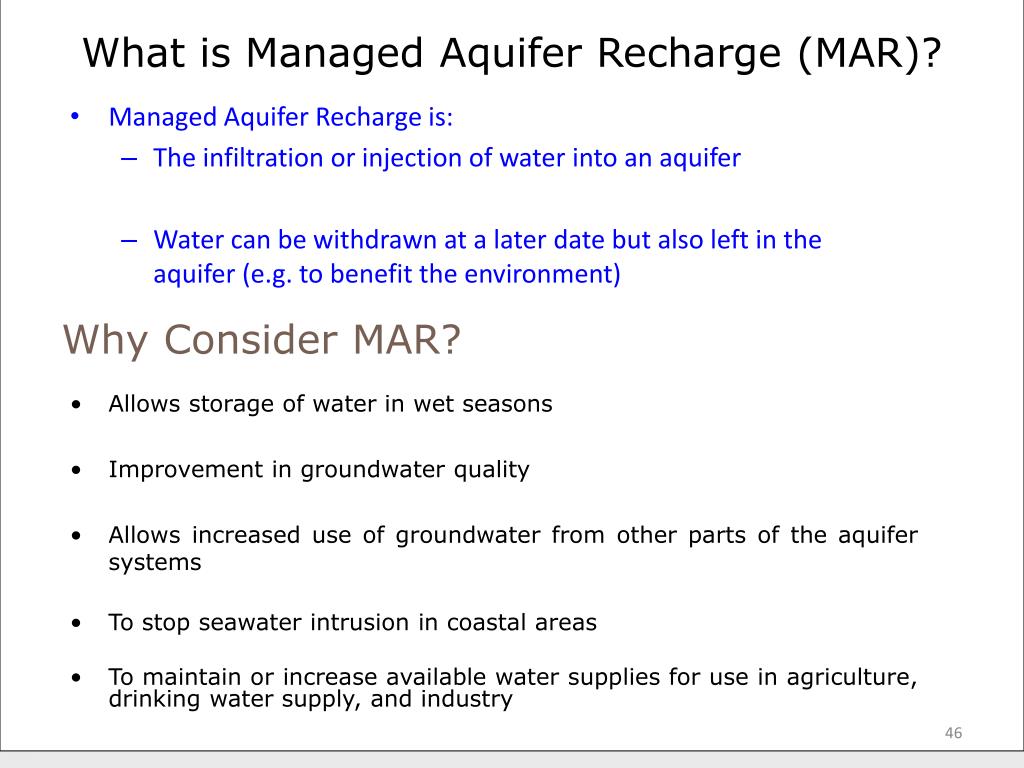

What is managed aquifer recharge mar
What is Managed Aquifer Recharge (MAR)? productivity in the coastal region of the Ganga basin

  • Managed Aquifer Recharge is:

    • The infiltration or injection of water into an aquifer

    • Water can be withdrawn at a later date but also left in the aquifer (e.g. to benefit the environment)

Why Consider MAR?

  • Allows storage of water in wet seasons

  • Improvement in groundwater quality

  • Allows increased use of groundwater from other parts of the aquifer systems

  • To stop seawater intrusion in coastal areas

  • To maintain or increase available water supplies for use in agriculture, drinking water supply, and industry


The point of origin of the Ganga, known as the Gangotri (left) and Devprayag, the point of confluence of the Alaknanda (from right) and Bhagirathi (from left) to form the Ganga (right).


Ganga river basin india

Ganga River Basin, India (left) and Devprayag, the point of confluence of the Alaknanda (from right) and Bhagirathi (from left) to form the Ganga (right).

The river systems in India are grouped into four broad categories:

The Himalayan rivers

The Peninsular rivers

The Coastal rivers

The Inland rivers

The Ganga River (length: 2525 km long; catchment area: 861404 km2) is fed by runoff from

Vast land area bounded Himalaya in the north.

Peninsular highlands and the Vindhya Range in the south.

The states of Haryana, Rajasthan, Uttar Pradesh and West Bengal, comprising 50% of the basin area.

The basin spreads over four countries: India, Nepal, Bangladesh and China.


Soil and rainfall (isohyetal) map of Ganga Basin (left) and Devprayag, the point of confluence of the Alaknanda (from right) and Bhagirathi (from left) to form the Ganga (right).(Source: Ministry of Environment and Forests, Government of India)


Vegetation types of ganga basin source ministry of environment and forests government of india
Vegetation Types of Ganga Basin (left) and Devprayag, the point of confluence of the Alaknanda (from right) and Bhagirathi (from left) to form the Ganga (right).(Source: Ministry of Environment and Forests, Government of India)


  • Groundwater (left) and Devprayag, the point of confluence of the Alaknanda (from right) and Bhagirathi (from left) to form the Ganga (right).

  • An important component of water resource systems and source of clean water.

    • More abundant than Surface Water

  • Extracted from aquifers through pumping wells and supplied for domestic use, industry and agriculture.

  • With increased withdrawal of groundwater, the quality of groundwater has been continuously deteriorating.

  • Linked to Surface Water systems and sustains flows in streams


Groundwater in Hydrologic Cycle (left) and Devprayag, the point of confluence of the Alaknanda (from right) and Bhagirathi (from left) to form the Ganga (right).

(Source: physicalgeography.net)


Dynamic Groundwater Resources of India (left) and Devprayag, the point of confluence of the Alaknanda (from right) and Bhagirathi (from left) to form the Ganga (right).

  • Total replenishable groundwater in the country = 433 BCM

  • 5,723 units (blocks, talukas, mandals, districts) assessed –

    • 15% over-exploited

    • 4% critical

    • 10% semi-critical

  • Delhi, Haryana, Punjab, Rajasthan are overusing their groundwater resources.

  • Andhra Pradesh has the highest number of over-exploited units.

  • The agricultural (tube-well dependent) state of Punjab has developed (usage compared to availability) its groundwater upto 145%.

  • Delhi is mining 170% of its groundwater.

  • Countrywide percentage of groundwater development is 58%.



Ground Water and Surface Water Interaction draft in Ganga basin

  • Ground water and surface water contained in the hydrological system are closely interrelated

  • The studies examines the processes of ground water flow generation and estimation of ground water discharge including ground water discharge to rivers (base flow)

  • In a ground water basin, it is common to identifyseveral aquifers separated either by less permeable orimpermeable layers


  • the upper aquifer is recharged through the bed and banks draft in Ganga basinof the river. The lower aquifer is recharged through theintervening aquitard

  • finite difference equations describes the response of the aquifer system to appliedstresses

  • quasi three-dimensional model simulates a ground water system having any number of aquifers


The studies on the ground water/surface draft in Ganga basinwaterinterrelationship made it possible to solve a number of importantscientific and practical problems :

  • to estimate base flow and, therefore, sustained low riverdischarges of different probabilities

  • to estimate the ground water contribution to total waterresources and the water balance of regions

  • to evaluate quantitatively the natural ground water resourcesfor determining the prospects of their use within large areasand as a component of the safe ground water yield



  • Seawater Intrusion draft in Ganga basin

  • A natural process that occurs in virtually all coastal aquifers.

  • Defined as movement of seawater inland into fresh groundwater aquifers, as a result of

    • higher seawater density than freshwater

    • groundwater withdrawal in coastal areas


Sea Water Intrusion draft in Ganga basin

  • In the coastal margins of ground water basin, the lowering of water level or potentiometric head results in the intrusion of sea water

  • Inland gradient for saline intrusion result from pumping at rate higher than the recharge to the ground water basin

  • wedge-shaped intrusion occurs as sea water is approximately 1.025 times heavier than fresh water


  • Field surveys (geophysical and geochemical studies) can only reveal the present state of seawater intrusion but can not make impact assessment and prediction into the future

  • Mathematical models are needed for these purposes

  • Ghyben-Herzberg relation is a highly simplified model

  • Dynamic movement of groundwater flow and solute transport needs to be considered

  • A density-dependent solute transport model including advection and dispersion is needed for the modelling


Solute Transport Model reveal the present state of seawater intrusion but can not make impact assessment and prediction into the future

Advection-Dispersion Equation

Flow Equation

Distribution of Head

Velocity Field

Concentration distribution in time and space


Ground Water Pollution reveal the present state of seawater intrusion but can not make impact assessment and prediction into the future

  • Restoration to the original, non-polluted state of polluted ground water is more difficult than surface water

  • Geologic and hydrogeologic setting along with magnitude of the pollution hazard for a specific incident must be evaluated.

  • Movement of contaminants and its control largely depends on the hydrogeologic environment

  • Processes of migration and alterations present in ground water are also present in the unsaturated zone


Remedial action can be classified into three broad categories

  • Physical containment measures, including slurry trench cutoff walls, grout curtains, sheet piling, and hydrodynamic control

  • Aquifer rehabilitation, including withdrawal, treatment, reinjection (or recharge), and in-situ treatment such as chemical neutralization and biological neutralization

  • Withdrawal, treatment and use


  • use of models provide more appropriate and rigorous method for integrating all the available data together

  • It evaluates the response of the aquifer system to a contamination event

  • The models are derived from the expression of the flow and transport processes in terms of mathematical equations

  • Equations are solved by incorporating appropriate parameter values and boundary conditions


Seawater Intrusion for integrating all the available data together

Before extensive pumping

After extensive pumping by many wells

Pumping causes a cone of depression and draws the salt water upwards into the well.


  • Groundwater for integrating all the available data together

  • An important component of water resource systems.

  • Extracted from aquifers through pumping wells and supplied for domestic use, industry and agriculture.

  • With increased withdrawal of groundwater, the quality of groundwater has been continuously deteriorating.

  • Water can be injected into aquifers for storage and/or quality control purposes.


  • MANAGEMENT means making decisions to achieve goals without violating specified constraints.

  • Once contamination has been detected in the saturated or unsaturated zones, requires the prediction of the path and the fate of the contaminants, in response to the planned activities.

  • Any monitoring or observation network must be based on the anticipated behavior of the system.

  • The tool for understanding the system and its behavior and for predicting the response is the model.

  • Usually, the model takes the form of a set of mathematical equations, involving one or more partial differential equations. We refer to such model as a mathematical model.

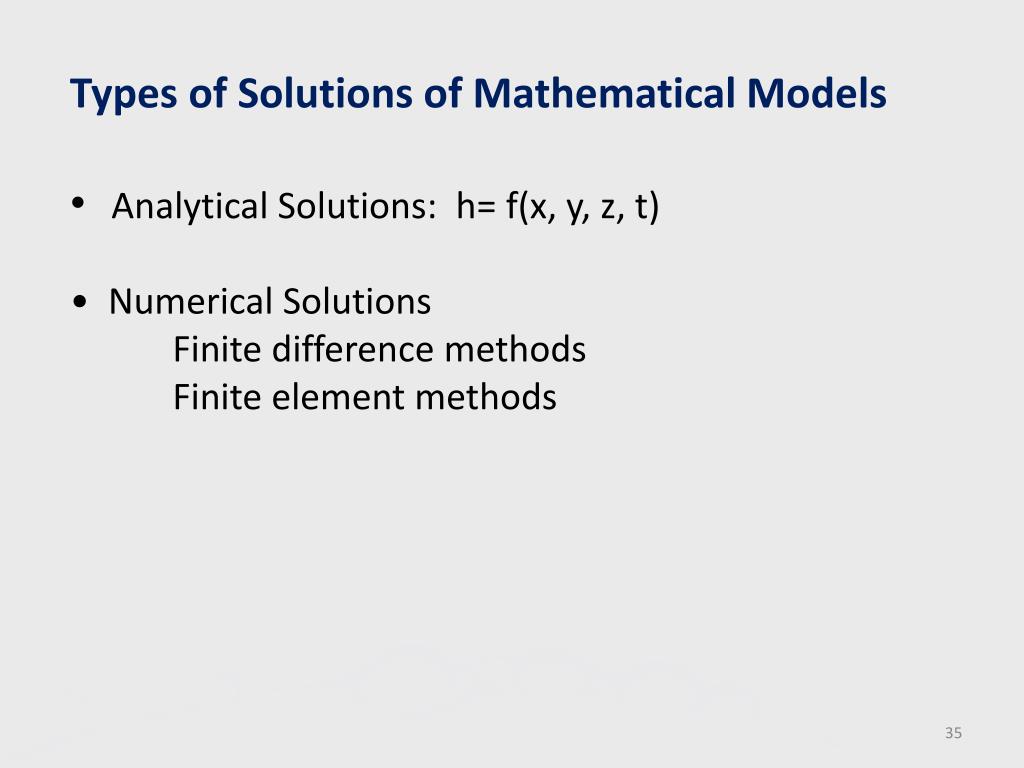

  • The preferred method of solution is the analytical solution.



What is a model
What is a “model”? model into a numerical one, solving it by means of computer programs.

  • Any “device” that represents approximation to field system

    • Physical Models

    • Mathematical Models (Analytical and Numerical)

      Modeling begins with formulation of a concept of a hydrologic system and continues with application of, for example, Darcy's Law to the problem, and may culminate in a complex numerical simulation.


  • TYPES OF MODELS model into a numerical one, solving it by means of computer programs.

    • CONCEPTUAL MODEL

    • MATHEMATICAL MODEL

    • ANALOG MODEL

    • PHYSICAL MODEL


Line diagram of the ganga with major tributaries
Line diagram of the Ganga with major tributaries model into a numerical one, solving it by means of computer programs.

(Source: Status paper on river Ganga, NRCD, MoEF, 2009)


  • Importance of ground water flow models model into a numerical one, solving it by means of computer programs.

    • Construct representations and helps understanding the interrelationships between elements of hydrogeological systems

    • Efficiently develop a sound mathematical representation

    • Make reasonable assumptions and simplifications

    • Understand the limitations of the mathematical representation and interpretation of the results


Groundwater models can be used : model into a numerical one, solving it by means of computer programs.

  • To predict or forecastexpected artificial or natural changes in the system.

  • To describe the system in order to analyse various assumptions

  • To generatea hypothetical system that will be used to study principles of groundwater flow associated with various general or specific problems.


  • Processes to model model into a numerical one, solving it by means of computer programs.

  • Groundwater flow

  • Transport

  • Particle tracking: requires velocities and a particle tracking code. calculate path lines

  • (b)Full solutetransport: requires velocites and a solute transport model. calculate concentrations


v = q/n = K I / n model into a numerical one, solving it by means of computer programs.

  • Processes we need to model

  • Groundwater flow

  • calculate both heads and flows (q)

  • Solute transport – requires information on flow (velocities)

  • calculate concentrations

Requires a flow model and a solute transport model.


Modelling process2
Modelling Process model into a numerical one, solving it by means of computer programs.

  • Establish the Purpose of the Model

  • Develop Conceptual Model of the System

  • Select Governing Equations and Computer Code

  • Model Design

  • Calibration

  • Calibration Sensitivity Analysis

  • Model Verification

  • Prediction

  • Predictive Sensitivity Analysis

  • Presentation of Modeling Design and Results

  • Post Audit

  • Model Redesign


Mathematical model: model into a numerical one, solving it by means of computer programs.

Simulates ground-water flow and/or solute fate and transport indirectly by means of a set of governing equations thought to represent the physical processes that occur in the system.

(Anderson and Woessner, 1992)


General 3D equation model into a numerical one, solving it by means of computer programs.

2D confined:

2D unconfined:

Storage coefficient (S) is either storativity or specific yield.

S = Ss b & T = K b


Groundwater flow is described by Darcy’s law. model into a numerical one, solving it by means of computer programs.

This type of flow is known as advection.

Linear flow paths

assumed in Darcy’s law

True flow paths

The deviation of flow paths from

the linear Darcy paths is known

as dispersion.

Figures from Hornberger et al. (1998)


Advection-dispersion equation model into a numerical one, solving it by means of computer programs.

with chemical reaction terms.

In addition to advection, we need to consider two other processes in transport problems.

  • Dispersion

  • Chemical reactions


advection-dispersion equation model into a numerical one, solving it by means of computer programs.

groundwater flow equation


advection-dispersion equation model into a numerical one, solving it by means of computer programs.

groundwater flow equation


Flow Equation: model into a numerical one, solving it by means of computer programs.

1D, transient flow; homogeneous, isotropic,

confined aquifer; no sink/source term

Transport Equation:

Uniform 1D flow; longitudinal dispersion;

No sink/source term; retardation


Flow Equation: model into a numerical one, solving it by means of computer programs.

1D, transient flow; homogeneous, isotropic,

confined aquifer; no sink/source term

Transport Equation:

Uniform 1D flow; longitudinal dispersion;

No sink/source term; retardation


Conceptual Model model into a numerical one, solving it by means of computer programs.

Adescriptive representation of a groundwater system that incorporates an interpretation of the geological & hydrological conditions.

Selection of Computer Code

Depends largely on the type of problem(Flow, solute, heat, density dependent etc. along with 1D, 2D, 3D)

Model geometry

It defines the size and the shape of the model. It consists of model boundaries, both external and internal, and model grid.

Grid

In Finite Difference model, the grid is formed by two sets of parallel lines that are orthogonal. In the centre of each cell is the node


Boundaries model into a numerical one, solving it by means of computer programs.

  • Physical boundaries are well defined geologic and hydrologic features that permanently influence the pattern of groundwater flow (faults, geologic units, contact with surface water etc.)

  • Hydraulic boundaries are derived from the groundwater flow net and therefore “artificial” boundaries set by the model designer. They can be no flow boundaries or boundaries with known hydraulic head.


Model Parameters model into a numerical one, solving it by means of computer programs.

  • Time, Space (layer top and bottom), Hydrogeologic characteristics (hydraulic conductivity, transmissivity, storage parameters and effective porosity)

    Initial Conditions

  • Values of the hydraulic head for each active and constant-head cell in the model.


Calibration and Validation model into a numerical one, solving it by means of computer programs.

  • Calibration parameters are uncertain parameters whose values are adjusted during model calibration.

  • Typical calibration parameters include hydraulic conductivity and recharge rate.

  • Model validation is to determine how well the mathematical representation of the processes describes the actual system behavior.


  • Groundwater Flow Models model into a numerical one, solving it by means of computer programs.

  • MODFLOW

  • (Three-Dimensional Finite-Difference Ground-Water Flow Model)

  • When properly applied, MODFLOW is the recognized standard model.

  • Ground-water flow within the aquifer is simulated in MODFLOW using a block-centered finite-difference approach.

  • Layers can be simulated as confined, unconfined, or a combination of both.

  • Flows from external stresses such as flow to wells, areal recharge, evapotranspiration, flow to drains, and flow through riverbeds can also be simulated.


  • Other Models model into a numerical one, solving it by means of computer programs.

  • MT3D (A Modular 3D Solute Transport Model)

  • FEFLOW (Finite Element Subsurface Flow System)

  • HST3D (3-D Heat and Solute Transport Model)

  • SEAWAT (Three-Dimensional Variable-Density Ground-Water Flow)

  • SUTRA (2-D Saturated/Unsaturated Transport Model)

  • SWIM (Soil water infiltration and movement model)

  • VISUAL HELP(Modeling Environment for Evaluating and Optimizing Landfill Designs)

  • Visual MODFLOW (Integrated Modeling Environment for MODFLOW and MT3D)


Several methods to control saline intrusion model into a numerical one, solving it by means of computer programs.

  • Reduction of ground water extraction

  • Artificial recharge by spreading

  • Physical barrier

  • Mathematical modelling of unsteady flow of saline and fresh water in aquifer


ad
