Presentation Transcript
microscopes
Microscopes
  • Micro= Scope=
    • Small -to view

A microscope is an instrument used to view very small objects.

In biology it is used to view living….

cells and unicellular organisms.

compound light microscope
Compound Light Microscope

Eyepiece / Ocular lens

X10

Nose

Arm

Revolving lenses

Stage and

Stage clips

Course Adjustment knob:

Moves stage up and down

Fine adjustment knob:

Fine focuses the image for your eyes

slide4

High power objective

Medium power objective lens

Low power objective lens.

Longest in length

Blue in color

x40

Shortest lens

Red in color

X4

Medium in length

Yellow in color

X 10

slide5

Diaphragm:

regulates the

amount of light that passes through the stage

Light source

Base

slide7

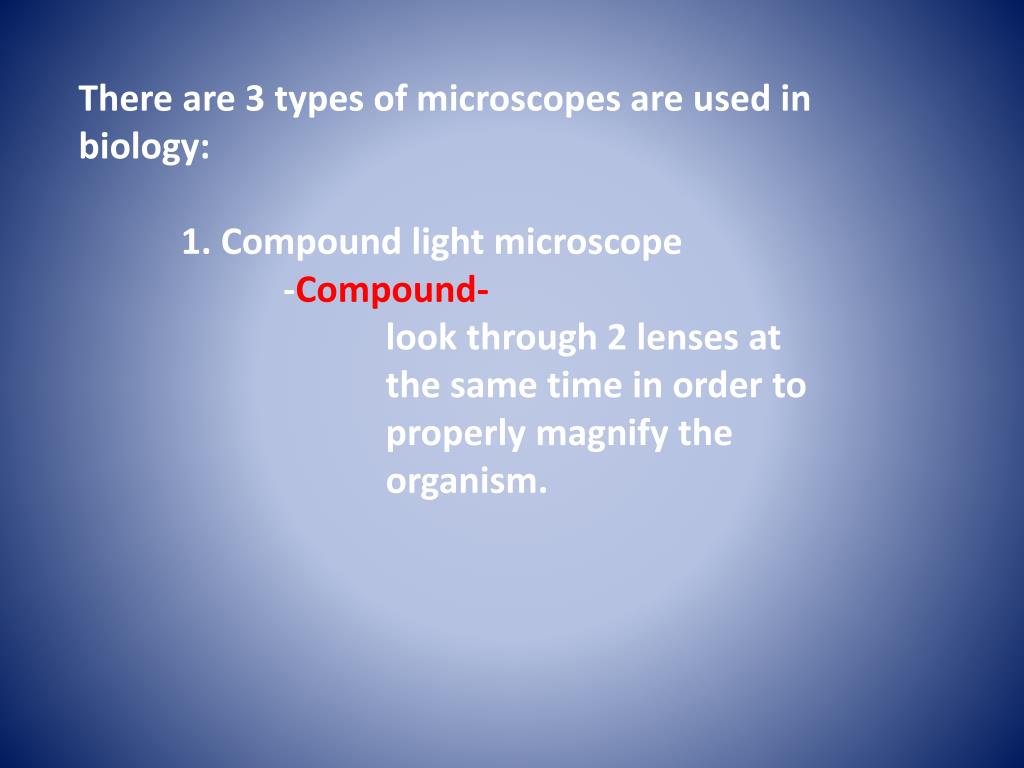

There are 3 types of microscopes are used in biology:

1. Compound light microscope

-Compound-

look through 2 lenses at the same time in order to properly magnify the organism.

slide8

Total magnification:

low power:

ocular lens x10

low objective x4

--------------

x40

medium power:

ocular lens x10

med objective x10

--------------

x100

high power:

ocular lens x10

high objective x40

--------------

x400

slide9

Compound light microscope:

-light

-light must pass through the

diaphragm and through the

object.

-object must be “thin” or

transparent so the light can

pass through it.

staining
Staining

Is a method of adding color to a cell so that the cell and its structures can be seen more clearly through a microscope.

limit of resolution
Limit of Resolution

The limit of resolution is the point at which you see an item most clearly.

Any magnification above or below that point will results in the object looking blurry.

type 2 stereoscope
Type 2: Stereoscope

-Used to view the surface of objects which are too large for light to pass through them.

-Uses to lights to illuminate the surface of the object.

-Stereo means

“3 dimensional”

-Provides a 3-D detailed look at the surface of an object.

slide14

-look through

      • 2 ocular lenses
  • -magnifies between x10 to x60
type 3 electron microscopes

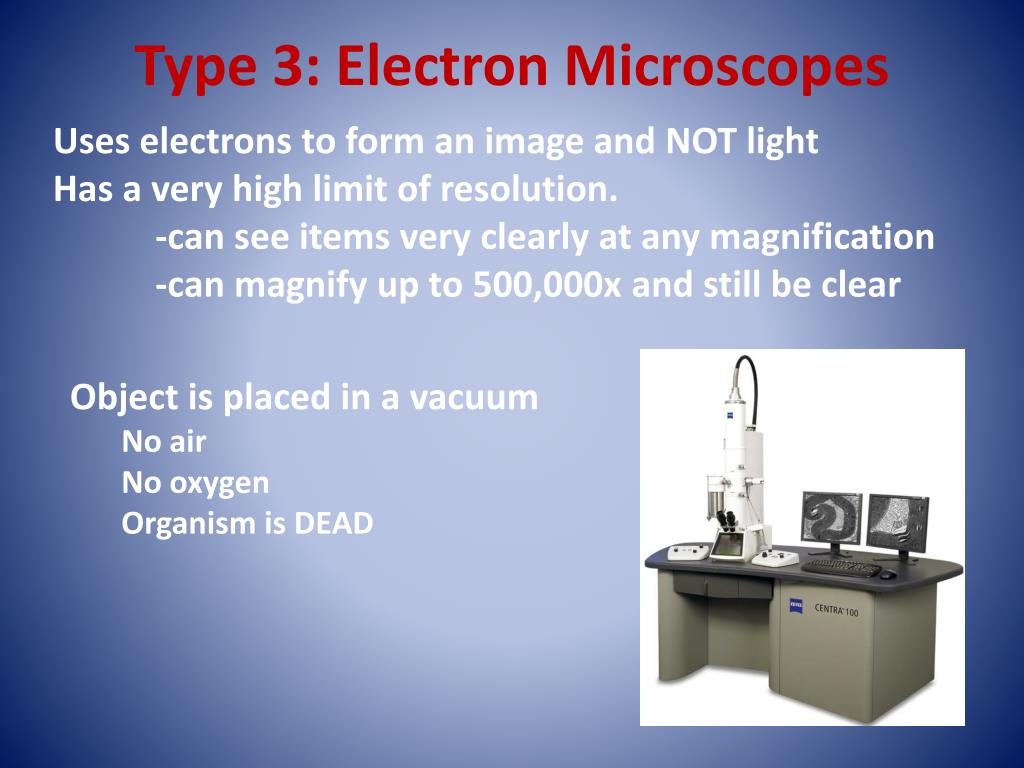

Type 3: Electron Microscopes

Uses electrons to form an image and NOT light

Has a very high limit of resolution.

-can see items very clearly at any magnification

-can magnify up to 500,000x and still be clear

  • Object is placed in a vacuum
    • No air
    • No oxygen
    • Organism is DEAD
slide16

Two types of electron microscopes:

1. T.E.M. ~ Transmission Electron Microscope

  • Produces a 2-D, black and white image of inside of a cell.
slide18

Produces a 3-D, black and white image of the surface of an object.

2. S.E.M. ~ Scanning Electron Microscope

additional tools of a biologist
Additional tools of a biologist:

Tool used to separate the components of a mixture by their different densities.

  • Chromatography:
