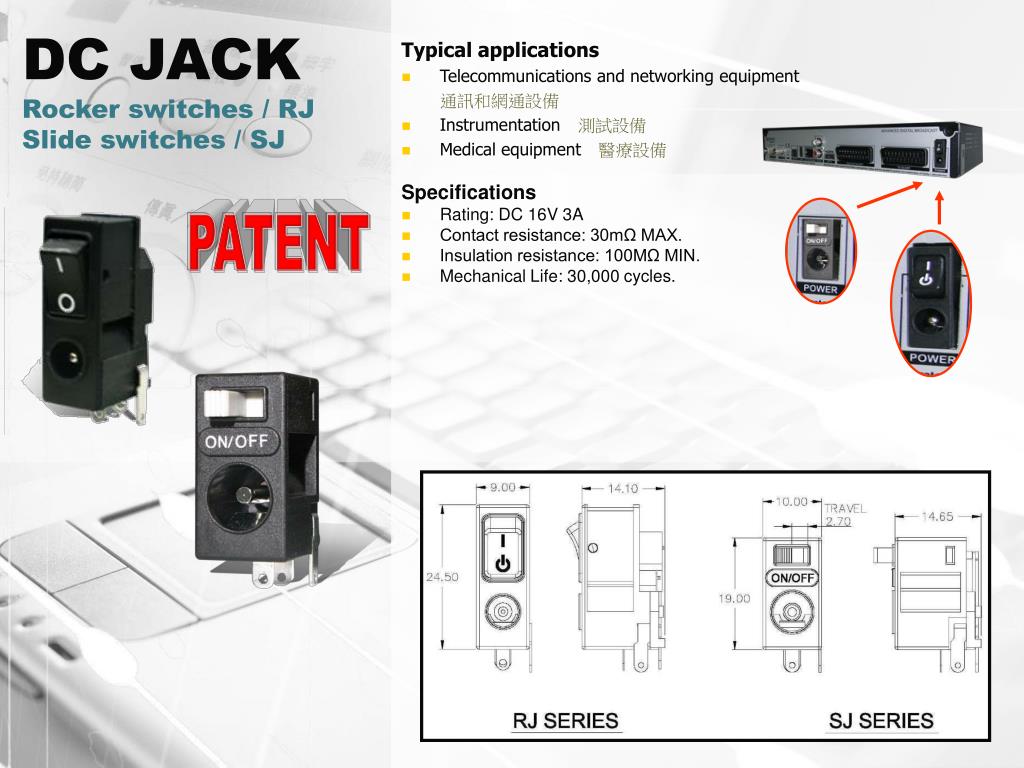

  1. Typical applications • Telecommunications and networking equipment 通訊和網通設備 • Instrumentation測試設備 • Medical equipment醫療設備 Specifications • Rating: DC 16V 3A • Contact resistance: 30mΩ MAX. • Insulation resistance: 100MΩ MIN. • Mechanical Life: 30,000 cycles. PATENT PATENT DC JACK Rocker switches / RJSlide switches / SJ

  2. Mini Lock SCALE 1:1 8ML seriesSub-Miniature Pushbutton Switch Typical applications • Telecommunications and networking equipment 通訊和網通設備 • Computers and peripherals電腦和電腦週邊設備 • Instrumentation and controls測試設備和操控裝置 Specifications • Mechanical life: 50,000 make-and-break cycles. • Contact resistance: 20mΩmax. initial @ 2-4VDC 100mA for both silver and gold plated contacts. • Insulation resistance : 1000MΩmin,1000VDC • Dielectric strength : 1000VAC for 1 Minute • Operating temperature: -30°C to 85°C. • Full travel：1.88±0.30mm • Operating travel：1.34±0.25mm • Operating force ：350±100g

  3. Typical applications • Medical equipment (Medical Bed) 醫療設備(病床) • instrument panel儀表面版 • operating machine panel操作機台面版 • audio control panel音響設備面版 Specifications • Rating:100ma max, 42 VAC/DC • Mechanical life: 500,000 cycles • Contact resistance: 100mΩ max. (Initial) • Insulation resistance: 1000MΩ min. • Dielectric strength: 1,000 VAC KS seriesKey switches

  4. PTCT/PTCSPush switch Typical applications • Industrial personal computer (IPC) 工業電腦 • Consumer products消費性產品 • Instrumentation測試設備 • Communication equipments通訊產品 Specifications • Contact resistance : 250mΩ MAX • Insulation resistance : 100MΩ min,500VDC • Dielectric strength : 250VAC for 1 Minute • Operating life : 25,000 cycles • Operating temperature : -40°C~85°C at 96% RH Max • Operating force：450±120gf • Total travels：2.4mm±0.3 • Max power:1.0VA

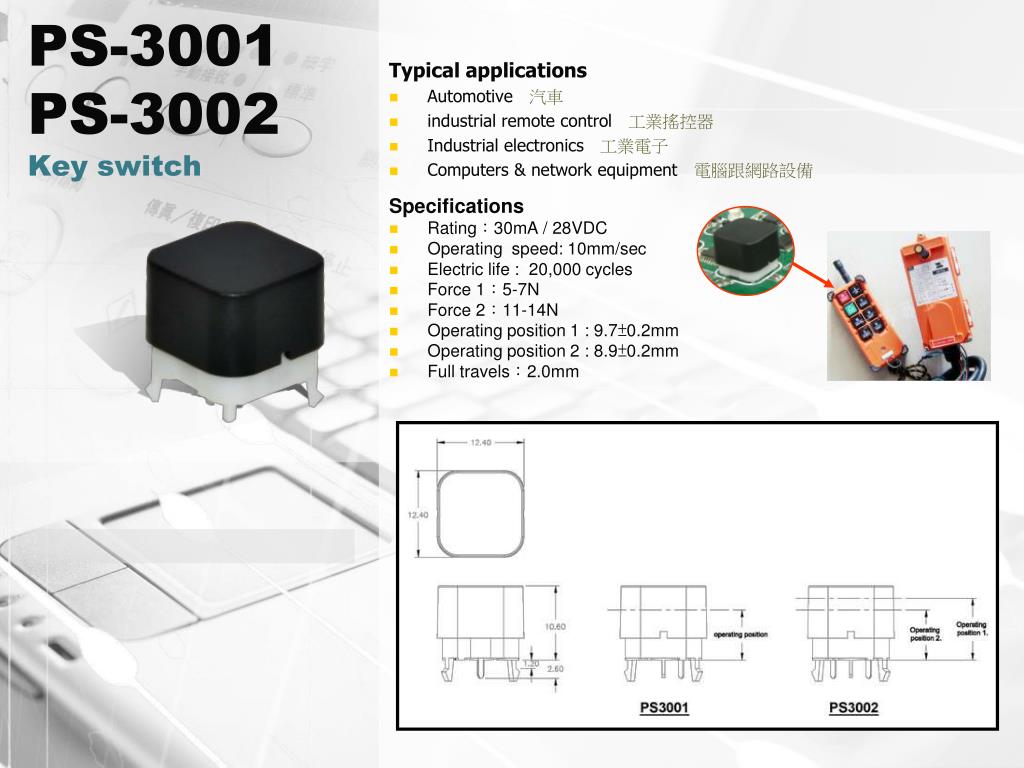

  5. PS-3001PS-3002Key switch Typical applications • Automotive 汽車 • industrial remote control 工業搖控器 • Industrial electronics 工業電子 • Computers & network equipment 電腦跟網路設備 Specifications • Rating：30mA / 28VDC • Operating speed: 10mm/sec • Electric life : 20,000 cycles • Force 1：5-7N • Force 2：11-14N • Operating position 1 : 9.7±0.2mm • Operating position 2 : 8.9±0.2mm • Full travels：2.0mm

  6. BP seriesShort-stroke touch switch Typical applications • home appliances products 家電產品 • Consumer products消費性產品 • Instrumentation測試設備 • Computer products電腦產品 • Communication equipments通訊設備 Specifications • Rating：50mA ,12 VDC • Force to latch：2.5 ±0.75 N • Full travels：0.25 ± 0.15mm • Mechanical life : 100k • LED Color : White Red Yellow Green Blue

  7. PBL seriesPush switch Typical applications • automotive industry 汽車工業 • office appliance 辦公室設備 • computer products 電腦產品 • communication equipments 通訊設備 Specifications • Pole-position : Momentary Type, SPST with LED • Contact rating : 30V DC,0.1A • Contact resistance : 50mΩ max. 1.5V DC ; 100mA, • by Method of Voltage DROP • Insulation resistance : 100MΩ min. 500V DC • Dielectric strength : Breakdown is not allowable ; • 500V AC for 1 Minute • Operating force 250±100gf • Operating life : 50,000 cycles • Operating temperature range : -40°C ~ 85°C • Total travel : 1.8±0.3mm

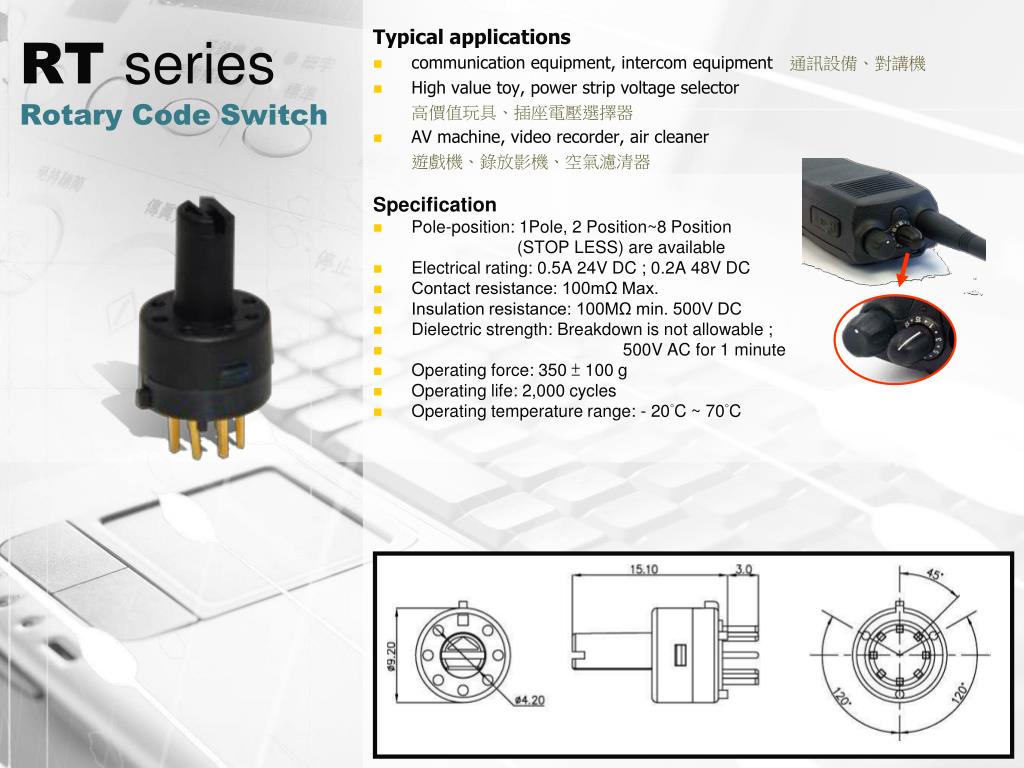

  8. RT seriesRotary Code Switch Typical applications • communication equipment, intercom equipment 通訊設備、對講機 • High value toy, power strip voltage selector 高價值玩具、插座電壓選擇器 • AV machine, video recorder, air cleaner 遊戲機、錄放影機、空氣濾清器 Specification • Pole-position: 1Pole, 2 Position~8 Position (STOP LESS) are available • Electrical rating: 0.5A 24V DC ; 0.2A 48V DC • Contact resistance: 100mΩ Max. • Insulation resistance: 100MΩ min. 500V DC • Dielectric strength: Breakdown is not allowable ; • 500V AC for 1 minute • Operating force: 350 ± 100 g • Operating life: 2,000 cycles • Operating temperature range: - 20°C ~ 70°C

  9. RS-001RS-002Push Switch, Latching Typical applications • Intrusion / Alarm switch in network desktop PC 網路桌上型電腦的警報開關/入侵開關 • Intrusion / Alarm switch in telecommunication equipment 電信設備的警報開關/入侵開關 • Intrusion / Alarm switch in cellular base station 蜂巢式基地台的警報開關/入侵開關 Specifications • Rating：0.4A MAX. 20VAC or 20DC • Contact resistance : 50mΩ MAX. • Insulation resistance : 100MΩ MIN. • Dielectric strength : 250VAC for 1 MIN • Electrical life : 10,000 cycles MIN. • Operation temperature : -30 to +85 Mechanical (reference) • Operation force to : 250 ± 50gf • Free position : 10.10 ± 0.25mm • Pre travel : 1.52 ± 0.38mm • Full travels : 5.84mm Min.

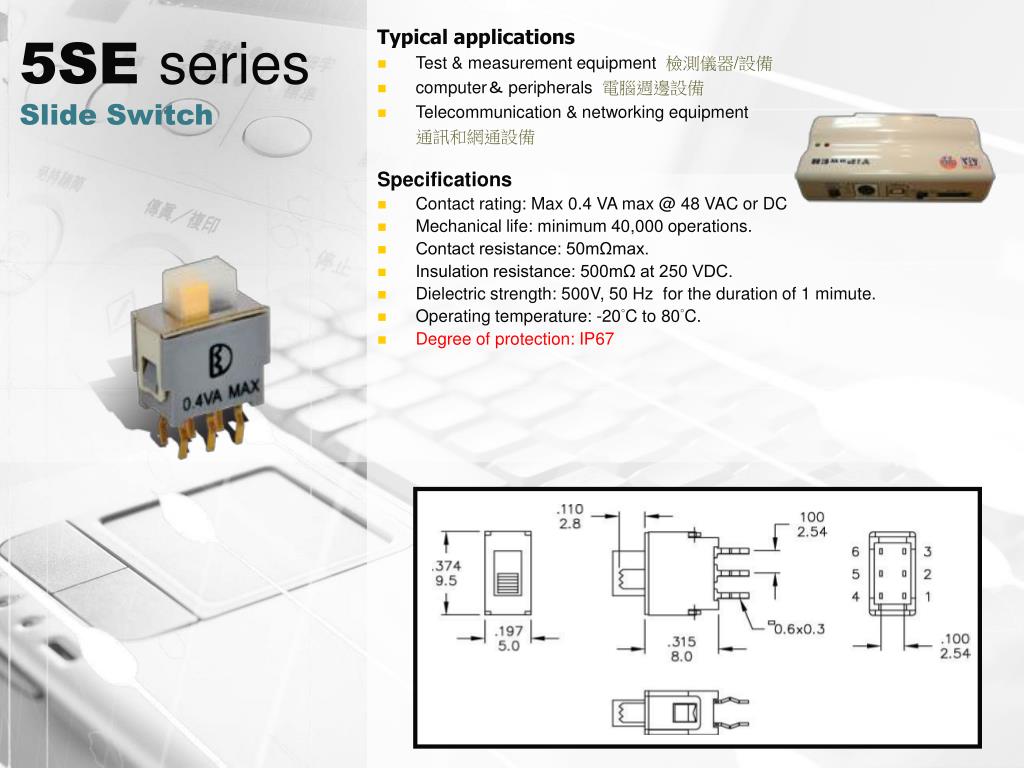

  10. Typical applications • Test & measurement equipment 檢測儀器/設備 • computer＆ peripherals 電腦週邊設備 • Telecommunication & networking equipment 通訊和網通設備 Specifications • Contact rating: Max 0.4 VA max @ 48 VAC or DC • Mechanical life: minimum 40,000 operations. • Contact resistance: 50mΩmax. • Insulation resistance: 500mΩ at 250 VDC. • Dielectric strength: 500V, 50 Hz for the duration of 1 mimute. • Operating temperature: -20°C to 80°C. • Degree of protection: IP67 5SE seriesSlide Switch
