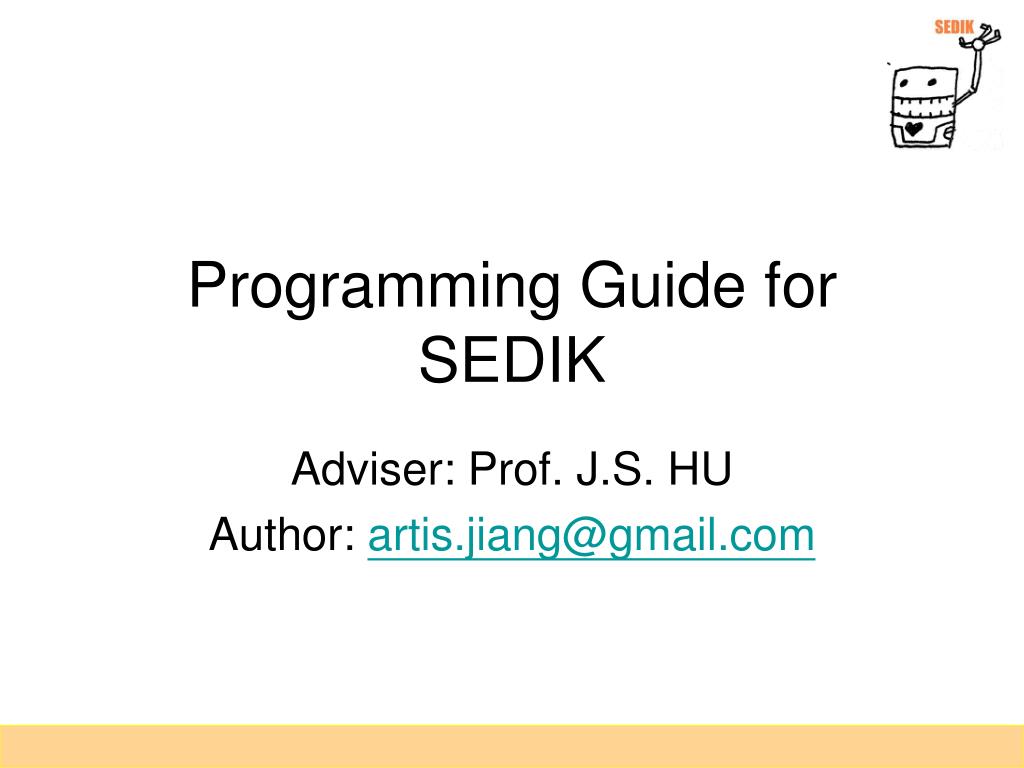

  1. Programming Guide for SEDIK Adviser: Prof. J.S. HU Author: artis.jiang@gmail.com

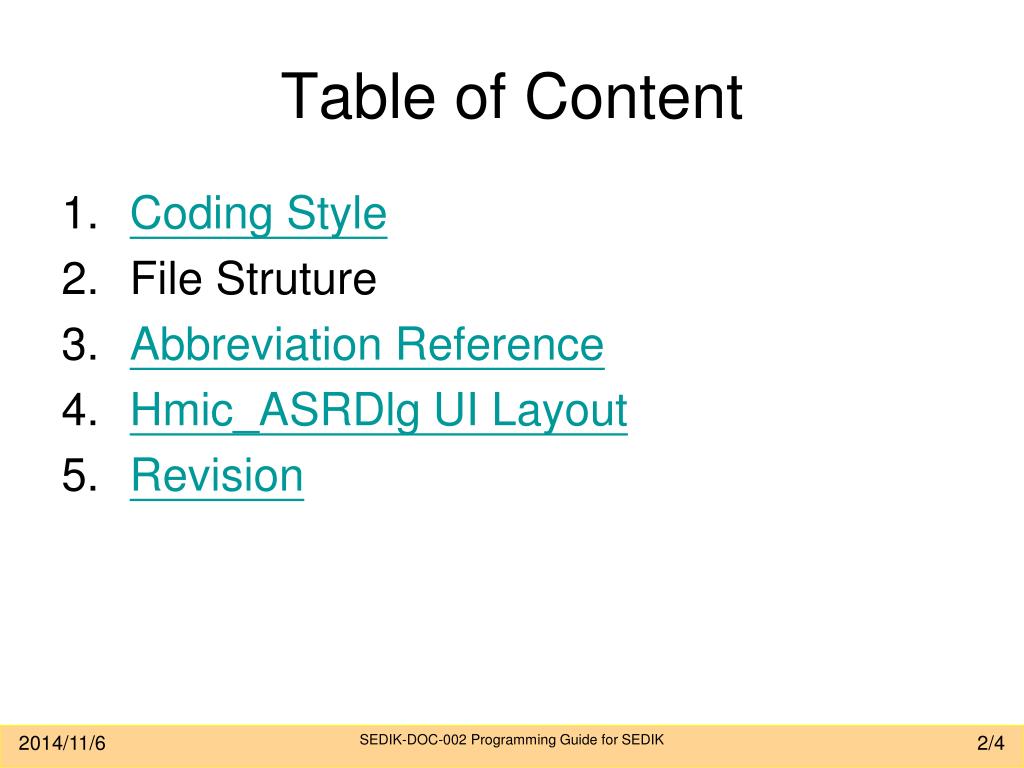

  2. Table of Content • Coding Style • File Struture • Abbreviation Reference • Hmic_ASRDlg UI Layout • Revision SEDIK-DOC-002 Programming Guide for SEDIK

  3. Coding Style • [One for all, all for one.]:讓 source tree 看起來像是一個人寫的,不可以看得出來有很多個人風格混雜其中 • Scope:MATLAB, C/C++ • 採用西元紀年(e.g.: 2010-0506-080057 means 08:00:57, 5/6/2010) • 每行不超過 80 characters/bytes • Indent = 4 spaces • Daily building / extreme programming • Bracket style • If (something) { //put comments here pseudo_code(); } • SVN for version control: SVN server IP Address:140.113.151.??? • 每次工作前:update local host source tree with SVN server • 每次回家前:commit local host source tree to SVN server • Variable Convenience: • Hungarian naming. • Global variables/Constants: all upper case letters, e.g. GLOBAL_VARIABLE • Inter-function variables in same file: capitalized , e.g. Cross_Variable • Inside function variables: all lower case letters , e.g. local_variable • No magic number • No goto • Default font: Arial:12 • Review, review and review! SEDIK-DOC-002 Programming Guide for SEDIK

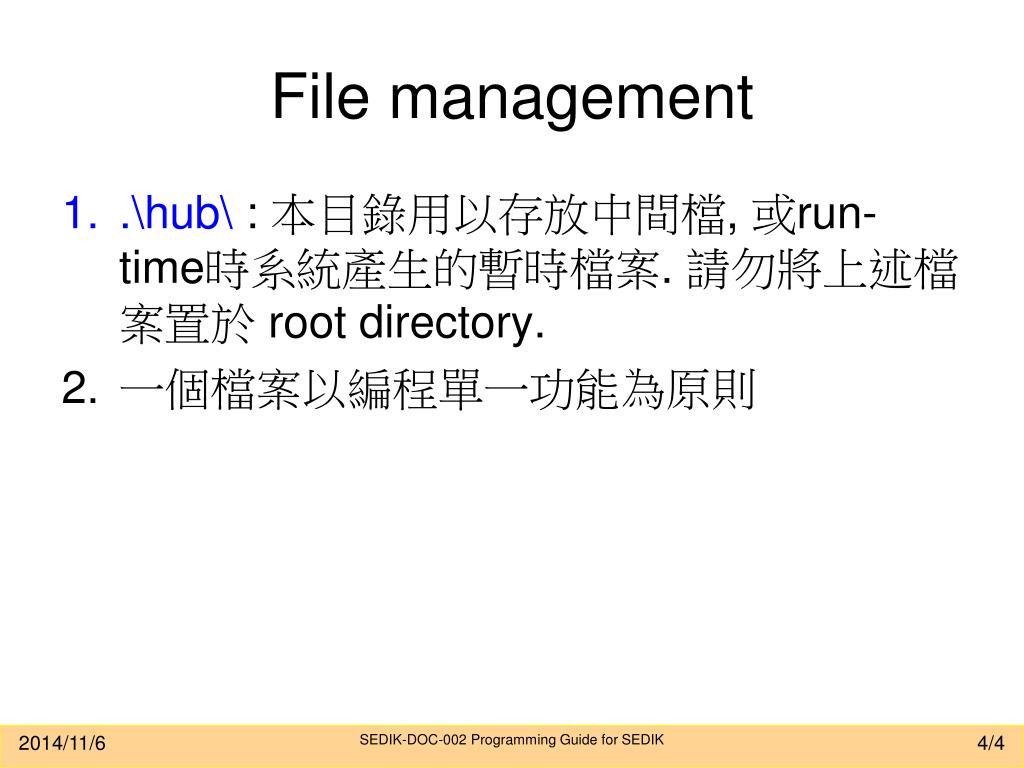

  4. File management • .\hub\ : 本目錄用以存放中間檔, 或run-time時系統產生的暫時檔案. 請勿將上述檔案置於 root directory. • 一個檔案以編程單一功能為原則 SEDIK-DOC-002 Programming Guide for SEDIK

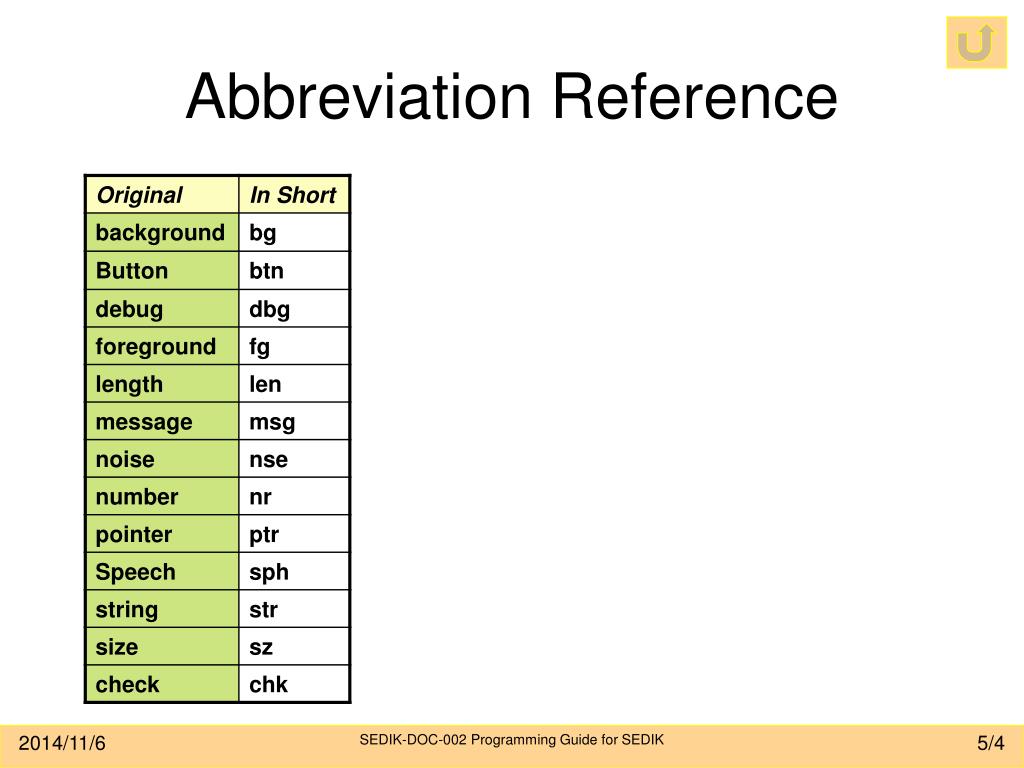

  5. Abbreviation Reference SEDIK-DOC-002 Programming Guide for SEDIK

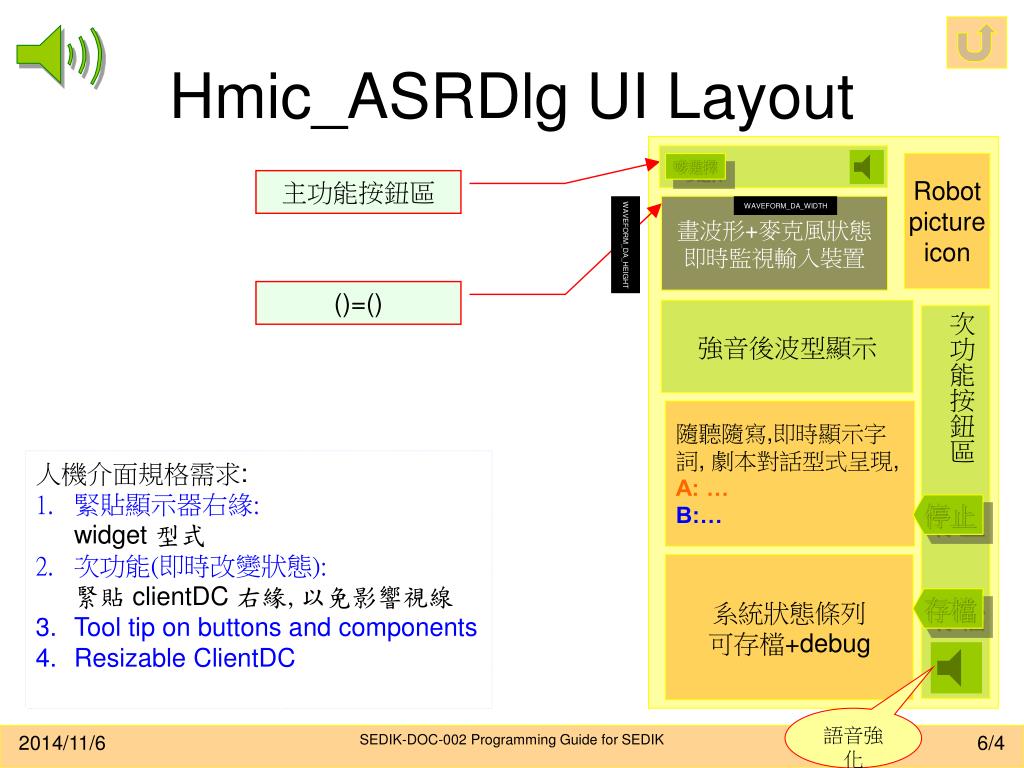

  6. Hmic_ASRDlg UI Layout 嘜選擇 Robot picture icon 主功能按鈕區 WAVEFORM_DA_HEIGHT 畫波形+麥克風狀態 即時監視輸入裝置 WAVEFORM_DA_WIDTH ()=() 強音後波型顯示 次功能按鈕區 隨聽隨寫,即時顯示字詞, 劇本對話型式呈現, A: … B:… • 人機介面規格需求: • 緊貼顯示器右緣: widget 型式 • 次功能(即時改變狀態):緊貼clientDC 右緣,以免影響視線 • Tool tip on buttons and components • Resizable ClientDC 停止 系統狀態條列 可存檔+debug 存檔 語音強化 SEDIK-DOC-002 Programming Guide for SEDIK

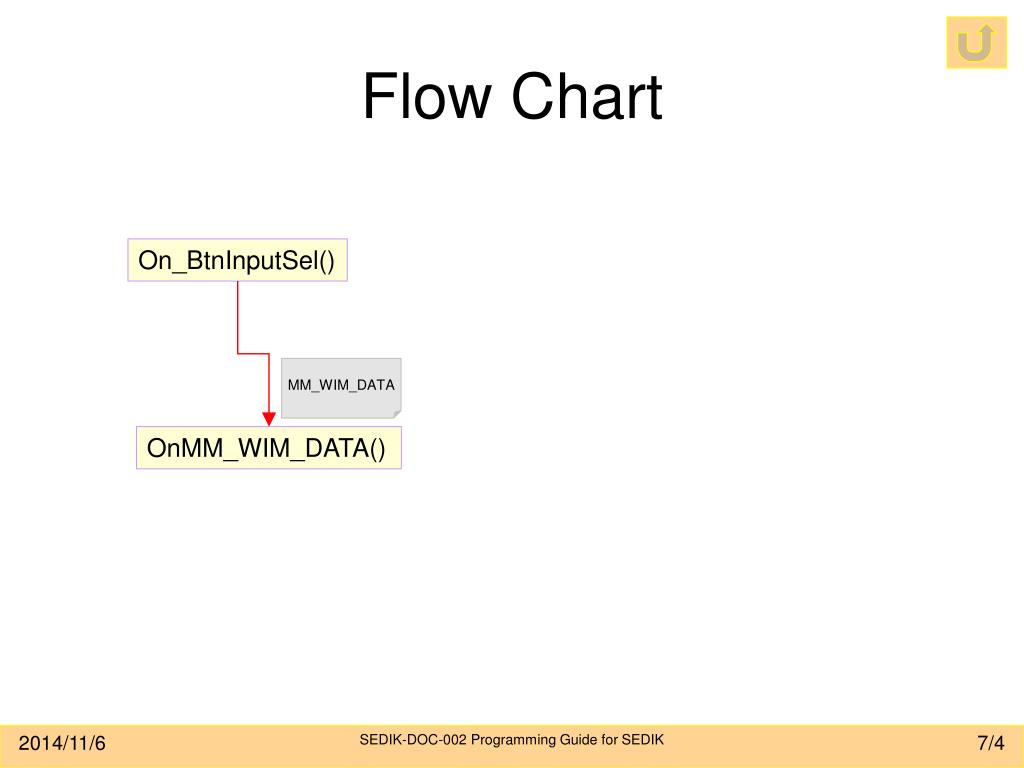

  7. Flow Chart On_BtnInputSel() MM_WIM_DATA OnMM_WIM_DATA() SEDIK-DOC-002 Programming Guide for SEDIK

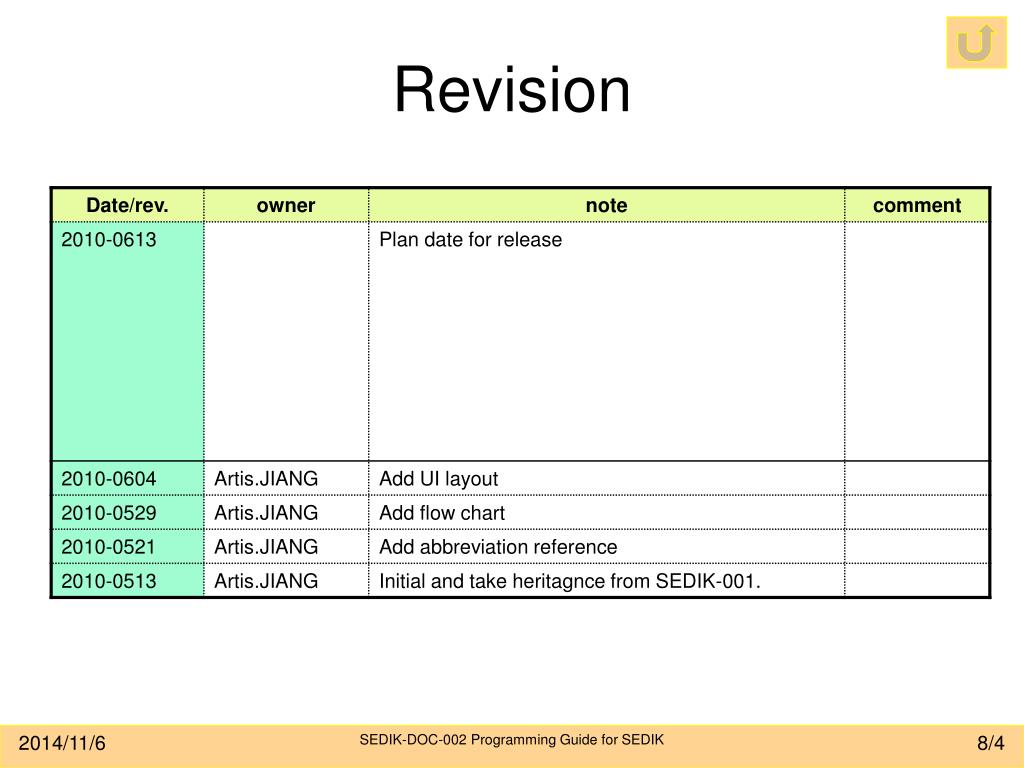

  8. Revision SEDIK-DOC-002 Programming Guide for SEDIK
