IAR PowerPacTM


Complete suite of tools from iar

Complete suite of tools from IAR

IAR

Development

Kits

visualSTATE

IAR J-Link

& IAR

J-Trace

IAR

Embedded

Workbench

Design

Verify,

Validate,

Implement

Compile

Debug

Deploy

Target application

Idea

RTOS & Middleware

IAR

PowerPac


Iar powerpac tm

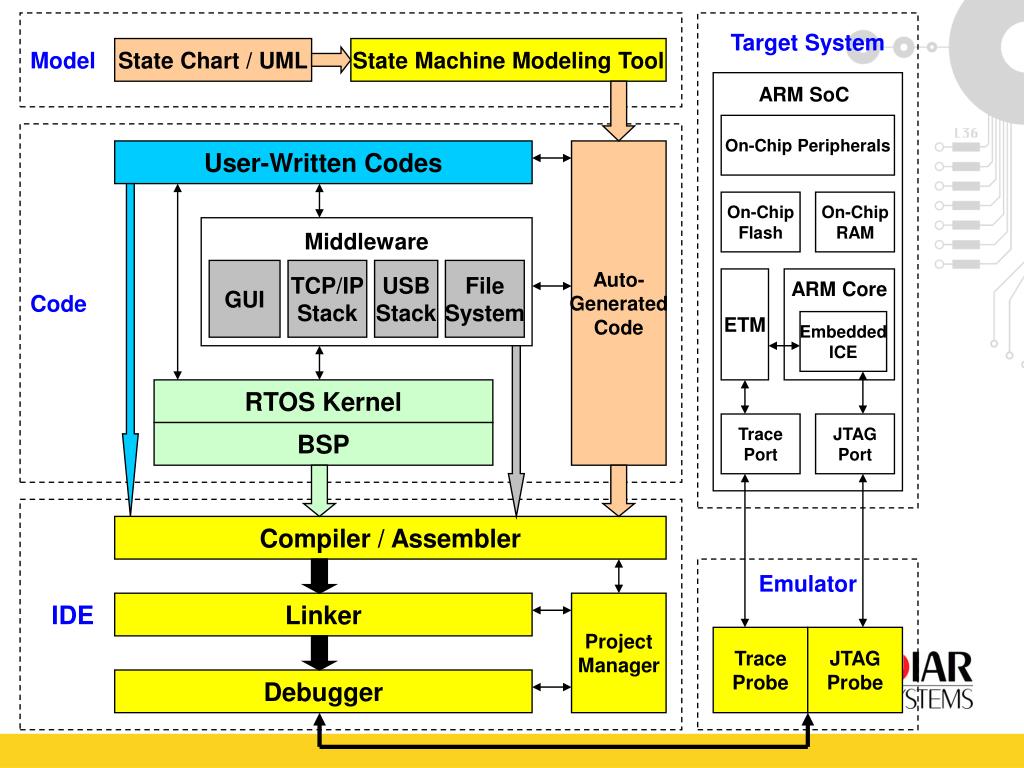

Model

Target System

State Chart / UML

State Machine Modeling Tool

ARM SoC

On-Chip Peripherals

Code

User-Written Codes

Auto-

Generated

Code

On-ChipFlash

On-ChipRAM

Middleware

GUI

TCP/IP

Stack

USB

Stack

File

System

ETM

ARM Core

Embedded

ICE

RTOS Kernel

Trace

Port

JTAG

Port

BSP

IDE

Compiler / Assembler

Emulator

Linker

Project

Manager

Trace

Probe

JTAG

Probe

Debugger


Market drivers

Market drivers

  • 32-bit microcontrollers now becoming affordable

  • Software and hardware complexity has grown

  • Growing need for real-time multitasking system

  • Increased understanding for costs related to open source

  • Increased expectations of pre-integrated software platforms

  • Time-to-market

  • Need for external communication


Iar powerpac tm

IAR PowerPacTM

  • Fully featured real-time operating system

  • High performance file system

  • USB device communication stack

  • TCP/IP protocol stack

  • Innovative business model similar to that of IAR Embedded Workbench

  • Tight integration with IAR Embedded Workbench

  • Easy to get started

  • Board support packages

Additional

components

IAR PowerPac TCP/IP

IAR PowerPac USB

IAR PowerPac Source

IAR PowerPac Base

(RTOS +

File System)


Operating system key features

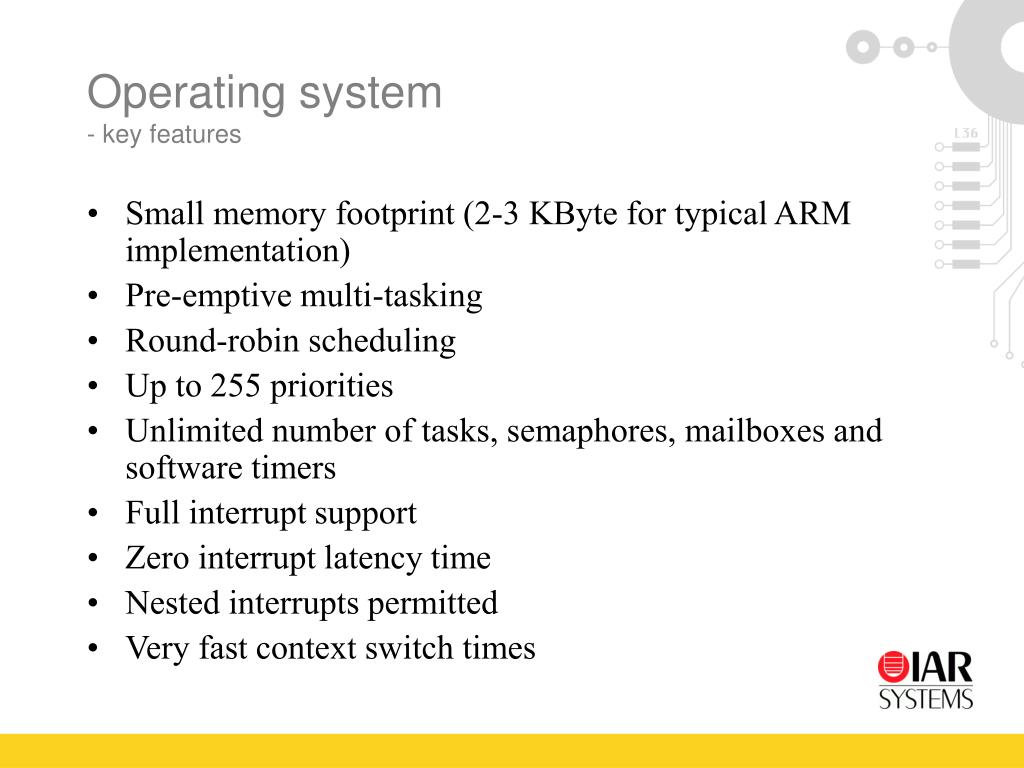

Operating system- key features

  • Small memory footprint (2-3 KByte for typical ARM implementation)

  • Pre-emptive multi-tasking

  • Round-robin scheduling

  • Up to 255 priorities

  • Unlimited number of tasks, semaphores, mailboxes and software timers

  • Full interrupt support

  • Zero interrupt latency time

  • Nested interrupts permitted

  • Very fast context switch times


File system

Application

API layer

File system layer

File system

Logical block layer

Device driver

Hardware layer

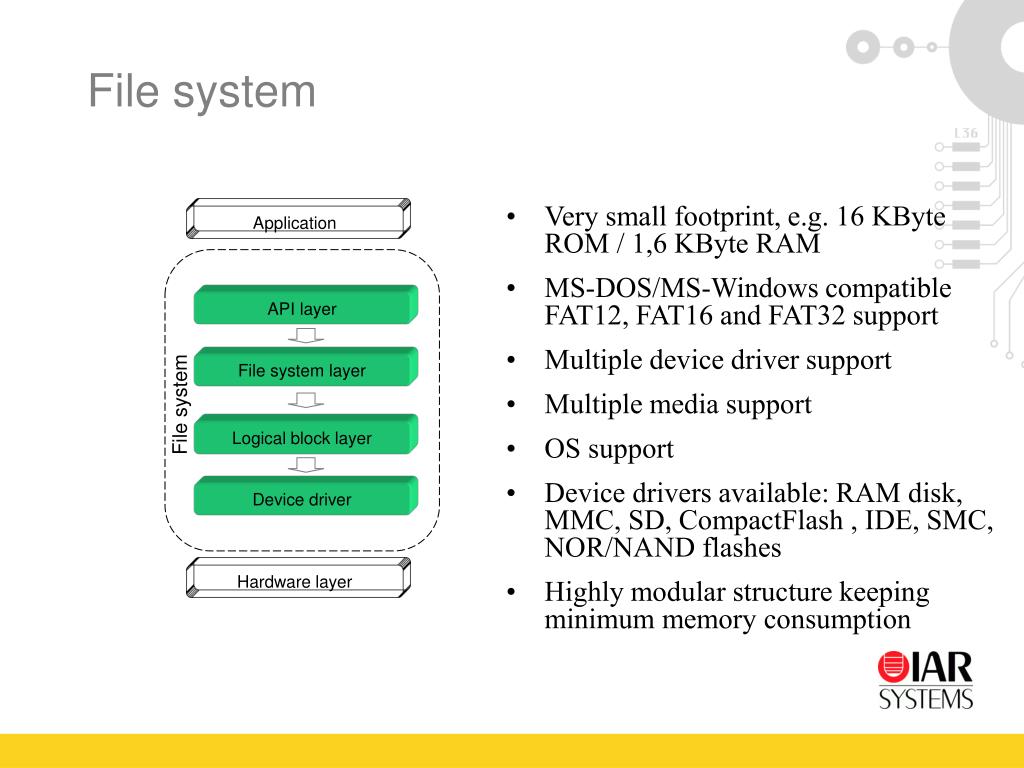

File system

  • Very small footprint, e.g. 16 KByte ROM / 1,6 KByte RAM

  • MS-DOS/MS-Windows compatible FAT12, FAT16 and FAT32 support

  • Multiple device driver support

  • Multiple media support

  • OS support

  • Device drivers available: RAM disk, MMC, SD, CompactFlash , IDE, SMC, NOR/NAND flashes

  • Highly modular structure keeping minimum memory consumption


Iar powerpac usb

CDC

Bulk

MSD

HID

USB Core

Driver

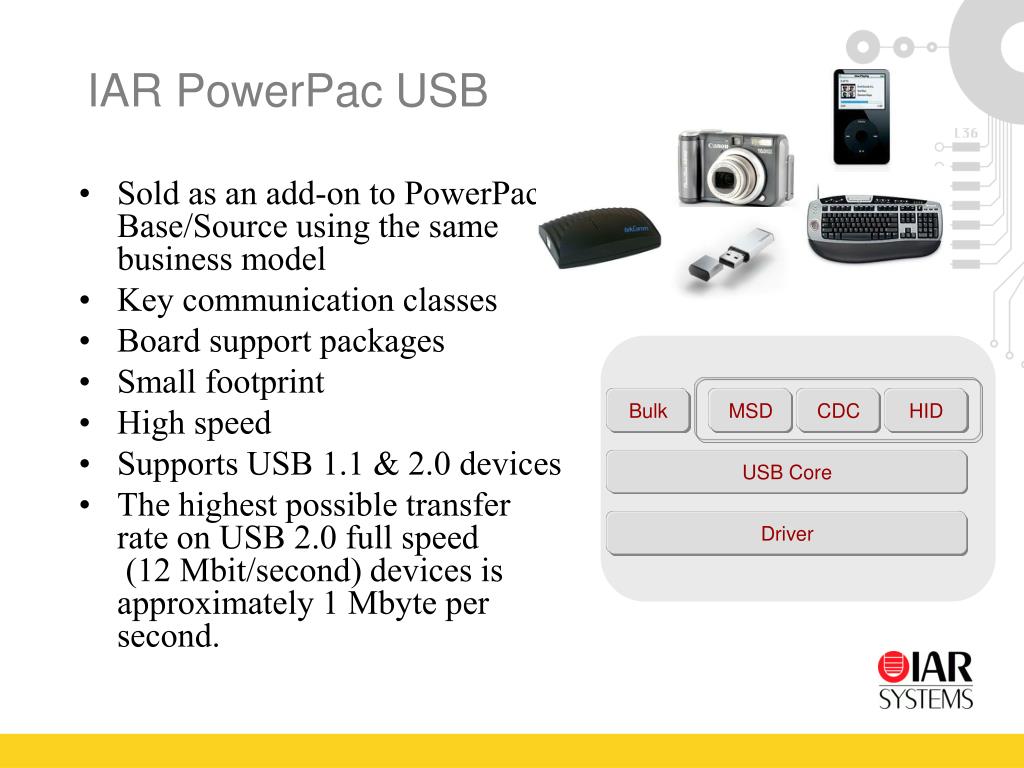

IAR PowerPac USB

  • Sold as an add-on to PowerPac Base/Source using the same business model

  • Key communication classes

  • Board support packages

  • Small footprint

  • High speed

  • Supports USB 1.1 & 2.0 devices

  • The highest possible transfer rate on USB 2.0 full speed (12 Mbit/second) devices is approximately 1 Mbyte per second.


Iar powerpac tcp ip

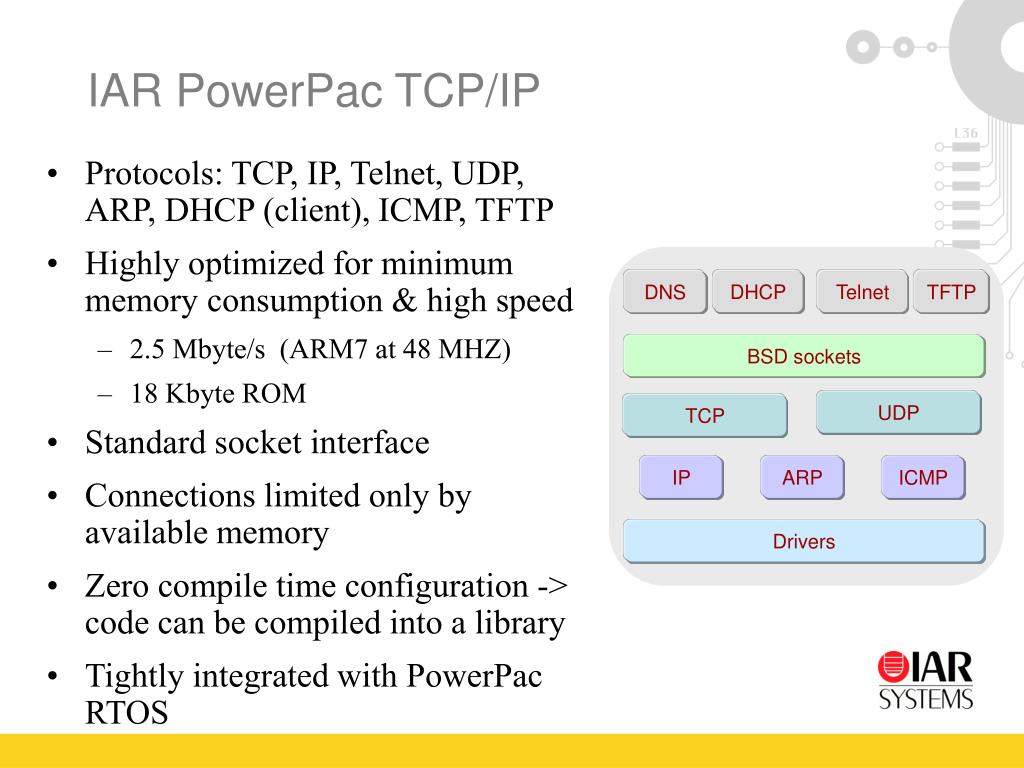

IAR PowerPac TCP/IP

  • Protocols: TCP, IP, Telnet, UDP, ARP, DHCP (client), ICMP, TFTP

  • Highly optimized for minimum memory consumption & high speed

    • 2.5 Mbyte/s (ARM7 at 48 MHZ)

    • 18 Kbyte ROM

  • Standard socket interface

  • Connections limited only by available memory

  • Zero compile time configuration -> code can be compiled into a library

  • Tightly integrated with PowerPac RTOS

DHCP

Telnet

DNS

TFTP

BSD sockets

UDP

TCP

IP

ARP

ICMP

Drivers


Iar powerpac

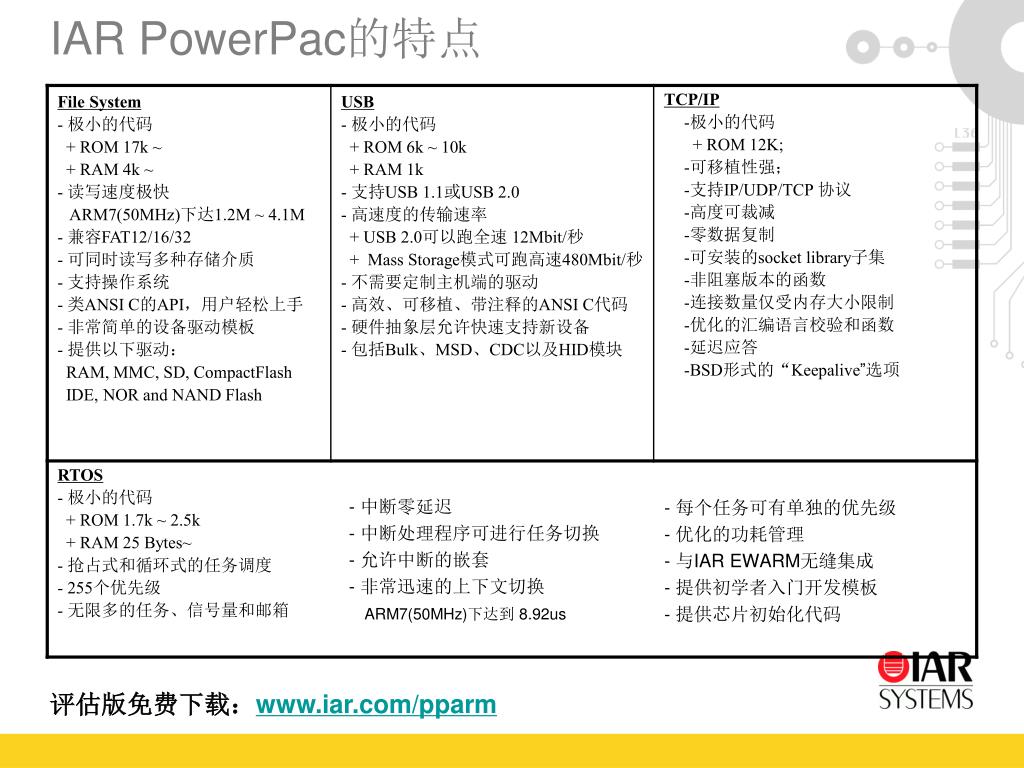

IAR PowerPac的特点

  • 中断零延迟

  • 中断处理程序可进行任务切换

  • 允许中断的嵌套

  • 非常迅速的上下文切换

  • ARM7(50MHz)下达到 8.92us

  • - 每个任务可有单独的优先级

  • 优化的功耗管理

  • 与IAR EWARM无缝集成

  • 提供初学者入门开发模板

  • 提供芯片初始化代码

评估版免费下载:www.iar.com/pparm

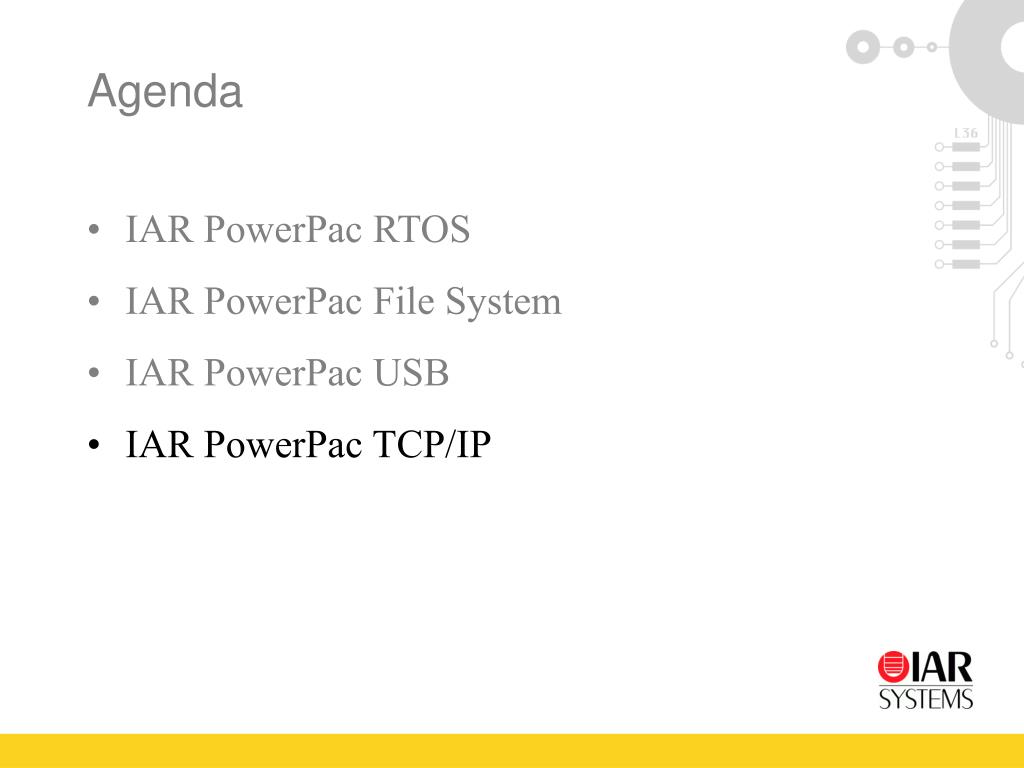

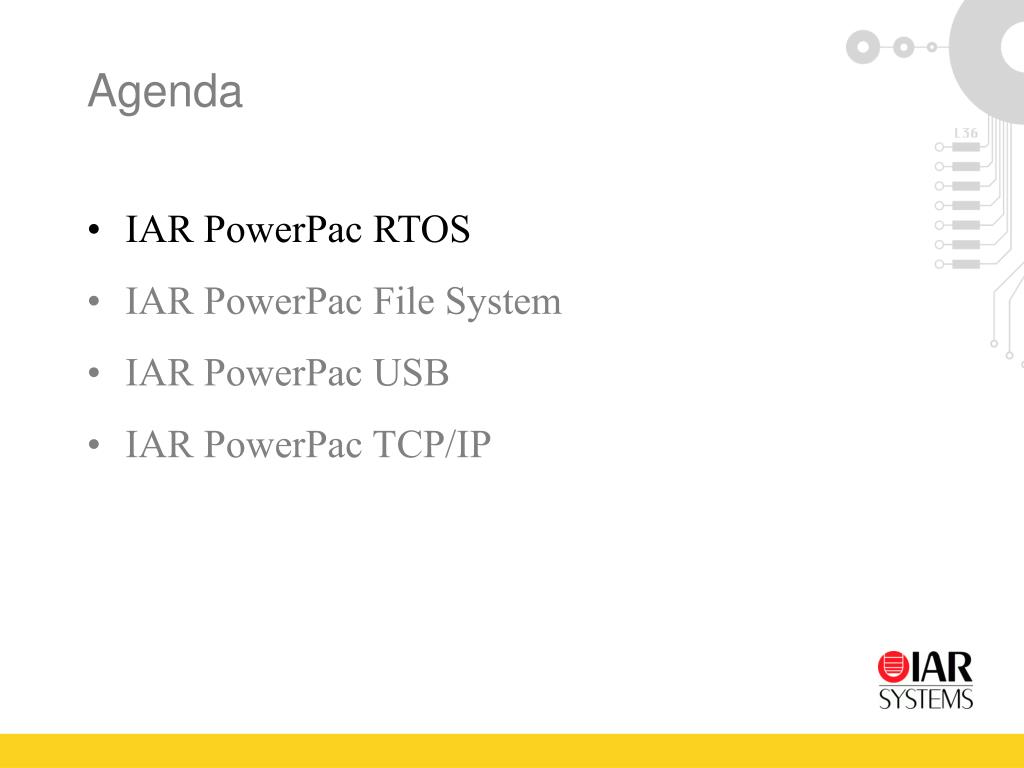

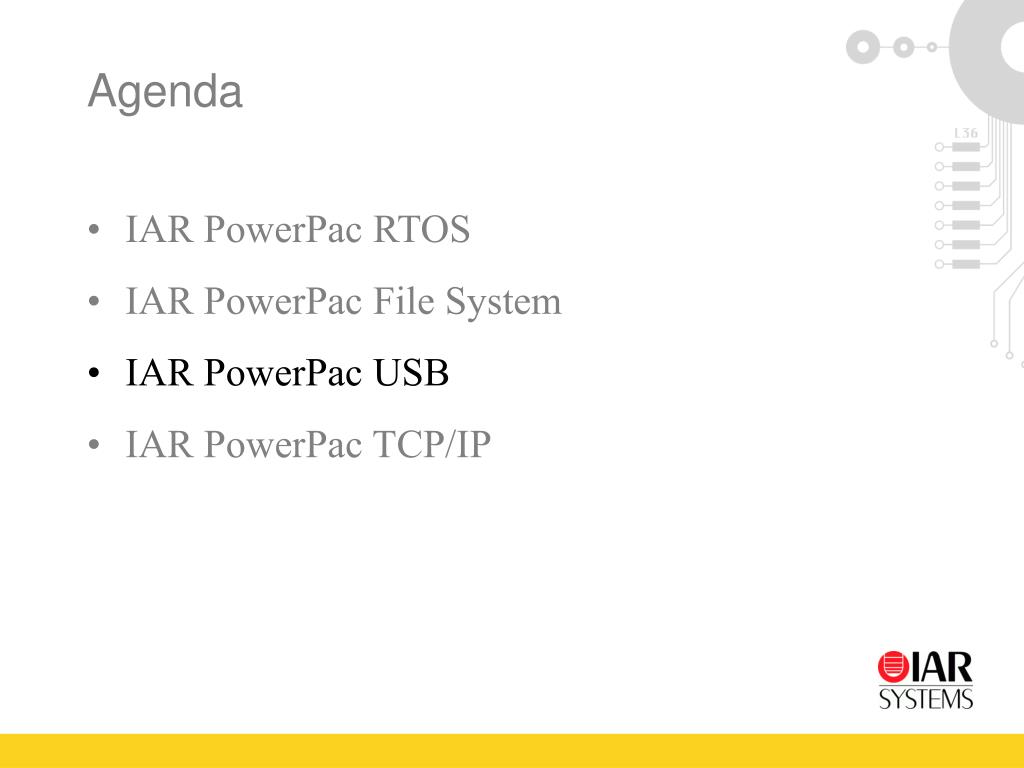

Agenda

Agenda

  • IAR PowerPac RTOS

  • IAR PowerPac File System

  • IAR PowerPac USB

  • IAR PowerPac TCP/IP


What is a real time kernel

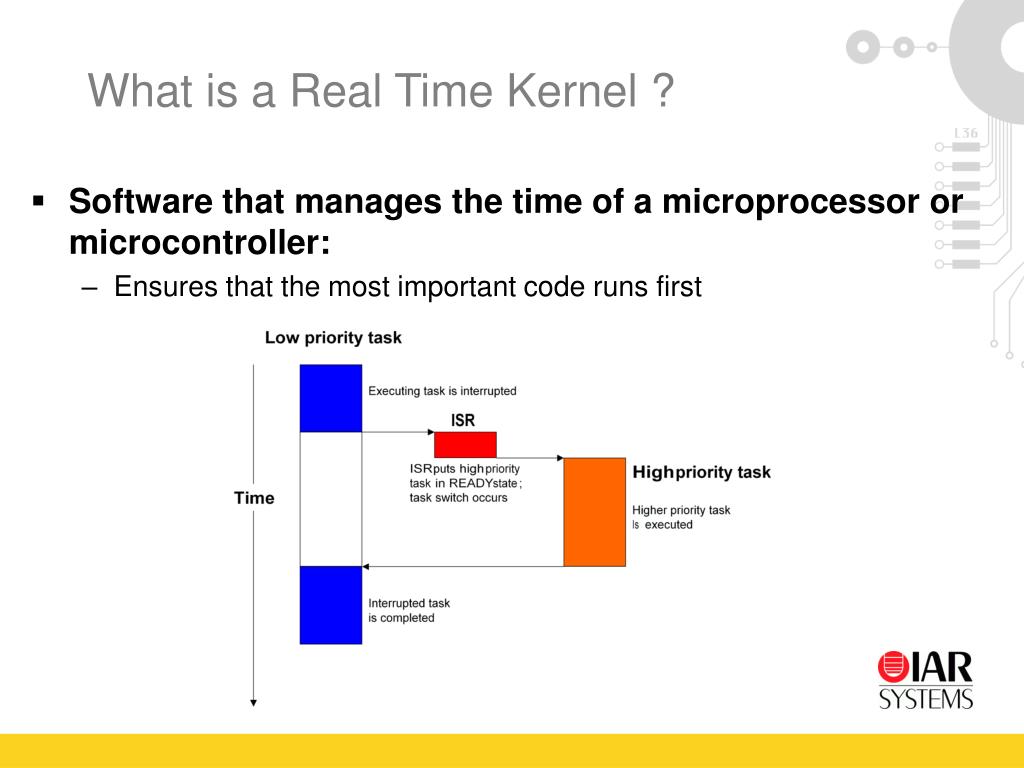

What is a Real Time Kernel ?

  • Software that manages the time of a microprocessor or microcontroller:

    • Ensures that the most important code runs first


What is a real time kernel1

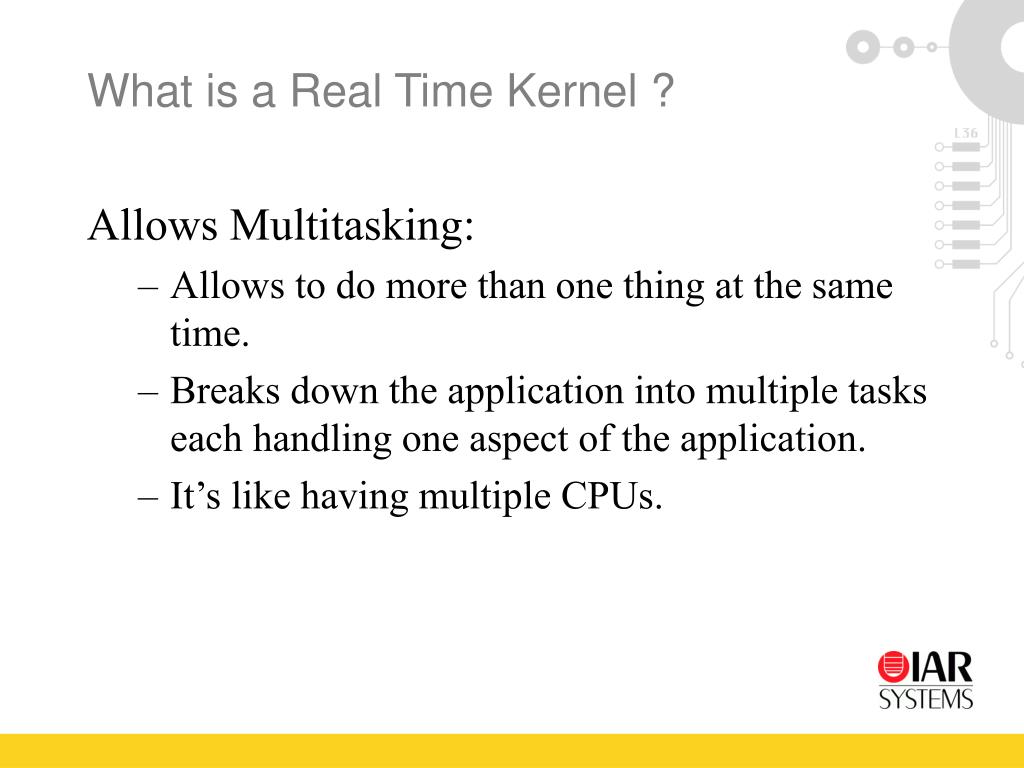

What is a Real Time Kernel ?

Allows Multitasking:

  • Allows to do more than one thing at the same time.

  • Breaks down the application into multiple tasks each handling one aspect of the application.

  • It’s like having multiple CPUs.


What is a real time kernel2

What is a Real Time Kernel ?

Provides valuable services to the application

  • Time delays

  • Semaphore management

  • Inter-task communication and synchronization

  • Memory management


Why using an rtos

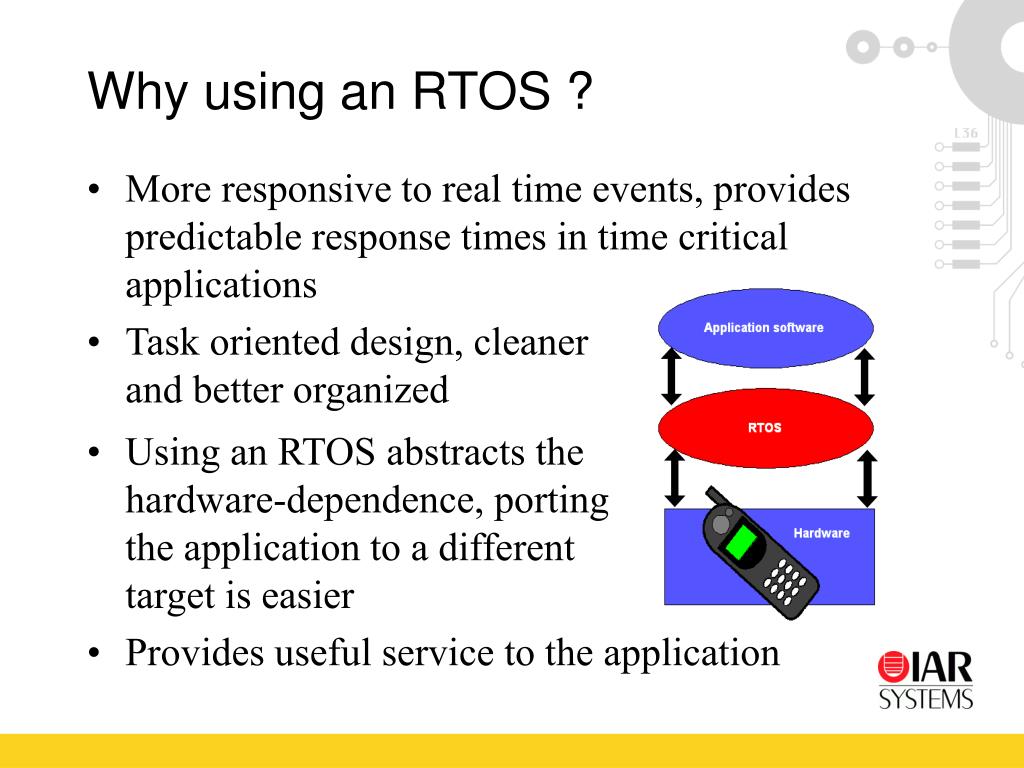

Why using an RTOS ?

  • More responsive to real time events, provides predictable response times in time critical applications

  • Task oriented design, cleaner and better organized

  • Using an RTOS abstracts the hardware-dependence, porting the application to a different target is easier

  • Provides useful service to the application


Memory usage in ewarm

Memory usage in EWARM


Agenda1

Agenda

  • IAR PowerPac RTOS

  • IAR PowerPac File System

  • IAR PowerPac USB

  • IAR PowerPac TCP/IP


Powerpac file system main features

PowerPac File System main features

  • MS DOS/MS compatible FAT12, FAT16 and FAT32 support.

  • Long file name support (optional).

  • Multiple device driver support / OS support

  • Simple, easy to use API

  • Multimedia support

  • Caching functionality

  • Check disk functionality

  • Format functionality


Powerpac file system main features1

PowerPac File System main features

  • RAM disk support

  • SMC card support

  • MMC/SD support using SPI or Card mode

  • CompactFlash card and IDE device support

  • NOR flash support

  • NAND flash support


Powerpac file system main features2

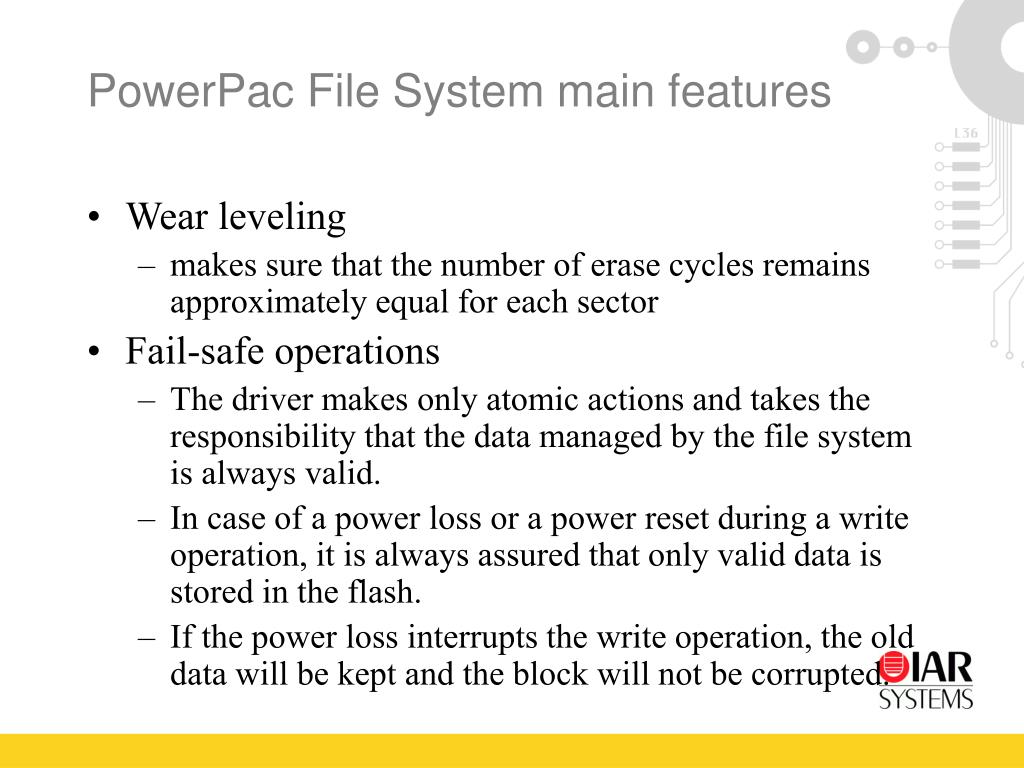

PowerPac File System main features

  • Wear leveling

    • makes sure that the number of erase cycles remains approximately equal for each sector

  • Fail-safe operations

    • The driver makes only atomic actions and takes the responsibility that the data managed by the file system is always valid.

    • In case of a power loss or a power reset during a write operation, it is always assured that only valid data is stored in the flash.

    • If the power loss interrupts the write operation, the old data will be kept and the block will not be corrupted.


Iar powerpac tm

App. Program using

Storage API or FS API.

Responsibility of app.

programmer

Application

File System API:

API Layer

<stdio.h> like functions like

PowerPac File System

Storage API

File System API

FS_FOpen(), FS_FRead(),

FS_FWrite().

File System Layer

(FAT)

Translation of file operations

to sector operations.

Synchronisation of device

Storage Layer

operations for different file

operations.

Low level routines to access

Device Driver

CF / IDE / MMC / NAND / NOR / SD /...

sectors of a device and check

status.

Low level routines to accessyour hardware.

Responsibility of app.

programmer

Hardware Layer


Agenda2

Agenda

  • IAR PowerPac RTOS

  • IAR PowerPac File System

  • IAR PowerPac USB

  • IAR PowerPac TCP/IP


Iar powerpac usb1

IAR PowerPac USB

Bulk

  • All types of applications

  • Single, high speed

  • PC is USB host

  • Allows full bandwidth

  • Custom PC host included

    MSD (Mass Storage Device)

  • Digital camera, USB stick, MP3 player etc.

  • No custom USB host driver needed

    CDC (Communication Device Class)

  • Modem, telephone system fax machine etc…

  • No custom USB host driver needed

    HID (Human Interface Device)

  • Keyboard, mouse, gamepad

  • No custom USB host driver needed


Agenda3

Agenda

  • IAR PowerPac RTOS

  • IAR PowerPac File System

  • IAR PowerPac USB

  • IAR PowerPac TCP/IP


Iar powerpac tcp ip1

IAR PowerPac TCP/IP

  • What is a TCP/IP stack?


Tcp ip application layer

TCP/IP Application layer

Application Layer

  • Consists of user defined and well known protocols

    • Dynamic Host Configuration Protocol (DHCP)

    • Domain Name System (DNS)

    • Telnet

    • TFTP

    • ……

  • Client-Server Model

    • Server offers a service

    • Client requests a service


Tcp ip transport layer

TCP/IP Transport Layer

  • Transport layer responsible for application address

  • A Port is the address of the application

    • 0 to 1023 are well-known reserved ports

    • 1024 to 49151 are registered server ports

    • 49152 to 65535 are dynamic client ports


Tcp ip transport layer1

TCP/IP Transport Layer

  • Transmission Control Protocol (TCP)

    • Connection oriented protocol

    • Full duplex, reliable

    • Data may be reorganized (Nagle)

    • Connections can be lost

  • User Datagram Protocol (UDP)

    • Connectionless protocol

    • No guarantee of delivery

    • Packets are sent unaltered


Tcp ip network layer

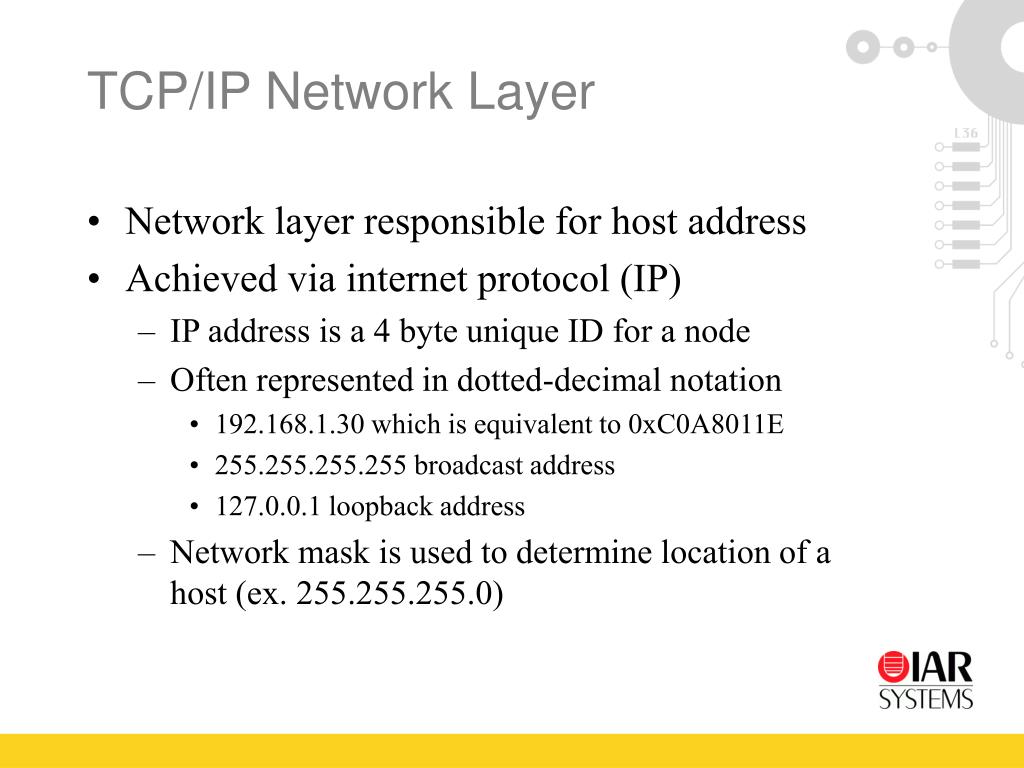

TCP/IP Network Layer

  • Network layer responsible for host address

  • Achieved via internet protocol (IP)

    • IP address is a 4 byte unique ID for a node

    • Often represented in dotted-decimal notation

      • 192.168.1.30 which is equivalent to 0xC0A8011E

      • 255.255.255.255 broadcast address

      • 127.0.0.1 loopback address

    • Network mask is used to determine location of a host (ex. 255.255.255.0)


Tcp ip network layer1

TCP/IP Network Layer

Internet Control Message Protocol (ICMP)

  • Responsible for error messages on the network

  • Example: destination unreachable

  • Most popular use of ICMP is ping

    • Echo request and reply


Tcp ip data link layer

TCP/IP Data Link Layer

  • Ethernet (hardware) Interface

  • Responsible for hardware address

    • Known as Media Access Control (MAC) address for Ethernet

      • This is a 6 byte unique address

      • Cannot be used to determine the location of the device

    • Address Resolution Protocol (ARP)

      • Sends broadcast packets to ask for the hardware address


Tcp ip data link layer1

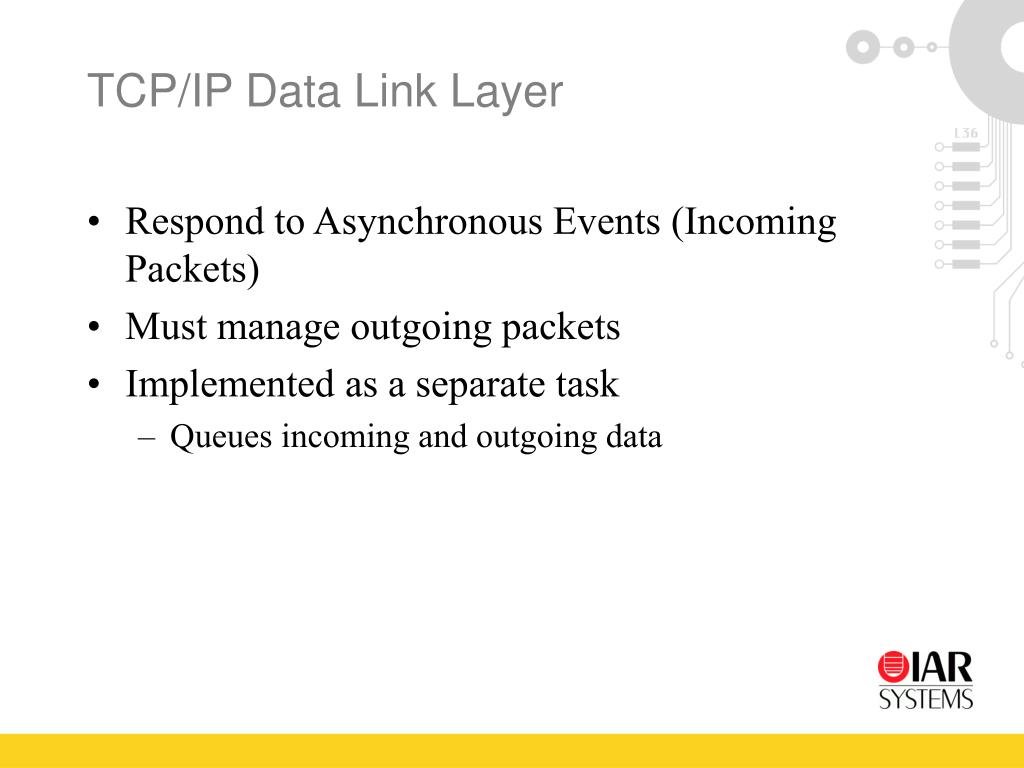

TCP/IP Data Link Layer

  • Respond to Asynchronous Events (Incoming Packets)

  • Must manage outgoing packets

  • Implemented as a separate task

    • Queues incoming and outgoing data


Iar powerpac tcp ip api

IAR PowerPac TCP/IP API

  • Similar to the BSD API

  • Berkley Systems Distribution (BSD)

  • This is a common socket interface

    • Porting an already existant application is easy


Iar powerpac tcp ip api1

IAR PowerPac TCP/IP API


Iar powerpac business model

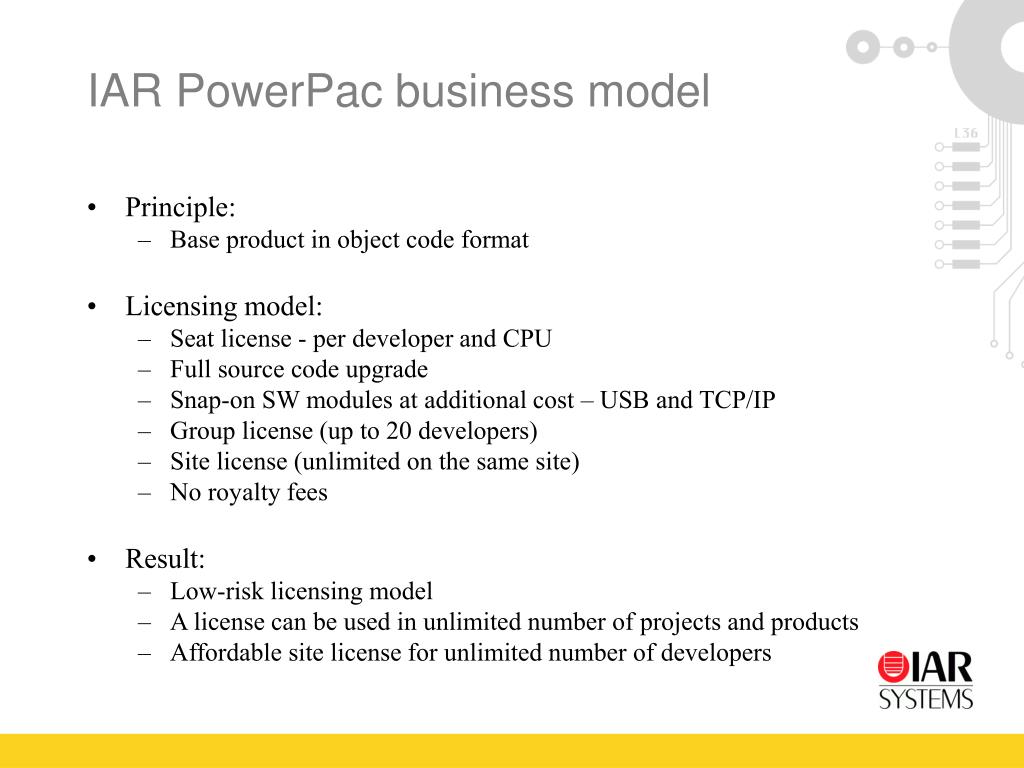

IAR PowerPac business model

  • Principle:

    • Base product in object code format

  • Licensing model:

    • Seat license - per developer and CPU

    • Full source code upgrade

    • Snap-on SW modules at additional cost – USB and TCP/IP

    • Group license (up to 20 developers)

    • Site license (unlimited on the same site)

    • No royalty fees

  • Result:

    • Low-risk licensing model

    • A license can be used in unlimited number of projects and products

    • Affordable site license for unlimited number of developers


Copy protection in powerpac

Copy protection in PowerPac

  • Affects PowerPac Base products and only for ARM

    • PPARM-BASE, PPARM-USB-BASE, PPARM-TCPIP-BASE

  • Requires registration in the same way as for EW

  • The same license manager

  • The PowerPac libraries will be built with a special compiler option tagging with LMS information

  • ILINK will make the license control of by looking for a module with the LMS tag

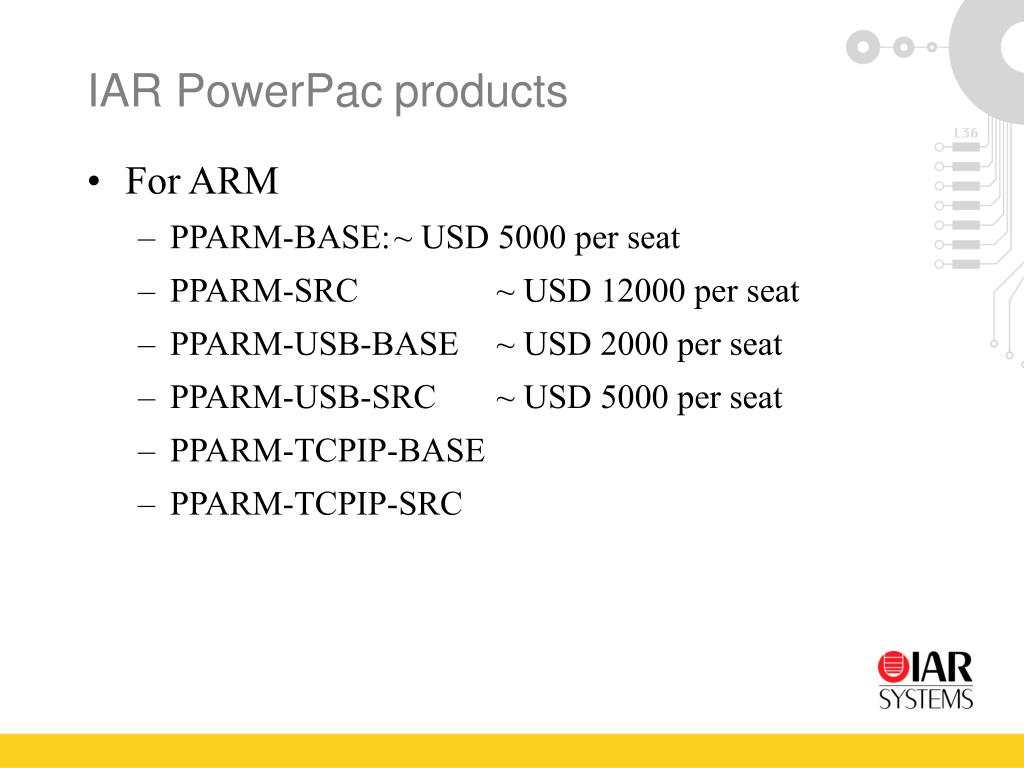

Iar powerpac products

IAR PowerPacproducts

  • For ARM

    • PPARM-BASE:~ USD 5000 per seat

    • PPARM-SRC ~ USD 12000 per seat

    • PPARM-USB-BASE~ USD 2000 per seat

    • PPARM-USB-SRC ~ USD 5000 per seat

    • PPARM-TCPIP-BASE

    • PPARM-TCPIP-SRC


Iar powerpac evaluation version

IAR PowerPac- evaluation version

  • Available in all EW product variants with the following limitations:

    • IAR PowerPac RTOS can create a maximum of three tasks

    • IAR PowerPac File System can only handle one open file at any given time

    • IAR PowerPac USB has a time limit of 15 minutes on the connection.

    • IAR PowerPac TCP/IP has a time limit of 15 minutes on the connection.

  • Time limited version will be available with EWARM 5.11


Why use a commercial rtos

Priority

controlled

Mulititasking

Proven code

Costs

Hard real time

Shorter time

to market

Visualization

Universal

Documentation

Why use a commercial RTOS ?

Commercial RTOS?


Why use a commercial rtos1

Why use a commercial RTOS ?

  • Proven code:

    • Used by hundreds of users in a multiplicity of ways

    • Continuously used and tested

    • Developer can focus on application program instead of wasting time on finding bugs

    • Code is more organized

  • Hard real-time:

    • Zero latency

    • Short interrupt latency

    • Fast context switch


Why use a commercial rtos2

Why use a commercial RTOS ?

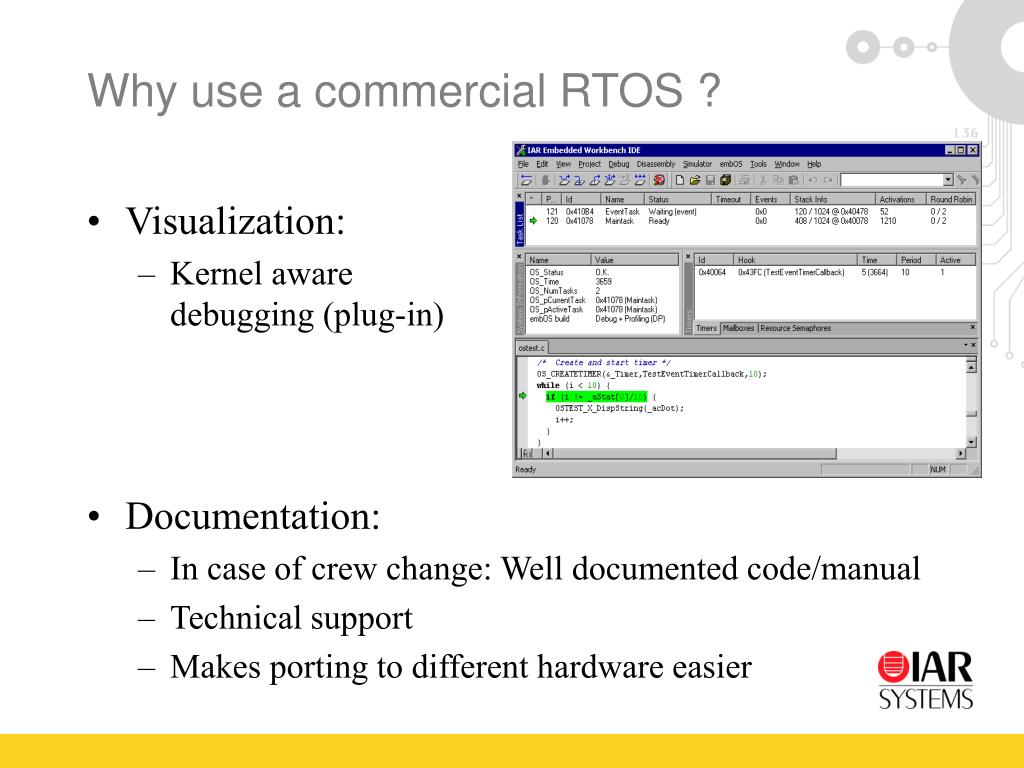

  • Visualization:

    • Kernel aware debugging (plug-in)

  • Documentation:

    • In case of crew change: Well documented code/manual

    • Technical support

    • Makes porting to different hardware easier


Why use a commercial rtos3

Why use a commercial RTOS ?

  • Shorter time to market:

    • Reliability lets developer focus on application

    • Training on RTOS takes less time than inventing it from scratch

    • Writing the documentation is very time consuming

  • Costs:

    • Less expensive than costs for developer when inventing from scratch

    • Less expensive when changing to a different processor

    • Developers costs are higher than buying a commercial RTOS


Objections to not choosing a commercial rtos

Objections to not choosing a commercial RTOS

“My application does not benefit from multitasking!”

  • Timing more accurate

  • Program structure easier

  • Easy to add more components in future

  • Mid-Size App: Smaller code

  • Power savings


Objections to not choosing a commercial rtos1

Objections to not choosing a commercial RTOS

“We have our own, proprietary RTOS and it works fine ! ”

  • Is your RTOS well documented?

  • Portable to different CPU?

  • Crew change

  • Longer learning curve

  • Performance

  • Functionality?

  • Debugger integration?

  • Easier use of middleware


Objections to not choosing a commercial rtos2

Objections to not choosing a commercial RTOS

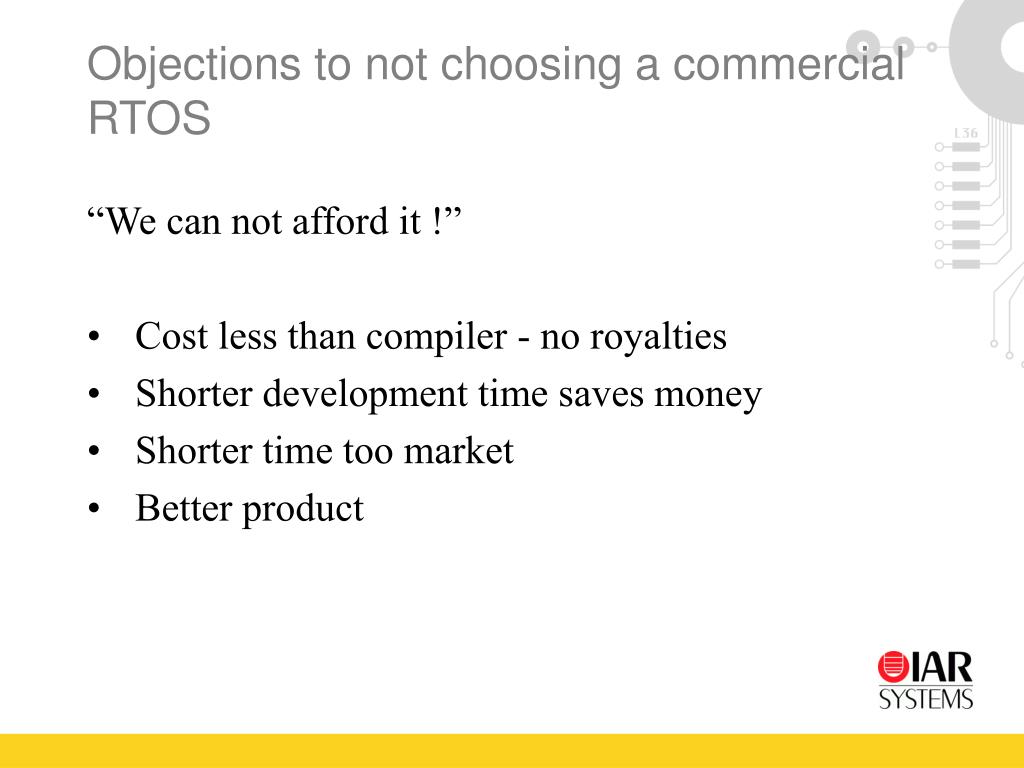

“We can not afford it !”

  • Cost less than compiler - no royalties

  • Shorter development time saves money

  • Shorter time too market

  • Better product


Objections to not choosing a commercial rtos3

Objections to not choosing a commercial RTOS

“I do not want to depend on anybody !”

  • Source code available

  • Less dependency on individual members of development team


Objections to not choosing a commercial rtos4

Objections to not choosing a commercial RTOS

“I do not want to change the existing code!”

  • The existing code can be easily integrated into a single task and split into separate tasks later

  • New code can benefit from the RTOS


Objections to not choosing a commercial rtos5

Objections to not choosing a commercial RTOS

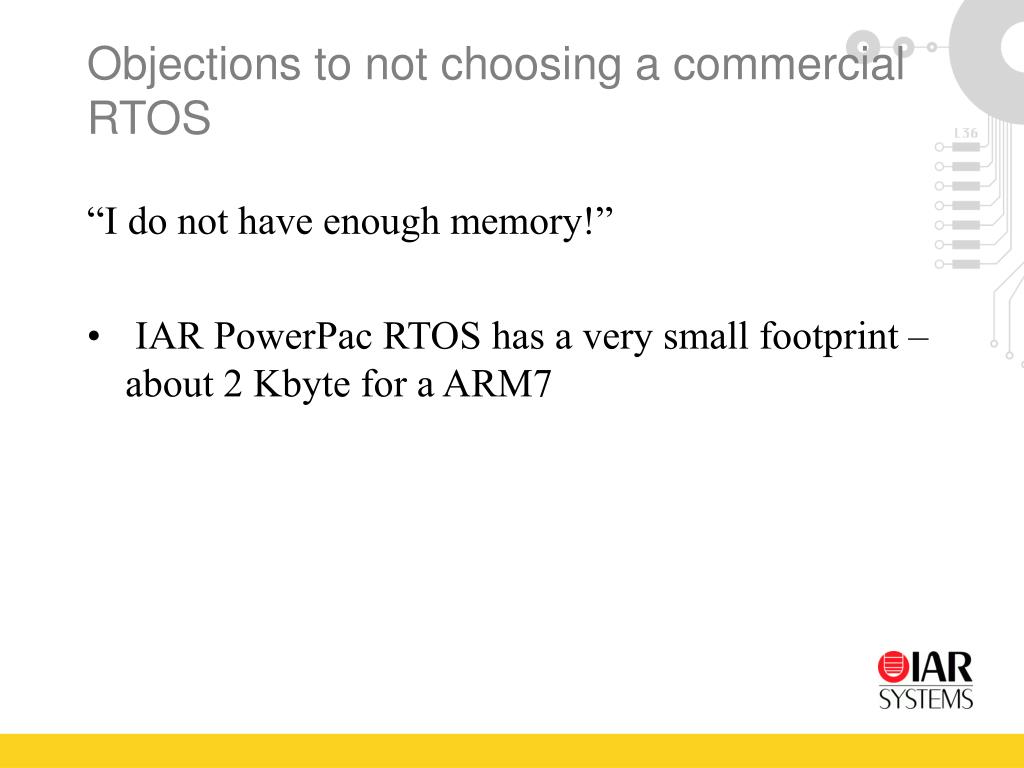

“I do not have enough memory!”

  • IAR PowerPac RTOS has a very small footprint – about 2 Kbyte for a ARM7


Objections to not choosing a commercial rtos6

Objections to not choosing a commercial RTOS

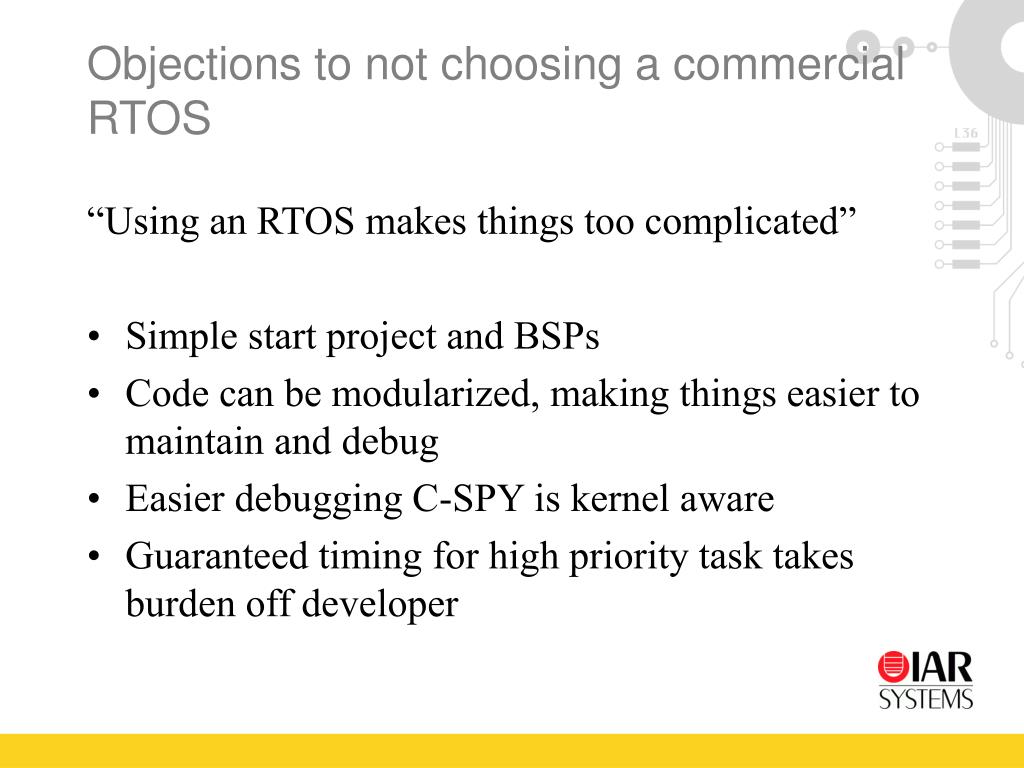

“Using an RTOS makes things too complicated”

  • Simple start project and BSPs

  • Code can be modularized, making things easier to maintain and debug

  • Easier debugging C-SPY is kernel aware

  • Guaranteed timing for high priority task takes burden off developer


Objections to not choosing a commercial rtos7

Objections to not choosing a commercial RTOS

“My application requires hard real time, which an RTOS can not deliver!”

  • Not true:

    • Zero latency for high priority interrupts

    • Short interrupt latency

    • Fast context switch


Objections to not choosing a commercial fs

Objections to not choosing a commercial FS

“We write our own, proprietary File system”

  • Is your File system well documented?

  • Portable to different CPU?

  • Crew change?

  • Performance?

  • Functionality?


Objections to not choosing a commercial fs1

Objections to not choosing a commercial FS

“I have simple routines to read and write data”

  • Do your routines support wear leveling?

  • Do your routines include an error correction algorithm?

  • What happens if you change to a different media type?


Summary

Summary

We offering:

  • A tightly integrated RTOS, file system and communication stacks – all tools for developing embedded applications

  • Perfect compliment to IAR Embedded Workbench

  • Innovative ”low-risk” price model

  • Continious ”add-ons” for more middlewares

  • Upgrade path

  • Same license management system as IAR Embedded Workbench

  • Global technical support


Thank you

Thank You!


  • Login
