  1. Intrusive Activity Chapter 18.2

  2. Molten Magma is less dense than surrounding rocks. • This forces magma to move upward intrude into, the overlying crust.

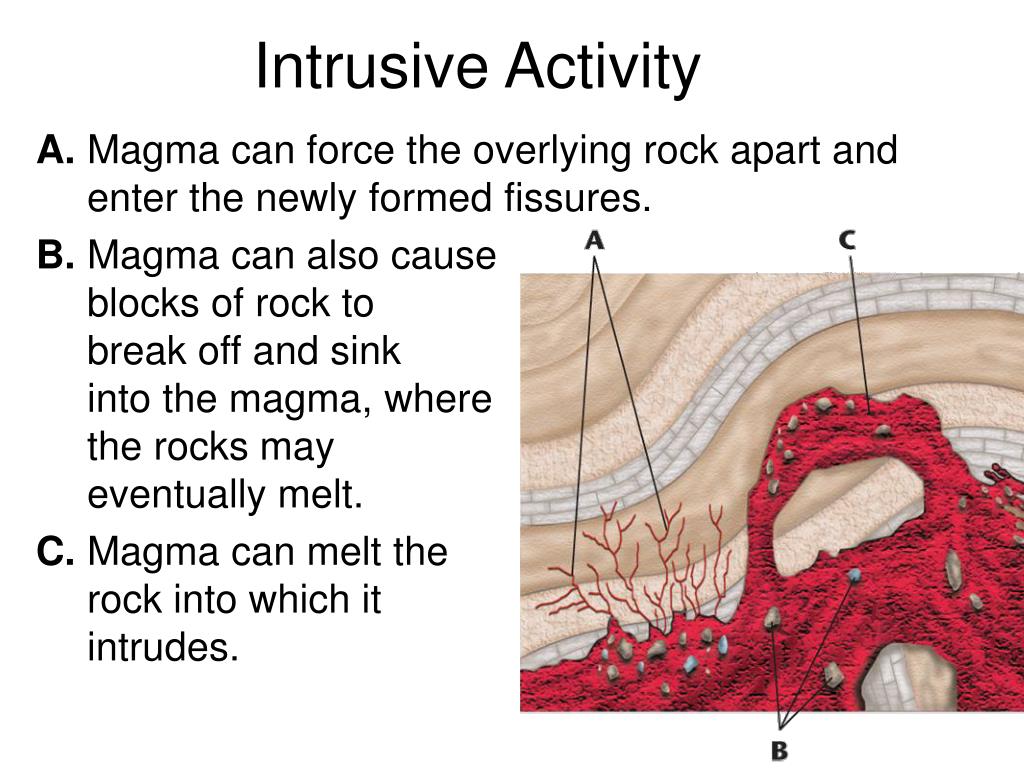

  3. Intrusive Activity A. Magma can force the overlying rock apart and enter the newly formed fissures. B. Magma can also cause blocks of rock to break off and sink into the magma, where the rocks may eventually melt. C. Magma can melt the rock into which it intrudes.

  4. Plutons • Plutons are intrusive igneous rock bodies that can be exposed at Earth’s surface as a result of uplift and erosion and are classified based on their size, shape, and relationship to surrounding rocks.

  5. Plutons

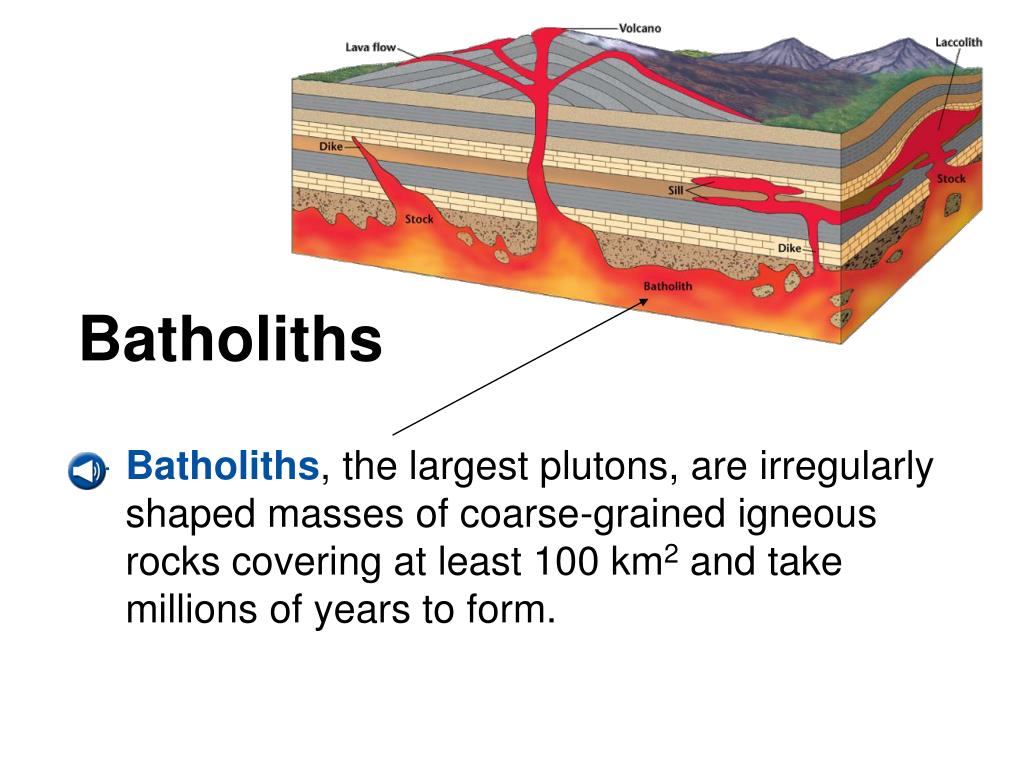

  6. Batholiths • Batholiths, the largest plutons, are irregularly shaped masses of coarse-grained igneous rocks covering at least 100 km2 and take millions of years to form.

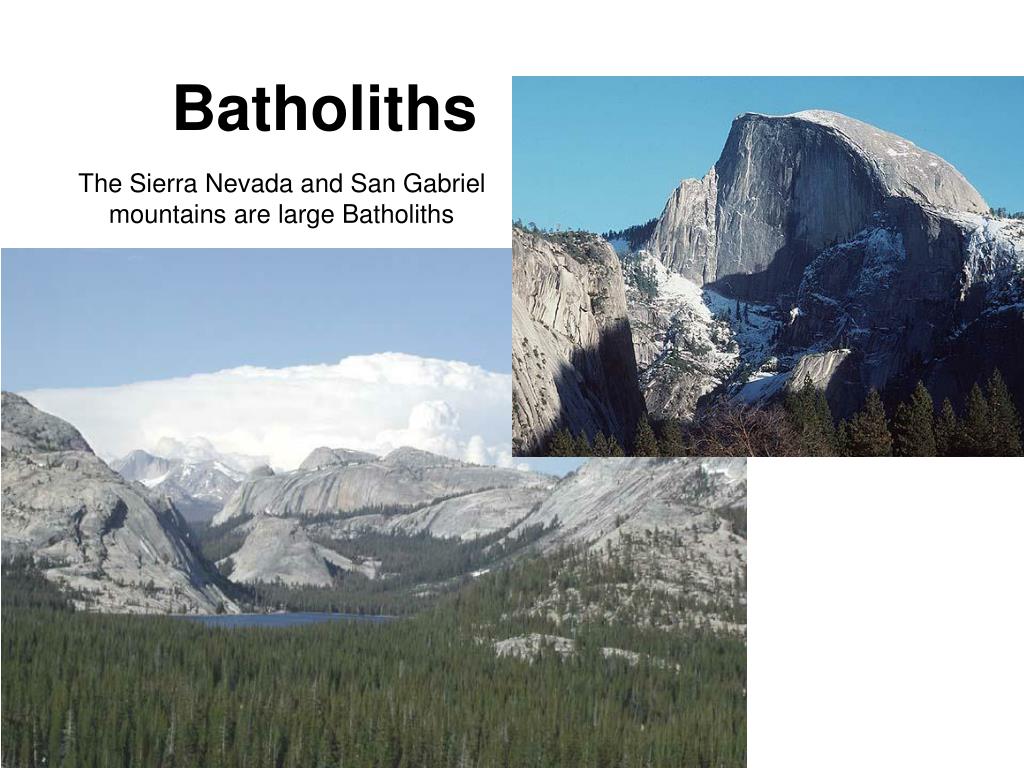

  7. Batholiths The Sierra Nevada and San Gabriel mountains are large Batholiths

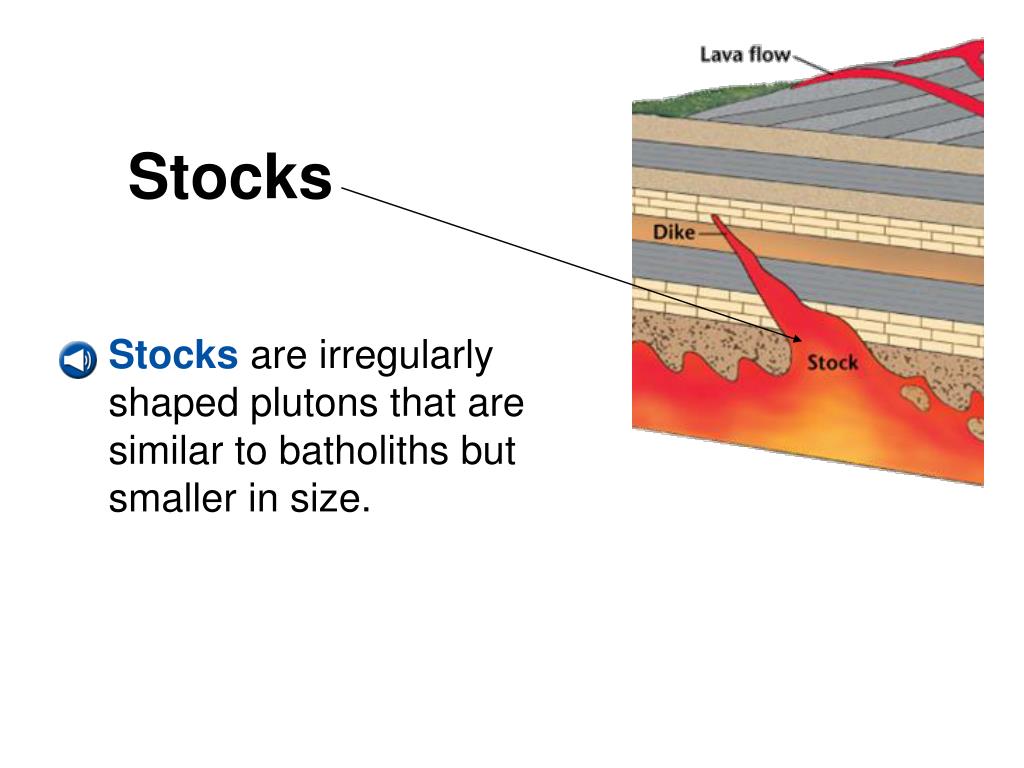

  8. Stocks • Stocks are irregularly shaped plutons that are similar to batholiths but smaller in size.

  9. Laccoliths • A laccolith is a mushroom-shaped pluton with a round top and flat bottom resulting from a Magma intrusion into parallel rock layers close to Earth’s surface.

  10. Laccoliths

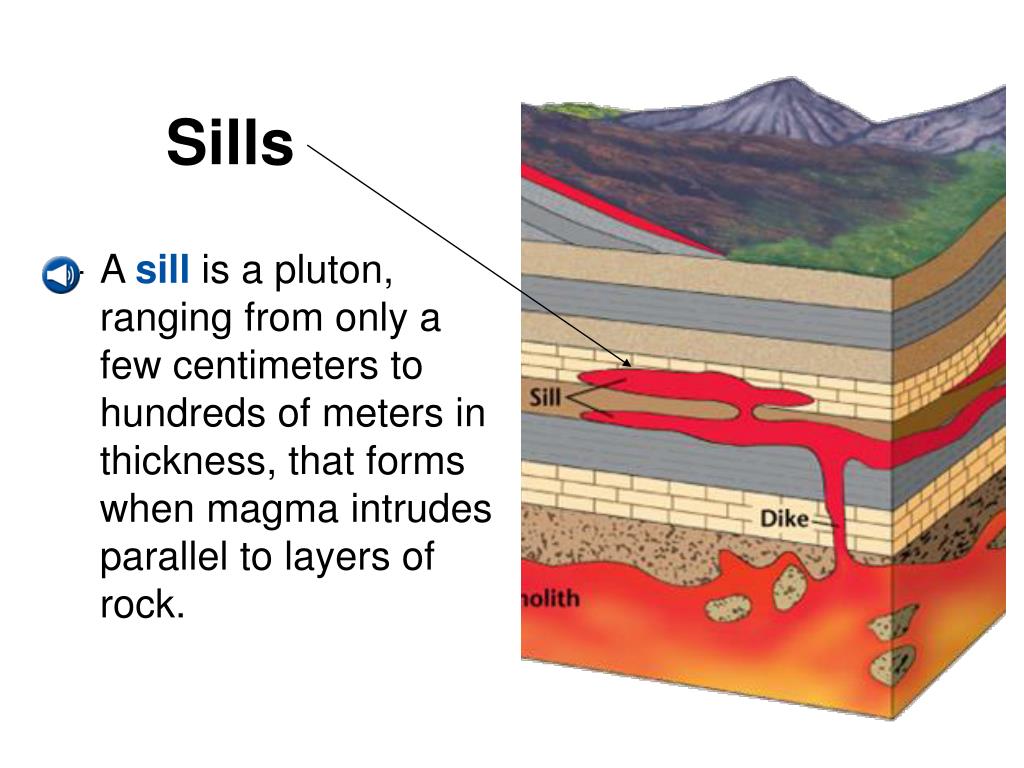

  11. Sills • A sill is a pluton, ranging from only a few centimeters to hundreds of meters in thickness, that forms when magma intrudes parallel to layers of rock.

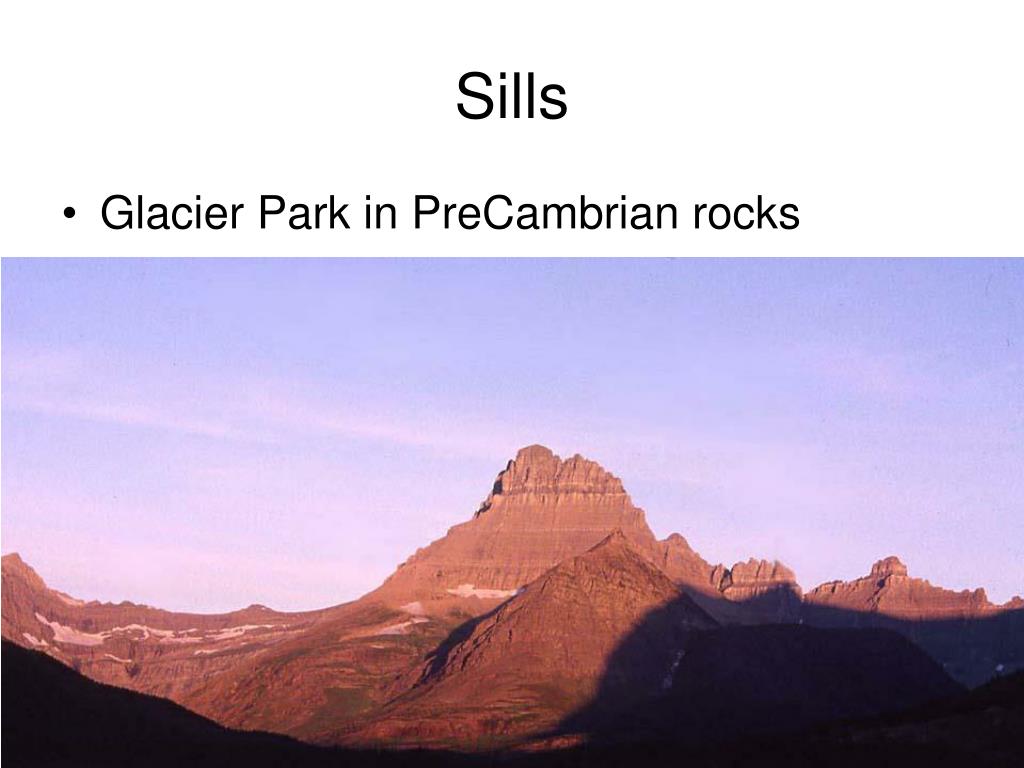

  12. Sills • Glacier Park in PreCambrian rocks

  13. Dikes • A dike is a pluton, ranging from a few centimeters to several meters wide and up to tens of kilometers long, that cuts across preexisting rocks.

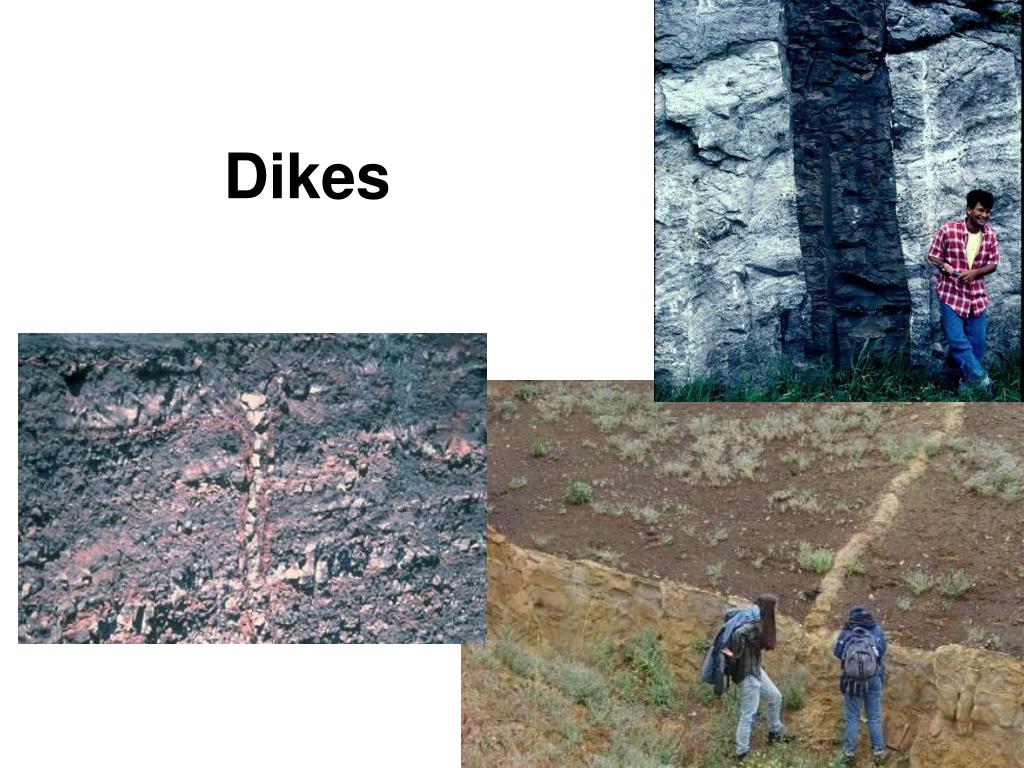

  14. Dikes

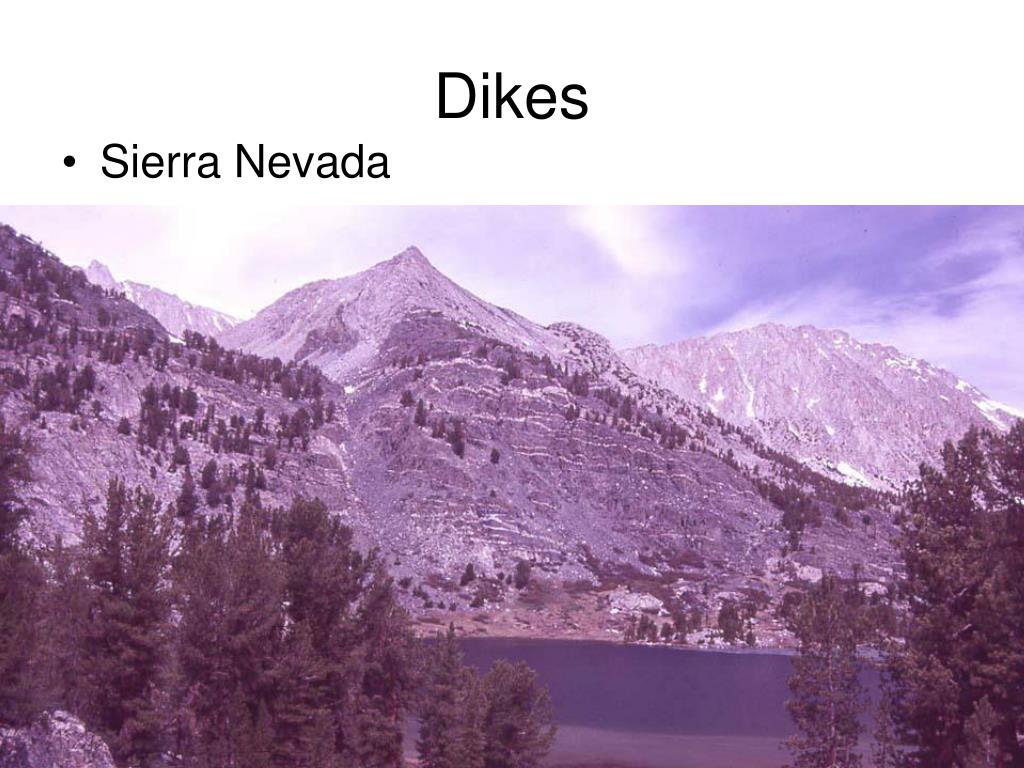

  15. Dikes • Sierra Nevada

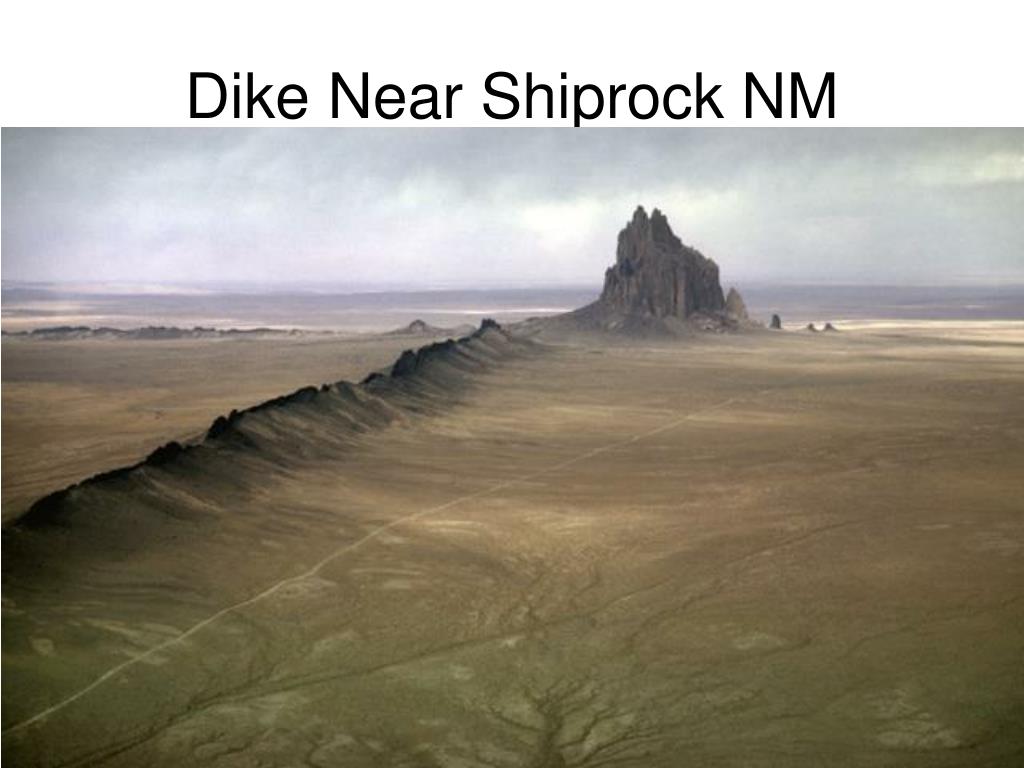

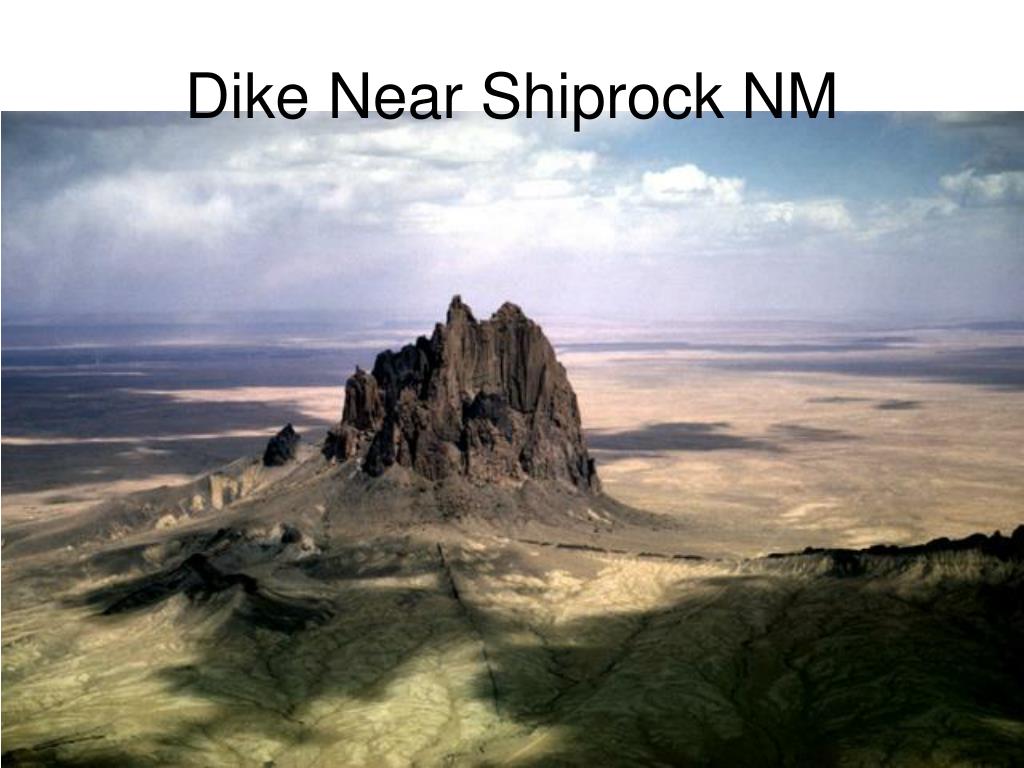

  16. Dike Near Shiprock NM

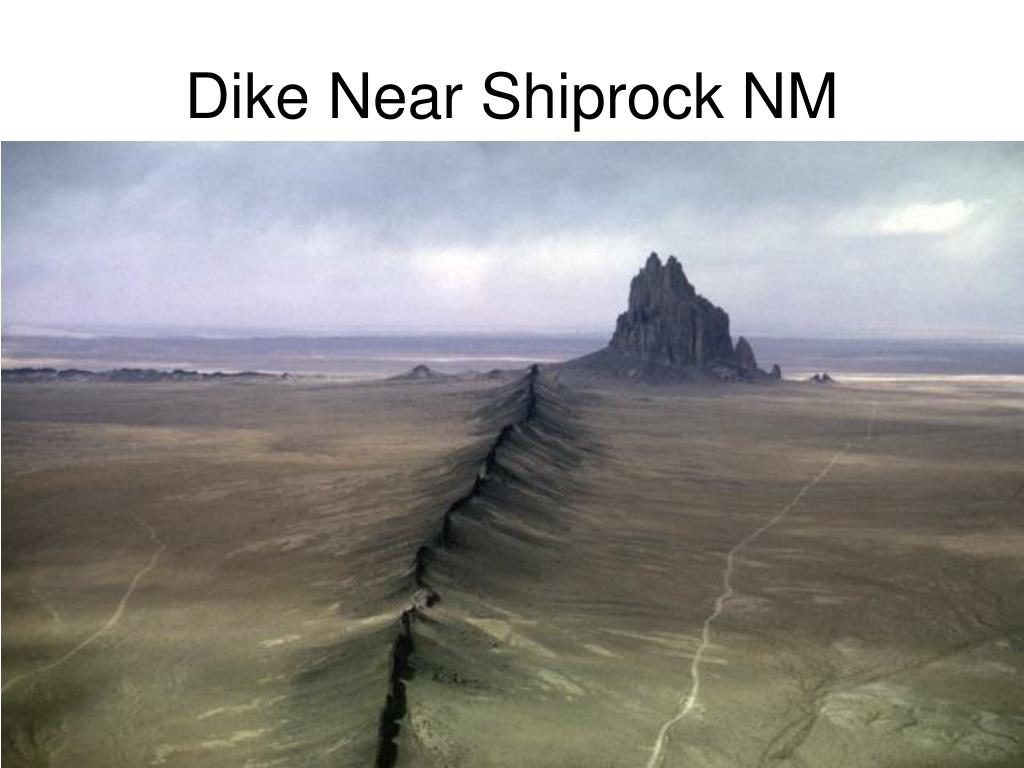

  17. Dike Near Shiprock NM

  18. Dike Near Shiprock NM
