Operating systems

Operating Systems

Prof. Neeraj SuriDinu Sarbu, Brahim Ayari, Andréas Johansson





Operating systems

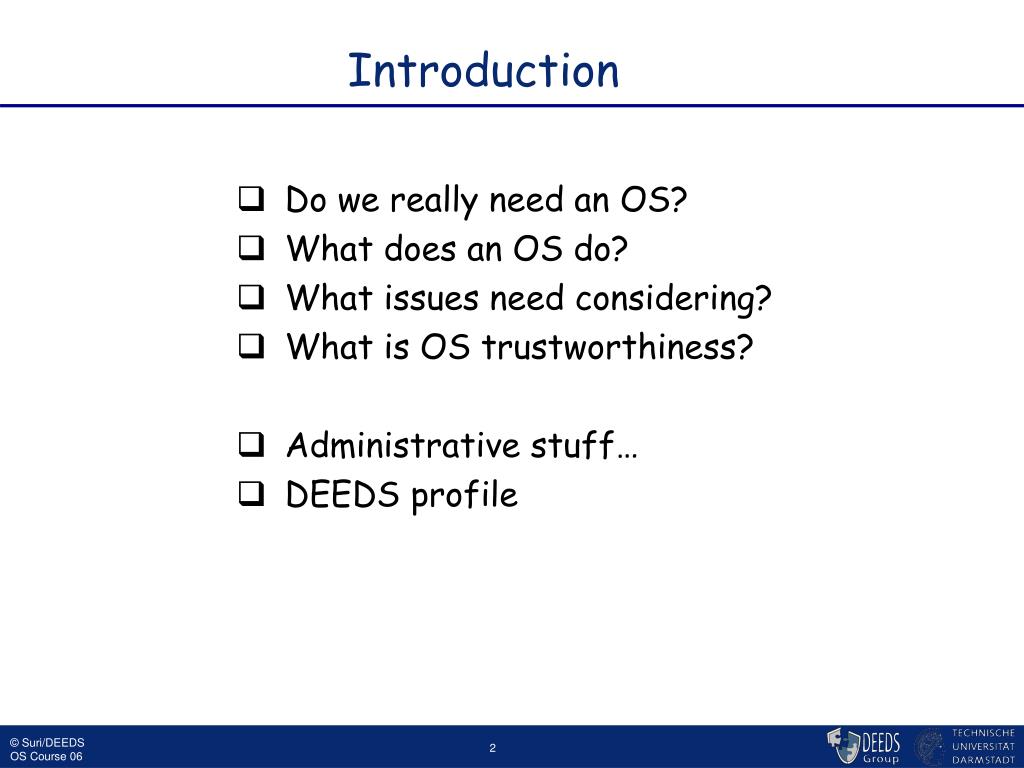

  • Do we really need an OS?

  • What does an OS do?

  • What issues need considering?

  • What is OS trustworthiness?

  • Administrative stuff…

  • DEEDS profile

Os history

OS History

  • Initially there was no OS (or cell phones or iPods’s )

  • 1st Generation: M/C level programming done directly on HW: no disks, no peripherals, single user

  • 2nd Generation: batch programming: card readers, tapes  single program at a time

  • 3rd Generation: multi-programming (time sharing), multiplexing (each job to its memory partition) + scheduling of each partition

  • Now: distributed, networked, virtual machines, multi-user, multi-core, smart cards …

The role of the os

The Role of the OS

  • OS as resource manager

  • OS as virtual/extended machine

4 mil+

(a) pipelined (b) superscalar CPU

Pentium+: > 6 pipeline levels

I o and interrupts

I/O and Interrupts

  • Polling/busy waiting

  • Interrupt driven

  • DMA

(a) I/O triggers for CPU access (b) CPU handling of triggers/interrupts

Users multi processing processes

Users Multi-Processing Processes

  • Process tree

    • A created two child processes, B and C

    • B created three child processes, D, E, and F

Processes limited resources

Processes + Limited Resources?

  • potential deadlock (b) actual deadlock

    sequencing of activities!!!!

Operating system functionality

Operating System Functionality

  • OS is a resource allocator

    • Manages all (HW, applications etc) resources

    • Decides between conflicting requests for efficient and fair resource use

      • each program gets its time with the computing resource

      • each program gets its space with the computing resource

  • OS is a control program

    • Controls execution of programs to prevent errors and improper use of the computer – ordering, sequencing, …

Operating system definition

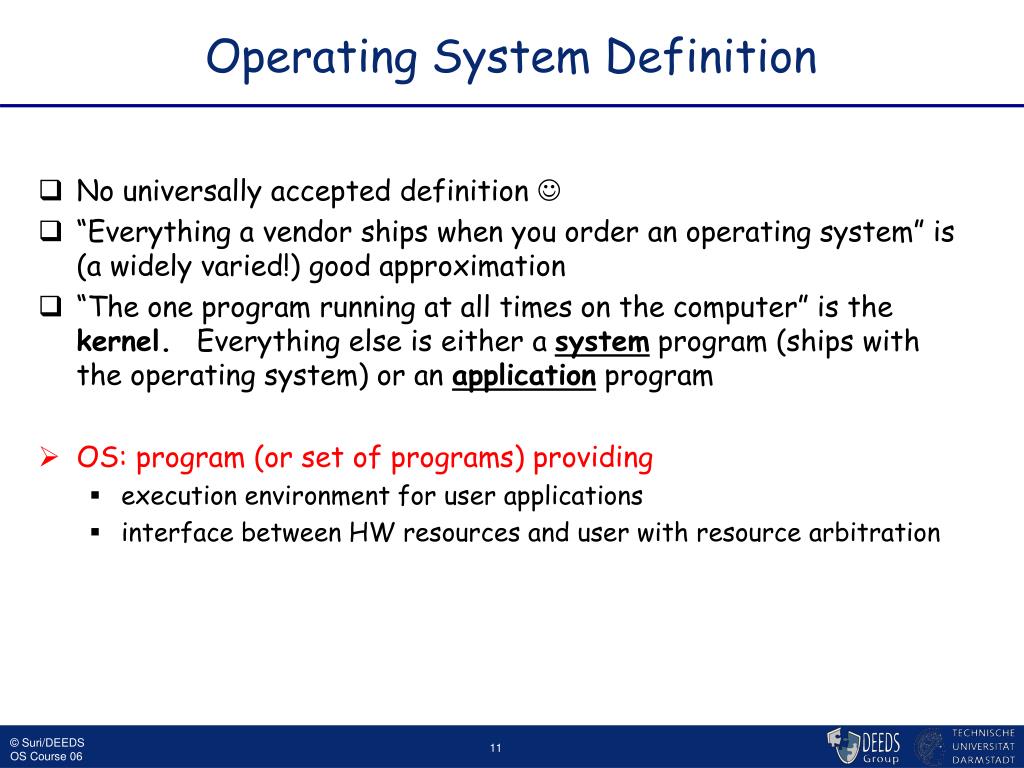

Operating System Definition

  • No universally accepted definition 

  • “Everything a vendor ships when you order an operating system” is (a widely varied!) good approximation

  • “The one program running at all times on the computer” is the kernel. Everything else is either a system program (ships with the operating system) or an application program

  • OS: program (or set of programs) providing

    • execution environment for user applications

    • interface between HW resources and user with resource arbitration

Users processes

Users  Processes

  • Process tree

    • A created two child processes, B and C

    • B created three child processes, D, E, and F

Process management

Process Management

  • A process is a program in execution. It is a unit of work within the system. Program is a passive entity, process is an active entity.

  • Process needs resources to accomplish its task

    • CPU, memory, I/O, files

    • Initialization data

  • Process termination requires reclaim of any reusable resources

  • Single-threaded process has one program counter specifying location of next instruction to execute

    • Process executes instructions sequentially, one at a time, until completion

  • Multi-threaded process has one program counter per thread

  • Typically system has many processes, some user, some operating system running concurrently on one or more CPUs

    • Concurrency by multiplexing the CPUs among the processes / threads

Process management activities

Process Management Activities

OS responsible for process management:

  • Creating and deleting both user and system processes

  • Suspending and resuming processes

  • Providing mechanisms for process synchronization

  • Providing mechanisms for process communication

  • Providing mechanisms for deadlock handling

Memory management

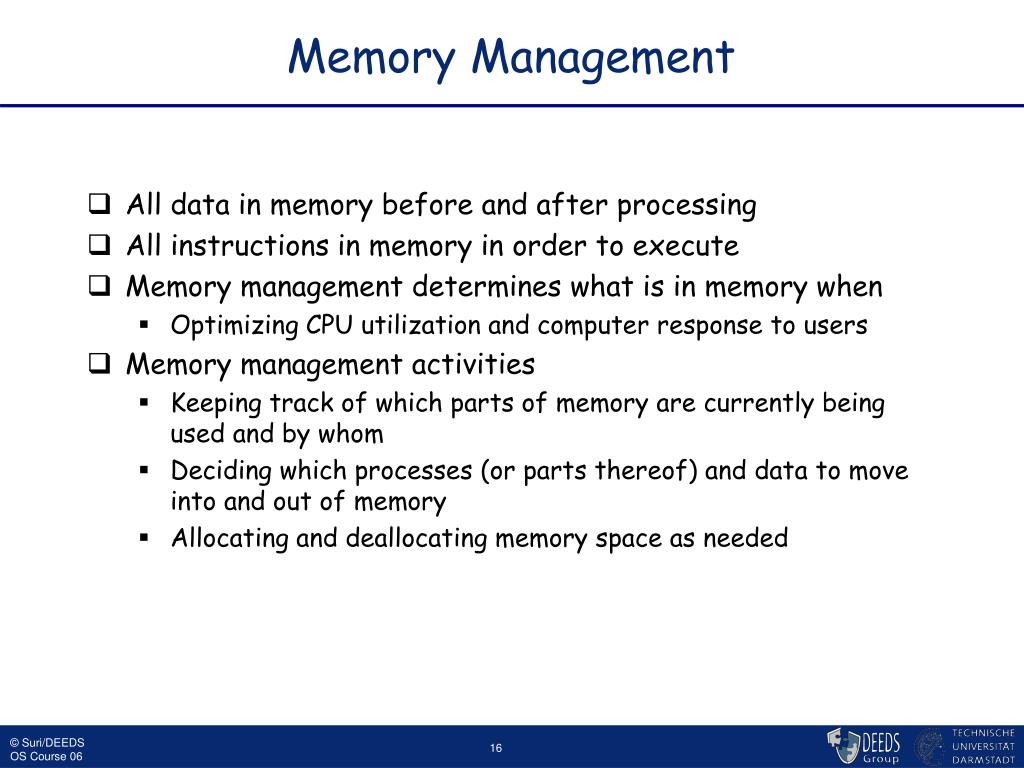

Memory Management

  • All data in memory before and after processing

  • All instructions in memory in order to execute

  • Memory management determines what is in memory when

    • Optimizing CPU utilization and computer response to users

  • Memory management activities

    • Keeping track of which parts of memory are currently being used and by whom

    • Deciding which processes (or parts thereof) and data to move into and out of memory

    • Allocating and deallocating memory space as needed

Storage management

Storage Management

  • OS provides uniform, logical view of information storage

    • Abstracts physical properties to logical storage unit - file

    • Each medium is controlled by a device (i.e., disk drive, tape drive)

      • Varying properties include access speed, capacity, data-transfer rate, access method (sequential or random)

  • File-System management

    • Files usually organized into directories

    • Access control to determine who can access what & when (RW!)

    • OS activities include

      • Creating and deleting files and directories

      • Primitives to manipulate files and dirs

      • Mapping files onto secondary storage

      • Backup files onto stable (non-volatile) storage media

Mass storage management

Mass-Storage Management

  • Usually disks used to store data that does not fit in main memory or data that must be kept for a “long” period of time.

  • Speed of operation hinges on disk subsystem and its algorithms

  • OS activities

    • Free-space management

    • Storage allocation

    • Disk scheduling

  • Some storage need not be fast

    • Tertiary storage includes optical storage, magnetic tape

    • Still must be managed

    • Varies between WORM (write-once, read-many-times) and RW (read-write)

I o subsystem

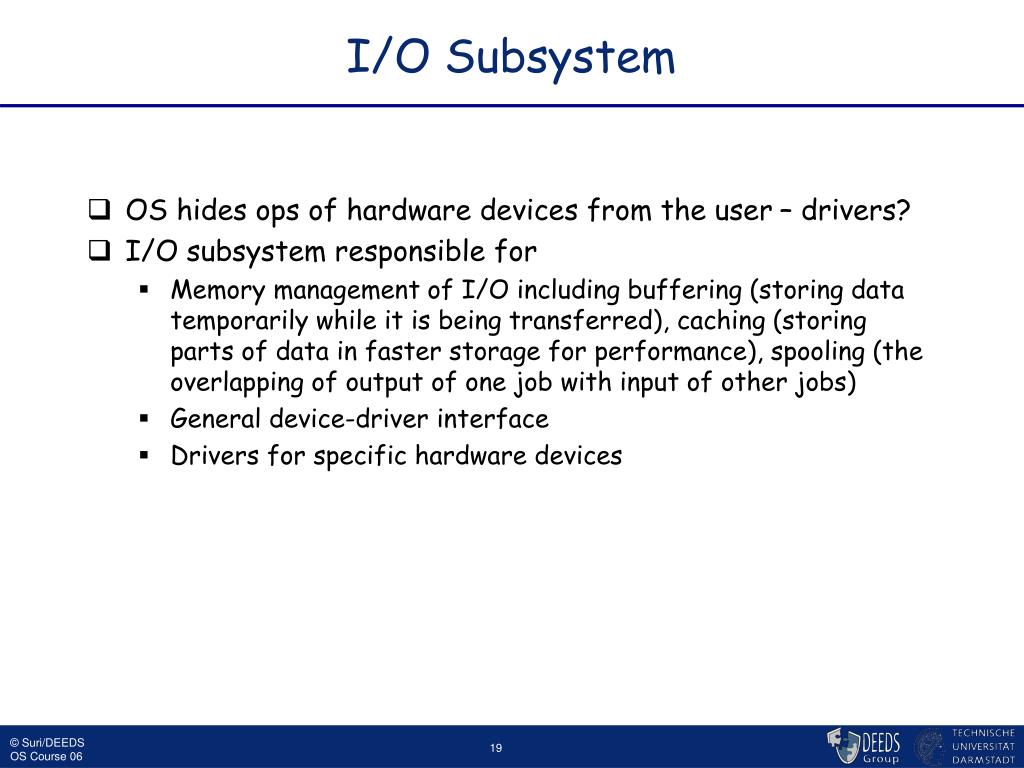

I/O Subsystem

  • OS hides ops of hardware devices from the user – drivers?

  • I/O subsystem responsible for

    • Memory management of I/O including buffering (storing data temporarily while it is being transferred), caching (storing parts of data in faster storage for performance), spooling (the overlapping of output of one job with input of other jobs)

    • General device-driver interface

    • Drivers for specific hardware devices

I o structures

I/O Structures

  • Synchronous: After I/O starts, control returns to user program only upon I/O completion.

    • Wait instruction idles the CPU until the next interrupt

    • Wait loop (contention for memory access).

    • At most one I/O request is outstanding at a time, no simultaneous I/O processing.

  • Asynchronous: After I/O starts, control returns to user program without waiting for I/O completion.

    • System call – request to OS allows user wait for I/O finish

    • Device-status table contains entry for each I/O device indicating its type, address, and state.

    • Operating system indexes into I/O device table to determine device status and to modify table entry to include interrupt.

Device status table

Device-Status Table

User kernel comm system calls

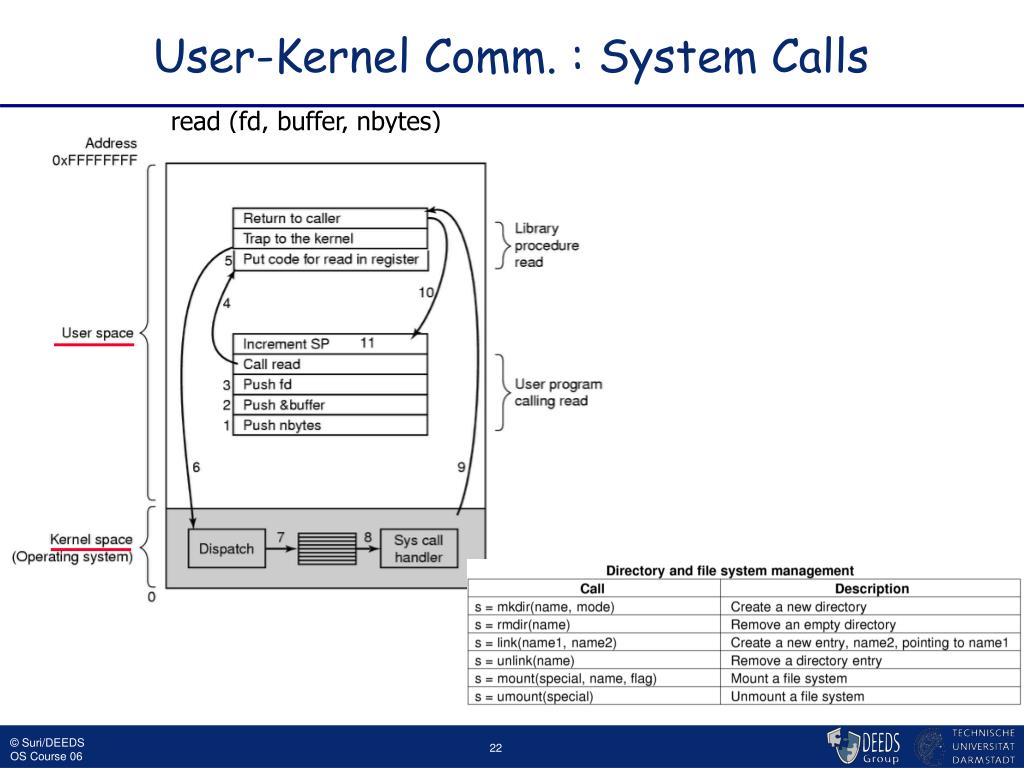

User-Kernel Comm. : System Calls

read (fd, buffer, nbytes)

System calls process file mem mgmt

System Calls (Process/File/Mem Mgmt)

Os structures

OS Structures?

  • Monolithic: all user/kernel functions inside a single kernel (pro: all OS procedures can call on each other, visible to all. con: all procedures need to be compiled and linked to each other – static!)

  • Layered

  • Virtual machines

  • Client-Server/Microkernel based: non-basic services float as servers with a basic kernel for primitive functions: IPC based!

Operating system structure

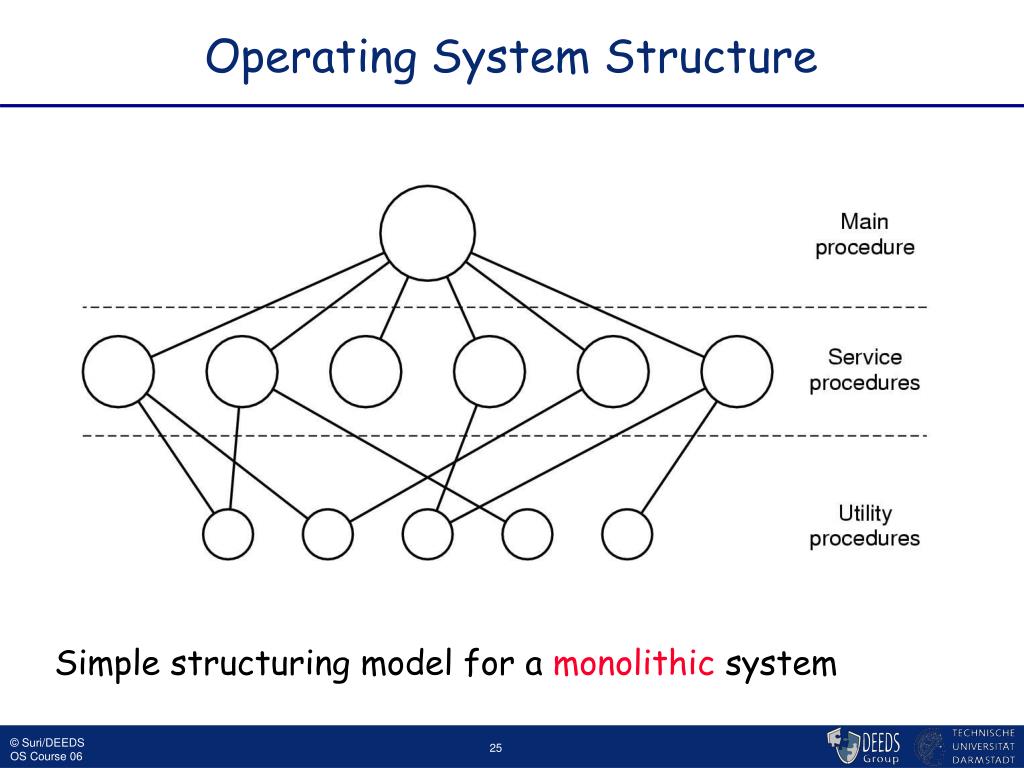

Operating System Structure

Simple structuring model for a monolithic system

Operating system structure1

Operating System Structure

Structure of the THE layered operating system

(E. W. Dijkstra, 1968)

Operating system structure2

Operating System Structure

Structure of VM/370 with CMS… JVM’s?

Operating system structure3

Operating System Structure

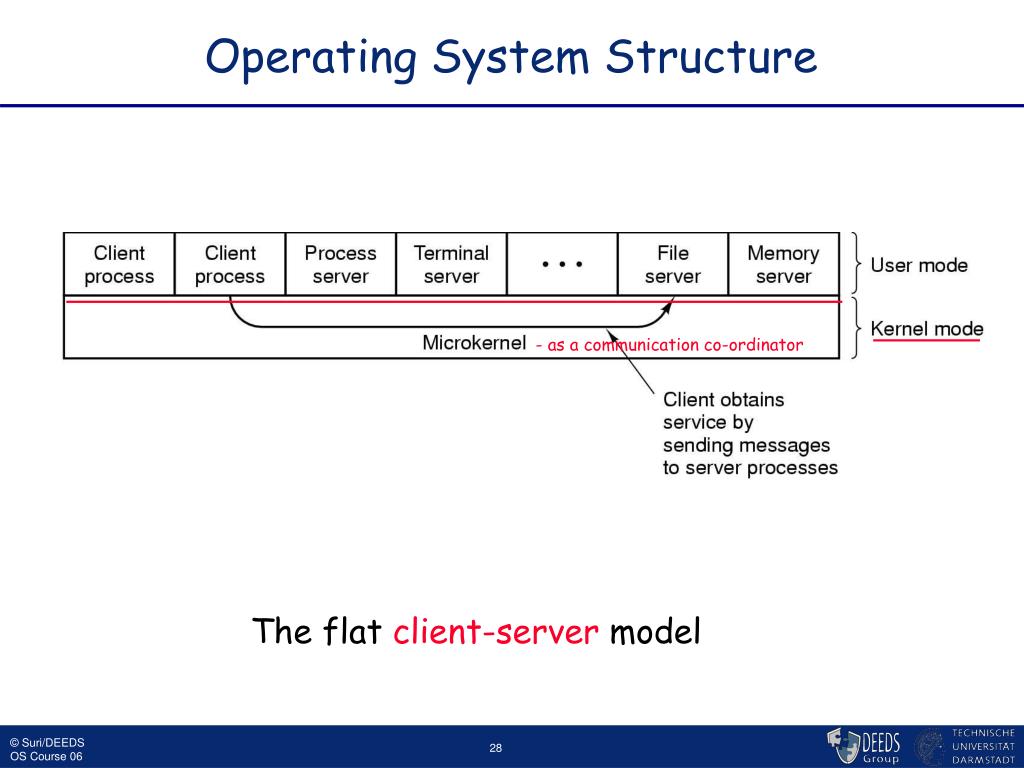

The flat client-server model

- as a communication co-ordinator

Computing environments

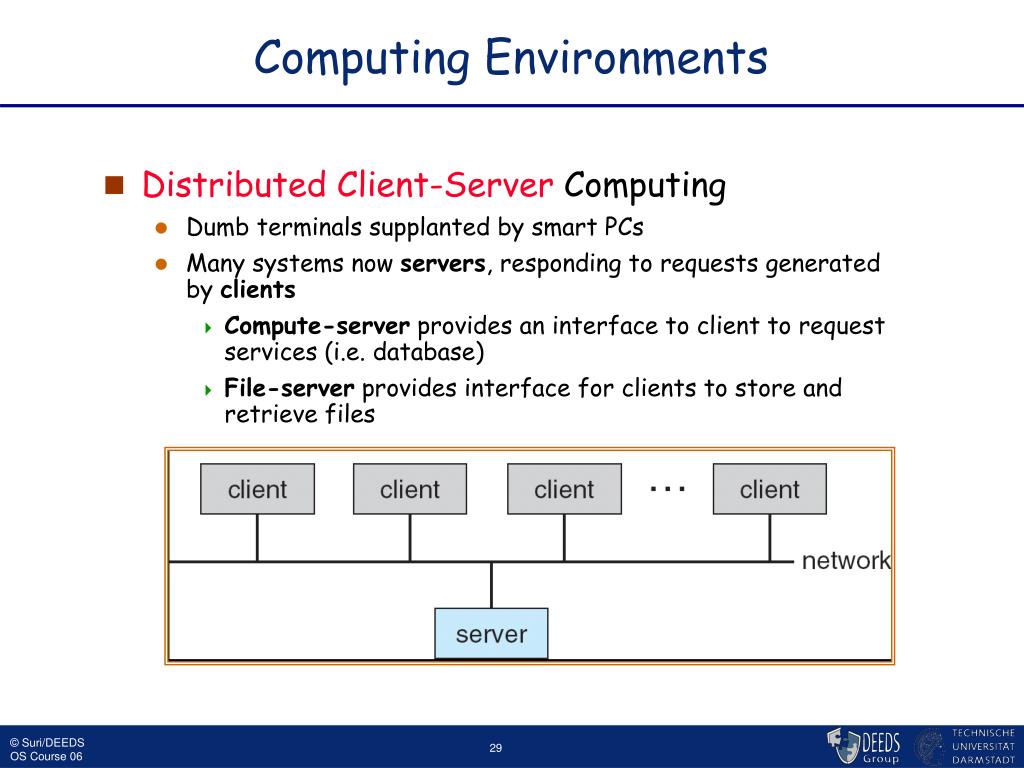

Computing Environments

  • Distributed Client-Server Computing

    • Dumb terminals supplanted by smart PCs

    • Many systems now servers, responding to requests generated by clients

      • Compute-server provides an interface to client to request services (i.e. database)

      • File-server provides interface for clients to store and retrieve files

Operating system structure4

Operating System Structure

The client-server model in a distributed system

Distributed networked os s

Distributed/Networked OS’s?

  • Flexible: resources/functionality can be added

  • Sharing of data, msg, devices

  • Cheaper? price/performance

  • Faster?

  • Reliable/Dependable? (Efficient, fair, available)

  • Responsive? (RT.. in-time or …)

  • Secure, networked, load balancing?


Operating systems






Shells, Editor, Compiler


e.g. libx.a





Application Programming Interface (API)

e.g. open, close, read, write, fork, exec, kill




File System

Access Control












TCP/IP, PPP, ...


Hardware (centralized or distributed)

Course outline

Course Outline

  • Processes and Threads

  • Deadlocks/Distributed Concurrency Management

  • Memory Management

  • Input/Output

  • File Systems

  • Resource Allocation/Scheduling

  • Distributed/Networked OS: Models, RPC, …

  • Checkpointing, Recovery Blocks and Rejuvenation

  • Drivers and System Profiling

  • Security

  • Verification/Validation

  • Embedded/Real-Time OS’s

Operating systems

Relevant Literature

  • Modern Operating Systems; 2nd Edition 2001+, A. Tanenbaum, Prentice Hall

  • Operating System Concepts, 7th Edition 2005, Silberschatz et al, John Wiley and Sons

  • How to Break Security,  2003, J. Whittaker and H. Thompson, Addison-Wesley

  • Papers!!!

  • Slides are available on the homepage

    • Username: oscourse, password: trustworthy

Course structure

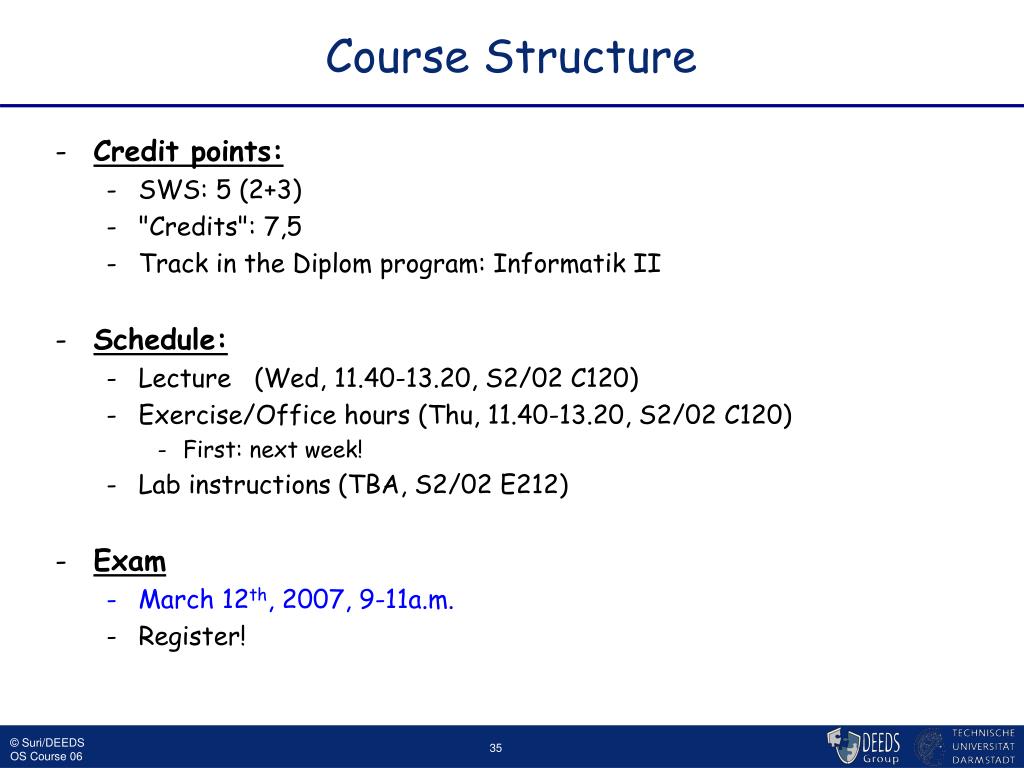

Course Structure

  • Credit points:

    • SWS: 5 (2+3)

    • "Credits": 7,5

    • Track in the Diplom program: Informatik II

  • Schedule:

    • Lecture   (Wed, 11.40-13.20, S2/02 C120)

    • Exercise/Office hours (Thu, 11.40-13.20, S2/02 C120)

      • First: next week!

    • Lab instructions (TBA, S2/02 E212)

  • Exam

    • March 12th, 2007, 9-11a.m.

    • Register!

Operating systems


  • Linux modules!

    • Investigate how the theoretical topics of the lecture apply to real OS’s

    • Optional, but one exam problem will require lab experience!

    • 2 lab assignments:

      • Introduction to device drivers (modules)

      • Build a module

    • OR: if you consider yourself experienced enough with Linux driver programming, contact us for a special assignment!

    • Poolroom E212

    • Username and Password will be handed out

Operating systems

Related Seminars

  • Mobile Embedded Systems

    Tu, Oct 17th, S2|02 – E215 @ 13.30-15.10

  • Secure/Trusted Operating Systems

    Thu, Oct 19th, S2|02 - E215 @ 11.40-13.20


Dependable embedded system software group deeds

Dependable Embedded System & Software Group (DEEDS)

Neeraj Suri

Dept. of Computer Science

TU Darmstadt, Germany

Dependable Embedded Systems & SW Group


What isn t a an embedded computing system

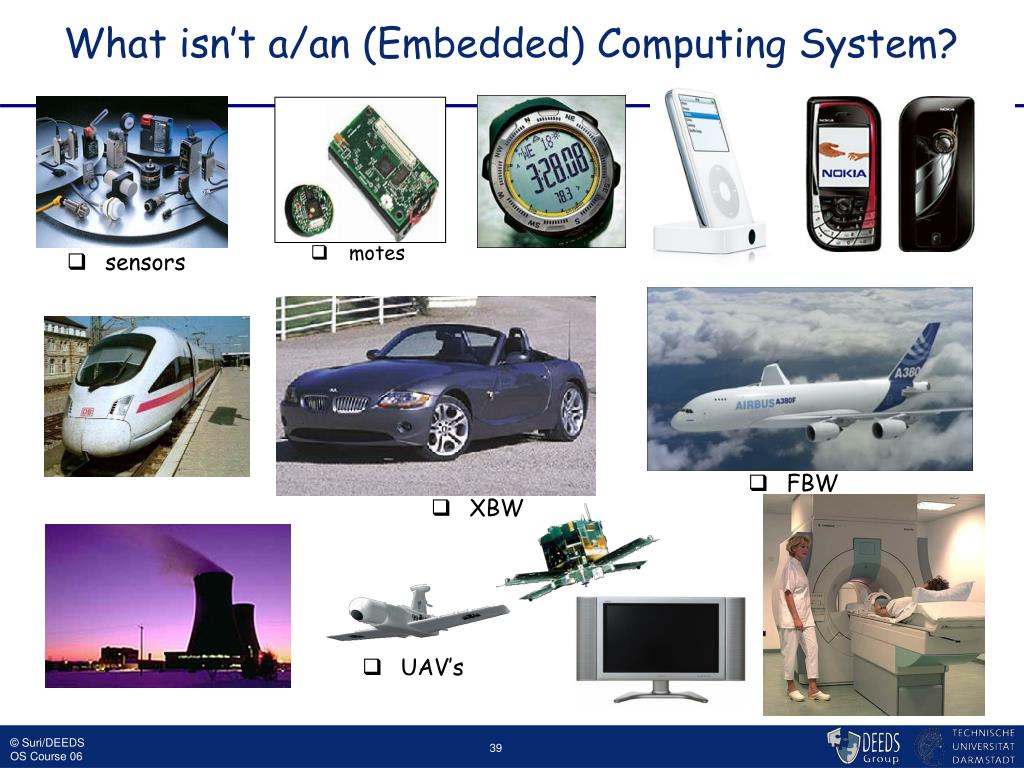

What isn’t a/an (Embedded) Computing System?

  • monitoring

  • dissemination

  • response

  • motes

  • sensors

  • FBW

  • XBW

  • UAV’s

Lets define emergent embedded systems es s

Lets Define Emergent Embedded Systems (ES’s)…

  • Involve computing elements

    • … that are part of a larger system

    • … whose primary task is not standalone computation

    • … are often resource constrained

  • Only HW? Only SW? Standalone? Closed? NO…open system-of-systems, networked …

  • ES utility comes from both functionality & its being trusted (D+S+R) for usage:

    • dependable (D)

    • secure (S)

    • responsive (R)

  • monitoring

  • dissemination

  • response

What all we do and with whom

What all we do and with whom…

  • Distributed/Networked OS

    • Testing

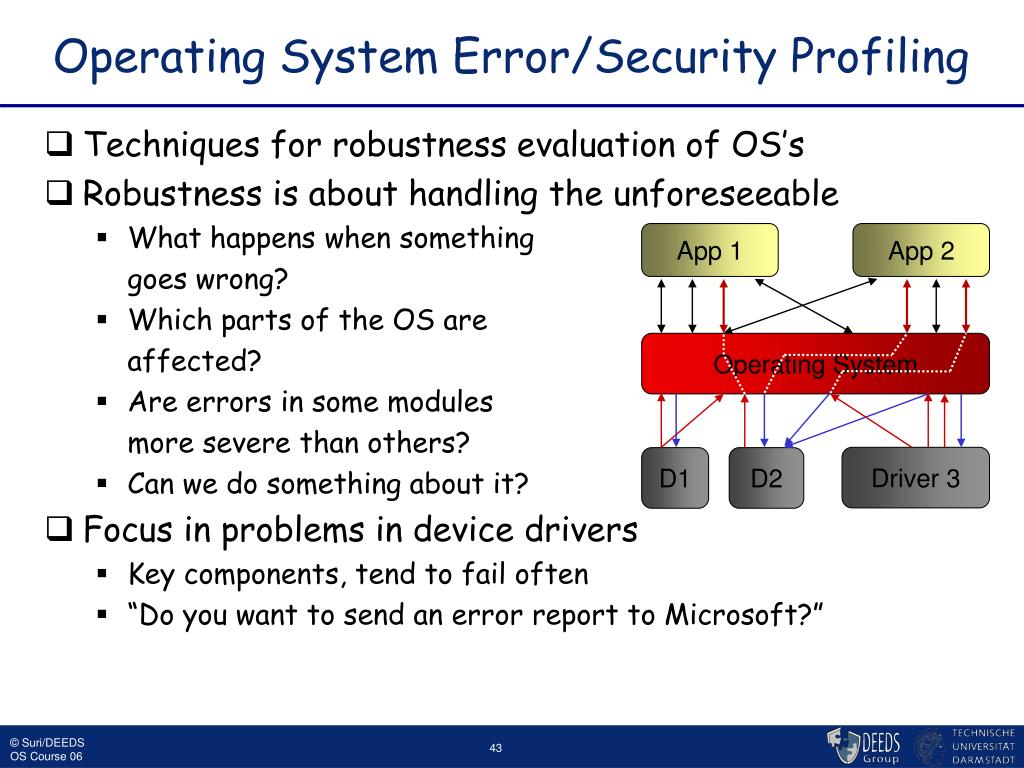

    • Robustness/Security Profiling

    • Internet level Client-Server Replication Strategies

  • Mobile Sensor Networks

    • Distributed Transactions

    • QoS: responsive, secure, dependable comm

  • Distributed Systems

    • Protocols: Agreement, Diagnosis

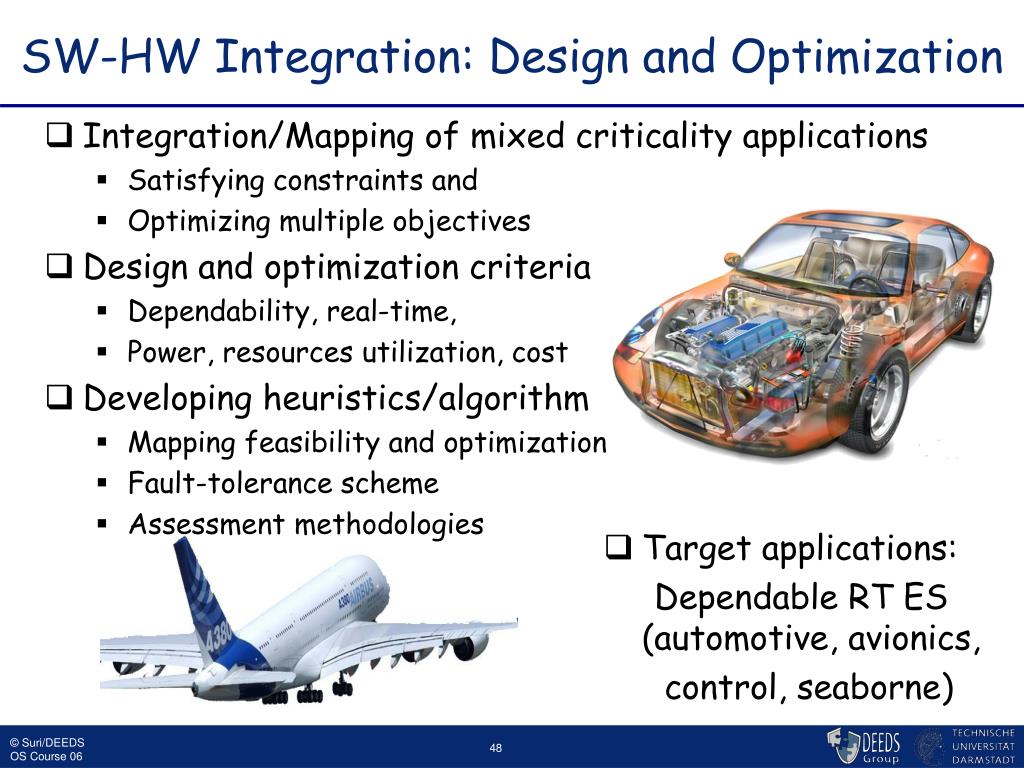

    • Integration

    • Power

  • Microsoft Research, Intel, SAP, IBM, Audi, Airbus, Daimler, Ericsson, European Commission, US-NSF…

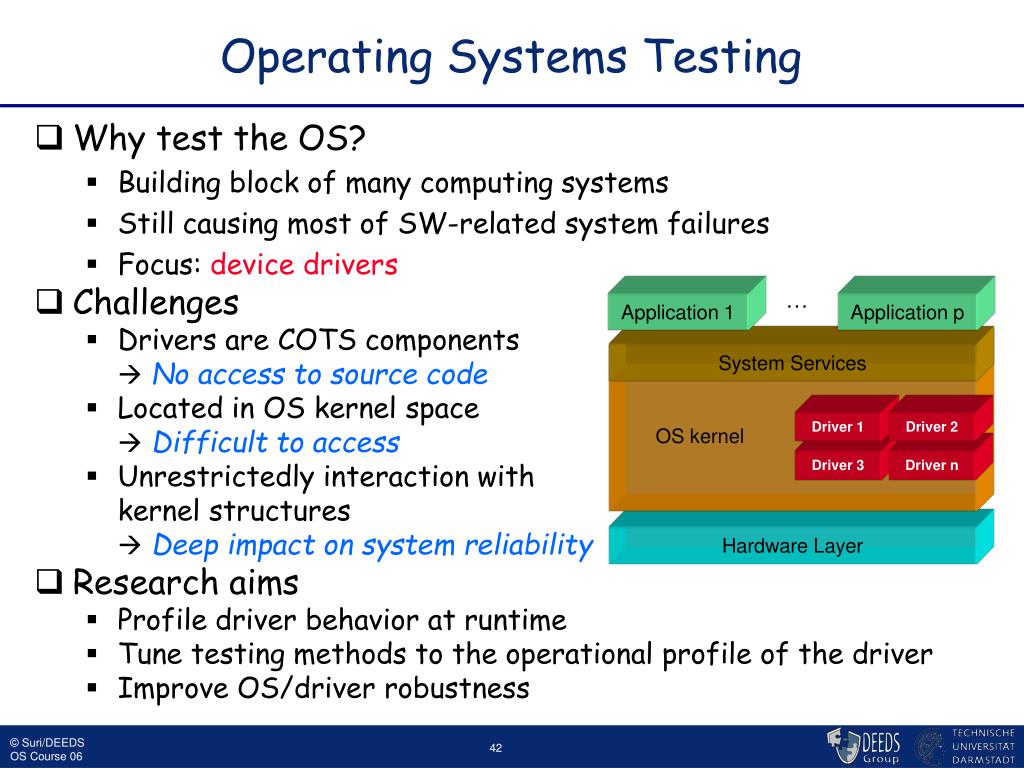

Operating systems testing

Application 1

Application p

System Services

Driver 1

Driver 2

OS kernel

Driver 3

Driver n

Hardware Layer

Operating Systems Testing

  • Why test the OS?

    • Building block of many computing systems

    • Still causing most of SW-related system failures

    • Focus: device drivers

  • Challenges

    • Drivers are COTS components

      No access to source code

    • Located in OS kernel space

      Difficult to access

    • Unrestrictedly interaction with

      kernel structures

      Deep impact on system reliability

  • Research aims

    • Profile driver behavior at runtime

    • Tune testing methods to the operational profile of the driver

    • Improve OS/driver robustness

Operating system error security profiling

App 1

App 2

Operating System

Driver 3



Operating System Error/Security Profiling

  • Techniques for robustness evaluation of OS’s

  • Robustness is about handling the unforeseeable

    • What happens when something

      goes wrong?

    • Which parts of the OS are


    • Are errors in some modules

      more severe than others?

    • Can we do something about it?

  • Focus in problems in device drivers

    • Key components, tend to fail often

    • “Do you want to send an error report to Microsoft?”

Byzantine fault tolerant replication

Byzantine Fault-Tolerant Replication


  • Agreement Certificate:

  • f + 1 identical

  • responses

  • Execute

  • in this order



Dependable wireless sensor networks

Dependable Wireless Sensor Networks

  • Wireless Sensor Networks (WSN)

  • Applications

    • Tracking & Monitoring

    • Measurement

  • Data Transport

    • Responsiveness

      • Delivery reliability

      • Timeliness

    • Reliability modeling

  • Sustainability of WSN

    • Maintenance of deployed WSN

    • Failure detection and diagnosis

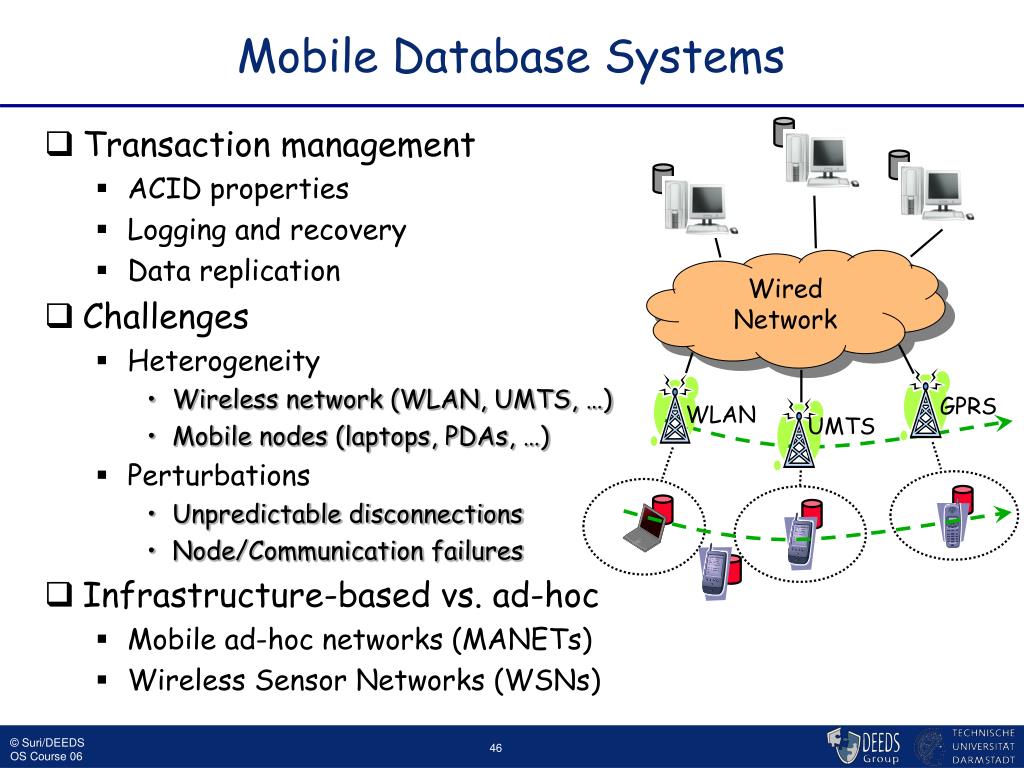

Mobile database systems

Wired Network




Mobile Database Systems

  • Transaction management

    • ACID properties

    • Logging and recovery

    • Data replication

  • Challenges

    • Heterogeneity

      • Wireless network (WLAN, UMTS, …)

      • Mobile nodes (laptops, PDAs, …)

    • Perturbations

      • Unpredictable disconnections

      • Node/Communication failures

  • Infrastructure-based vs. ad-hoc

    • Mobile ad-hoc networks (MANETs)

    • Wireless Sensor Networks (WSNs)

Distributed diagnosis

Distributed Diagnosis

  • Why diagnosis

    • Maintenance: shall I change a

      component? (DECOS – Audi, etc.)

    • Fault tolerance: is a process faulty?

      Shall I trust it?

  • Challenge: unstable systems

    • Smaller electronic elements

      • Transient faults are more likely to happen

    • Spread of wireless networks

      • Access collisions, temporary disconnections

    • Diagnosis shall support the

      autonomic abilities of the systems

      • Self-healing, self-reconfiguring, etc…

Sw hw integration design and optimization

SW-HW Integration: Design and Optimization

  • Integration/Mapping of mixed criticality applications

    • Satisfying constraints and

    • Optimizing multiple objectives

  • Design and optimization criteria

    • Dependability, real-time,

    • Power, resources utilization, cost

  • Developing heuristics/algorithm

    • Mapping feasibility and optimization

    • Fault-tolerance scheme

    • Assessment methodologies

  • Target applications:

    Dependable RT ES (automotive, avionics,

    control, seaborne)

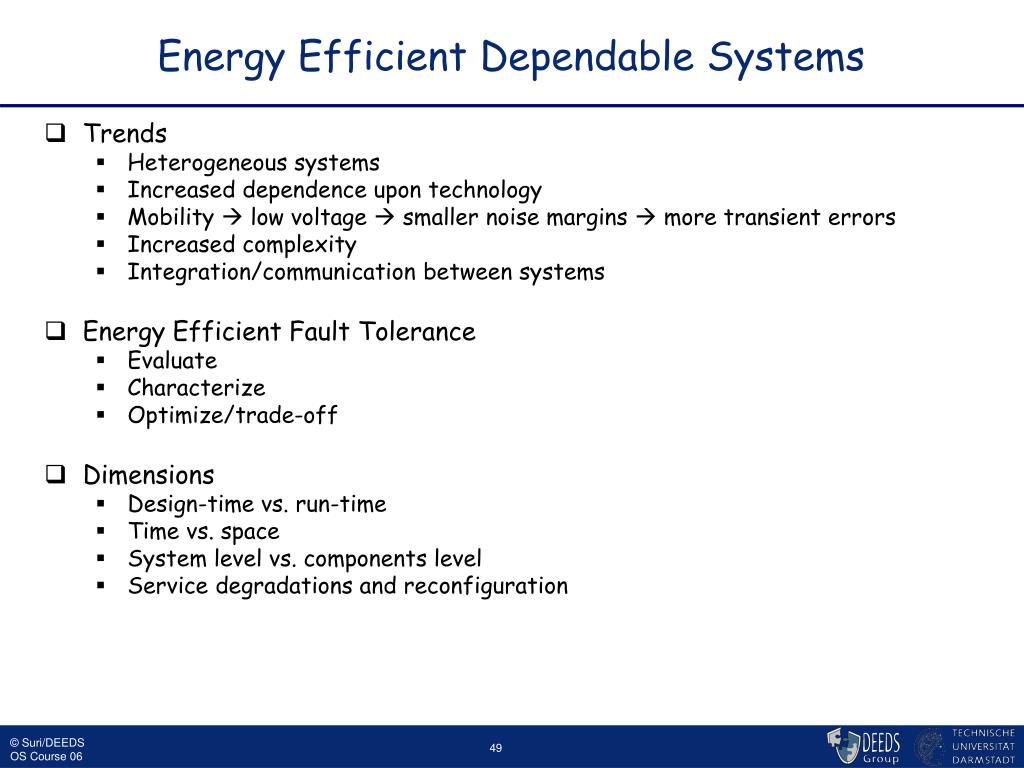

Energy efficient dependable systems

Energy Efficient Dependable Systems

  • Trends

    • Heterogeneous systems

    • Increased dependence upon technology

    • Mobility  low voltage  smaller noise margins  more transient errors

    • Increased complexity

    • Integration/communication between systems

  • Energy Efficient Fault Tolerance

    • Evaluate

    • Characterize

    • Optimize/trade-off

  • Dimensions

    • Design-time vs. run-time

    • Time vs. space

    • System level vs. components level

    • Service degradations and reconfiguration

  • Login
